Hunting down a part number for your Takeuchi TB020? This 403-page Takeuchi TB020 parts manual PDF (OEM #PD3-102Z4) is the complete factory parts catalog for the Compact Excavator, from crawler belt to the Kubota D1105B engine bolted inside it. Every assembly gets an exploded view keyed to genuine Takeuchi part numbers: track rollers and travel device, slewing gear, control valves in both link and hydraulic type, plus bucket and seat variants split by serial range and market. A numerical index ties any part number back to its diagram, so you can identify a mystery component from the casting alone. Reshimming the boom swing? The catalog calls out the exact 0.2 mm shims and 4.5 mm washers, so the right hardware shows up in the box. No more squinting at a greasy microfiche. Bookmarked by section, searchable by keyword, and it opens on the phone already in your pocket.
What's Inside This Takeuchi TB020 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

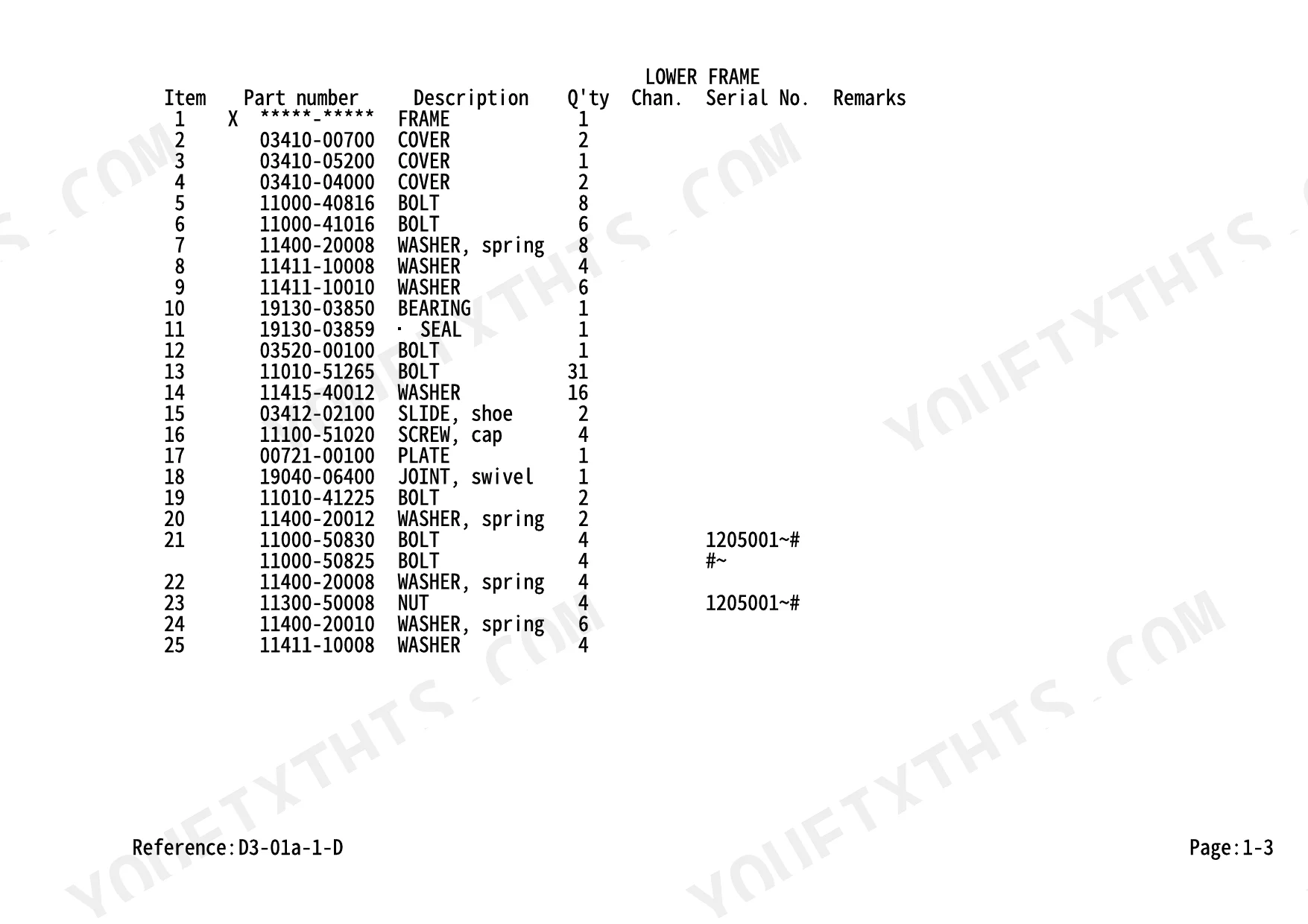

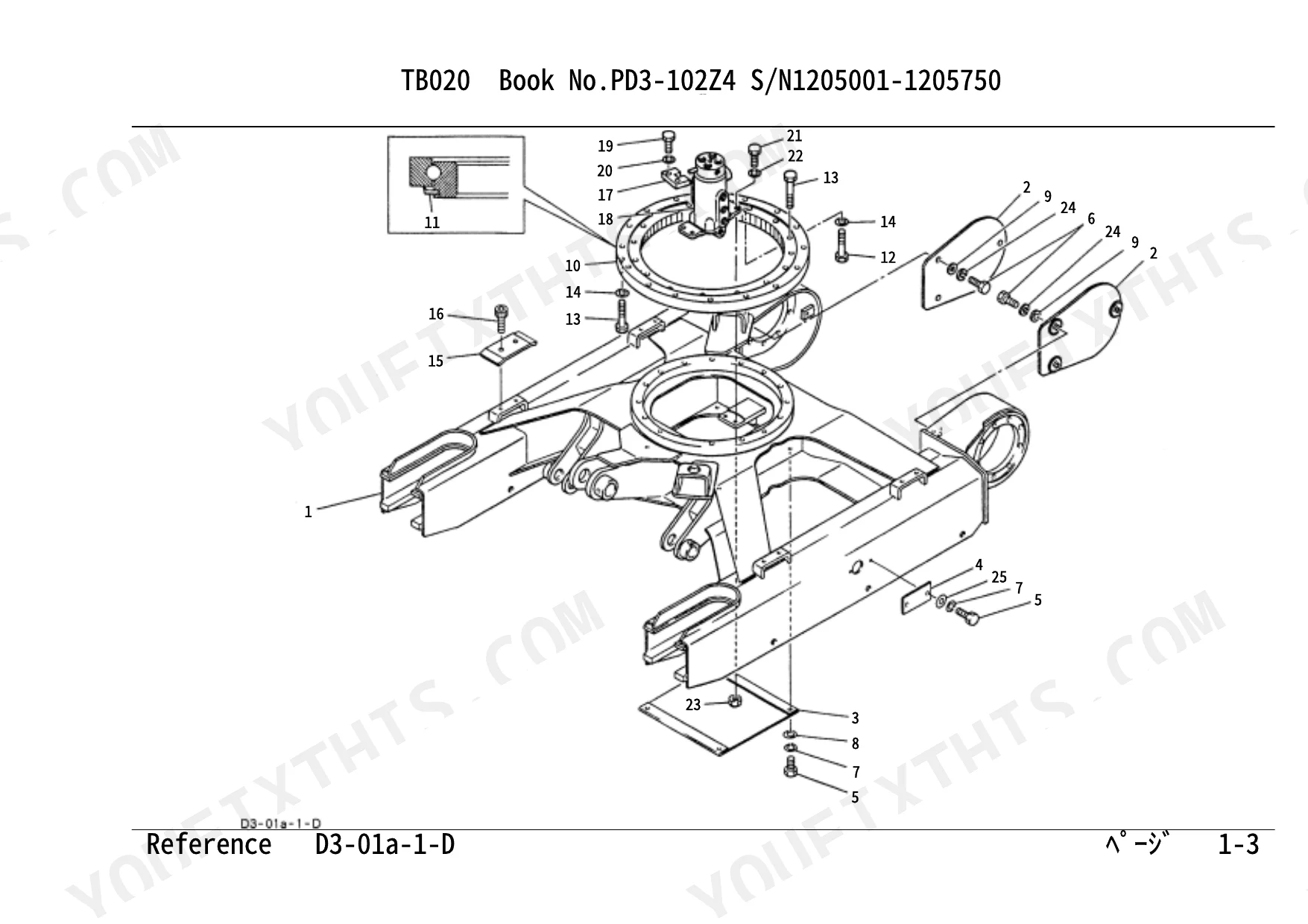

| Undercarriage | 12-27 | Lower Frame, Crawler Belt, Track Roller, Front Idler, Track Adjuster, Travel Device, Dozer Blade, Piping; Lower |
| Turntable & Control Lever | 28-84 | Slewing Device, Turntable, Boom Swing, Travel Lever, Operation Lever; Right (Multi Pattern), Operation Lever; Right (A-B Pattern), Operation Lever; Left (Multi Pattern) |
| Engine & Electrical System | 85-109 | Engine & Accessories 1, Engine & Accessories 2, Control Box, Engine Control, Electrical 1, Electrical 2, Electrical 3 (Cab) (1205001~1205336), Electrical 3 (Cab) (1205337~1205704) |
| Hydraulic Piping & Tank | 110-131 | Grease Piping, Valve & Accessories (Link Type), Valve & Accessories (Hydraulic Type), Piping; Upper 1, Piping; Upper 2, Piping; Upper 3 (Auxiliary Line), Pump Drive, Hydraulic Tank |

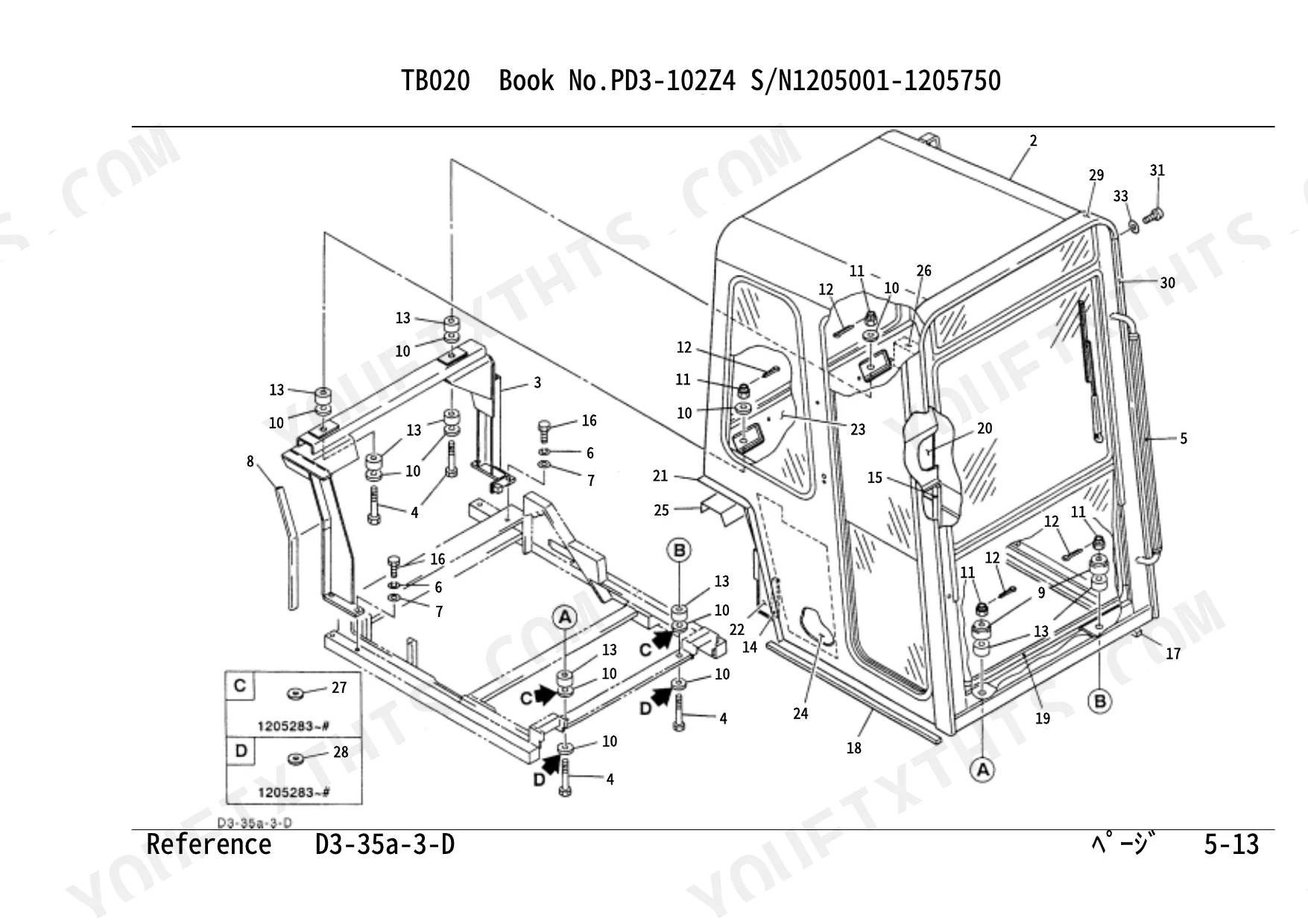

| Cover & Cab | 132-181 | Cover 1, Cover 2, Cover 3, Seat (Link Type, For Japan), Seat (Hydraulic Type, Seat (Hydraulic Type) |
| Hoe Attachment | 182-198 | Hoe, Bucket 1 (for Ec, North Europe; 1205001~) (for Japan; 1205001~1205588), Bucket 2, Bucket 3, Bucket 4 (for Japan) (1205589~), Bucket 5 (for U.S.A.), Piping; Hoe 1 |
| Decal & Tool | 199-267 | Decal (Job-Ace, For Japan), Decal (TCM, Decal (Takeuchi, For Japan) (1205001~1205563) |
| Hydraulic Device | 268-343 | Swivel Joint, Control Valve 1 (Link Type), Control Valve 2 (Link Type) (1205001~1205719), Control Valve 2 (Link Type) (1205720~), Control Valve 1 (Hydraulic Type) |
| Numerical Index | 344-361 | Part Number to Page Cross-Reference, Every Part Listed in Numerical Order |

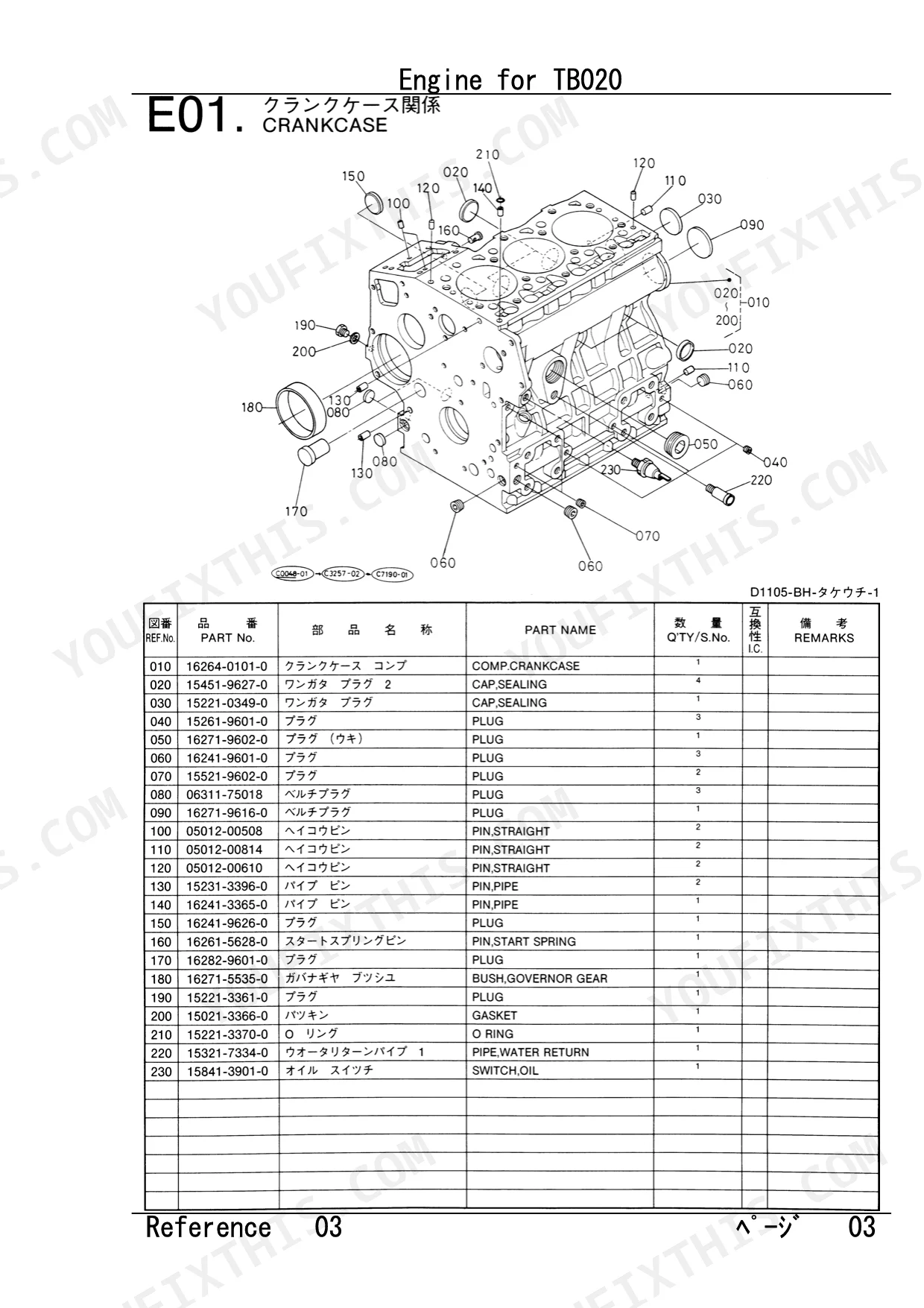

| Engine for Kubota D1105B | 362-403 | Index, Crankcase, Oil Pan, Cylinder Head, Gear Case, Water Pump, Main Bearing Case, Head Cover |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Washer thickness (t) | 4.5mm | p. 34 |
| Shim thickness (t) | 0.2mm | p. 34 |
| Spacer thickness | 1.2mm | p. 126 |
Takeuchi TB020 Common Problems This Manual Covers
Takeuchi TB020 boom swing pivot pin loose, can't identify correct shim and washer sizes from parts list
Check the Turntable & Control Lever section starting on page 28 for the boom swing exploded view. Match your slack to the shim chart on page 34: shims are listed in 0.2mm, 0.5mm, 1.0mm, and 1.6mm thicknesses, washers in 4.5mm, 5.0mm, and 5.5mm. Order by the item numbers shown in the diagram.
Manual Section: Turntable & Control Lever p. 34Hydraulic return filter and tank spacers missing after teardown, unsure which parts diagram covers them
Verify your parts against the hydraulic parts diagram on page 112, then check the hydraulic tank breakdown, where spacers are listed at 1.2mm thickness on page 126 and 2.0mm on page 127. Match each spacer to its callout number before ordering so the filter head seats without a gap.
Manual Section: Hydraulic Piping & Tank p. 112Bucket pin bushings worn, need exploded view to identify pins, bushings, and shims for the hoe attachment
Check the boom and attachment parts diagram on page 182 for pin and bushing callouts, and note that attachment shims are listed at 0.5mm thickness on page 184. Record your serial number before ordering; bucket listings split between ranges such as 1205001 to 1205588 and 1205589 onward.
Manual Section: Hoe Attachment p. 182Frequently Asked Questions
What are the replacement specifications for the hydraulic filter?
The hydraulic tank filter assembly is part number 15510-45180, which includes the body (15510-15110) and the cartridge (15510-35180). p. 126
What is the part number for the engine oil filter cartridge?
The engine oil filter cartridge for the TB020 is part number 16261-3211-0. p. 366
What is the part number for the engine air cleaner element?
The air cleaner element for the TB020 engine is part number 15501-1108-0. p. 372
What is the part number for the engine fan belt?
The fan belt for the TB020 engine is part number 17525-9701-0 (REMF6370). p. 393
What is the part number for the engine thermostat?
The thermostat assembly for the TB020 engine is part number 15531-7301-0. p. 396
Is this Takeuchi TB020 Parts Manual a digital download?
All 403 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is this Takeuchi TB020 Parts Manual printable?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
