Hunting part numbers for your Takeuchi TB045? This 247-page Takeuchi TB045 parts catalog PDF (OEM #PK2-102Z5) maps every assembly on the hydraulic excavator, from undercarriage to the 3TN100L-TBZ engine. You get exploded views with numbered callouts for travel devices, the slewing device, control valves, swivel joint, and pilot valves, plus factory part numbers for every roller, idler, and track adjuster. Boom, bucket, cab, covers, hydraulic piping, decals, and electrical components each get their own section, with an index for fast lookup. Ordering shims? Thicknesses run 0.2mm through 1.2mm, and the 1450mm and 1760mm arm variants each get separate listings, so you order the right pieces the first time. No more squinting at a worn casting and hoping the dealer guesses right. Bookmarked with a live text layer: search a part name, find the number, place the order.
What's Inside This Takeuchi TB045 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

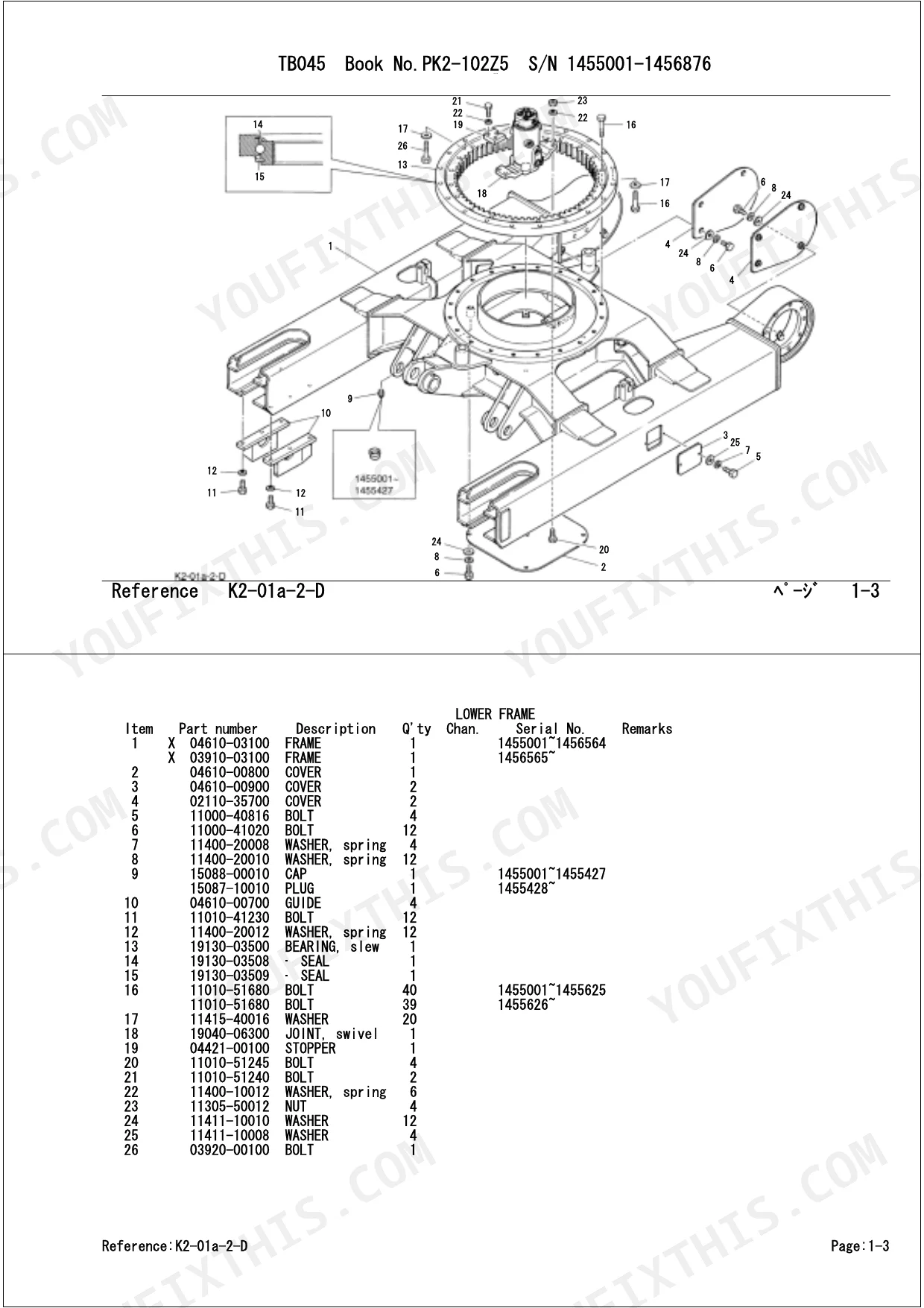

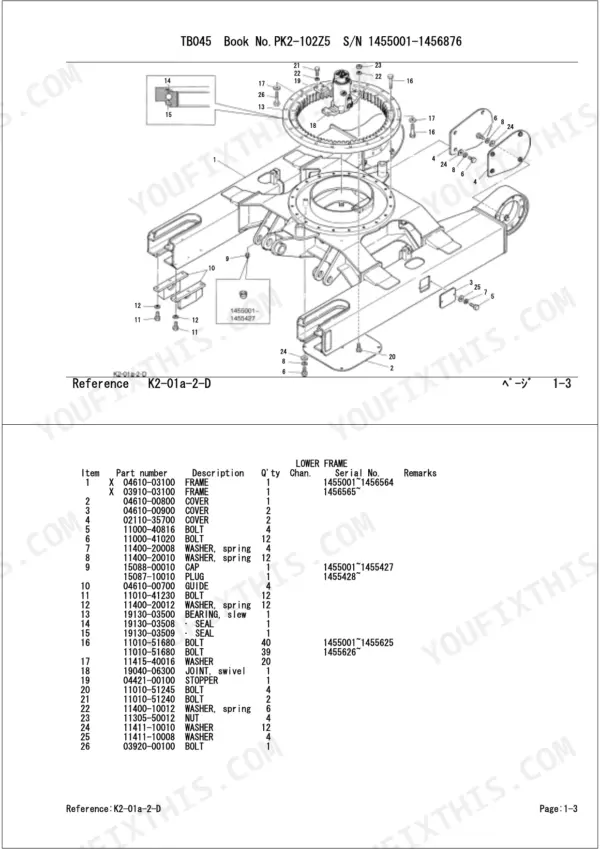

| Undercarriage | 12-21 | Lowler Frame, Crawler Belt, Crawler Belt: Wide, Carrier Roller, Track Roller, Front Idler, Track Adjuster, Travel Device |
| Turntable & Control Lever | 22-44 | Slewing Device, Turntable, Boom Swing, Travel Lever, Stand for Jpn, Stand, Operation Lever |

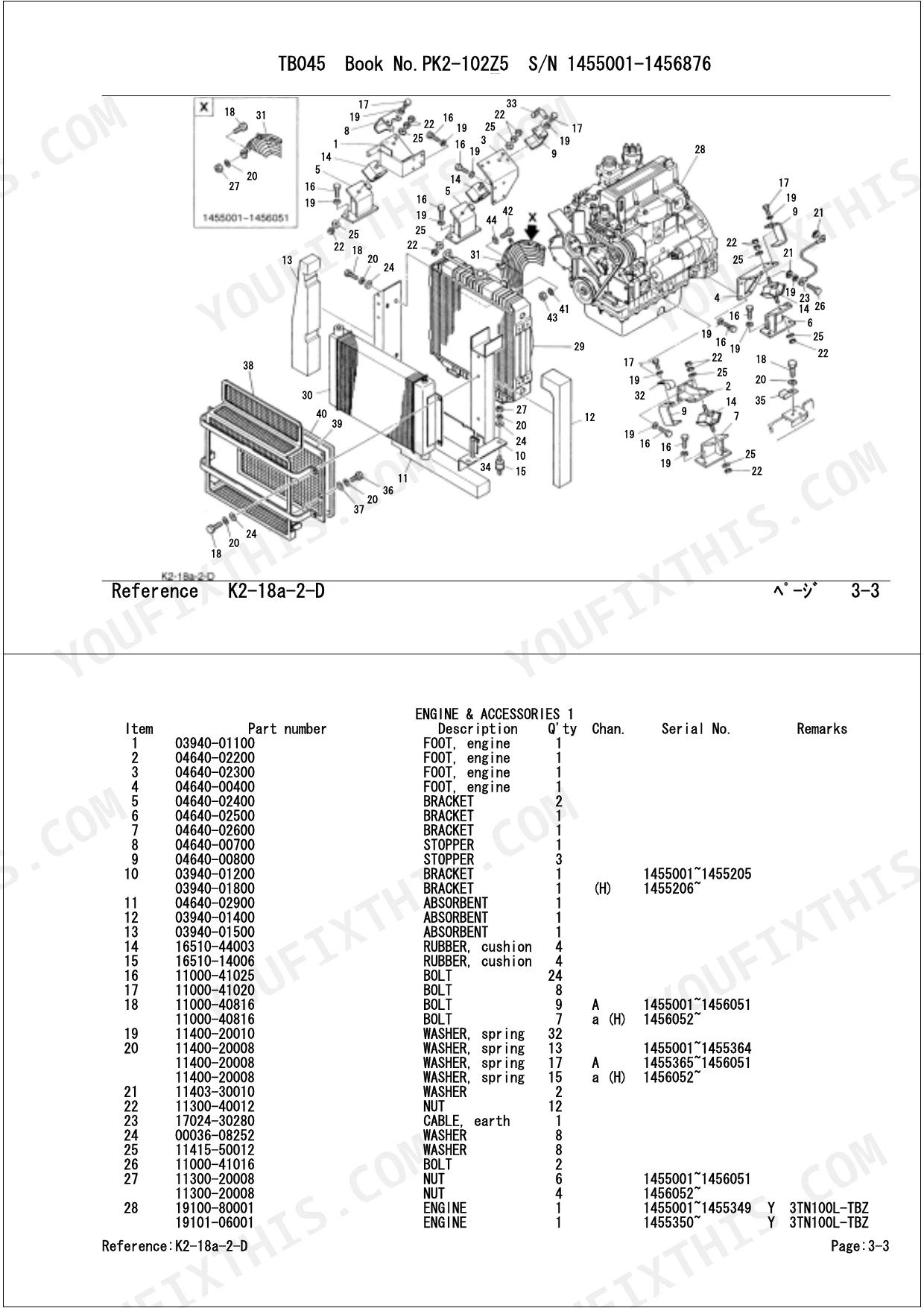

| Eingine & Electrical System | 45-62 | Engine & Acc. 1, Engine & Acc.2, Control Box, Engine Control, Electrical 1, Electrical 1 for Australia, Electrical 2, Electrical 3 Cab |
| Hydraulic Piping & Tank | 63-78 | Grease Piping, Valve & Acc. 1, Valve & Acc. 2, Valve & Acc. 3, Piping: Upper 1, Piping: Upper 2, Piping: Upper 3 |

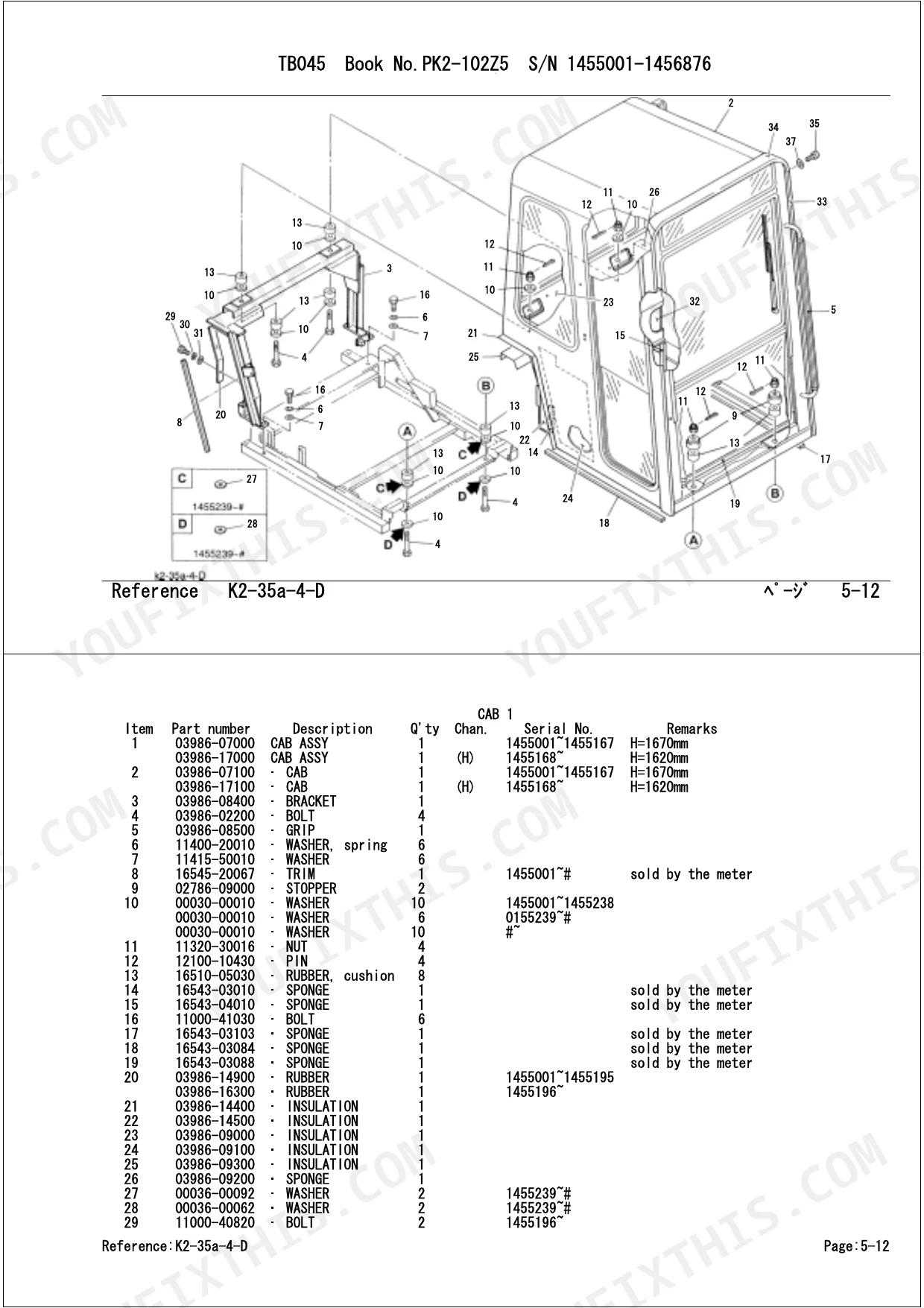

| Cover & Cab | 79-107 | Cover 1, Cover 2, Cover 3, Seat for Jpn, Seat, Cab 1, Cab 1 (ROPS & FOPS) |
| Hoe Attachemnet | 108-118 | Hoe, Telescopic Arm, Bucket 1, Bucket 2, Bucket (for U.S.), Piping: Hoe 1, Piping: Hoe 2( Aux. Line), Piping: Hoe 3(Telescopic) |
| Decal & Tool | 119-163 | Decal(Job-Ace for Jpn), Decal(Tcm for Jpn), Decal for Jpn |

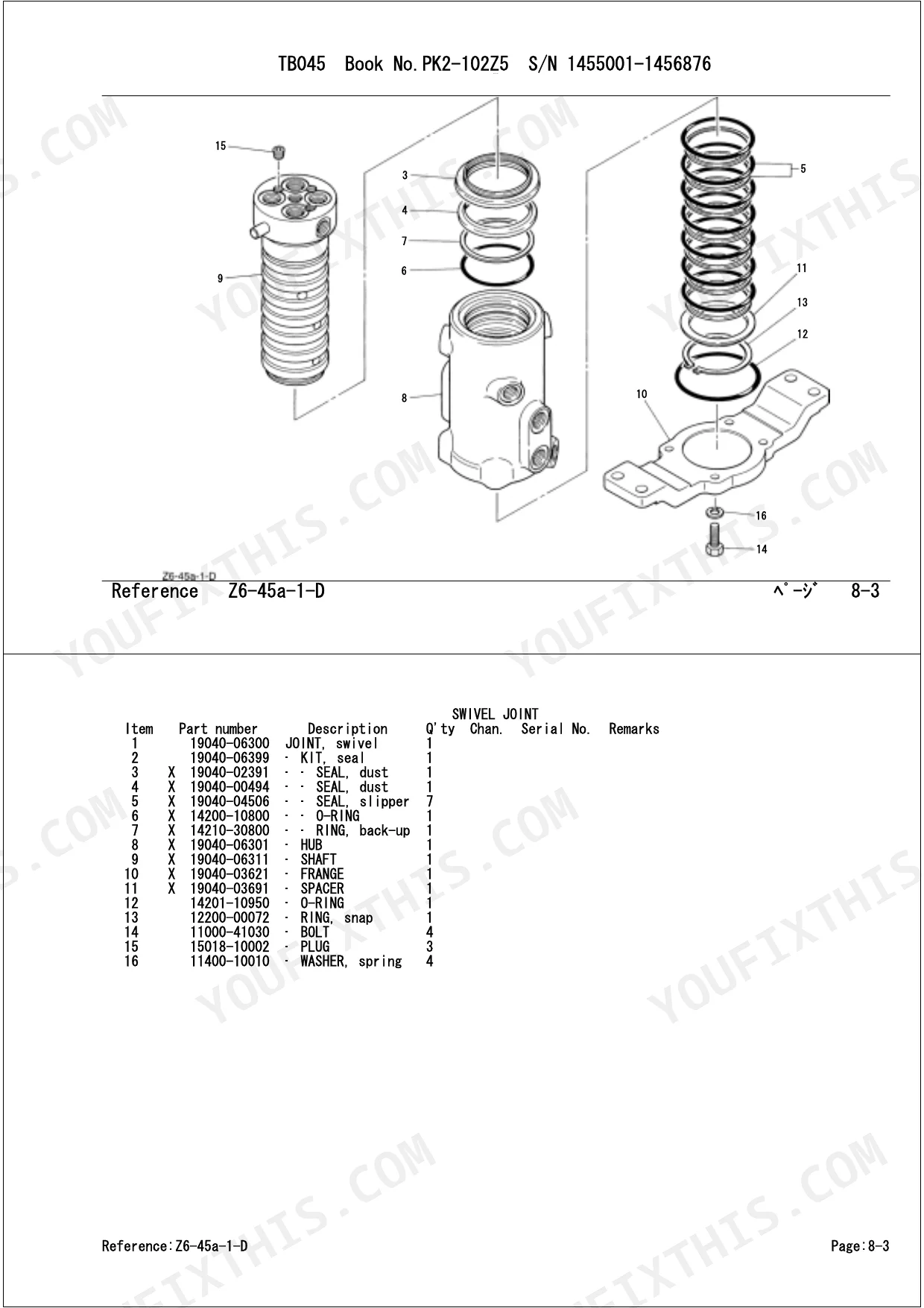

| Hydraulic Device | 164-199 | Swivel Joint, Contorl Valve:9 Blocks 1, Control Valve:9 Blocks 2, Control Valve:2 Blocks 1, Pilot Valve, Sub Valve |
| Engine 3Tn100L-Tbz | 221-247 | Index, Cylinder Block, Gear Housing, Flywheel Housing & Oil Sump, Cylinder Head & Bonnet, Suc Manifold & Air Cleaner, Exh. Manifold & Silencer, Camshaft & Driving Gear |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Arm (1450mm long) Length | 1450mm | p. 108 |
| Arm (1760mm long) Length | 1760mm | p. 108 |
Takeuchi TB045 Common Problems This Manual Covers
Takeuchi TB045 needs a replacement arm assembly, unsure whether the machine has the standard or long arm

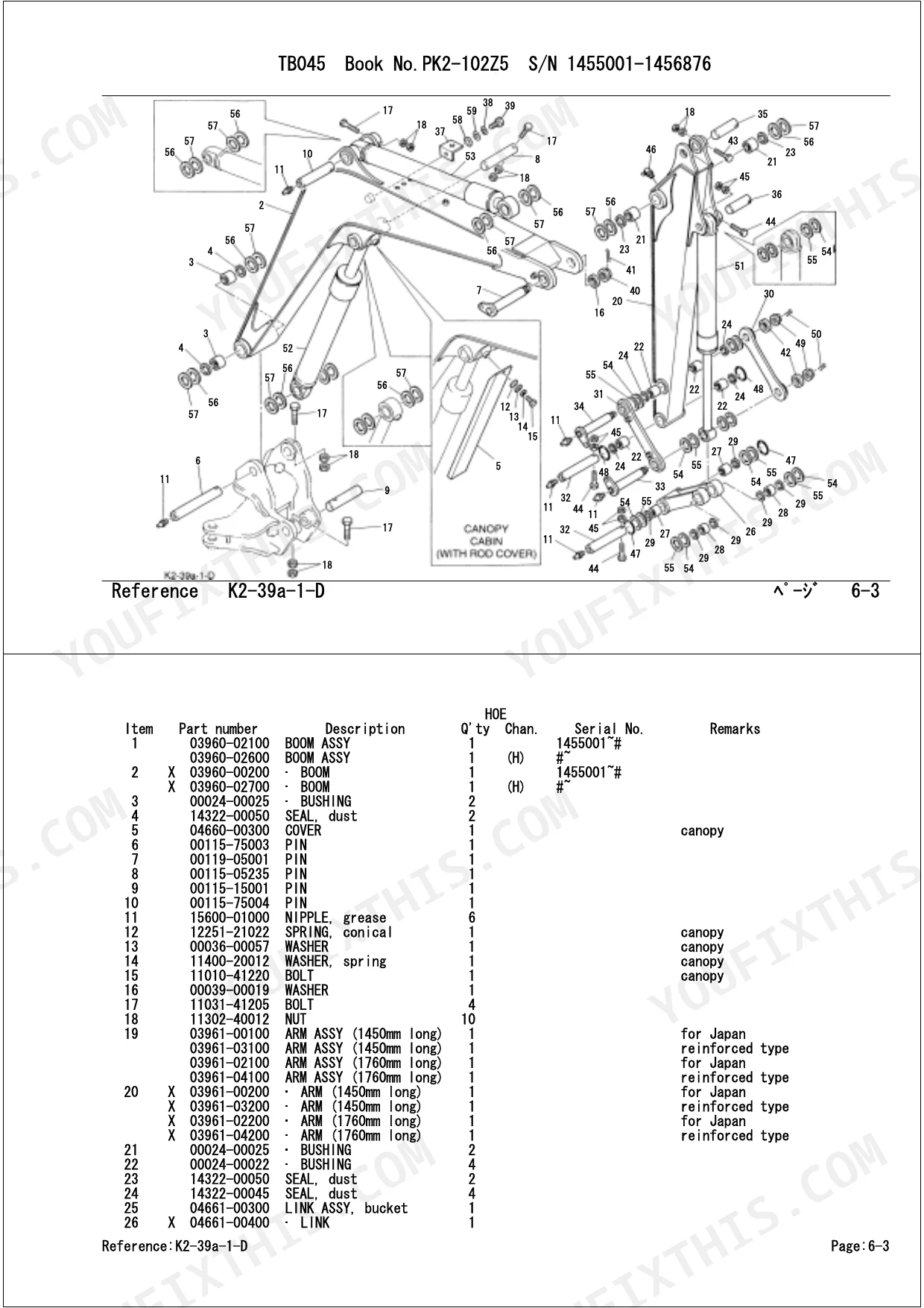

Measure your arm from pivot pin to bucket pin before ordering anything. The boom and attachment parts diagram on page 108 lists two arm assemblies, one 1450mm long and one 1760mm long. Match your measured length to the correct callout, then confirm your serial number falls within the effective machine number range shown for that assembly.
Manual Section: Hoe Attachemnet p. 108Whining hydraulic pump needs rebuild, can't tell main pump parts from sub-pump parts in the diagrams
Check the hydraulic parts diagrams starting on page 164; the main pump assembly and sub-pump are broken out separately, so identify which unit is noisy before ordering. Whining usually traces to suction-side air leaks, so pull the suction line callouts too. If you disturb the tank mounts, the shims on page 75 are listed at t=1.2mm.
Manual Section: Hydraulic Device p. 164Excessive side play at the bucket pivot, need the correct shim sizes for the attachment pins
Check the attachment parts list on page 109, which calls out shims at t=0.2mm with an as-required quantity. Measure the total side gap with a feeler gauge and order enough 0.2mm shims to close it. Compare pin and bushing wear against the exploded view on page 108 while the joint is apart.
Manual Section: Hoe Attachemnet p. 109Cracked and bulging hydraulic hoses on the upper structure, can't match replacement hose part numbers
Check the Hydraulic Piping & Tank section starting on page 63; the upper piping is split across three separate exploded views, so trace each hose by its routing in the diagram rather than by eye. Match the fitting callouts from the same parts list, and verify every number against your serial number range before ordering.
Manual Section: Hydraulic Piping & Tank p. 63Frequently Asked Questions
What are the replacement specifications for hydraulic filters?
The hydraulic tank assembly (part number 03980-90000) includes a strainer (part number 15502-12490) and an element (part number 15511-00300). These components are located within the hydraulic tank assembly as detailed on page 75. p. 75
What is the part number for the fuel filter on the 3TN100L-TBZ engine?
The fuel filter for the 3TN100L-TBZ engine is part number 119000-35100. p. 245
What is the part number for the air cleaner element on the 3TN100L-TBZ engine?
The air cleaner element for the 3TN100L-TBZ engine is part number 129010-12510, which is listed on page 243. p. 243
What is the part number for the fan belt on the 3TN100L-TBZ engine?
The fan belt for the 3TN100L-TBZ engine is part number 171091-42280, which is listed on page 243. p. 243
What format is this manual in?
You get a 247-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Takeuchi TB045 Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
