Every part on your Takeuchi TB260 mini excavator carries a factory number, and this 523-page parts catalog PDF (OEM #BQ0Z001-2) shows you where to find it. Exploded views with numbered callouts run the whole machine: undercarriage (track rollers, front idler, crawler belt), slewing device and turntable, the Yanmar 4TNV84T engine, hydraulic piping and tanks, cover and cab, boom, arm and bucket, down to the swivel joint, control valve, travel and slew motors, decals and tools. Match a callout to its part number and quantity before you call the dealer, so the seal kit or track roller you order is the right one the first time. Ordering the wrong part twice hurts more than the breakdown did. Bookmarked and text-indexed: type a part name, jump to the diagram, place your order.
What's Inside This Takeuchi TB260 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

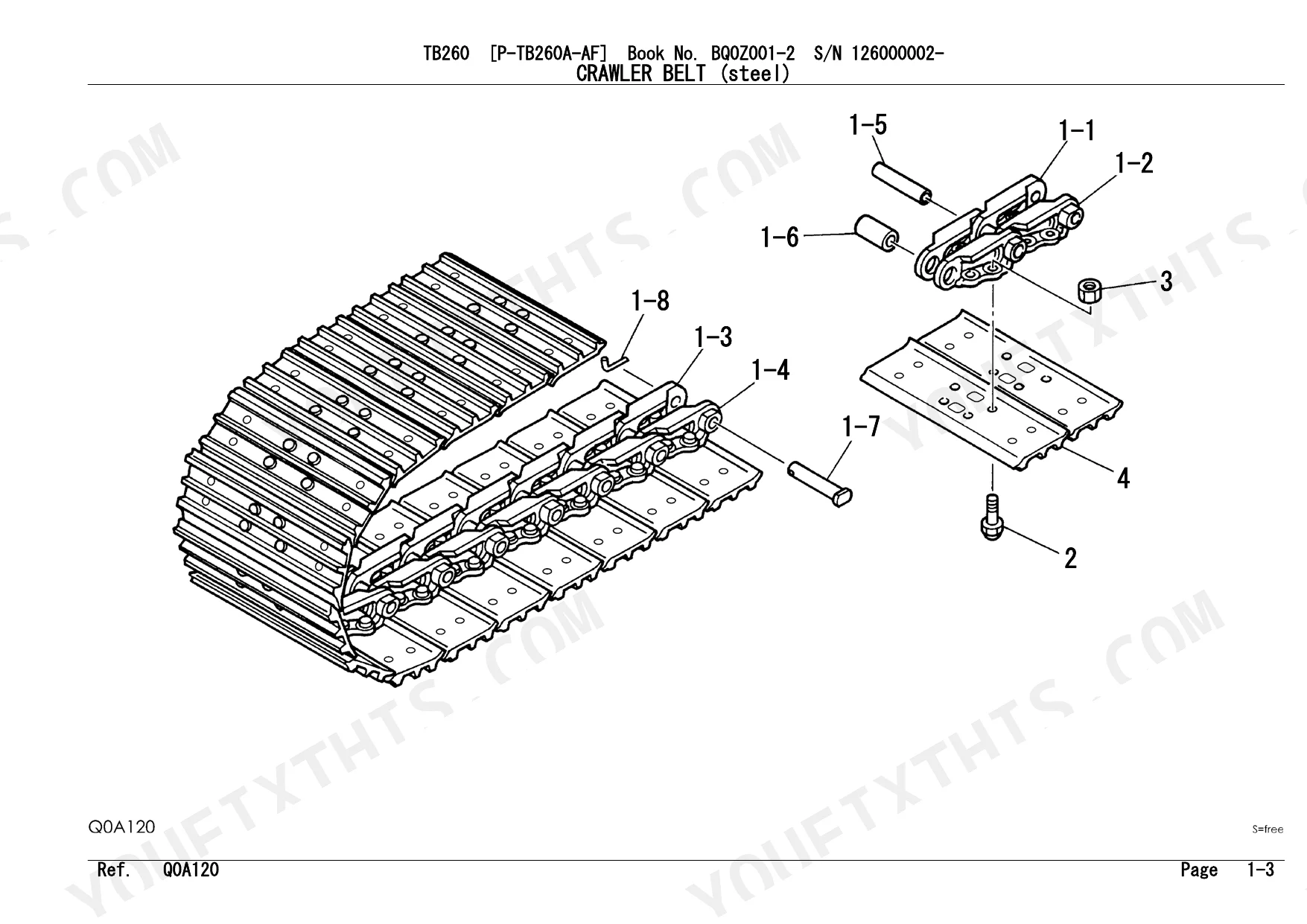

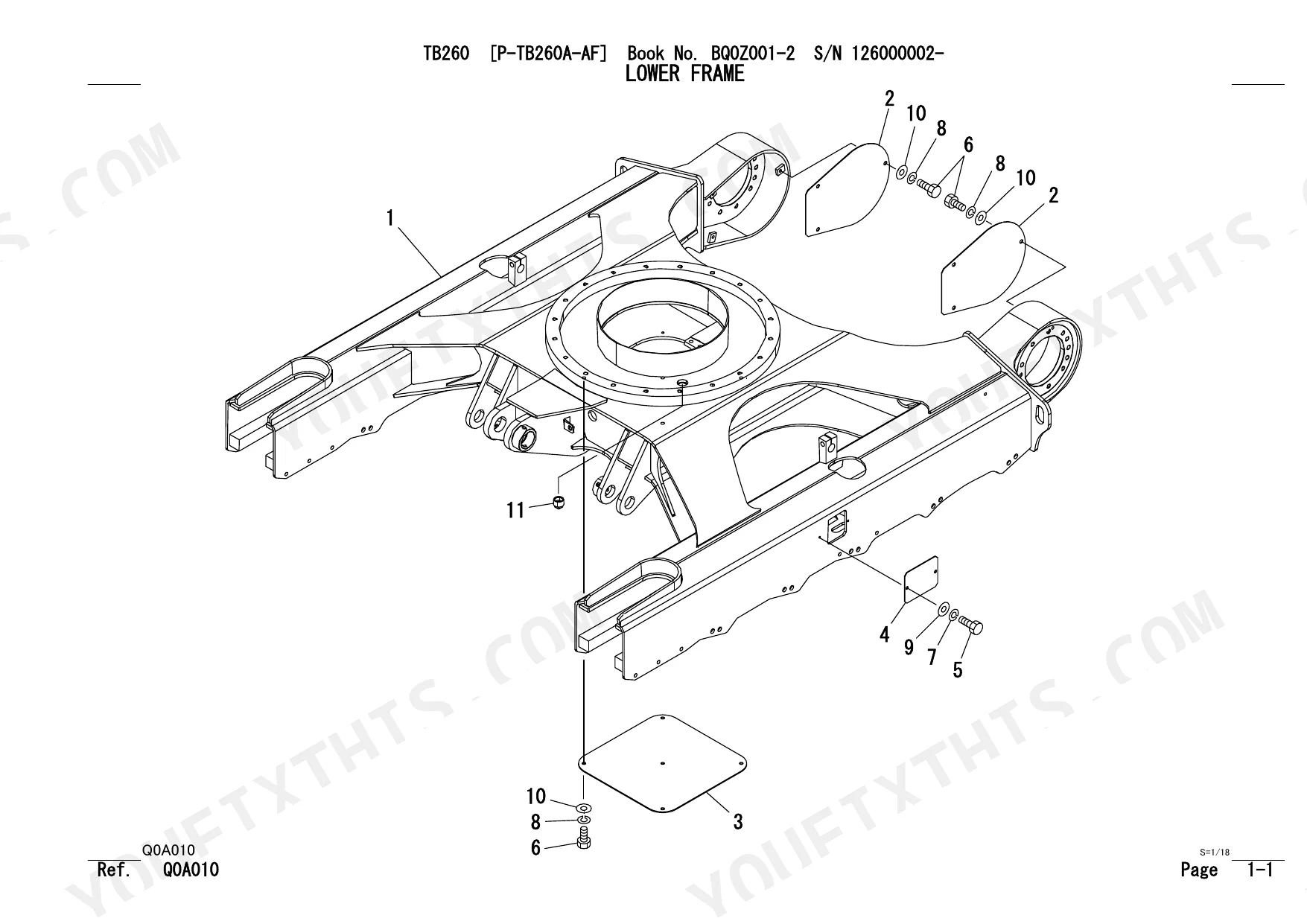

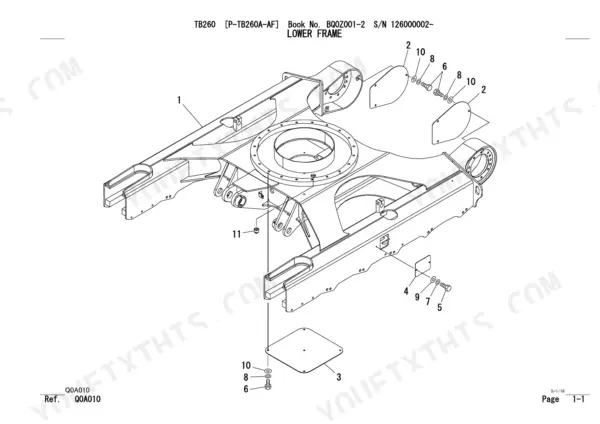

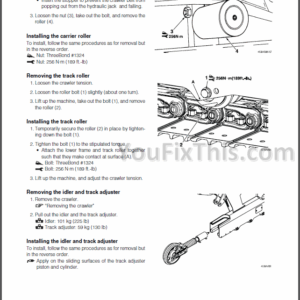

| Undercarriage | 14-39 | Lower Frame, Crawler Belt, Carrier Roller, Track Roller, Front Idler |
| Turntable & Control Lever | 40-65 | Slewing Device, Turntable, Boom Swing, Travel Lever & Swing Pedal |

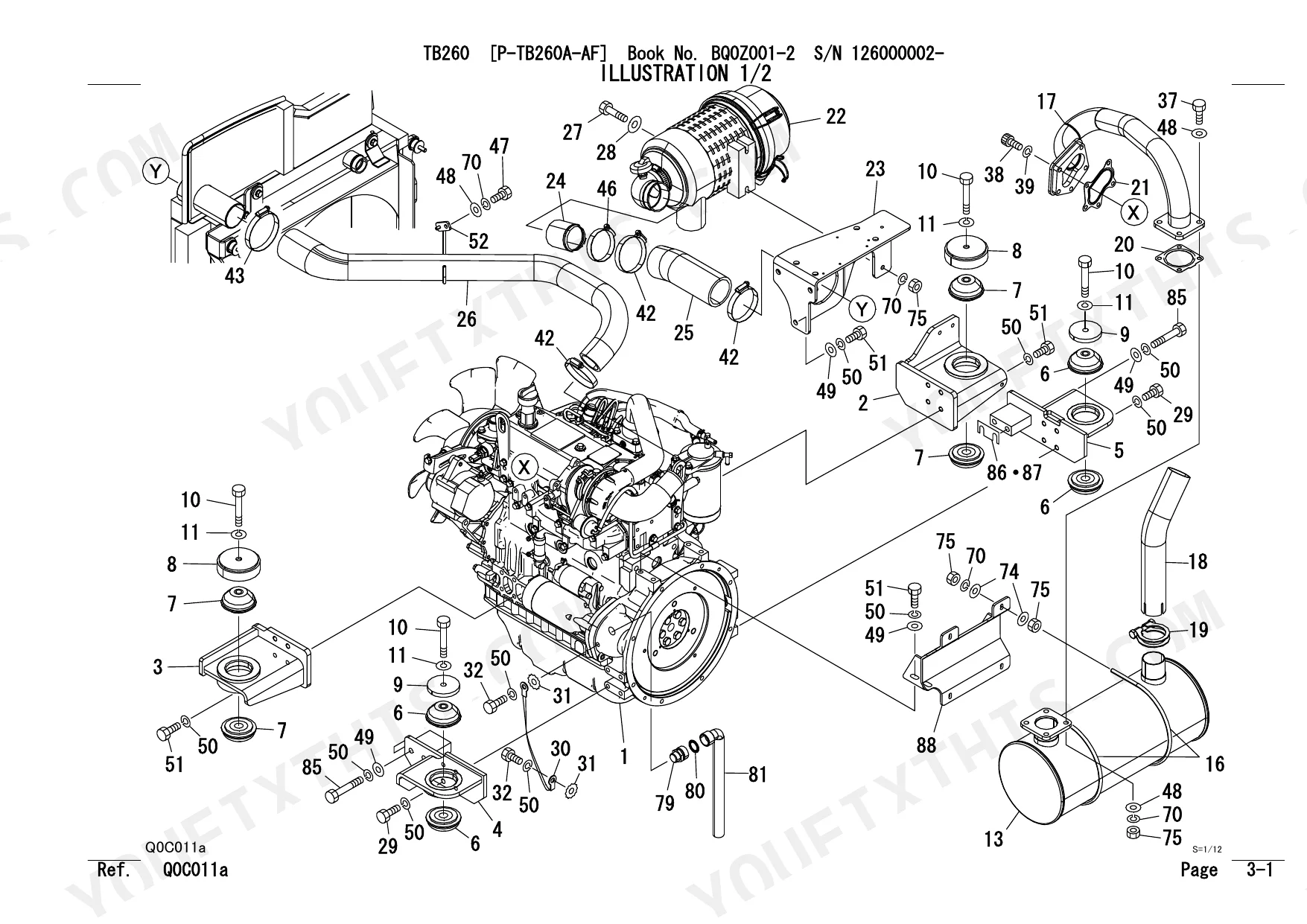

| Engine & Accessories | 66-87 | Engine (4TNV84T-BPTB), Radiator, Air Cleaner, Muffler, Starter |
| Electrical System | 88-115 | Battery & Cables, Wire Harness, Switches, Radio |
| Hydraulic Piping & Tank | 116-263 | Grease Piping, Valve & Accessories, Hydraulic Tank, Fuel Tank & Fuel Piping |

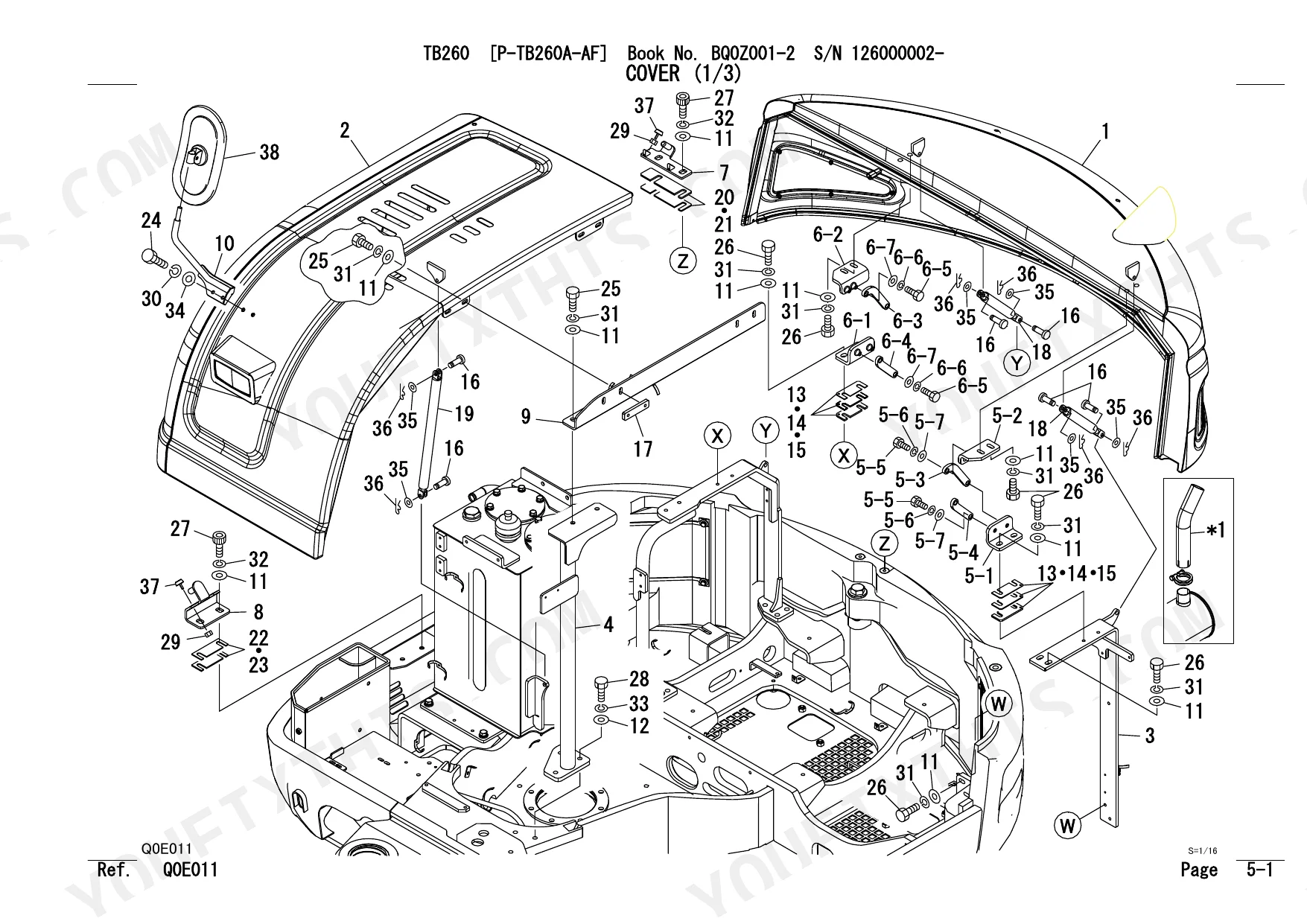

| Cover & Cab | 264-329 | Cover, Floor Frame, Cab Interior |

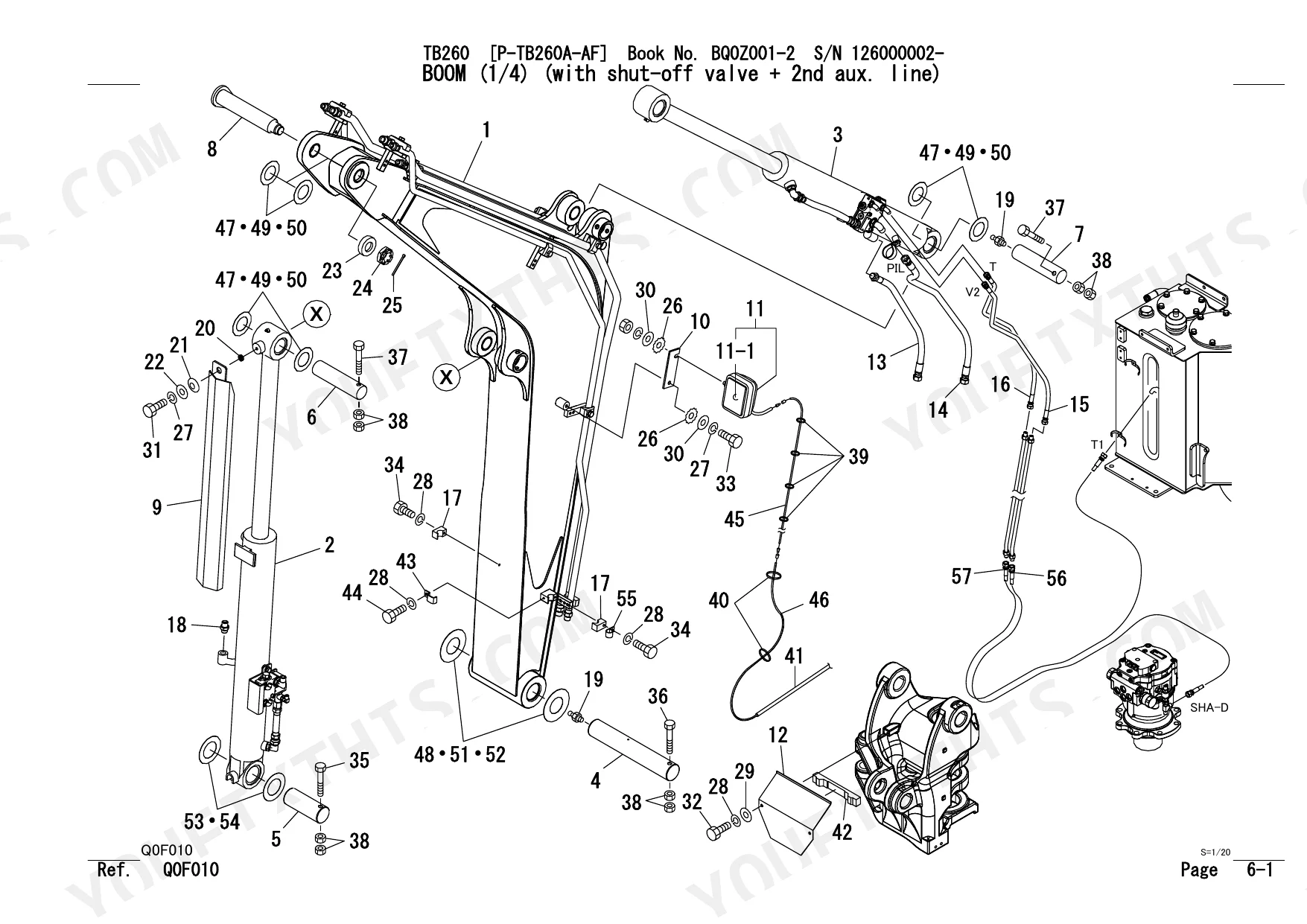

| Hoe Attachment | 330-383 | Boom, Arm, Bucket |
| Decal & Tool | 384-405 | Decal, Tool & Accessories |
| Hydraulic Device | 406-523 | Swivel Joint, Control Valve, Travel Motor, Slew Motor |
Takeuchi TB260 Common Problems This Manual Covers
Takeuchi TB260 fuel filter and water separator part numbers unclear when ordering the 1000 hour service kit
Open the fuel tank and fuel piping breakdowns on page 250; the exploded views separate the fuel filter, water separator element, and supply pump connector hardware. Record the machine serial number from the frame plate first, then match it to the serial range printed beside each part number before ordering the filter set.
Manual Section: Fuel Tank & Fuel Piping p. 250Hydraulic hoses leaking at the fittings, can't match replacement hose part numbers to the circuit
Measure the removed hose end to end in millimeters and note both fitting thread sizes. Trace the line back to its circuit in the hydraulic piping diagrams beginning on page 185, then match your measurements against the hose callouts in the parts list. Order fresh O-rings for every fitting you crack open.
Manual Section: Hydraulic Piping & Tank p. 185Air cleaner outer and inner elements look different from aftermarket listings, unsure which one fits
Remove both elements and compare them against the air cleaner exploded view on page 76; the outer and inner elements carry separate part numbers and do not interchange. Verify element length and outer diameter in millimeters against the old parts, and confirm your serial number falls inside the listed range before buying aftermarket substitutes.
Manual Section: Engine & Accessories p. 76Boom cylinder weeping oil at the rod, seal kit part number not stamped on the cylinder
Pull up the boom and attachment parts diagram on page 331. Seal kits list as a single numbered item under each cylinder, so order the kit rather than chasing individual seals. Measure the rod diameter in millimeters and compare it to the parts list callout to confirm which cylinder you have before ordering pins or seals.
Manual Section: Hoe Attachment p. 331Hydraulic pump growling under load, need pump assembly and coupling part numbers to price the job
Work from the hydraulic device section on page 231 for the pump, coupling, and mounting hardware breakdowns; the pump lists as a complete assembly with the coupling element called out separately. Verify your serial number against the range shown beside the assembly number, then quote both the pump assembly and the coupling together.
Manual Section: Hydraulic Device p. 231Frequently Asked Questions
What is the torque specification for the Takeuchi TB260 travel motor bolts?
The parts manual for the travel device (page 31) lists the bolt (part number 1100041435) used for the travel motor. While the manual provides the part number and quantity (48 bolts), it does not explicitly state the torque value in the parts list. Please refer to the service manual for specific torque settings. p. 31
What is the part number for the air cleaner element?
The air cleaner element for the TB260 is part number 1911112001. The secondary element is part number 1911112002. p. 77
What is the part number for the hydraulic filter?
The parts manual lists the hydraulic filter as part number 1551200600. p. 120
What is the part number for the fuel separator water filter?
The water separator filter for the fuel system is part number 1910305033. p. 237
What is the part number for the starter switch key?
The starter switch key for the TB260 control box is part number 1700100019. p. 81
How will I receive this Takeuchi TB260 Parts Catalog?
Immediate download of the complete 523-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Takeuchi TB260 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
