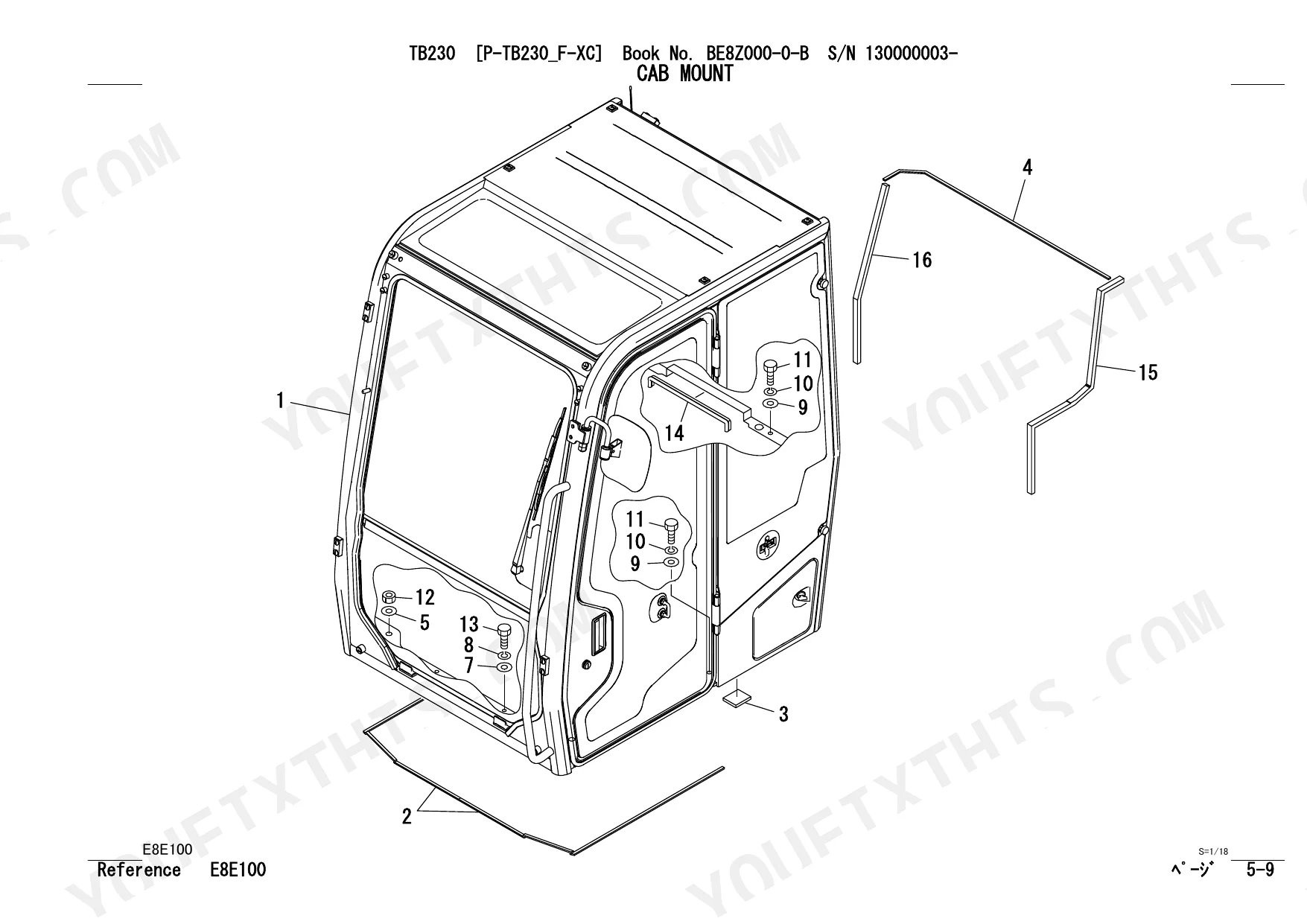

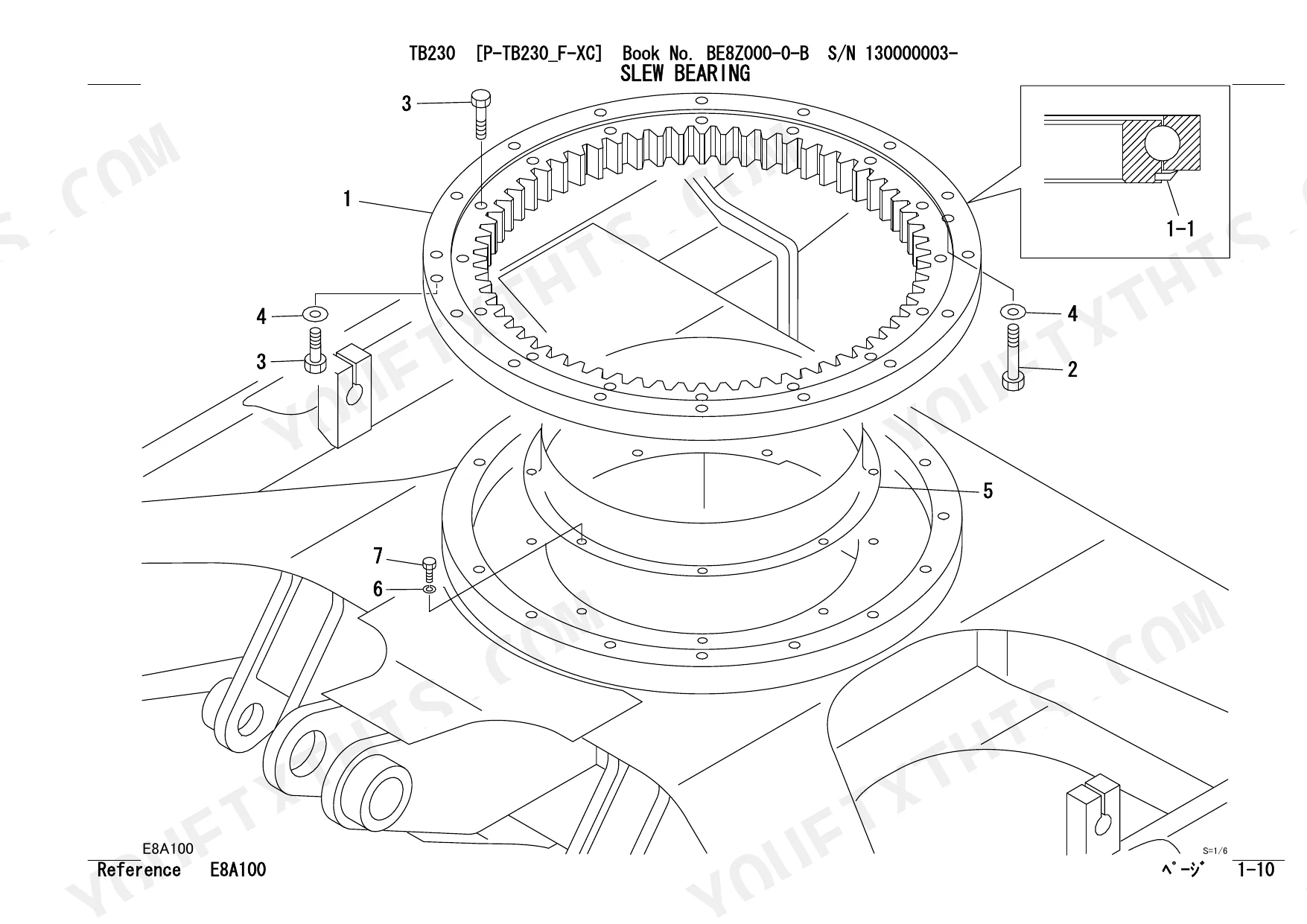

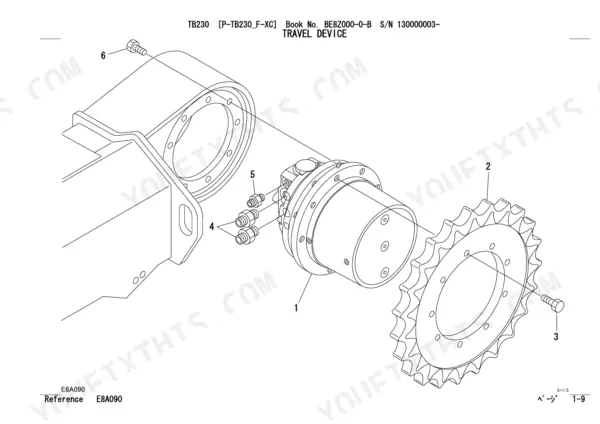

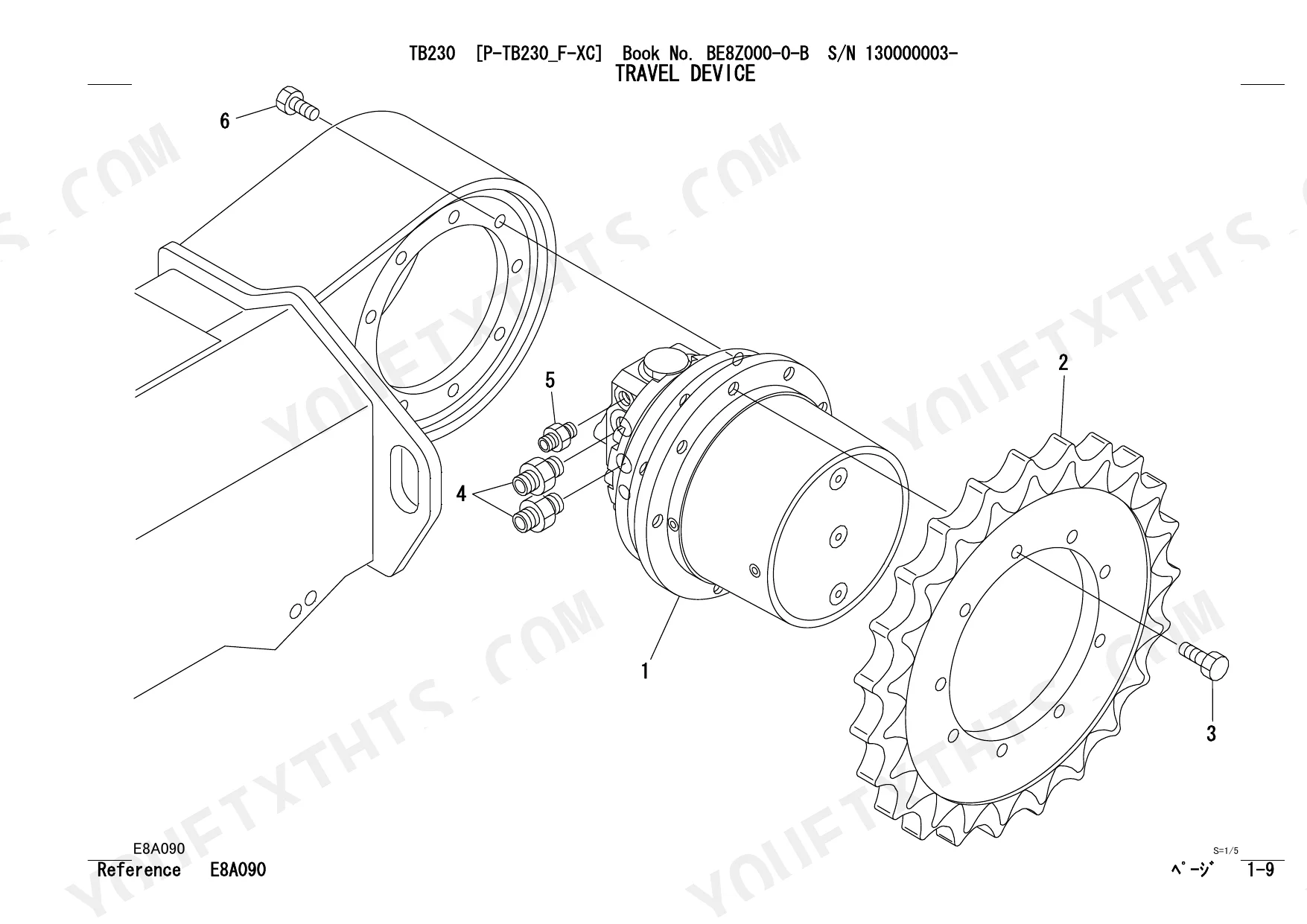

A seized track roller or a weeping boom cylinder parks a mini excavator until the right part shows up, and this 292-page Takeuchi TB230 parts manual PDF (OEM ID BE8Z000-0-B) is how you get that number right the first time. Exploded views take the TB230 apart from the lower frame up: rubber and steel crawler belts, carrier and track rollers, front idler, track adjuster, travel device and slew bearing, then the cab, canopy, seat, decals and fuel piping. The hydraulic side fills the longest stretch of the book, with the control valve, pilot and solenoid valves, every work cylinder, travel motor, slew motor and hydraulic pump each broken down to callout and part number. Shims are listed by individual thickness (0.2 mm, 0.5 mm and 1.0 mm), so order the stack that matches what came out. A guessed shim is a fit nobody measured. Bookmarked by section and text-searchable, this parts catalog lets your order go in with the correct part number on the first call.
What's Inside This Takeuchi TB230 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Lower Frame | 16-47 | Crawler Belt, Crawler Guide, Carrier Roller, Track Roller, Front Idler, Track Adjuster, Travel Device, Slew Bearing |
| Slewing Device | 48-67 | Turntable, Boom Swing, Swing Stopper, Travel Lever & Swing Pedal, Dozer Blade Lever, Valve Bracket, Piping; Operation Lever |
| Engine & Accessories | 68-87 | Control Box, Electrical, Battery |
| Grease Piping | 88-139 | Valve & Accessories, Accumulator, Piping; Upper, Pump Drive, Hydraulic Tank, Fuel Tank & Fuel Piping |

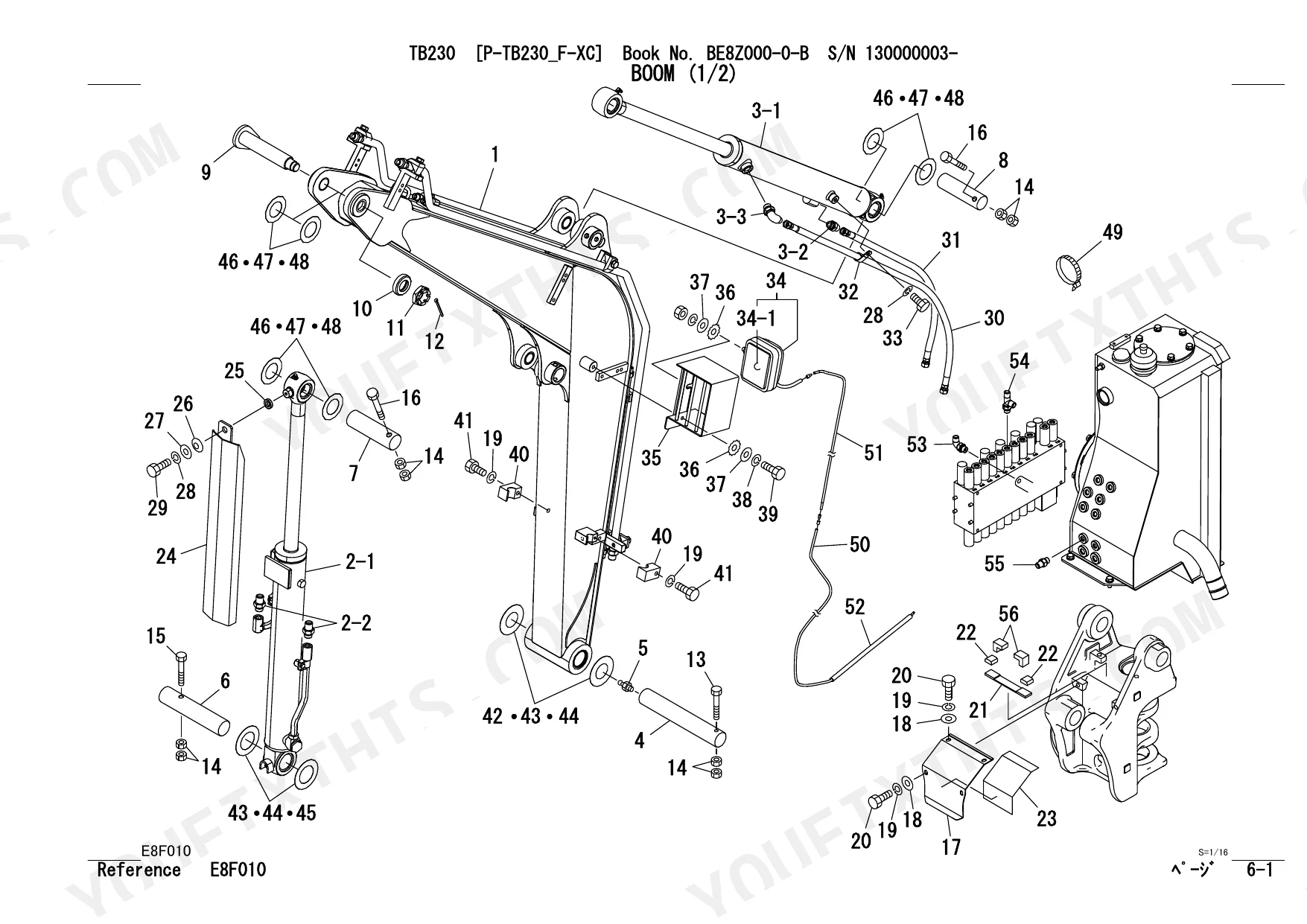

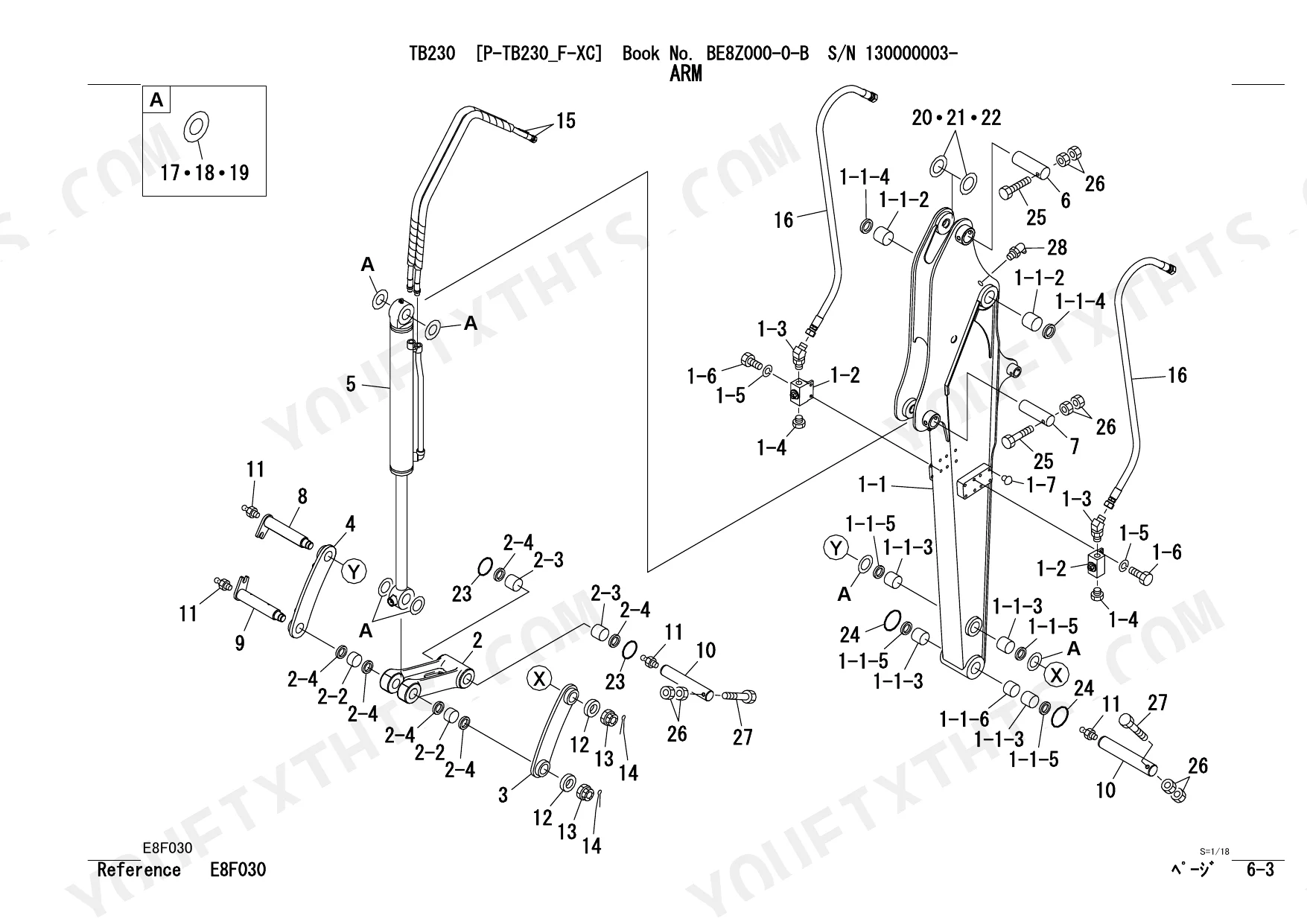

| Boom | 176-183 | Arm |
| Decal | 184-201 | Painted Color |
| Swivel Joint | 202-292 | Control Valve, Block Assy, Pilot Valve, Handle, Selector Valve, Solenoid Valve, Remote Control Valve, Boom Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim thickness (t=0.2mm) | 0.2mm | p. 43 |
| Shim thickness (t=0.5mm) | 0.5mm | p. 43 |
| Shim thickness (t=1.0mm) | 1.0mm | p. 43 |
| Shim thickness (t=0.8mm) | 0.8mm | p. 51 |
| Shim thickness (t=1.2mm) | 1.2mm | p. 51 |
| Shim thickness (t=2.0mm) | 2.0mm | p. 51 |
| Shim thickness (t=4.5mm) | 4.5mm | p. 53 |
| Shim thickness (t=5.0mm) | 5.0mm | p. 53 |
| Shim thickness (t=5.5mm) | 5.5mm | p. 53 |
| Shim thickness (t=2.3mm) | 2.3mm | p. 141 |
| Shim thickness (t=3.2mm) | 3.2mm | p. 141 |
| Plate thrust thickness (t=1.8mm) | 1.8mm | p. 269 |
Takeuchi TB230 Common Problems This Manual Covers
Takeuchi TB230 travel motor reduction section thrust plate worn, need correct replacement part number and thickness
Check the travel motor exploded view on page 269 and match your worn plate against the parts list. The thrust plate is listed as part 1912905623 at t=1.8mm. Cross-reference the reduction and motor section seals, bearings, and gears on the same breakdown before ordering so one parts order covers the whole job.
Manual Section: Travel Motor p. 269Boom, arm, or bucket cylinder seal kit part number unclear when ordering packing and bushings
Check the cylinder exploded views starting, which cover the boom, arm, bucket, dozer, and swing cylinders. Identify the seal kit, piston, rod, bushing, and packing for your specific cylinder from its own parts list. Match the cylinder by its position on the machine before pulling numbers from the list.
Manual Section: Cylinder Repair (Boom, Arm, Bucket, Dozer, Swing)Track roller, carrier roller, or front idler worn out, need matching undercarriage part numbers

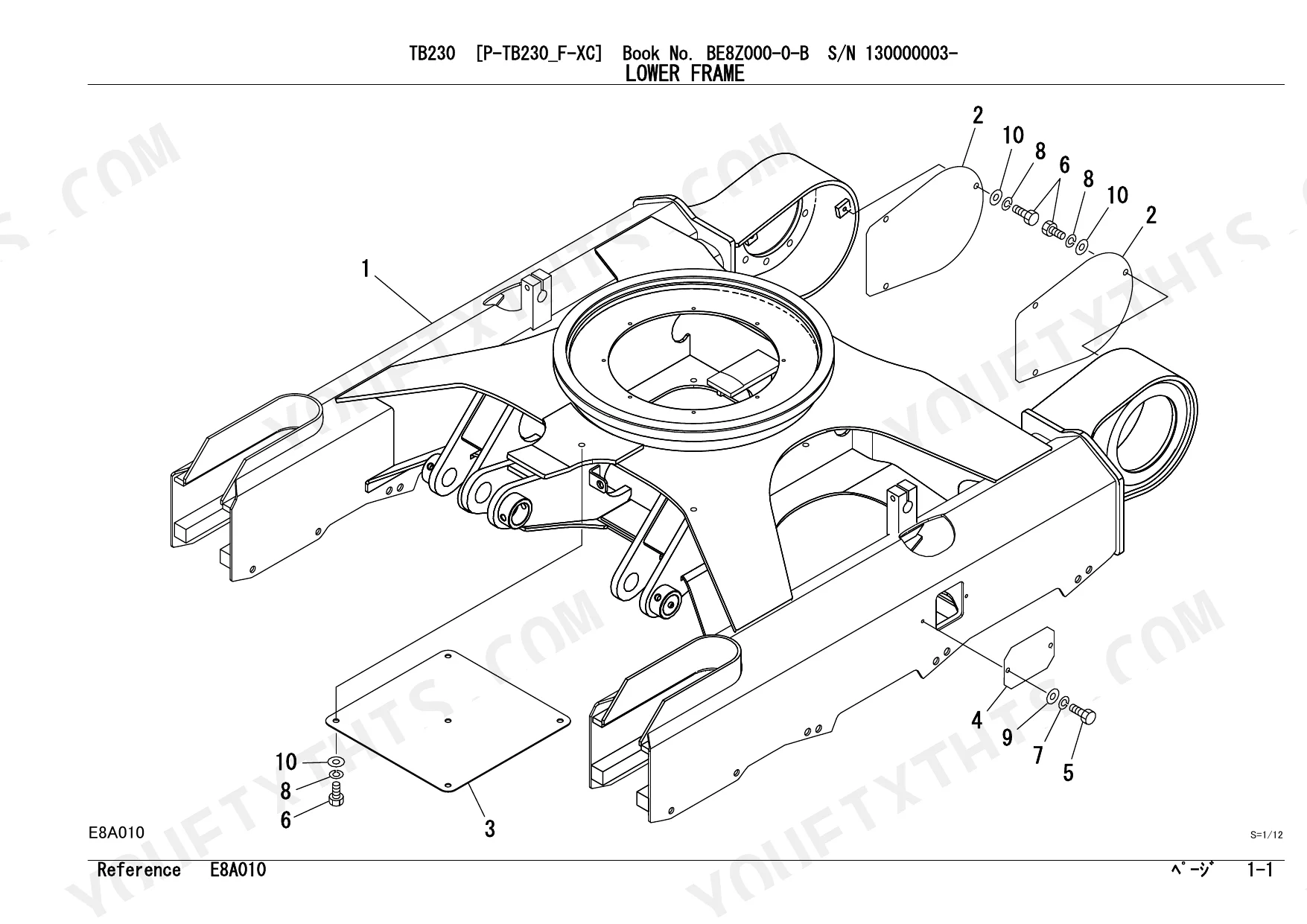

Check the Lower Frame chassis diagrams starting on page 16 for the crawler belt, crawler guide, carrier roller, track roller, front idler, and track adjuster. Identify each part by its callout number on the exploded view, then pull the part number from the matching parts list line. Order rollers and idler from the same breakdown.
Manual Section: Lower Frame p. 16Slewing device shims lost or damaged during teardown, need correct thickness and part number
Measure the old shims with a micrometer, then check the Slewing Device parts list on page 51. Shims are listed AR (as required) as 0353000117 (t=0.8mm), 0353000118 (t=1.2mm) and 0353000119 (t=2.0mm). For the thicker washers, check page 53: 0353116521 (t=4.5mm), 0353116522 (t=5.0mm), 0353116523 (t=5.5mm). Order the stack you measured.
Manual Section: Slewing Device p. 51Control valve relief valve or over-load valve needs replacing, part number not obvious in block assembly
Check the Swivel Joint section starting on page 202, which carries the control valve block assembly breakdowns. Locate the relief valves, over-load valves, and anti-void valves on the exploded view by callout number, then read the part number from the matching list line. Confirm the valve's position in the block before ordering.
Manual Section: Control Valve p. 202Fuse, relay, or controller needs replacing, unsure which electrical system part number fits
Check the Engine & Accessories section starting on page 68, which includes the control box, electrical, and battery breakdowns. Identify the wiring harness, fuse, relay, or controller by callout on the exploded view and pull the part number from its list line. Match it against the old component in hand before ordering.
Manual Section: Electrical System p. 68Frequently Asked Questions
What is the replacement part number for the hydraulic filter element on the Takeuchi TB230?
The replacement filter element for the hydraulic system is part number 1551200703, as specified in the Valve & Accessories section. p. 93
What is the part number for the fuel filter on the Takeuchi TB230?
The fuel filter for the TB230 is part number 1910352031. p. 137
What is the part number for the water separator element on the Takeuchi TB230?
The water separator element is part number 1910352033. p. 137
What is the part number for the hydraulic tank breather element on the Takeuchi TB230?
The hydraulic tank breather element is part number 1552002715. p. 133
What format is this Takeuchi TB230 manual in?
A 292-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Takeuchi TB230 manual print-friendly?
Yes. Print a single page or a chapter for your own shop use, on letter or A4.
