The Takeuchi TB2150 operator manual PDF (OEM ID AN4E000) takes your TB2150 hydraulic excavator from walk-around inspection and cab controls through transport, attachments and scheduled service, all within 353 pages. Maintenance fills nearly a quarter of the book, organized by interval from the 10-hour daily checks to slew bearing grease at 500 hours and the 4000-hour hydraulic oil change, and it opens with the fuel and lubricant table and a tightening torque list. When a warning lamp flashes, the vehicle and engine error code lists tell you what it means, and the specifications chapter adds lifting capacities and operating ranges. Hold the rubber crawler gap between 155 and 165 mm (6.1 and 6.5 in.), and swap the main body and working equipment hydraulic hoses every 2 years. A parked excavator burns crew hours fast. Bookmarked chapters and a searchable text layer take you straight to the fix, so the tracks are turning again the same shift.
What's Inside This Takeuchi TB2150 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | Foreword |
| Machine Description | 5-10 | Front, Rear, Left and Right |
| Safety | 11-58 | Precautions When Preparing, Precautions When Starting, Precautions When Operating, Precautions When Stopping, Precautions When Transporting, Precautions on Maintenance |
| Controls | 59-146 | Names of Components |
| Operation | 147-184 | Before Starting Operation (Getting on or Off the Machine, Walk-Around Inspection, Daily Inspection) |
| Transport | 185-190 | Loading and Unloading, Hoisting the Machine, Securing the Machine |
| Maintenance | 191-272 | General (Maintenance Overview, Cautions on Maintenance) |
| Troubleshooting | 273-312 | Symptoms That Are Not Malfunctions, If the Engine Overheats, If the Battery Goes Dead, If a Fuse Blows (Inspecting: and Replacing the Fuse, The Fusible Link) |
| Specifications | 313-330 | Basic Specifications, Machine Dimensions, Operating Ranges, Lifting Capacities |
| Options | 331-353 | Safety Precautions (Cautions When: Installing Attachments, Operating Attachments), Attachment Combination Table, Selecting a Lever Pattern (Switching the Lever Pattern) |
Quick Reference Specifications

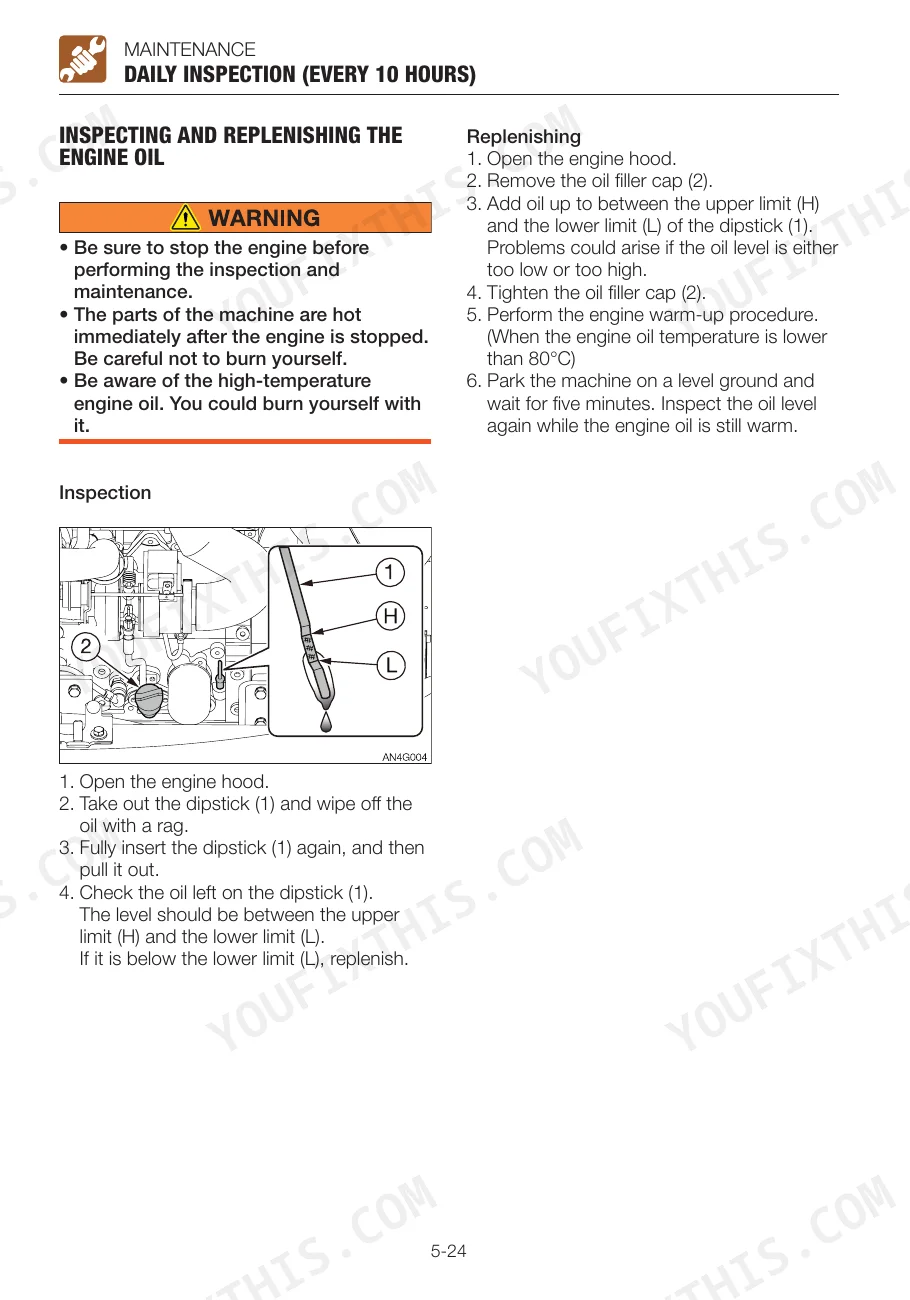

| Specification | Value | Page |
|---|---|---|
| Fuel hoses replacement interval | Every 2 years | p. 204 |
| Hydraulic oil return filter replacement interval | Every 1000 hrs after the initial 50 hrs. | p. 200 |
| Hydraulic hoses (main body and working equipment) replacement interval | Every 2 years | p. 204 |
| Rubber crawler gap | 155 to 165 mm (6.1 to 6.5 in.) | p. 230 |
| Steel crawler gap | 250 to 280 mm (9.8 to 11 in.) | p. 230 |
| Grease discharge valve tightening torque | 59 to 88 N·m (43.4 to 65.1 ft-lb.) | p. 231 |
| Pre-fuel filter tightening torque | 17 to 18 N·m (12.5 to 13.3 ft-lb) | p. 253 |
| Side cutter bolt tightening torque | 475 N·m (350 ft-lb.) | p. 261 |
| Gap between nut and bucket bush | 0.5 to 1 mm (0.02 to 0.04 in.) | p. 263 |
| Width of groove (d) for O-ring | 5 mm (0.2 in.) | p. 264 |
| Engine Oil Pan Upper Limit | 10 L (10.6 US qt.) | p. 197 |
| Engine Oil Pan Lower Limit | 9 L (9.5 US qt.) | p. 197 |
Takeuchi TB2150 Common Problems This Manual Covers
Takeuchi TB2150 hydraulic excavator engine running hot and overheating during long digging shifts
Check the overheating symptoms and run the remedy procedure in the If the Engine Overheats section of Troubleshooting. Once the engine has cooled, verify the coolant fill against the 20 L (21.1 US qt.) engine cooling system capacity listed on page 197. Do not put the machine back to work until you know why it ran hot.
Manual Section: If the Engine OverheatsCrawler track running loose with sag gap measuring outside the specified range
Measure the crawler gap following page 230. Rubber crawlers should read 155 to 165 mm (6.1 to 6.5 in.), steel crawlers 250 to 280 mm (9.8 to 11 in.), and segmental rubber crawlers 235 to 265 mm (9.3 to 10.5 in.). After any tension adjustment, torque the grease discharge valve to 59 to 88 N·m (43.4 to 65.1 ft-lb.) per page 231.
Manual Section: Maintenance p. 230Rubber crawler lugs worn down with cracks opening across the track surface
Measure the remaining lug height on the rubber crawler and plan a replacement once it reaches the 5 mm (0.2 in.) limit shown on page 267. Inspect the track for cracks while you are down there, and check each crack length against the 60 mm (2.4 in.) crack repair limit on the same page before you decide whether to repair or replace.
Manual Section: Maintenance p. 267Engine will not restart after running the fuel tank empty and adding fuel

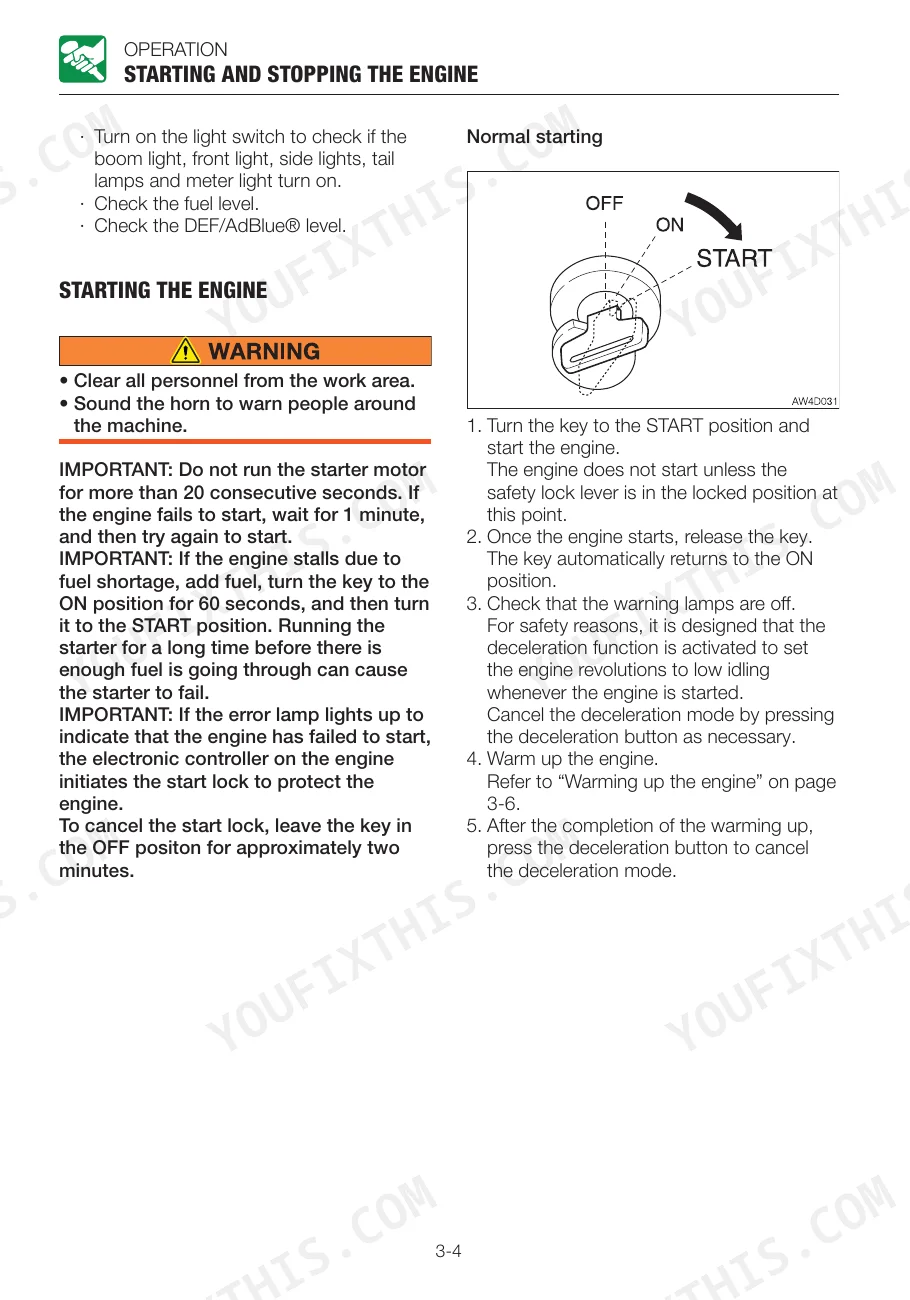

Bleed the air out of the fuel system before you try to restart, following the Restarting After Adding Fuel procedure in Troubleshooting. Grinding the starter on an air-locked system gets you nowhere. If you changed filters during the job, torque the pre-fuel filter to 17 to 18 N·m (12.5 to 13.3 ft-lb) and the main fuel filter to 10 to 12 N·m (7.4 to 8.9 ft-lb) per page 253.
Manual Section: Restarting After Adding FuelWarning lamp flashing after startup with an engine or vehicle error code displayed

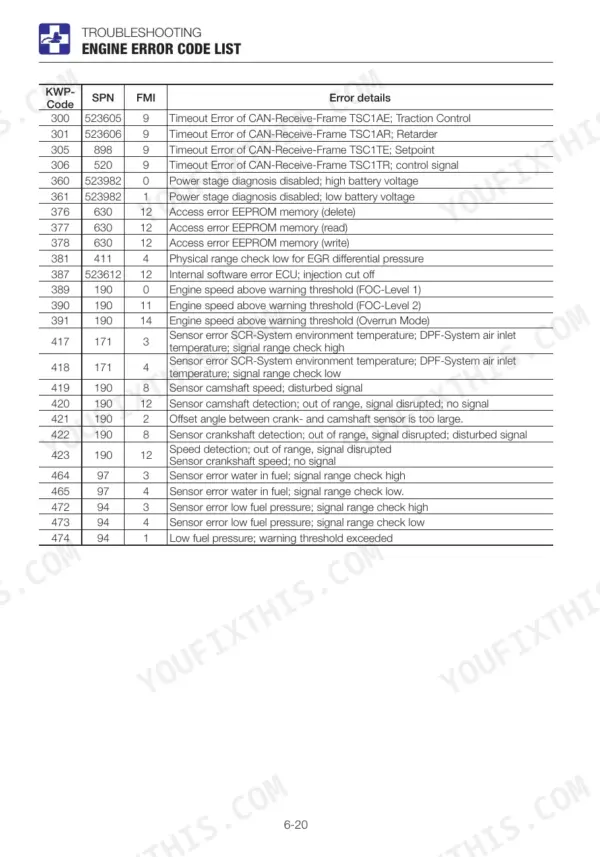

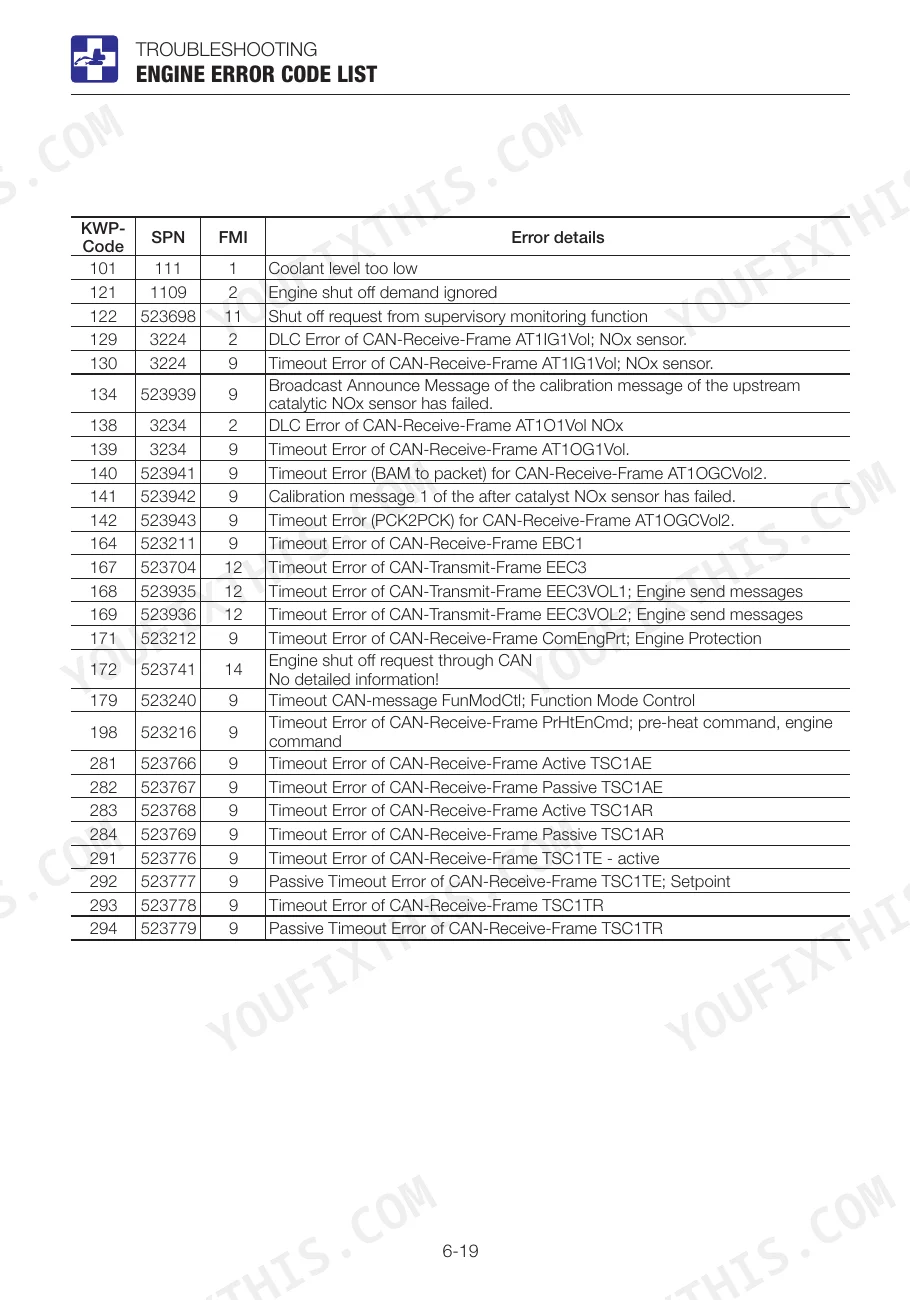

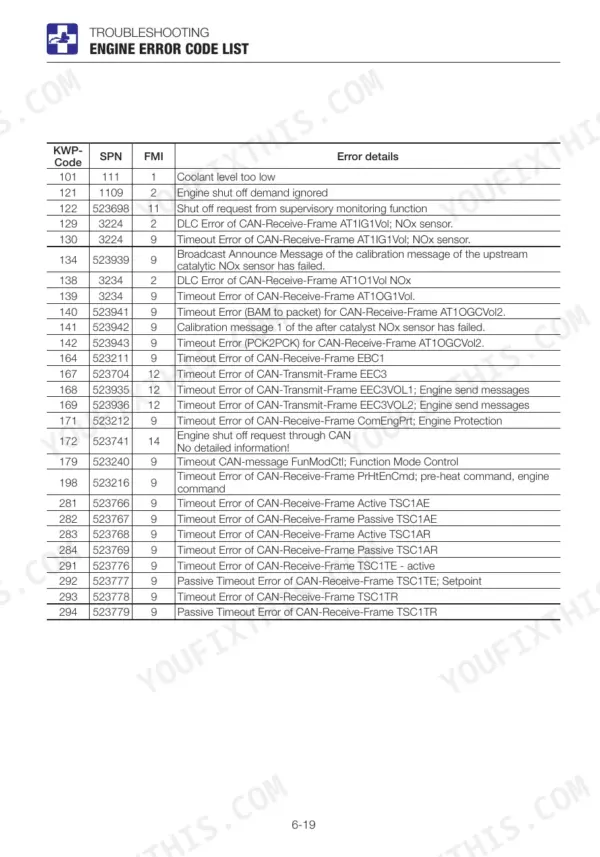

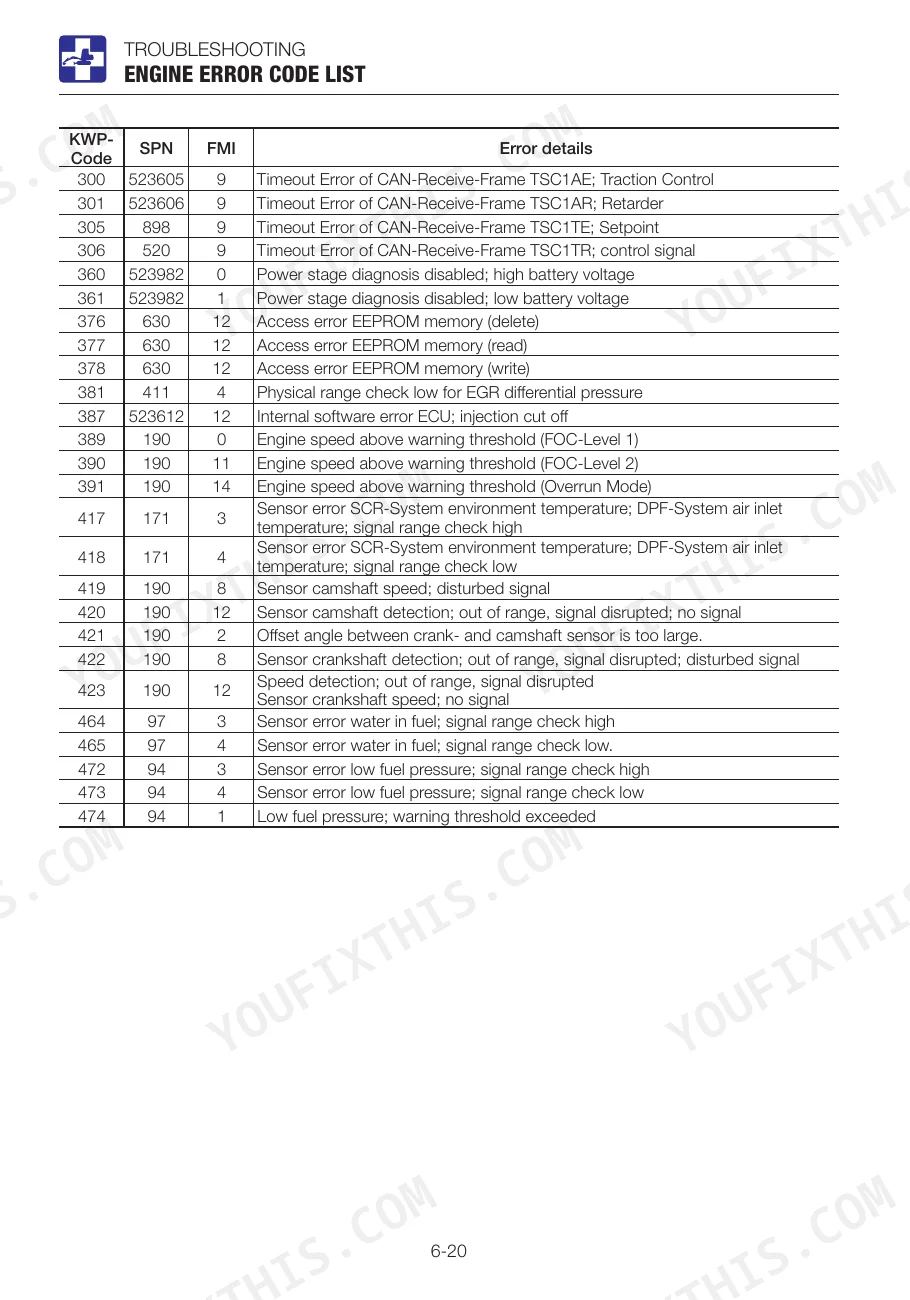

Check what the flashing lamp means in the If a Warning Lamp Flashes section, then look up the displayed code. Vehicle error codes start on page 288, and the Engine Error Code List covers engine codes from page 291 onward. Write the code down before you shut off the machine so you can match it to the listed details and remedy.
Manual Section: Vehicle Error Code List p. 288Bucket clunking with excessive side play in the gap between bucket and arm
Measure the gap between the nut and the bucket bush; per page 263 it should be 0.5 to 1 mm (0.02 to 0.04 in.). Adjust the bucket and arm gap, then torque the adjustment bolts to 83 N·m (61.5 ft-lb.) following page 264. Measure the gap again after torquing to confirm it is still in spec.
Manual Section: Maintenance p. 263Frequently Asked Questions
What do the vehicle error codes mean for the Takeuchi TB2150?
The vehicle error codes indicate specific malfunctions within the machine's systems. For example, code 3300 indicates an 'Alternator charge faulty', while code 3600 indicates 'Air cleaner clogged'. If an error code appears on the display, you should consult your Takeuchi sales or service dealer for assistance. p. 288
What do the engine error codes mean for the Takeuchi TB2150?
Engine error codes provide specific diagnostic information for the engine control module. For instance, code 93 (SPN 110, FMI 1) indicates 'Physical Range Check low for Coolant temperature', and code 98 (SPN 110, FMI 0) indicates 'High coolant temperature; warning threshold exceeded'. If an error code appears, consult your sales or service dealer. p. 290
What are the replacement specifications for the fuel filters on the Takeuchi TB2150?
The pre-fuel filter (part number 19039-00217) and main fuel filter (part number 19039-00218) should be replaced every 1000 hours or once a year. When installing the pre-fuel filter, the tightening torque is 17 to 18 N·m (12.5 to 13.3 ft-lb). p. 200
What are the replacement specs for the hydraulic oil return filter on the Takeuchi TB2150?
The hydraulic oil return filter (part number 15511-03400) should be replaced every 1000 hours after the initial 50 hours of operation. This is a critical maintenance item to ensure the longevity of the hydraulic system. p. 200
What is the tightening torque for the engine oil filter on the Takeuchi TB2150?
When replacing the engine oil filter, it should be tightened by hand and then securely tightened with a torque of 10 to 12 N·m (7.4 to 8.9 ft-lb) after the packing comes in contact with the surface of installation. p. 245
How quickly can I access this Takeuchi TB2150 manual after buying?
You get a 353-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print just the pages I need from this Takeuchi TB2150 manual?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
