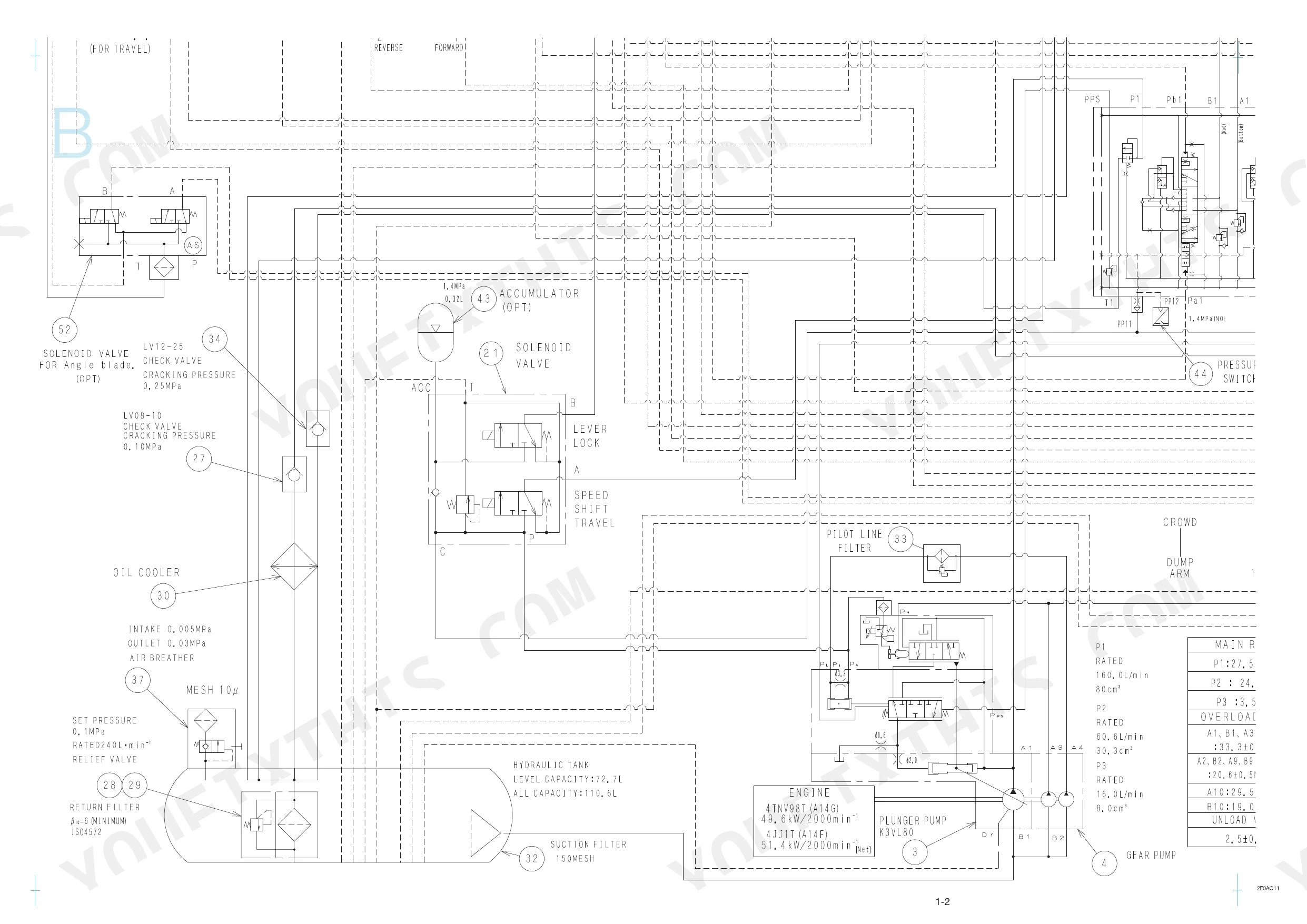

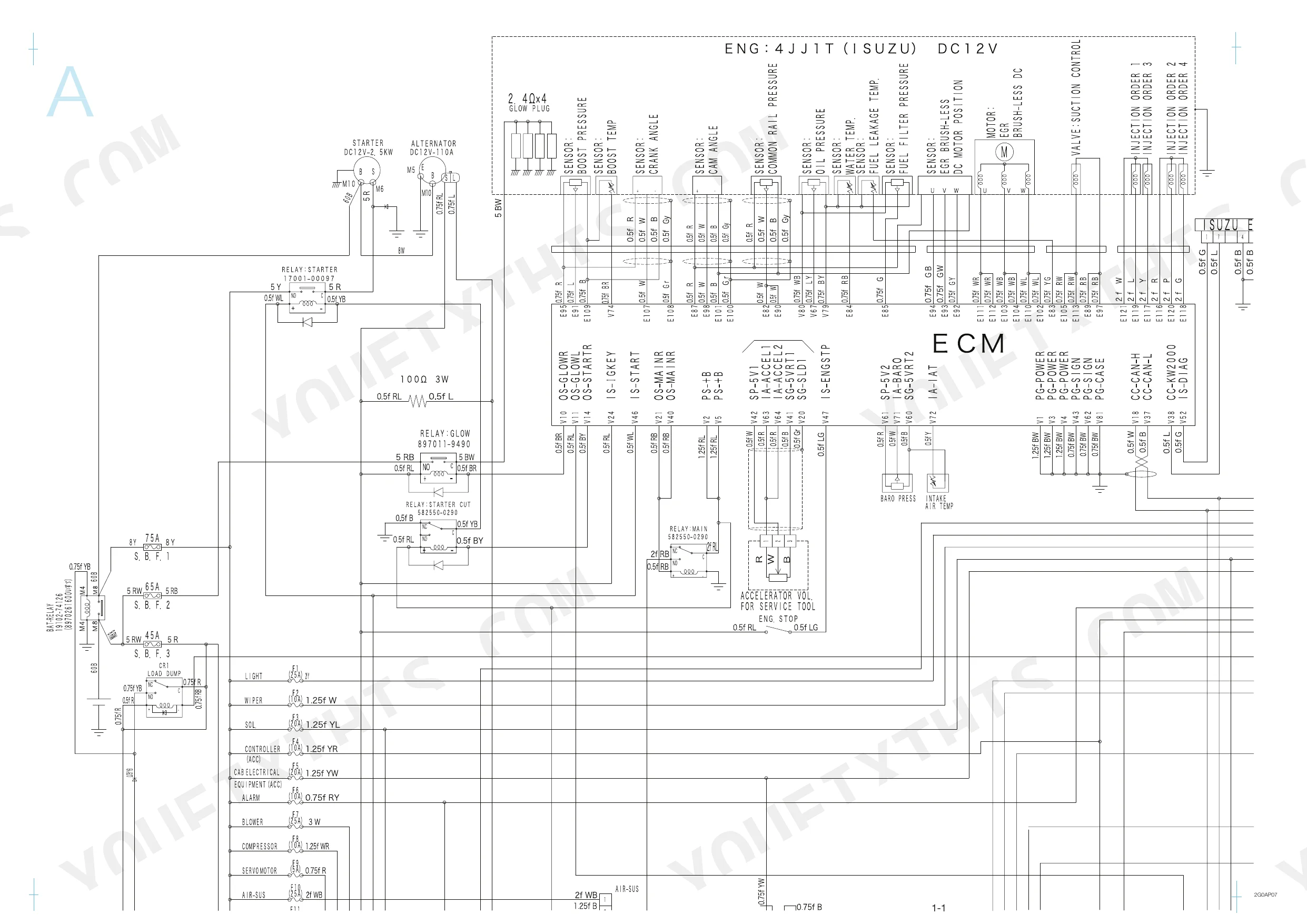

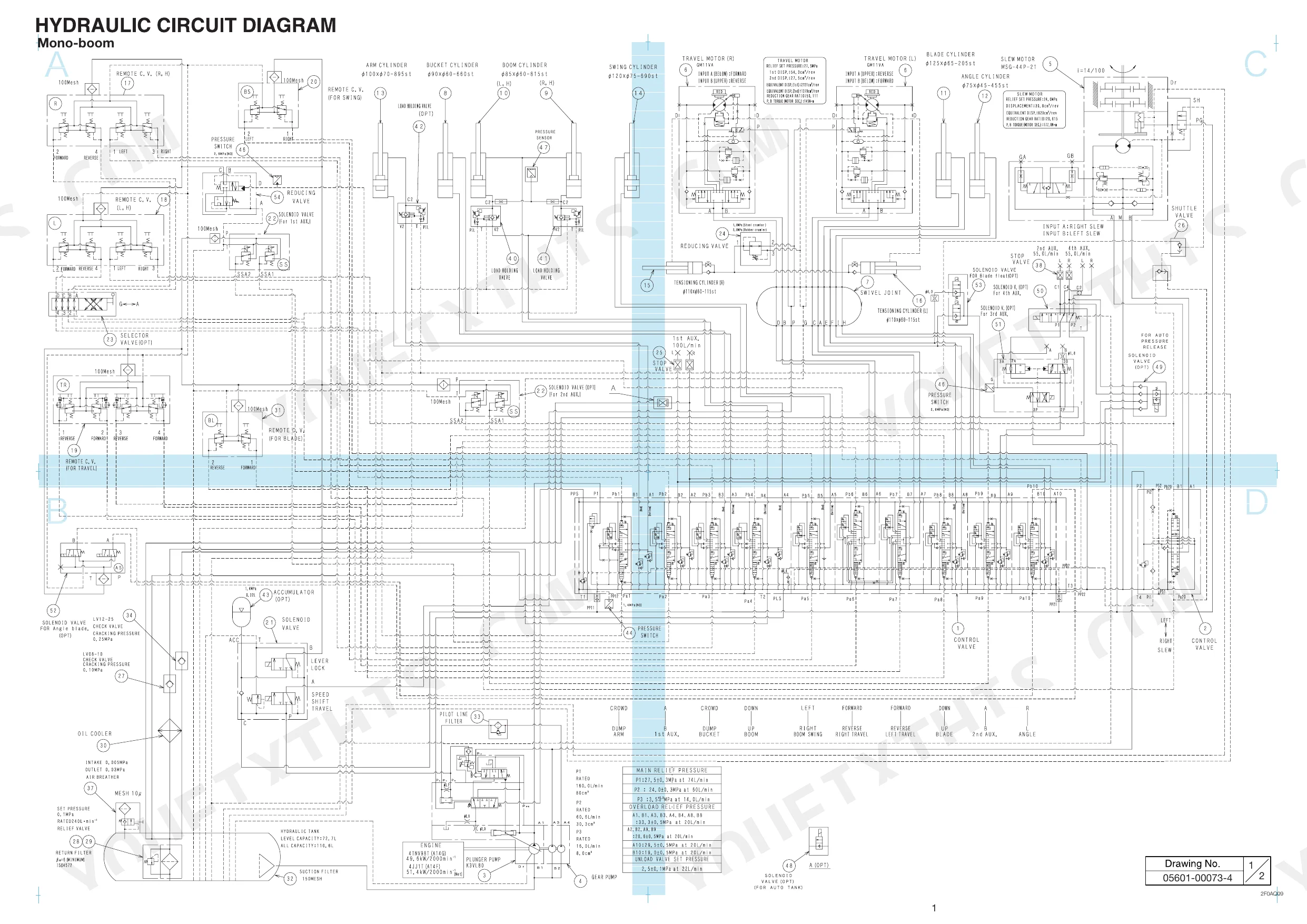

With a pressure gauge teed into the pilot circuit or a travel motor sitting on the bench, you will want the 592-page Takeuchi TB290 service manual PDF (OEM ID CM0E006) open beside you, since it is the factory shop book for this hydraulic excavator. Hydraulic circuit diagrams trace pump flow through the control valve to the boom and arm cylinders, wiring and harness diagrams follow circuits across the machine, and troubleshooting charts sorted by symptom (traveling, slewing, boom, arm, bucket, blade, auxiliary hydraulics) fill a solid stretch of the back half. Teardown chapters on the pumps, pilot valves, cylinders, swivel joint, and travel and slew motors make up the largest share of the book. Set main relief at 27.5 MPa (3990 psi) and torque 3/8 hose union nuts to 49.0 ± 4.9 N·m. Out on a remote site, nobody is there to ask. Bookmarked and text-searchable, the PDF goes with you on your laptop or in the service truck, wherever the TB290 is parked.
What's Inside This Takeuchi TB290 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-12 | Safety Precautions |

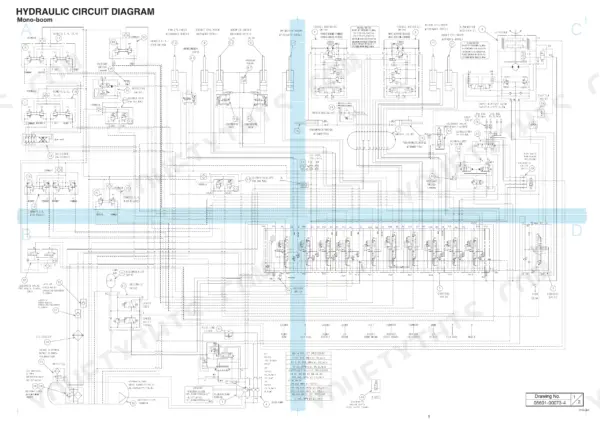

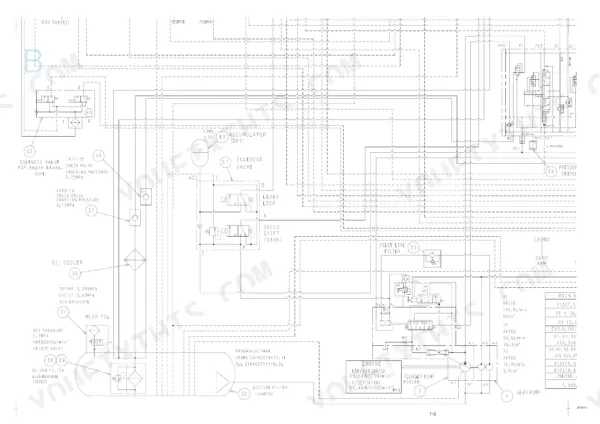

| Service Data | 13-114 | Dimensional Drawing, Specification Tables, Performance Criteria, Hydraulic Circuit Diagram, Electrical Wiring Diagram, Wire Harness Diagram |
| Function | 115-190 | Hydraulic Pump, Control Valve, Travel Motor, Slew Motor |

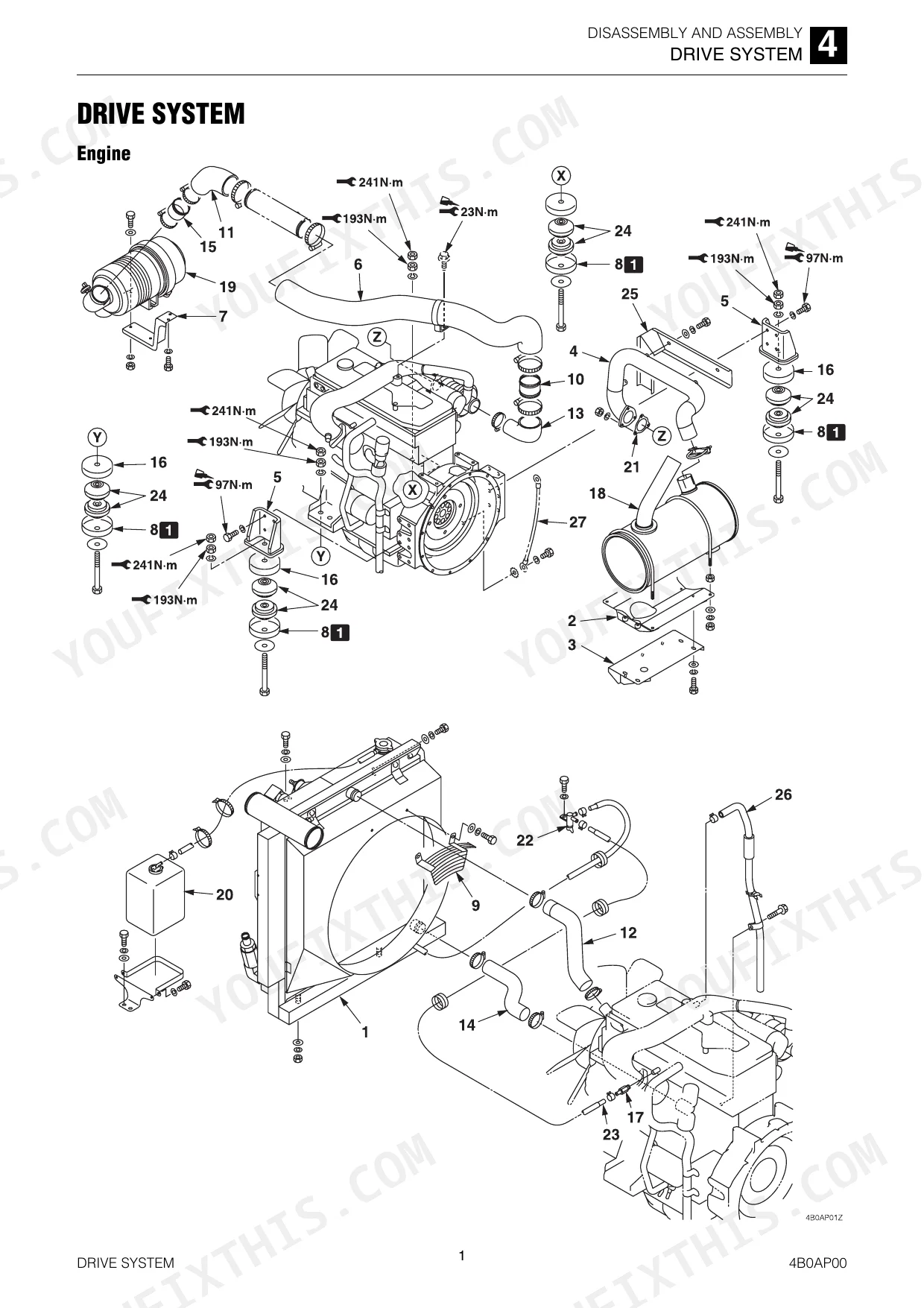

| Drive and Travel Systems | 191-212 | Service Standards, Drive System, Travel System |
| Slew and Upper Frame Equipment | 213-227 | Slew Equipment, Upper Frame |
| Operating Devices and Attachments | 228-247 | Operating Device, Attachments |
| Hydraulic Components | 248-317 | Hydraulic Tank, Hydraulic Pump, Gear Pump, Control Valve, Pilot Valve |
| Valves and Cylinders | 318-373 | Emergency Shut-Off Valve, Solenoid Valve, Selector Valve, Reducing Valve, Cylinders, Tensioning Cylinder |
| Travel and Slew Motors | 374-434 | Travel Motor, Slew Motor, Swivel Joint |
| Troubleshooting | 435-498 | Overall Machine, Traveling, Slewing, Boom, Arm, Bucket, Blade, Auxiliary Hydraulics |
| Other | 499-592 | Air Conditioner, Maintenance Software Manual |

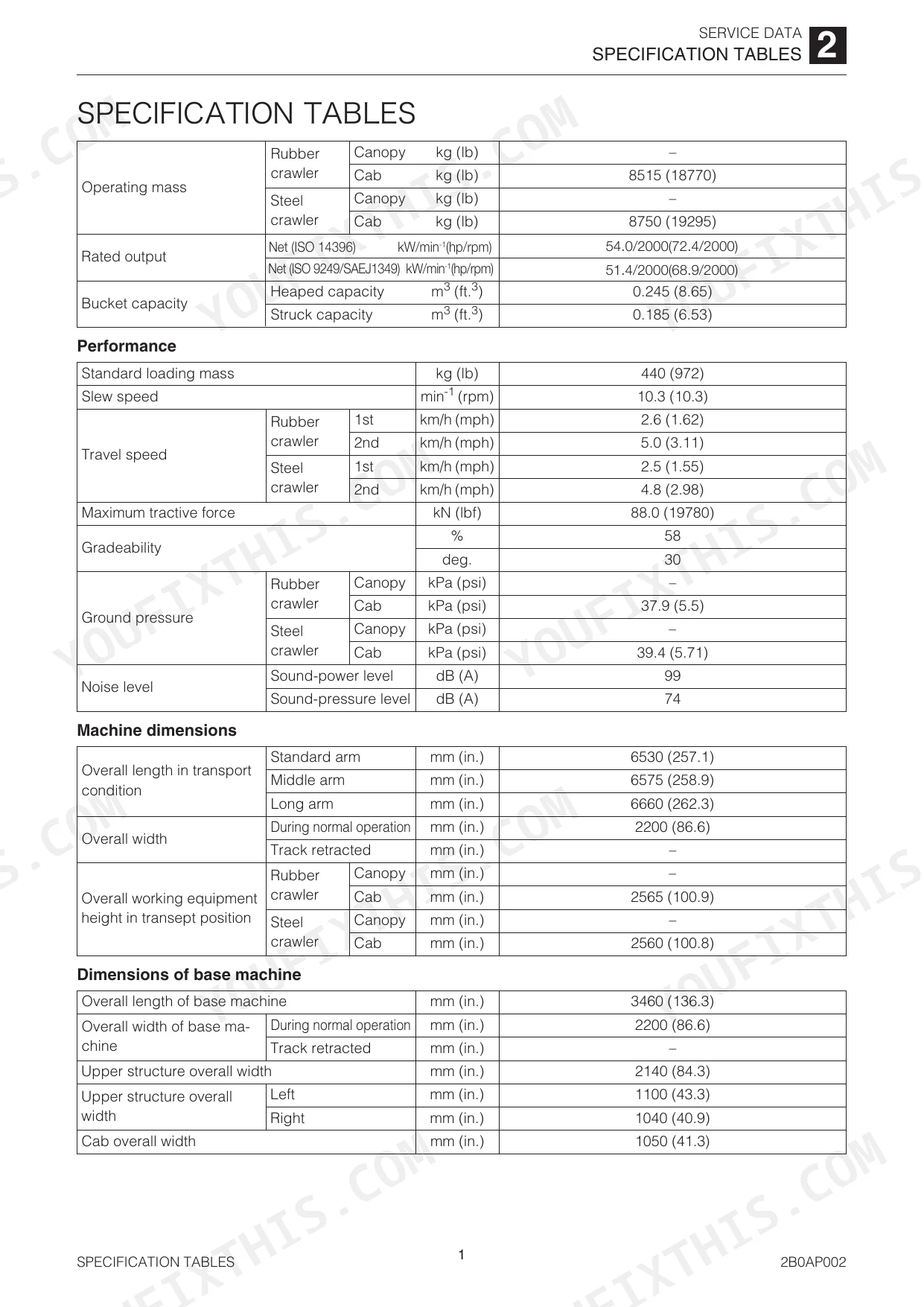

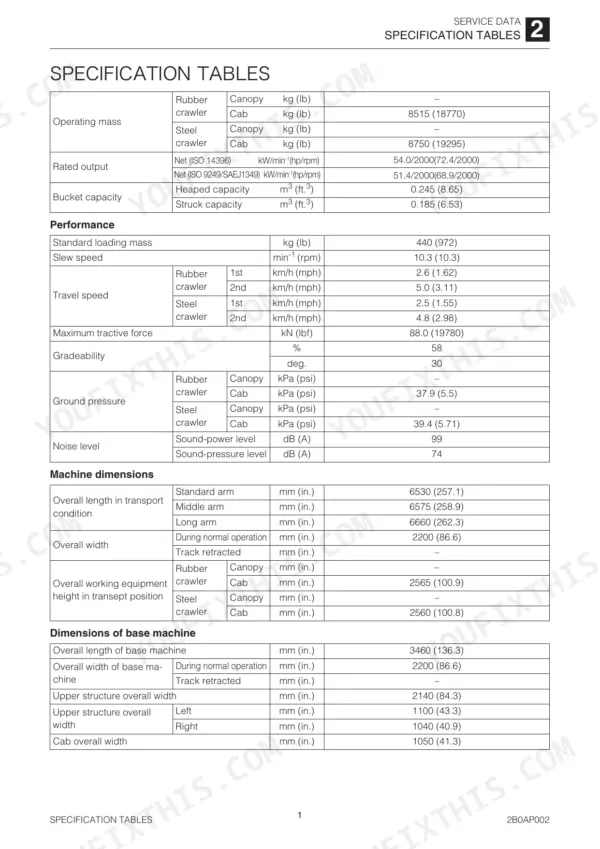

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tensioning cylinder valve nut torque | 18.6 N·m to 21.6 N·m | p. 205 |
| Seal tape overlap | 10 mm | p. 11 |
| Hydraulic oil pressure (Main relief valve set pressure) | 27.5 MPa (3990 psi) | p. 19 |
| Hydraulic oil pressure (Slewing relief valve set pressure) | 24.0 MPa (3480 psi) | p. 19 |
| Hydraulic hose tightening torque (Union nut 3/8) | 49.0 ± 4.9 N·m | p. 39 |
| Hydraulic hose tightening torque (Union nut 1/2) | 58.8 ± 4.9 N·m | p. 38 |
| Engine Oil Pan Capacity (Upper limit) | 15.0 L | p. 23 |
| Hydraulic Tank Total Oil Amount | 140 L | p. 23 |
| Hydraulic Tank Capacity | 73 L | p. 23 |
| Engine Cooling System Capacity | 16.0 L | p. 23 |
| Travel Reduction Gear Oil Capacity | 1.1 L | p. 23 |
| Main Relief Valve Pressure Setting (P1) | 27.5 MPa | p. 19 |
Takeuchi TB290 Common Problems This Manual Covers

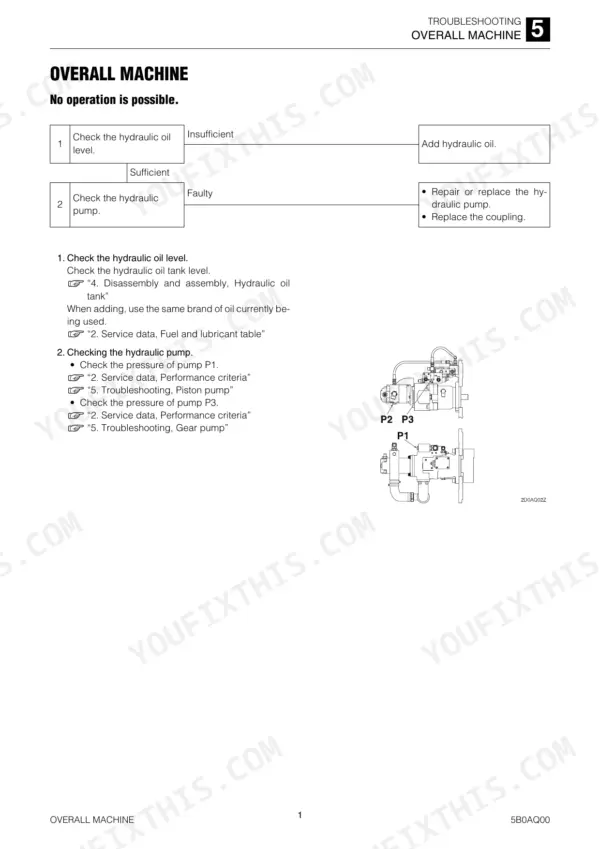

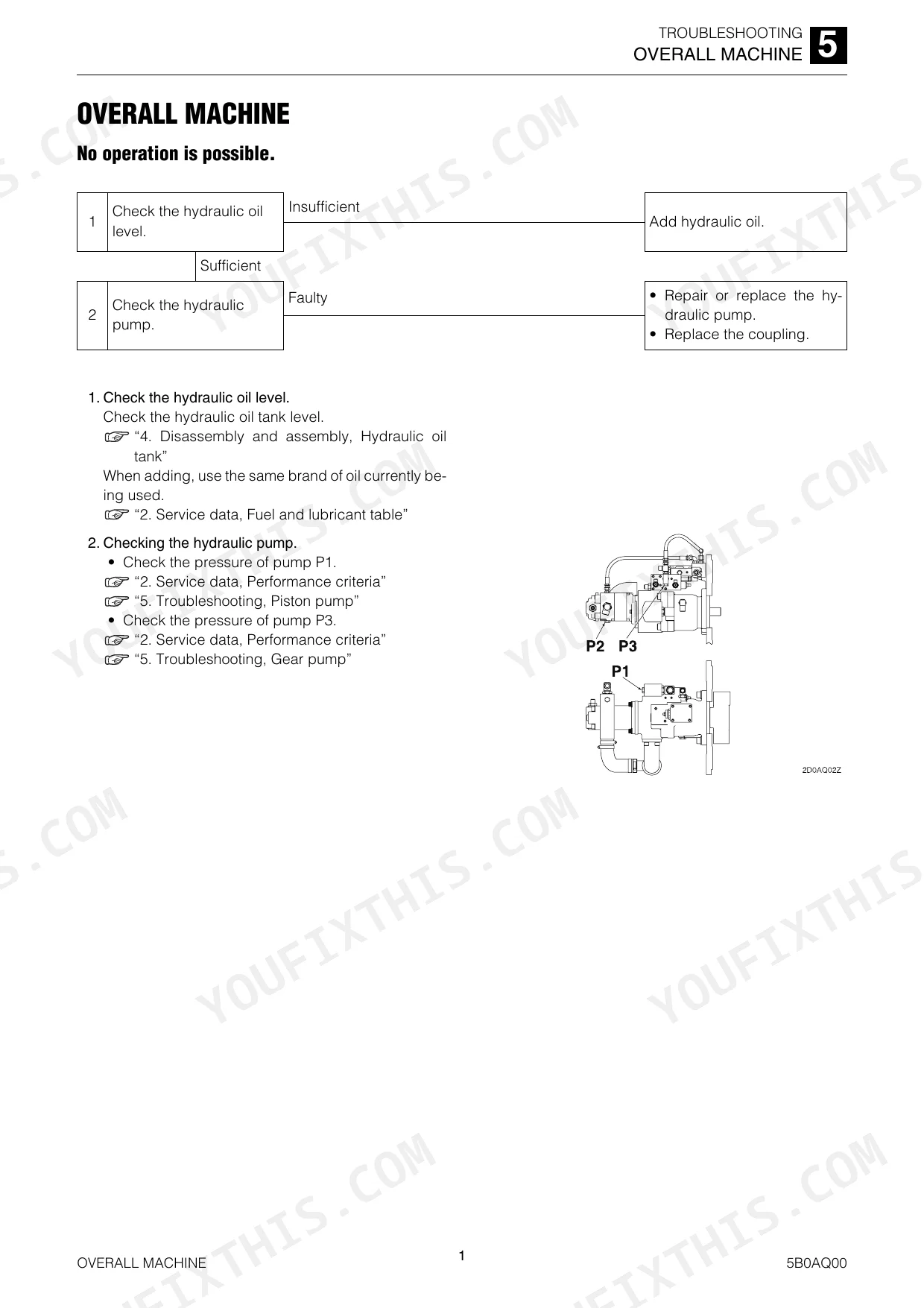

Takeuchi TB290 excavator no operation possible on any function or insufficient power under load
Verify hydraulic tank oil level, then follow the overall machine troubleshooting flow starting. Put a gauge on the main circuit and confirm main relief set pressure of 27.5 MPa (3990 psi) per page 19. Check pilot pressure against 3.4 MPa (490 psi) before condemning anything bigger.
Manual Section: Overall Machine TroubleshootingNo right or left travel, travel speed deceleration, or machine veering to one side while tracking
Check travel reduction gear oil on the slow side first; capacity is 1.1 L per page 23. Verify main relief set pressure at 27.5 MPa (3990 psi) per page 19, then work the traveling troubleshooting chart to isolate the travel motor before pulling anything.
Manual Section: Traveling TroubleshootingTrack shoe tension won't build or tensioning cylinder shows lack of tension after adjustment
Inspect the tensioning cylinder and its valve, then work the shoe tension troubleshooting flow to find where tension is lost. Torque the tensioning cylinder valve nut to 18.6 to 21.6 N·m following page 205, and never run it down with an impact. Recheck shoe tension after a short travel run.
Manual Section: Shoe Tension TroubleshootingNo slew movement, slow slewing speed, or large overrun when the upper frame stops
Measure slewing relief valve set pressure and confirm 24.0 MPa (3480 psi) per page 19. Check pilot pressure against 3.4 MPa (490 psi) at the same time. If both are in spec, work the slewing troubleshooting flow toward the slew motor and slew equipment before splitting anything open.
Manual Section: Slewing TroubleshootingBoom or arm cylinder slow speed, no movement, or spontaneous drop with the boom held raised
Check main relief set pressure against 27.5 MPa (3990 psi) per page 19 first. Trace the boom and arm circuits on the hydraulic schematic, then work the boom and arm troubleshooting flows to separate the cylinder from the control valve. Never stand under a drifting boom.
Manual Section: Boom TroubleshootingPiston pump noise, insufficient discharge, low pressure, overheating, or oil leaks at the pump
Check hydraulic tank oil level first; tank capacity is 73 L per page 23. Gauge main relief set pressure against 27.5 MPa (3990 psi) per page 19. For leaks at hose fittings, torque 1/2 union nuts to 58.8 ± 4.9 N·m following page 38 before you condemn the pump.
Manual Section: Piston Pump TroubleshootingFrequently Asked Questions
What are the error codes for the Takeuchi TB290 and what do they mean?
The manual provides a list of error codes for the controller. For example, error code 102 indicates a CAN communications abnormality (bus off), 3300 indicates an alternator charge fault, and 3500 indicates an overheat condition. Other codes include 5303 for accelerator sensor abnormality (high pressure) and 7106 for pump PWM output current abnormality (short). p. 570
How do I clear error logs on the Takeuchi TB290 using the maintenance software?
To delete error logs, select [Log]->[Delete] from the menu in the maintenance software. A confirmation dialog box will appear; click the OK button to proceed. Another confirmation dialog will be displayed, and clicking OK again will delete all error logs saved in the controller. p. 569
What are the specifications for the hydraulic oil filter on the Takeuchi TB290?
The hydraulic oil filter is a glass fiber filter paper-type with a filter precision of BETA10=6. It is installed in the return circuit inside the hydraulic tank. p. 19

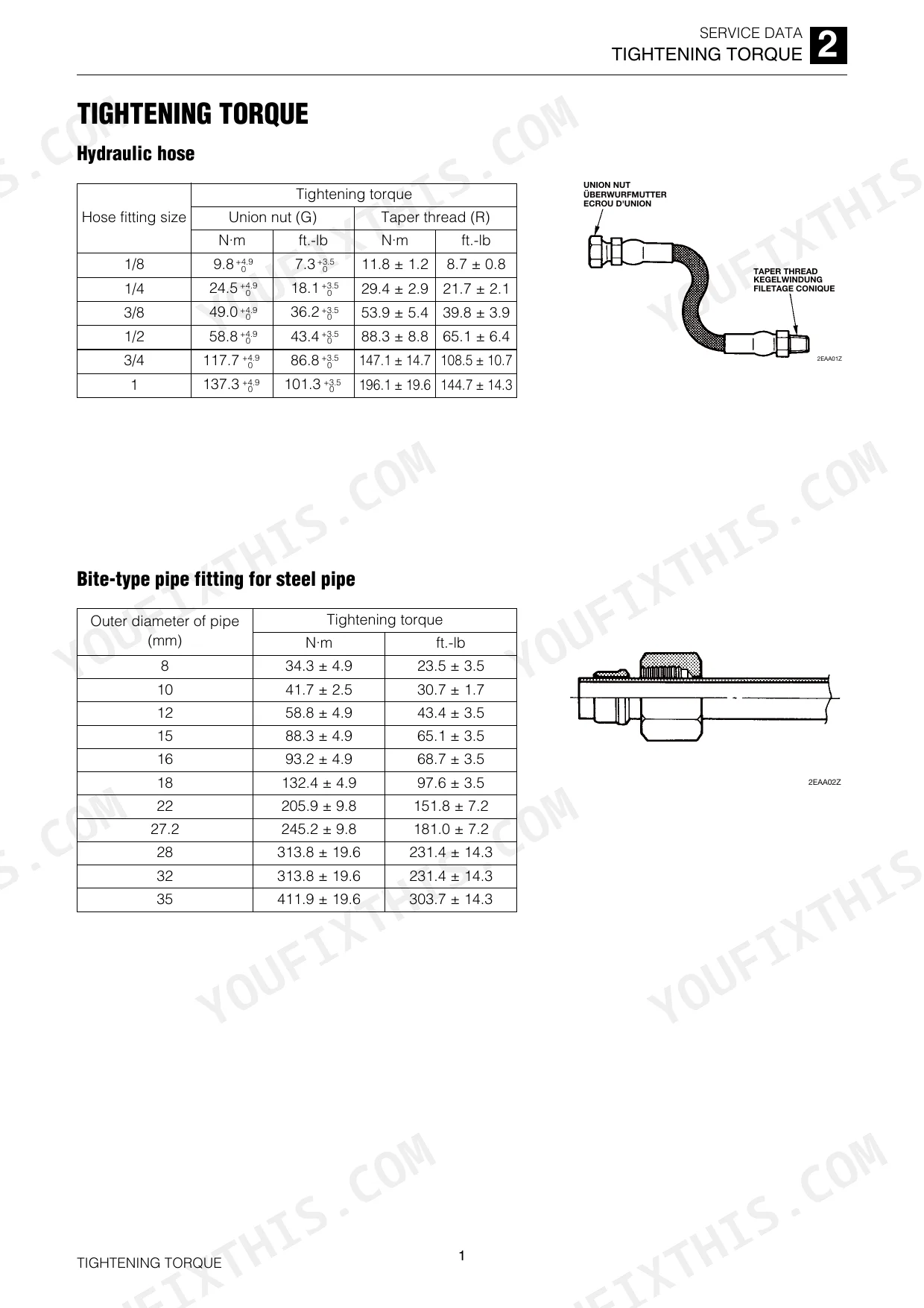

What is the tightening torque for the hydraulic hose union nut on a 1/2 inch fitting on the Takeuchi TB290?
The tightening torque for a 1/2 inch hydraulic hose union nut (G) is 58.8 +4.9/0 N·m (43.4 +3.5/0 ft.-lb.). p. 38
What is the procedure for bleeding air from the hydraulic cylinder after maintenance?
After reassembling or replacing hydraulic devices, start the engine and let it idle for five minutes. Then, at slow speed, extend and retract each cylinder four or five times, stopping 100 mm before the stroke end. Finally, repeat this at top speed, then move the piston rod to the stroke end to fully bleed the air. p. 364
What exactly do I receive with this Takeuchi TB290 Service Manual?
You download the Service Manual yourself: 592 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print pages of this Takeuchi TB290 manual for my own shop?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
