Overheated engines and choked return filters on a track loader usually trace back to a missed service hour. The Takeuchi TL230 operator manual PDF is the fix: 200 factory pages under OEM ID AU1E001, written for the TL220 through TL250 crawler loaders, four variants in one book. Maintenance takes a quarter of the book, built around the service chart and daily inspection, while the controls section walks you through the instrument panel and switches before the lift arms move. Troubleshooting handles overheating, fuel faults, fuses and towing, and the options chapter takes in the air conditioner and hydraulic quick hitch. Change the engine oil filter at 50 hours and every 250 after, swap the hydraulic return filter every 500, and match attachments to the 20.6 MPa (2987 psi) auxiliary rated pressure. A guessed pressure figure blows hoses and attachment seals. The PDF is bookmarked and searchable, and the maintenance chart prints clean enough to live on your bench, grease and all.
What's Inside This Takeuchi TL220, TL230, TL240, TL250 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5 | Manual Storage, Serial Numbers, Foreword |
| Machine Description | 6-7 | Designated Operations, Features, Break-In Period |
| Safety | 8-37 | Preparing Precautions, Starting Precautions, Operating Precautions, Stopping Precautions, Transporting Precautions, Maintenance Precautions, Safety Signs |

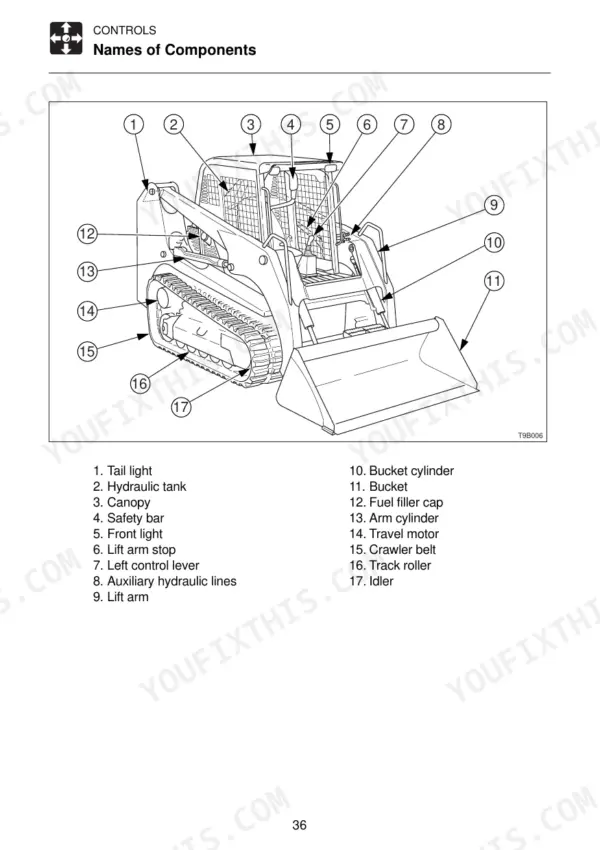

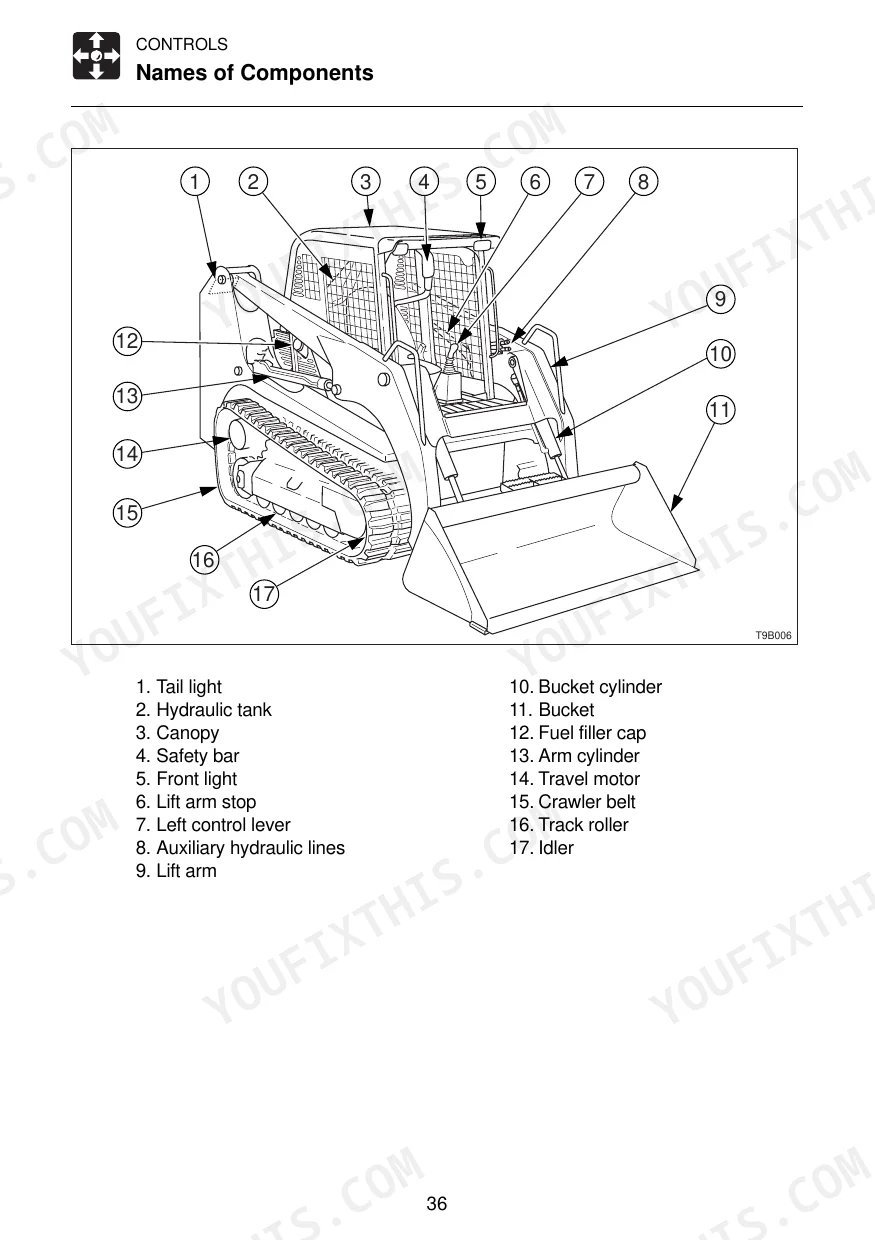

| Controls | 38-69 | Doors and Covers, Seat and Seat Belt, Instrument Panel, Switches, Accessories |

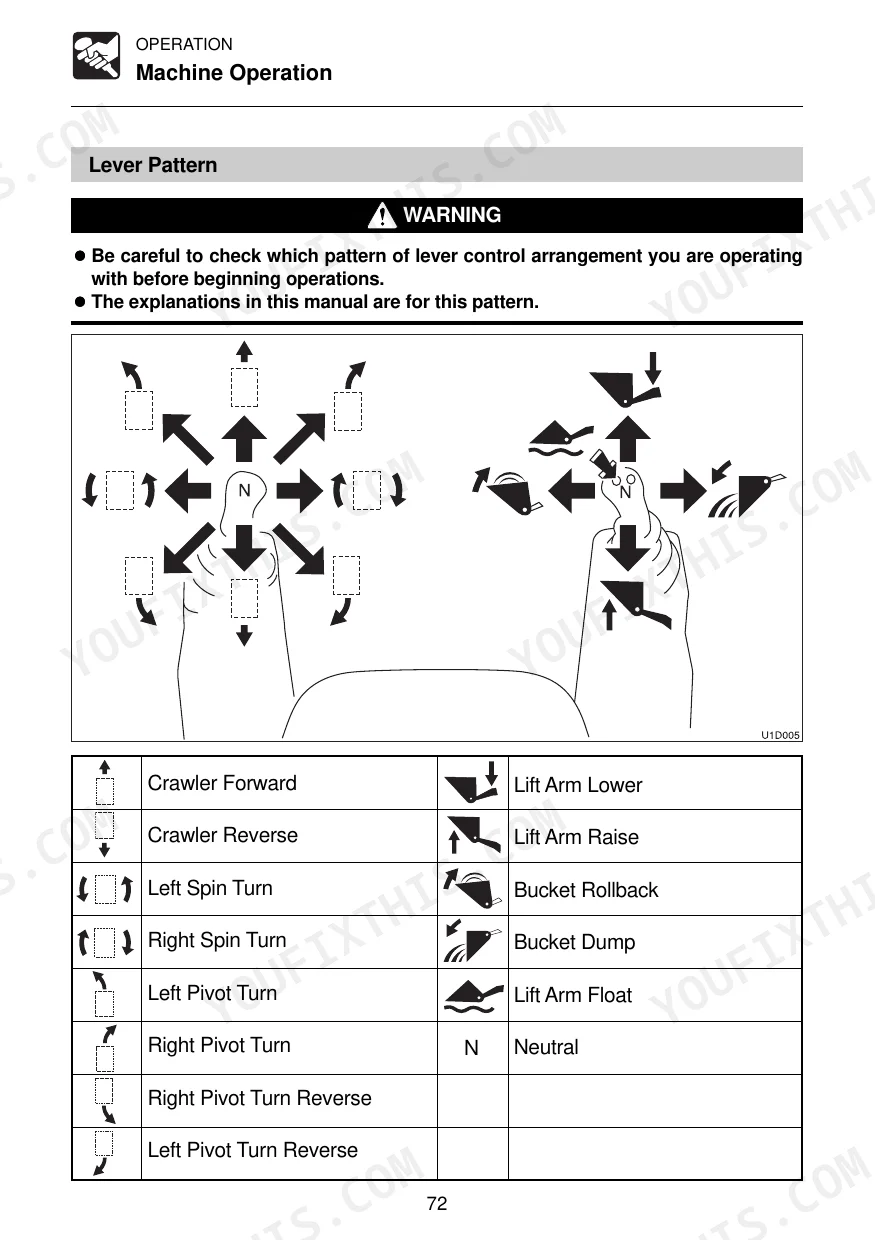

| Operation | 70-95 | Before Starting Operation, Starting and Stopping the Engine, Machine Operation, Operating Procedures, Handling Rubber Crawlers |
| Transport | 96-101 | Hoisting the Machine |

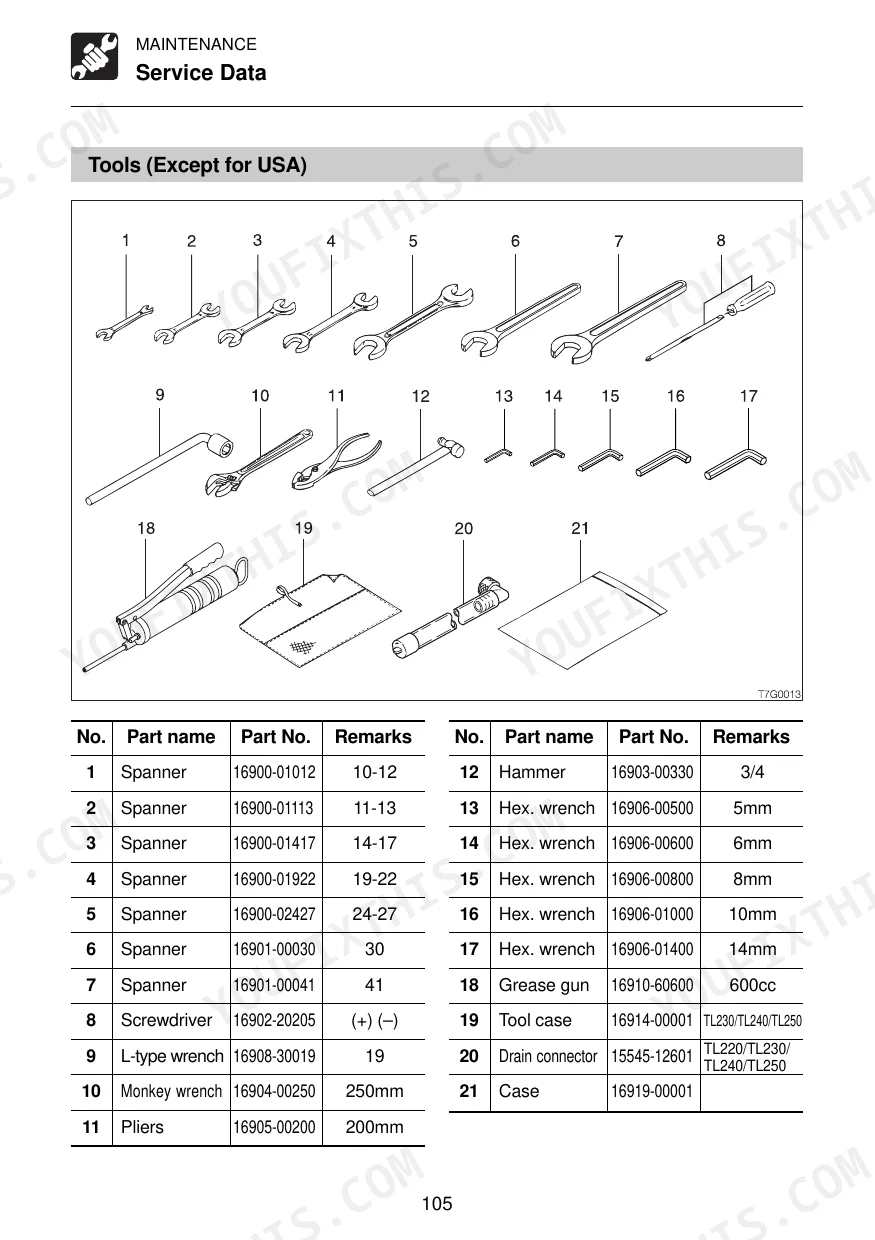

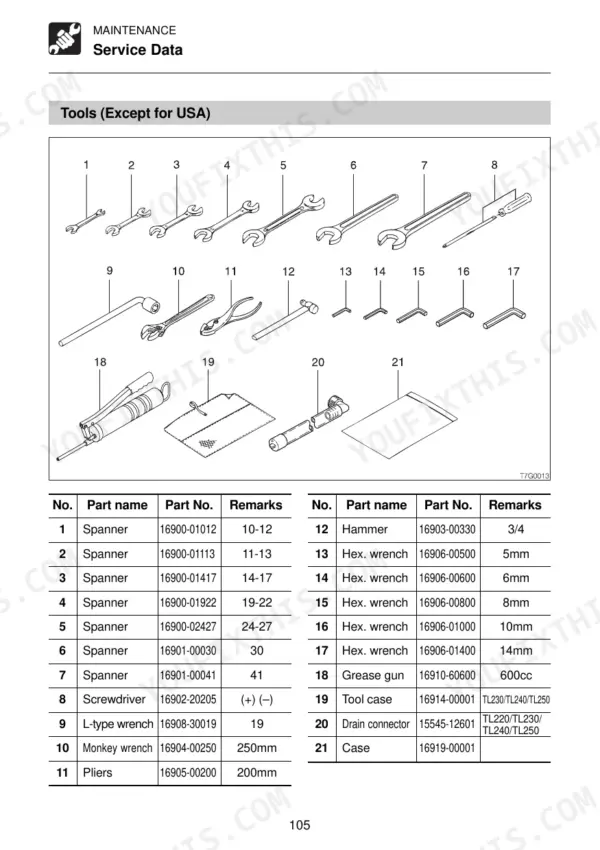

| Maintenance | 102-151 | General, Service Data, Maintenance Chart, Daily Inspection |
| Troubleshooting | 152-165 | Engine Overheating, Battery Failure, Fuel System, Fuse Replacement, Warning Lamps, Towing |

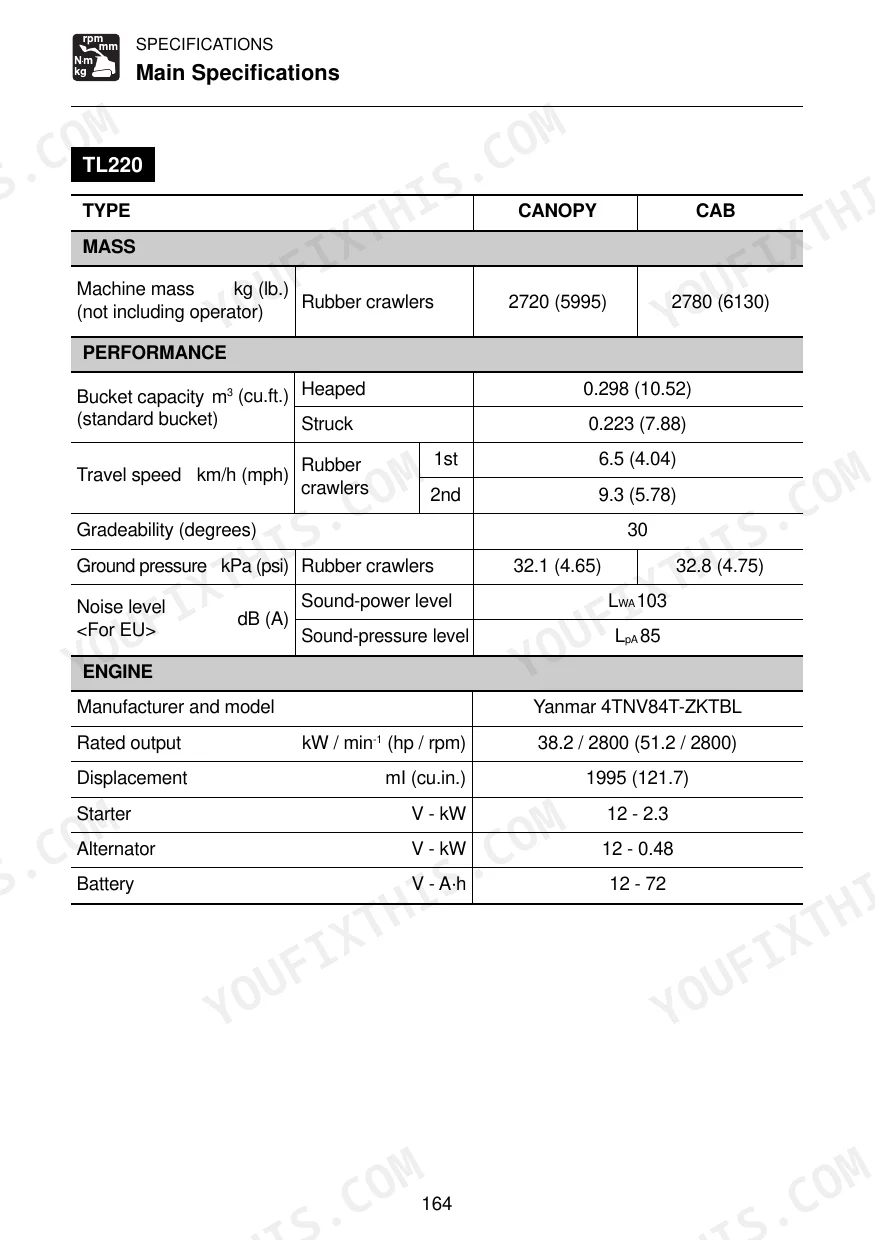

| Specifications | 166-175 | Main Specifications, Machine Dimensions, Operating Range |
| Options | 176-193 | General Precautions, Air Conditioner, Hydraulic Quick Hitch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Auxiliary hydraulic rated pressure | 20.6 MPa (2987 psi) | p. 63 |
| High Flow hydraulic rated pressure | 20.6 MPa (2987 psi) | p. 63 |
| Engine oil filter replacement interval | After first 50 hrs. Every 250 hrs. | p. 107 |
| Hydraulic oil return filter replacement interval | After first 50 hrs. Every 500 hrs. | p. 107 |
| Fuel filter replacement interval | Every 500 hrs. | p. 107 |
| Air cleaner outer element replacement interval | Every 250 hrs. or when the air cleaner warning lamp lights | p. 107 |
| Air cleaner inner element replacement interval | Every 250 hrs. or when the air cleaner warning lamp lights | p. 107 |
| Crawler tension gap | 25 to 50 mm (1 to 2 in.) | p. 127 |
| TL220 | ||
| Engine Oil Pan Capacity (Upper limit) | 7.4L | p. 105 |
| TL230 | ||
| Engine Oil Pan Capacity (Upper limit) | 10.2L | p. 105 |
| TL240 | ||
| Engine Oil Pan Capacity (Upper limit) | 10.2L | p. 105 |
| TL250 | ||
| Engine Oil Pan Capacity (Upper limit) | 13.2L | p. 105 |
Takeuchi TL220, TL230, TL240, TL250 Common Problems This Manual Covers

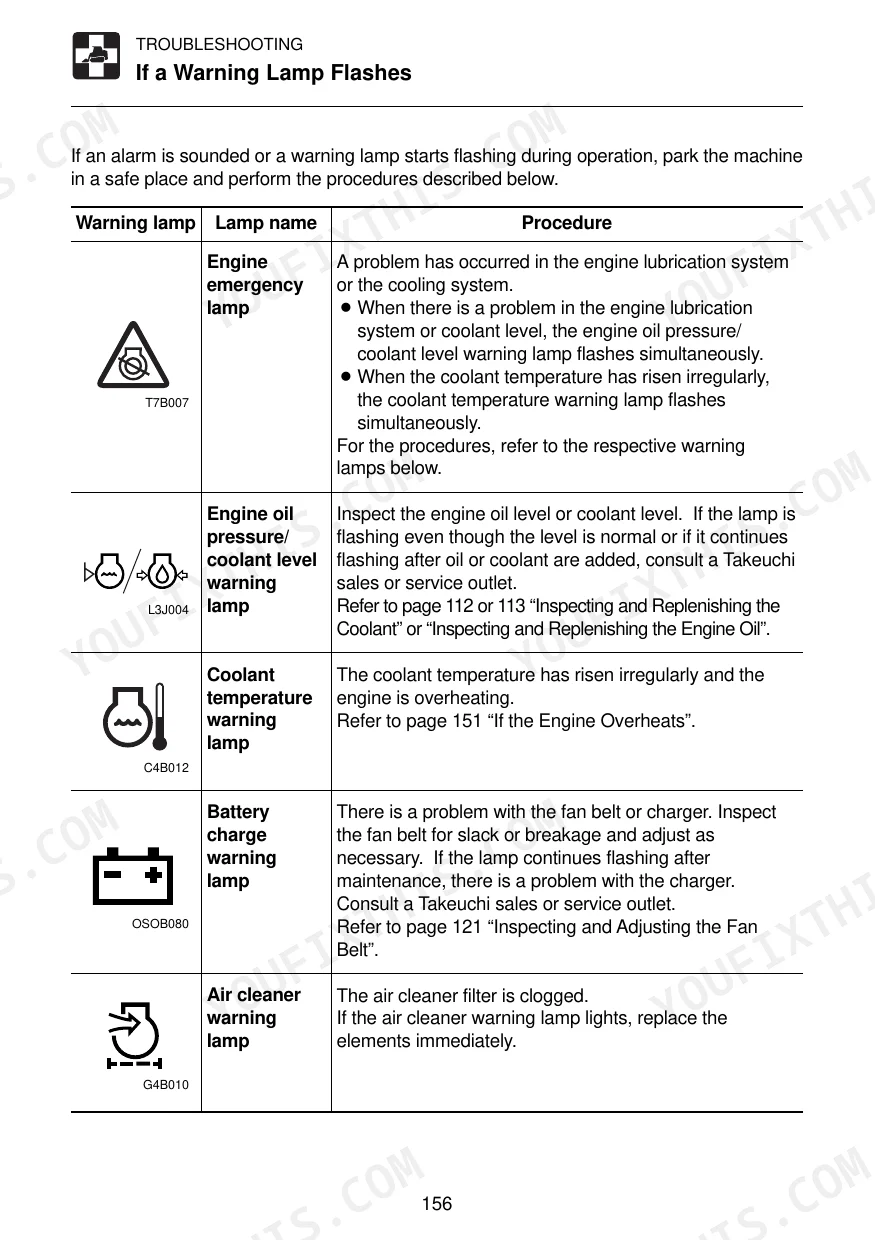

Takeuchi TL220 to TL250 air cleaner warning lamp stays lit on the instrument panel while working
Check the air cleaner lamp against the warning lamp table on page 159 first. Replace both the outer and inner air cleaner elements when that lamp lights, or every 250 hrs regardless, per the replacement chart on page 104. Restart and confirm the lamp goes out before putting the loader back to work.
Manual Section: Warning Lamp Troubleshooting p. 159Lift arms and bucket show weak scooping and lifting force under a full load
Check the scooping and lifting force entries in the general troubleshooting chart on page 161 before touching any fittings. Verify the hydraulic oil level during the daily inspection, and confirm the hydraulic oil return filter element was changed after the first 50 hrs and every 500 hrs since, per page 104.
Manual Section: General Machine Troubleshooting p. 161Rubber crawlers look slack and the loader travels poorly across the jobsite
Measure the crawler tension gap following page 127; gap (A) must sit within 25 to 50 mm (1 to 2 in.). Adjust tension until it falls in that range. If travel is still weak after adjustment, check the travel entries in the troubleshooting chart on page 161. Review the Handling Rubber Crawlers section in Operation too.
Manual Section: Maintenance p. 127Engine overheating with the coolant temperature warning lamp lit while working the loader
Check the coolant temperature lamp entry on page 159, then follow the Engine Overheating procedure in the troubleshooting section and walk every inspection point it lists. Verify the oil pressure/coolant level lamp is also out, since page 159 pairs coolant level with oil pressure. Do not resume loading until the cause is found.
Manual Section: Engine OverheatingEngine will not start after the machine ran out of fuel and was refilled
Remove air from the fuel system by following the bleeding procedure in Fuel System Troubleshooting after refilling the tank. Replace the fuel filter cartridge if it is due at its 500 hrs interval on page 104. If the engine still will not start, check the engine start entries on page 161.
Manual Section: Fuel System TroubleshootingBattery charge warning lamp lit during operation or battery too weak to start the engine
Check the battery charge lamp entry on page 159 to confirm what the panel is telling you. For a dead battery, follow the Battery Troubleshooting jumper cable connection and disconnection order exactly, then recharge the battery as described there. Inspect fuses and fusible links per Electrical System Troubleshooting if the machine still has no power.
Manual Section: Warning Lamp Troubleshooting p. 159Frequently Asked Questions
What do the engine fault warning light flashing codes mean?
If the engine fault warning lamp flashes, you must stop the engine and contact a Takeuchi sales or service outlet for help. The lamp flashes in a specific pattern corresponding to the type of problem, which helps technicians diagnose the issue. p. 54
What are the engine oil and oil filter replacement specs for the Takeuchi TL220, TL230, TL240, TL250?
The engine oil and oil filter should be replaced after the first 50 hours of operation for new machines, and then every 250 hours thereafter. The engine oil pan capacity for the TL220 is 7.4 liters (7.8 US qt) at the upper limit and 4.0 liters (4.2 US qt) at the lower limit. p. 105
What are the fuel filter and water separator element replacement specs for the Takeuchi TL220, TL230, TL240, TL250?
The fuel filter cartridge should be replaced every 500 hours. The water separator element should be cleaned or replaced as needed, and the water should be drained daily or whenever the red indicator ring floats. p. 104
What is the correct fan belt tension for the engine?
The fan belt tension is correct if it deflects about 7 to 10 mm (0.28 to 0.4 in.) when pressed at the midpoint between the fan pulley and the alternator pulley with a force of approximately 98N (22 lbs.). p. 124
What is the tightening torque for the travel motor gear oil plugs on the Takeuchi TL220, TL230, TL240, TL250?
When replacing the travel motor gear oil, the drain plug (1) and the supply/level plugs (2) and (3) should be tightened to a torque of 22 N·m (15.9 ft-lb.). p. 134
Is this Takeuchi TL220–TL250 Series manual a download or a disc?
A single searchable PDF file of 200 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I free to print this Takeuchi TL220–TL250 Series Operator Manual?
Yes. Printing works from any reader and any printer, for your own shop use.
