Both the PT-50 and PT-60 sit side by side in this 85-page Terex Service Manual (OEM #2030-634), every page built around the rubber track loader. The hydraulic schematics trace the filtering and cooling circuit, the auxiliary circuit, and the drive loop from pump to actuator, while wiring diagrams map the electrical attachment outlet. The teardown chapters walk through disassembly and assembly: the tandem pump and auxiliary gear pump, a full undercarriage rebuild covering tracks, sprockets, outboard bearings, and drive motors, joystick and loader valve R&I, and hydraulic reservoir service. Set the transmission mounting bolts to 85 ft-lb with Blue Loctite, torque the end wheel axle retaining nut to 300 ft-lb dry, and check drive sprocket lug nuts at 129 ft-lb. Stop chasing hydraulic faults on gut instinct. Bookmarks jump you to any section, and keyword search carries any spec straight to the machine.
What's Inside This Terex PT-50, PT-60 Manual
| System | Pages | Key Topics |
|---|---|---|
| Product Safety | 5-10 | Chapter Overview |

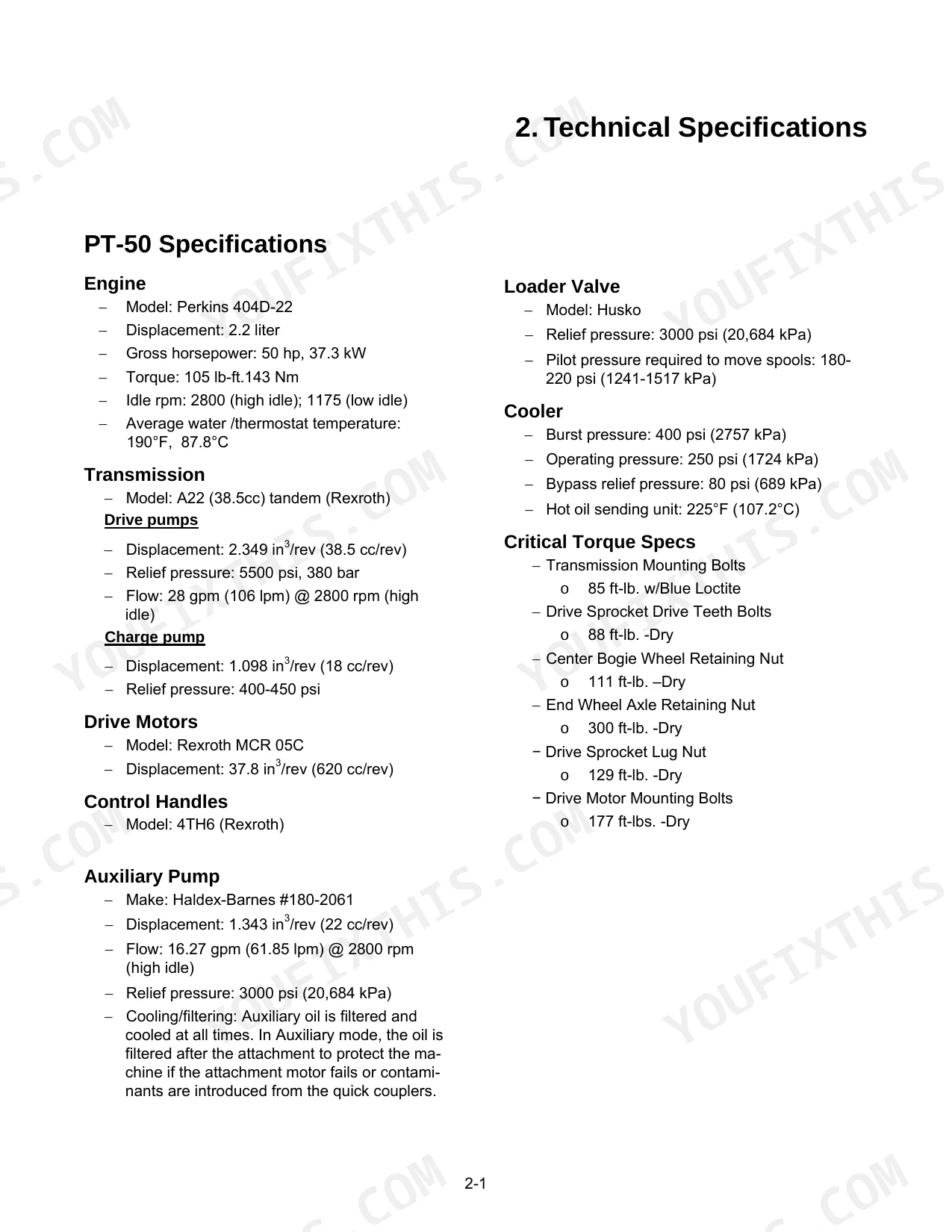

| Technical Specifications | 11-12 | Pt-50 Specifications, Pt-60 Specifications |

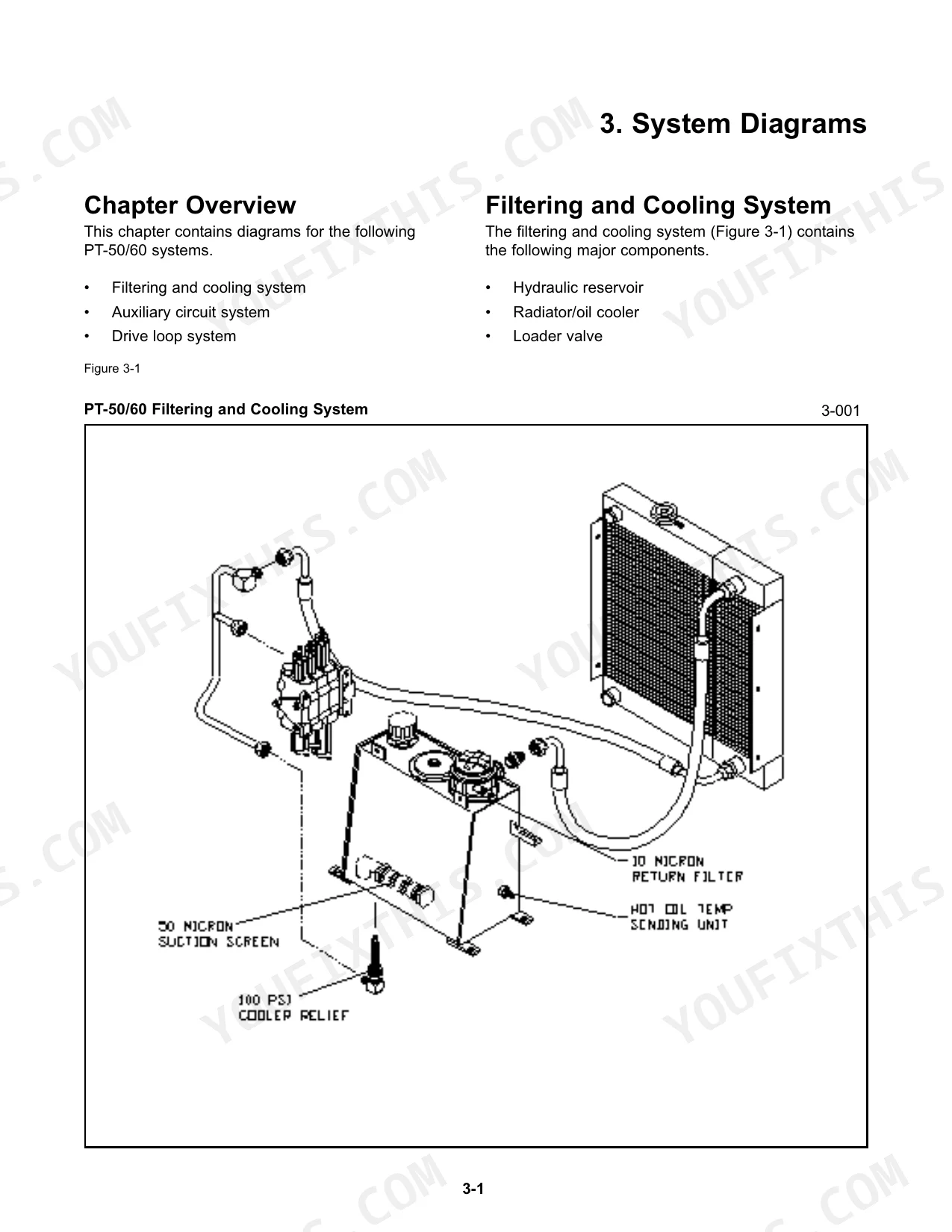

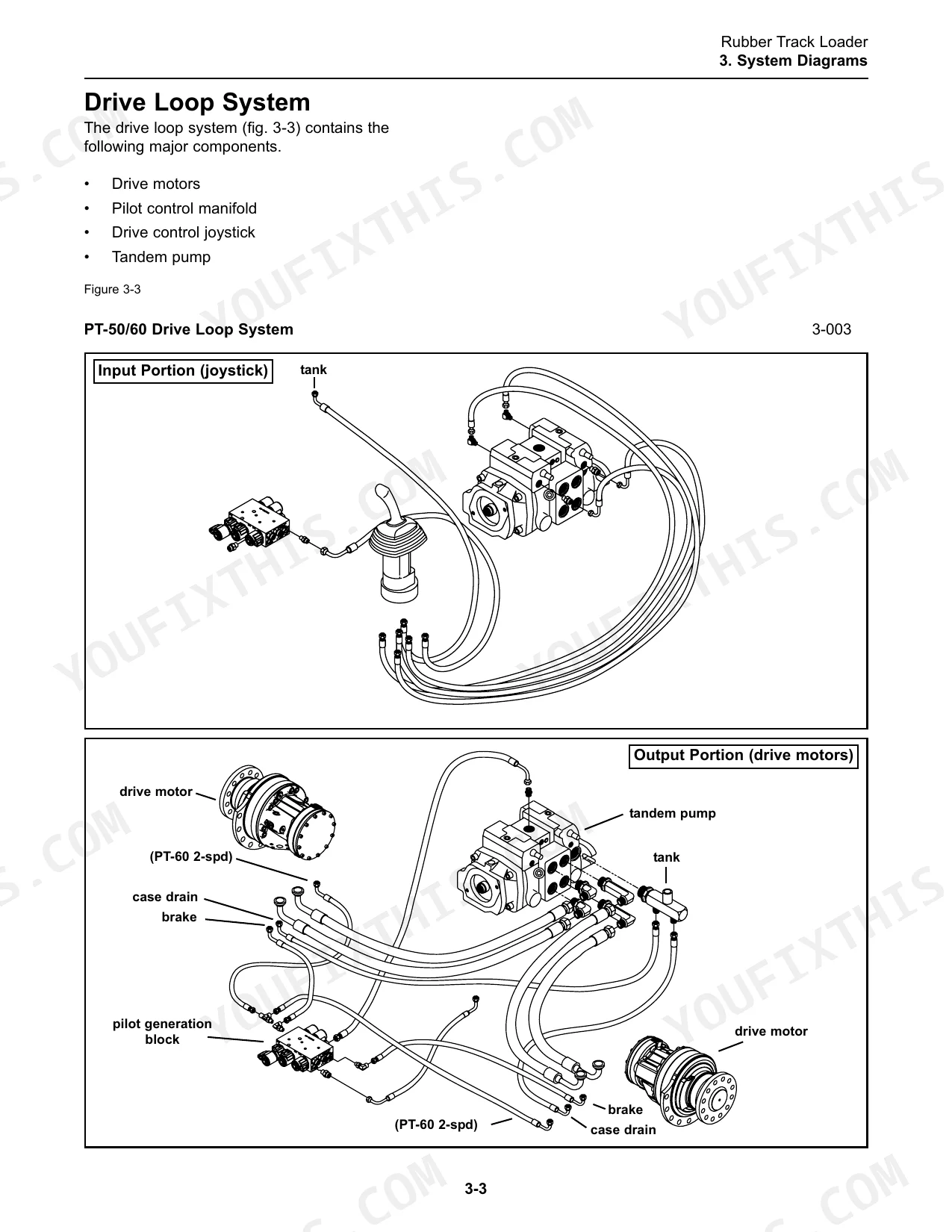

| System Diagrams | 13-16 | Chapter Overview, Filtering and Cooling System, Auxiliary Circuit System, Drive Loop System, Electrical Attachment Outlet |

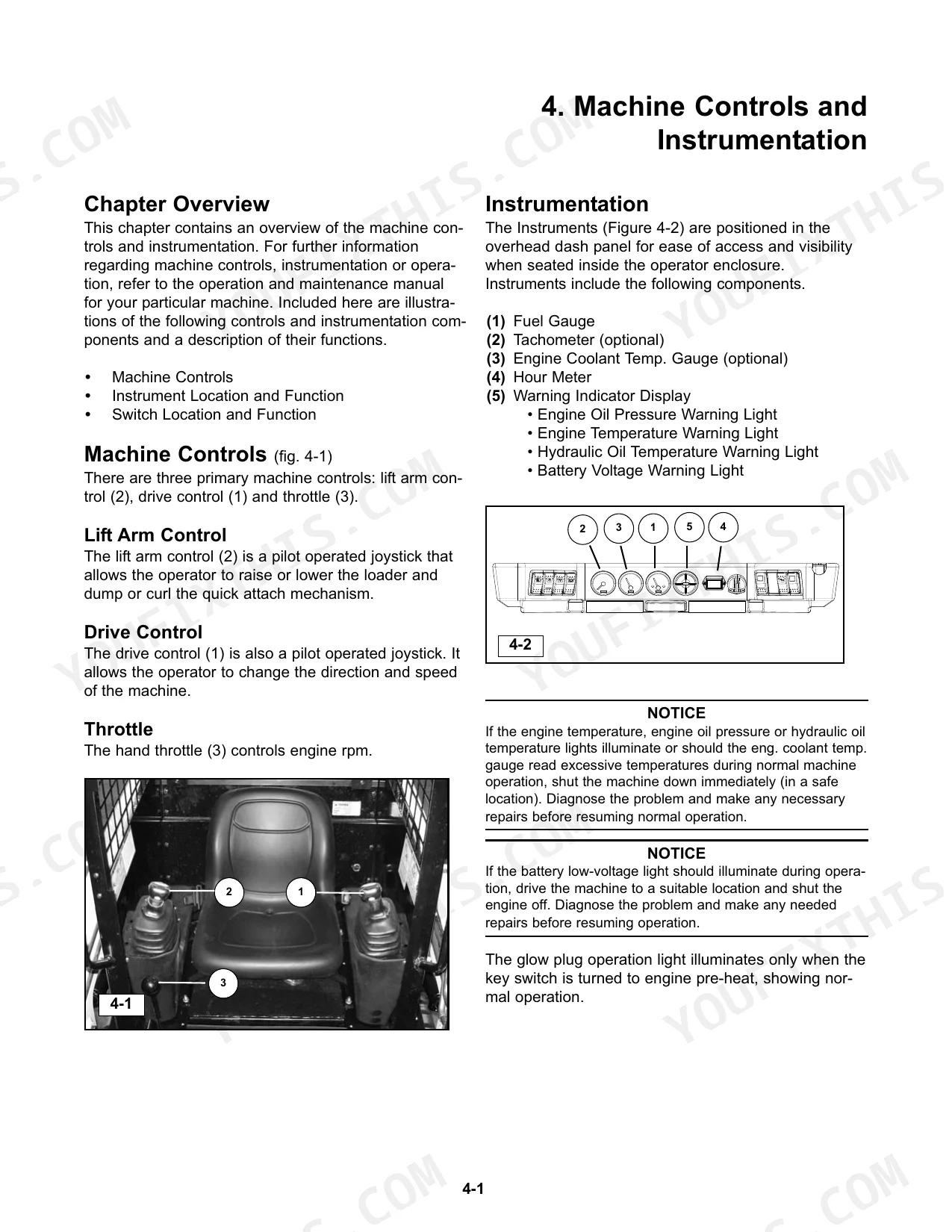

| Machine Controls | 17-18 | Loader Control, Drive Control, Throttle |

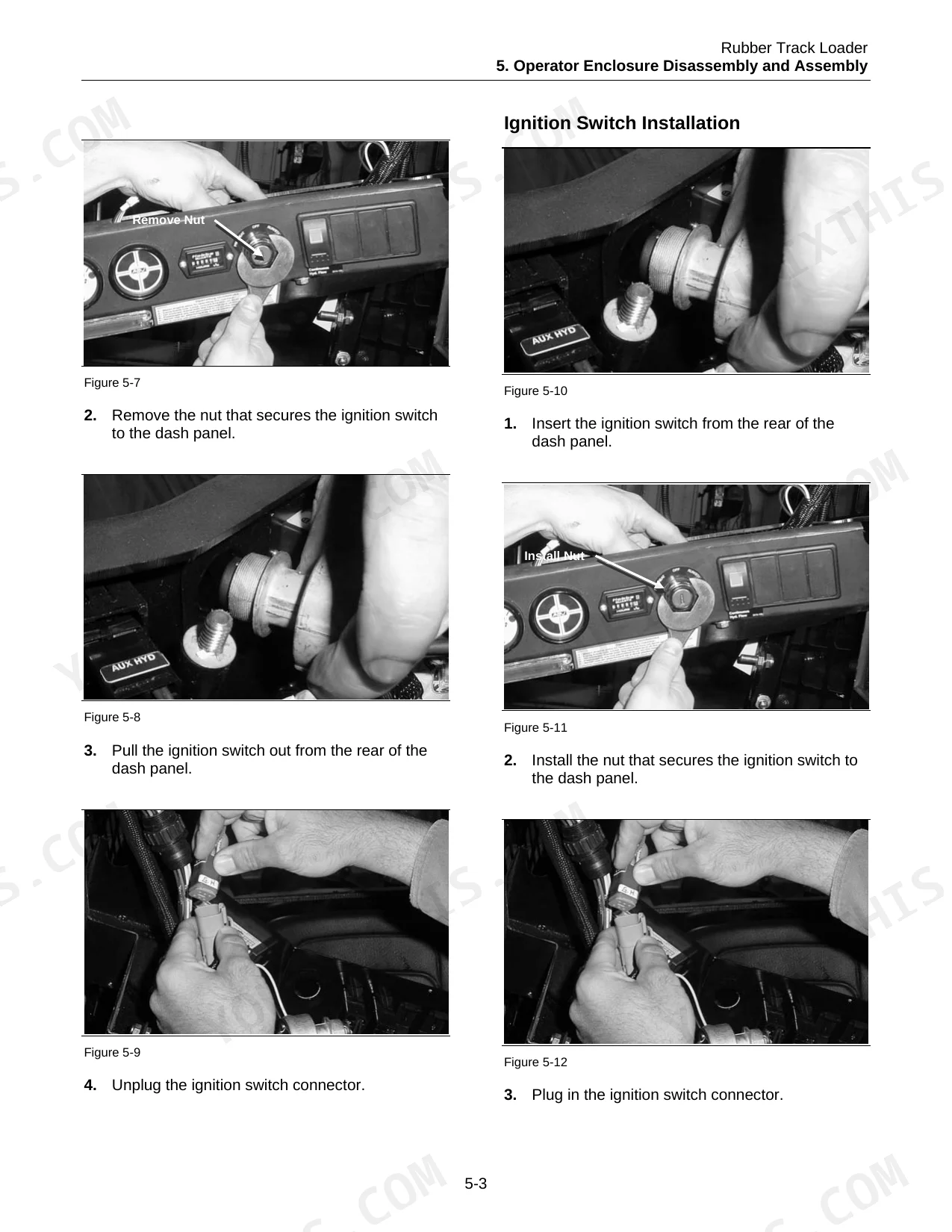

| Operator Enclosure | 19-24 | Light Bar, Ignition Switch, Gauges, Lap Bar Gas Assist Spring |
| Seat & Fuel Sender | 25-28 | Seat, Fuel Sending Unit, Fuel Sending Unit Hose, In-Tank Weight |
| Radiator and Oil Cooler | 29-34 | Fan Guard, Radiator/Cooler |
| Hydraulic Reservoir | 35-42 | Filter Element, Filter Assembly, Filler Cap Assembly, Access Cover Assembly, Reservoir Gauge, Suction Screen |
| Loader & Transmission Controls | 43-48 | Chapter Overview, Personal Safety, Machine Preparation, Loader/Transmission Controls Disassembly and Assembly Procedures, Joystick Removal and Installation |
| Hydrostatic & Auxiliary Pump | 49-54 | Auxiliary Gear Pump, Tandem Pump, Pump Drive Coupler |
| Undercarriage (Part 1) | 55-56 | Center Wheels, End Wheels, Sprocket Rollers, Tracks, Outboard Bearings, Drive Sprockets |
| Undercarriage (Part 2) | 57-66 | Center Wheel R&I, End Wheel R&I, Sprocket Roller R&I, Track R&I, Outboard Bearing R&I, Drive Sprocket R&I, Drive Motor R&I, Idler Wheel Hub Service |
| Loader | 67-70 | Lift Cylinders, Tilt Cylinders, Low-Flow Relief Valve |
| Maintenance | 71-76 | Chapter Overview, Maintenance Schedule, Engine Oil (Oil Change Procedures, Specifications), Hydraulic Fluid and Filter (Change Procedures), Fuel/Water Separator |
| Testing Pressure | 77-80 | Chapter Overview, Personal Safety, Machine Preparation, Hydraulic Pressure Adjustment Procedures, Charge Pressure Check, Charge Pressure Adjustment |

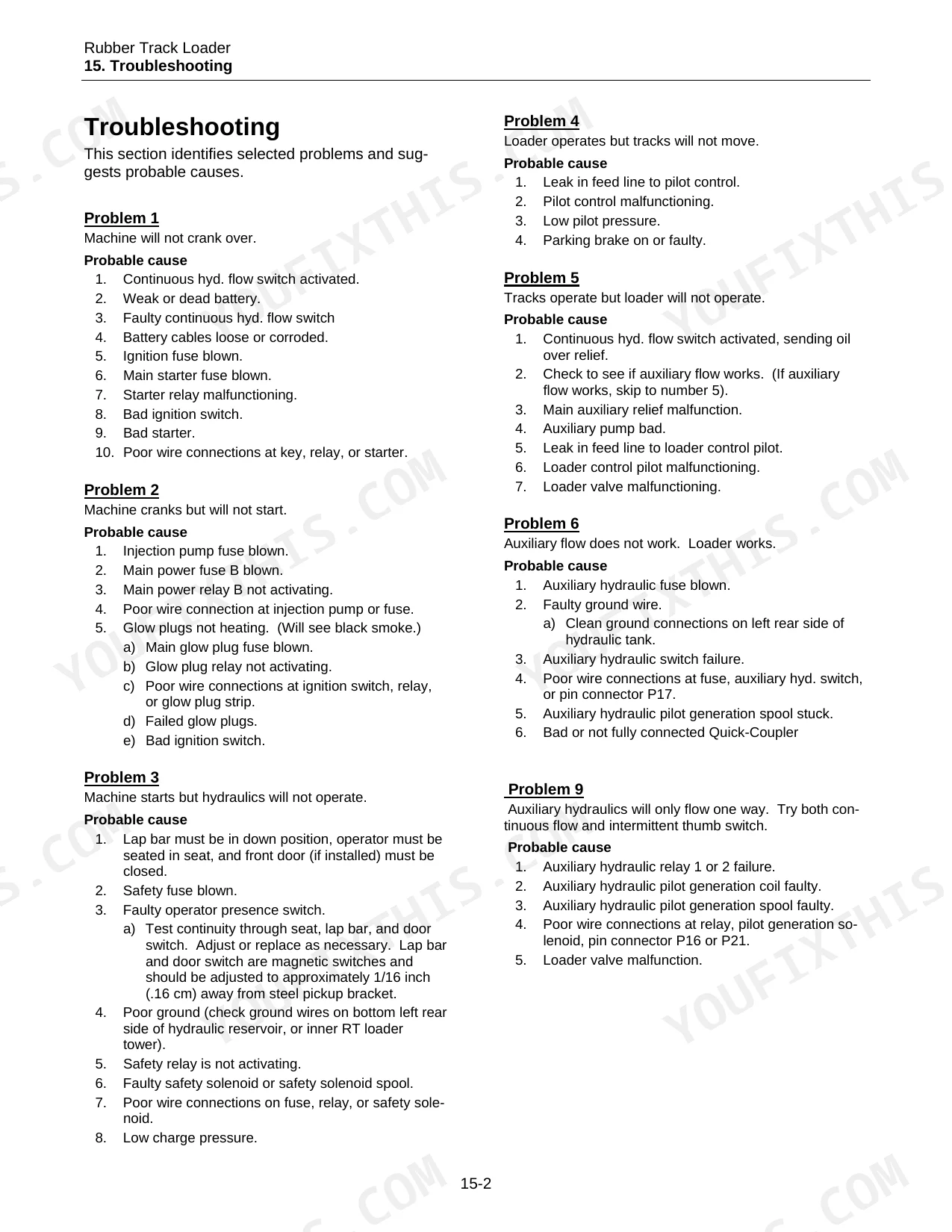

| Troubleshooting | 81-84 | Chapter Overview, Personal Safety, Machine Preparation, Preliminary Inspection (Visual Inspection, Troubleshooting Scenarios) |
| Back Cover | 85 | Manufacturer Information, Distributor Information, Contact Details |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| PT-50 Transmission Mounting Bolts | 85 ft-lb. w/Blue Loctite | p. 11 |
| PT-50 Drive Sprocket Drive Teeth Bolts | 88 ft-lb. -Dry | p. 11 |
| Troubleshooting - Machine starts but hydraulics will not operate | Low charge pressure | p. 82 |
| Troubleshooting - Auxiliary flow does not work. Loader works | Auxiliary hydraulic fuse blown | p. 82 |
| Track deflection (maximum) | 0.75" (1.9 cm) | p. 75 |
| Track tension adjustment range | 0.50" (1.3 cm) and 0.75" (1.9 cm) | p. 75 |
| Hydraulic filter change interval | 250 hours | p. 72 |
| PT-60 Center Idler Wheel Mounting Bolts torque | 105 ft-lbs. (142 Nm) -Dry | p. 12 |
| PT-60 Drive Sprocket Drive Teeth Bolts torque | 105 ft-lb. (142 Nm) -Dry | p. 12 |
| PT-50 Drive pumps displacement | 2.349 in³/rev (38.5 cc/rev) | p. 11 |
| PT-50 Drive pumps relief pressure | 5500 psi, 380 bar | p. 11 |
Terex PT-50, PT-60 Common Problems This Manual Covers
Terex PT-50/60 rubber tracks wear out prematurely or derail completely during tight turns p. 75
Inspect track tension daily and adjust sag. Measure deflection with a straight edge; keep maximum deflection below 0.75 inches as outlined on page 75. Torque the end wheel axle retaining nut to 300 ft-lb to prevent lateral movement and premature wheel failure.
Manual Section: 13-US Terex PT-50-60 Maintenance 3-09.pdfHydraulic performance drops after warmup and loader lift arms become intermittently sluggish or completely dead p. 72
Drain the hydraulic tank and replace the fluid every 500 hours. Change the hydraulic filter element every 250 hours as specified on page 72. Verify the drive pump relief pressure holds at 5500 psi. Check the tandem pump mounting bolts and torque to 85 ft-lb.
Manual Section: Hydraulic System Operation IssuesMachine cranks over normally but the engine immediately stalls or runs rough under heavy loads p. 73
Service the air cleaner per the maintenance schedule on pages 73-74: replace the primary air filter element when restricted or damaged, and inspect the safety element periodically. Bleed air from the fuel lines if the tank ran dry.
Manual Section: Engine Starting & Operation IssuesHydrostatic drive loses power under load and the machine completely refuses to move forward p. 11
Test the charge pressure at the test port using a reliable gauge. Verify the charge pump relief pressure stays between 400-450 psi. Inspect the transmission mounting bolts on page 11 and torque them to 85 ft-lb with Blue Loctite if they are loose.
Manual Section: Hydraulic Pressure DiagnosticsFrequently Asked Questions
What are the torque specs for PT-50/60 track loader fasteners?
On PT-50 models, the Transmission Mounting Bolts take 85 ft-lb with Blue Loctite, the Drive Sprocket Drive Teeth Bolts 88 ft-lb, and the End Wheel Axle Retaining Nut 300 ft-lb. On PT-60 models, the Transmission Mounting Bolts are 85 ft-lb (230 Nm) with Blue Loctite, the Drive Sprocket Drive Teeth Bolts 105 ft-lb (142 Nm), and the Wheel Axle Retaining Nut 300 ft-lb (407 Nm). At installation, torque the end wheel mounting bolts to 95 +/- 10 Lb. Ft. (129 +/- 13Nm).
How do I diagnose low hydraulic pressure on a Terex PT-50/60?
Start with the charge pressure: at wide open throttle it should read between 400 psi (2758 kPa) and 450 psi (3103 kPa). Attach a pressure gauge to the charge pressure test port next to the fuel filter to take that reading. Auxiliary pressure should sit near 3000 psi (20,680 kPa), checked with a hydraulic gauge inserted into an attachment quick coupler.
How to check torque specs for Terex PT-50/60?
The "Critical Torque Specs" section under Technical Specifications (pages 11-12) lists the fastener values: Transmission Mounting Bolts at 85 ft-lb, Drive Sprocket Drive Teeth Bolts at 88 ft-lb on the PT-50 and 105 ft-lb on the PT-60, and the End Wheel Axle Retaining Nut at 300 ft-lb. Installation steps carry their own figures too, such as 95 +/- 10 Lb. Ft. (129 +/- 13Nm) for the end wheel mounting bolts.
What are the replacement specifications for hydraulic filters?
Change the hydraulic filter every 250 service hours and the hydraulic fluid every 500 service hours. When you replace the filter, clean the area around the filter assembly first, pull the old filter, swap in a new element, then top off with manufacturer-approved hydraulic fluid.
Is this Service Manual a digital download?
An 85-page service manual in searchable PDF format, available the moment your checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Terex PT-50/60 manual?
Yes. The Terex PT-50/60 Service Manual includes an electrical wiring diagram covering the hydraulic and drive system circuits, as well as the electrical attachment outlet.
