Keeping a Utilev electric three-wheel forklift safe and productive across every shift comes down to 106 pages of operator guidance, issued under OEM ID 76002031 for the five models running from UT13PTE to UT20PTE. Battery charging, electrolyte level and specific gravity checks get a full chapter in the Utilev UT13PTE, UT15PTE, UT16PTE, UT18PTE, UT20PTE operator manual PDF, next to the instrument and control layout and the stability triangle and load center rules behind your truck's rated capacity. Daily checks on hydraulic oil, brake fluid and lift chain tension sit beside the periodic maintenance schedule, recommended oils, the performance parameters table, and procedures for towing, hoisting and fitting attachments. Set brake pedal height at 120 to 130 mm, then bring the front wheel nuts to 140 Nm. One blown 10A fuse can idle a truck all shift. Searchable text and bookmarked chapters take you straight to the fuse ratings, so your forks are lifting again before the next shift.
What's Inside This Utilev UT13PTE to UT20PTE Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Appearance and Main Components | 5 | Fork, Mast, Lifting Cylinder, Overhead Guard, Steering Wheel, Counterweight |
| Instruments and Controls | 6-21 | Instruments, Controls |
| Body and Others | 22-24 | Seat, Seat Belt, Overhead Guard, Hood, Fork Stopper, Brake Fluid Cup |
| Safety Instructions | 25-33 | Battery Safety, Load Capacity, Attachments, Load Centering, Fire Extinguishers |
| Structure and Stability of the Truck | 34-39 | Lifting Device, Center of Gravity, Stability Triangle, Load Center, Centrifugal Force |
| Safeguards for Initial Use | 40 | Battery Discharge, Preventative Maintenance, Oil Changes, Lubrication, Load Weight |
| Routine Maintenance | 41-45 | Hydraulic Oil, Brake Fluid, Tires, Wheel Nuts, Brake Pedal, Chain Tension |

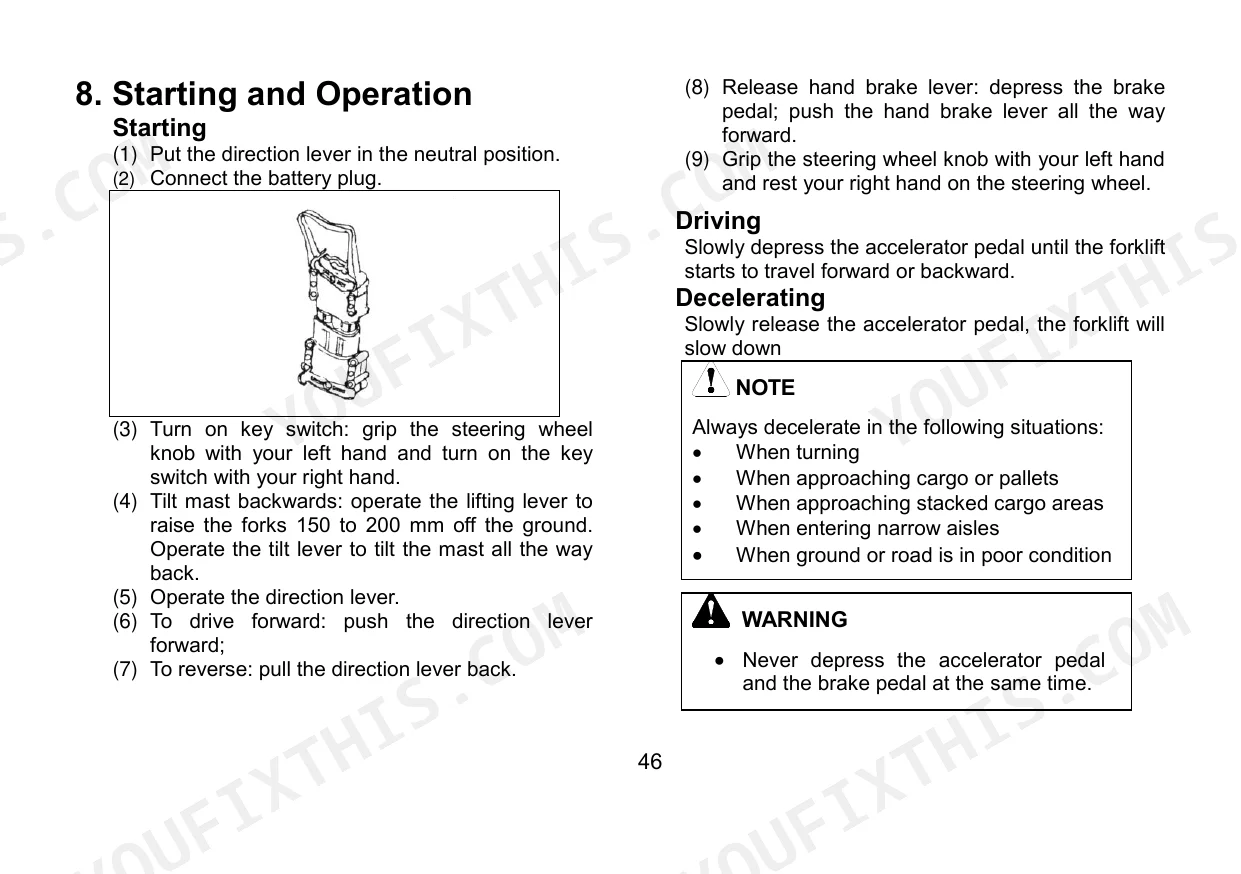

| Starting and Operation | 46-49 | Direction Lever, Key Switch, Steering, Parking, Loading, Stacking |
| Storage | 50-51 | Daily Storage, Long-Term Storage, Battery Plug, Anti-Corrosion Agent, Wooden Blocks |
| Battery | 52-66 | Battery Charging, Electrolyte Level, Battery Replacement, Battery Weight, Specific Gravity |

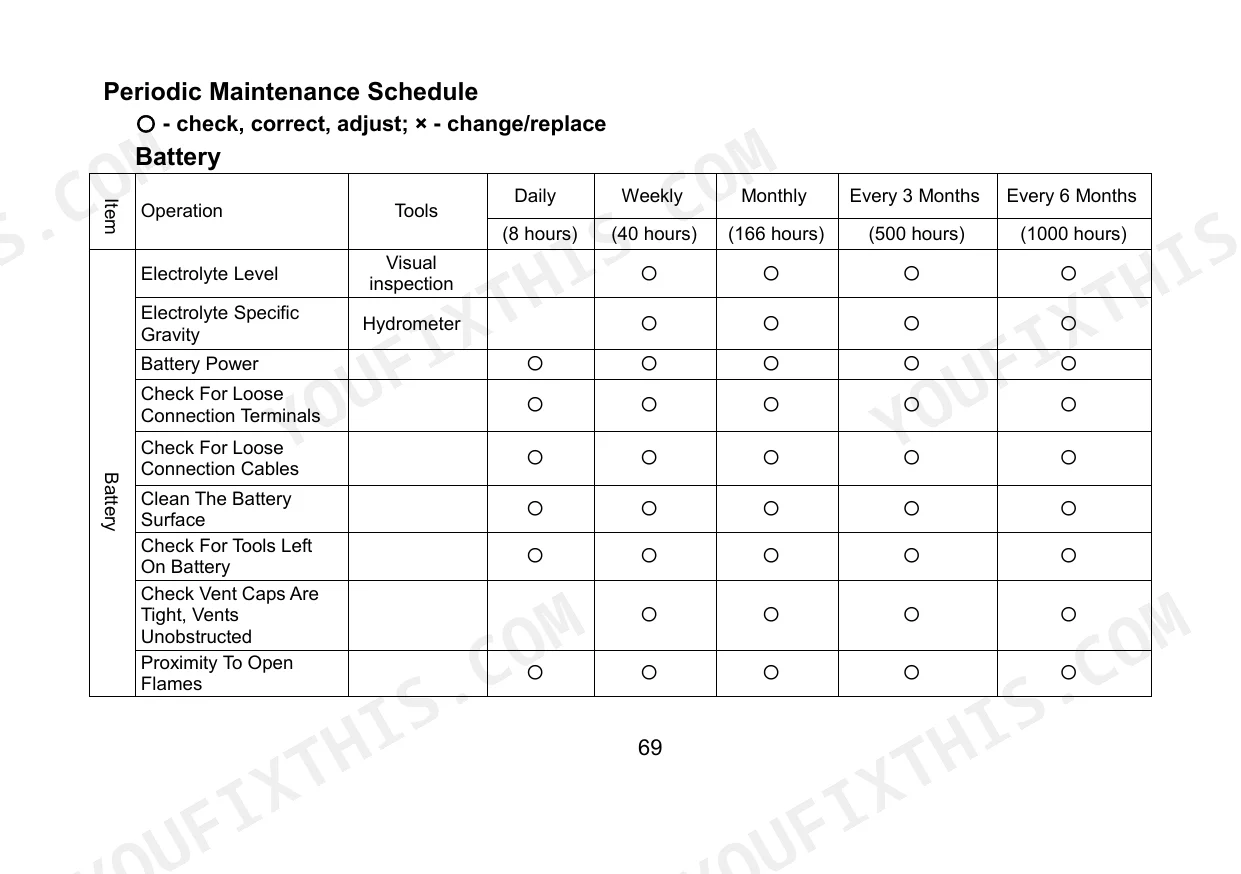

| Maintenance Summary | 67-85 | Periodic Maintenance Schedule, Safety-Critical Parts, Recommended Oils, Bolt and Screw Tightening Torque |

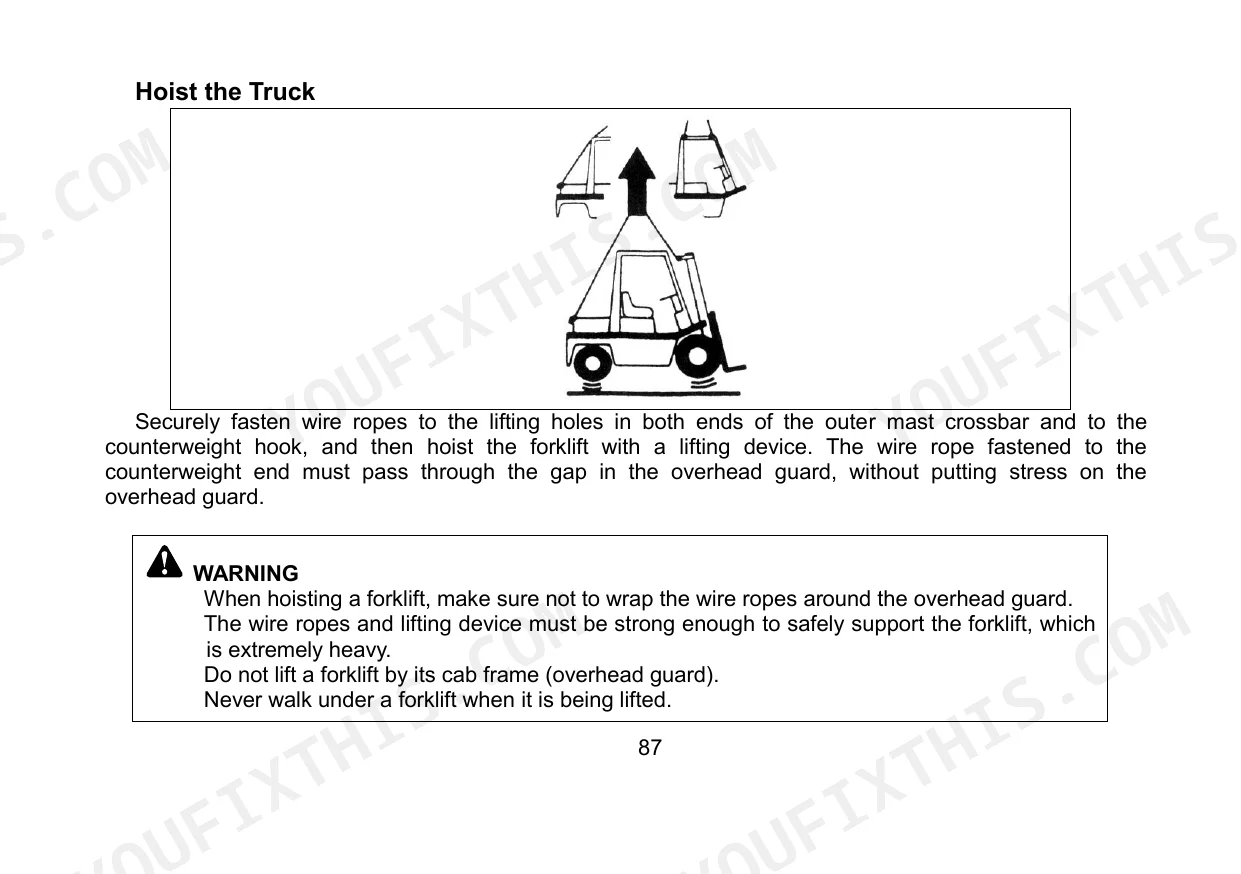

| Truck Carrying, Lifting and Towing | 86-88 | Truck Carrying, Hoisting, Towing |

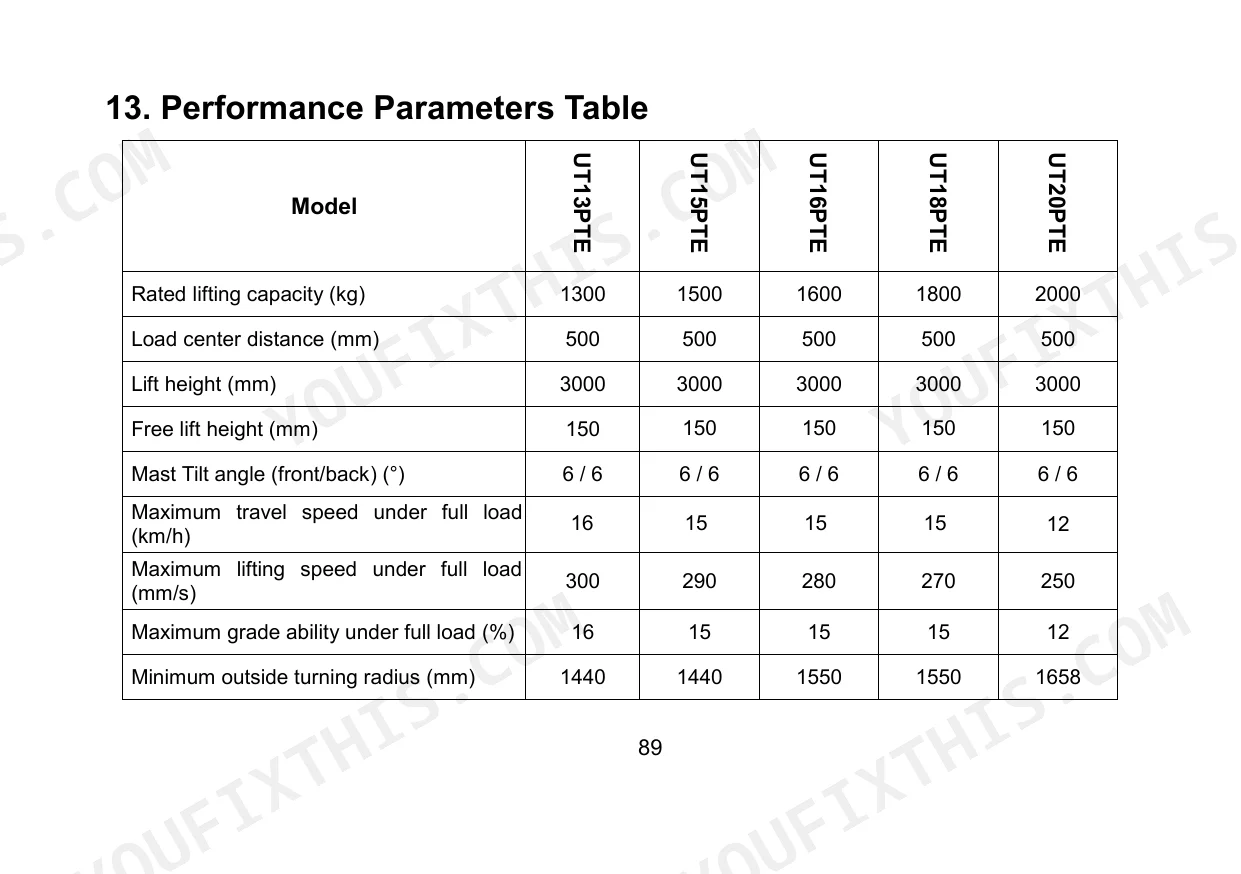

| Performance Parameters Table | 89-90 | Rated Lifting Capacity, Load Center Distance, Lift Height, Travel Speed, Lifting Speed, Turning Radius |
| Labels | 91-96 | Utilev Label, Tonnage Label, Danger Label, Lifting Label, Safety Belt Label, Product Nameplate |

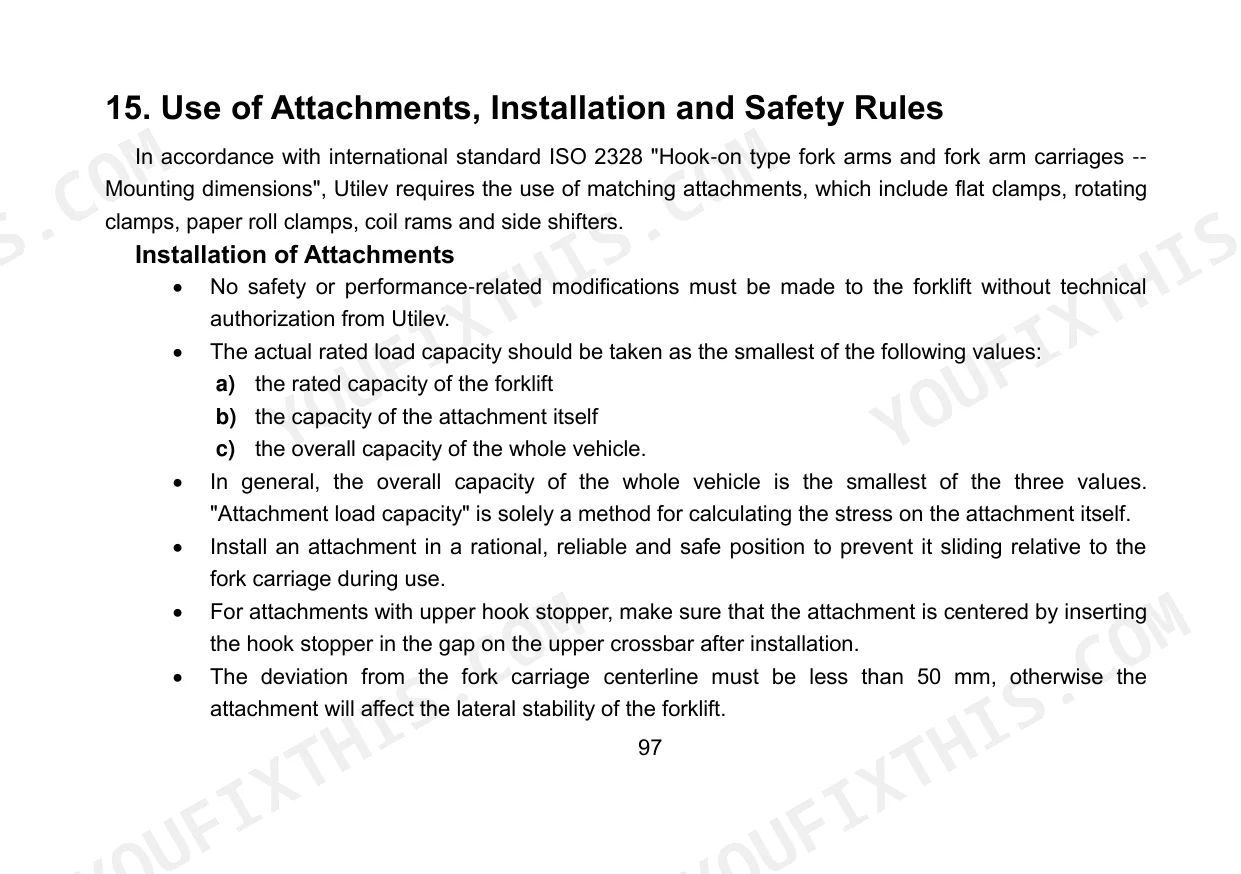

| Use of Attachments, Installation and Safety Rules | 97-100 | Attachment Installation, Attachment Operation, Attachment Maintenance, Load Capacity |
| Safety Directives and Standards | 101-106 | Machinery Directive, Noise Directive, Safety Standards, Vibration Parameters, Electromagnetic Compatibility |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Anti-reverse connection diode fuse capacity | 20A | p. 21 |
| Control circuit fuse capacity | 10A | p. 21 |
| Front wheel nuts tightening torque | 140 Nm | p. 41 |
| Rear wheel hub nuts tightening torque | 121–162 Nm | p. 41 |
| Brake pedal height (midpoint of upper face of pedal pad to front floor plate) | 120–130 mm | p. 41 |
| Brake pedal free play | 1–3 mm | p. 41 |
| Maximum height of wooden blocks for forklift support | 300 mm (11.81 inches) | p. 51 |
| 4PZS400 Battery Charging Current First Stage | 58 A | p. 60 |
| Front wheel nut tightening torque | 140 Nm | p. 41 |
| Rear wheel hub nut tightening torque | 121–162 Nm | p. 41 |
| Counterweight Mass | 990 kg | p. 68 |
| Hydraulic Oil Capacity (1.3T-1.5T) | 26 L | p. 84 |
Utilev UT13PTE to UT20PTE Series Common Problems This Manual Covers
Utilev UT13PTE-UT20PTE display shows fault code and truck will not start with key switch turned ON
Return the direction lever to neutral and take your foot off the accelerator pedal before turning the key switch ON; page 15 notes the code then clears. If TRVl, TRVr or HYD stays up with the spanner symbol, read it against page 10: left traction motor, right traction motor, or pump controller. Stop the truck, hang an OUT OF ORDER sign, remove the key and notify a manager (page 25).
Manual Section: Fault Code Display p. 10Brake pedal jamming or braking distance longer than 2.5 metres with no load on the forks
Depress the brake pedal and check it moves freely without jamming, following page 41. Measure pedal pad height at 120 to 130 mm from the front floor plate and set free play to 1 to 3 mm at the master cylinder pushrod. Check brake fluid sits between the cup marks and look for air in the line (page 42). Brake fluid is corrosive and toxic; keep dust out of the cup (page 24).
Manual Section: Routine Maintenance p. 41Hand brake lever operating force too light or lever not returning to original position when released
Adjust the screw on the rod tip following page 42: twist clockwise to increase operating force, counterclockwise to reduce it. Depress the brake pedal while you work the lever; it makes tightening and loosening easier. Pull the lever tight, release it, and confirm it returns fully to its original position before the truck goes back on shift.
Manual Section: Routine Maintenance p. 42Steering impaired when the oil pump motor stops running on the fully hydraulic system
Restart the oil pump motor immediately before turning the wheel again, as page 15 warns. Pull the dipstick at the hydraulic oil filler cap inside the left frame side and verify oil sits between the marks, topping off if needed (page 42). Turn the steering wheel left and right to confirm function (page 45). If steering stays impaired, stop, hang an OUT OF ORDER sign, remove the key and notify a manager (page 25).
Manual Section: Instruments and Controls p. 15Battery overheating during use with electrolyte level low in the cells
Stop using the truck while electrolyte is low (page 52). Wear protective eyewear, rubber boots and gloves, since electrolyte contains sulfuric acid (page 53). Check level weekly: 10 to 15 mm above the splashguard without hydrometer, or read the vent cap hydrometer (page 63). Top up with distilled water, never past maximum (page 54). Charge as soon as the display shows no signal.
Manual Section: Battery Maintenance p. 52Truck will not move, turn or lift after power up with key switch ON
Check whether the red mushroom emergency disconnect switch has been pressed; page 18 shows it cuts main power. Before checking the electrical system, turn off the key switch and disconnect the battery plug (page 41). Inspect the fuse box: control circuit fuse 10A, anti-reverse diode 20A, and replace only with a new fuse of the same capacity (page 21). Check both battery terminals for loose or damaged wiring (page 43).
Manual Section: Emergency Disconnect Switch p. 18Frequently Asked Questions
What is the battery charging procedure for a Utilev PTE forklift?
Charge the battery in a designated, well-ventilated location. During the charging process, do not disconnect the power switch or battery plug, as this may damage the plug and electrical components. Only disconnect the plug after pressing the 'stop charging' button on the charger. Ensure the hood and battery cover are open to release explosive gases. p. 54
What are the replacement specs for traction and hydraulic-controller fuses on the Utilev UT13PTE to UT20PTE Series?
The fuse box contains an anti-reverse connection diode (20A), a control circuit fuse (10A), and light beam/horn circuit fuses (10A). There are also two spare 10A fuses. Always use a new fuse of the same capacity when replacing. p. 21
What are the tightening torque specifications for the wheel nuts on the Utilev UT13PTE to UT20PTE Series?
The tightening torque for front wheel nuts is 140 Nm, and for rear wheel hub nuts, it is 121–162 Nm. p. 41
What is the recommended hydraulic oil capacity for the 2.0t model of the Utilev UT13PTE to UT20PTE Series?
The hydraulic oil capacity for the 2.0t model is 33 liters. p. 84
What is the required brake pedal free play and brake light switch adjustment on the Utilev UT13PTE to UT20PTE Series?
The brake pedal free play should be adjusted to 1–3 mm. The brake light switch should turn on fully when the brake pedal is gradually depressed 10–20 mm. p. 41
What format is this Utilev UT13PTE manual in?
Immediate download of the complete 106-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this Utilev UT13PTE manual?
You can. Print the sections you want for your own use and keep the file as your backup.
