Only the factory book settles the numbers for Utilev's UT20 to UT35 internal combustion counterbalanced forklifts, and OEM document 76002089 is that book: a 90-page Utilev service manual PDF covering both P and C variants, UT25P included. Electrical schematics trace the truck's circuits, while the hydraulic schematic follows oil from the main pump through the control valve to the lift and tilt cylinders. Fault diagnosis tables cover the drive axle, steering, brakes and lifting system, and the transmission chapter explains the torque converter, two-way clutch and inching valve before you split the housing. Check main oil pressure at 1.1 to 1.4 MPa (159 to 203 psi) and clutch pressure at 0.3 MPa, then set Mazda 2.2L valve clearance to 0.45 mm. A half-torn-down transmission sits for want of one pressure figure. Print the sections your job calls for and let them collect grease on the bench; the bookmarked PDF stays clean for keyword searches.
What's Inside This Utilev UT25P to UT30C Series Manual
| System | Pages | Key Topics |
|---|---|---|

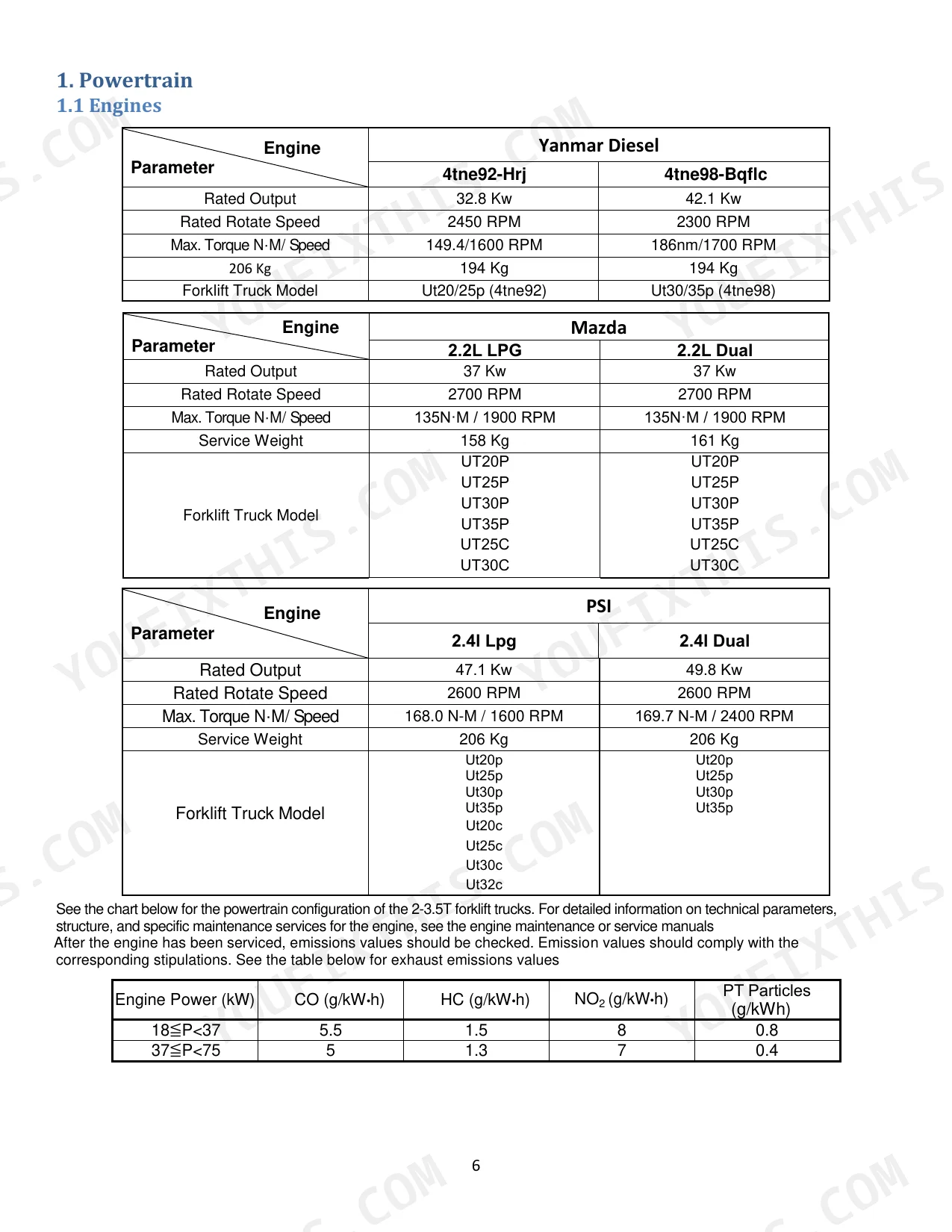

| Powertrain | 6-11 | Engines (Mazda 2.2L, PSI 2.4L, 4TNE92/4TNE98 Diesel) |

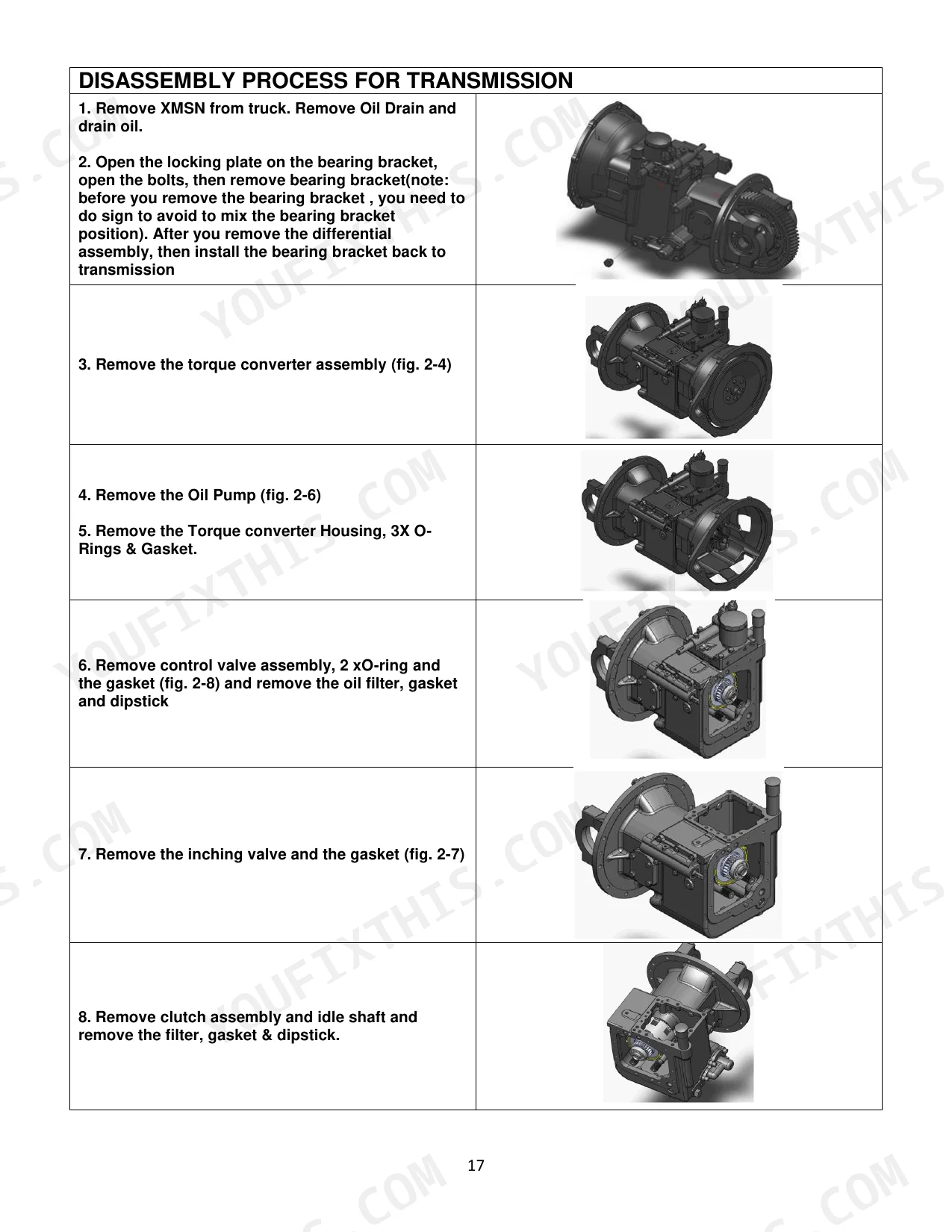

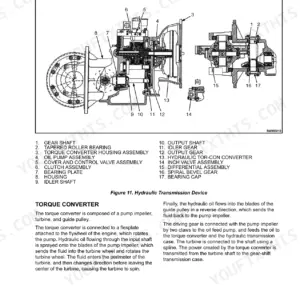

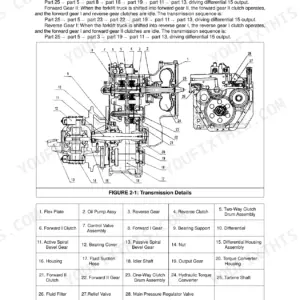

| Transmission and Torque Converter | 12-25 | Data, Summary: Transmission Overview |
| Drive Axle | 26-31 | Data, Fault Diagnoses and Corrections (Drive Axle Components, Assembly and Disassembly of Drive Axle, Axle Shaft and Wheel Hub, Bearing Adjusting) |
| Steering Axle | 32-35 | Fault Diagnoses Corrections (Steering Axle, Steering Kingpin and Steering Spindle, Wheel Bearing Adjustment) |
| Steering System | 36-39 | Data, Trouble Shooting (Summary, Install Steering System) |
| Brake System | 40-46 | Fault Diagnoses and Corrections, Summary |

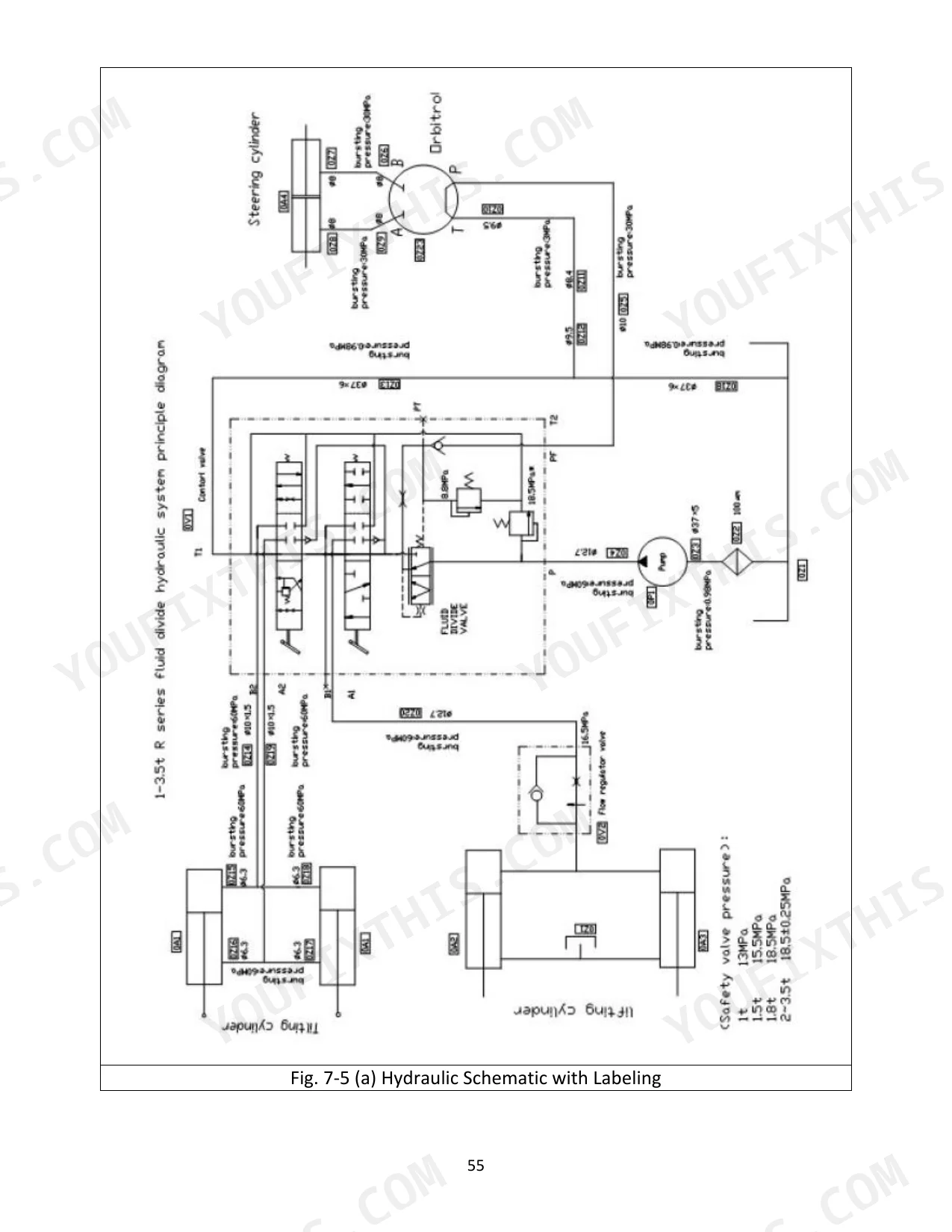

| Hydraulic System | 47-56 | Data, Fault Diagnoses and Corrections (Main Pump, Hydraulic Control Valve, Hydraulic Schematic) |
| Lifting System | 57-72 | Assemble Data |

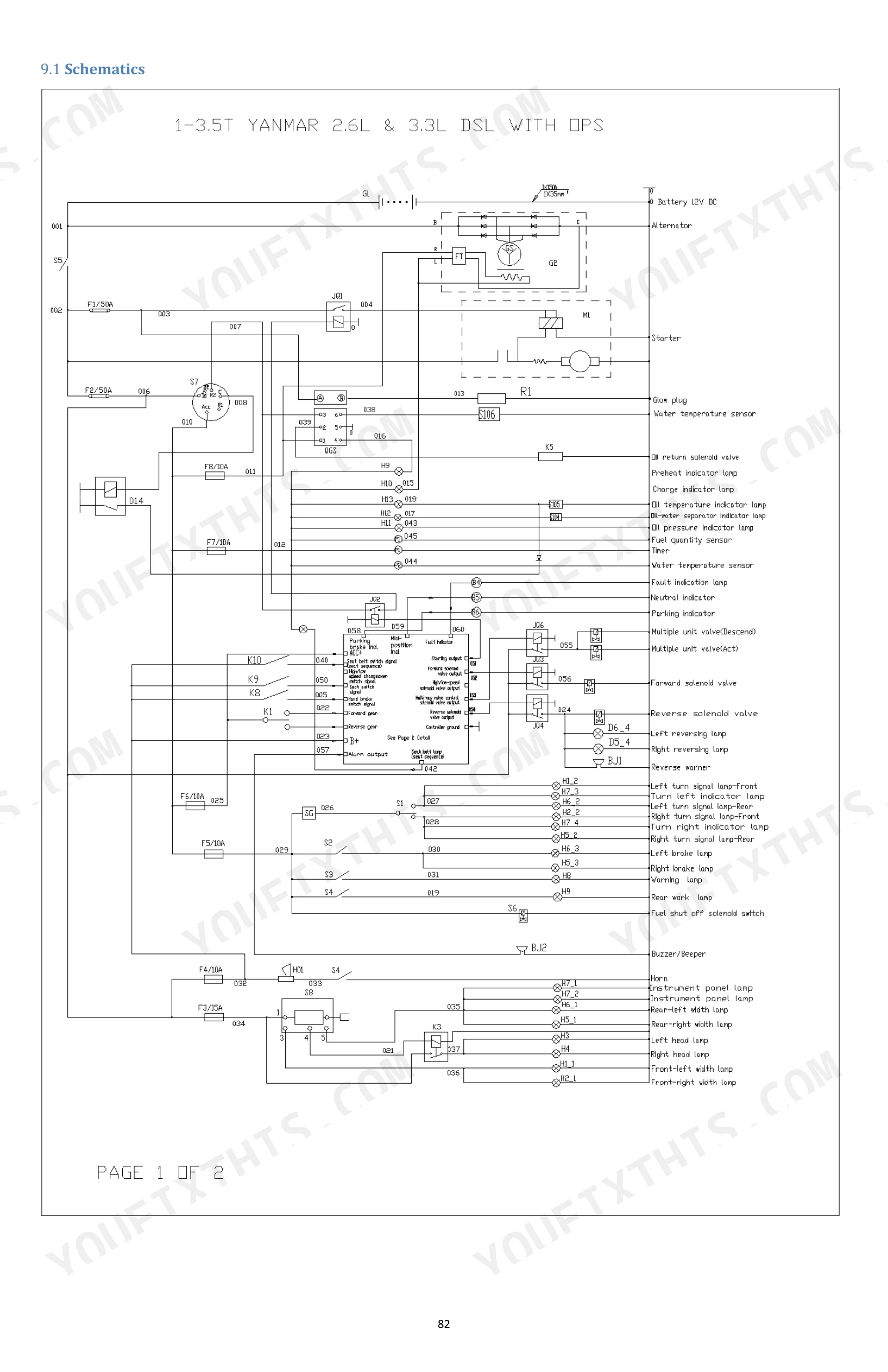

| Electrical System | 73-90 | Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Mazda 2.2L Oil Volume Min./Max | 7.2/9.2 L | p. 7 |
| PSI 2.4L Oil Volume Min./Max | 4.7 L (5 Qts) | p. 8 |
| Clutch Pressure Measurement Normal Pressure | 0.3 MPa | p. 16 |
| Main oil pressure measurement Normal Pressure | 1.1-1.4 MPa (159-203 psi) | p. 16 |
| Mazda 2.2L Valve Clearance | 0.45 mm | p. 7 |
| 4TNE92/4TNE98 Diesel Valve Clearance | 0.45 mm | p. 9 |
| Transmission Oil Capability | 7 L | p. 12 |

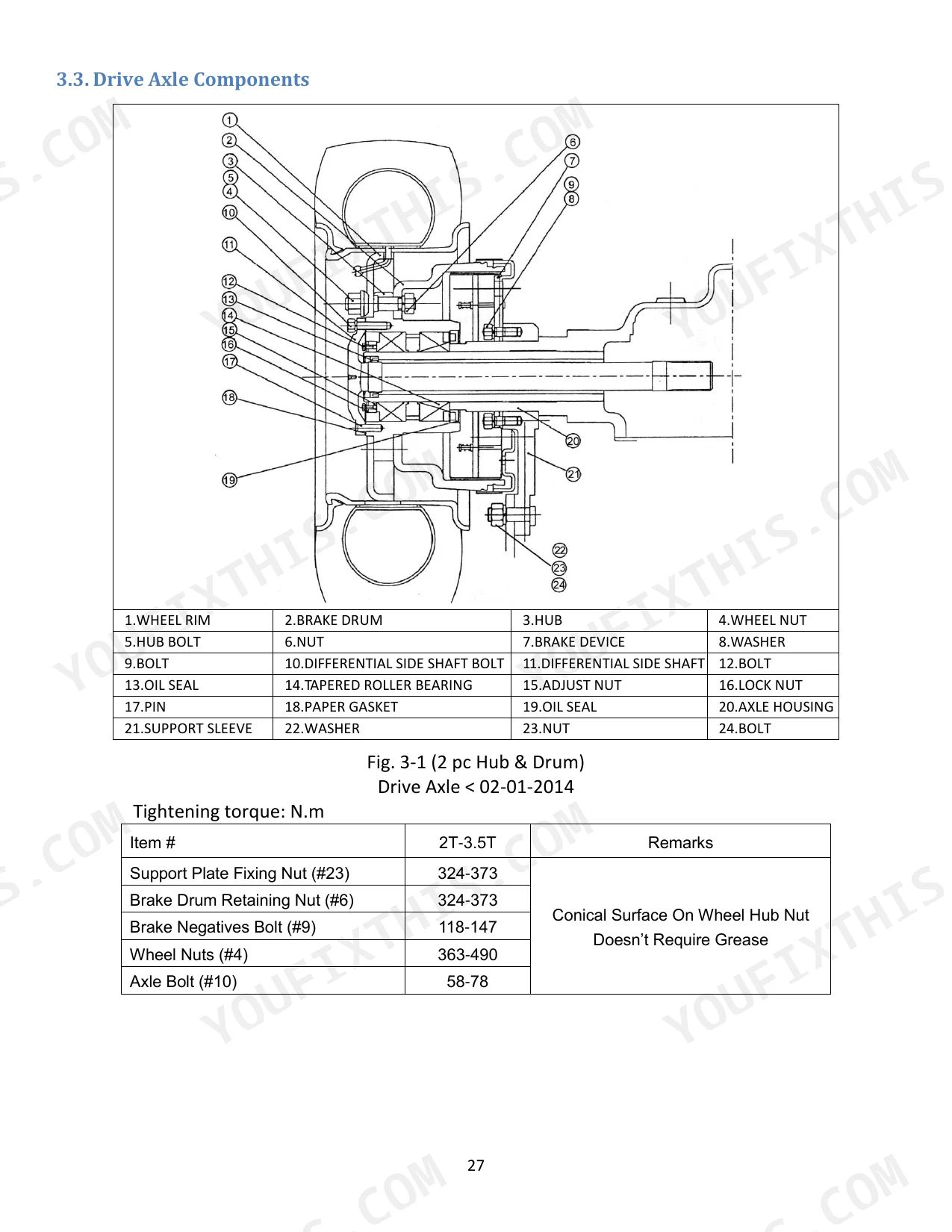

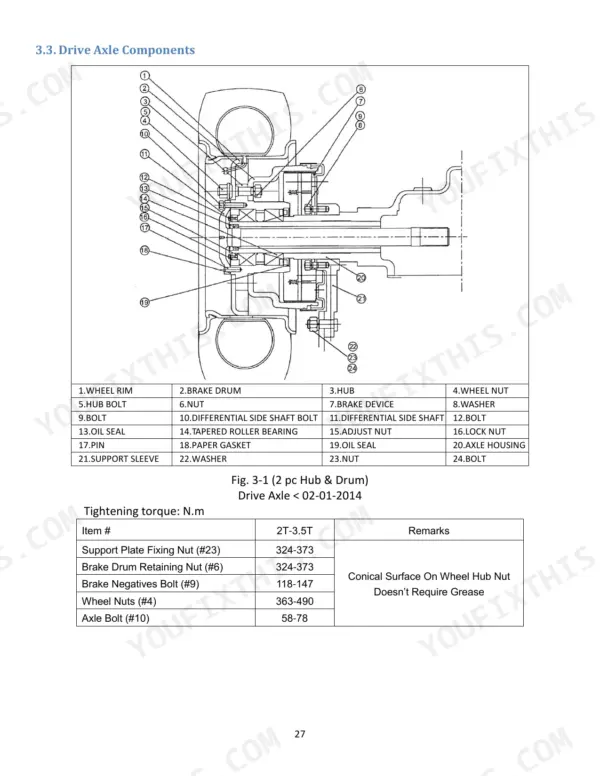

| Drive Axle Wheel Nuts Tightening Torque | 363-490 N·m | p. 27 |
| Steering Axle Kingpin Axial Play | Less than 0.20 mm | p. 32 |
| Steering Axle Wheel Hub Bearing Axial Play | Less than 0.10 mm | p. 32 |
| Lift Chain Deflection | 25-30 mm | p. 57 |
| Lift Cylinder Bolt (top) Tightening Torque | 76-107 N·m | p. 57 |
Utilev UT25P to UT30C Series Common Problems This Manual Covers
Utilev UT25P lift cylinder and main pump problem, mast lifting weak or cannot lift load
Check the hydraulic pipe joints first: tighten the joint nuts and inspect each seal for damage. Verify oil temperature isn't too high and change wrong-viscosity oil. Replace a worn lift cylinder Yx-ring, and never reuse the dust ring, O-ring or Y-ring (page 69). Inspect pump body and gears for wear and replace inoperative control and relief valve springs per page 58. Keep loads within rated capacity.
Manual Section: Lifting System Fault Diagnoses and Corrections p. 58Tilt lock valve fault, forks tilt forward when control lever is moved with engine off
Inspect the tilt lock valve for wear or damage following page 49, and replace the valve core and tilt lock valve together as an assembly. Check the tilt lock spring and replace it if broken. Replace a damaged tilt valve plunger O-ring. If the mast is also unstable when tilting forward, replace the tilt relief valve assembly.
Manual Section: Control Valve Fault Diagnoses and Corrections p. 49Power steering divider valve or steering cylinder problem, steering wheel stiff and difficult to steer
Check divider valve pressure and adjust it if low, following page 36. Bleed air from the oil lines. Verify the wheel returns to its natural position; if not, replace the broken or weak lock spring. Check the steering cylinder piston sealing for internal leakage. If the truck wobbles, adjust the divider valve to cut oil flow to the cylinder.
Manual Section: Steering System Trouble Shooting p. 36Service brakes weak with insufficient brake force or truck veering to one side when braking
Check brake lines for oil leakage, correct and replenish, then bleed air. Clean or replace linings with water or oil on them. Correct or replace a faulty master or wheel cylinder. For veering, check tire pressure and brake adjustment per page 40. Replace worn linings; when blocking the truck for shoe replacement, support the frame on both sides, turn off the engine, and keep wooden blocks off the front tires (page 44).
Manual Section: Brake System Fault Diagnoses and Corrections p. 40Main pump running noisy with air bubbles visible in the hydraulic oil tank
Inspect the suction hose for crushing and clean the strainer, following page 48. Retighten every suction side joint to stop air being drawn in. Check oil viscosity suits operating temperature and replace it if too thick. Find the cause of bubbles, and do not operate the pump until bubbles in the tank disappear (page 48).
Manual Section: Main Pump Fault Diagnoses and Corrections p. 48Drive axle wheel hub area making abnormal noise and truck driving unstable

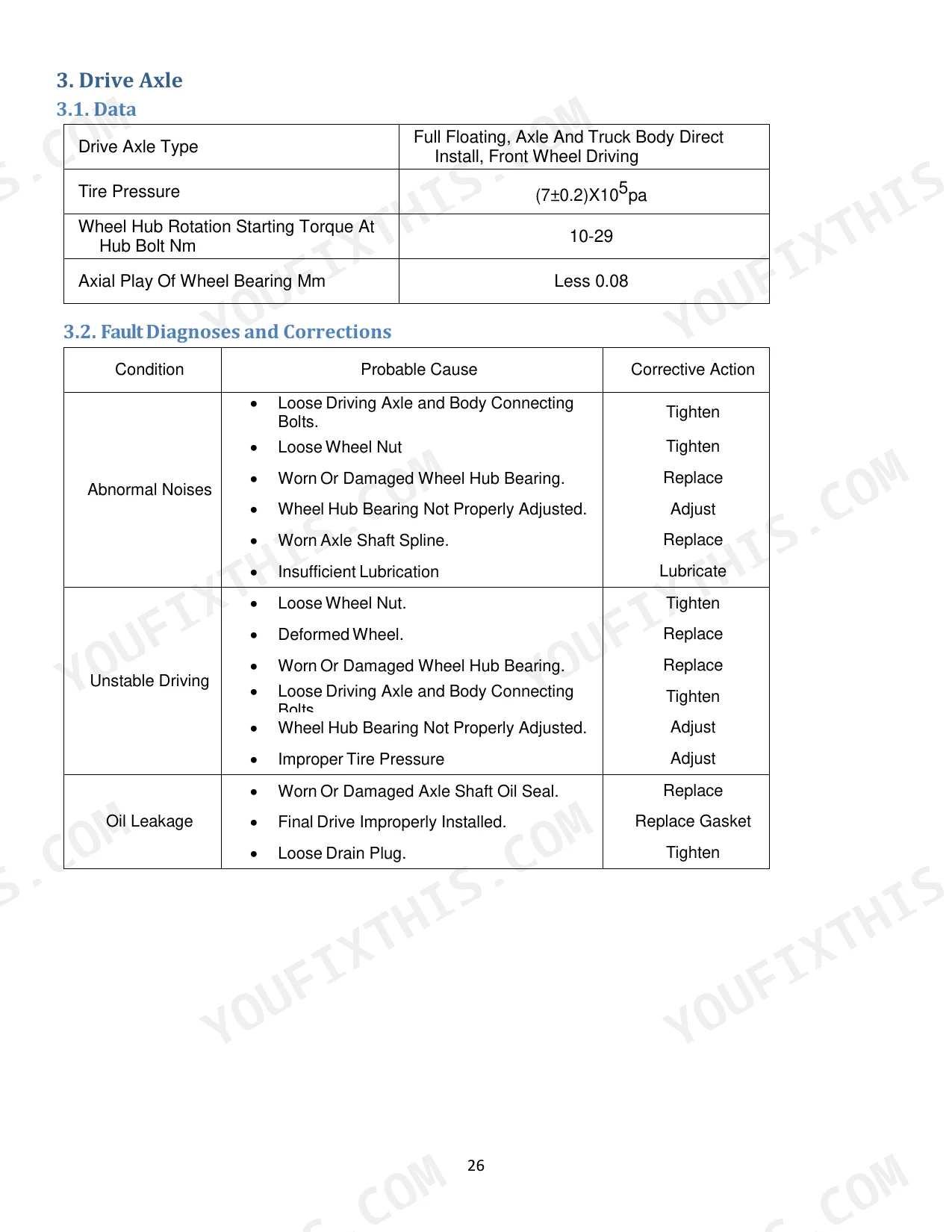

Torque loose wheel nuts to 363-490 N·m following page 27, and tighten the drive axle to body connecting bolts. Check tire pressure. Inspect the wheel hub bearing; adjust it if out of adjustment or replace it if worn or damaged, per page 26. If the axle shaft spline is worn, raise the front end, support the frame on wooden blocks, and replace the shaft (page 29). Lubricate the axle.
Manual Section: Drive Axle Fault Diagnoses and Corrections p. 26Frequently Asked Questions
What are the engine oil and oil filter replacement specs for the 4TNE92/98 diesel in the Utilev UT25P to UT30C Series?

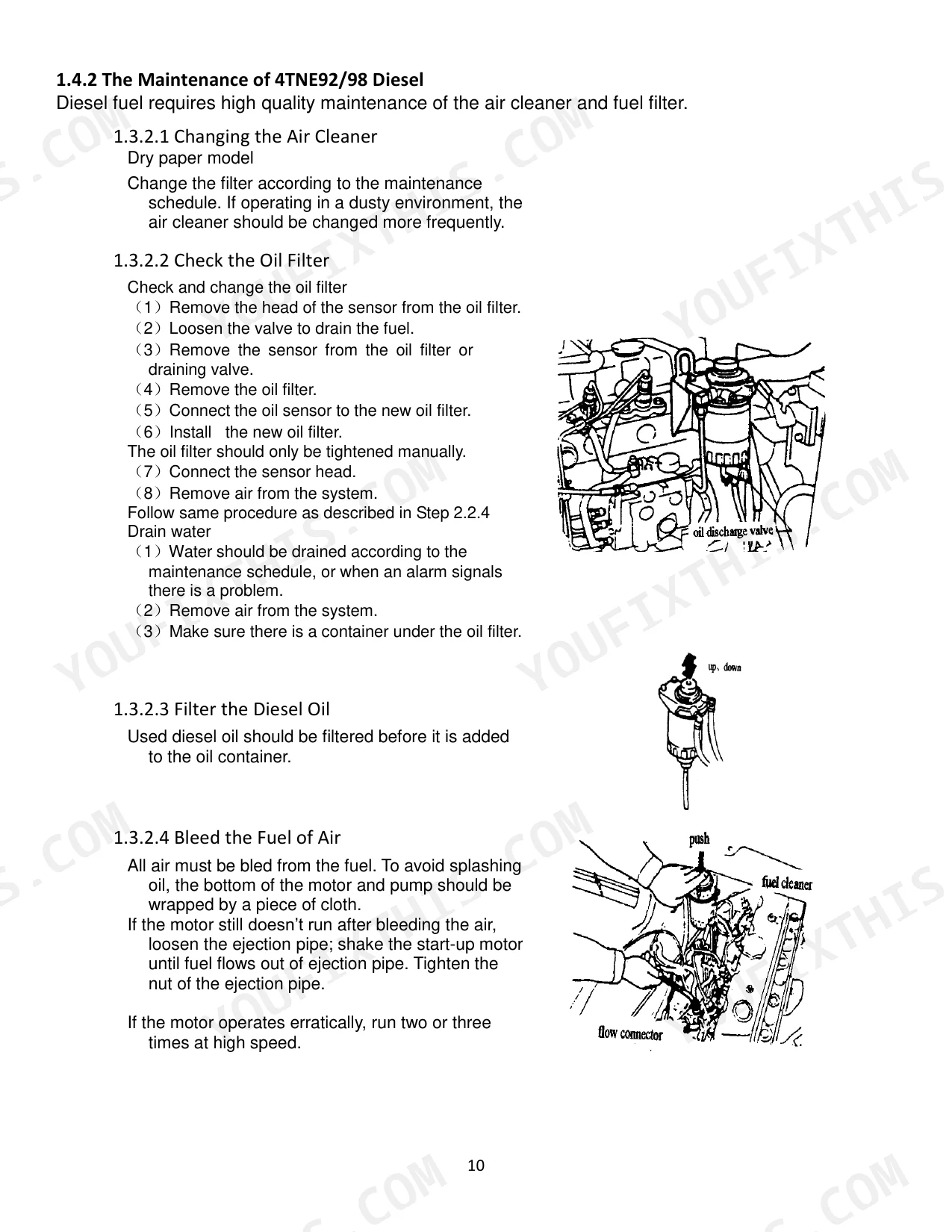

The oil volume for the 4TNE92/98 diesel engines is 7.2/9.2 L (Min./Max.). When changing the oil filter, remove the sensor head, loosen the valve to drain fuel, remove the old filter, and install the new one manually tightened. Ensure a container is placed under the filter during this process as described on page 10. p. 10
What are the air filter replacement specifications for the Utilev UT25P to UT30C Series forklift?
The air filter is a dry paper model. It should be changed according to the maintenance schedule, but it must be changed more frequently if the forklift is operating in a dusty environment. p. 10
What is the correct tightening torque for the counterbalance weight bolts on the Utilev UT25P to UT30C Series forklift?
The required torque specification for the counterweight bolts (6) is 490~620 N.m. p. 72
What is the procedure for adjusting the lift chain tension?
Lower the lift cylinder until the fork contacts the ground. Adjust the chain regulating nuts (three nuts at each end) until the length 'C' is between 25mm-30mm when pressed down in the middle. p. 68
What is the specified valve clearance for the Mazda 2.2L engine in the Utilev UT25P to UT30C Series?
The valve clearance for the Mazda 2.2L engine is 0.45 mm. p. 7
What do I get after purchasing this Utilev UT25P manual?
A 90-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this Utilev UT25P manual?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
