All 203 pages of this ASV RC-30 service manual PDF (OEM #0304-820) focus on one machine: getting your RC-30 All Surface Loader torn down, rebuilt, and back on its tracks. You get a full electrical schematic tracing the fuse panel, seat switch, and pilot generation circuit, plus a hydraulic schematic mapping the drive motors, loader valve, and pilot generation circuit. Inside: step-by-step removal and installation procedures for the tandem pump, tracks, sprockets, and lift cylinders, backed by a troubleshooting section and a complete maintenance schedule. Set drive pump relief pressure at 3800 psi, torque the sprocket drive teeth bolts to 110 ft-lb dry, and refill the reservoir with 8 gallons of hydraulic fluid. Rubber-track undercarriages don't forgive guesswork. Bookmarked chapters and a live text layer let you jump to any procedure or search any spec from the phone in your pocket.
What's Inside This ASV RC-30 Manual
| System | Pages | Key Topics |
|---|---|---|
| Product Safety and Technical Specifications | 1-12 | Safety Symbols, Basic Precautions, Asbestos Information, Engine Specifications, Transmission Specifications, Auxiliary Pump Specifications |

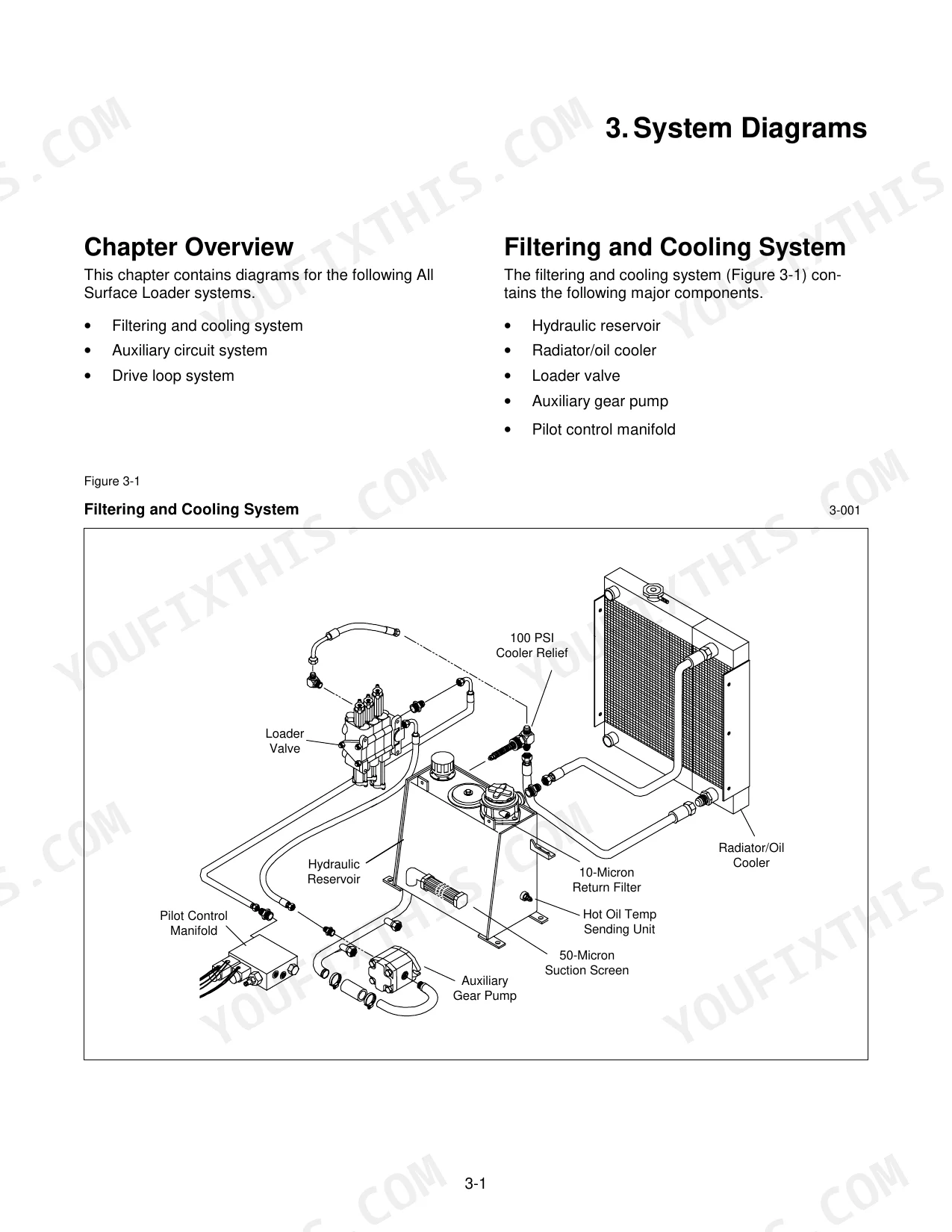

| System Diagrams | 13-15 | Filtering and Cooling System, Auxiliary Circuit System, Drive Loop System |

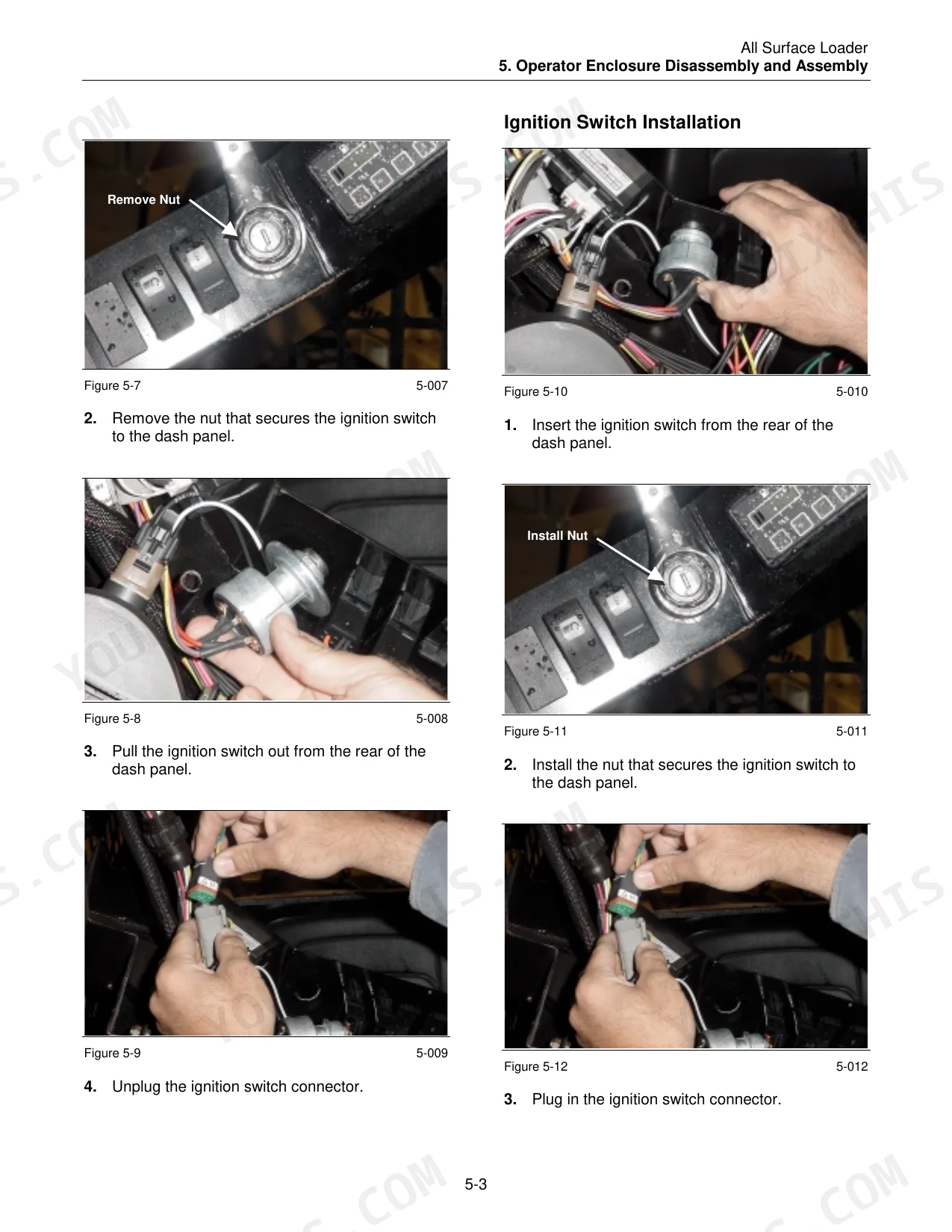

| Machine Controls and Operator Enclosure | 16-23 | Loader Control, Drive Control, Dash Panel, Light Bar Removal, Ignition Switch, Lap Bar Gas Assist Spring |
| Chassis and Radiator/Oil Cooler Disassembly | 24-38 | Seat Removal, Fuel Sending Unit, Fuel Tank Removal, Fan Guard, Fan and Fan Shroud, Radiator/Cooler Removal |
| Hydraulic Reservoir and Controls | 39-56 | Filter Assembly, Filler Cap Assembly, Access Cover, Reservoir Gauge, Suction Screen, Loader Valve Removal |
| Transmission, Drive, and Engine Components | 57-70 | Auxiliary Gear Pump, Tandem Pump, Pump Drive Coupler, Muffler Removal, Exhaust Pipe, Battery Removal, Bleeding Fuel System |
| Undercarriage and Loader Disassembly | 71-90 | Wheel Removal, Sprocket Roller, Brake Removal, Track Removal, Track Installation, Lift Cylinder Removal, Pressure Release Valve |
| Quick Attach, Troubleshooting, Maintenance, and Hydraulic Pressure | 91-107 | Latch Pin Assembly, Troubleshooting, Maintenance Schedule, Engine Oil Change, Hydraulic Fluid Change, Hydraulic Pressure Adjustment |
| Rc-30 Master Parts Catalog, September 2007 Printing | 108-142 | Part Number 2010-125, Printed 9/07: Cab, Chassis, Engine, Hydraulic Reservoir and Undercarriage Assemblies for the Later Serial Range |
| Rc-30 Master Parts Catalog, December 2005 Printing | 143-173 | Part Number 2010-125, Printed 12/05: the Earlier Printing of the Same Catalog, Kept for Machines Built Before the 9/07 Revision |
| Rc-30 Operation Maintenance | 174-201 | Chapter Overview, Maintenance Schedule, Engine Oil (Oil Change Procedures, Specifications), Hydraulic Fluid and Filter (Change Procedures) |
| Rc-30 Electrical Schematic | 202 | Fuse Panel, Dash Console, Engine, Horn, Seat Switch, Pilot Generation |

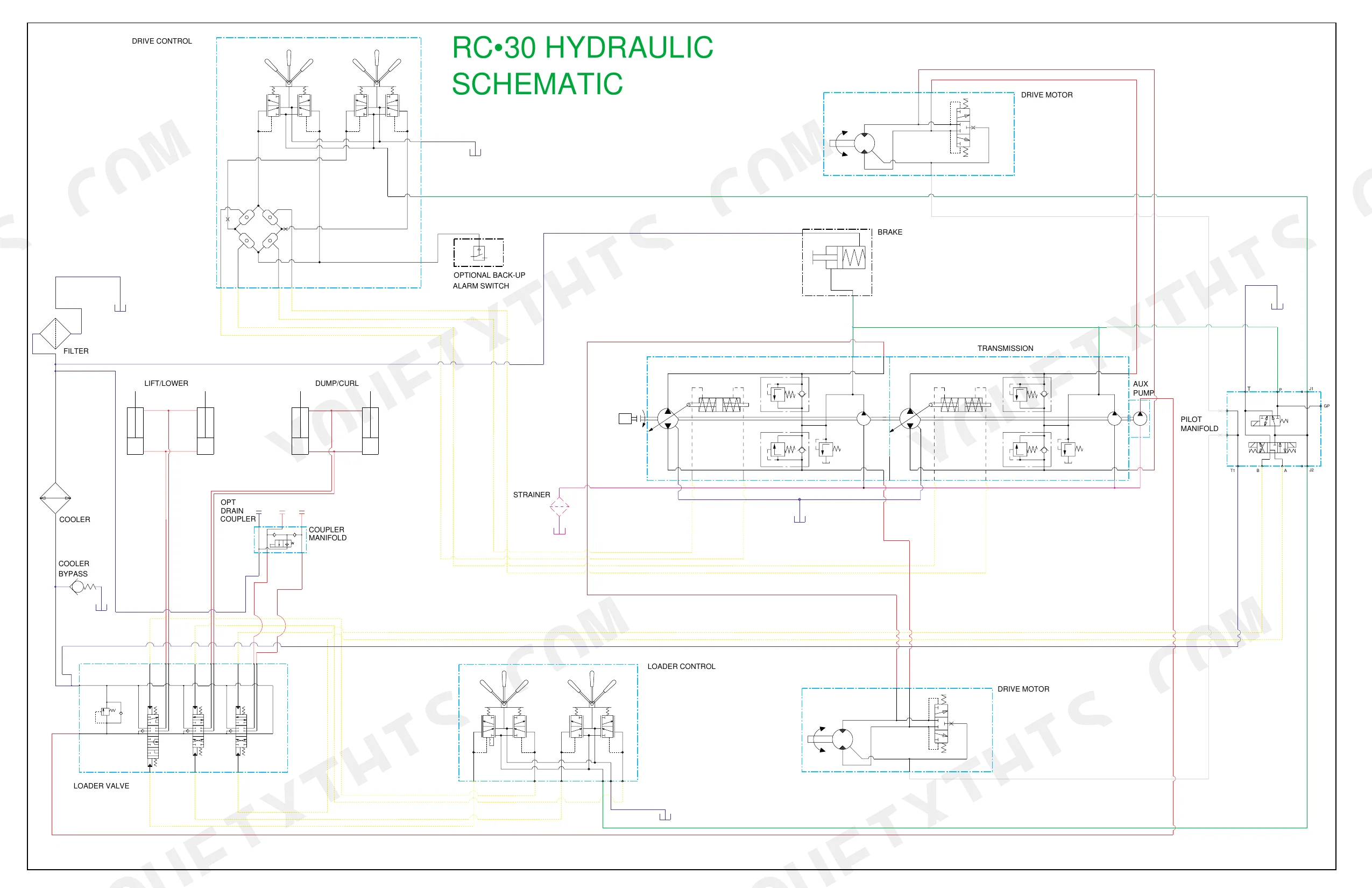

| Rc-30 Hydraulic Schematic | 203 | Drive Motor, Transmission, Loader Valve, Pilot Manifold, Cooler, Filter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

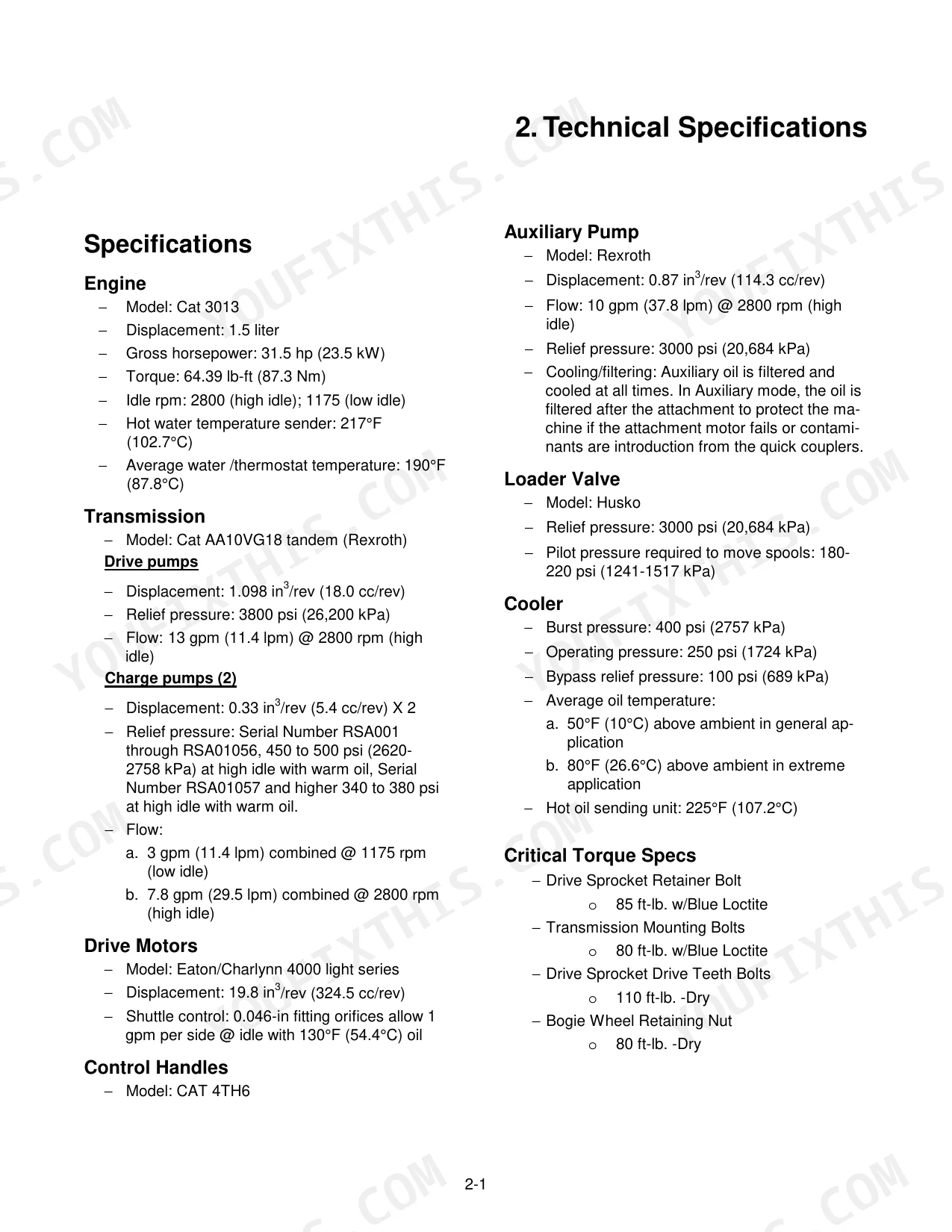

| Drive pump relief pressure | 3800 psi (26,200 kPa) | p. 12 |
| Auxiliary pump relief pressure | 3000 psi (20,684 kPa) | p. 12 |
| Drive Sprocket Retainer Bolt | 85 ft-lb | p. 12 |
| Drive Sprocket Drive Teeth Bolts | 110 ft-lb | p. 12 |
| Hydraulic fluid capacity | 8 gal / 30 l | p. 99 |
| Engine oil capacity | 4 qt / 3.79 l | p. 98 |
| Engine oil temperature range (10W30) | -4°F to 104°F | p. 99 |
| Track deflection | 0.75 inch | p. 101 |
| Battery | 750CCA | p. 128 |
| Engine Gross Horsepower | 31.5 hp | p. 12 |
| Engine Torque | 64.39 lb-ft | p. 12 |
| Auxiliary Pump Flow | 10 gpm | p. 12 |
ASV RC-30 Common Problems This Manual Covers
ASV RC-30 hydraulic oil temperature light comes on, hydrostatic drive feels weak after recent filter change
Drain the reservoir and replace the hydraulic filter following the reservoir procedures starting on page 39, then pull and clean the suction screen. Refill with 8 gal (30 l) of Rykon MV per the maintenance schedule on page 98. Hydrostatic pumps tolerate zero contamination; never reuse fluid that ran through a plugged filter.
Manual Section: Hydraulic Reservoir Disassembly and Assembly p. 39Battery low-voltage light on while operating, engine cranks slowly or clicks on restart
Shut down in a safe spot before diagnosing. Load-test the battery against its 750 CCA rating and replace it if it drops out under load. Clean and tighten both cable ends, then trace the charging circuit against the wiring diagram on page 202, checking for chafed insulation and corroded connections.
Manual Section: Rc-30 Electrical Schematic p. 202Rubber track loose, slapping the frame, or walking off the undercarriage on turns
Measure track deflection midway along the top run; anything past the 0.75 inch limit on page 101 needs the tension adjusted. Inspect sprocket rollers and bogie wheels while you are under there, using the undercarriage procedures starting on page 71, and torque any loose sprocket bolts to 85 lb-ft.
Manual Section: Undercarriage Disassembly and Assembly p. 101Loader arms lift slowly or won't raise a full bucket, auxiliary attachment has no power

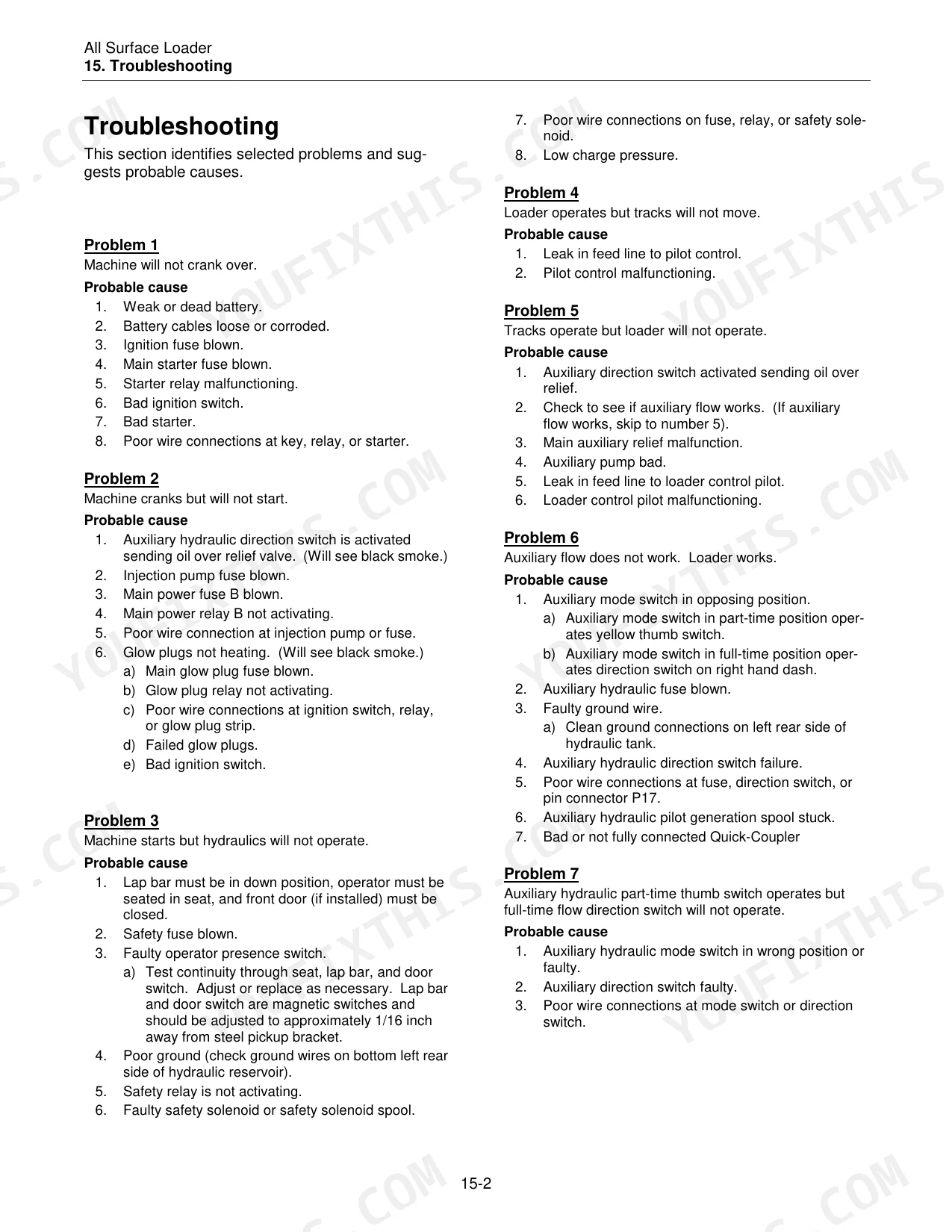

Check loader valve relief pressure first; the spec is 3000 psi (20,684 kPa) in the technical specifications on page 12. Verify the auxiliary mode switch is engaged before condemning anything. Then work through the operational checks and problem and cause lists starting on page 96 to isolate valve, cylinder, or pump.
Manual Section: Troubleshooting p. 96Engine dies or won't restart after fuel sending unit or fuel tank service
Bleed the fuel system after any tank, line, or sending unit work; trapped air kills restart attempts. Verify the tank was fully drained and resealed per the chassis procedures starting on page 24, then inspect every fitting for weeps. Confirm the battery still delivers its rated 750 CCA before extended cranking.
Manual Section: Chassis Disassembly and Assembly p. 24Frequently Asked Questions
What are the torque specifications for the drive sprocket drive teeth bolts on the ASV RC-30?
The torque specification for the drive sprocket drive teeth bolts is 110 ft-lb. These bolts must be installed dry. p. 12
How do I check the hydraulic pressure on the ASV RC-30?
To check the charge pressure, remove the floor pan (page 103) and attach a pressure gauge to the pilot control manifold test port. Start the engine and check the pressure at wide open throttle. p. 104
What are the replacement specifications for the hydraulic filter on the ASV RC-30?
The hydraulic filter should be changed every 250 service hours. The part number for the hydraulic oil filter is 0200-204. p. 99
What is the capacity of the hydraulic tank on the ASV RC-30?
The hydraulic tank capacity for the ASV RC-30 is 8 gallons (30 liters). p. 177
What is the recommended engine oil change interval for the ASV RC-30?

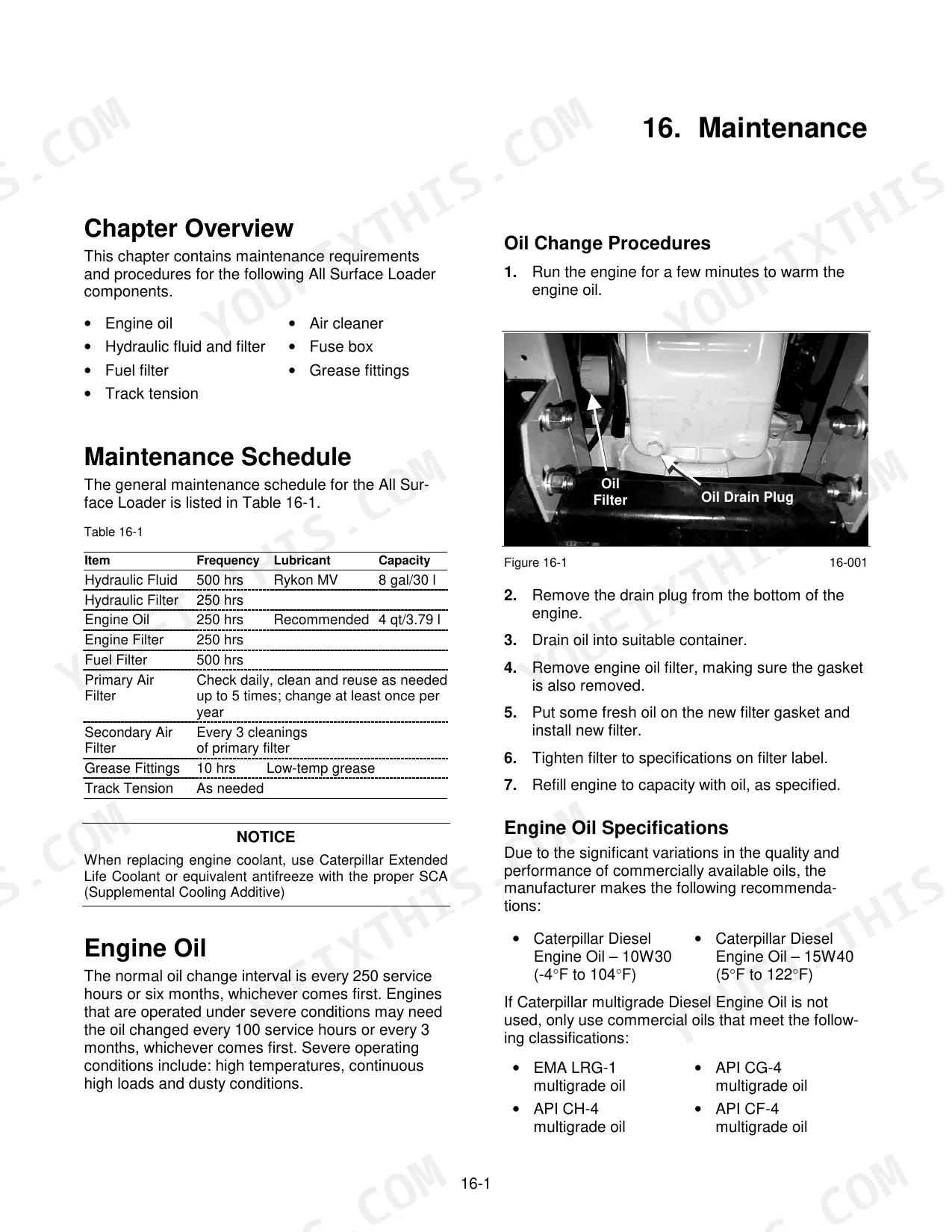

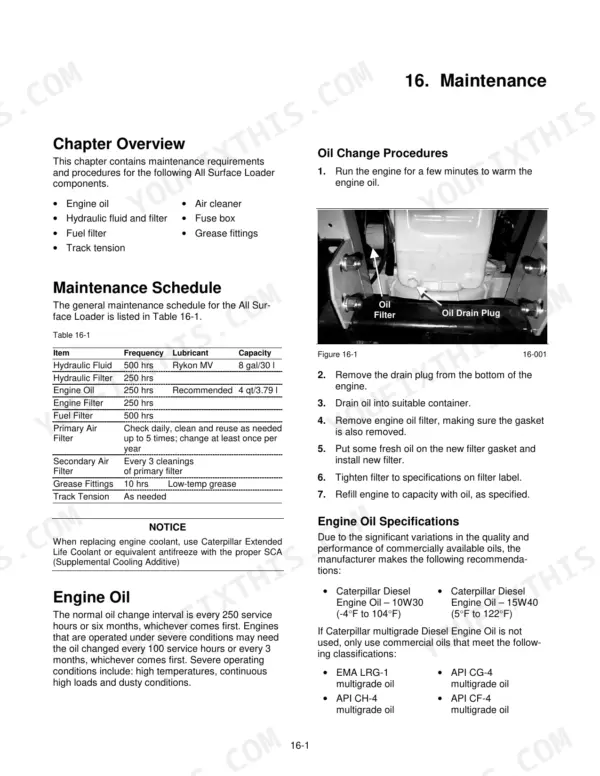

The normal engine oil change interval is every 250 service hours or six months, whichever comes first. Under severe operating conditions, this interval is reduced to every 100 service hours or every 3 months. p. 98
What format is this ASV RC-30 manual in?
Delivery is instant: a 203-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print specific sections of this ASV RC-30 Service Manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
