Standing on an active landfill cell tracing a travel fault before the next wave of trucks arrives, you need this 776-page Bomag BC 972 RB-2, BC 1172 RS-2 service manual pdf (OEM 008 917 09) to sort the issue. The documentation lays out the complete hydraulic circuit for the A4VG110 travel pumps alongside full E-plan wiring diagrams for the ESX electronic control. Troubleshooting charts break down every EMR3 flashing fault code for the Deutz engine, while mechanical sections detail disassembling the oscillating articulated joint and welding new wheel caps. Factory specifications leave no room for error, confirming the front travel pump maximum displacement at 110 cm3/rev and setting the M22x1.5 wheel nut torque to a strict 500 - 600 Nm. Being alone on a massive refuse pile with a dead compactor and no one to ask for advice is a rough spot. Download this digital text and use the integrated bookmarks to jump straight to the fix.
What's Inside This Bomag BC 972 RB-2, BC 1172 RS-2 Manual

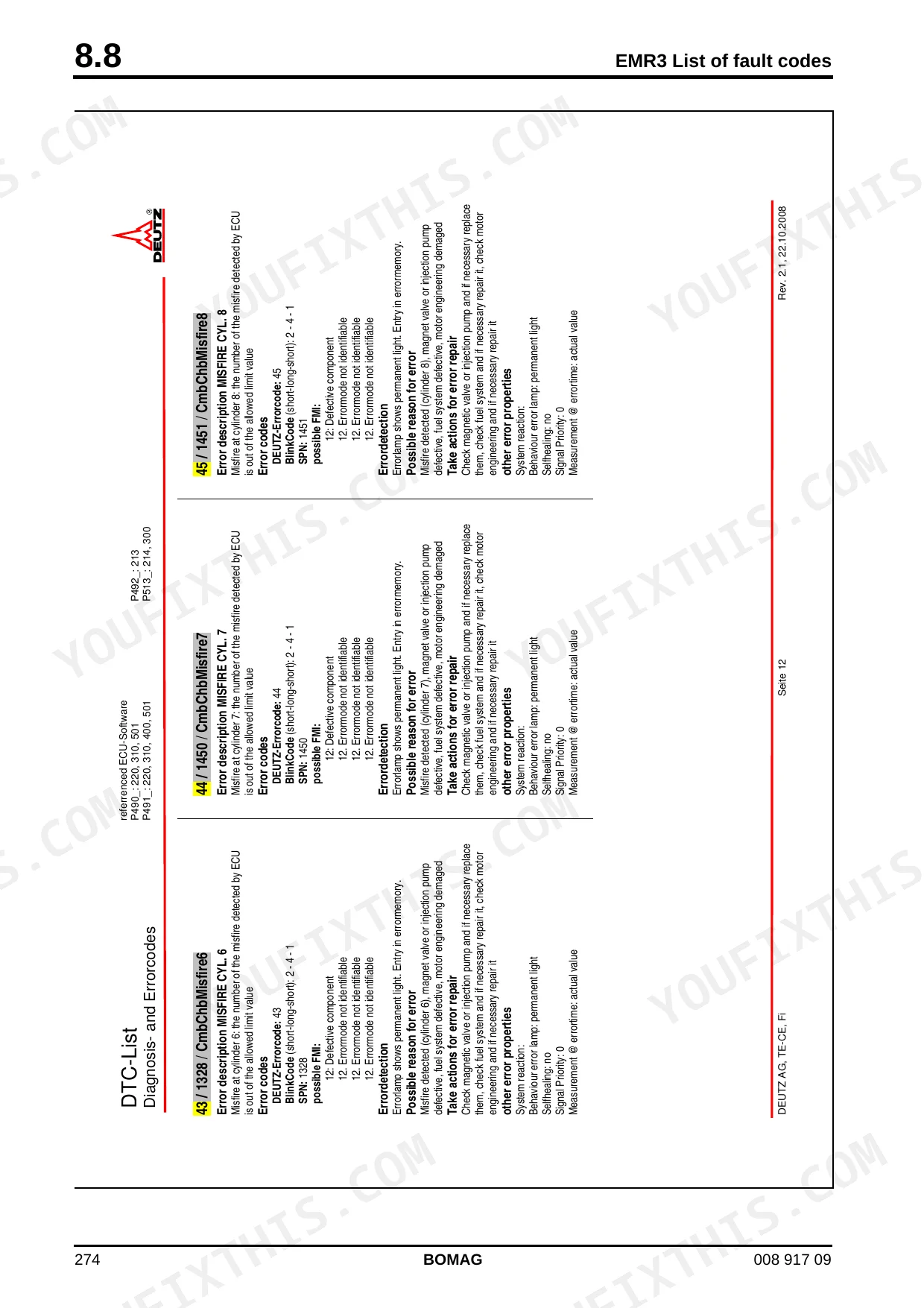

| System | Pages | Key Topics |
|---|---|---|
| General | 7-30 | Introduction, Safety Regulations, General Repair Instructions |
| Bomag Refuse Compactor | 31-38 | Refuse Compactor, Matured Technology, Oscillating Articulated Joint, Dozer Blade, Loading Bucket, Refuse Compactor Tools |
| Technical Data | 39-46 | Weights, Dimensions, Travel Characteristics, Drive, Compactor Wheels, Filling Capacities |
| Maintenance | 47-56 | Fuels and Lubricants, Table of Fuels and Lubricants, Running-In Instructions, Maintenance Table |
| E-Plan Wiring Diagrams | 57-74 | Understanding Wiring Diagrams, Circuit Symbols in the Circuit Diagram, Identification of Switch Blocks in the Wiring Diagram, Designation of Components in the Wiring Diagram |
| Electrics | 75-148 | Battery Ground and Analog Ground, Current and Voltage, Pulse Width Modulation, Resistance, Series / Parallel Connection, Ohm's Law, Electrical Energy, Formula Diagram |
| Electronic Control | 149-238 | Esx Control |
| Engine Electrics | 239-370 | Engine Control Unit, Pin Assignment, System Faults Indicated by Flashing Code, Flashing Code, Diagnose with Serdia, Diagnose with CAN-bus, Diagnostics Interface |
| Engine | 371-424 | Diesel Engine, Engine Description Tcd 2015 V 8 Cylinder, Lubrication Oil Circuit Tcd 2015, Coolant Circuit Tcd 2015, Fuel Circuit Tcd 2015, Injection System Tcd 2015 |

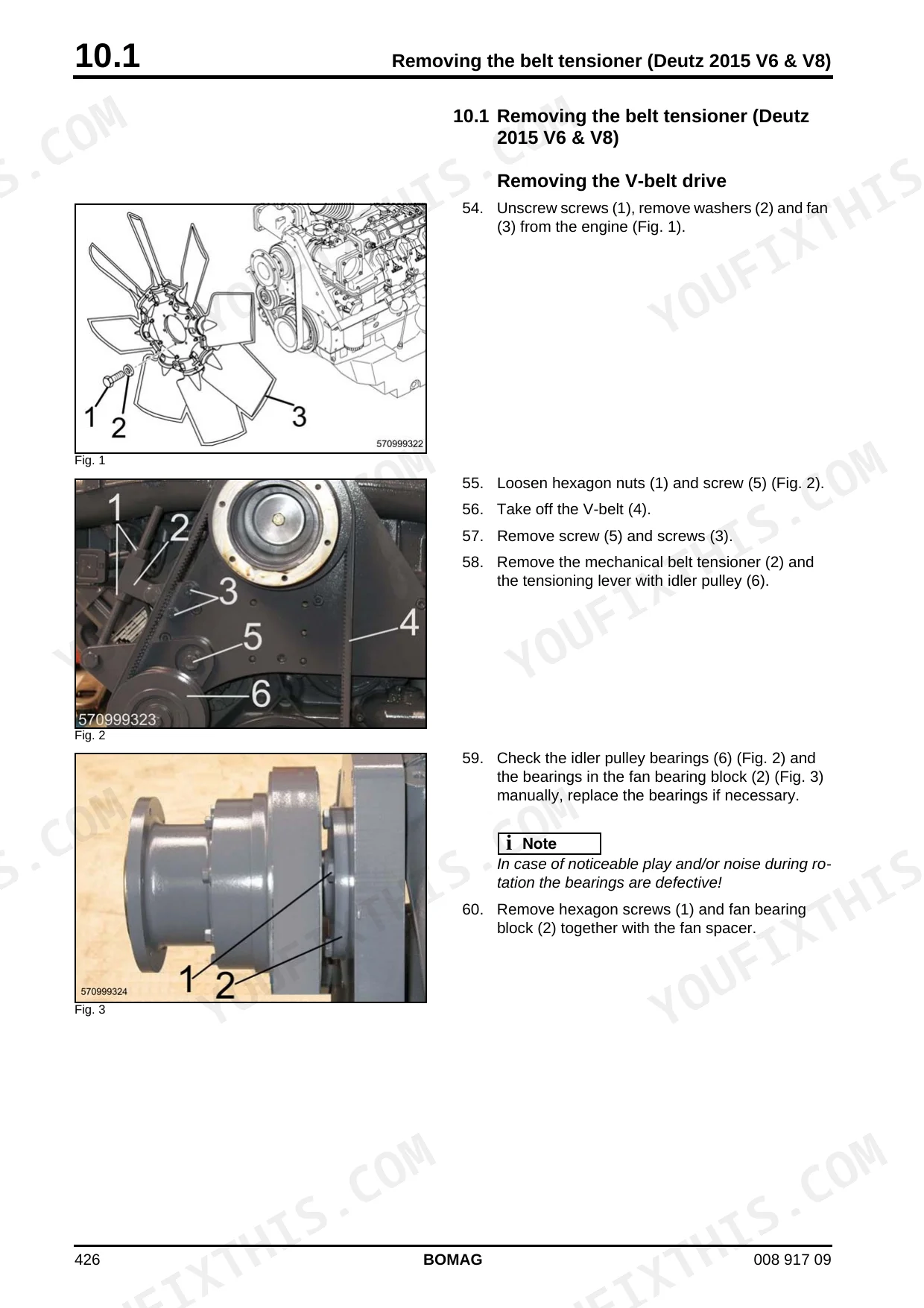

| Automatic Belt Tensioner | 425-438 | Removing the Belt Tensioner, Preassembly of a Belt Tensioner for Diesel Engines 2015 V6 and V8, Installing the Belt Tensioner |
| Hydraulics | 439-514 | Hydraulic Circuit, Travel Pump A4VG110 Da, Travel Pump A4VG110 Ht, Steering and Working Pump, HA10VO 100 & Ha 10 Vo 100, Axial Piston Swash Plate Principle. |
| Automatic Air Conditioning | 515-568 | Overview, Physical Basics, Refrigerant R134a, Compressor Oil / Refrigeration Oil, Working Principle of the Air Conditioning System, Monitoring Devices, Components |
| Central Lubrication System | 569-590 | System Layout, Technical Description, Control, Lubrication Process, Progressive Distributor, Lubrication Oil Pump, Check the Central Lubrication System, Top Up |
| Oscillating Articulated Joint | 591-606 | Articulated Joint, Repair Overview, Disassembling and Assembling the Top Bolt, Removing and Installing the Steering Cylinders |
| Compactor Wheels and Dozer Blade | 607-612 | Welding on New Wheel Caps, Adjust Scrapers and Edge Cutter, Checking the Condition of Cutters, Replacing the Cutters If Necessary |
| Suppliers Documentation | 613-714 | Steering/Working Pump, Wheel Drive |
| Circuit Diagrams | 715-776 | Hydraulic Diagram, Hydraulic Diagram 571 908 16, Wiring Diagram 79 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for M4 screw (8.8) | 3 Nm | p. 26 |
| Tightening torque for M22x1.5 wheel nut | 500 - 600 Nm | p. 27 |
| Charge circuit filter | 12 micron | p. 45 |
| Return flow filter | 80 micron | p. 45 |
| Travel pump (front) Max. displacement | 110 cm3/rev | p. 44 |
| Travel pump (rear) Max. displacement | 110 cm3/rev | p. 44 |
| Travel motors Displacement (stage 1) | 215 cm3/rev | p. 44 |
| Travel motors Displacement (stage 3) | 80 cm3/rev | p. 44 |
| Hydraulic oil temperature sensor R04 resistance at 40°C | 291 OHM | p. 114 |
| Hydraulic oil temperature sensor R04 resistance at 120°C | 36 OHM | p. 114 |
| Fuel pressure filter | 3µm | p. 379 |
| Bending radius for GH 134 NW8 | min. 50 mm | p. 532 |
Bomag BC 972 RB-2, BC 1172 RS-2 Common Problems This Manual Covers
Bomag BC 972 RB-2 hydraulic system overheating warning light flashing and travel pump whining
Inspect the hydraulic tank and verify it holds the full 600 L capacity listed on page 41. Replace the charge oil filter with a new 12 µm element. Test the differential pressure switch activation at 2.5 bar as shown on page 474.
Manual Section: Hydraulics p. 474Engine oil pressure sensor leaking oil down the block near the main harness connector
Remove the leaking sensor and clean the block threads. Install the new sensor and torque it to exactly 20 Nm. Check the cylinder head cover for secondary leaks and torque the bolts to 22 Nm.
Manual Section: Engine Electrics p. 334Machine lacks pushing power on the landfill cell and travel pump sounds like it is cavitating
Hook a test gauge to the control chamber pressure test port on page 478 and verify pressure reaches 475 bar at maximum displacement. If pressure fluctuates, check the pressure regulator fixed setting to ensure it holds steady at 250 bar.
Manual Section: Hydraulics p. 478Diesel engine bogs down under heavy load when climbing steep refuse grades
Drain the water separator and replace the main fuel pressure filter with a new 3µm element as detailed on page 379. Prime the system and run the engine to verify smooth operation. Check the 1000 L fuel tank for heavy contamination.
Manual Section: Engine p. 379Frequently Asked Questions
How do I reset a fault code on the BOMAG BC 972 RB-2?
To delete all stored faults, ensure the engine is not running, enter code number 710, and then switch the ignition off and on again. p. 164
What are the torque specifications for M16 screws with metric unified thread on the Bomag BC 972 RB-2, BC 1172 RS-2?
The tightening torque for M16 screws with metric unified thread depends on the strength class: 211 Nm for 8.8, 300 Nm for 10.9, and 358 Nm for 12.9. p. 26
What is the hydraulic oil filter element replacement interval on the Bomag BC 972 RB-2, BC 1172 RS-2?
The hydraulic oil filter element must be replaced every 500 operating hours. p. 51
What is the valve clearance specification for the Bomag BC 972 RB-2, BC 1172 RS-2 engine?
The intake valve clearance is 0.25 mm and the exhaust valve clearance is 0.30 mm. p. 386
What is the tightening torque for the glow plug counter nut on the Bomag BC 972 RB-2, BC 1172 RS-2?
Torque the glow plug counter nut to 25 Nm exactly. p. 346
How quickly can I access this Bomag BC 972 RB-2 manual after buying?
Instant PDF download. You get the full 776-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is printing allowed for this Bomag BC 972 RB-2 Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
