From screed heating and auger control to the AdBlue/DEF system, this Bomag BF 700 C-2 operator manual PDF (OEM 008 200 31 EN, 220 pages) walks the whole paver from pre-start checks through final shut-down. The controls section alone takes up roughly a third of the book, mapping every switch on the main panel, the outside consoles and the screed operating console, right down to the LC-display fault readout. Maintenance runs on an hour-based table, from 50-hour lubrication rounds to the 2000-hour coolant change, with fuse assignment and screed heating fault codes in the troubleshooting chapter. Fill the engine with 17.5 liters of SAE 5W-30 for summer work, and pull the oil filter cover to 50 Nm on your next change. A paver standing at the hopper stalls the whole train, and every minute counts against the mat temperature. With the fuels and lubricants list in hand, you buy the right oil and grease the first time; the bookmarked, text-layer PDF is yours minutes after checkout.
What's Inside This Bomag BF 700 C-2 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 9-12 | Foreword, Machine Type Plate and Engine Type Plate |
| Technical Data | 13-18 | Noise and Vibration Data |
| Concerning Your Safety | 19-50 | Definition of Responsible Persons (Operating Company, Expert / Qualified Person, Driver / Operator) |

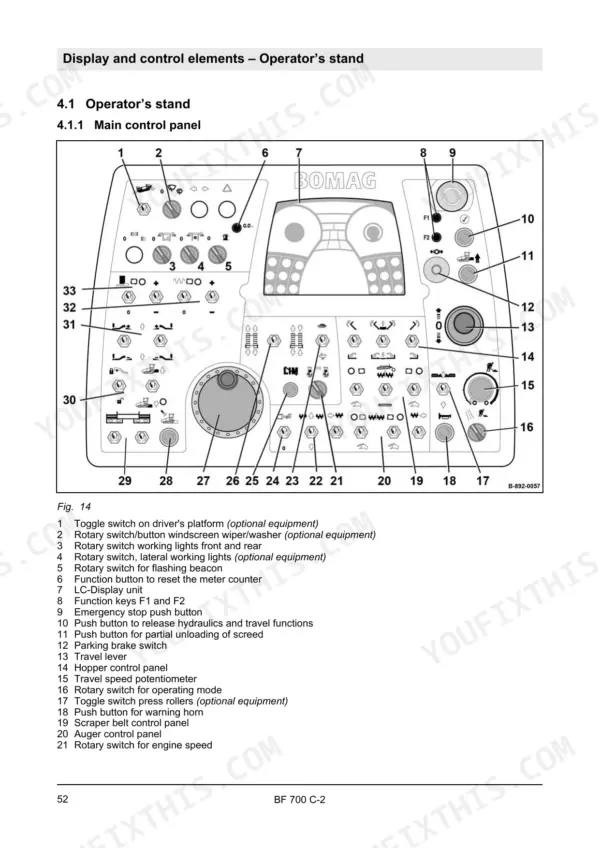

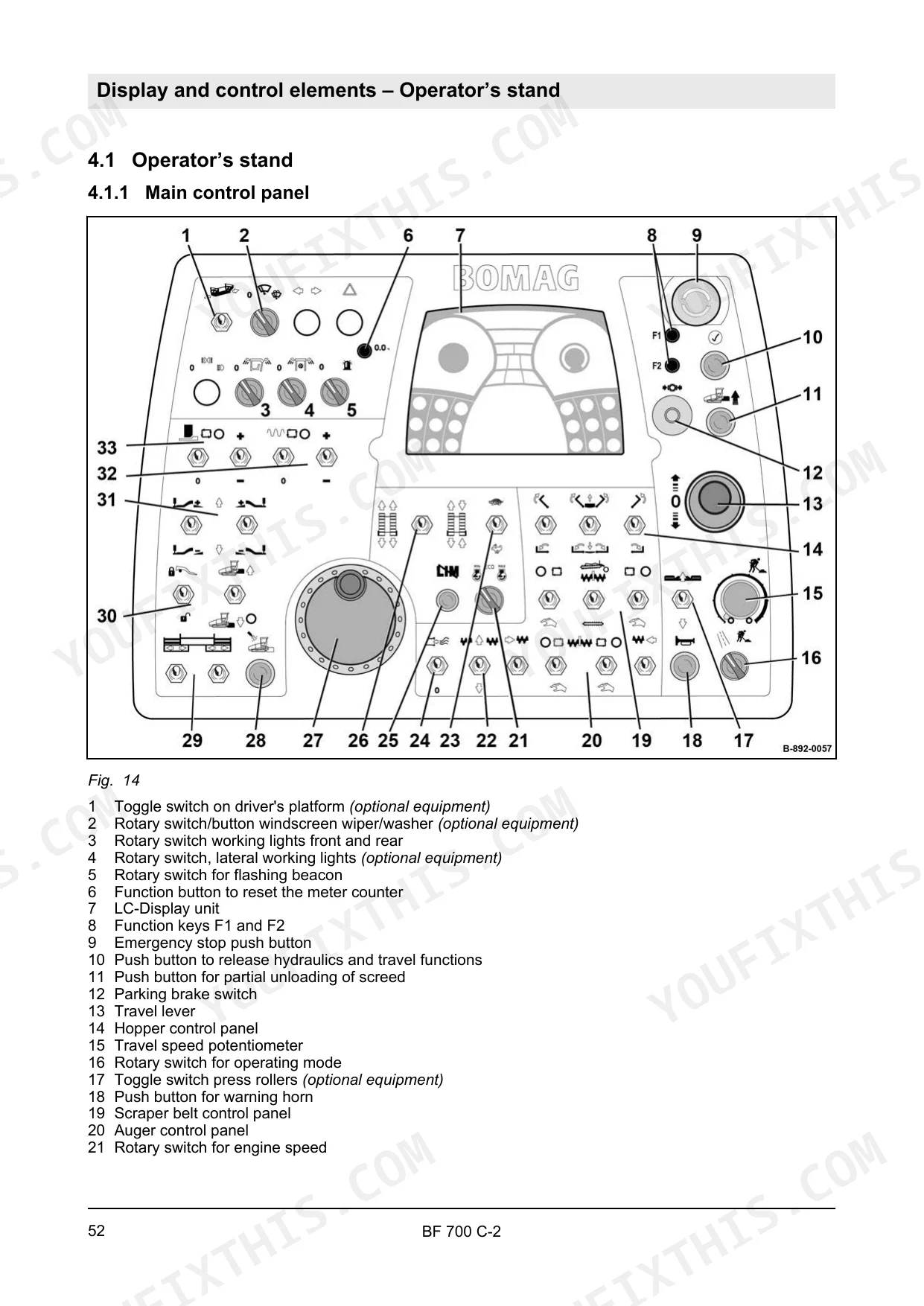

| Display and Control Elements | 51-84 | Operator’s Stand (Main Control Panel, Start Switch, V Universal Socket, LC-Display Unit, Function Button to Reset the Meter Counter, Function Keys F1 and F2, Toggle Button for Operator's Platform, Rotary Switch/Button Windscreen Wiper/Washer, Rotary Switch Working Lights Front and Rear, Rotary Switch for Lateral Working Light, Rotary Switch for Flashing Beacon, Emergency Stop Switch, Push Button to Release Hydraulics and Travel Functions, Push Button for Partial Unloading of Screed, Parking Brake Switch, Travel Lever, Travel Speed Potentiometer, Rotary Switch for Operating Mode, Toggle Switch Press Rollers, Push Button for Warning Horn, Hopper Control Panel, Scraper Belt Control Panel, Auger Control Panel, Toggle Button for Auger Height Adjustment, Tumbler Switch for Asphalt Fume Extraction System, Rotary Switch for Engine Speed, Push Button Reduced Engine Power, Toggle Switch, Travel Ranges, Toggle Button for Track Control, Steering Wheel, Push Button for Cleaning Function, Screed Width Control Panel, Control Panel Screed Up/Down, Levelling Control Panel, Control Panel for Screed Vibration, Control Panel for Tamper, Screed, Toggle Switch for Seat Heating, Hydraulic Hand Pump for Protective Roof) |
| Tests Before Taking Into Operation | 85-96 | Notes on Safety, Visual Inspections and Function Tests, Checking the Engine Oil Level, Checking the Fuel Level, Topping Up Fuel (Refuelling), Checking the AdBlue/DEF Level |

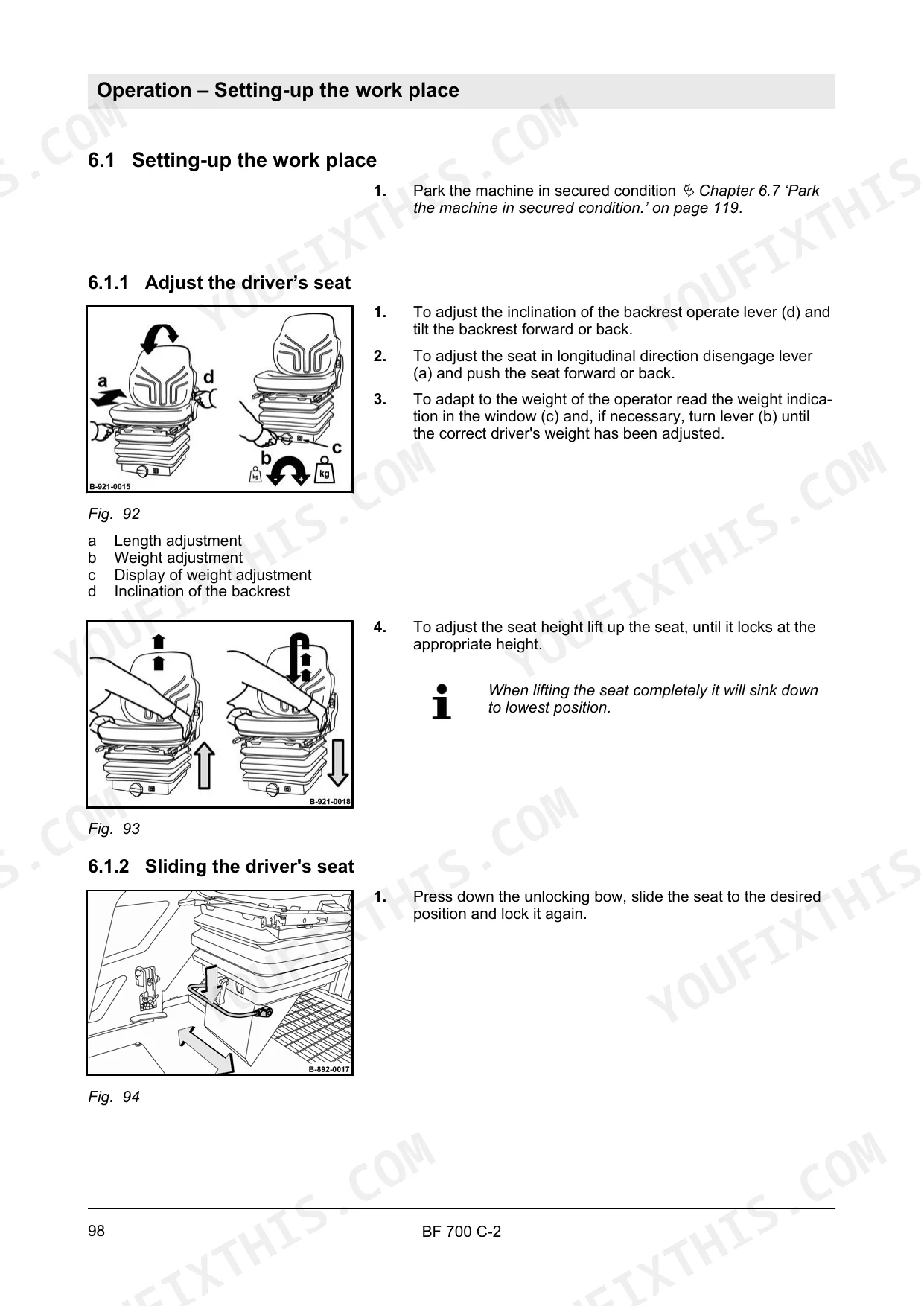

| Operation | 97-138 | Setting-Up the Work Place, Operating the Screed, Operating the Screed Heating, Operating the Protection Roof, Emergency Procedures |
| Loading / Transporting the Machine | 139-144 | Prepare for Transport, Loading the Machine, Lashing the Machine to the Transport Vehicle, Loading by Crane |

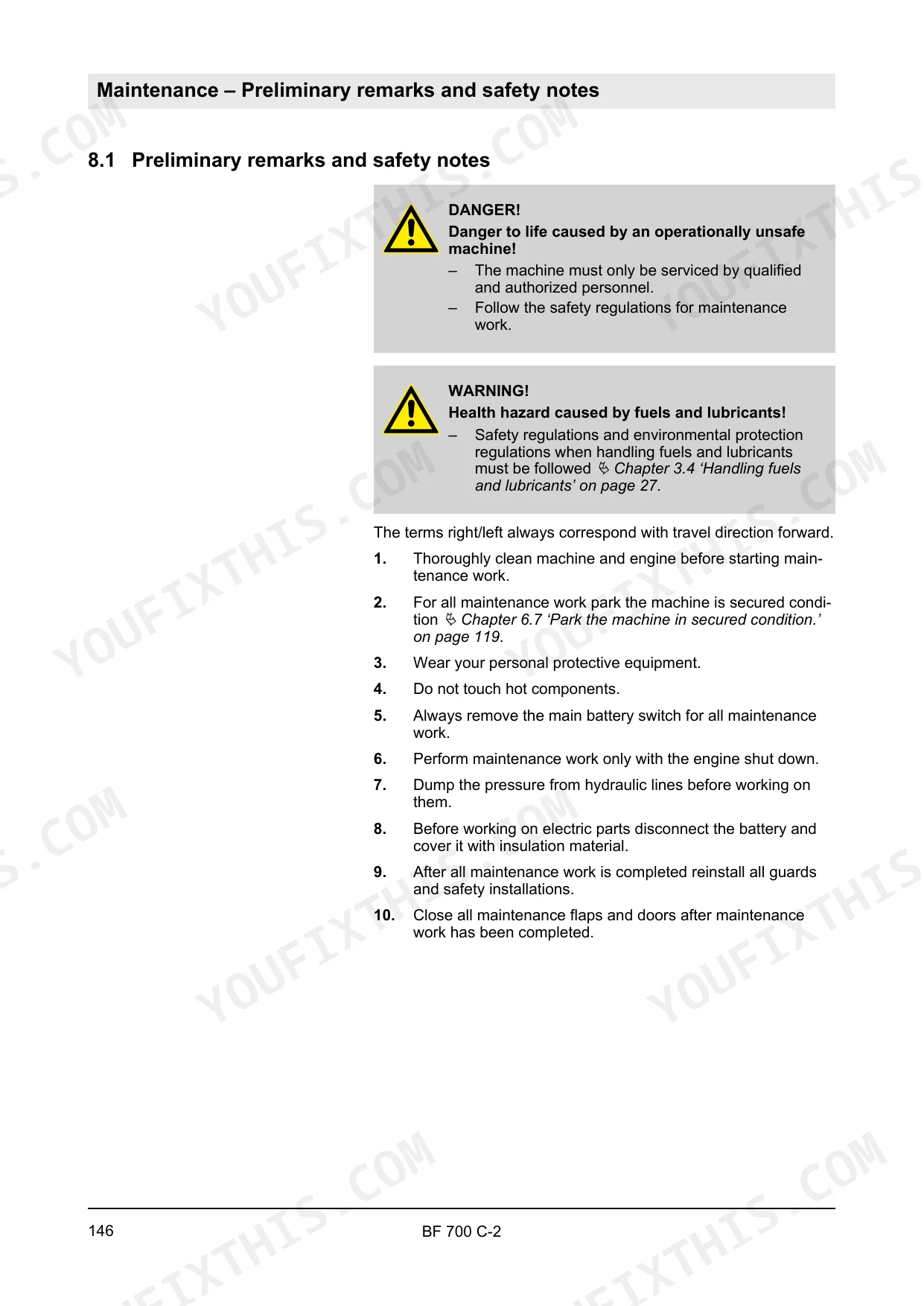

| Maintenance | 145-202 | Preliminary Remarks and Safety Notes, Overview of Maintenance Flaps and Doors |

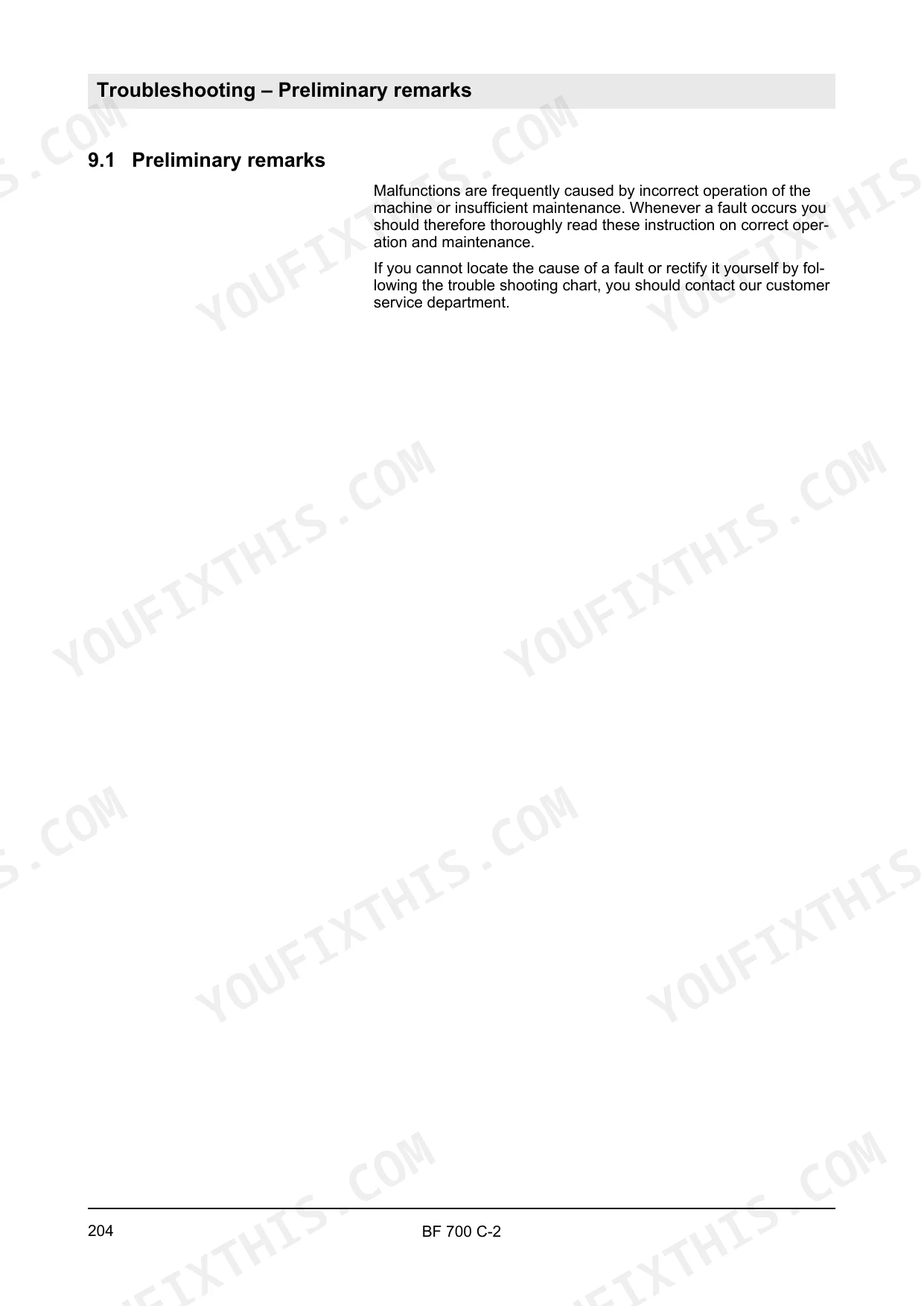

| Troubleshooting | 203-214 | Preliminary Remarks, Starting the Engine with Jump Leads, Screed Heating Fault Code Display, Fuse Assignment (Notes on Safety, Central Electrics, Main Fuses) |
| Waste Disposal | 215-216 | Final Shut-Down of Machine |
| List of Special Tools | 217-220 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for screw-on cover with filter element (engine oil) | 50 Nm (37 ft·lbf) | p. 171 |
| Tightening torque for screw-on cover main fuel filter | 25 Nm (18 ft·lbf) | p. 172 |
| Engine oil filling quantity | 17.5 l (4.6 gal us) | p. 155 |
| Engine oil type (Summer) | SAE 5W-30 | p. 155 |
| Levelling plate to guide bar gap | 1 mm (0.04 in) | p. 179 |
| Tamper bar protrusion | 0.35 ± 0.05 mm (0.014 ± 0.002 in) | p. 180 |
| Operating weight (Cece) with screed | 19800 kg | p. 14 |
| Travel speed | 0-4 km/h | p. 14 |
| Rated power ISO 3046 | 128 kW | p. 15 |
| Fuel tank capacity | 285 l | p. 16 |
| Coolant filling quantity | 36 l | p. 155 |
| Hydraulic system filling quantity | 160 l | p. 155 |
Bomag BF 700 C-2 Common Problems This Manual Covers
Bomag BF 700 C-2 engine cranks slowly or won't start after machine sat overnight in cold weather
Check battery connections for corrosion and verify charge before cranking again. Confirm fuel level; the tank holds 285 l and running it low on a grade pulls air into the lines. Bleed the fuel system if it drew air, then work through the engine fault tables in the troubleshooting chapter starting on page 203.
Manual Section: Troubleshooting p. 203Engine derates to reduced power and the AdBlue warning shows on the display
Check the AdBlue/DEF level during your pre-start checks; a low tank drops the engine into reduced power. Top up and see whether the warning clears. If the filter is due, replace it and torque the filter housing to 80 Nm (59 ft lbf) as shown on page 175, then restart and confirm full throttle response.
Manual Section: Maintenance p. 175Mat comes off the screed rough and open, tamper sounds lazy at normal paving speed
Measure the tamper bar protrusion below the screed bottom plates; it should stand proud 0.35 ± 0.05 mm with a running clearance of 0.4 to 0.7 mm, both listed on page 180. Check the levelling plate to guide bar gap of 1 mm on page 179 while you are under there, and correct settings before the next pull.
Manual Section: Maintenance p. 180Track chain sags and slaps the rollers when the machine travels between paving pulls
Clean packed asphalt out of the undercarriage first; buildup fakes a loose chain. Measure across five track links: a new chain runs 622.4 mm (24.5 in), and once the span stretches to 632.3 mm (24.9 in) the chain is worn out, per the wear limits on page 181. Tension within limits, plan replacement beyond them.
Manual Section: Maintenance p. 181Engine oil level reads below the minimum mark on the dipstick during daily checks
Check the level on flat ground with the engine off and cold for a true reading. Top up with SAE 5W-30 in summer; total filling quantity is 17.5 l per page 155. Inspect around the oil filter cover for seepage and torque it to 50 Nm if loose, then recheck the level after the shift.
Manual Section: Maintenance p. 155Frequently Asked Questions
What is the procedure for resetting the meter counter on the BOMAG BF 700 C-2?
To reset the meter counter to zero, press and hold the function button for at least 5 seconds. A short press of the same button will cycle the INFO 3 display field between coolant temperature and driven working distance. p. 56
How do I clear a screed heating fault code?
If a temperature sensor is faulty, the screed heating for that section is automatically switched off. For fault rectification in case of a temperature sensor failure, select the defective segment using buttons [1], [2], or [3], then press the [Manual] button for five seconds to open a sub-menu where you can set the switch-on time in percent of 60 seconds. p. 82
What is the recommended tightening torque for the main fuel filter cover?
When replacing the fuel filter elements, the screw-on cover for the main fuel filter must be tightened to a torque of 25 Nm (18 ft·lbf). The screw-on cover for the fuel pre-filter should be tightened to 15 Nm (11 ft·lbf). p. 172
What is the required oil capacity for the engine during an oil change?
The engine oil capacity for the BF 700 C-2 is 17.5 liters (4.6 gal us). Ensure you use oil meeting the specifications listed in the maintenance section. p. 155
How often should the hydraulic oil filter be replaced?
The hydraulic oil filter element must be replaced every 500 operating hours. Additionally, the hydraulic oil must be changed after major repairs in the hydraulic system. p. 153
Will this Bomag BF 700 C-2 Operator Manual download right away?
Immediate download of the complete 220-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Does this Bomag BF 700 C-2 manual allow printing?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
