Bomag BM 1000/30-2, 1200/30-2, 1300/30-2 Service Manual — Wiring Diagrams

Name: Bomag BM 1000/30-2, 1200/30-2, 1300/30-2 Service Manual — Wiring Diagrams
Author: Bomag

$39.99

Type: Cold Milling Machine

Serial: 821 836 34 1001 | 821 836 35 1001 | 821 836 30 1001 | 821 836 36 1001 | 821 836 37 1001 | 821 836 32 1001

826 Pages·50 MB·Searchable PDF·English·Print-Ready

✓ Wiring Diagrams
✓ Hydraulic Schematics
✓ Torque Specs
✓ Multi-Level Bookmarks (3-level navigation)

Preview Sample Pages (PDF)

The Bomag BM 1000/30-2, BM 1200/30-2, BM 1300/30-2 service manual PDF (OEM 008 917 61) tears into all six variants of this cold milling machine family, PB versions included, across 826 pages of factory repair data. Electric circuit diagrams and the full hydraulic diagram close the book, and the electrics chapter walks you through every sensor and operating condition, from rope sensors for height control to the multi-function display. Component overhaul procedures for the steering, travel and conveyor belt pumps, the travel motor, travel gear and Planox clutch run from page 345 to page 746, roughly half the book, with each rebuild ending in specification tolerance lists. Blow out the main air filter element at no more than 5 bar, and retire the milling drum V-belt pulley once it wears past 15.24 mm. A guessed charge pressure kills an axial piston pump quietly. Bookmarked and carrying a text layer, the file lives on whatever laptop or tablet follows the machine, so your specs travel wherever the milling drum does.

Complete the set for your BM 1000/30-2, 1200/30-2, 1300/30-2

Repair Manual: Bomag BM 1000/30-2, 1200/30-2, 1300/30-2 Service Training — Wiring Diagrams

What's Inside This Bomag BM 1000/30-2, 1200/30-2, 1300/30-2 Manual

System	Pages	Key Topics
General	7-26	Safety Regulations, General Repair Instructions, Tightening Torques
Technical Data	27-36	Weights, Rotor, Travel Characteristics, Drive, Crawler Tracks, Electric System
Maintenance	37-40	Fuels and Lubricants, Running-In Instructions
Electrics	41-182	Designation of Components in the Wiring Diagram, Terminal Designations in Wiring Diagram, Battery Ground and Analog Ground, Current and Voltage, Pulse Width Modulation

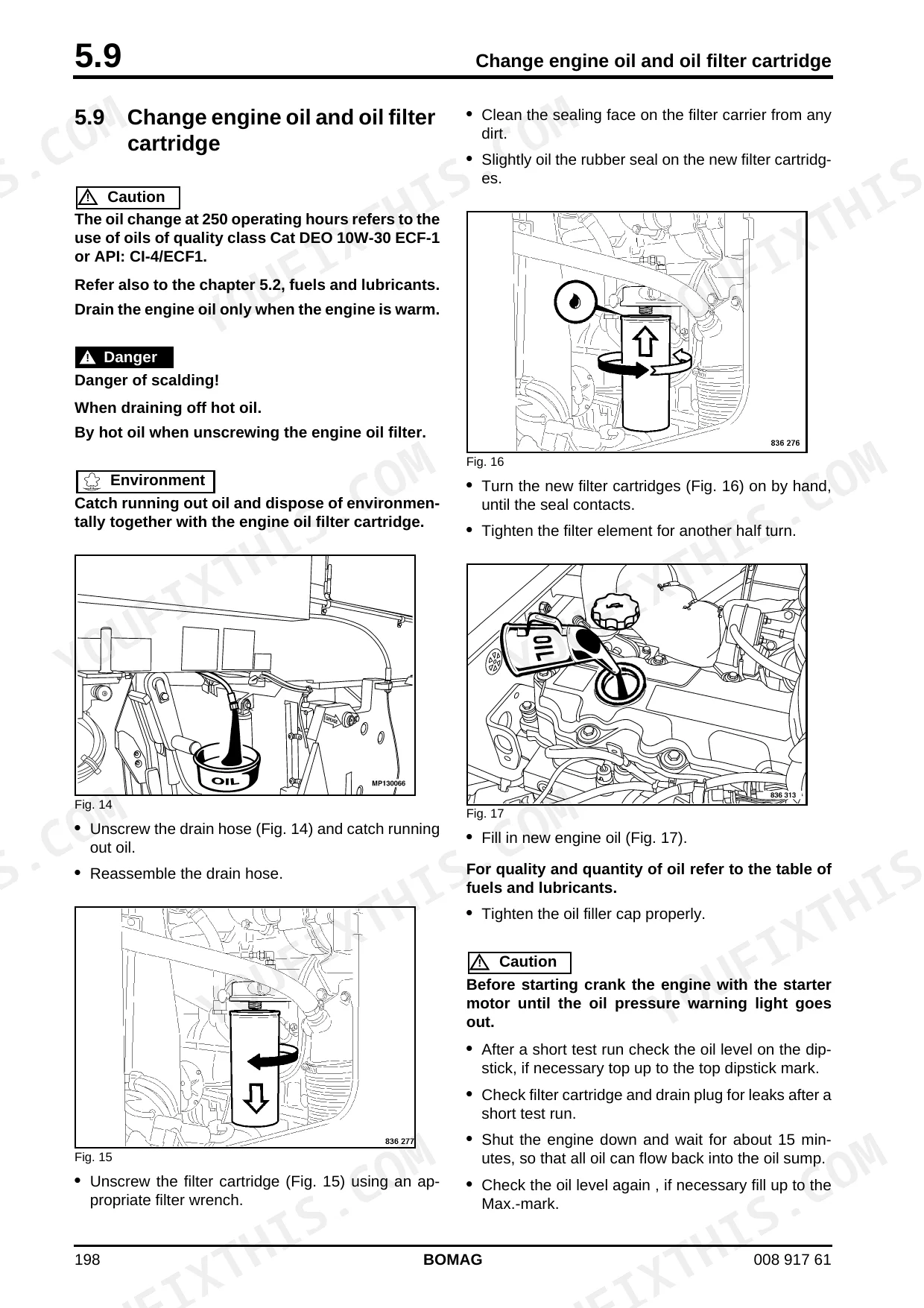

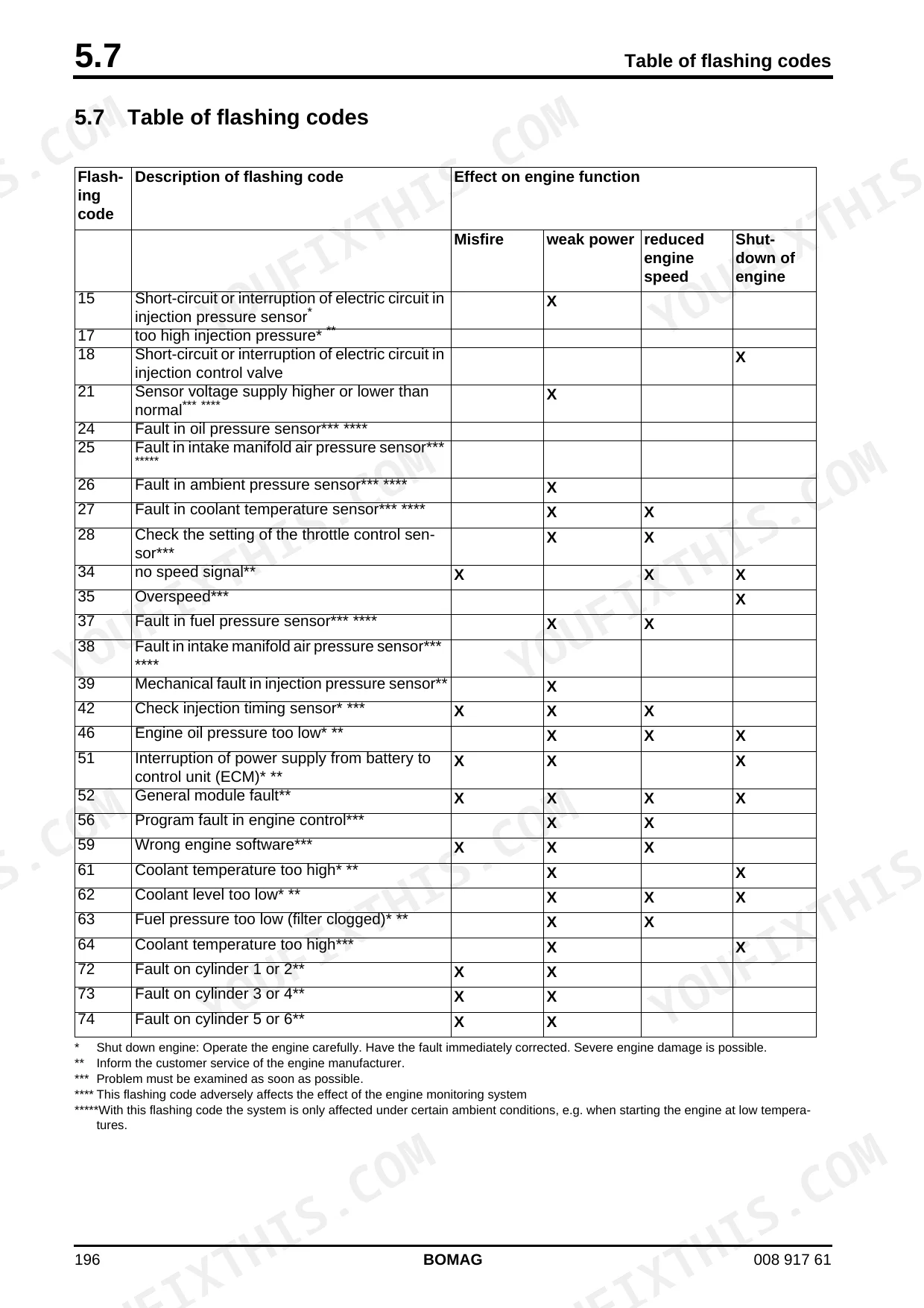

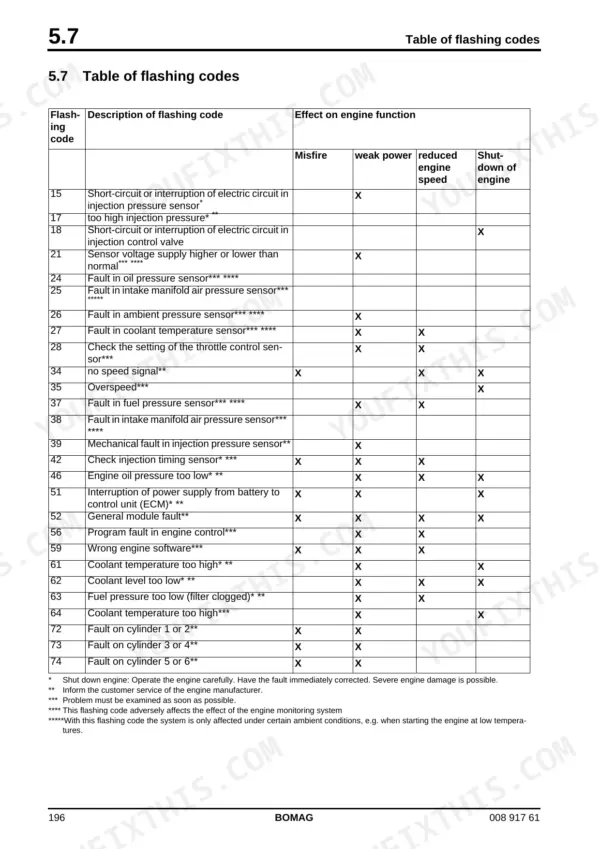

Engine	183-212	Engine Attachment Parts, Engine Electrics, Checking the Cylinder Head Ground Cable, Engine Diagnostics Lamps H8 and H9, Table of Flashing Codes, Check the Engine Oil Level
Milling Drive, Drum & Unit	213-244	Checking/Replacing the Milling Drum V-Belt, Oil Change in the Milling Drum Reduction Gear and Bearing, Lubricating the Milling Drum, Repair Overview of the Milling Drum, Replacing Tool Holders, Check/Replace Cutting Tools, Scraper
Travel Drive	245-260	Checking the Track Plates, Retightening the Track Plate Fastening Screws, Check the Track Drive, Lubricating the Travel Drive, Lubricating the Steering System
Conveyor Belt	261-272	Folding/Unfolding the Loading Conveyor Belt, Checking and Tightening the Conveyor Belts, Checking the Safety Ropes, Lubricating the Conveyor Belts
Hydraulics - System & Circuits	273-328	Hydraulic Circuit, Component Overview - Hydraulics, Travel Pump, Working Pump, Conveyor Belt Pump, Troubleshooting Axial Piston Pumps, Fan Pump, Travel Circuit Driving/Steering, Milling Operation Clutch and Milling Box Hydraulics
Hydraulics - Cylinder, Tests & Adjustments	329-342	Repairing Hydraulic Cylinders, Special Tools, Checking/Adjusting the Travel Pump
Pump & Motor Overhaul - Steering, Travel & Conveyor Belt	345-520	Steering/Working Pump Disassembly and Re-Assembly, Specification Tolerance Lists, Travel Pump Shaft Seal and Pressure Checks, Conveyor Belt Pump Sealing and Control Unit Removal, Travel Motor Port Plate Disassembly and Rotary Group Removal
Milling Drive, Travel Gear & Conveyor Belt Motor Overhaul	521-668	Milling Drum V-Belt, Milling Drum Reduction Gear and Bearing, Dry Clutch, Travel Gear Shaft and Casing, Planetary Gears, Conveyor Belt Motor Dismantling and Assembling, Tacho Connection
Sprinkling Pump, Steering Valve & Clutch Overhaul	669-746	Centrifugal Pump, Water Filter, Flow Control Valve, Solenoid Valve, Hydrostatic Steering Unit, Pressure Relief Valve, Shock Valve, Planox Coupling, Friction Discs, Belt Tensioner
Circuit Diagrams	747-826	Hydraulic Diagram, Electric Circuit Diagrams

Quick Reference Specifications

Specification	Value	Page
All Models
Maximum compressed air pressure for cleaning main filter element	5 bar	p. 202
V-belt deflection	10 - 15 mm	p. 206
V-belt compression measurement	approx. 100 mm at 50 N	p. 224
new V-belt pulley width	14.24 mm	p. 224
Worn V-belt pulley width	15.24 mm	p. 224
Milling depth	0-320 mm	p. 28
Diesel fuel capacity	500 l	p. 29
Hydraulic oil capacity	118 l	p. 29
Water tank capacity	1250 l	p. 29
BM 1000/30
Operating weight (CECE)	19100 kg	p. 28
BM 1200/30
Operating weight (CECE)	19400 kg	p. 30
BM 1300/30
Operating weight (CECE)	19550 kg	p. 30

Brand	Bomag
Model	BM 1000/30-2, BM 1200/30-2, BM 1300/30-2, BM 1000/30-2_PB, BM 1200/30-2_PB, BM 1300/30-2_PB
Machine Type	Cold Milling Machine
Manual Type	Service Manual
Language	English
Format	Searchable PDF (Digital Download)
Pages	826
File Size	50 MB
Manual No.	008 917 61
Serial Range	821 836 34 1001, 821 836 35 1001, 821 836 30 1001, 821 836 36 1001, 821 836 37 1001, 821 836 32 1001
Wiring Diagrams	Yes
Hydraulic Schematics	Yes
Torque Specifications	Yes
Bookmarked / Indexed	Yes
