Spanning 554 pages of factory data (OEM ID 0852789), this Bomag BW 145 DH-3, BW 145 PDH-3 repair manual PDF delivers the precise teardown and diagnostic procedures required to keep your single drum roller packing dirt. Detailed hydraulic schematics map out the closed-loop travel and drum drive circuits, accompanied by extensive troubleshooting charts for the vibration system. Full-system wiring diagrams trace the electrical routing, while dedicated supplier sections break down the A10VG pump and Dana 172 axle over large portions of the text. Service tables specify precise electrical ratings, such as the 12/2.2 V/kW starter output, alongside specific hardware requirements like the 3 Nm tightening torque for an M4 (8.8) fastener. Guessing a charge pressure or making up a torque value on an exciter shaft is a fast way to grenade a drum drive. Jump through this bookmarked, text-searchable digital reference to locate the correct factory spec you need to pass density before the shift ends.
What's Inside This Bomag BW 145 DH-3, BW 145 PDH-3 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-14 | Safety Regulations, General Repair Instructions, Tightening Torques |
| Tests and Adjustments | 15-38 | Technical Data, Special Tools, Checking the Rotation Speeds, Checking / Adjusting the Neutral Positions of the Travel Pumps, Pressure Tests in the Travel Circuit |
| Flushing | 39-62 | Special Tool, Flushing Schematic for Drum Drive, Flushing Schematic for Axle Drive, Flushing the Travel Circuit, Flushing Schematic for Vibration Drive |

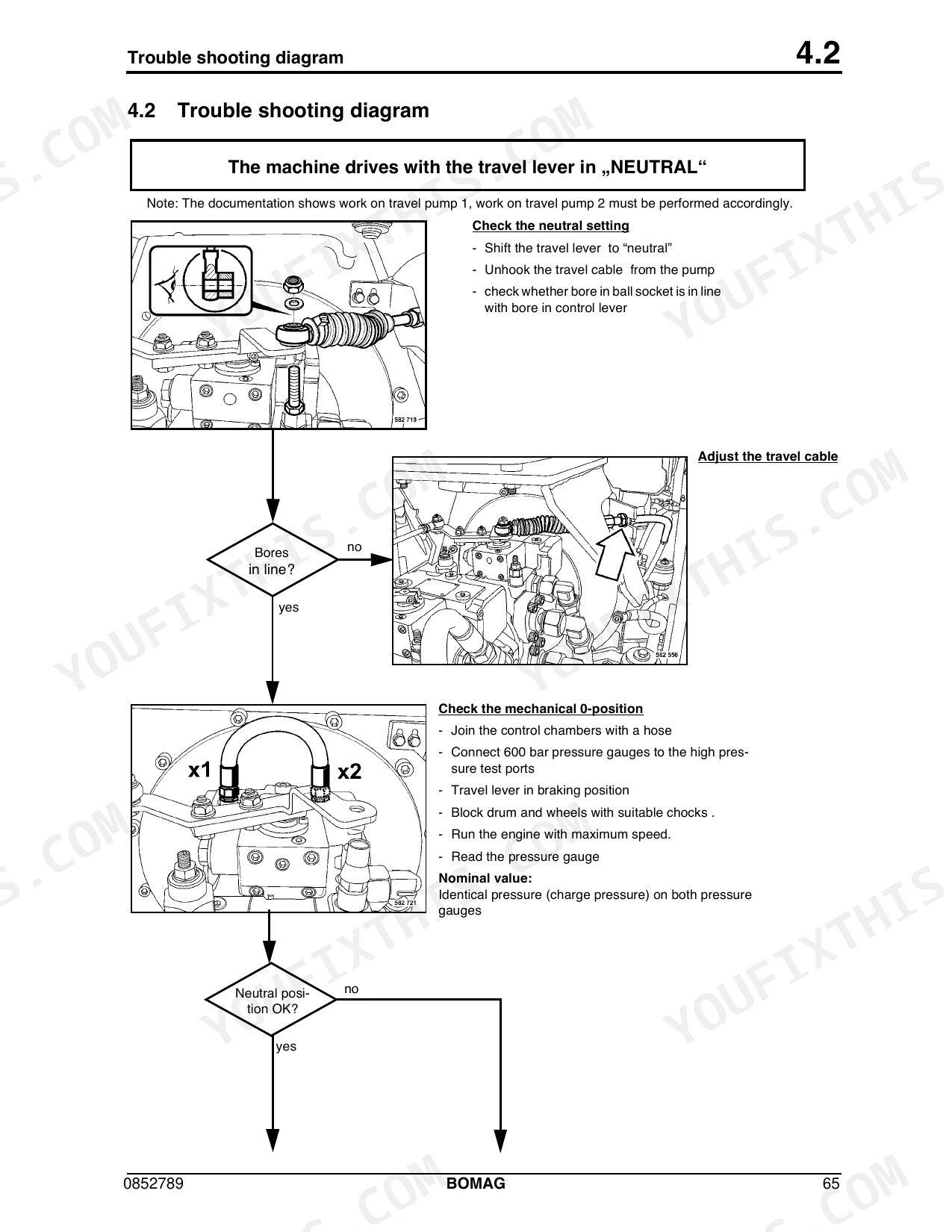

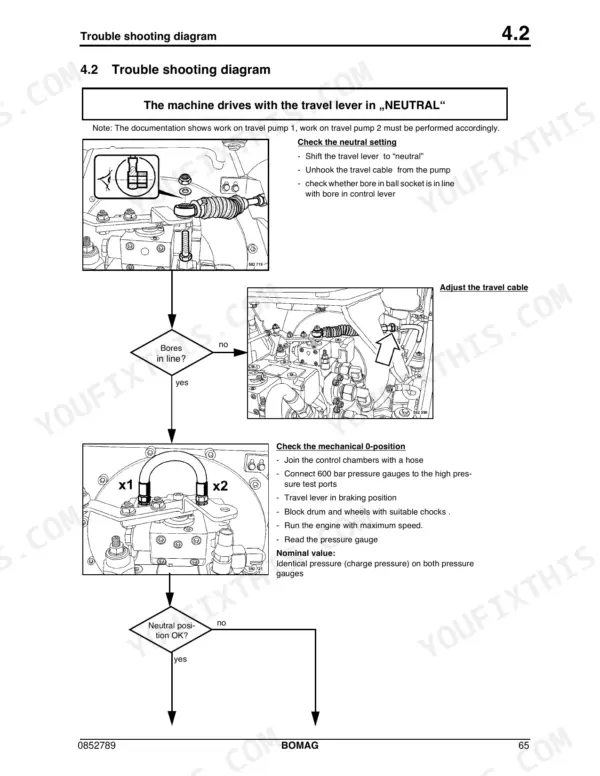

| Trouble Shooting | 63-96 | Trouble Shooting Diagram |

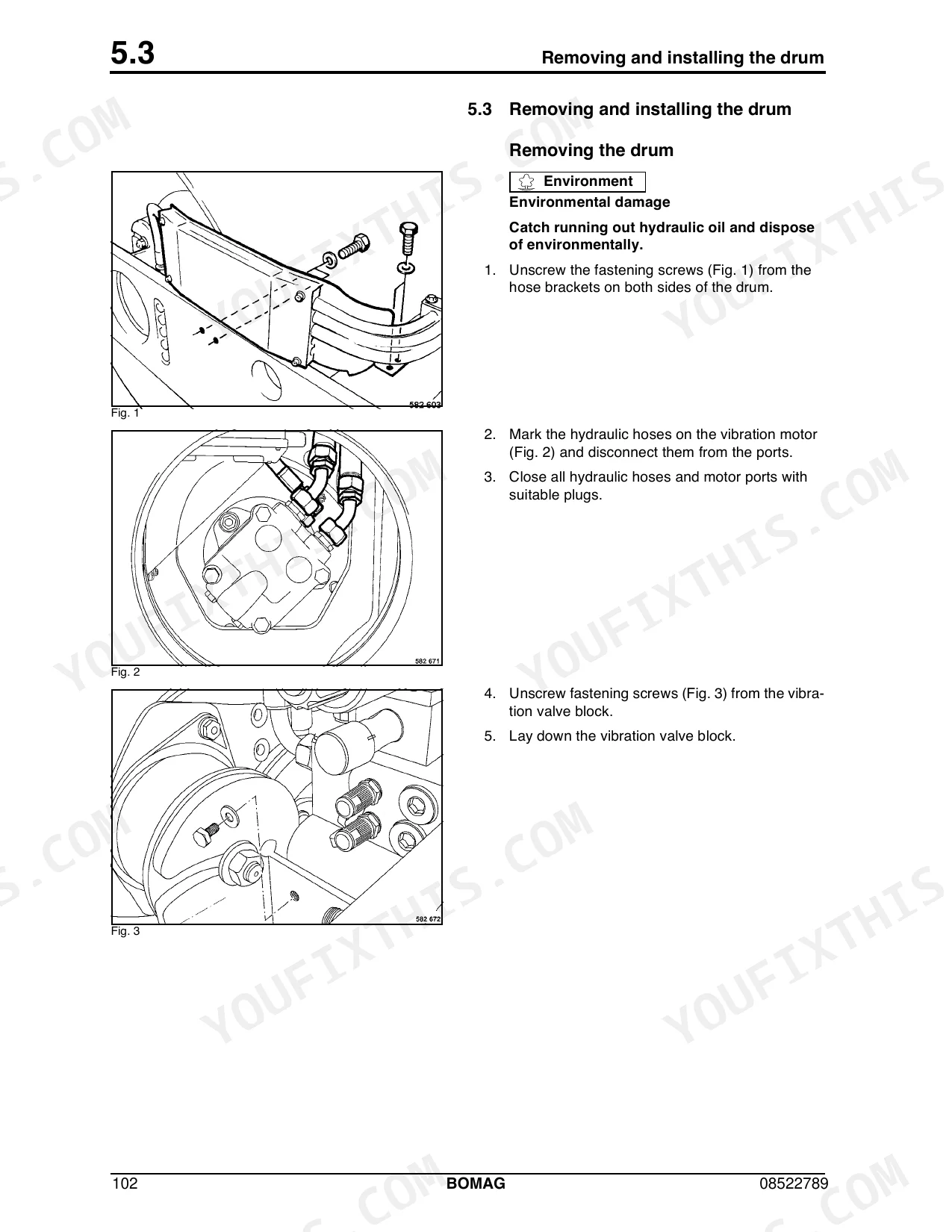

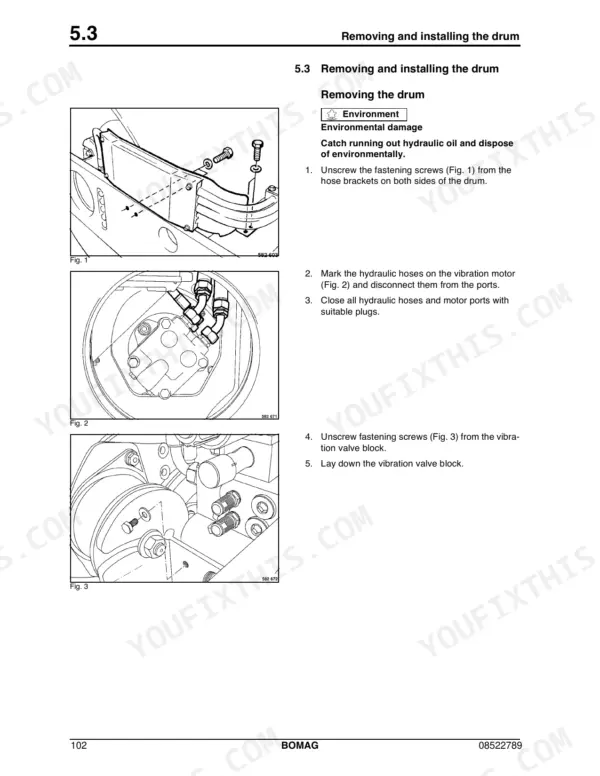

| Drum | 97-124 | Special Tools, Repair Overview for Drum, Removing and Installing the Drum, Repairing the Drum, Dismantling, Assembling the Change-Over Weights, Changing the Rubber Buffers |
| Oscillating Articulated Joint | 125-142 | Special Tools, Repair Overview Oscillating Articulated Joint, Removing and Installing the Oscillating Articulated Joint, Repairing the Oscillating Articulated Joint |
| A10Vg | 145-198 | Sectional View, General Repair Instructions, Seal Kits, Drive Shaft, Boost Pump, Control Piston Cover |
| Ms/Mse 02 to 18 | 199-248 | Maintenance, Mechanical Brake Release, Brake Piston, Bearing Support, Brake Shoes, Cam |
| A10Vm | 249-278 | Sectional View, General Repair Guidelines, Seal Kits, Drive Shaft, Motor Assembly, Adjustment |
| Vibration Motors Mmf 025 | 279-354 | System Circuit Description, Functional Description, Technical Data, Minor Repair, Major Repair, Variable Pump |
| Axle Dana 172 | 355-428 | Maintenance and Lubrication, Brakes, Steering Joint, Planetary Reduction, Bevel Pinion Support, Differential |
| Electrics | 429-442 | Circuit Diagram, Supply, Starting Unit, Monitoring, Indicators, Component Listing |
| Hydraulic Schematic | 443-446 | - |
| Service Training | 447-554 | Maintenance Table, Deutz Diesel Engine, Travel System, Vibration System, Steering |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Tightening torque for M4 screw (8.8) | 3 Nm (2 ft-lb) | p. 11 |
| Tightening torque for M4 screw (10.9) | 5 Nm (4 ft-lb) | p. 11 |
| Starter | 12/2,2 V/kW | p. 17 |
| Dry air filter element | min. 1 x year | p. 463 |
| Safety cartridge | min. every 2 years | p. 463 |
| Toothed belt replacement interval | 3000 operating hours | p. 480 |
| Engine oil pressure monitoring system delay | 4 seconds | p. 548 |
| High pressure relief valve setting | 405 bar | p. 17 |
| Charge pressure | 25 bar | p. 17 |
| Engine oil capacity | 10.5 L | p. 18 |
| BW 145 DH-3 | ||
| Operating weight (CECE) BW 145 DH-3 | 5050 kg | p. 16 |
| BW 145 PDH-3 | ||
| Operating weight (CECE) BW 145 PDH-3 | 5330 kg | p. 16 |
Bomag BW 145 DH-3, BW 145 PDH-3 Common Problems This Manual Covers
Bomag BW 145 DH-3 engine overheat warning buzzer sounds during heavy compaction passes.
Inspect the radiator fins for packed dirt and clear any debris. Drain the cooling system and refill with fresh coolant to the 15 L capacity noted on page 18. Verify the V-belt is tight and the water pump circulates fluid properly before putting the roller back on the mat.
Manual Section: Tests and Adjustments p. 18Hydraulic oil filter warning lamp stays illuminated after the machine reaches operating temperature.
Check the charge pressure at the travel pump test port. If the gauge reads below the 25 bar specification shown on page 17, replace the soiled hydraulic filter immediately. Drain and refill the hydraulic tank with 44 L of fresh fluid if the oil shows signs of severe contamination.
Manual Section: Tests and Adjustments p. 17Drum vibration fails to engage or frequency drops significantly below the normal operating range.
Review the fault charts starting on page 65 for vibration loss and check the nominal vibration frequency with a tachometer against the Tests and Adjustments specification. If the speed reads low, test the high pressure relief valve setting and adjust it to 405 bar if necessary.
Manual Section: Troubleshooting Diagram p. 65Low engine oil pressure warning buzzer sounds continuously immediately after a cold engine startup.
Verify the crankcase fluid level and add oil to meet the 10.5 L capacity. Check the wiring to the pressure switch. Keep in mind the engine oil pressure monitoring system delay is 4 seconds as detailed on page 548, so a brief alarm at startup might just be sensor lag.
Manual Section: Service Training p. 548Frequently Asked Questions
What is the correct valve clearance for the Deutz BF4L 2011 engine on a Bomag BW 145 DH-3?
On a cold engine (engine oil temperature <80°C/176°F), the intake valve clearance is 0.3 mm and the exhaust valve clearance is 0.5 mm. If the cylinder head gasket has been replaced, the clearances are 0.4 mm for the intake and 0.6 mm for the exhaust. p. 469
What is the procedure for bleeding the travel circuit on a BW 145 DH-3?
Bleeding involves installing pressure test hoses to the charge and high-pressure test ports, cranking the engine for 30 seconds with the starter, and repeating until oil runs out. Then, run the engine at idle for 15 seconds, wait 30 seconds, and repeat until the charge pressure gauge shows a constant pressure of 28 bar (406.1 psi). p. 51
What is the nominal charge pressure for the travel pump on a BW 145 DH-3?
The nominal charge pressure for the travel pump on the BW 145 DH-3 is 25 +/- 5 bar. p. 456
What torque for the flanged cover screws on the oscillating articulated joint of a Bomag BW 145 DH-3, BW 145 PDH-3?
The fastening screws for the flanged cover on the oscillating articulated joint must be tightened to 300 Nm (221.2 lbf*ft). p. 139
What exactly do I receive with this Bomag BW 145 DH-3 Repair Manual?
You download the Repair Manual yourself: 554 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Are there any print restrictions on this Bomag BW 145 DH-3 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
Does this Bomag BW 145 DH-3 manual include hydraulic schematics?
Yes, hydraulic coverage is complete: system schematics, flow paths, valve configurations, and pressure ratings. You can see one on page 42.
