When a travel pump loses charge pressure and strands your single-drum wheel drive vibratory roller on the mat, this 810-page Bomag BW 213 repair manual PDF holds the factory procedures to fix it. Issued under OEM ID 008 190 94, the document covers the BW 213, 213 D, 213 PD, and 213 PDB variants. Extensive hydraulic schematics map out the travel and vibration circuits so you can accurately diagnose fluid drops. Troubleshooting charts break down engine faults and travel drive issues, while dedicated sections walk through exchanging the vibration motor and dismantling the articulated joint. Factory specifications guide your wrench, confirming the M8 x 1 fine thread bolt torque at 27 Nm and setting the single-amplitude vibration frequency target to exactly 1800/min. Guessing a charge pressure on a closed-loop travel pump will just blow the seals out of a replacement motor. Download this bookmarked, searchable file and print the pages you need to take straight to the workbench.
What's Inside This Bomag BW 213, BW 213 D, BW 213 PD, BW 213 PDB Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Notes on Repairs | 31-34 | Hydraulic System, Electric System, Seals, Torques, General |
| Safety | 35-36 | Articulated Joints, Protective Clothing, Fire Extinguisher, Maintenance Ground, Warning Signs, Fuel and Oil Handling |
| Torques and Conversion Tables | 37-44 | Metric Unified Threads, Metric Fine Threads, Bolt Yield Strength, Strength Classification, Length, Area, Volume, Capacity, Weight, Mass, Pressure, Tension |
| Technical Data, Connection Surveys and Special Tools | 45-78 | Weights, Dimensions, Engine, Travel Drive, Vibration, Steering, Tires, Electrical System, Travel Pump, Drum Drive Motor, Steering Pump, Steering Valve |

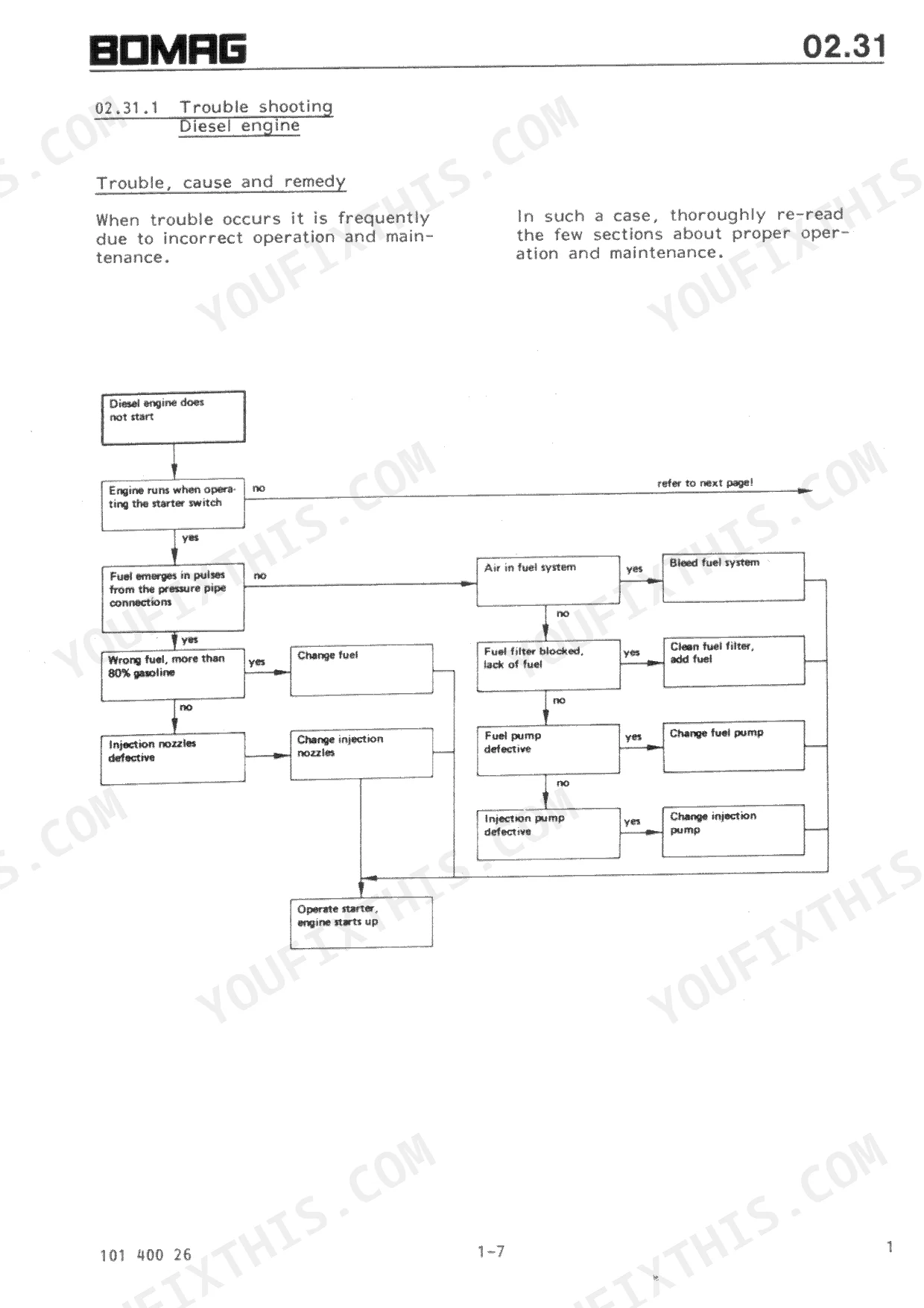

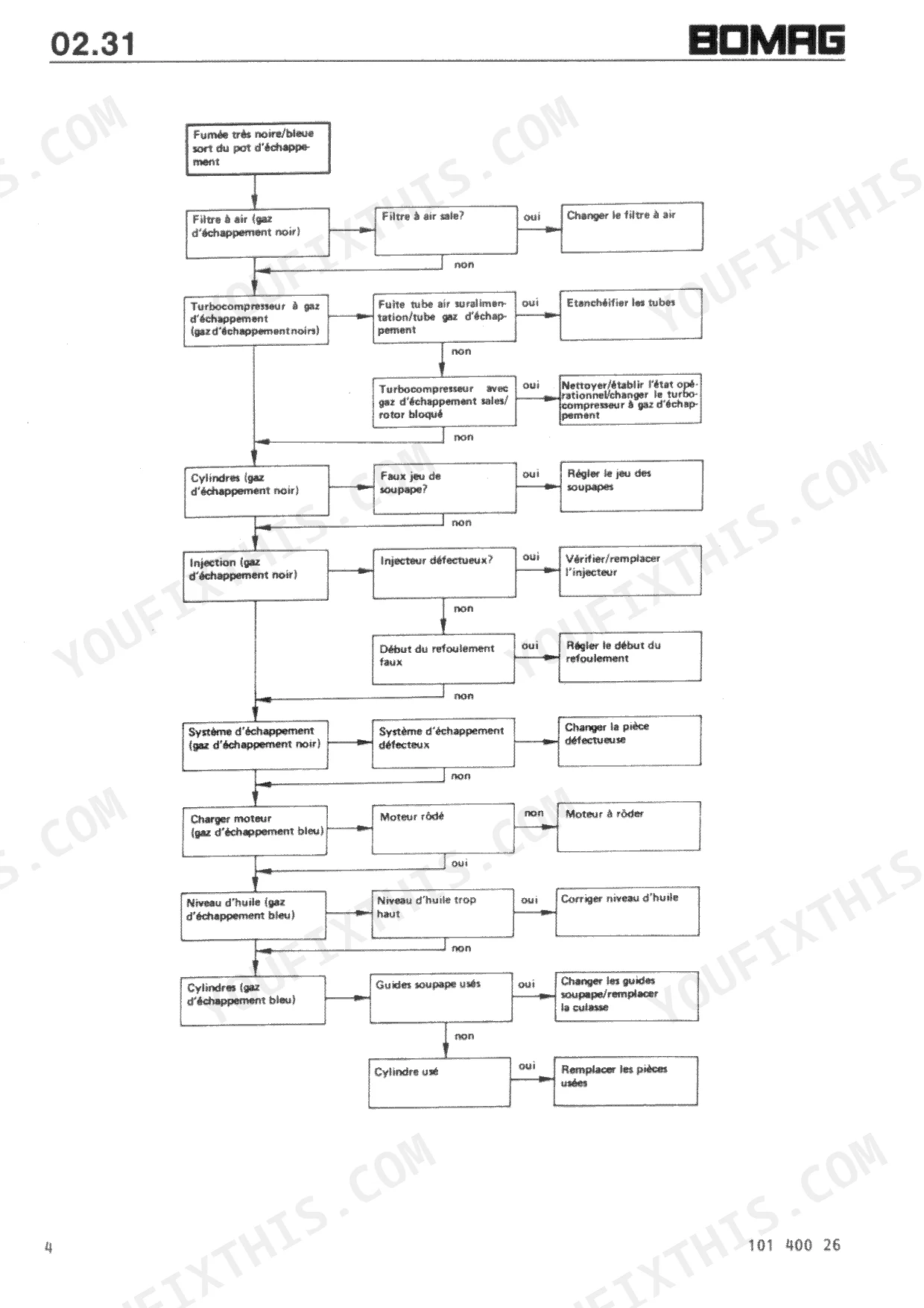

| Diesel Engine Description and Trouble Shooting | 79-154 | Air-Cooled Diesel Engine, Direct Fuel Injection, Turbo Charger, Crankcase, Cylinder Heads, Camshaft, Cooling System, Trouble Shooting for Diesel Engine, Measuring the Diesel Engine Speed |
| Exchanging the Axle | 155-246 | Special Tools for Repairing the Axle (Dismantling Assembling: Power Take-Off, Differential) |
| Travel Drive Description and Trouble Shooting | 247-304 | Hydraulic Oil Tank, Travel Pump, Travel Motor, Drum Drive Motor, Fine Filter, Hydraulic Oil Cooler, Trouble Shooting Chart, Checks and Adjustments in the Travel Drive (Testing the Charge Pressure and the High-Pressure, Trouble Shooting, Travel Pump and Travel Motor, Drum Drive Motor and Travel Pump) |
| Travel Motor, Travel Pump and Circuits | 305-452 | Removing and Installing the Drum, Exchanging the Rectangular Buffer, Exchanging the Rubber Buffer, Exchanging the Travel Motor, Exchanging the Radial Seal on the Travel Motor Shaft, Exchanging the Travel Pump Coupling, Exchanging the Radial Seal on the Travel Pump Shaft, Exchanging the Radial Seal, Exchanging the Charge Pump, Checking/Exchanging the Valves, Checking/Exchanging the Valve Plate, Flushing the Travel Circuit |
| Vibration Drive Description, Checks and Adjustments | 453-531 | Hydraulic Oil Tank, Vibration Pump, Vibration Valve, Vibration Motor, Brake Valve, Steering/Charging Pump, Measuring the Speed of the Vibrator Shaft, Pressure Tests in the Vibration Circuit, Checking the Vibration Pump, Checking the Vibration Valve, Vibration Bearing Housing Bearing and Seals |
| Drum, Vibration Motor and Vibration Pump Repair | 532-680 | Removing and Installing the Drum, Rectangular Buffer, Rubber Buffer, Vibration Bearing Housing, Vibration Motor, Exchanging the Radial Seal of the Vibration Motor, Cross-Section of the Vibration Motor, Sealing Kits/Assemblies, Sealing the Connection Plate, Removing and Installing the Drive, Exchanging the Radial Seal of the Vibration Pump, Exchanging the Coupling on the Vibration Pump |
| Steering System and Articulated Joint | 681-782 | Steering Pump, Steering Cylinder, Articulated Joint, Steering Unit, Valve Block, Shock Valve, Checks and Adjustments in the Steering System (Checking the Pressure in the Steering System), Dismantling and Assembling the Steering Cylinder, Dismantling and Assembling the Articulated Joint, Removing and Installing the Steering Unit, Disassembling and Assembling the Steering Unit, Assembly |
| Circuit Diagrams | 783-810 | Hydraulic Circuit Diagram BW 213 2A, Hydraulic Circuit Diagram BW 213, Hydraulic Circuit Diagram BW 213 D 2A, Hydraulic Circuit Diagram BW 213 D |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque for M4 bolt (8.8 grade) | 3 Nm | p. 37 |
| Torque for M8 x 1 fine thread bolt (8.8 grade) | 27 Nm | p. 37 |
| Battery (all models) | 12/143 V/Ah | p. 49 |
| Battery acid density (full) | 1.28 kg/l | p. 100 |
| Nominal Value (Vibration Frequency - 1 Amplitude) | 1800/min (30 Hz) | p. 491 |
| Nominal Value (Starting pressure - 1 Amplitude) | 190...210 bar | p. 492 |
| Fuel tank capacity | 195 L | p. 49 |
| Differential oil capacity | 12 L | p. 49 |
| Planetary gear oil capacity | 2 L | p. 49 |
| Vibratory housing oil capacity | 1.5 L | p. 49 |
Bomag BW 213, BW 213 D, BW 213 PD, BW 213 PDB Common Problems This Manual Covers
Bomag BW 213 drum vibration stops mid-pass or will not start when rolling a lift
Check the vibration circuit starting pressure on page 492. Verify the gauge reads 190..210 bar (400 bar on BW213D/PD models). If pressure is good, inspect the vibration sensor cable and plug at the drum drive motor for breaks. Test the frequency at 1800/min (30 Hz) per page 491.
Manual Section: Checks and Adjustments in the Vibration Circuit p. 492Engine cranks slowly or runs excessively rough and stalls out with a fuel warning
Measure the battery acid density using the guidelines on page 100. Confirm a full charge reading of 1.28 kg/l. If the battery is healthy, inspect the fuel system water separator. Drain any water and fill the 195 L fuel tank with clean diesel, then bleed the fuel lines completely.
Manual Section: Trouble Shooting p. 100Display goes blank, machine enters limp mode, and steering or travel feels abnormal
Inspect the battery connections and verify the main electrical circuits on page 796. Check the battery fuse rating and replace if it exceeds 8 A. Inspect the CAN wiring harness connectors near the steering unit and articulated joint for corrosion. Tighten any loose M4 electrical bracket bolts to 3 Nm.
Manual Section: Circuit Diagrams p. 796Machine will not travel forward or reverse, or the drum drive motor feels jerky
Verify the closed-loop travel pump and travel motor connections. Drain and inspect the planetary gear oil, then refill to the 2 L capacity. If the drive remains jerky, check the M8 x 1 fine thread bolts on the motor mounting and torque them to 27 Nm using page 37.
Manual Section: Torques p. 37Frequently Asked Questions
Torque spec for M10 socket-head cap screws on the Bomag BW 213, BW 213 D, BW 213 PD, BW 213 PDB drum motor flange?
The mounting screws for the drum motor flange must be tightened to a torque of 330 Nm. p. 315
What is the required valve clearance for the Deutz F6L 912 engine?
The valve clearance for the Deutz F6L 912 engine, when the engine is cold, is 0.15 mm. p. 47
What is the correct oil capacity for the differential on the BW 213?
The differential requires 12 liters of SAE 90 gear oil. p. 49
What is the procedure for bleeding the hydraulic travel circuit?
Bleeding is performed by running the engine at idling speed and moving the travel actuation lever in the 'forwards' direction. This process must be repeated until the charge pressure indicated on the low-pressure gauge drops immediately to 0 when the diesel engine is shut down. p. 438
What is the nominal charge pressure for the vibration circuit on a Bomag BW 213, BW 213 D, BW 213 PD, BW 213 PDB?
The nominal charge pressure for the vibration circuit is approximately 22 bar. p. 508
How quickly can I access this Bomag BW 213 manual after buying?
Immediate download of the complete 810-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Bomag BW 213 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
