Part of the Case IH Operator Manuals.
This 108-page Case IH W9, WR9 Operator Manual (OEM #1004217R2) puts the complete daily operating and maintenance routine for the W-9 and WR-9 tractors right in your hands. Inside you get dashboard and control layouts, wiring diagrams for the starting and lighting circuits, a full troubleshooting section for engine and transmission complaints, and lubrication charts covering every grease point on the tractor. Set magneto breaker point opening to .013-inch, and fill the cooling system to 8-1/2 U.S. gallons before you crank it over. Your fuel tank holds 36 gallons, so you can plan a full day's work without guessing at range. No more flipping through a beat-up shop copy with missing pages when you need the daily pre-start checklist. This PDF carries bookmarked sections for quick jumps between operating, lubrication, and maintenance chapters. Pull it up on your phone in the cab and run through the checks before you ever touch the ignition.
What's Inside This Case IH W9 & WR9 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-17 | Delivery Report, General, Serial Numbers, Engine and Tractor |
| Description | 18-24 | Before Starting the Tractor, Instruments and Controls, Preparing Your Tractor for Each Day's Work, Views of the Tractors |
| Operating Your Tractor | 25-33 | Driving the Tractor, Operating a Gasoline Engine, Operating a Distillate Engine, Operating a Distillate Engine on Gasoline, Operating a Kerosene Engine |
| Lubrication | 34-44 | Engine and Chassis Lubricant Specifications, Greasing the Front Wheels, Lubrication Guide, Lubricating Oil and Grease Specifications, Oil Filter |

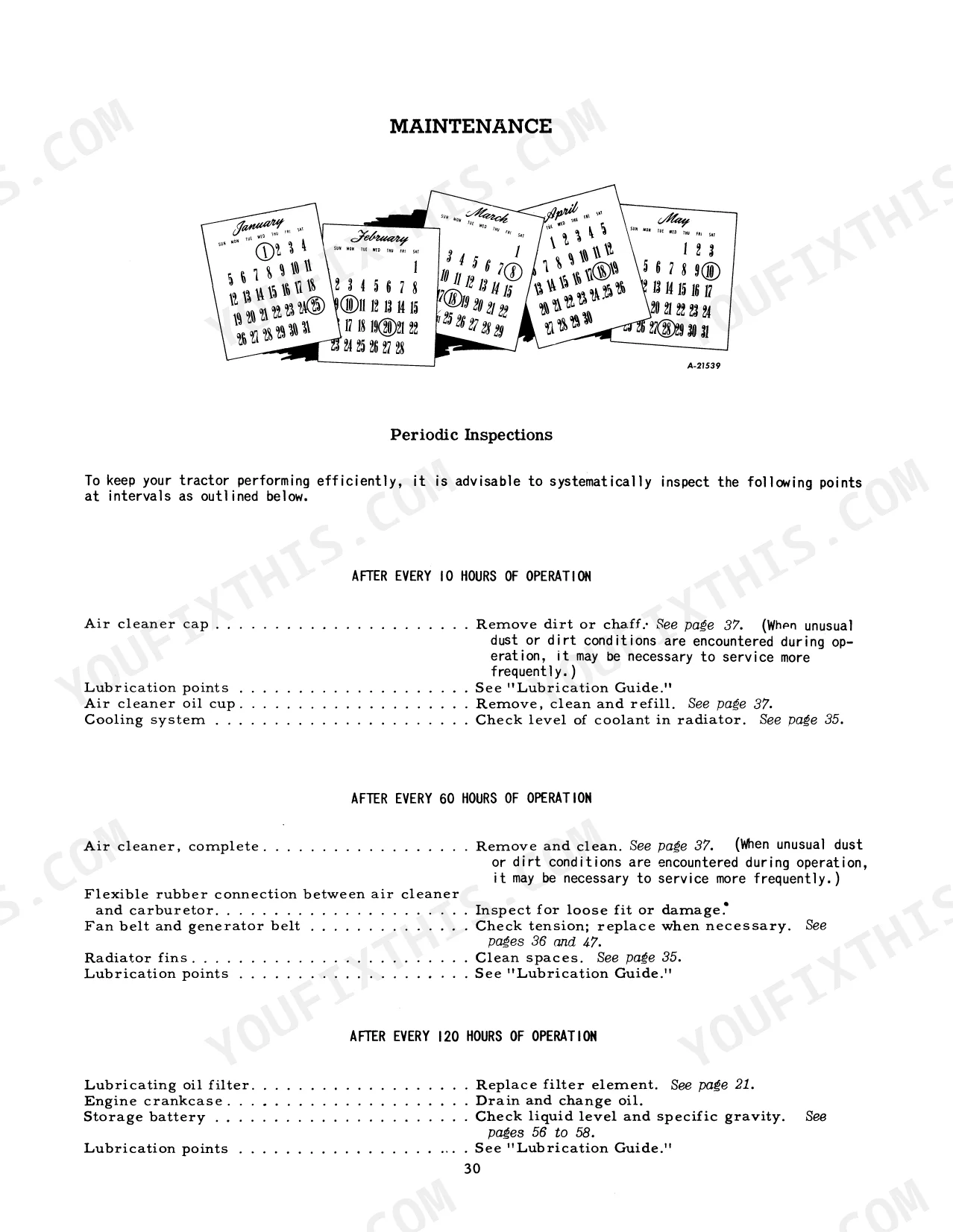

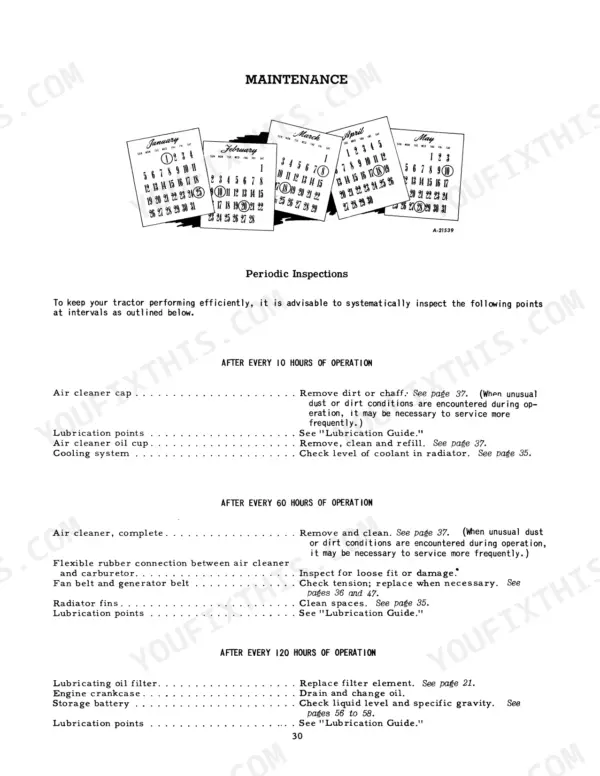

| Maintenance | 45-86 | Drawbar, Air Cleaning System, Battery Ignition Unit, Brakes, Carburetor, Clutch, Cold Weather Precautions, Cooling System |
| Special Equipment | 87-98 | Radiator Shutter, Belt Pulley, Power Take-Off, High Altitude Pistons, Pneumatic Tire Pumps, Wheel Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Magneto breaker point opening | .013-inch | p. 57 |
| Magneto coupling rotation direction for timing | clockwise direction (as viewed from the coupling end) | p. 59 |
| Troubleshooting for noisy transmission/final drive | Check oil level; use proper grade lubricant, or see your dealer | p. 85 |
| Cooling System Capacity | 8-1/2 U.S. gallons | p. 8 |
| Fuel Tank Capacity | 36 gal. | p. 99 |
| Gasoline Starting Tank Capacity | 7/8 gal. | p. 99 |
| Engine Crankcase Oil Capacity | 11 qt. | p. 99 |
| Transmission and Differential Case Capacity | 10 gal. | p. 99 |
| Steering Gear Housing Capacity | 1 qt. | p. 99 |
| Air Cleaner Oil Cup Capacity | 3-3/4 pt. | p. 99 |
| Spark Plug Gap | .023 in. | p. 99 |
| Valve Clearance (Engine Hot) | .017 in. | p. 99 |
Case IH W9 & WR9 Tractors Common Problems This Manual Covers
Case IH W9 dashboard warning light stays on after startup, engine still cranks and runs normally p. 19

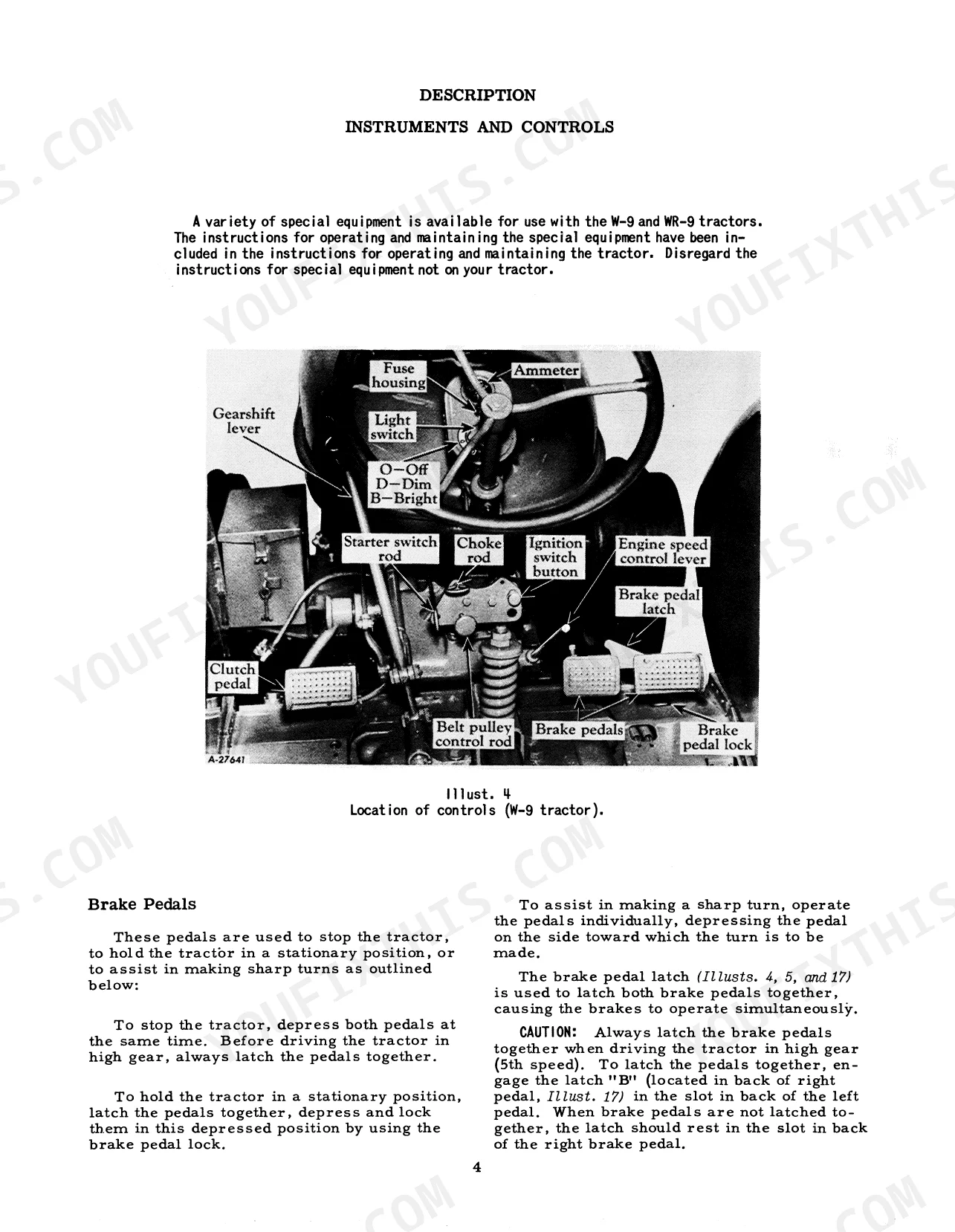

Check the operator controls layout on page 19 to identify which indicator is lit. Verify engine crankcase oil level on the dipstick; capacity runs 11 qt. Top off with correct grade oil per the lubrication chart, then restart and confirm the light clears before operating.
Manual Section: Description: Operator Controls LayoutEngine hard to start, cranks slowly, and runs irregular in cold morning temperatures p. 82

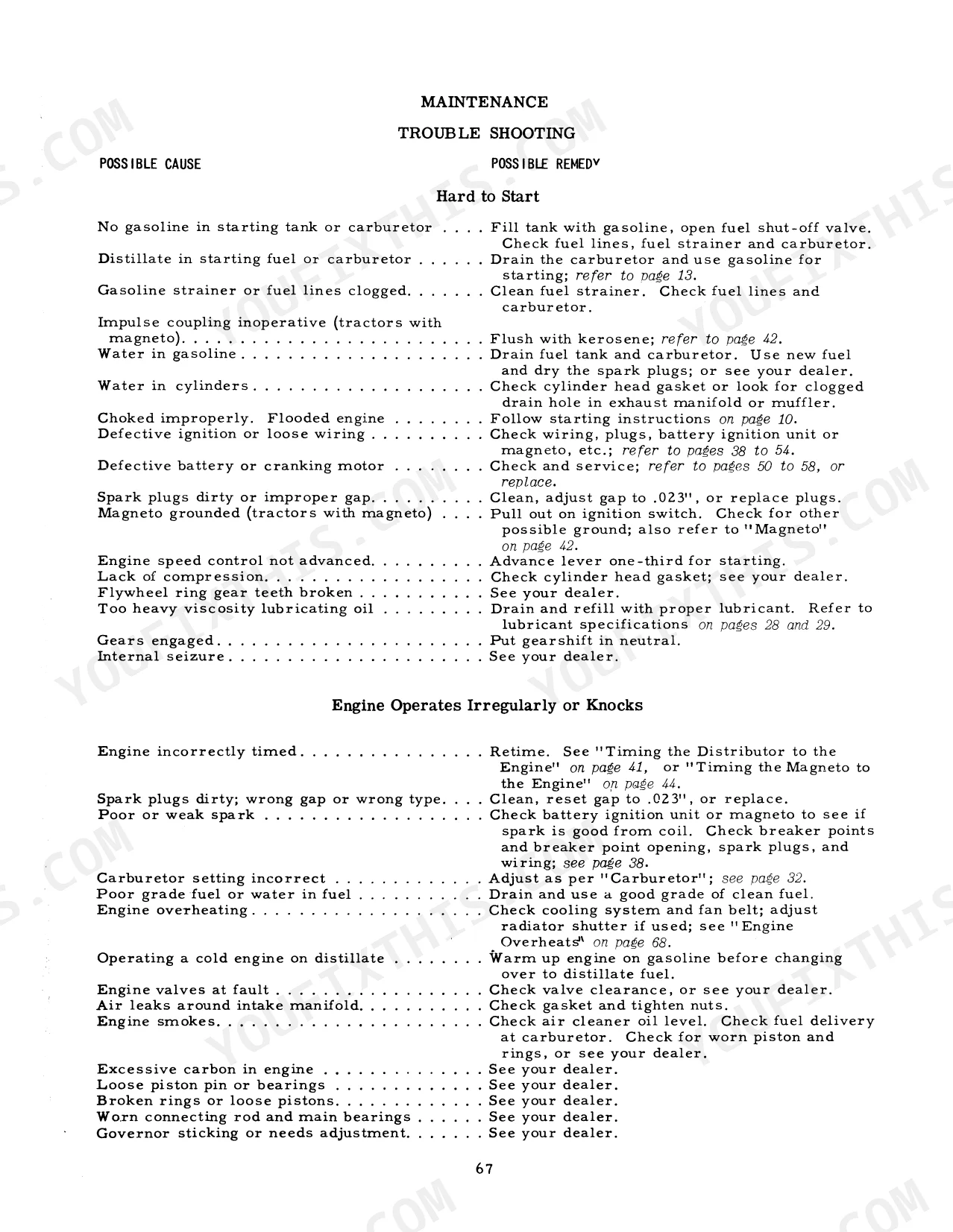

Check the engine no-start and performance troubleshooting chart on page 82 first. Verify spark plug gap is set to .023 in. and points aren't fouled. Confirm battery ignition wiring is tight, then check valve clearance at .017 in. with the engine hot before attempting another start.
Manual Section: Maintenance: Troubleshooting ProceduresMagneto rotation direction confusion when replacing the magneto assembly, engine won't fire p. 57
Verify magneto coupling rotation direction before installing; per page 59 it must turn clockwise as viewed from the coupling end. Set breaker point opening to .013-inch on the cam's high point (page 57). Lubricate the impulse coupling with light oil above 10°F or kerosene below it (page 43).
Manual Section: MaintenanceNoisy or grinding transmission/final drive during heavy pulling p. 85
Check the noisy transmission/final drive entry in the troubleshooting index on page 85. Verify oil level in the transmission and differential case; it holds 10 gal. per the specifications on page 99. Top off with the proper grade lubricant. If grinding continues after correcting the level, contact your dealer for further inspection.
Manual Section: Maintenance: Troubleshooting ProceduresSteering feels loose, tractor pulls to one side, or steering wheel play increases p. 85
Check the steering system troubleshooting entry on page 85 to narrow down the cause. Verify the steering gear housing oil level; capacity is 1 qt. and low fluid contributes to excess play. Inspect the front axle for wear or looseness. If pulling continues after topping off, have the dealer inspect the axle assembly.
Manual Section: Maintenance: Troubleshooting ProceduresFrequently Asked Questions
How do I adjust the hand clutch on a W-9 tractor?
To adjust the hand clutch on a W-9 tractor, ensure a clearance of 3/16 inch is maintained between the clutch release bearing and the clutch release lever. The clutch pedal should have a free movement of 1-5/8 inches, measured between the front of the platform and the return spring lug "A" (Illust. 60). If the free movement falls below 7/8-inch due to wear, adjust the length of the clutch operating rod "F" to restore the correct free movement.
How can I diagnose brake issues on a WR-9 tractor?
To diagnose brake issues on a WR-9 tractor, check for problems such as dragging or uneven brakes, grease on the lining, a broken return spring, or a drum that is out-of-round. If these issues are present, adjust the brakes as described on pages 59 or 61, replace the lining, or consult your dealer. For proper equalization, jack up both rear wheels, secure the tractor, latch the brake pedals, start the engine, and apply brakes while in third or fourth speed to ensure both wheels slow down simultaneously.
What are the recommended engine oil capacity and specifications for the tractor?
The engine crankcase has a capacity of 11 quarts. For temperatures above +80°F, use SAE-30 oil; for +80°F to +32°F, use SAE-20 oil; and for below +32°F, use LOW viscosity oil. The manual specifies using high-quality lubricating oils of regular, premium, or heavy-duty grade, free from water, fatty oils, and acids.
What is the cooling system capacity of the tractor?
The cooling system capacity of the tractor is approximately 8-1/2 U.S. gallons. This updated capacity supersedes the previous 10-gallon specification for the cooling system.
How will I receive this Case IH W9 & variants Operator Manual?
You get a 108-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Case IH W9 & variants manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

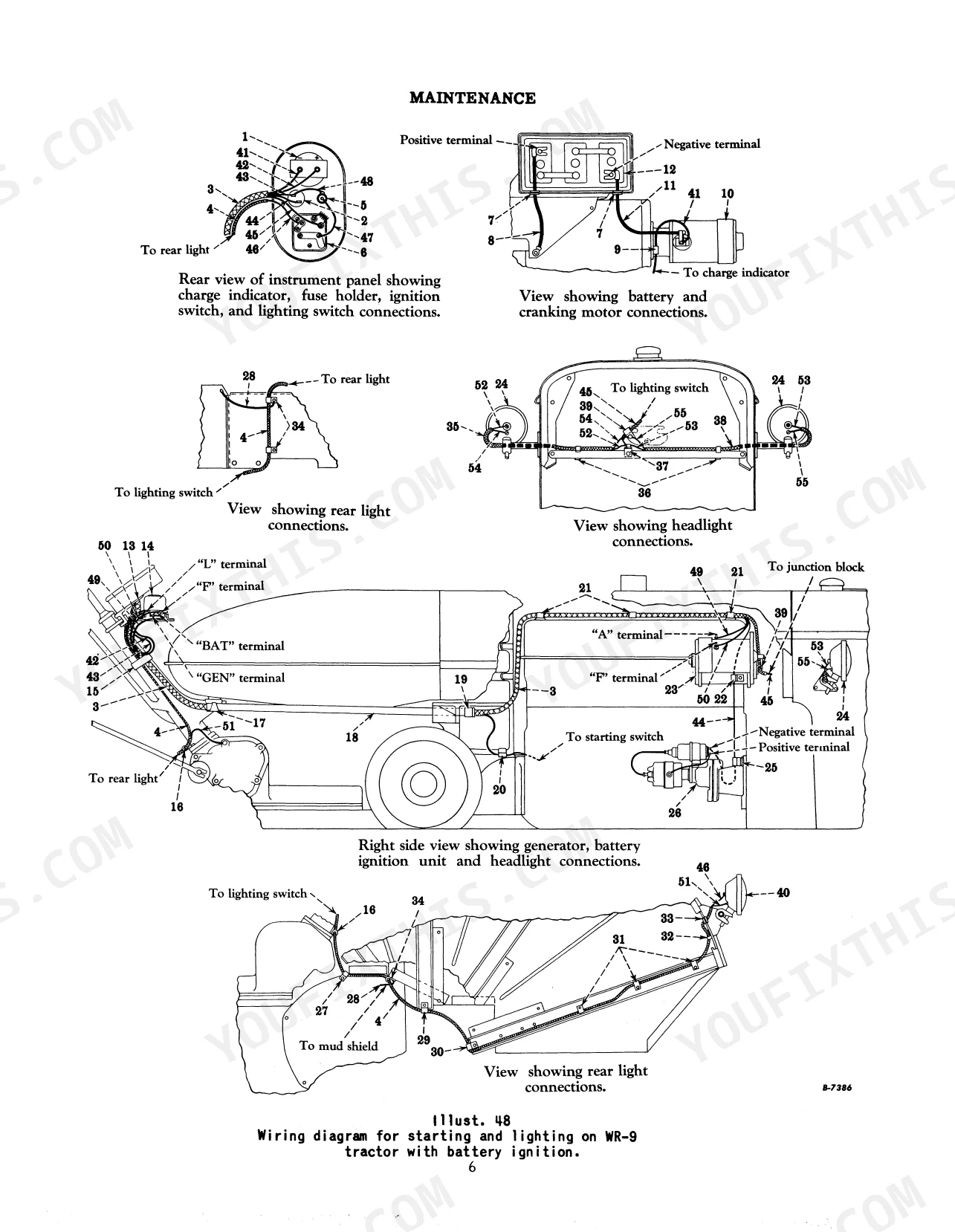

Does this Case IH W9 & variants manual include wiring diagrams?
Yes, an electrical wiring diagram is included to help trace the main circuits.
