This 107-page Case IH Maxxfarm 25, 30 Operator Manual (OEM #52105402) covers your tractor's controls, daily checks, and field operation from key-on to shutdown. Open it and you get a full instrument panel breakdown (every gauge, indicator, and switch explained), step-by-step 3-point linkage and PTO shaft hookup, plus a maintenance table laying out your service intervals and daily fluid checks before you climb up. You also get load capacity charts for your drawbar and hitch work, so you're not eyeballing what your rig can pull. Real numbers back it up: the hydraulic lift system runs at 14.7 MPa and moves 24 LPM, and your fuel tank holds 25 L. You even get a full hydraulic system diagram (page 45) mapping the pump, priority valve, steering, PTO, and lift control valves through to the cylinder and oil tank. No more flipping through a dog-eared paper copy hunting for the coolant temp gauge explanation. This PDF carries bookmarks straight to any section, so you tap in, find your answer, and get back in the seat.
What's Inside This Case IH MAXXFARM 25, MAXXFARM 30 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Notices for Safety | 7-24 | Before Using the Tractor |
| Instruction for Safe Operation | 25-30 | Name of Each Part, Boarding and Exiting the Tractor (Driver's Seat, Seat Adjustment, Seat Belt) |

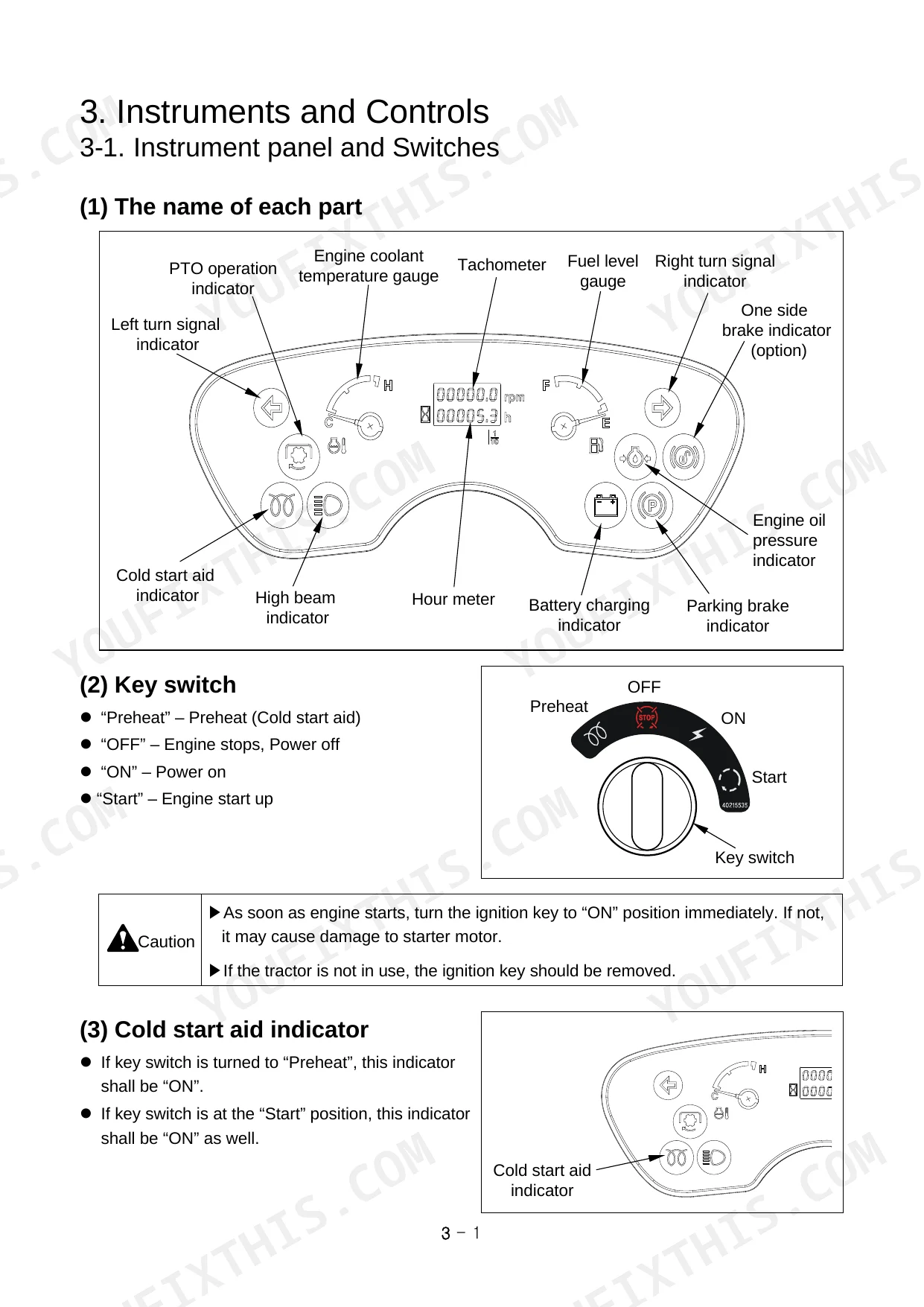

| Instruments and Controls | 31-45 | Instrument Panel and Switches (Name of Each Part, Key Switch, Cold Start Aid Indicator, Tachometer and Hour Meter, Engine Coolant Temperature Gauge, Fuel Level Gauge, Turn Signal Light Switch, Engine Oil Pressure Indicator, Battery Charging Indicator, Light Switch, Horn Switch, Hazard Warning Light Switch, Work Light Switch, PTO Operation Indicator, PTO Switch, Parking Brake Indicator) |

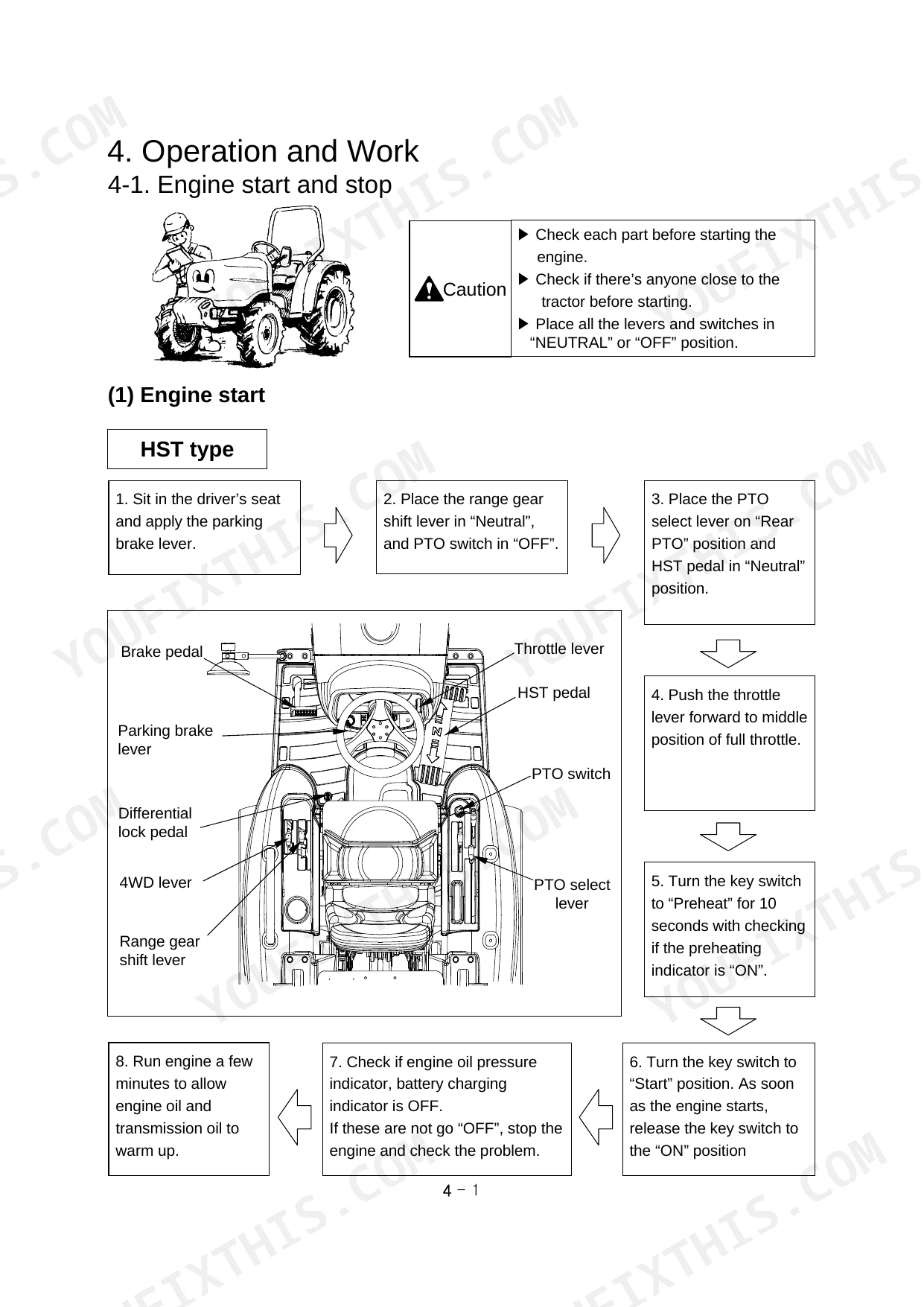

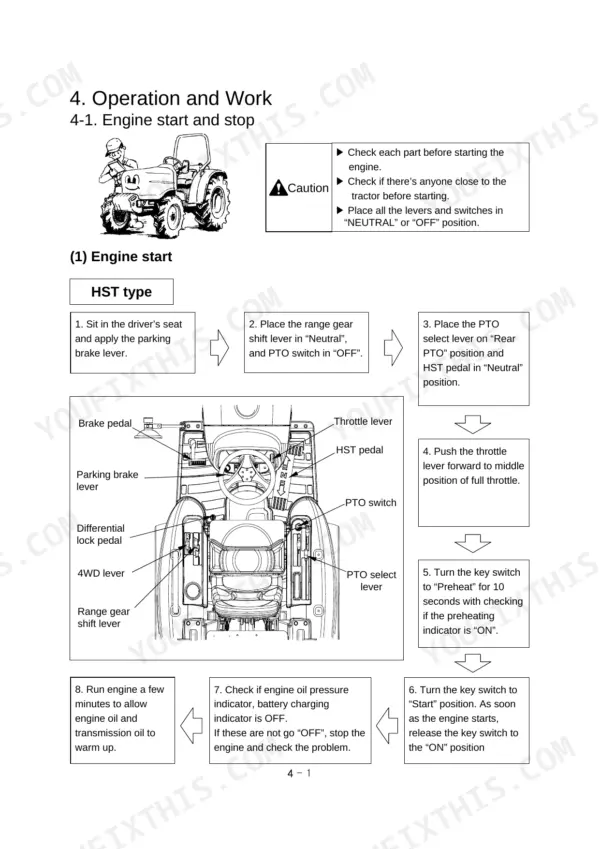

| Operation and Work | 46-64 | Engine Start and Stop (Start in Cold Weather), How to Drive and How to Stop (Changing Speed, Emergency Stop, Stopping Tractor, Driving Tractor on the Road, Parking) |

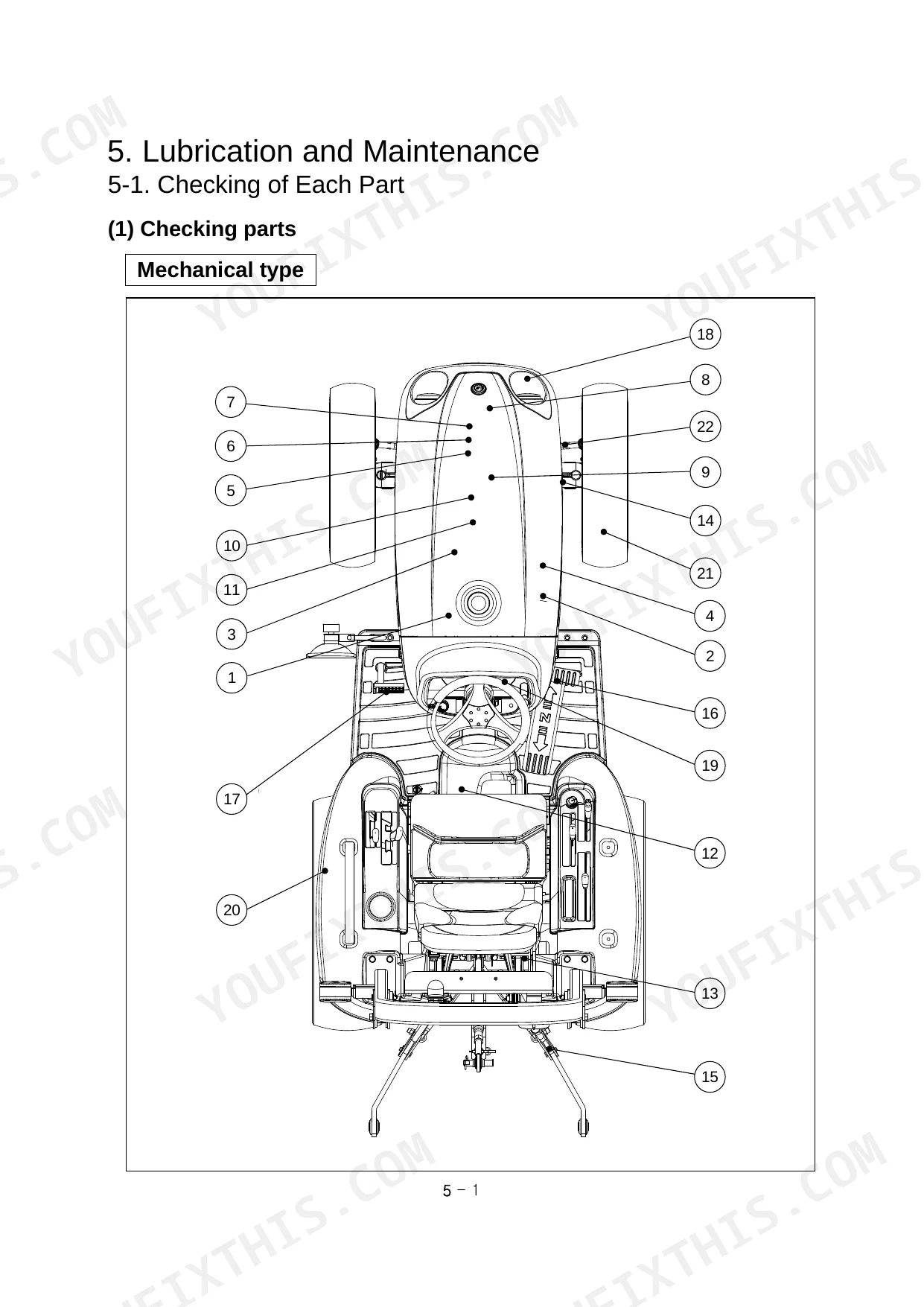

| Lubrication and Maintenance | 65-98 | Checking of Each Part (Checking Parts, Maintenance Table), Lubricants and Capacity, Access for Maintenance, First 50 Hour Check, Checking Before Starting (Engine Oil, Fuel Tank) |
| Dimension and Specification | 99-107 | Tractor Dimensions, Engine, Transmission, Hydraulic Lift, Steering System, Tires, Wheel Track Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air-bleed bolt tightening torque | 8 N.m (5.9 lb-ft) | p. 86 |
| Hydraulic lift rated flow | 24LPM (6.3 GPM) | p. 104 |
| Hydraulic lift system pressure | 14.7 MPa (2132 psi) | p. 104 |
| Engine Oil Capacity | 4.2 L (1.10 U.S. gals) | p. 67 |
| Fuel Tank Capacity | 25 L (6.60 U.S. gals) | p. 67 |
| Engine Coolant Capacity | 3.8 L (1.00 U.S. gals) | p. 66 |
| Engine Valve Clearance | 0.25mm (0.0098 in) | p. 84 |
| Nozzle Injection Pressure | 14.7 MPa (2132 psi) | p. 84 |
| Hydraulic Lift Capacity (Lower link end) | 650 kgf (1433 lbf) | p. 104 |
| Battery Capacity | 36AH | p. 105 |
| MAXXFARM25 | ||
| MAXXFARM25 Engine Displacement | 1,125cc (68.65 in³) | p. 103 |
| MAXXFARM30 | ||
| MAXXFARM30 Engine Displacement | 1,318cc (80.43 in³) | p. 103 |
Case IH MAXXFARM 25, MAXXFARM 30 Common Problems This Manual Covers

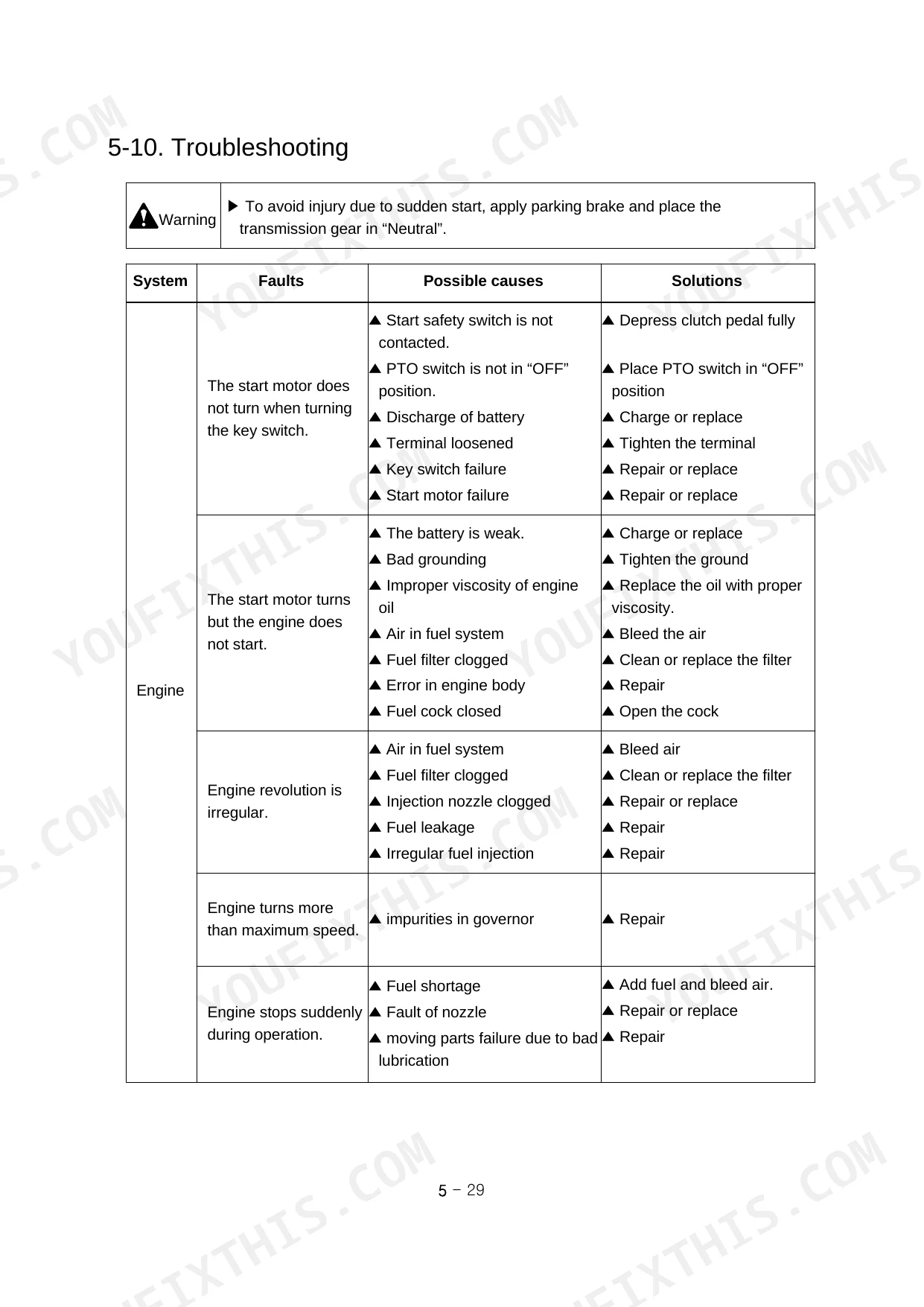

Case IH Maxxfarm 25/30 engine stalls repeatedly within a few minutes of running p. 93
Check the engine troubleshooting chart on page 93 for no-start and stalling conditions. If the F01 code appears, bleed air from the fuel system and torque the air-bleed bolt to 8 N.m (5.9 lb-ft) as specified on page 86. Confirm the fuel tank holds its full 25 L (6.60 U.S. gals) capacity before restarting.
Manual Section: Engine TroubleshootingThree-point hitch lift arms raise slowly or fail to lift attached implements at all p. 104
Verify the hydraulic reservoir is filled to the correct level before inspecting further. The lift system runs at 14.7 MPa (2132 psi) rated pressure and 650 kgf (1433 lbf) capacity at the lower link end per page 104. Low or dirty fluid drops output well below spec, so drain and refill with clean oil if response stays weak.
Manual Section: Hydraulic Lift System TroubleshootingCoolant temperature warning light illuminates on the dashboard during normal field operation p. 66
Shut the engine down safely and let it cool before opening the radiator cap. Verify coolant is filled to the correct level, since the system holds 3.8 L (1.00 U.S. gals) total capacity per page 66, and top off with the correct coolant mix if low. Recheck the gauge after a short idle period.
Manual Section: Engine Coolant Temperature GaugeBattery charging indicator stays lit on the dashboard while the engine keeps running p. 105
Inspect battery terminals for corrosion and confirm connections are tight, since the battery is rated at 36AH per page 105. Clean any buildup with a wire brush and reseat the cable clamps firmly. If the indicator stays lit after cleaning terminals, have the charging circuit tested by a dealer before continuing work.
Manual Section: Battery Charging IndicatorEngine cranks slowly and refuses to start during cold morning weather conditions p. 46
Engage the cold start aid and allow the indicator to cycle fully before turning the key, following the start procedure on page 46. Verify the fuel tank is filled, since capacity is 25 L (6.60 U.S. gals) per page 67, and check that battery connections are clean and tight before the next attempt.
Manual Section: Engine Start and StopFrequently Asked Questions
What are the replacement specifications for the fuel system air-bleed valve?
When performing air-bleeding from the fuel injection pump, the air-bleed bolt should be tightened to a torque of 8 N.m (5.9 lb-ft). It is important to cover the bleeding fuel with a rag to prevent it from flowing to other components.
What is the engine oil capacity and recommended type for the tractor?
The engine oil capacity is 4.2 L (1.10 U.S. gals). The recommended oil type is API CF-4 or CG-4, with viscosity varying by season: SAE 10W/30 for winter, SAE 20W/40 for summer, and SAE 15W/40 or SAE 20 for spring/fall.
What is the engine coolant capacity and recommended mixture?
The engine coolant capacity is 3.8 L (1.00 U.S. gals). The recommended mixture is 50% soft water and 50% anti-freeze, meeting ASTM D5216 international standards.
What is the standard tension for the fan belt?
The standard tension for the fan belt, specifically between the crank shaft pulley and the alternator pulley, is approximately 0.39 to 0.47 inches when pressed by 98 N (22.04 lb). This tension should be checked and adjusted if necessary.
What is the specified engine valve clearance?
The specified engine valve clearance is 0.25 mm (0.0098 in). If this gap is too large, engine noise may increase, and if it is too small, engine power can be reduced. Contact an authorized dealer for checking.
What format is this Case IH Maxxfarm 25, 30 manual in?
Instant PDF download. You get the full 107-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Case IH Maxxfarm 25, 30 Operator Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
