Part of the Case IH Operator Manuals.
This 450-page Case IH Luxxum operator manual (OEM #48108626) covers the 100, 110, and 120 tractor models, providing comprehensive information for both operation and maintenance. You get the full safety and controls sections, the analog/digital instrument cluster warning symbols explained, and a maintenance chart that tells you exactly when to change filters, grease points, and check fluids before something fails on you. Working operations walk through differential lock, PTO, and Electronic Draft Control the way you'd actually use them in the field. Fill the DEF/AdBlue tank to 9.5 L and keep it stored between -11°C and 30°C, or you'll watch shelf life drop from 36 months to 12. No more flipping through a torn paper booklet in the cab trying to find a fault code chart. This PDF carries full bookmarks, so you tap straight to troubleshooting, specs, or the maintenance interval you need and get back to the field.
What's Inside This Case IH Luxxum 100, Luxxum 110, Luxxum 120 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-36 | Metric and Imperial Units Abbreviations, To the Owner, Electro-Magnetic Interference, Product Identification, Engine Identification, Drive Line Identification, Cab Identification |
| Safety Information | 37-76 | Safety Precautions, Safety Decals, Safety Rules, Burn Prevention, Prevention of Fire or Explosions, Fire Extinguisher |

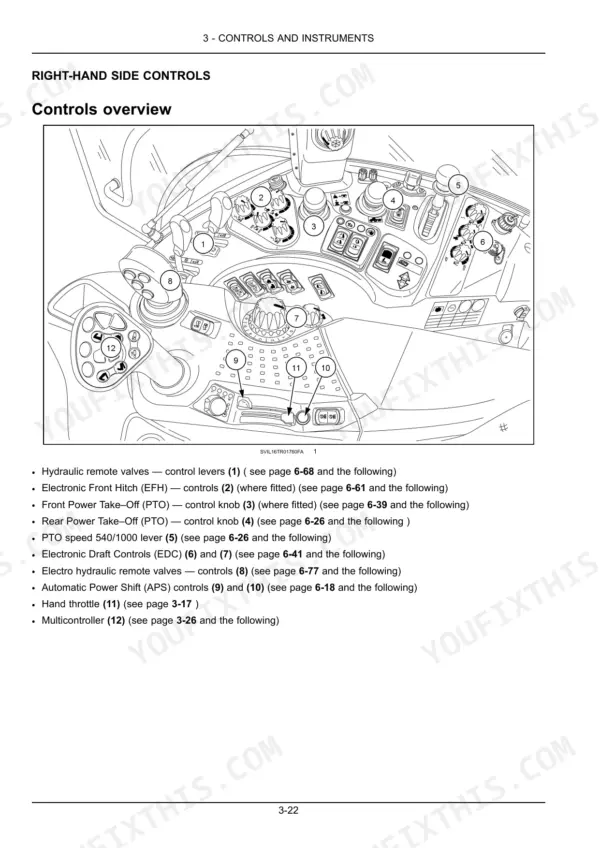

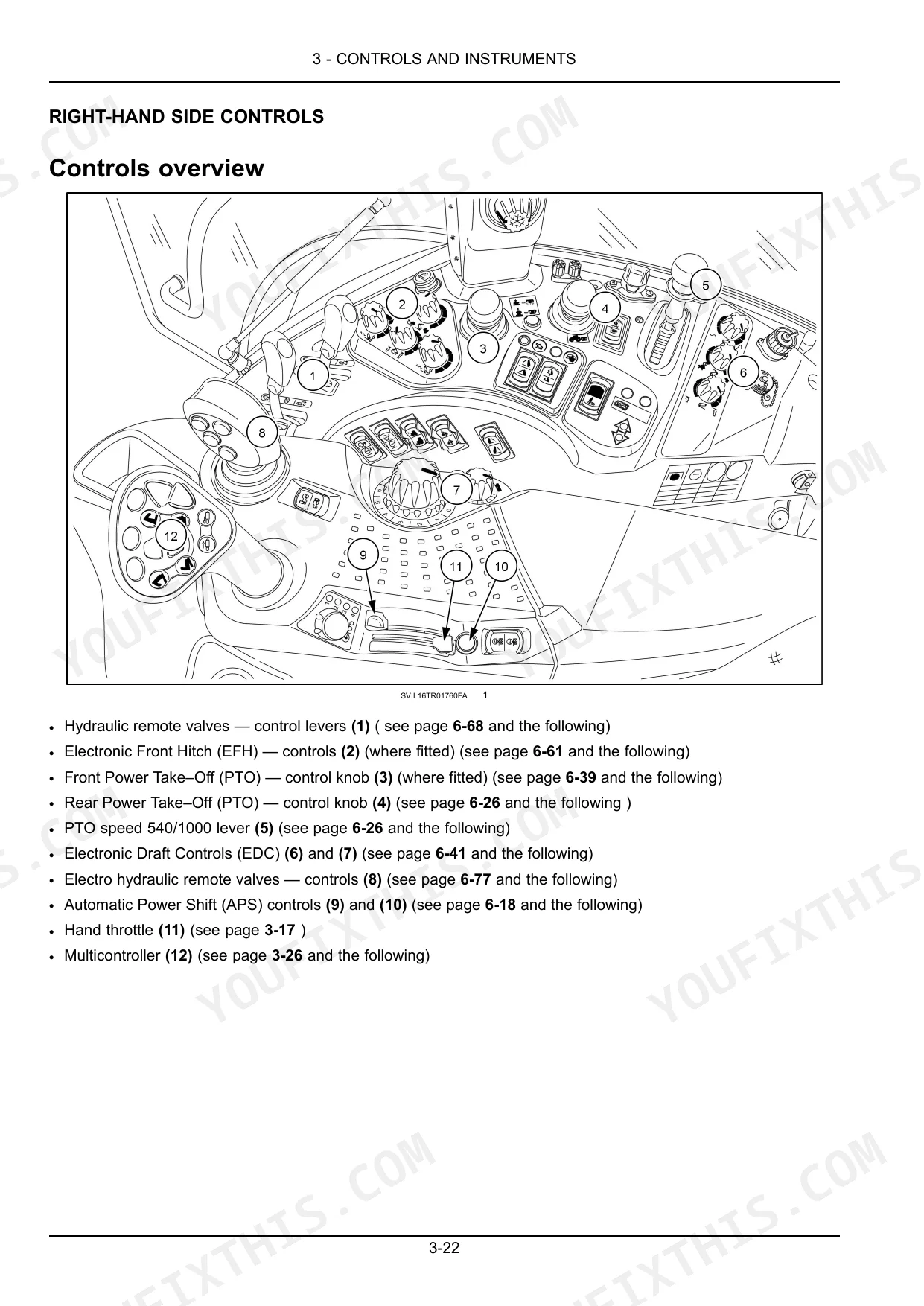

| Controls and Instruments | 77-152 | Ignition Key, Multifunction Control Lever, Battery Isolator Control Switch, Multicontroller, Analog Digital Instrument Cluster (Adic), Warning and Advisory Symbols |

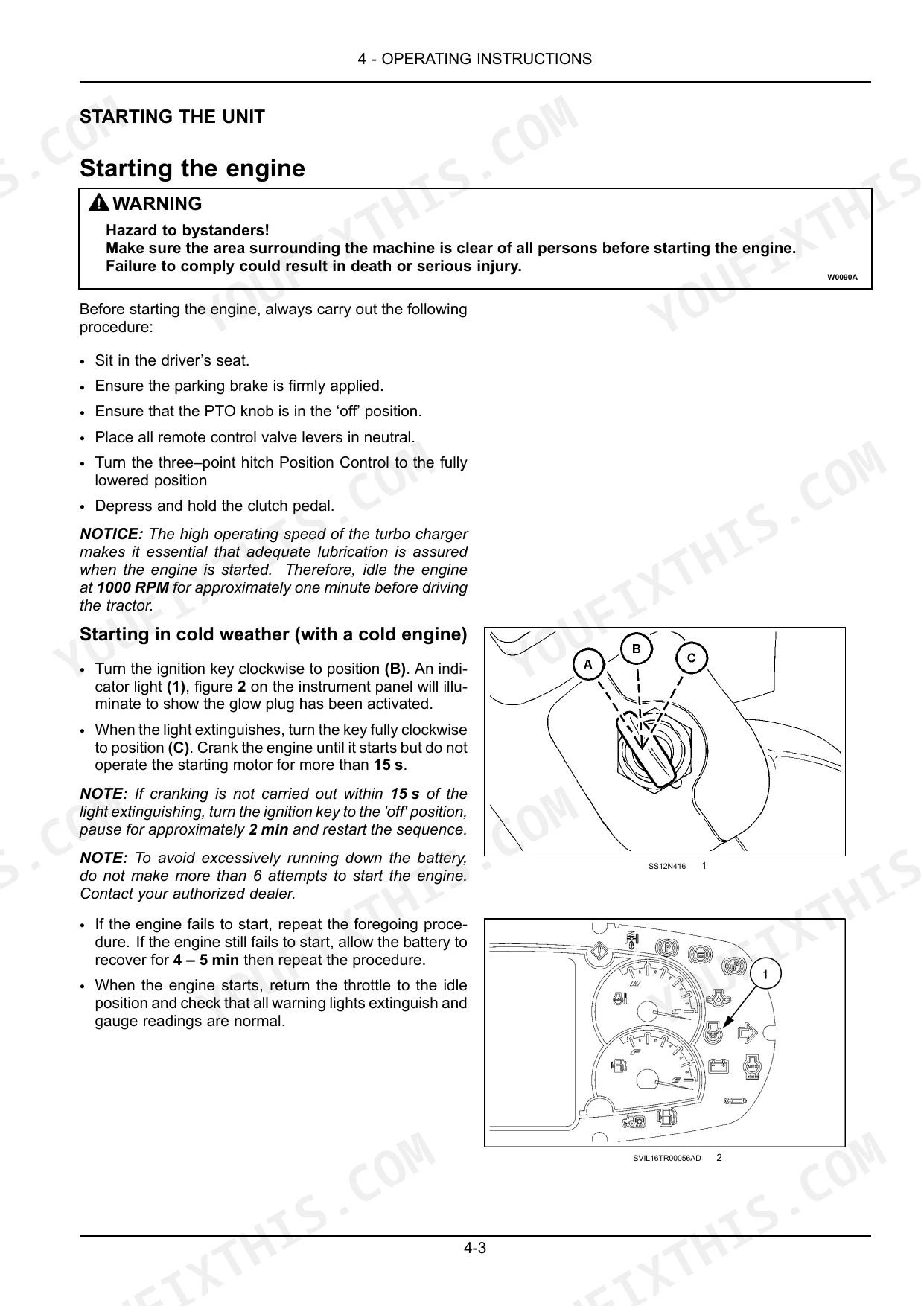

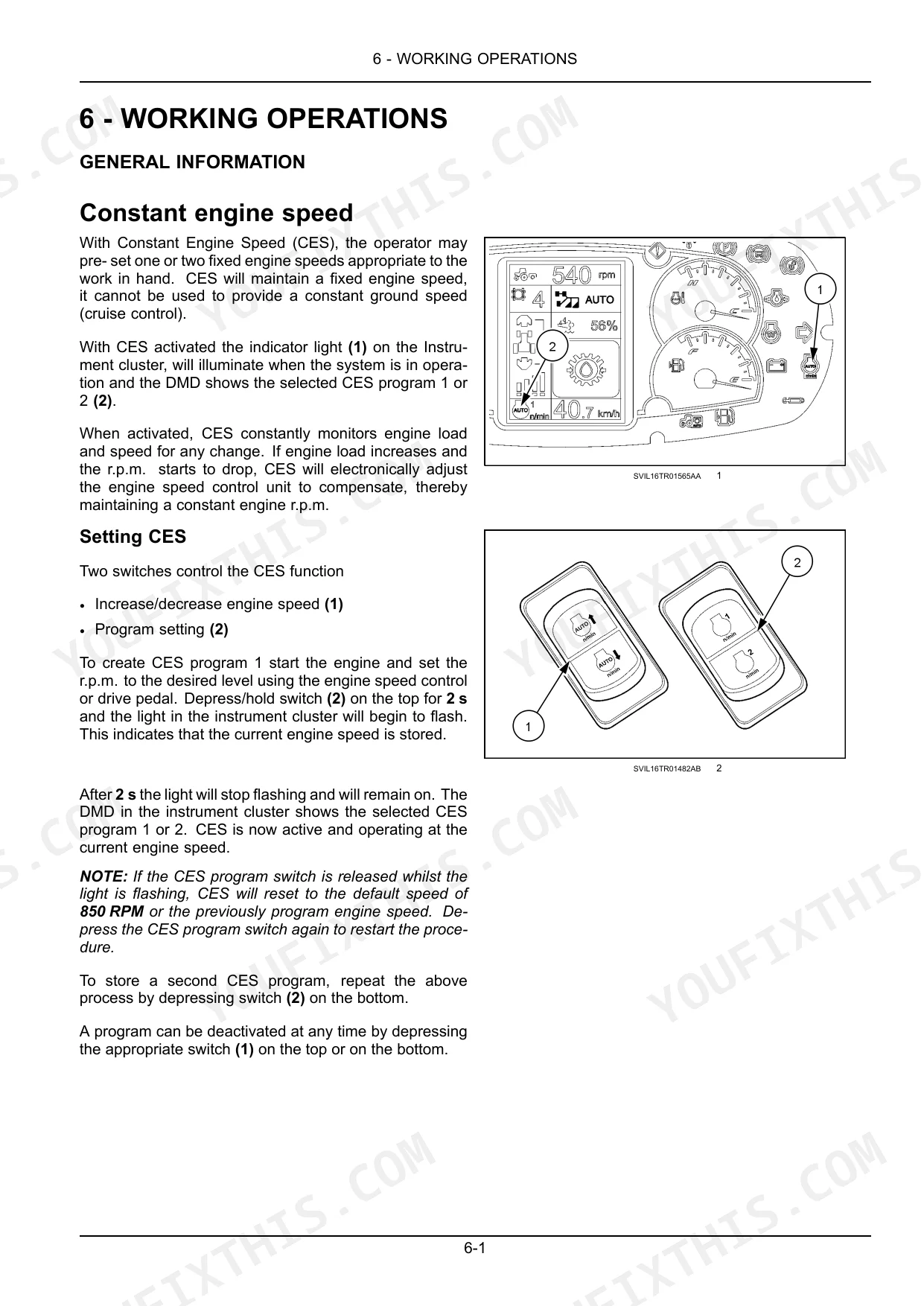

| Operating Instructions | 153-162 | Refueling the Tractor, Starting the Engine, Coolant Immersion Heater, Automatic Engine Shut Down, Low Idle Speed Management |
| Transport Operations | 163-166 | Carrying the Tractor on a Transporter, Freeing a Stuck Tractor, Towing the Tractor |
| Working Operations | 167-312 | Constant Engine Speed, Differential Lock, Transmission Operation, Rear Power Take-Off (PTO) Operation, Electronic Draft Control (Edc), Wheel Track Adjustment |
| Maintenance | 313-402 | Fuel Requirement, Lubricants and Coolants, Maintenance Chart, Change Engine Oil and Filter, Fuses and Relays, Battery Removal and Installation |
| Troubleshooting | 403-410 | Fault Codes and Symbols, Engine Symptoms, Transmission Symptoms, Hydraulics Symptoms, Brakes Symptoms, Electrical System Symptoms |
| Specifications | 411-430 | General Dimensions, Axle Dimension, Capacities, Engine, Transmission, Minimum Hardware Tightening Torques |
| Accessories | 431-438 | Radio, External Rear View Mirrors, Heated Screens, Auxiliary Headlights, Rotating Beacon, Front-End Loader Fixation Points |
| Forms and Declarations | 439-444 | Ce Declaration of Conformity, Passenger Seat Certification, FOPS Level, HVAC Cab Category, Noise Emission Levels, Vibration Levels |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| DEF/ADBLUE® tank capacity | 9.5 L (2.5 US gal) | p. 324 |
| DEF/ADBLUE® storage temperature range | between -11 °C (12 °F) and 30 °C (86 °F) | p. 35 |
| Hydraulic system flow at rated engine speed (Standard) | 80 L/min (21.1 US gpm) | p. 423 |
| Hydraulic system flow at rated engine speed (Option) | 100 L/min (26.4 US gpm) | p. 423 |
| Clutch type (Transmission) | Wet | p. 419 |
| Number of clutches (Transmission) | 6 | p. 419 |
| DEF/AdBlue® pre-filter replacement | Must be cleaned by an authorized dealer | p. 361 |
| DEF/AdBlue® main filter replacement | Must be replaced by an authorized dealer | p. 377 |
| Fuel injector maintenance | Do not require periodic servicing or adjustment | p. 313 |
| Fuel injector check interval | Every 1800 hours (consult authorized dealer for pressure settings) | p. 376 |
| Hydraulic pressure for pressure control (lowest value) | 15 bar (217.5 psi) | p. 232 |
| Hydraulic pressure for pressure control (highest value) | up to 200 bar (2900.0 psi) | p. 232 |
Case IH Luxxum 100, Luxxum 110, Luxxum 120 Common Problems This Manual Covers

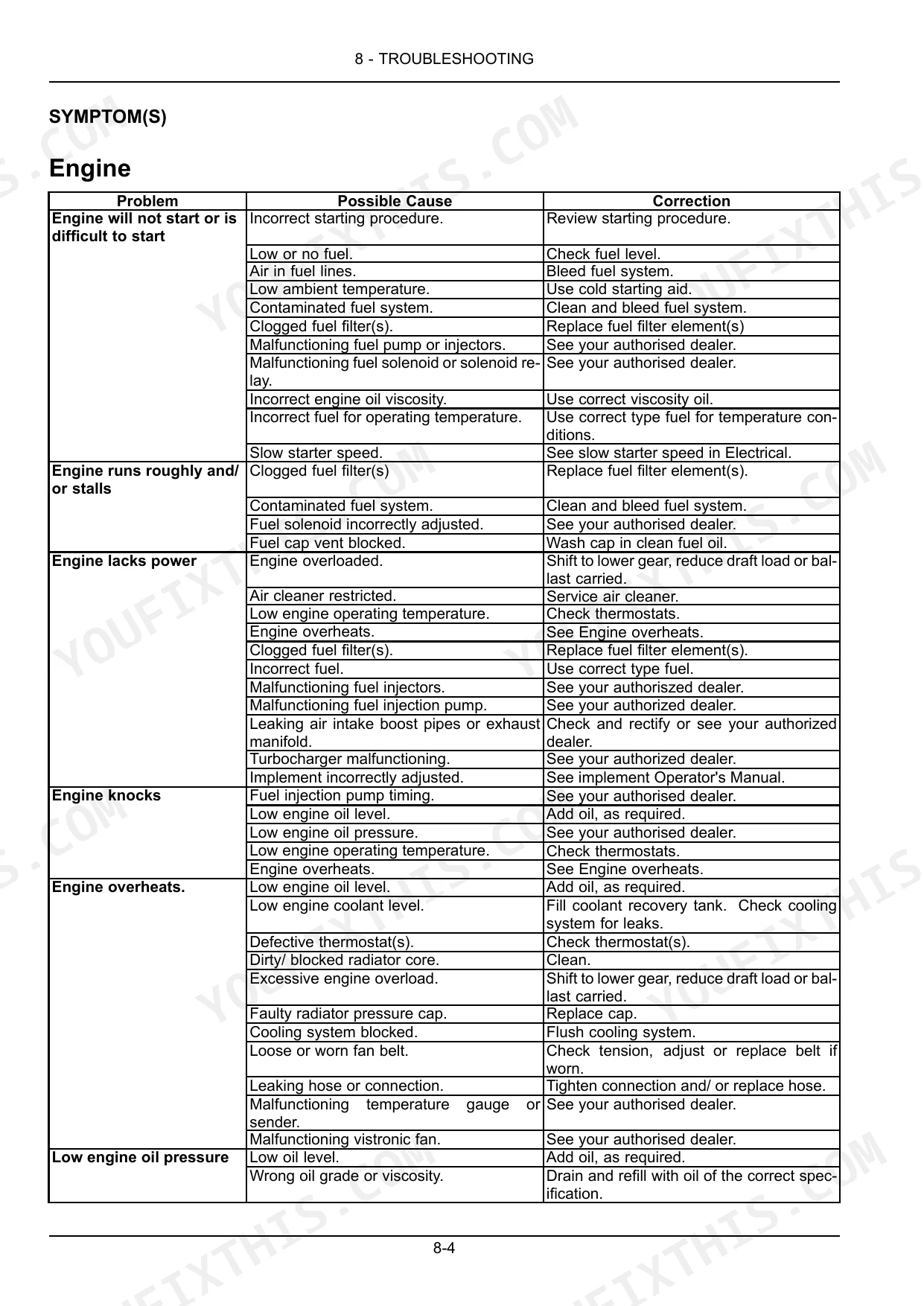

Case IH Luxxum 100/110/120 engine will not start or is difficult to start, especially in cold weather p. 406
Check for low or no fuel and bleed air from the fuel lines. In low ambient temperature, use a cold starting aid. If the fuel system is contaminated, clean and bleed it, and replace the fuel filter element(s) if clogged.
Manual Section: Engine TroubleshootingHydraulic system does not operate or oil overheats p. 407
An error code indicates the source of the malfunction (see your authorized dealer). Check for hydraulics oil level too low, a blocked hydraulic oil filter, or a blocked oil cooler, and add oil or clean/replace the filter as needed.
Manual Section: Hydraulics TroubleshootingTransmission jumps out of gear, holds in gear, or has low oil pressure p. 407
Worn synchronisers/couplers or clutches needing calibration can cause jumping out of gear (see your authorized dealer). For low transmission oil pressure, check for low oil level, incorrect oil grade/viscosity, or a blocked transmission oil filter.
Manual Section: Transmission TroubleshootingTractor steering feels excessively loose and front tires show uneven wear patterns p. 341
Measure the front wheel alignment to ensure it matches the 0 mm +/- 3 (0 in +/- 0.12) specification on page 424. Inspect the disc to front axle hub nuts. Torque any loose hub nuts to 245 Nm (181 lb ft) as directed on page 341.
Manual Section: MaintenanceFrequently Asked Questions
What are the recommended service intervals?

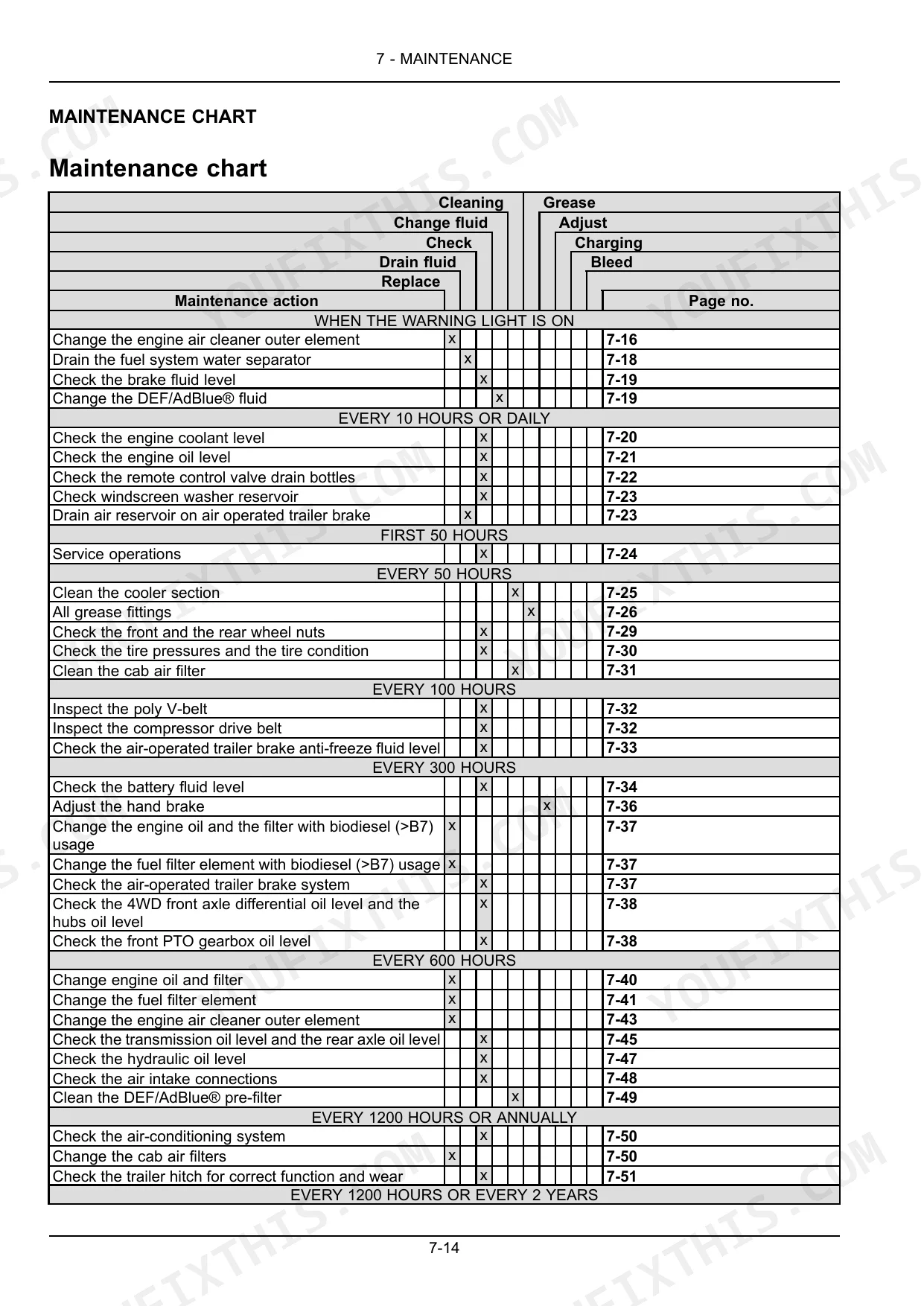

The manual provides a maintenance chart with recommended service intervals. For example, the engine air cleaner outer element should be changed every 600 hours, or when the warning light is on. The transmission oil and rear axle oil should be changed every 1200 hours or every 2 years.
What fluids and capacities does this machine require?
The machine requires specific fluids and has defined capacities. For instance, the fuel tank capacity is 145 L (38.3 US gal), the DEF/AdBlue® tank is 9.5 L (2.5 US gal), and the cooling system holds 17 L (4.5 US gal). The engine (including filter) requires 6.4 – 8.1 L (1.7 – 2.1 US gal) of oil.
How to troubleshoot engine won't start?
If the engine will not start or is difficult to start, possible causes include an incorrect starting procedure, low or no fuel, air in fuel lines, or low ambient temperature. The recommended correction is to review the starting procedure, check the fuel level, bleed the fuel system, or use a cold starting aid.
What torque specifications are listed?
The manual lists several torque specifications for hardware. For front wheels (M16x1.5), disc to hub nuts require 245 Nm (181 lb ft) and disc to rim nuts require 250–310 Nm (184–229 lb ft) or 280–340 Nm (207–251 lb ft) depending on the image. For rear wheels (M18x1.5), disc to hub nuts require 314 Nm (232 lb ft).
How to reset error codes or warning lights?
To reset the Selective Catalytic Reduction (SCR) system after a fault causing engine power loss, the DEF/AdBlue® tank level must be raised above 12% total volume, or the key switch must be cycled to the Off position or throttle returned to low idle position. For quality and technical faults, switching off the engine will reset the system and the engine will restart at full power.
What format is this Case IH Luxxum 100, 110, 120 manual in?
You get a 450-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Case IH Luxxum 100, 110, 120 Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
