All 230 pages of this Case Corporation PTX600 Precision Tillage Service Manual (OEM #NWC-010V1) focus on one goal: keeping your PTX600 calibrated and adjusted to factory spec. Open it to hydraulic schematics with complete cylinder seal procedures, a transport lighting wiring diagram, and troubleshooting tables covering trips, openers, and the air seeding system. You get adjustment procedures for three-section wing leveling, sweep pitch, and depth gauge settings, plus maintenance schedules running from daily 10-hour checks through seasonal storage prep. Torque the 3/4-inch fine thread shank bolt to 550 N-m (400 lbf-ft) and the trip u-bolts to 237 N-m (175 lbf-ft); both numbers come straight from the factory procedure, not a forum guess. Your trip released mid-field and the right spec matters. Bookmarked and keyword-searchable; pull it up on your tablet and start wrenching.
What's Inside This Case Corporation PTX600 PRECISION TILLAGE Manual
| System | Pages | Key Topics |
|---|---|---|

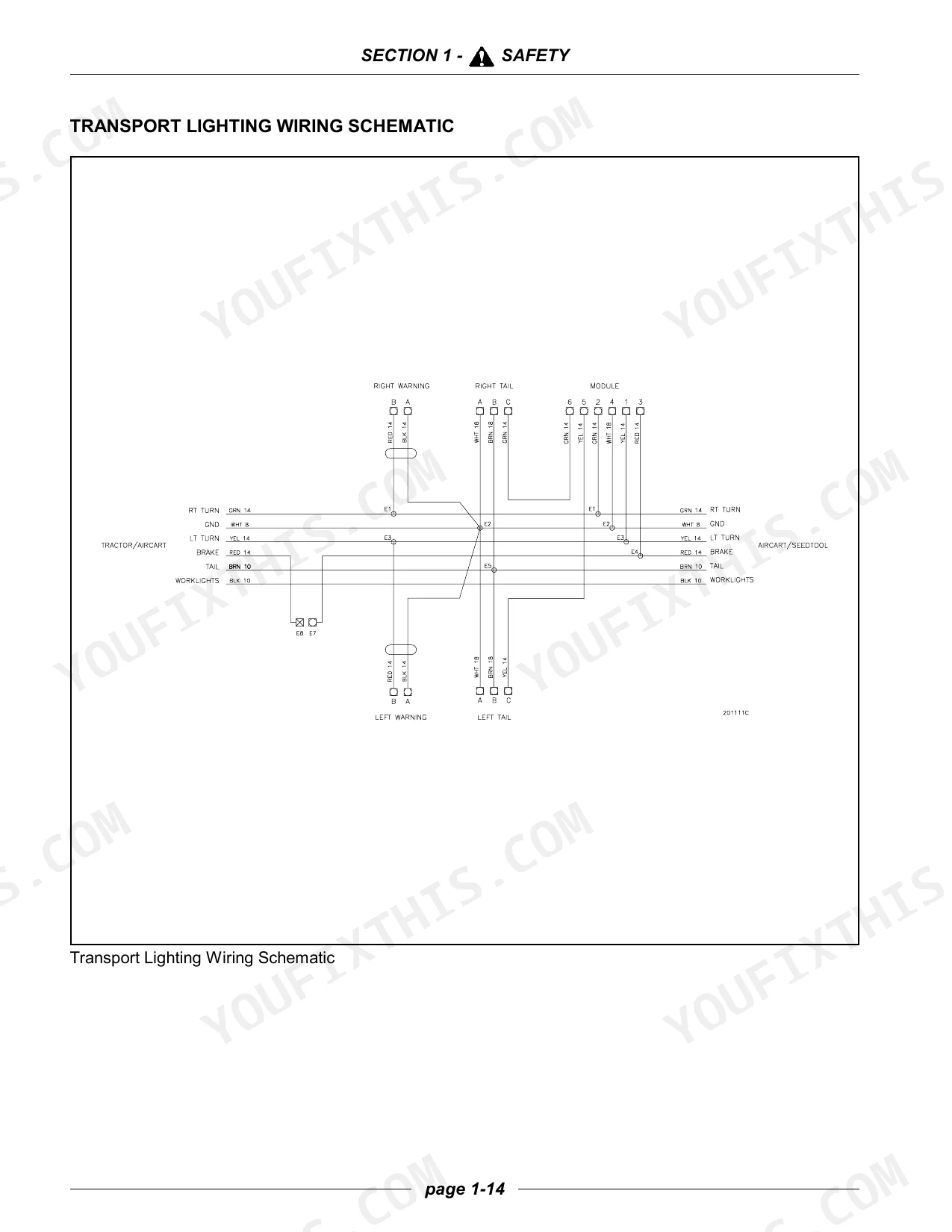

| Safety | 7-20 | General Safety Practices, Servicing Safety Precautions, Safety During Operation, Hydraulics and Hydraulic Leaks, Safety Decals, Transport Lighting Wiring Schematic |
| Adjustments | 21-46 | Wing Lift Adjustment - Three Section Outer Wing Leveling Procedure, Final Leveling, Wheel Standard Restraint Chain Adjustment, Sweep Pitch Adjustment, Setting the Depth Gauge |

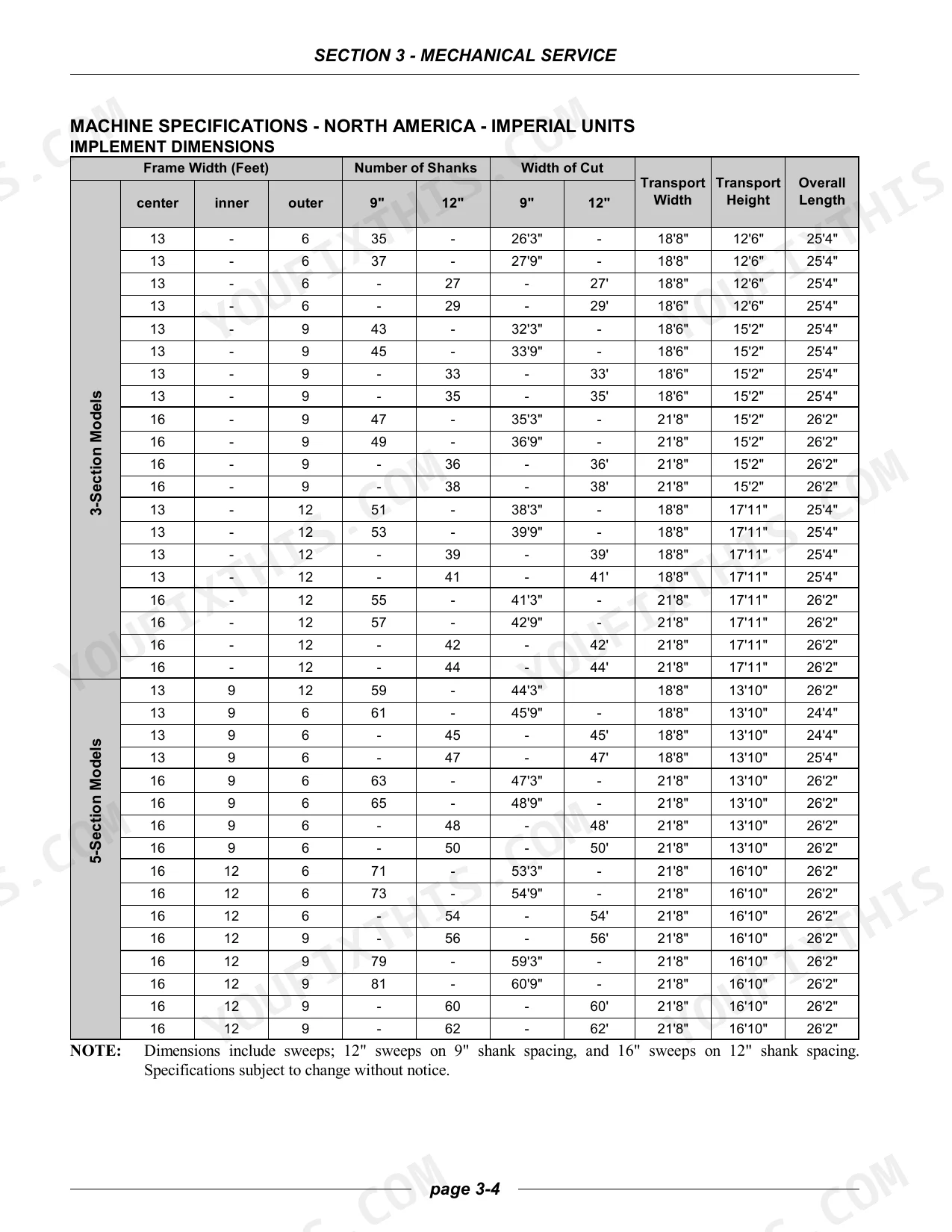

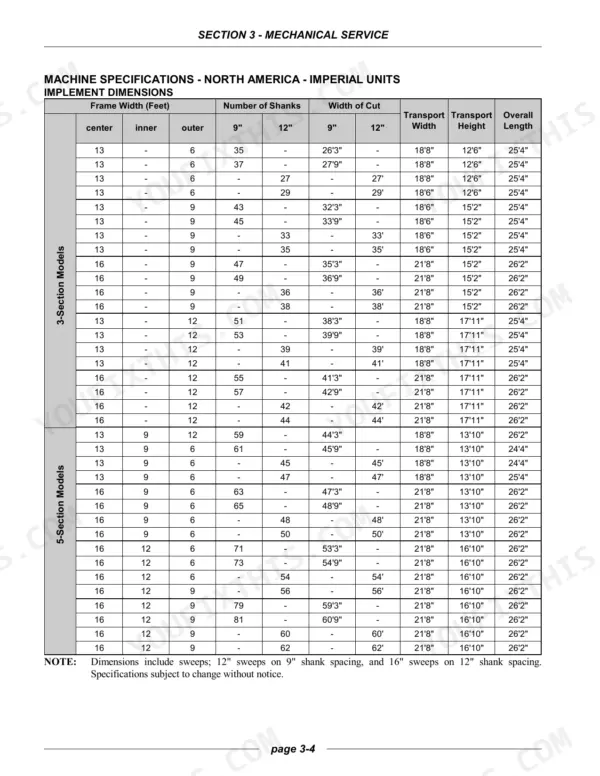

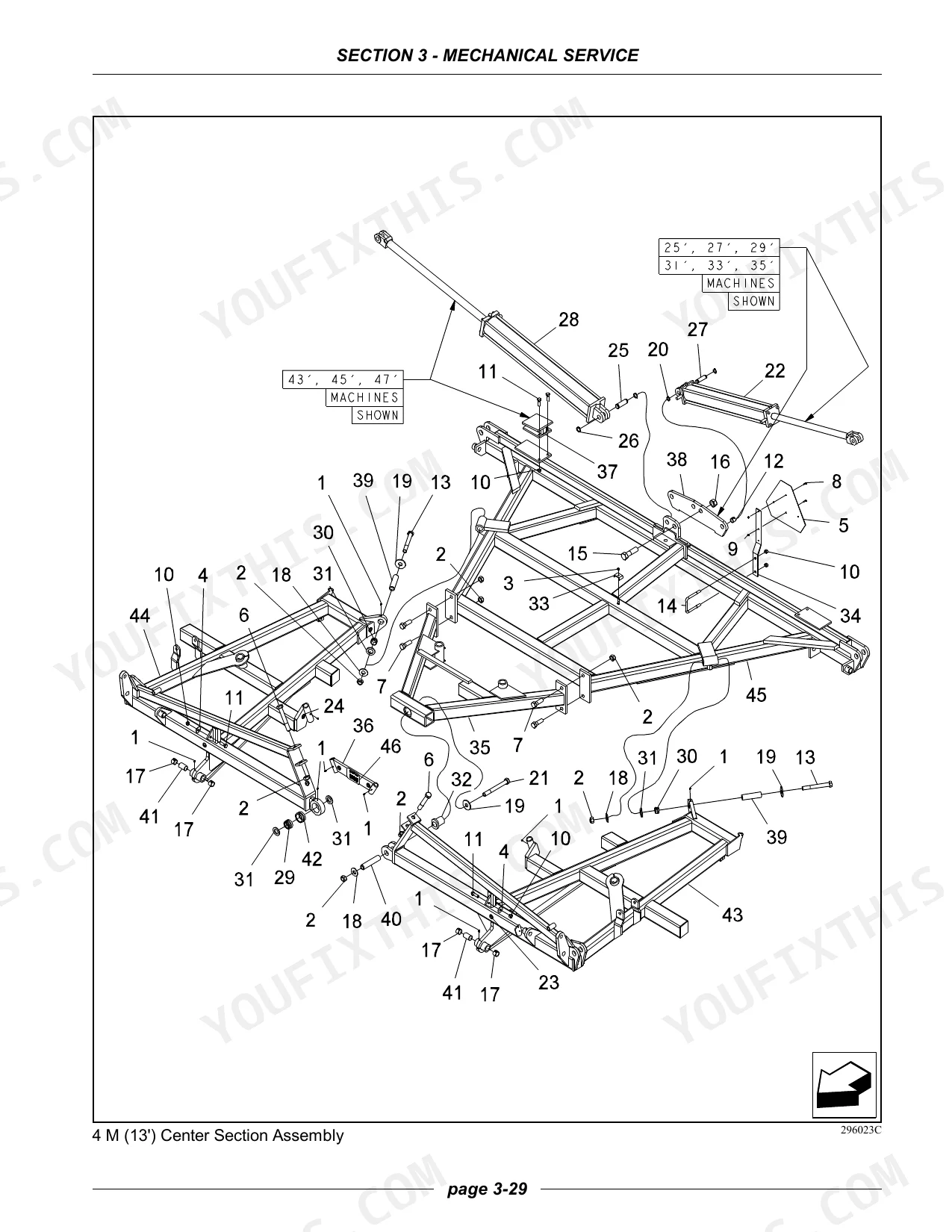

| Mechanical Service | 47-128 | Specifications (Machine: Specification-North America-Imperial Units, Specification-North America-Metric Units, Specification-Australia - Imperial Units, Specification-Australia - Metric Units) |

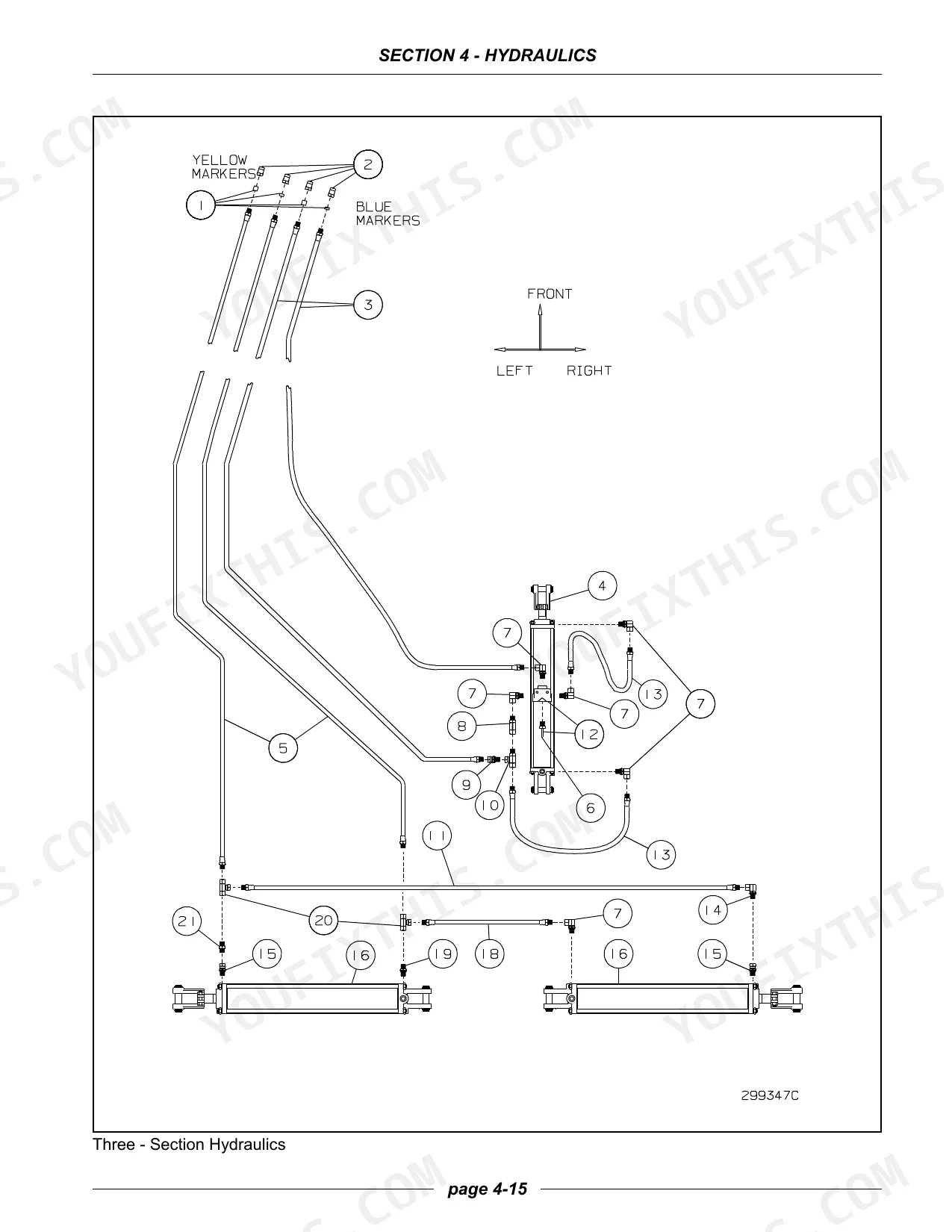

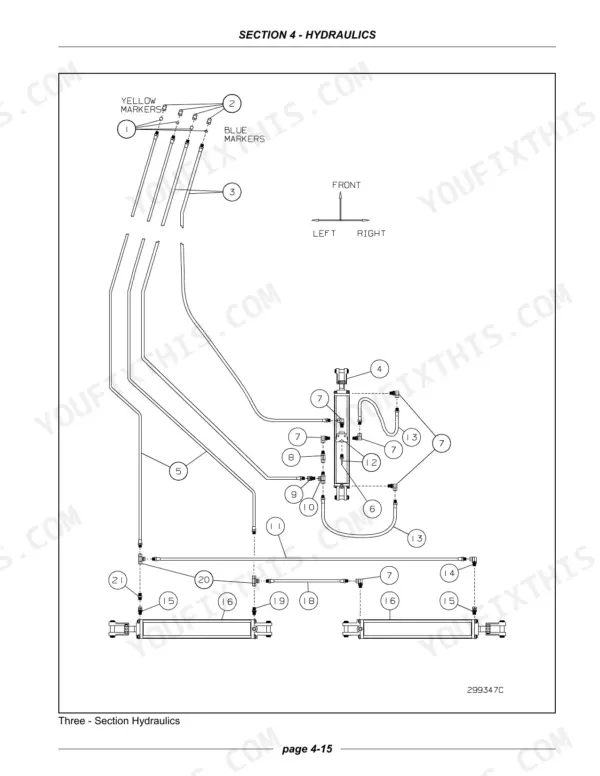

| Hydraulics | 129-148 | Replace Seals in Cylinders, Hydraulic Cylinder Components, Hydraulic Schematics, Ram Mount Depth Stop Connection |
| Electrical | 149-164 | Connector Service Kit |
| Trips and Openers | 165-176 | Troubleshooting Tables, Trip Compressor Tool Kit, Tension Link Kit Tp-133K - 550lb Trip, Trip Assemblies, Anti-Skewing Trip Shim Installation, Trip Shim Kit for 650lb Trip |
| Air System | 177-188 | Troubleshooting Tables, Hoses, Theory of Operation - Air System, Methods of Determining Adequate Carrying Velocities, Header Assemblies |
| Options | 189-224 | Harrow, Heavy Harrow, Press Wheels / Packer Gangs, Endmarker |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Chisel plow sweeps clearance (spacing) | 18.3 cm (7.2") and 23 cm (9") | p. 28 |
| Torque for 3/4" fine thread shank bolt (550 lb trip) | 550 N-m (400 lbf-ft) | p. 172 |
| Torque for 3/4" mount bolts (Harrow Mounting) | 177 N-m (130 lbf-ft) | p. 201 |
| Torque for nuts attaching new stub to frame (Second Harrow Arm Stub Installation) | 380 N-m (280 lbf-ft) | p. 204 |
| Wheel Bolt Torque (9.5 L -15 FI "D" LOAD RANGE) | 170 N-m (125 lbf-ft) | p. 82 |
| Tire Pressure (9.5 L -15 FI "D" LOAD RANGE) | 413 kPa (60 psi) | p. 82 |
| Rear Bar to Ground Clearance (Initial Setting) | 1029 mm (40 1/2") | p. 28 |
| Maximum Exposed Thread (Depth Link Adjuster) | 146 mm (5 3/4") | p. 32 |
| Trip Torque (550 lb Trips) | 270 N-m (200 lbf-ft) | p. 42 |
| Trip Mount V-bolt Torque (550 lb release trips) | 700 N-m (500 lbf-ft) | p. 42 |
| Daily Maintenance Interval | 10 hours | p. 61 |
| Semi-Annual Maintenance Interval | 100 hours | p. 61 |
Case Corporation PTX600 PRECISION TILLAGE Common Problems This Manual Covers

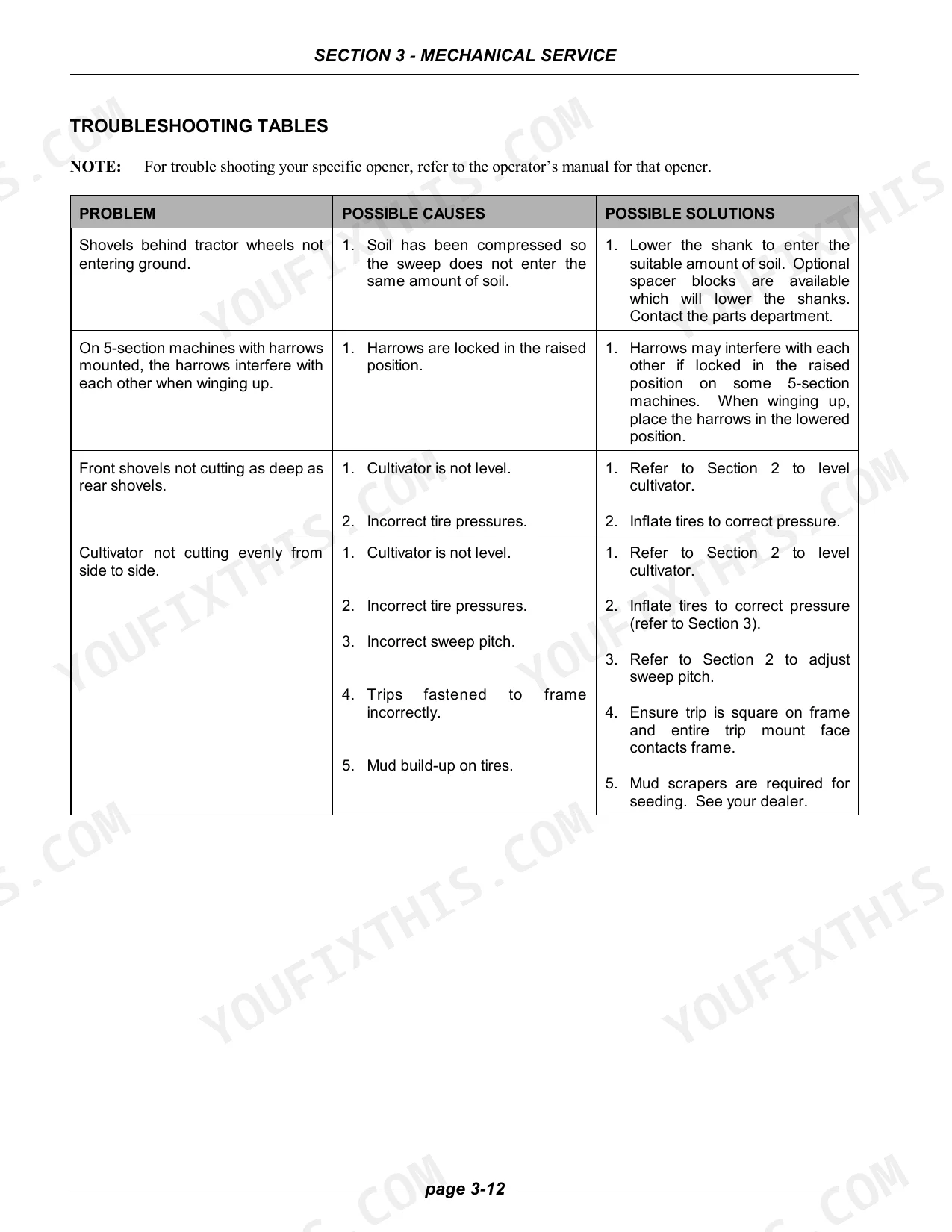

Case IH PTX600 chisel shanks not penetrating ground evenly, uneven tillage depth across pass
Check the troubleshooting table on . Verify sweep pitch adjustment is set correctly and depth gauge wheel is at consistent setting across all sections. Inspect each shank for worn points and confirm shank u-bolts are torqued to 136 N-m (100 lbf-ft) and 3/4" fine thread shank bolts to 542 N-m (400 lbf-ft). Confirm rear bar to ground clearance is set to initial spec of 1029 mm (40 1/2") at page 28.
Manual Section: Mechanical ServiceHydraulic lift cylinder leaking internally, wings won't hold position during field operation p. 131
Remove the cylinder and inspect seals using the disassembly sequence starting on page 131. Replace all rod and piston seals before reassembly. After reinstalling the cylinder, torque the tie rod 3/4" nut to 180 ft lbs dry minimum and set screw to 22 +/- 4 foot-pounds as specified on page 137. Bleed the hydraulic system fully before returning the plow to work.
Manual Section: HydraulicsTrip mechanism not releasing at correct load, V-bolts shearing under normal soil conditions p. 165
Inspect trip mount V-bolts for fatigue cracks and replace if any thread distortion is visible. Torque 7/8" grade 8 trip mount V-bolts to 700 N-m (500 lbf-ft) for 550 lb release trips. Verify trip torque setting: 550 lb trips must release at 270 N-m (200 lbf-ft) per page 42. If release point is inconsistent, check anti-skewing shim installation on page 175.
Manual Section: Trips and OpenersBall joint binding or seized in center section, plow won't fold smoothly for transport
Secure the frame on stands before beginning disassembly. Remove the tension link and lighting harness as described on . Drive out the sleeve using the correct driver to avoid damaging the housing bore. Inspect ball housing bore for scoring. Install new ball joint and housing, then verify full fold cycle before releasing from stands. Lubricate at every 100-hour service interval per page 61.
Manual Section: Mechanical ServiceCaster wheel bearing failure, hub running hot or wobbling after repacking

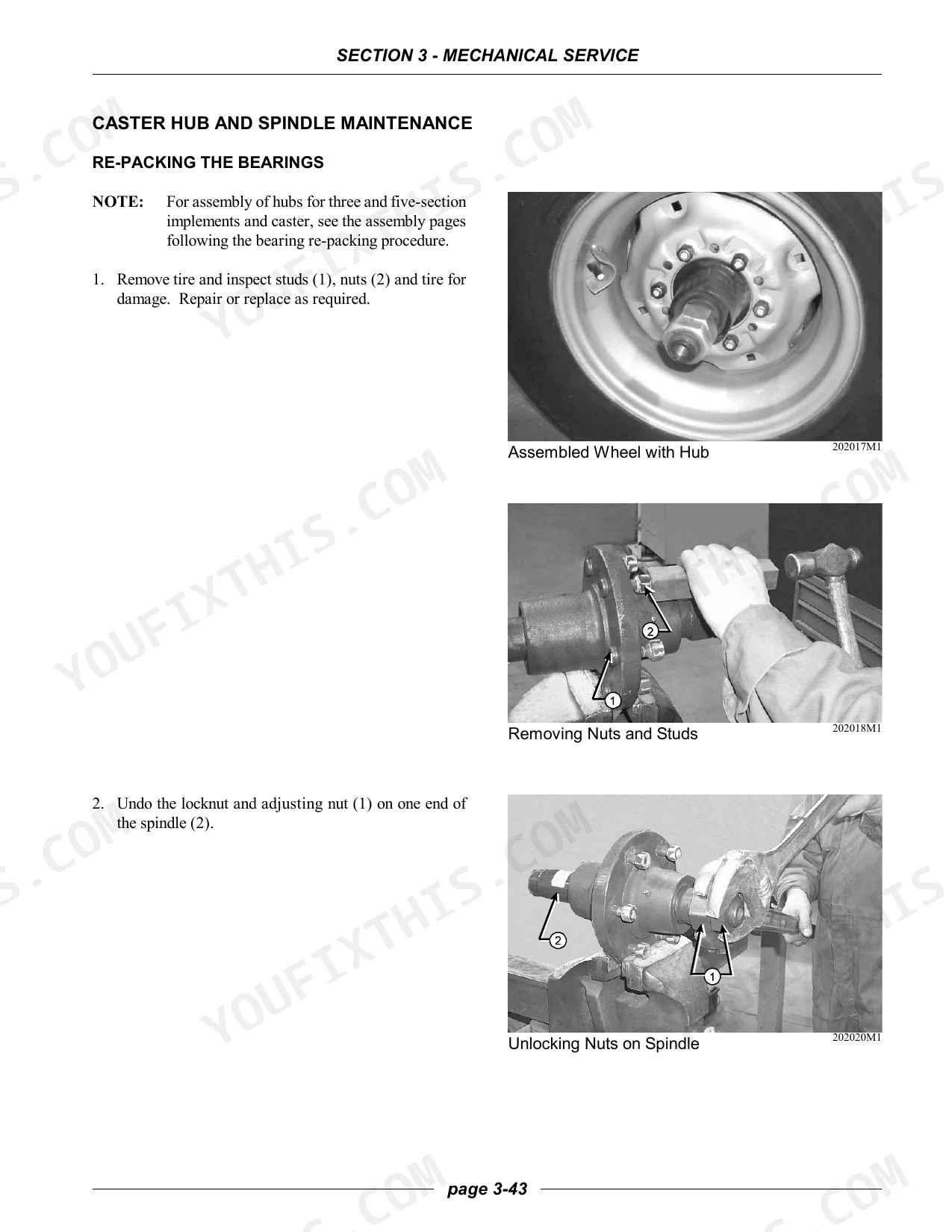

Remove the wheel and support the walking beam before pulling the spindle. Re-pack bearings with fresh grease following the procedure. Torque wheel bolts to 170 N-m (125 lbf-ft) and set tire pressure to 413 kPa (60 psi) per page 82. Check max load rating of 1451 kg (3200 lb) per tire before returning to field; overloading a single caster after bearing replacement is the fastest way to repeat the failure.
Manual Section: Mechanical ServiceAir system lines plugging repeatedly, uneven product distribution across seed boots p. 179
Check the air system troubleshooting table starting on page 179. Inspect the center manifold for blockage first, then verify air velocity is sufficient using the methods described on page 177. Check for high moisture content in the air supply and examine all hoses for wear or kinks. Clean seed boots and check for dirt or mud ingestion. Resolve any restriction in the header before resuming operation.
Manual Section: Air SystemFrequently Asked Questions
Torque specs for PTX600 chisel plow shank mounting bolts?
For cultivators equipped with 650 lb release trips or rigid shanks, torque the shank u-bolts (2) to 136 N-m (100 lbf-ft). Additionally, torque the 3/4" fine thread shank bolts (3) to 542 N-m (400 lbf-ft).
How to find torque specs for PTX600 tillage components

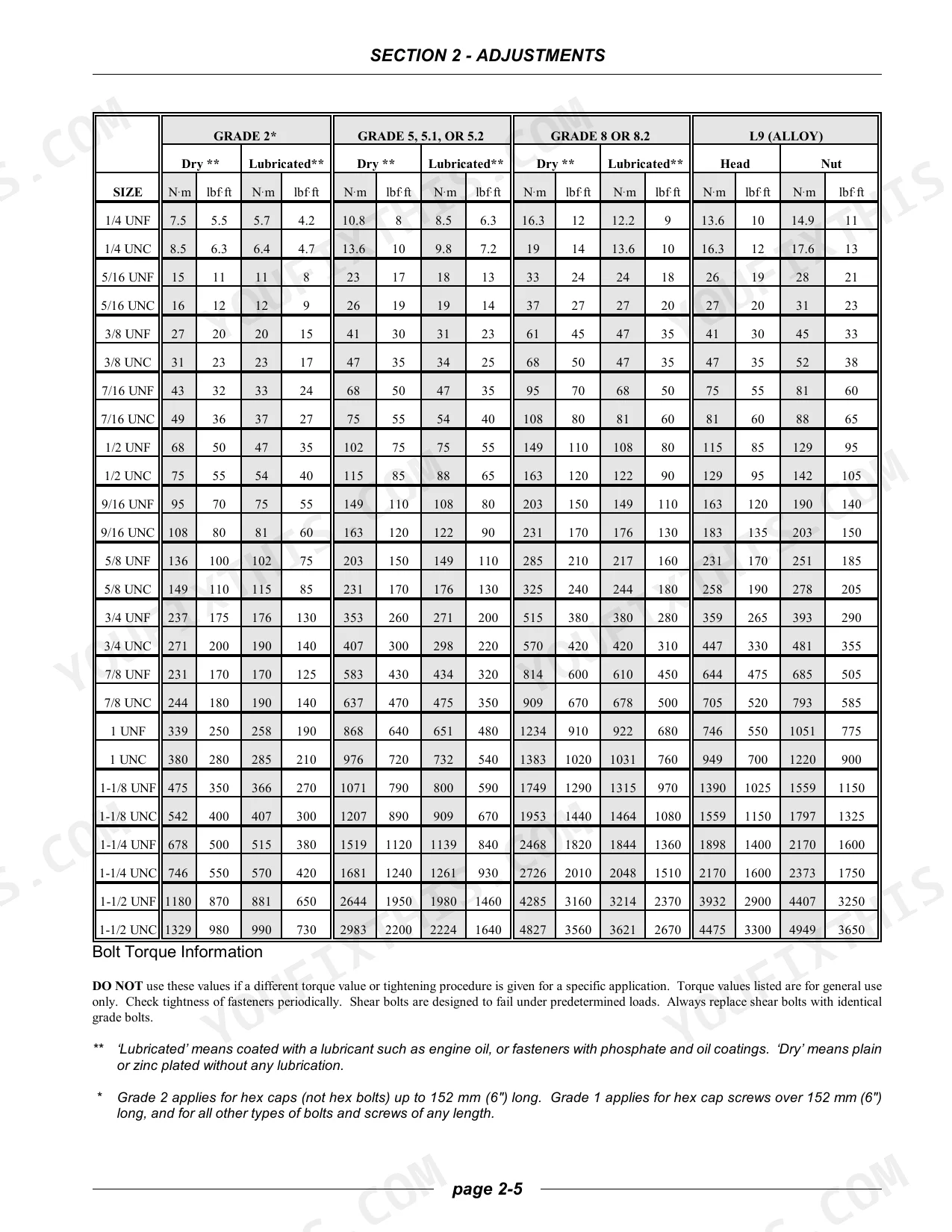

To find torque specifications for PTX600 tillage components, refer to the "Bolt Torque Information" table on page 25 for general values based on bolt grade and size. For specific wheel bolt torques, consult the "WHEEL BOLT TORQUE" table on page 82, which provides values like 170 N-m (125 lbf-ft) for various tire sizes.
What are the replacement specifications for Repair pins on tillage equipment?
Replacement specifications for various pins on tillage equipment can be found in the assembly parts lists. For example, the Caster Assembly lists a "ROLL PIN, SPIRAL - .375" X 1.5"" (REF 20) and a "PIN, PIVOT HOUSING UPPER - 1" X 5.75"" (REF 33). The Center Section Wheel Standard Assembly for Three-Section Machines includes "ROLL PIN, .5" X 3"" (REF 6) and "ROLL PIN, .25" X 1.5"" (REF 11).
How do you fix case IH PTX600 chisel shanks not penetrating ground evenly, uneven tillage depth across pass?
Check the troubleshooting table on . Verify sweep pitch adjustment is set correctly and depth gauge wheel is at consistent setting across all sections. Inspect each shank for worn points and confirm shank u-bolts are torqued to 136 N-m (100 lbf-ft) and 3/4" fine thread shank bolts to 542 N-m (400 lbf-ft). Confirm rear bar to ground clearance is set to initial spec of 1029 mm (40 1/2") at page 28.
How quickly can I access this manual?
This is a 230-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Case Corporation PTX600 Precision?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this Case Corporation PTX600 Precision Tillage manual include hydraulic?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
