All 788 pages of this Cummins ISC Repair Manual PDF (OEM #4021418-00) focus on one engine family: the ISC, QSC8.3, ISL, and QSL9, from cylinder block teardown to engine dynamometer testing. Inside: wiring diagrams for both CM554 and CM850 electronic control systems, a full troubleshooting section covering air compressor faults, coolant loss, fuel in lubricating oil, and engine noise, plus exploded views and step-by-step rebuild procedures for every major group. You get torque tables, calibration data, test values, and clearance specs across the fuel system, injectors, lubricating oil, cooling, air intake, and compressed air assemblies. Run the cooling system pressure test at 140 kPa [20 psi]; high lubricating oil pressure above 449 kPa [65 psi] triggers its own diagnostic tree. Your engine is down and the clock is running. Bookmarked for instant section jumps; search any spec by keyword and get the factory answer on the first try.
What's Inside This Cummins ISC, QSC8.3, ISL, QSL9 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4-13 | Acronyms and Abbreviations (Glass or Plastic Bead Cleaning, Solvent and Acid Cleaning, Steam Cleaning, Welding on a Vehicle with an Electronic Controlled Fuel System, Important Safety Notice) |
| Engine Identification | 14-28 | Engine Diagrams, Engine Views, Engine Dataplate, Cummins Engine Nomenclature, Ecm Dataplate |
| Familiarization | 29-64 | Fuel System Overview, Lubricating Oil System Overview, Cooling System Overview, Air Intake System Overview, Vehicle Braking Overview |

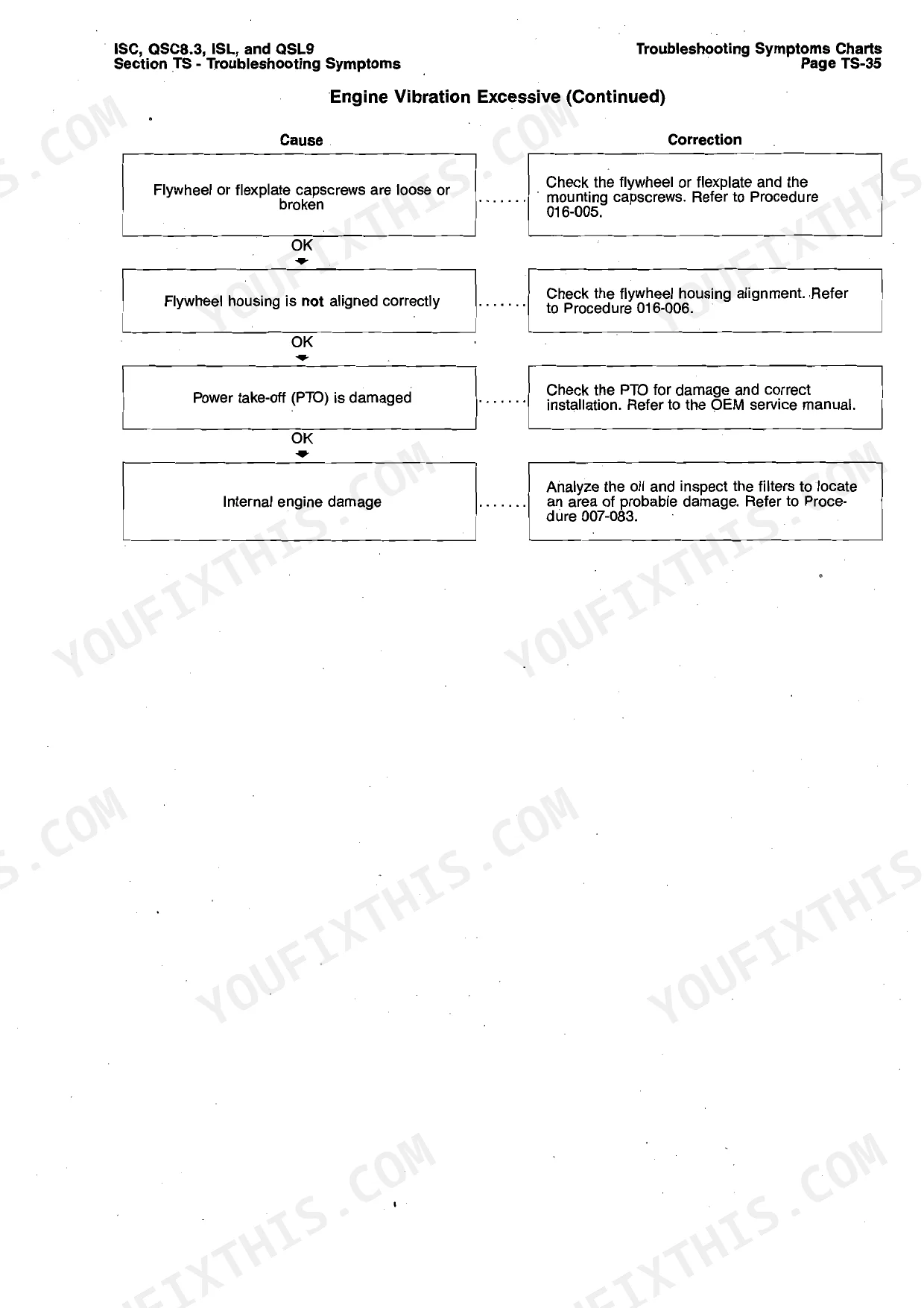

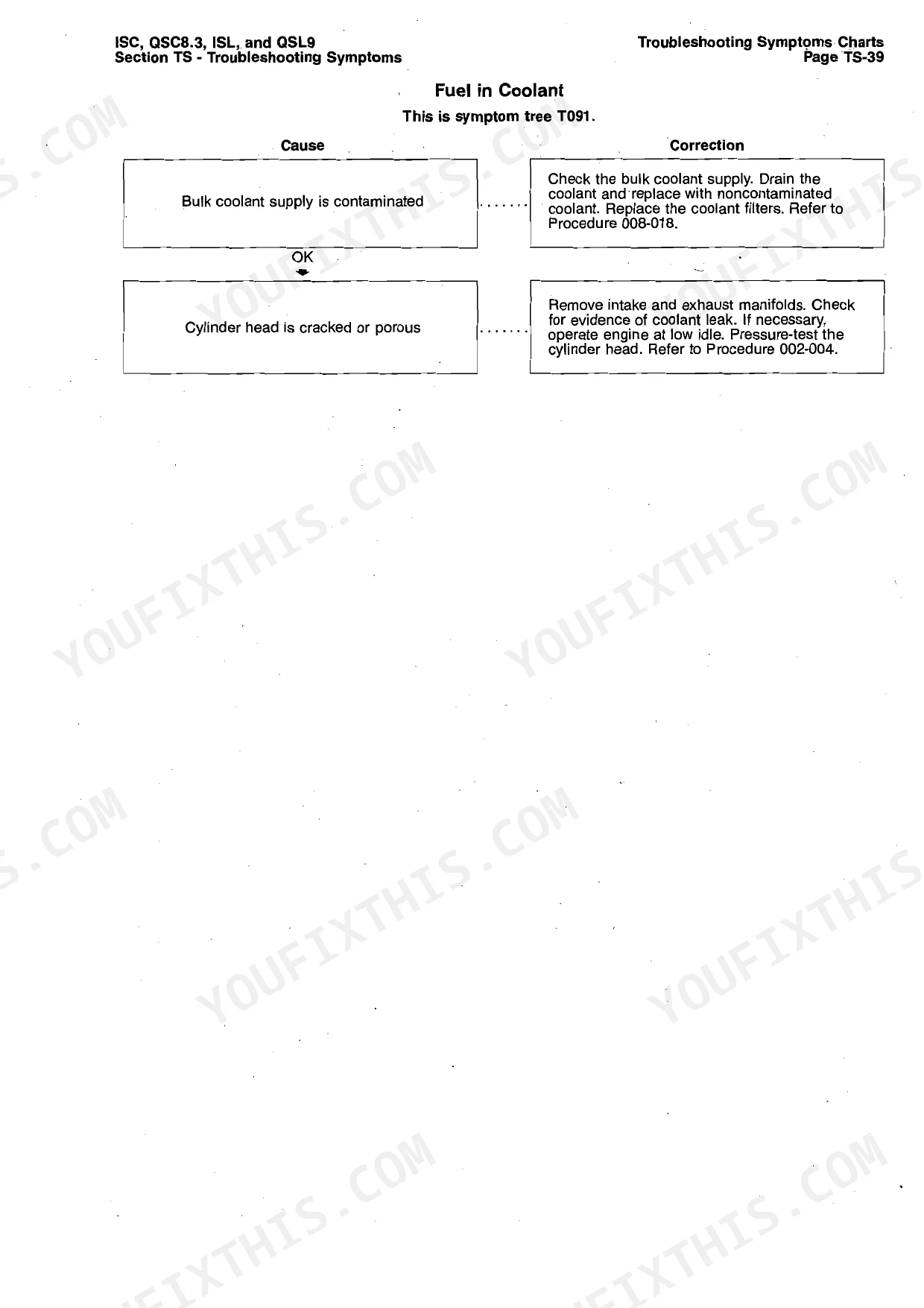

| Troubleshooting Symptoms | 279-344 | Troubleshooting Overview, Air Compressor, Coolant Loss, Engine Noise, Engine Brake, Fuel in Lubricating Oil |
| Engine Performance Features | 345-358 | CM554 Electronic Control System, CM850 Electronic Control System, Troubleshooting Steps, Fuel Economy Troubleshooting |
| Complete Engine – Group 00 | 359-366 | Service Tools, Engine Removal, Engine Installation, Engine Painting, Engine Mounting Bolts |
| Cylinder Block – Group 01 | 367-464 | Bearings, Camshaft, Crankshaft, Cylinder Liner, Piston, Vibration Damper |
| Cylinder Head – Group 02 | 465-478 | Service Tools, Crosshead, Cylinder Head Removal, Cylinder Head Installation, Cylinder Head Gasket |
| Rocker Levers – Group 03 | 479-492 | Crankcase Breather, Overhead Set, Rocker Lever, Rocker Lever Cover, Rocker Lever Housing |
| Cam Followers/Tappets – Group 04 | 493-508 | Service Tools, Push Rods or Tubes, Tappet, Roller Tappets |

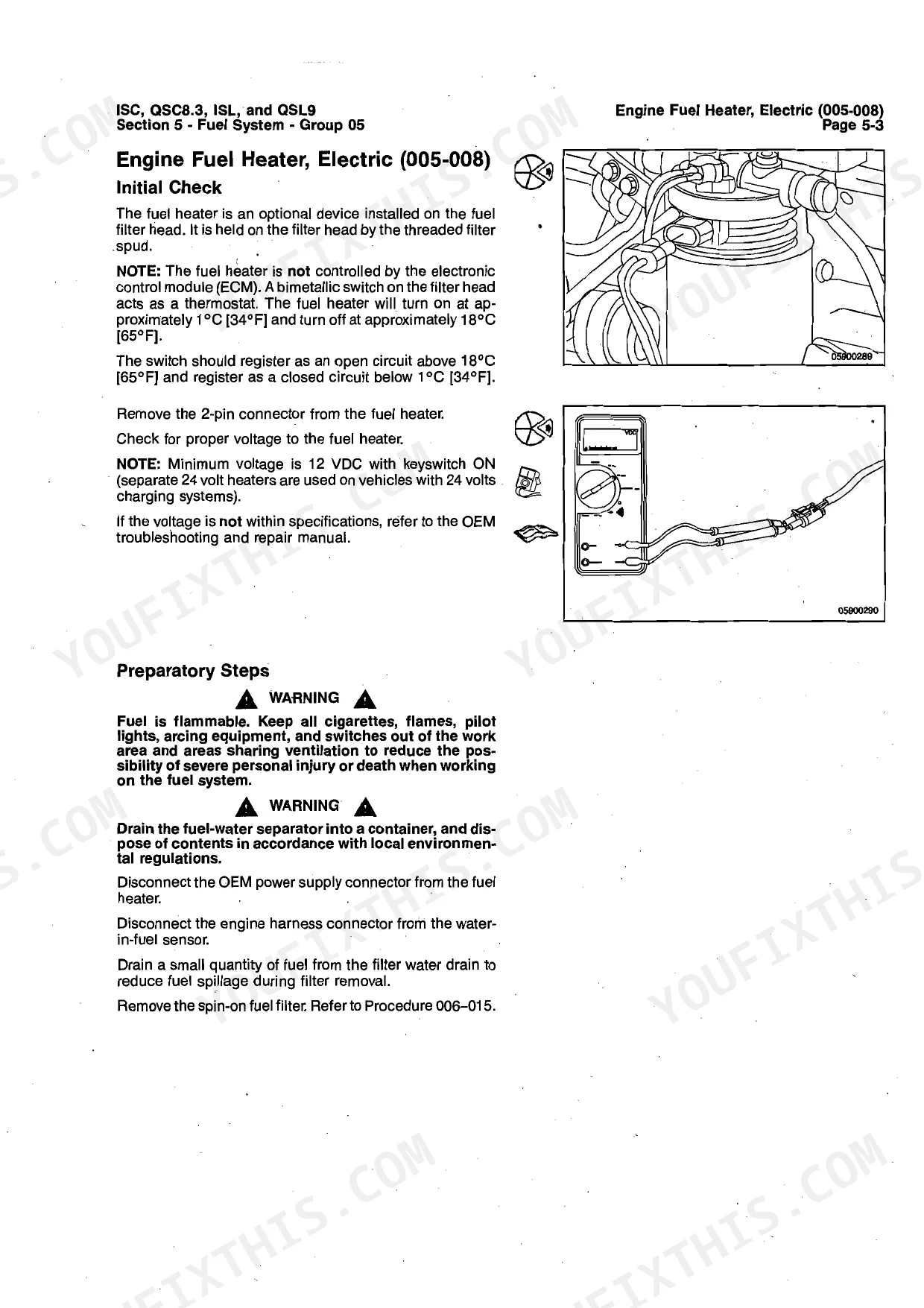

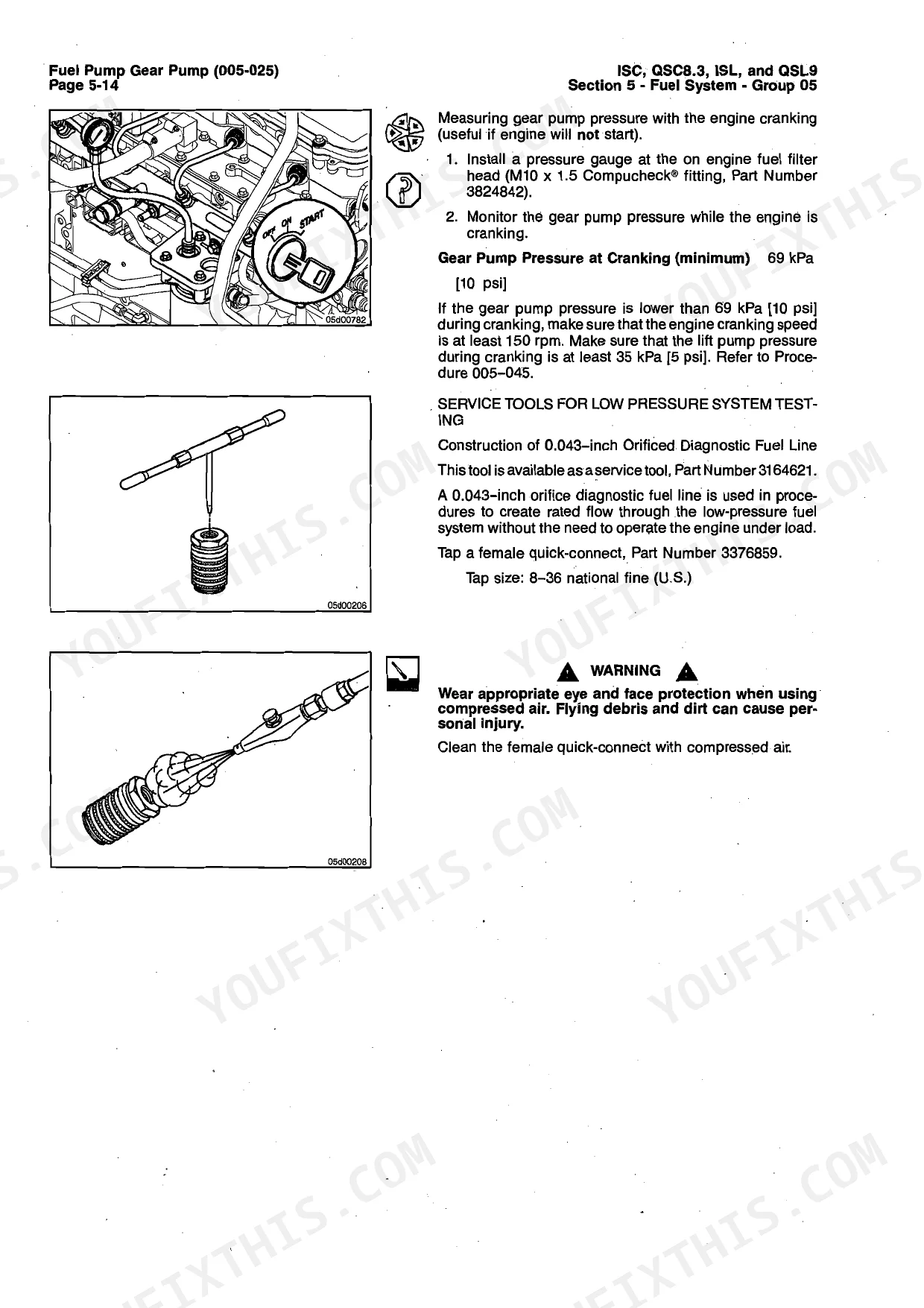

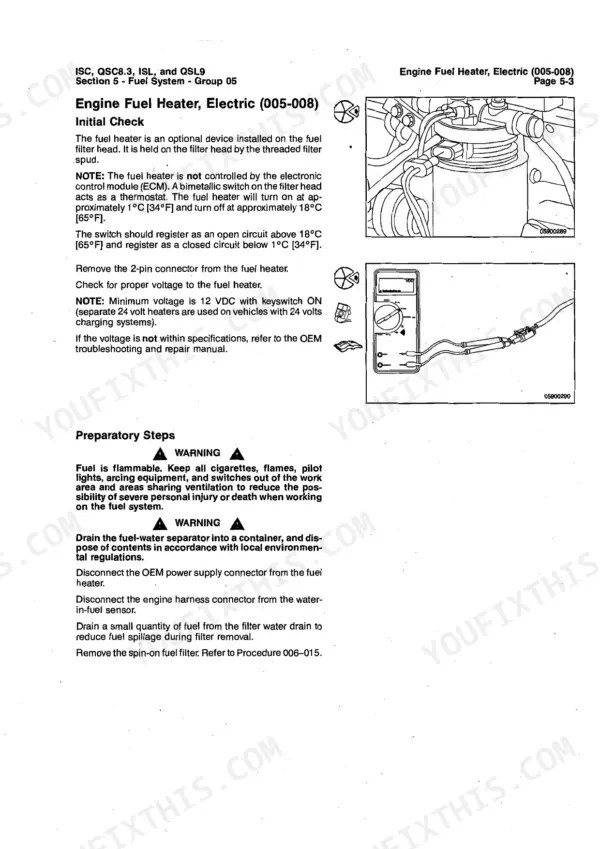

| Fuel System – Group 05 | 509-566 | Service Tools, Engine Fuel Heater, Fuel Consumption, Fuel Pump, Injection Control Valve |

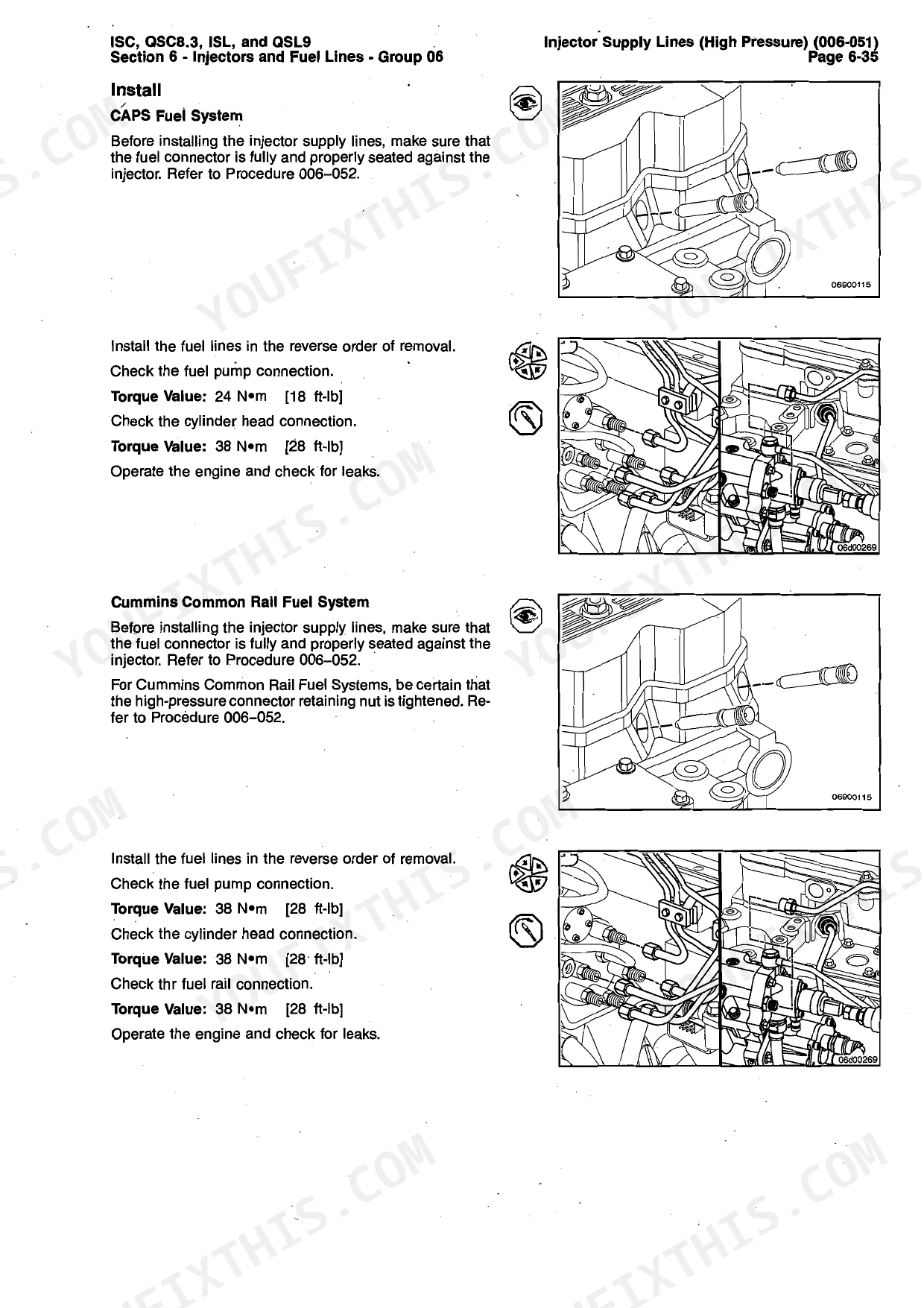

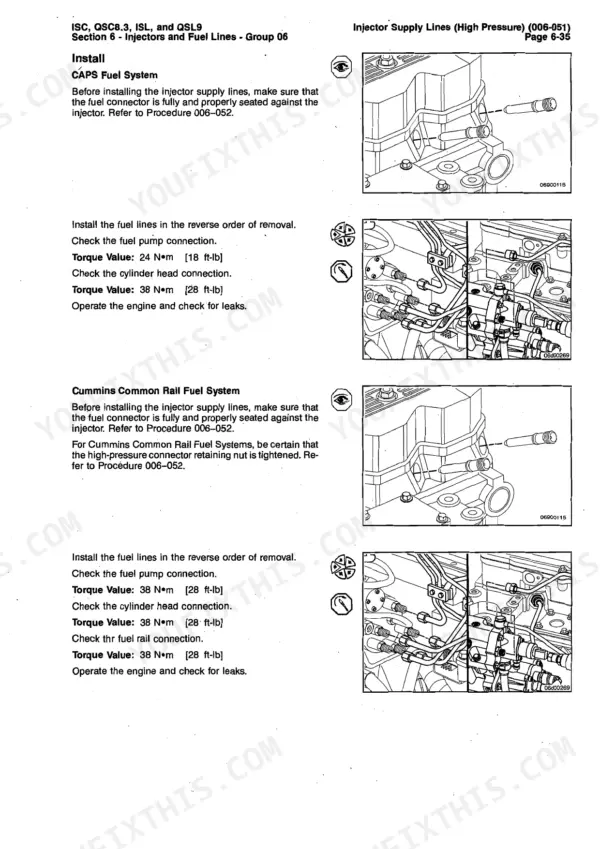

| Injectors and Fuel Lines – Group 06 | 567-604 | Service Tools, Air in Fuel, Ecm Cooling Plate, Fuel Drain Line, Fuel Filter, Injector |
| Lubricating Oil System – Group 07 | 605-638 | Service Tools, Engine Oil Heater, Lubricating Oil Cooler, Lubricating Oil Dipstick, Lubricating Oil Filter, Lubricating Oil Pan |
| Cooling System – Group 08 | 639-686 | Service Tools, Drive Belt, Coolant Filter, Coolant Heater, Coolant Thermostat, Cooling System Diagnostics |
| Drive Units – Group 09 | 687-690 | Hydraulic Pump Drive |
| Air Intake System – Group 10 | 691-734 | Service Tools, Air Crossover, Air Inlet Connection, Air Leaks, Charge-Air Cooler, Turbocharger |
| Exhaust System – Group 11 | 735-740 | Service Tools, Exhaust Manifold, Exhaust Restriction |
| Compressed Air System – Group 12 | 741-748 | Service Tools, Air Compressor, Air Compressor Carbon Buildup, Air Compressor Coolant Lines, Air Governor |
| Electrical Equipment – Group 13 | 749-762 | Service Tools, Alternator, Batteries, Starter Magnetic Switch, Starter Switch, Starter Solenoid |
| Engine Testing – Group 14 | 763-778 | Service Tools, Engine Run-In (Chassis Dynamometer), Engine Testing (Engine Dynamometer), Automated Cylinder Performance Test, Cylinder Cutout Test |
| Mounting Adaptations – Group 16 | 779-788 | Service Tools, Engine Support Bracket, Flywheel, Flywheel Housing, Flywheel Ring Gear |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Filter Micron Rating | 10 micron | p. 39 |
| Lift Pump Run Time (Key On) | 30 seconds | p. 39 |
| High Lubricating Oil Pressure | 449 kPa [65 psi] | p. 43 |
| Cooling System Pressure Test | 140 kPa [20 psi] | p. 46 |
Cummins ISC, QSC8.3, ISL, QSL9 Common Problems This Manual Covers
Cummins ISC, QSC8.3, ISL, and QSL9 engines crank but won't start or have hard starting difficulty.
Verify the lift pump runs for 30 seconds after the key is switched on to assist with fuel priming. Check page 39 for proper operation. Inspect the fuel-water separator and replace the filter with a 10 micron Stratapore element if clogged.
Manual Section: Fuel System – Group 05 p. 509Engine throws fault code 559 with surging behavior and variable fuel rail pressure.
Inspect the fuel rail pressure relief valve for sticking. Replace the fuel filter element, ensuring you use the correct 10 micron filter as specified on page 39. Bleed air from the fuel lines and clear the fault codes before running a cylinder cutout test.
Manual Section: Fuel System – Group 05 p. 509Unexplained internal coolant loss with gradual overheat and coolant temperature above normal during heavy operation.
Pressurize the cooling system to 140 kPa [20 psi] to check for leaks as described on page 46. Inspect the cylinder head gasket and lubricating oil cooler for internal breaches. Drain the system and test the coolant thermostat if temperatures remain high.
Manual Section: Cooling System – Group 08 p. 639Lubricating oil pressure runs abnormally high during operation and fails to drop after engine warmup.
Test the pressure regulator plunger operation. Verify the oil pressure drops back to approximately 449 kPa [65 psi] when normal operating temperature is reached, as noted on page 43. Clean the bypass valve and replace the lubricating oil filter if the pressure remains out of specification.
Manual Section: Lubricating Oil System – Group 07 p. 605Frequently Asked Questions
Is this Cummins ISC, QSC8.3, ISL, QSL9 Repair Manual a digital download?
You get a 788-page searchable PDF (13 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Cummins ISC, QSC8.3, ISL, QSL9 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this Cummins ISC, QSC8.3, ISL, QSL9?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
