Daewoo Solar 010 Hydraulic Excavator Shop Manual

$19.95

Model: SOLAR 010
Type: Hydraulic Excavator
268 Pages·16 MB·Searchable PDF·English·Print-Ready
  • ✓ Hydraulic Schematics
  • ✓ Torque Specs
  • ✓ Bookmarks
Preview Sample Pages (PDF)
Add to Cart
Daewoo SOLAR 010 engine troubleshooting flowchart for starter motor failure, fuel system, and valve clearance issues.
Daewoo Solar 010 Hydraulic Excavator Shop Manual
$19.95

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

Your Daewoo Solar 010 Shop Manual PDF runs 268 pages (OEM #2022-7153E) and walks you through the complete Solar 010 hydraulic excavator, from gear pump overhaul to the Yanmar TNE-series diesel rebuild. You get step-by-step disassembly and reassembly procedures for the swing motor, travel motor, and control valve, right down to brake valve inspection and speed reducer overhaul. A full troubleshooting section pins down poor output, overheating, and black exhaust smoke, while performance test standards let you verify travel and swing speed before the machine goes back to work. Set the bucket relief pressure to 180 kg/cm2 (2,560 psi) and torque the control valve spool ends to 0.4-0.5 kg-m (2.9-3.6 ft lb). Every hour this excavator sits idle costs you money. Bookmarked and keyword-searchable; download it, open it on any device in the shop, and start wrenching.

What's Inside This Daewoo SOLAR 010 Manual

SystemPagesKey Topics
Safety4-14Accessory Applications, Modification Precautions, Work Site Precautions, Operation, Equipment, Shipping and Transportation

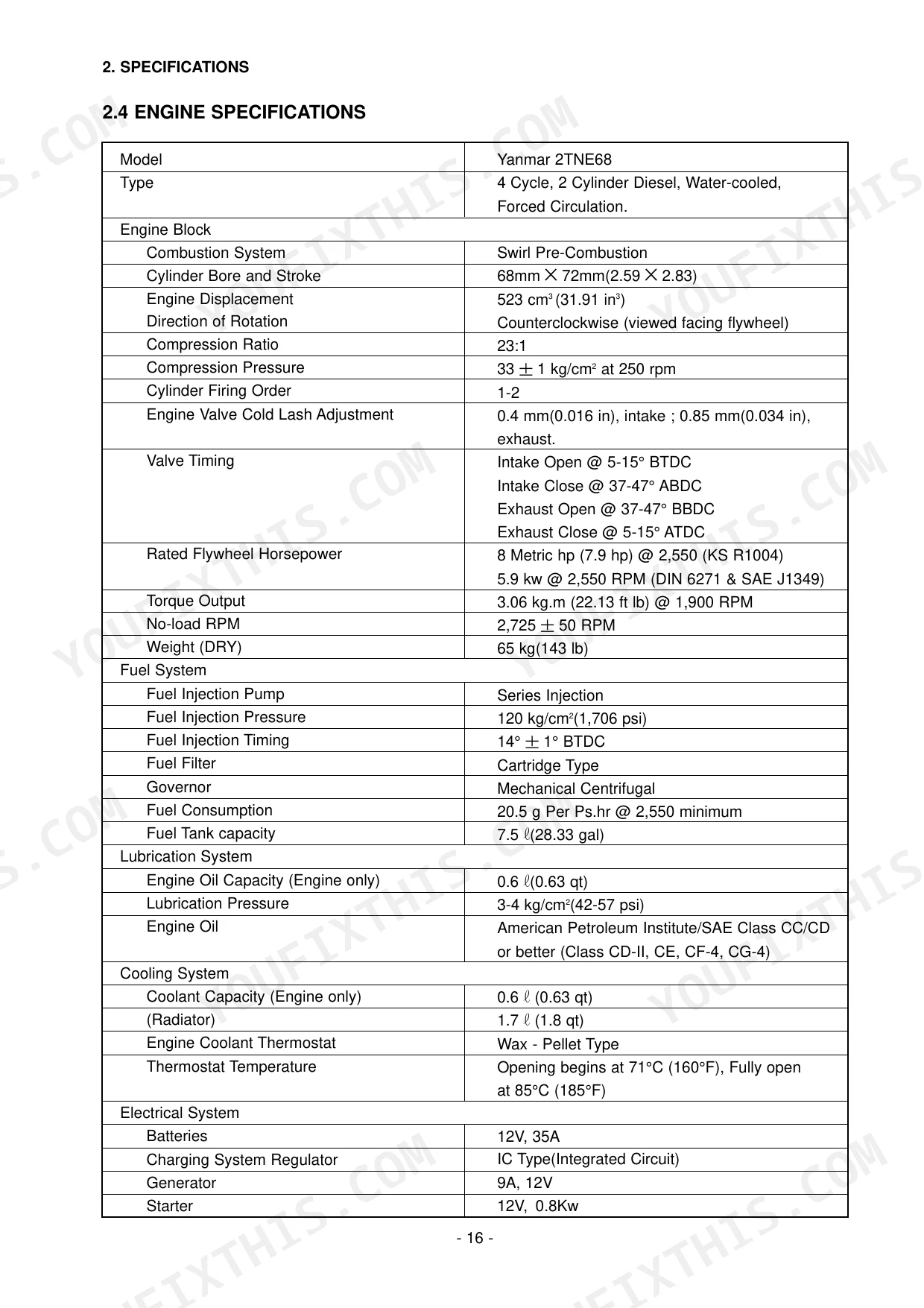

Specifications16-23General Specifications, General Dimensions, Working Range, Engine Specifications, Hydraulic System Component Specifications, Travel System

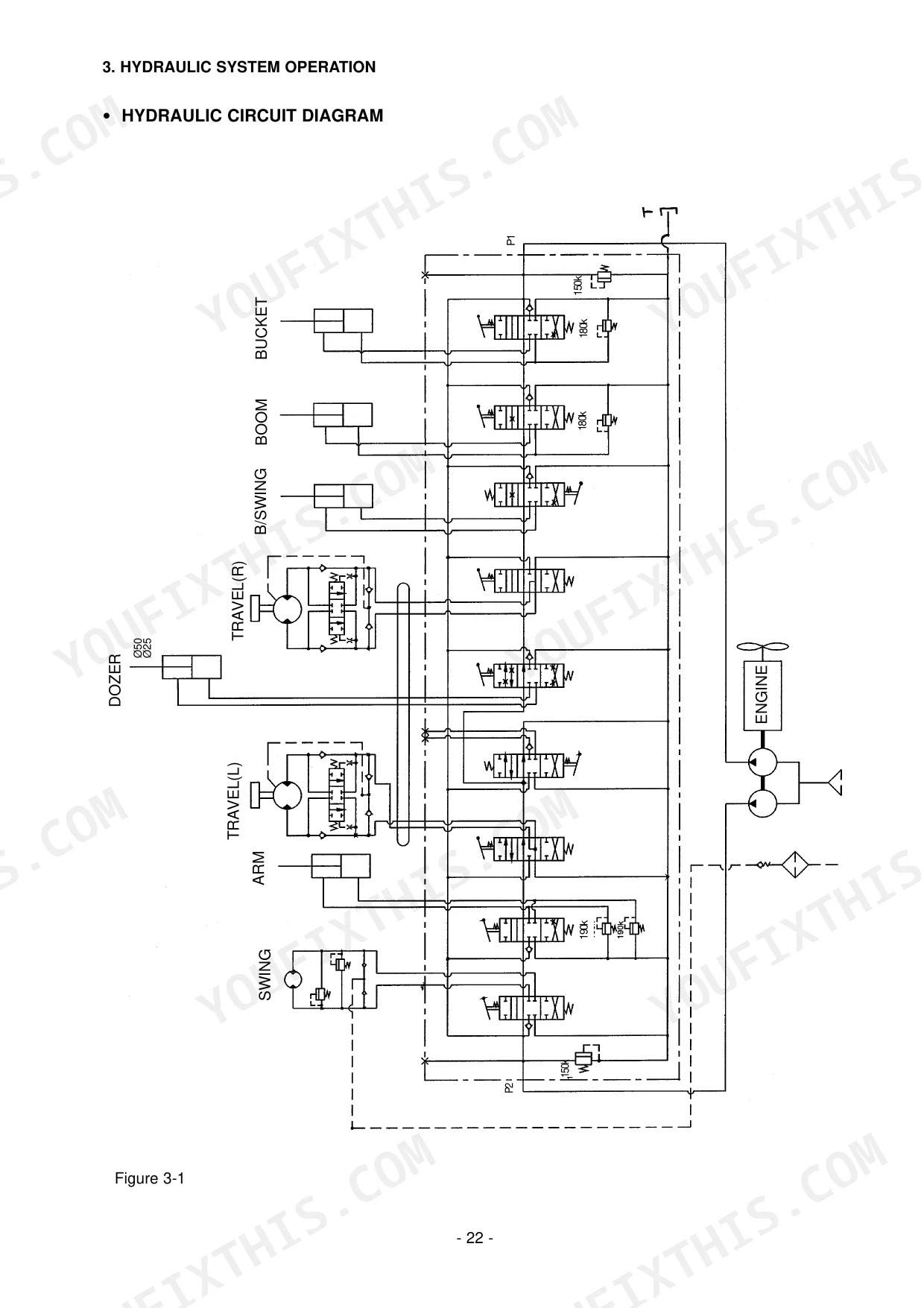

Hydraulic System Operation24-25Hydraulic Circuit Diagram, Pump Operation, Relief Valve Protection, Return Oil Filter
Gear Pump26-29Assembly Drawing, Overhauling Drawing, Pump Inspection, Bushing Repair, Gear Replacement

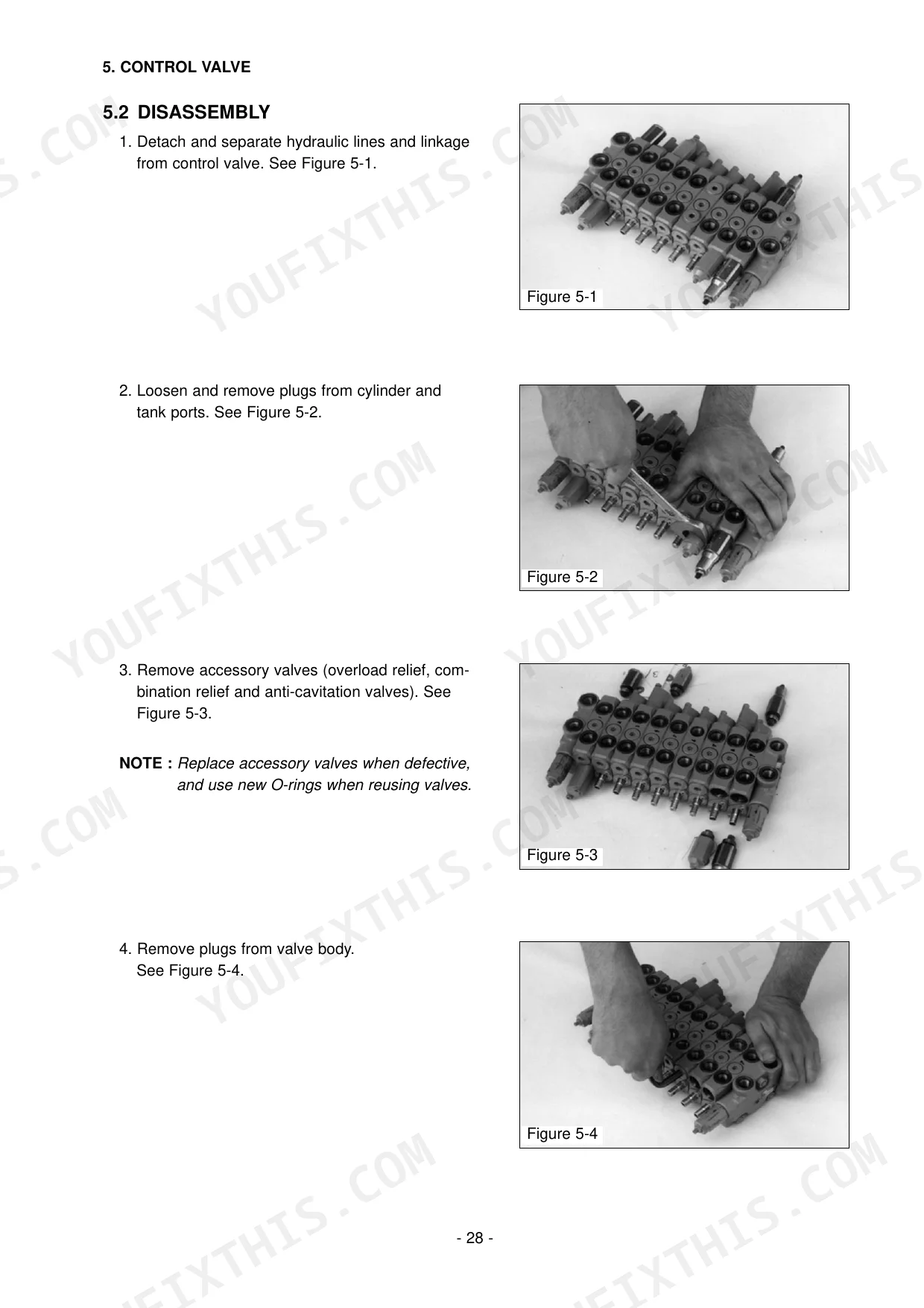

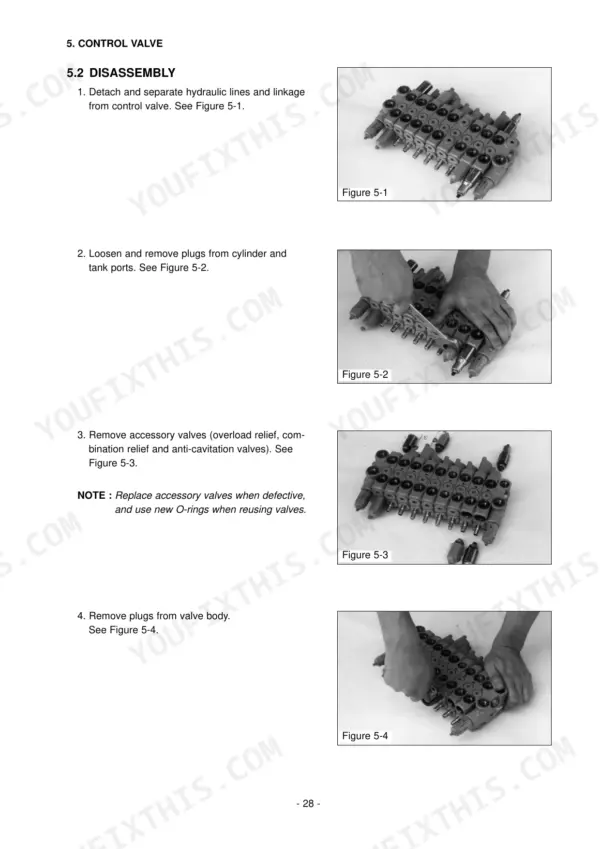

Control Valve30-37Tools, Disassembly, Assembly, Final Assembly and Testing, Pressure Adjustment
Swing Motor38-58Brake Valve Operation, Brake Valve Removal, Brake Valve Disassembly, Brake Valve Inspection and Cleaning, Brake Valve Reassembly, Brake Valve Installation, Swing Motor Parts Lift
Travel Motor60-81Tools, Travel Motor Operation, Travel Motor Overhaul, End Cover Assembly Overhaul, Speed Reducer Overhaul, Assembly
Engine82-96Valve Adjustment Sequence, Wear Limits, Engine Oil Pump Rebuild, Fuel Injection Pump Adjustment, Cylinder Headbolt Torque
Electrical System98-102Starting System, Charging System, Glow Plug System, Testing Starter, Testing Glow Plug, Testing Generator, Testing Stator Coil Continuity

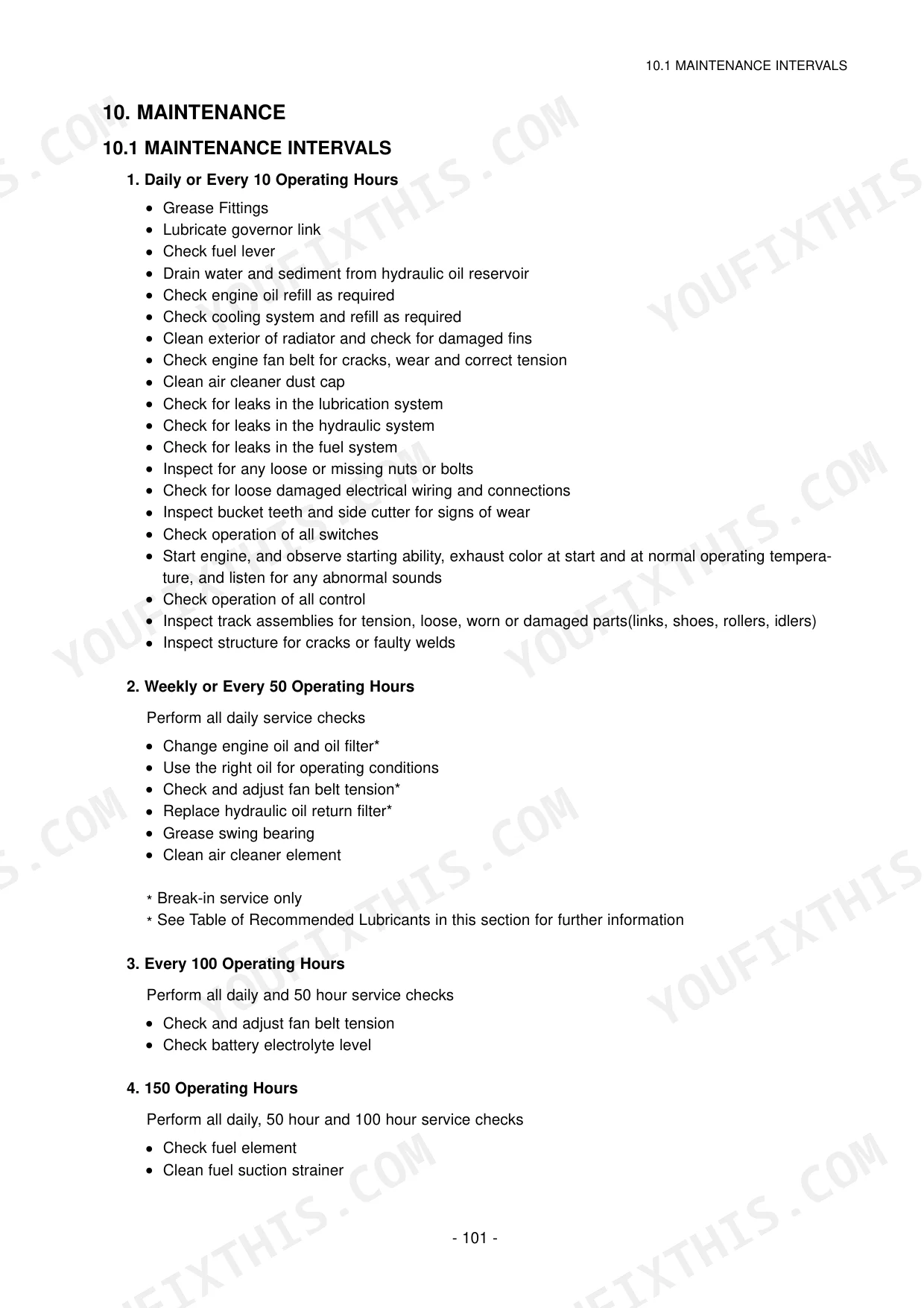

Maintenance104-109Maintenance Intervals, Recommended Lubricants, Lubrication Points, Standard Torques, Track Maintenance

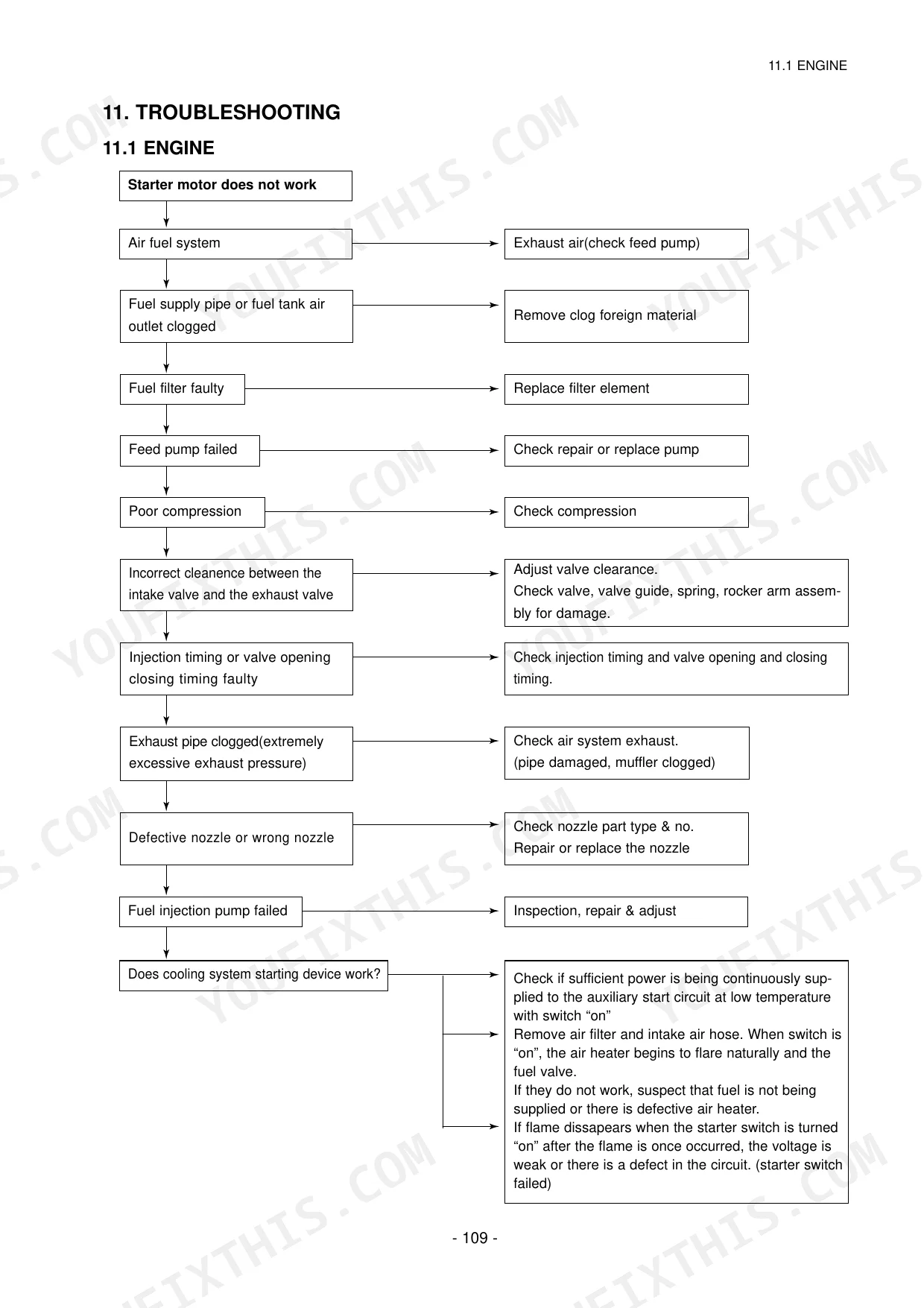

Troubleshooting112-117Engine Troubleshooting, Output Poor, Overheating, Black Exhaust Gas, White Exhaust, Gear Pump Troubleshooting, Travel Motor Troubleshooting
Performance Standard and Test118-120Performance Standards, Test Conditions, Travel Speed Test, Swing Speed Test, Cylinder Performance Tests
Diesel Engine Model TNE Series Introduction and Contents121-126TNE Series Overview, Model Name Breakdown, Application Category, Table of Contents
Engine Specifications and Performance127-1422TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82A, 3TNE82, 3TNE84, 3TNE88
Cross Sectional Views and Cooling/Lubrication Systems143-148Indirect Injection System, Direct Injection System, Cooling Water System, Lubrication System, Fuel System
Troubleshooting and Compression Pressure Diagnosis149-152Trouble Causes and Remedies, Compression Pressure Measurement, Troubleshooting Charts
Special Service Tools and Measuring Instruments153-158Valve Guide Tools, Piston Insertion Tools, Dial Gauges, Tachometers, Compression Gauge Kits
Engine, Measurement, Inspection and Adjustment159-202Cylinder Head and Valves, Piston and Connecting Rod, Crankshaft and Bearings, Battery and Electrolyte Checks, Measurement Standards
Engine, Disassembly and Reassembly203-240Disassembly Sequence, Piston and Connecting Rod Assembly Direction, Pushrod and Rocker Service, Reassembly Torques, Component Service Sections
Engine, Governor241-268Governor Case, Governor Lever and Link, Governor Shaft, O-Ring and Circlip Fitting, Adjustment

Quick Reference Specifications

SpecificationValuePage
Main Pump Relief Pressure (Bucket)180 kg/cm² (2,560 psi)p. 18
Main Pump Relief Pressure (Arm)190 kg/cm² (2,702 psi)p. 18
Control valve spool end torque0.4-0.5 kg•m (2.9-3.6 ft lb)p. 35
Control valve spring cover bolt torque0.6-0.7 kg•m (4.3-5.1 ft lb)p. 35
Adjusting screw lock nut torque1.7 ± 0.2 kg·m (12.3 ± 1.4 ft lb)p. 42
Connector in port on motor torque4 ± 0.4 kg·m (29 ± 2.9 ft lb)p. 42
Torque Wrench capacity5.4kg•m or morep. 60
Socket Wrench size4.5mmp. 60
Operating Weight770 kgp. 16
Fuel Tank Capacity7.5 Lp. 16
Hydraulic Tank Capacity12 Lp. 16
Engine Displacement523 cm3p. 19
BrandDaewoo
ModelSOLAR 010
Machine TypeHydraulic Excavator
Manual TypeShop Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages268
File Size16 MB
Manual No.2022-7153E
Wiring DiagramsNo
Hydraulic SchematicsYes
Torque SpecificationsYes
Bookmarked / IndexedYes
