All 136 pages of this David Brown 885 Operators Manual (OEM #9-5216) are written for one machine: your 885, 885G, or 885 Narrow tractor. Inside, you get wiring diagrams covering the full electrical system, hydraulic schematics for the Selectamatic system, exploded views of engine and chassis components, and a complete specs section with capacities, travel speed tables, and engine data. Set your diesel valve clearance at 0.010 in (0.25 mm) or 0.007 in (0.18 mm) for the 885G gasoline engine; confirm the hydraulic pump hits 22.3 litres/min at 1800 RPM against a 2000 lb/in² maximum pressure before you call the system good. Your machine is down. Get the factory numbers, not forum guesses. Bookmarked and searchable: jump straight to the Selectamatic procedures, the lubrication chart, or the wiring section without scrolling through pages you don't need right now.
What's Inside This David Brown 885, 885G, 885 Narrow Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Points | 4-5 | Foot Brake Pedals, PTO, Belt Pulley, ignition/starter Key, Steering, Clutch, Important Don'ts |
| Take Special Care of Your New Tractor/ First Service (50/100 Hours) | 12 | Engine Run-In, Fuel Filter Element, Engine Oil, Transmission Gearbox, Cylinder Head Bolts, Valve Clearance |
| Description and Operation - General | 11-24 | Instrument Panel, Levers and Pedals, Starting and Stopping Engine, Super Comfort Suspension Seat, De-Luxe Seat |
| Description and Operation - Selectamatic Hydraulic System | 25-40 | Introduction, Trailed Implements, Operating with Depth Control, Operating with Depth Wheel (Tcu), Operating with Height Control, Operating External Equipment Via the 3-Way Valve, Catch Unit, Operating External Equipment Via Live Double-Acting Control Valves |
| Adjustments and Settings | 41-58 | Linkage Settings, Drawbar, Pick-Up Hitch, Wheels and Axles, Tyre Pressures, Ballast, Power Take Off, Belt Pulley |
| Regular Maintenance | 59-76 | Introduction, Schedule of Routine Service Tasks, Daily Inspection, Service Tasks A-E, Fuel, Grease and Anti-Freeze Specifications, Approved Lubricants |

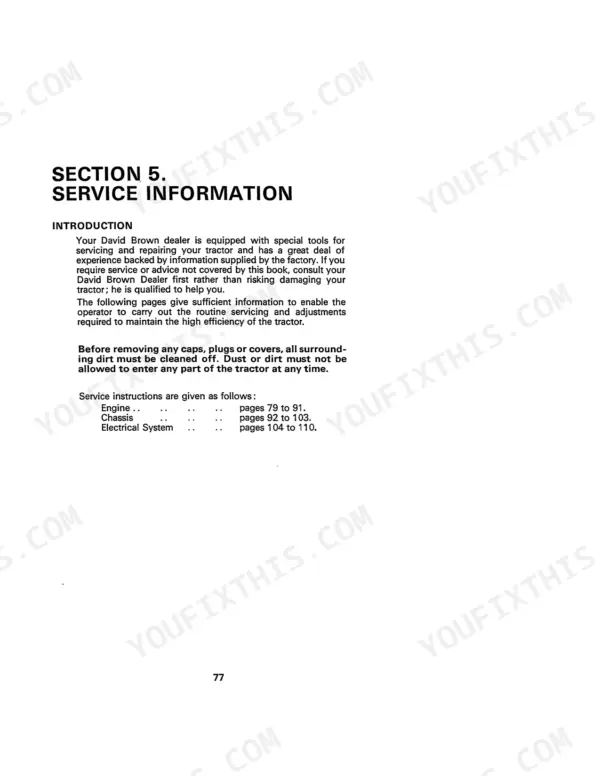

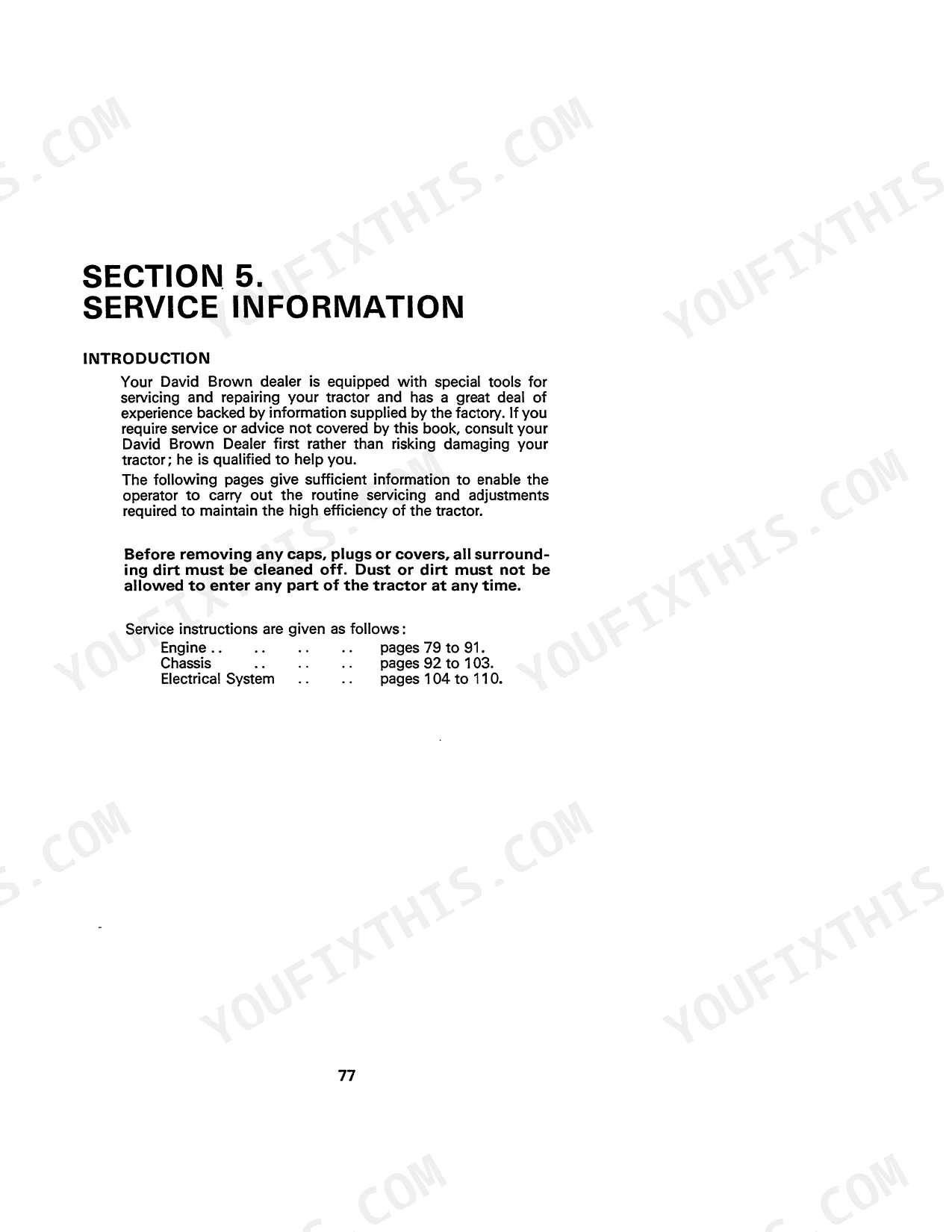

| Service Information | 77-110 | Introduction, Bonnet Removal, Engine, Chassis, Transmission and Hydraulic System, Hydrostatic Power Steering, Brakes, Clutch, Belt Pulley Unit, Electrical System, Wiring Diagrams |

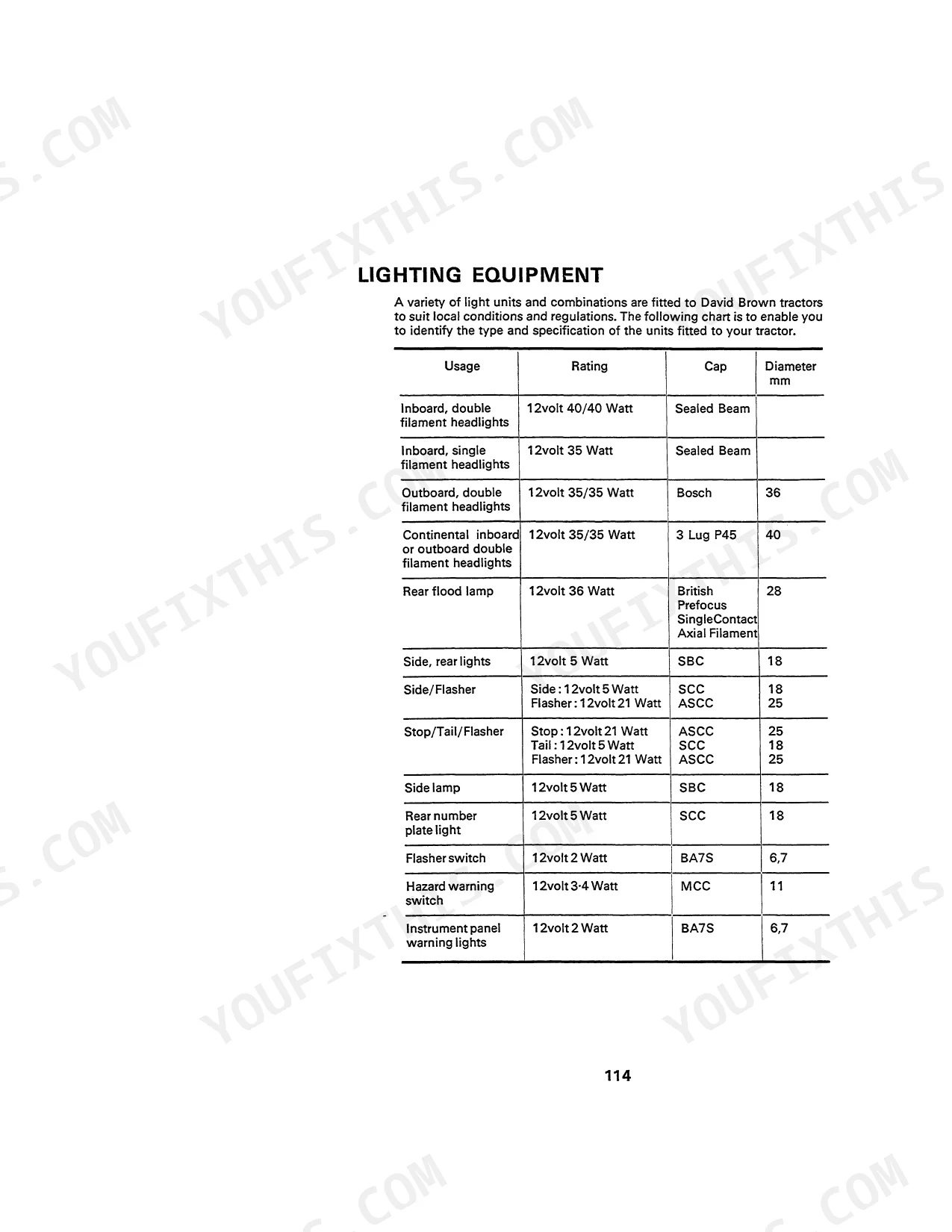

| Specification and Data | 111-130 | Glossary of Abbreviations, Accessories, Implements and Equipment Manufacturers, Lighting Equipment, Capacities, Dimensions, Additional Weights, Power Lift, Clutch, Drawbar, PTO, Seating, Steering, Track Adjustment, Linkage, Wheel Equipment, Engine Specifications, Travel Speed Tables |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 885 & 885G | ||
| Hydraulic pump delivery | 5 gal/min (6 US gal) (22.3 litres/min) | p. 117 |
| Hydraulic pump maximum pressure | 2000 lb/in² (140kg/cm²) | p. 117 |
| 885, 885G | ||
| Fuel Tank Capacity | 48 litre | p. 116 |
| 885, 885 Narrow (Diesel) | ||
| Diesel Engine Valve Clearance (Inlet/Exhaust) | 0.010in (0.25mm) | p. 124 |
| 885G (Gasoline) | ||
| Gasoline Engine Valve Clearance (Inlet/Exhaust) | 0.007in (0.18mm) | p. 125 |
David Brown 885, 885G, 885 Narrow Common Problems This Manual Covers
David Brown 885 hydraulic pump failure and relief valve malfunction where the 3-point linkage will not work. p. 117
Test the hydraulic pump delivery at 1800 rev/min engine speed. Verify the flow reaches 5 gal/min (22.3 litres/min) as specified on page 117. If maximum pressure drops below 2000 lb/in² (140kg/cm²), inspect the relief valve and control valve for wear or damaged seals.
Manual Section: Specification and DataDiesel engine ticking noise and loss of compression due to incorrect valve clearance on cold start. p. 124
Adjust the diesel engine valve clearance with the engine cold. Set both the inlet and exhaust valves to exactly 0.010in (0.25mm). Check page 124 for the specific adjustment procedure. Tighten the locknuts securely and recheck the gap before replacing the rocker cover.
Manual Section: Specification and DataGasoline engine running rough and backfiring out the exhaust with poor idle quality. p. 125
Measure the valve clearances on your gasoline engine while completely cold. Adjust the exhaust valve gap to 0.007in (0.18mm) and the inlet to 0.010in (0.25mm) using a feeler gauge. Refer to the specifications on page 125. Verify all locknuts are tight after setting.
Manual Section: Specification and DataTractor stalls out in the field and engine will not restart due to fuel starvation. p. 116
Check the fuel level in the tank before bleeding the system. Fill the tank to its maximum capacity of 48 litre as listed on page 116. Inspect all diesel fuel lines for air leaks and tighten the connections before priming the pump.
Manual Section: Specification and DataFrequently Asked Questions
How to reset ignition on David Brown 885?
The manual describes how to operate the ignition switch during starting. For gasoline engines, turn the ignition key one click to the right and check that the three warning lights glow. For diesel engines, turn the starter key one click to the right and check the warning lights. There is no explicit procedure for 'resetting' the ignition in a troubleshooting sense.
What are the torque specs for cylinder head bolts on David Brown 885?
The torque specification for the cylinder head bolts is 90 lb ft (12,5kg m). The tightening sequence is shown in Fig. 5/17, and valve clearances should be checked after tightening the head.
How to reset injection pump on David Brown 885
The mechanical governor on the diesel engine's fuel injection pump requires no maintenance, and its factory-set maximum speed and idling speed adjustments should not be disturbed. The manual does not provide a procedure for 'resetting' the injection pump.
What are the replacement specifications for Hydraulic pump?
The hydraulic pump is a balanced gear type, mounted in the rear axle case, and delivers 5 gal/min (6 US gal) or 22.3 litres/min at 1800 rev/min engine speed, at a maximum pressure of 2000 lb/in² (140kg/cm²). The manual does not provide specific replacement part numbers or models.
How will I receive this David Brown 885, 885G, 885 Narrow Operators Manual?
A 136-page Operators Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this David Brown 885, 885G, 885?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
