Need the factory reference for your David Brown 1210 or 1212? This Operating and Maintenance Manual (OEM #9-5007) covers daily operation through full service for the 1210, 1210 4WD, and 1212 Tractor lineup. Inside: diagrams of major assemblies, step-by-step service procedures, a structured maintenance schedule, and key torque specifications for critical fasteners. Open the specs section to find factory clearances, pressures, and fluid capacities the way David Brown's engineers published them. Your machine is down. Get the right numbers on the first try. Bookmarked and keyword-searchable: pull it up on your tablet in the field and find the spec before you touch a wrench.
What's Inside This David Brown 1210, 1210 4WD, 1212, 1212 Tractors Manual
| System | Pages | Key Topics |
|---|---|---|

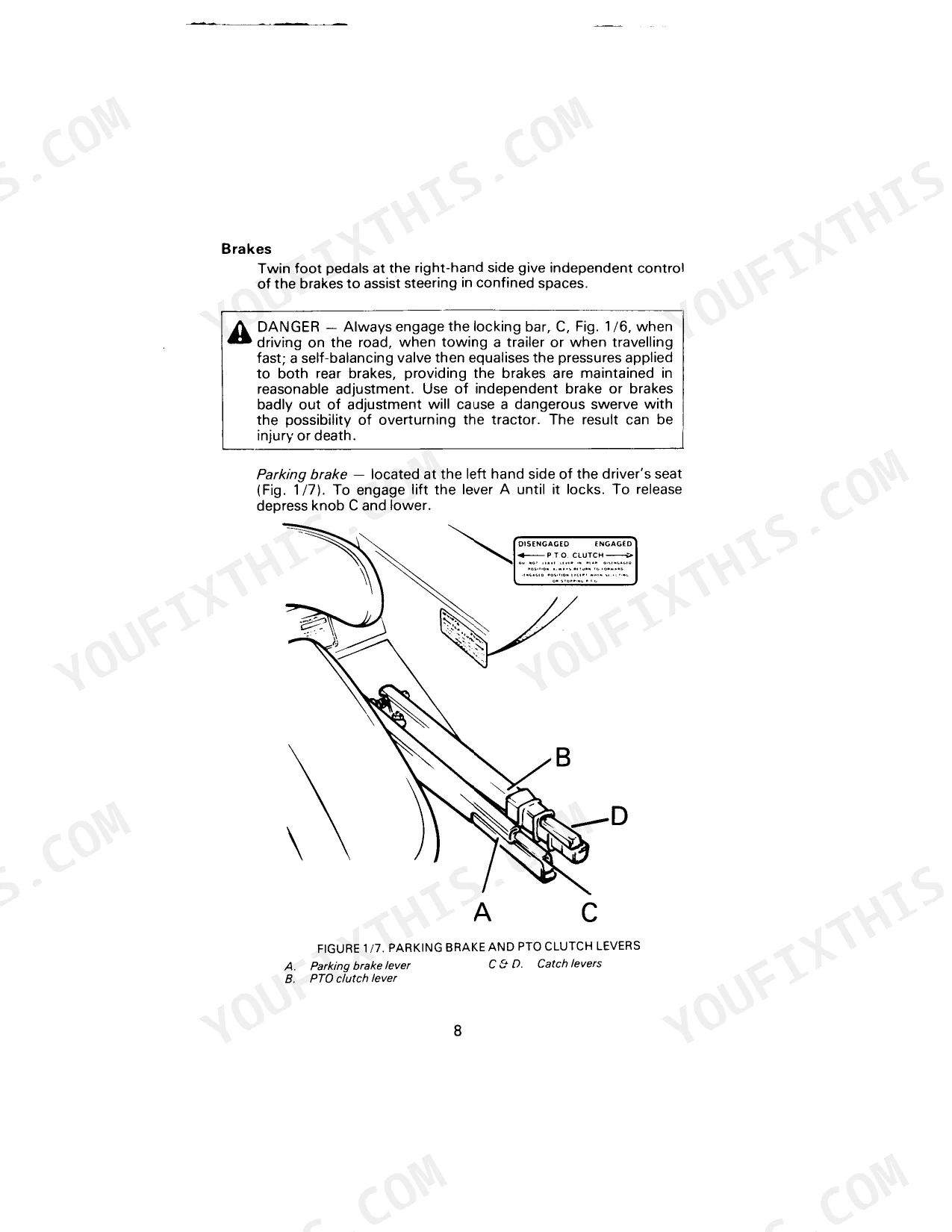

| Cab Controls Supplement | 1-6 | PTO Clutch Lever, Parking Brake Lever, Windscreen Washer, Heater and Ventilator Controls, Interior Light, Sun Visor |
| Multi-Speed Power Take-Off (PTO) | 56 | Low Range 540 r/min at 1800 Engine RPM, High Range 1000 r/min at 2000 Engine RPM, PTO Clutch Engagement Procedure |
| Approved Lubricants and Fluid Capacities | 75 | Front Drive Axle Sae 140, Differential Capacity 1.7 Litres (3 Imperial Pints), Drain and Refill Intervals |
| Fuel System | 89 | Venting Procedure After Fuel Runs Out, Minimum 9 Litres (2 Gallons) Before Priming, Hand Priming Lever, Filter Cleaning |
| Engine Specifications | 94 | Cylinder Head Bolt Torque 135 Nm (100 Lb Ft), Critical Fastener Torque Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 540 r/min at 1800 engine rpm | p. 56 | |
| 1000 r/min at 2000 engine rpm | p. 56 | |
| 135 Nm (13.8 kg·m / 100 lb ft) | p. 94 | |
| SAE 140 — capacity 1.7 litres (3 Imperial pints) | p. 75 | |
| 9 litres (2 gallons) | p. 89 |
David Brown 1210, 1210 4WD, 1212, 1212 Tractors Common Problems This Manual Covers
Belt slipping, squealing, or shredding on 4WD drive components, excessive crud packed into pulley grooves
Remove all dirt, crop debris, and grease buildup from belt surfaces and pulley grooves before assessing belt condition. Inspect the inner belt surface for cracking, glazing, or fraying. Replace any belt showing visible wear or hardening. Confirm correct belt routing and check service intervals on the maintenance schedule before reinstalling.
Manual Section: Regular Maintenance Service TasksEngine cranks slowly or starter won't engage, battery cables corroded or chafed against radiator hoses
Remove both battery cables and clean terminal posts and cable ends thoroughly with a wire brush. Inspect the full cable run for abrasion against hoses or metal edges. Check all fuses before condemning the starter or alternator. Test charging circuit connections to isolate any open or high-resistance paths.
Manual Section: Electrical System ServiceEngine won't restart after running out of fuel or after fuel system work p. 89
Vent the fuel system: put a minimum of 9 litres (2 gallons) in the tank, check the glass bowl and all joints for leaks, then slacken the specified vent points in sequence while operating the hand priming lever until fuel flows free of air bubbles. Full procedure on page 89.
Manual Section: VENTING THE FUEL SYSTEMFrequently Asked Questions
Does the PTO speed increase when you shift it on a David Brown 1210?
Yes, the PTO speed can increase when shifting between ranges. The David Brown 1210 offers two PTO speed ranges: a low range providing 540 r/min PTO speed at 1800 r/min engine speed, and a high range providing 1000 r/min PTO speed at 2000 r/min engine speed. Shifting from the low range to the high range and adjusting engine speed can increase the PTO speed from 540 r/min to 1000 r/min.
How to reset fuel system on David Brown 1210
To vent the fuel system after it has been disturbed, first put a minimum of 9 litres (2 gallons) of fuel in the tank. Then, check the glass bowl and all joints for leaks. Follow the detailed procedure on page 89, which involves slackening specific pipes and operating the hand priming lever to clear air from the system.

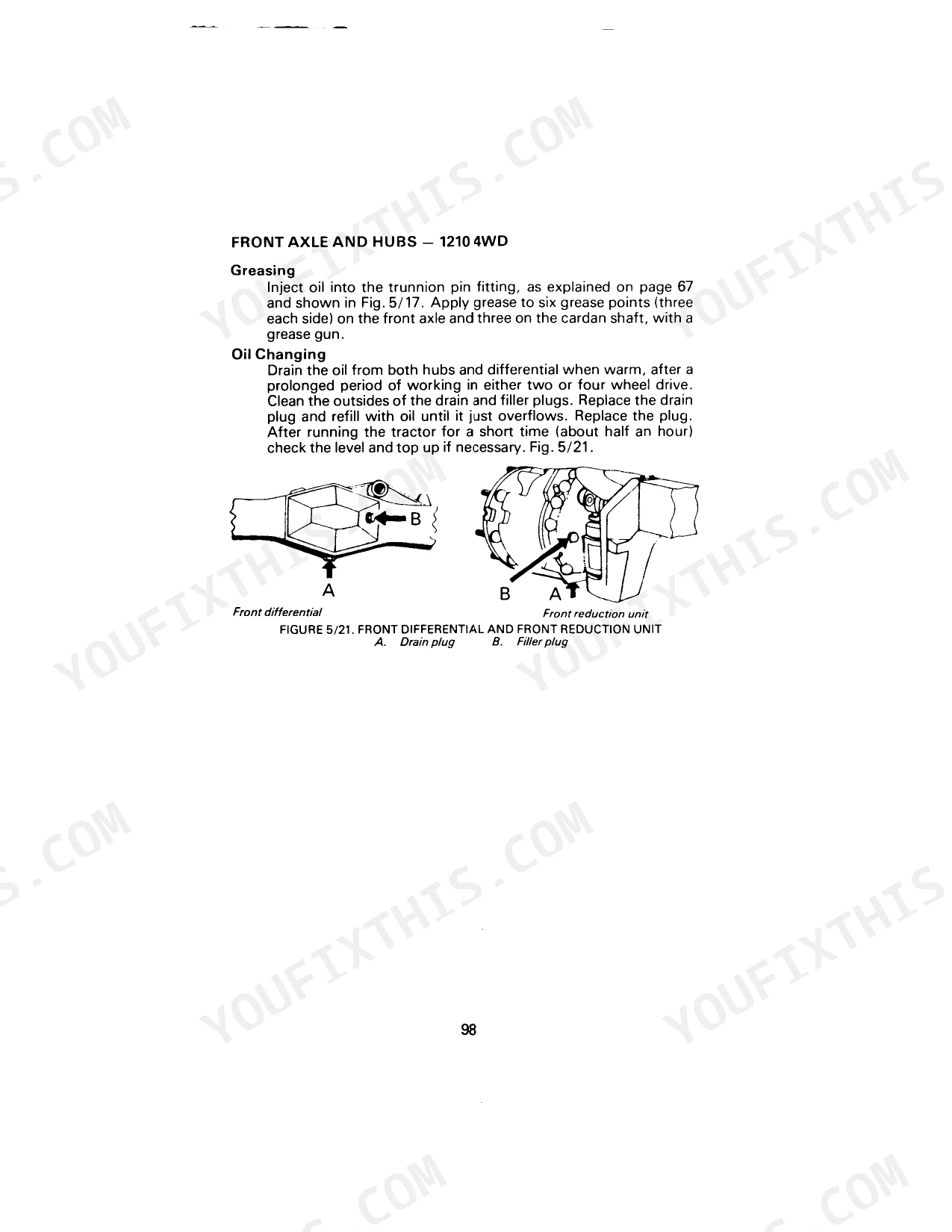

What are the replacement specifications for Front differential assembly?
The Front differential assembly requires SAE 140 oil (see page 75) and has a capacity of 1.7 litres (3 Imperial pints, see page 133). For maintenance, drain the oil from both hubs and the differential when warm, then refill with the correct oil until it just overflows. The full procedure for draining and refilling is detailed on page 98.
What format is this manual in?
Instant PDF download. You get the complete, searchable Operating and Maintenance Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this David Brown 1210, 1210 4WD, 1212, 1212?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this David Brown 1210, 1210 4WD, 1212, 1212 Tractors manual include wiring diagrams?
No wiring diagrams are included. This is an Operating and Maintenance Manual covering PTO operation, fuel system venting, lubrication specifications, and maintenance schedules. For dedicated electrical service, a separate David Brown service manual may be needed.
