Need the factory operator guide for your David Brown 1210, 1210 4WD, or 1212? This 168-page Operators Manual (OEM #9-5016) is the complete reference for all three tractors, covering the Selectamatic hydraulic system, Hydra-Shift and Synchromesh transmission procedures, track and wheel adjustments, and attachment linkage settings. Open to detailed Selectamatic hydraulic control diagrams tracing the system from selector dial through dump valve, plus high-quality exploded views for the linkage and attachment sections. You get a thorough controls walkthrough too: brake, clutch, differential lock, and 3-way valve operation for external hydraulic equipment. First service is due at 50/100 hours: fuel filter element, engine oil and filter, cylinder head bolts, wheel nuts, all listed and ready to check off. No more hunting through a worn paper copy. Bookmarked by section; jump straight to what you need on any device.
What's Inside This David Brown 1210, 1210 4WD, 1212 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Points | 2-10 | PTO Driven Implements, Loose Clothing, ignition/starter Key, Steering and Driving Controls, Clutch, Brake, Drawbar or Pick-Up Hitch |
| Take Special Care of Your New Tractor | 11 | - |
| First Service (50/100 Hours) | 11 | Fuel Filter Element, Engine Oil and Filter Element, Transmission Gearbox, Final Drive Reduction Housings, Cylinder Head Bolts, Wheel Nuts |
| Description and Operation - General | 12-30 | Instrument Panel (Engine Oil Warning Light, Charge Warning Light, Transmission Filter Warning Light, Light Switch, Engine Speed Indicator, Direction Indicator, Hazard Warning Switch, Engine Stop Control) |

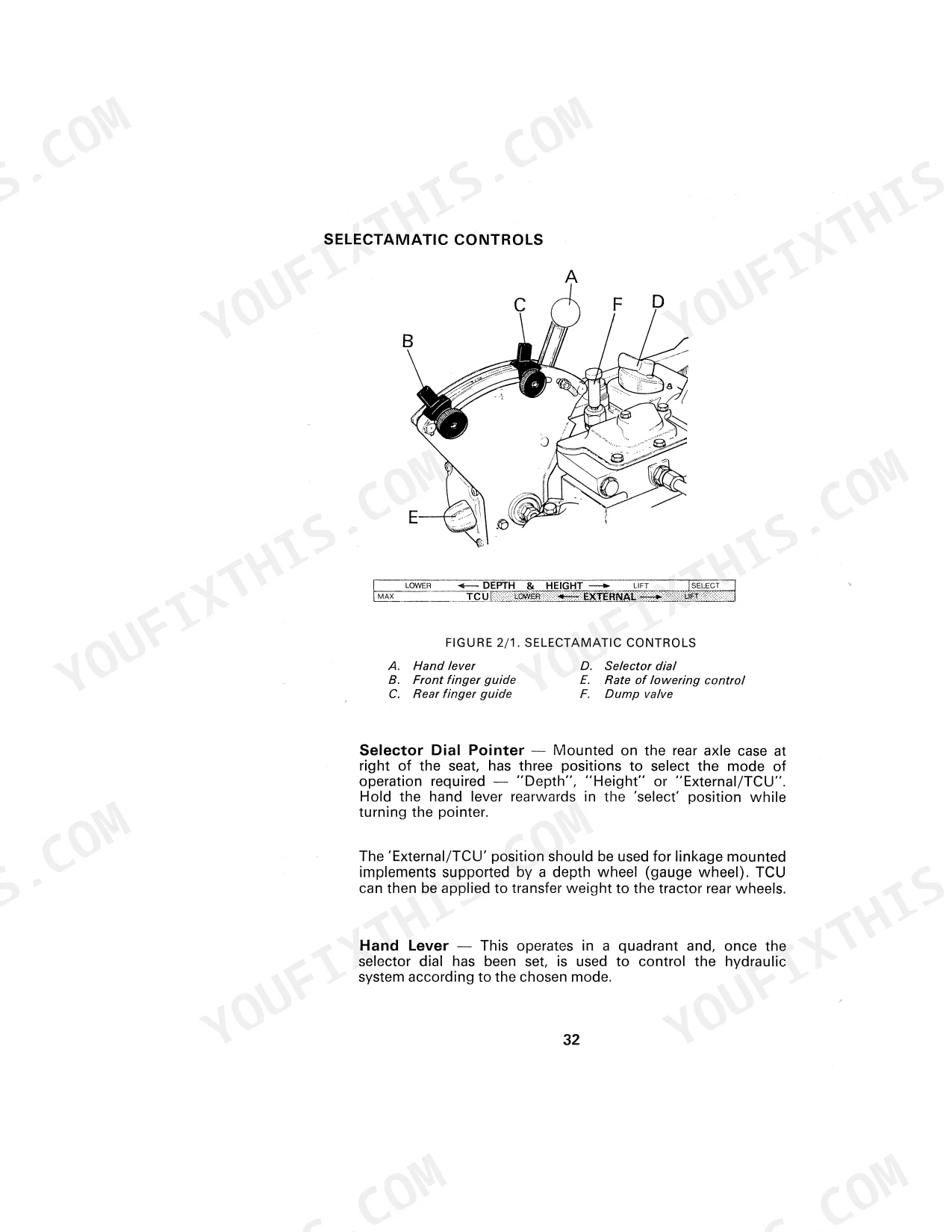

| Description and Operation - Selectamatic Hydraulic System | 31-50 | Introduction, Selector Dial Pointer, Hand Lever, Sensing Unit, Finger Guides, Lowering Control, Dump Valve, Lift Latch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| First Service Interval | 50/100 hours | p. 15 |
David Brown 1210, 1210 4WD, 1212 Common Problems This Manual Covers
David Brown 1210 hydraulic lift arms won't hold position, implements creeping down p. 36
Set the Selectamatic three-way valve to TCU or depth control mode per page 36. Verify the hand lever engages cleanly through its full range without binding. Check hydraulic oil level and look for external leaks at hose connections. Inspect and service the system at the 50/100-hour interval per .
Manual Section: Description and Operation - Selectamatic Hydraulic SystemAuxiliary hydraulic motor receiving inconsistent oil flow, attached implement running erratically and stalling p. 36

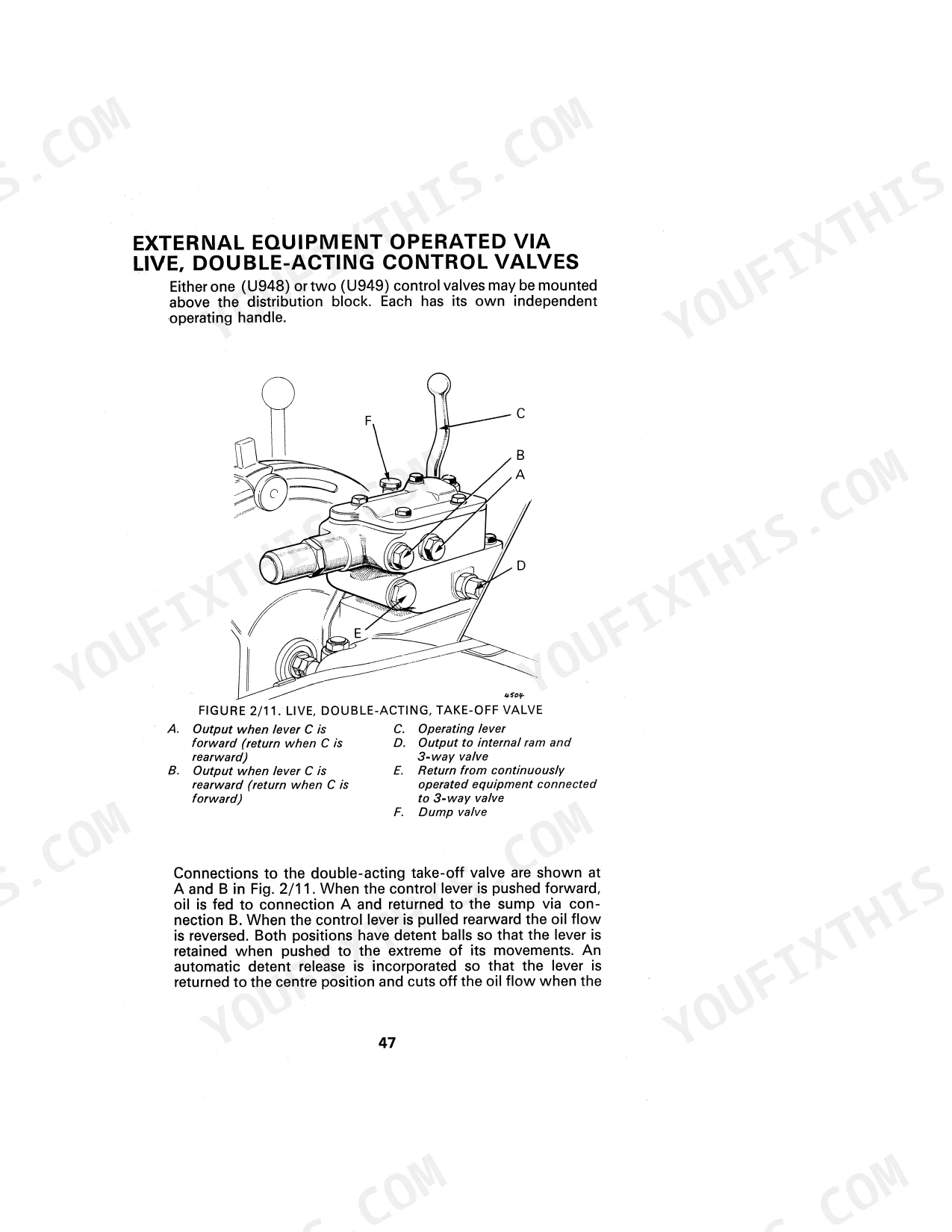

Rotate the three-way valve fully to the external position and confirm the handle seats completely in the forward or backward detent per page 36. Partial engagement restricts flow to the motor. Inspect the valve handle and lever for wear or damage. Service valve components at the 50/100-hour checkpoint per .
Manual Section: Description and Operation - Selectamatic Hydraulic SystemEngine oil pressure warning light flickering or staying on at operating temperature, pressure low p. 16
Check engine oil level immediately and top up if low. Inspect the warning light circuit layout on page 16. If the light stays on with correct oil level, suspect a failing oil pressure sender or blocked oil gallery. Change engine oil and filter element at the 50/100-hour service interval per .
Manual Section: Description and Operation - GeneralEngine won't crank or cranks too slowly to fire in cold weather p. 28
Use the cold starting button as outlined on page 28 and allow the glow circuit time to warm the combustion chambers before cranking. Verify battery terminals are clean and connections tight. Confirm engine oil viscosity suits the ambient temperature. Replace the fuel filter element at the 50/100-hour service interval.
Manual Section: Starting in Cold Weather ProcedureFront axle wobbling or sagging noticeably, visible movement at the frame member p. 2
Jack the tractor safely and inspect the frame member supporting the front axle for cracks, fatigue lines, or weld failures per the safety guidelines on page 2. Check all axle mounting fasteners for tightness and torque to specification per . Do not operate the machine with a cracked or compromised frame member.
Manual Section: Safety Points
