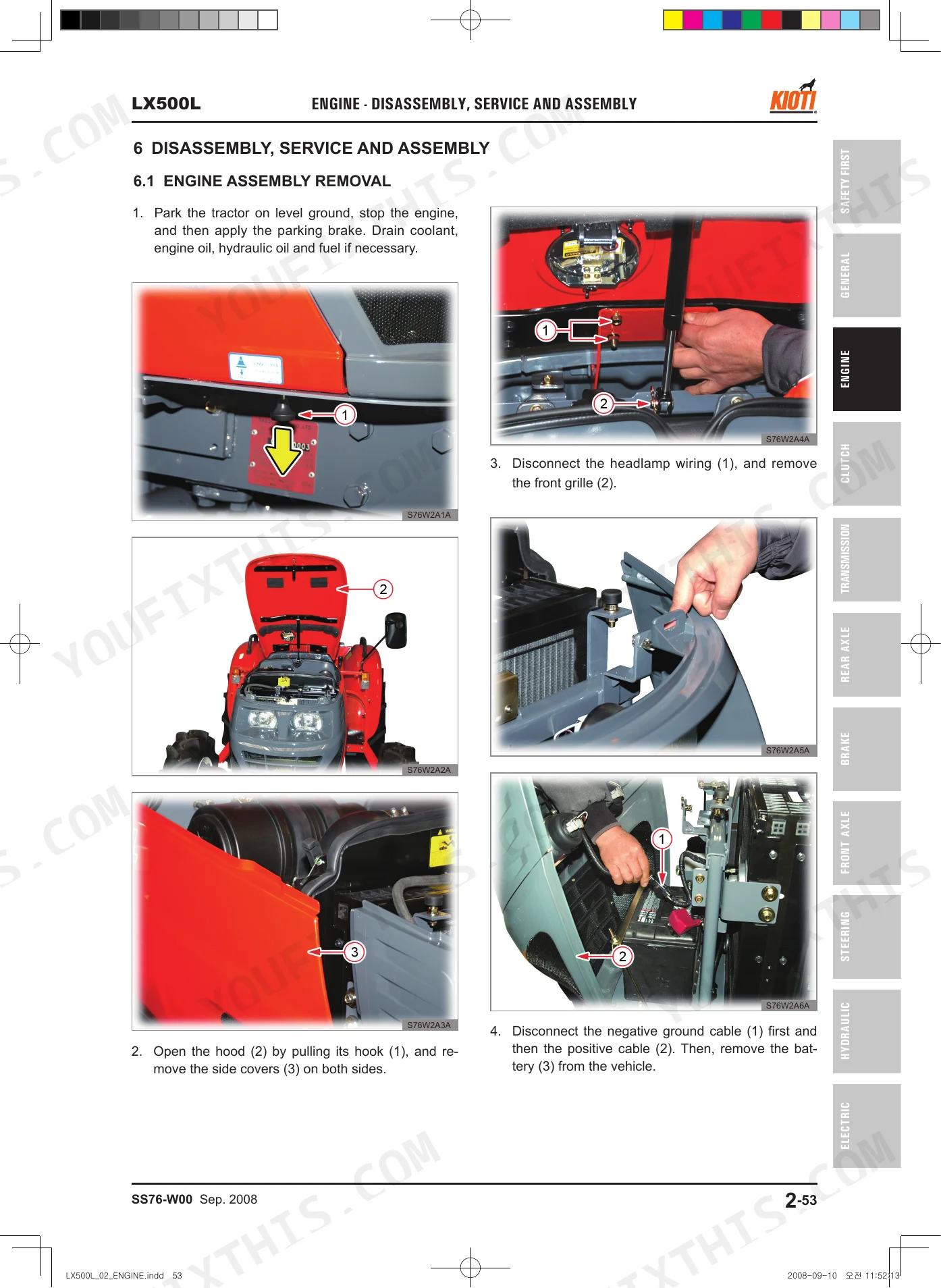

The LX500L Workshop Manual (OEM #SS76-W00) maps every system on your 1999-2007 Kioti tractor across 582 pages. Hydraulic schematics route the full MLS load-sensing and gear pump circuits; wiring diagrams trace each relay, safety switch, and sensor from the bonnet harness to the instrument panel. Disassembly and assembly procedures cover the engine, transmission, clutch, rear axle, and front axle, backed by troubleshooting charts, exploded views, and clearance specs for every major driveline component. Numbers are here when you need them: fan belt deflection at 7-9 mm, front wheel bolts torqued to 167-186 Nm, oil filter swapped on schedule every 150 hours. Stop chasing wiring faults with a multimeter and a prayer. Everything is bookmarked by system and searchable by keyword, so one download follows you anywhere on the shop floor.
What's Inside This Kioti LX500L Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 5-18 | - |

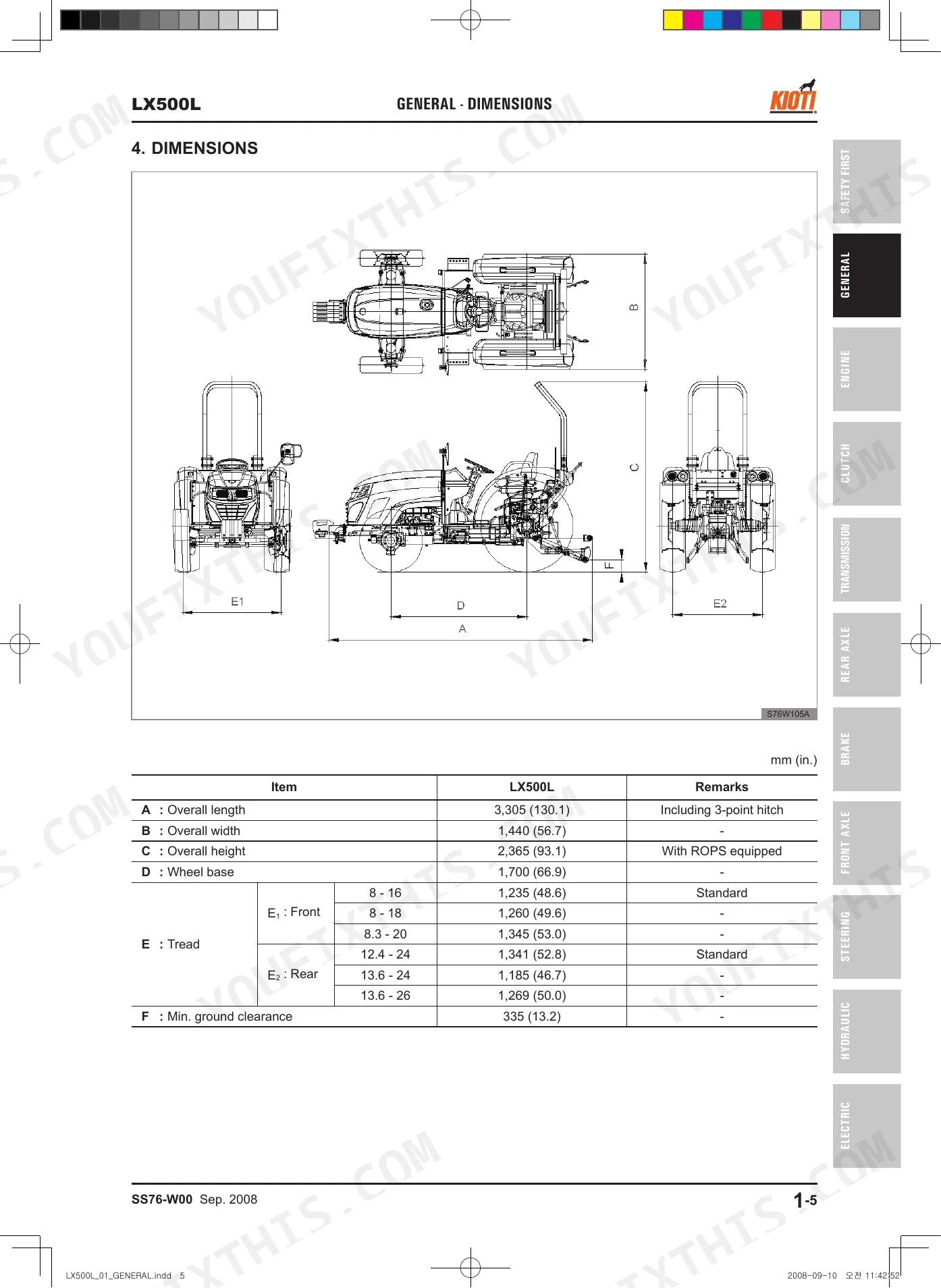

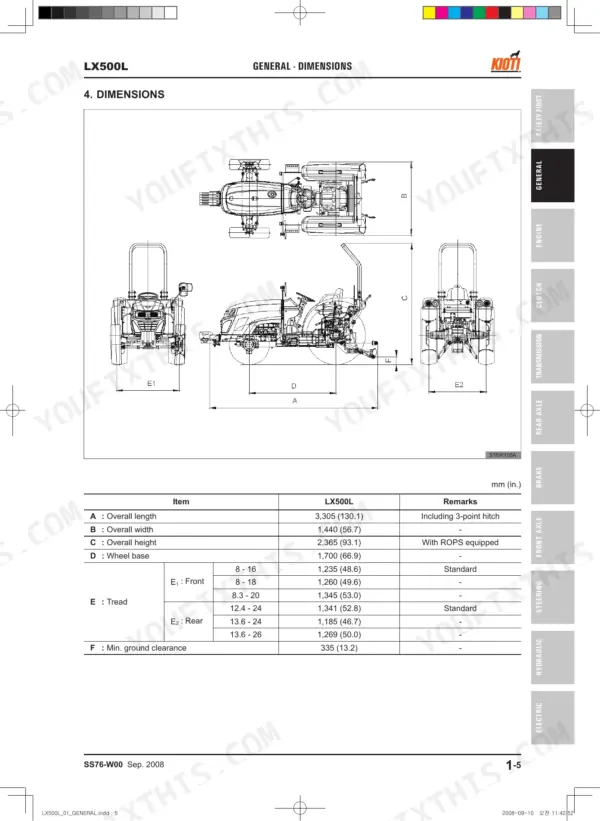

| General | 19-42 | Description for Symbols and Abbreviations, Tractor Appearance, Serial Number (Tractor Serial Number Location, Engine Serial Number Location, Transmission Number), Dimensions |
| Engine | 43-150 | Specifications (Engine Dimensions, Service and Maintenance Standard) |
| Clutch | 151-172 | Specifications (Tightening Torque, Sealant), Structure and Function, Troubleshooting |
| Transmission | 173-246 | Specifications (Tightening Torque, Sealant and Adhesive) |
| Rear Axle | 247-282 | Specifications (Transmission Fluid, Tightening Torque) |
| Brake | 283-298 | Structure And Function, Brake Pedal Free Play, Brake Switch Adjustment, Parking Brake Adjustment, Brake Components Inspection, Brake Disc, Brake Plate, Cam Plate |
| Front Axle | 299-346 | Specifications (Servicing Spections, Tightening Torque, Sealant and Adhesive), Structure and Function (Power Transfer Diagram for Front Axle, Load Transfer, Floating Seal) |
| Steering System | 347-378 | Specification (Steering Cylinder, Steering Unit, Tightening Torque) |

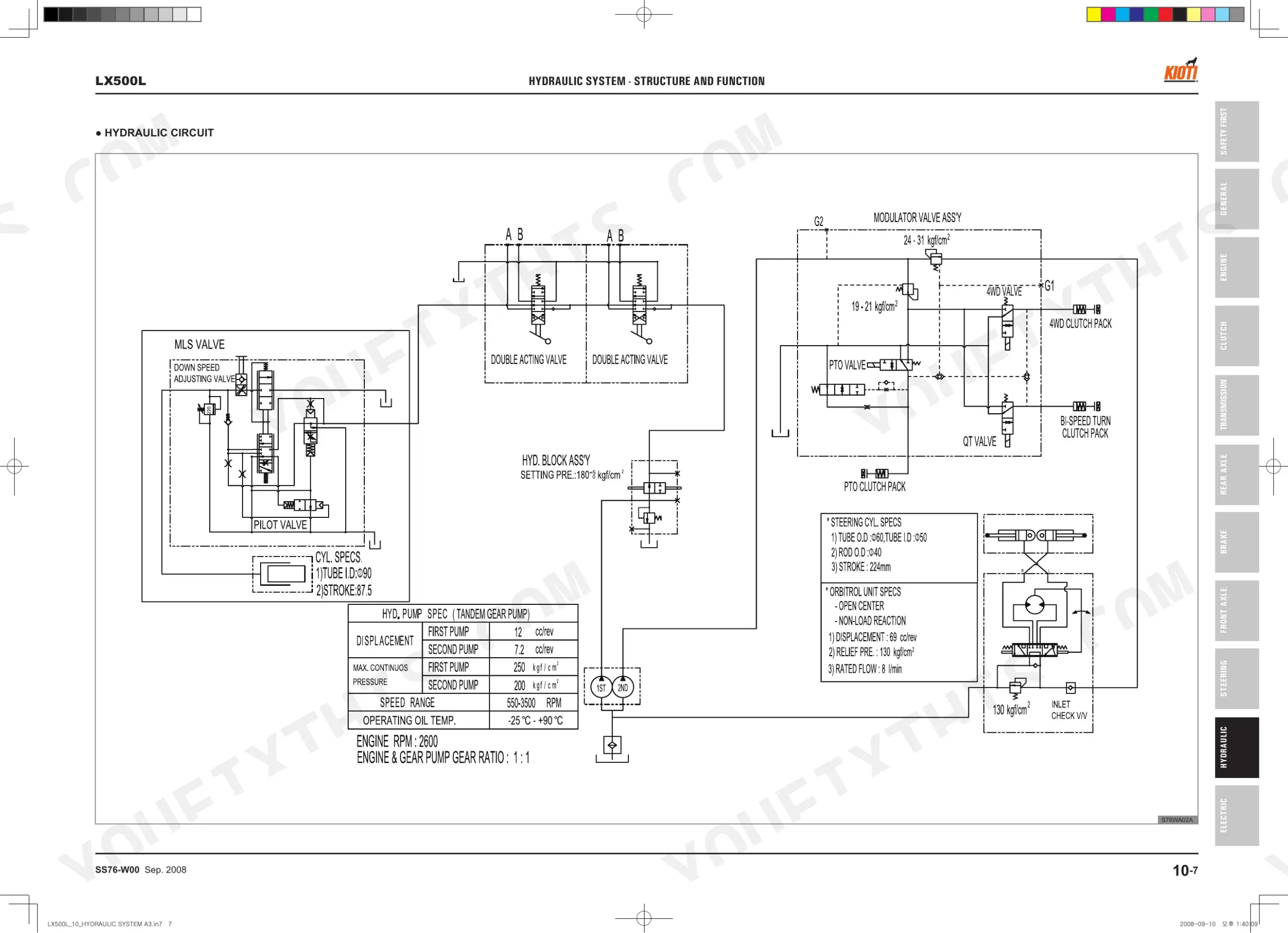

| Hydraulic System | 379-466 | Structure And Function, Components And Circuit Diagram, Operating Principle, Implement Section, Main Body Section, Hydraulic Components, Gear Pump, Oil Filter |
| Electric System | 467-574 | Components (Fuse Box, Slow-Blow Fuse, Key Switch, Combination Switch, Display Unit, Flasher Unit, Engine Stop Relay 5P, Preheat Relay, Hazard Warning Flasher Switch, Glow Plug, Engine Stop Solenoid, Pickup Sensor, Parking Brake Switch, Brake Switch, PTO Micro Switch, Twin Relay, Ignition Relay, Headlamp Relay, Safety Switch, PTO Selection Switch, 4WD/QT Switch, Instrument Panel, Engine Oil Pressure Switch, Coolant Temperature Sensor, Fuel Sender, Alternator, Headlamp, Qt Safety Switch) |

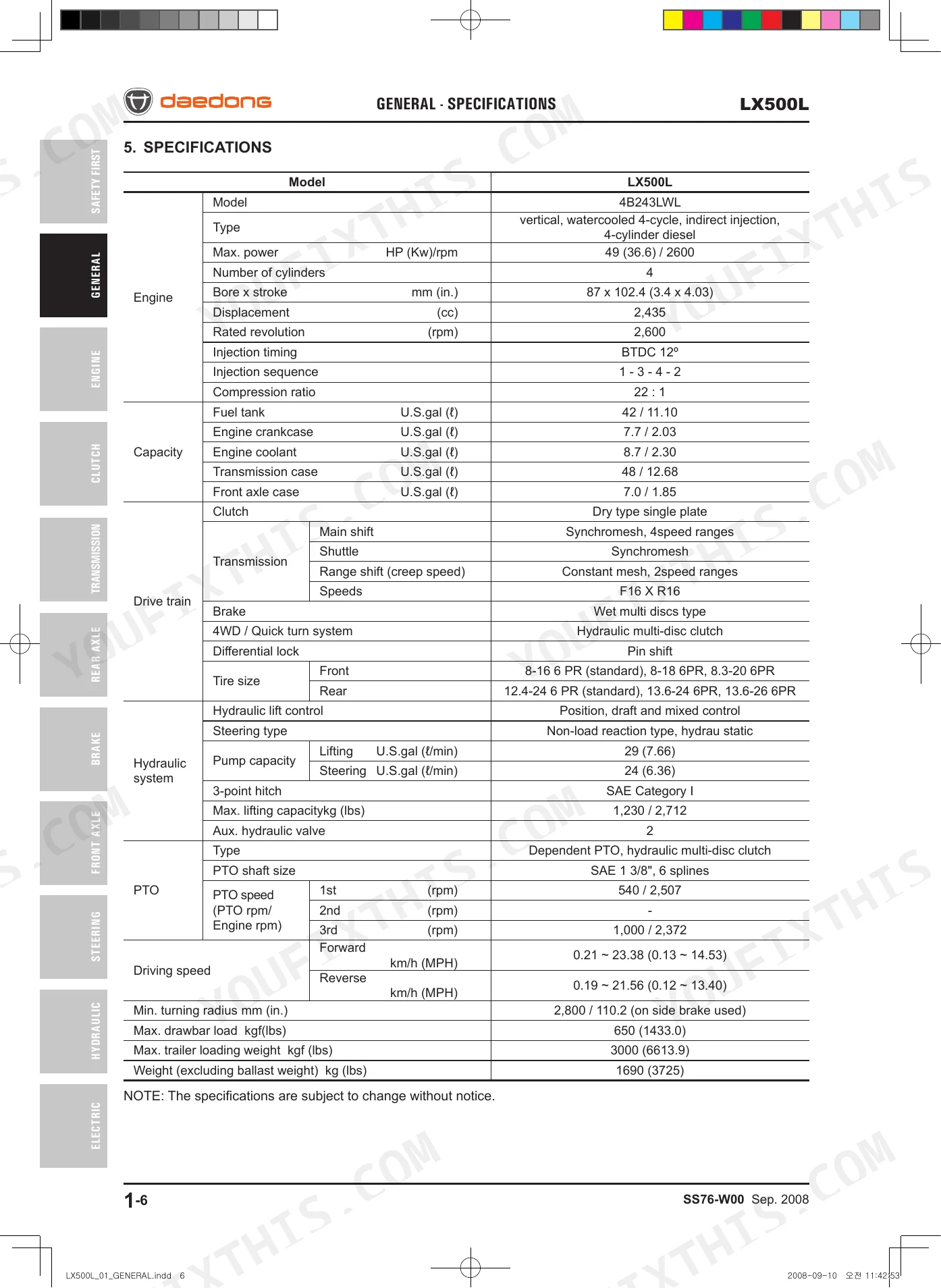

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel bolt, nut tightening torque | 167~186 Nm | p. 35 |
| Fan belt deflection | 7~9 mm | p. 76 |
| Radiator tightness | No leaks at 1.4 kgf/cm² | p. 51 |
| Engine oil filter cartridge replacement interval | every 150 hours of use | p. 16 |
| Transmission oil filter replacement interval | every 400 hours of operation | p. 392 |
| Max. power | 49 HP / 2600 rpm | p. 24 |
| Main relief pressure | 180 kgf/cm² | p. 381 |
| Engine oil pressure allowable lower limit | 245 kPa | p. 78 |
| Engine Oil Capacity | 7.7l | p. 47 |
| Engine Coolant Capacity | 8.7l | p. 47 |
| Transmission Fluid Capacity | 48l | p. 174 |
| Front Axle Case Oil Capacity | 7.0l | p. 300 |
Kioti LX500L Common Problems This Manual Covers

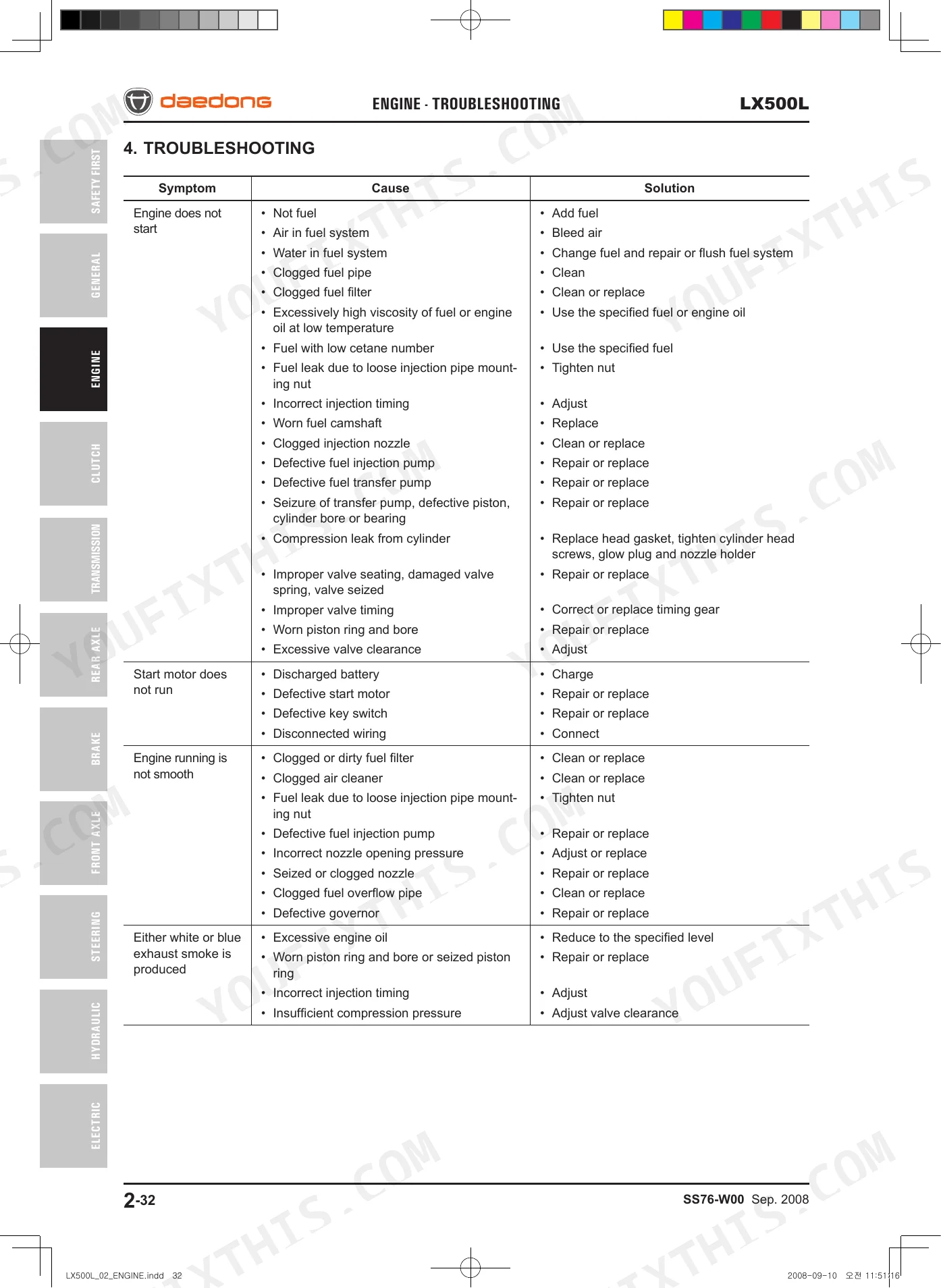

Engine overheating, power loss, or coolant boil-over during field work
Check coolant level against the 8.7L system capacity (page 47) and inspect all hoses for cracks or soft spots. Verify fan belt deflection sits at 7-9 mm (page 76); a loose belt cuts airflow immediately. Clean packed debris from radiator fins. Confirm engine oil is at the full mark before every shift.
Manual Section: Engine TroubleshootingThree-point hitch or transmission response becomes sluggish, weak, or stops responding mid-job p. 381
Verify the transmission fluid level first. This tractor runs a shared hydraulic and transmission sump, capacity 48L (page 174). Low or contaminated fluid kills both systems simultaneously. Replace the transmission oil filter at the 400-hour interval (page 392). If lift response stays soft, test main relief pressure against the 180 kgf/cm² spec (page 381).
Manual Section: Hydraulic System TroubleshootingEngine oil pressure drops or warning light comes on after filter service
Remove the engine drain plug during every oil change; this engine has one. After threading in the new filter, check that the old O-ring is not still seated in the housing. Fill to 7.7L (page 47) and verify oil pressure stays above 245 kPa (page 78) on startup.
Manual Section: EngineEngine cranks over very slowly or won't fire on a cold morning start
Confirm battery voltage, then watch for the automatic preheat cycle to finish before cranking. Cold diesel needs adequate glow plug heat to ignite. If the preheat wait light never illuminates, inspect the preheat relay, glow plugs, key switch, and slow-blow fuse in the Electric System section. Starter amperage draw drops sharply below 10°C and can mimic a weak battery.
Manual Section: Electric System - Preheat System (Automatic) Not OperatingFan belt squealing or slipping under load, coolant temperature gauge climbs toward red p. 76
Inspect the fan belt for glazing, cracking, or fraying. Measure deflection at mid-span with firm thumb pressure: correct spec is 7-9 mm (page 76). A belt that's too loose slips under load and cuts cooling airflow. Replace if surface cracks are visible or deflection exceeds 10 mm. Check the tensioner pulley bearing for play while the belt is off.
Manual Section: EngineFrequently Asked Questions
Where can I find the fuse box on a Kioti LX500L?
Look on the left side of the panel frame for the fuse box. It holds fuses for the display unit, alternator, engine stop holder coil, combination meter, work lamp, headlamps, tail lamps, PTO switch, 4WD and QT switch, hazard warning flasher, brake lamp, engine stop solenoid, horn, and turn signal lamp.

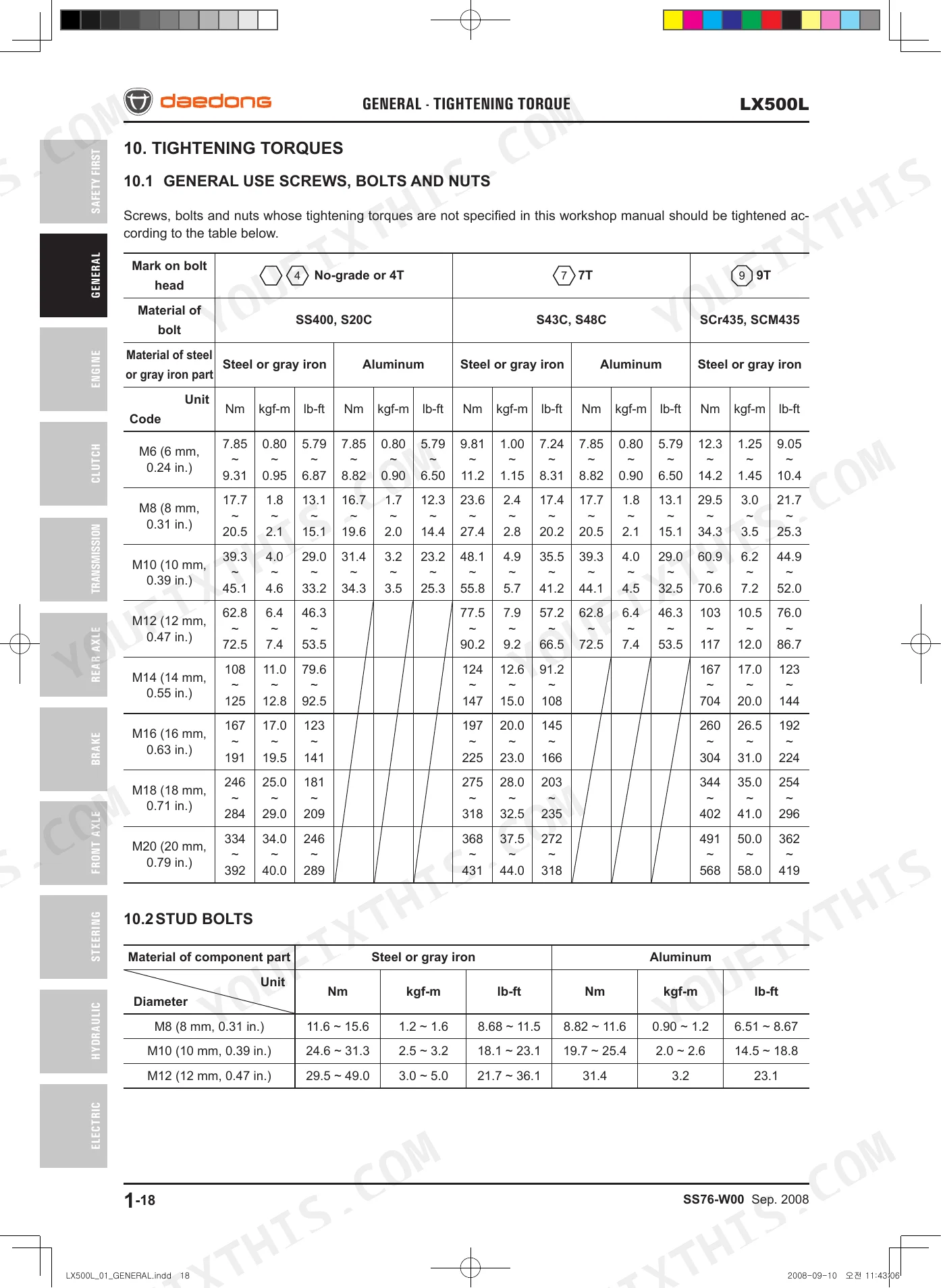

How to check torque specs for Kioti LX500L wheel bolts
Front wheel bolts tighten to 167~186 Nm (17~19 kgf-m, 122~137 lbf-ft). Rear wheel bolts tighten to 260~304 Nm (26.5~31 kgf-m, 191~223 lbf-ft).
What are the replacement specifications for fan belt?
Replace the fan belt only when it shows damage or wear; the manual sets no fixed interval, though tension gets adjusted at 50 hours of use. Deflection should read 7~9 mm (0.28~0.35 in.) when you press the belt center with a force of 98 N (10 kgf, 22 lbs).
What are the replacement specifications for radiator?
No radiator replacement spec is given; the manual covers inspection instead. When a bubble test reveals leaks, check the head gasket, cylinder bore, and cylinder head for damage and replace as needed. Radiator hose and clamps get checked and replaced during routine maintenance.
What do I get after purchasing this Kioti LX500L manual?
Immediate download of the complete 582-page searchable Workshop Manual. Open it on any device: laptop at your desk or phone in the field.
Can I print specific sections of this Kioti LX500L Workshop Manual?
Yes. No DRM or copy protection, so print the whole manual or just the pages you need on any home or office printer.

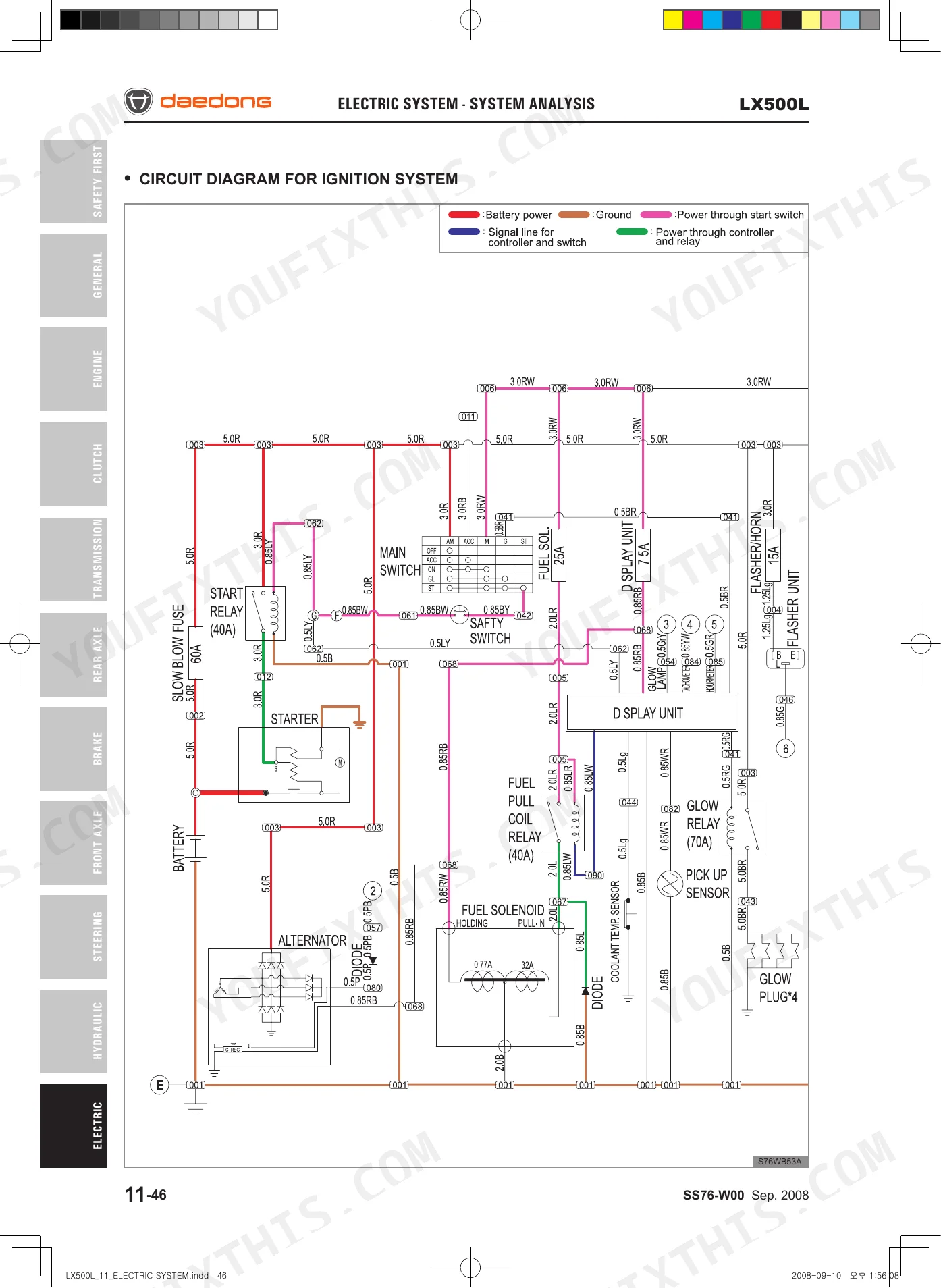

Does this Kioti LX500L manual include wiring diagrams?
Yes. The manual includes full electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy text throughout. The text quality is consistently crisp and easy to read on all pages. Diagrams are a mix of sharp vector-like technical drawings and clear raster images, with all labels remaining readable. Pages are clean with no scan artifacts or skewed content, though you will find several blank filler pages and one memo page.
