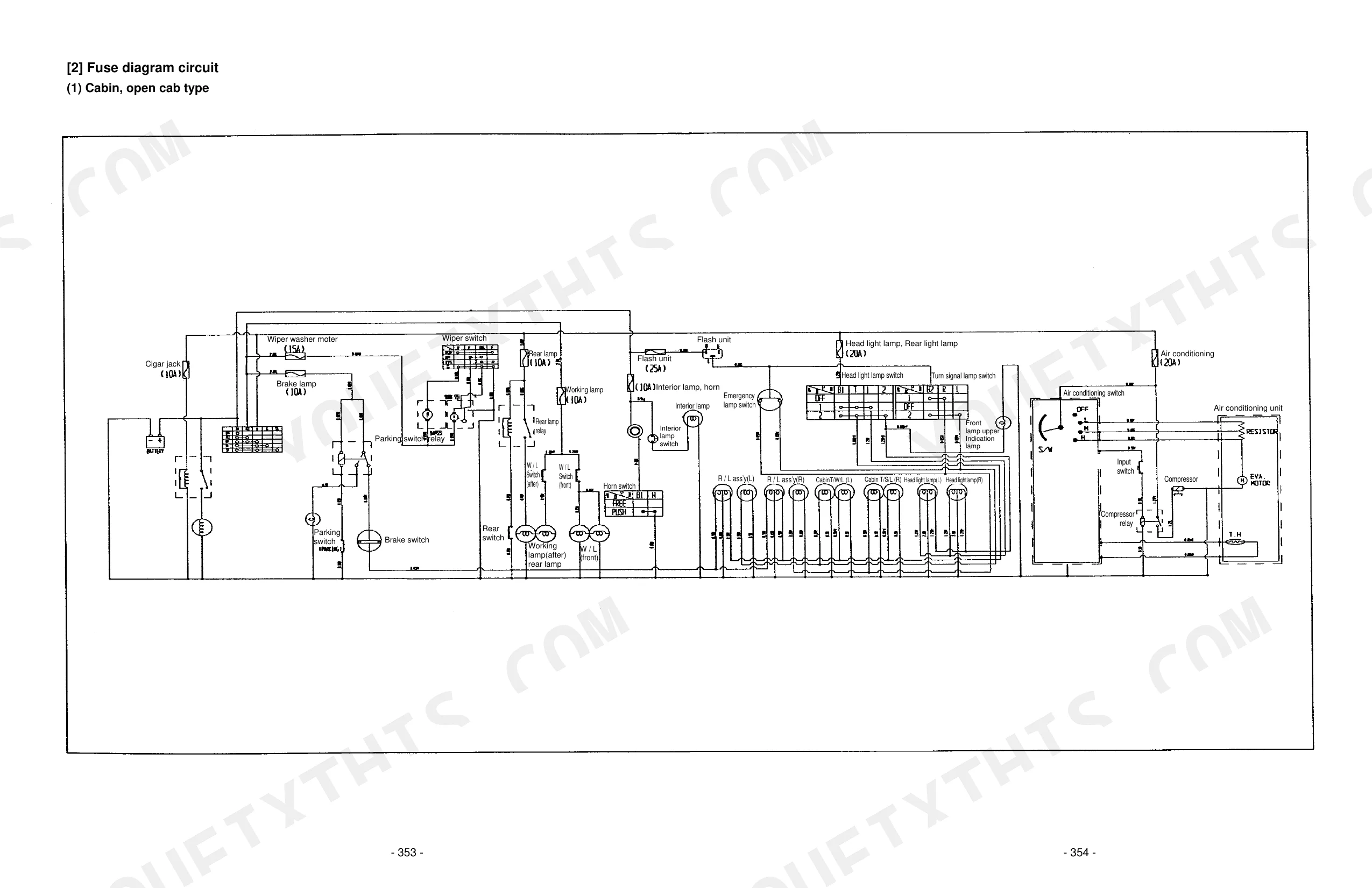

Factory-level repair for the Kioti DK 75, DK 80, and DK 90 starts here, with 368 pages spanning engine teardown through hydraulic lift adjustment. The hydraulic schematics trace power steering, PTO clutch, and lift circuits end to end, while wiring diagrams map the starting, charging, preheating, and switch systems. Step-by-step procedures walk through the engine, transmission, brakes, front axle, and cabin, with troubleshooting charts for the clutch, shuttle shift, front axle differentials, and hydraulic system. One example: torque the DK 80 cylinder head setscrews to 110 Nm, then angle-tighten the short bolts a further 150°, and change the hydraulic filter every 200 hours. When the machine is down and the dealer sits hours away, search any spec by keyword, jump to your bookmarked section, and get back to work.
What's Inside This Kioti DK 75, DK 80, DK 90 Tractors Manual

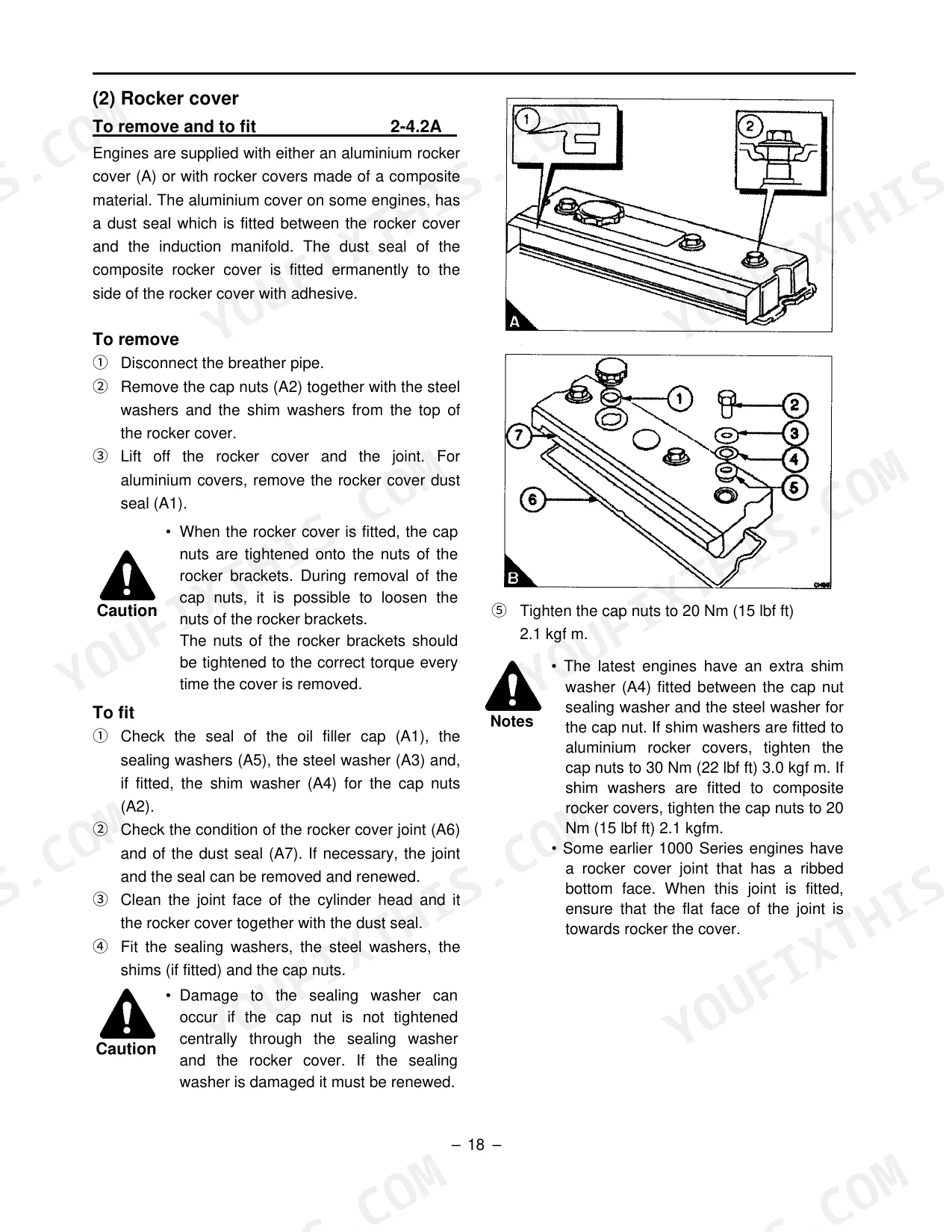

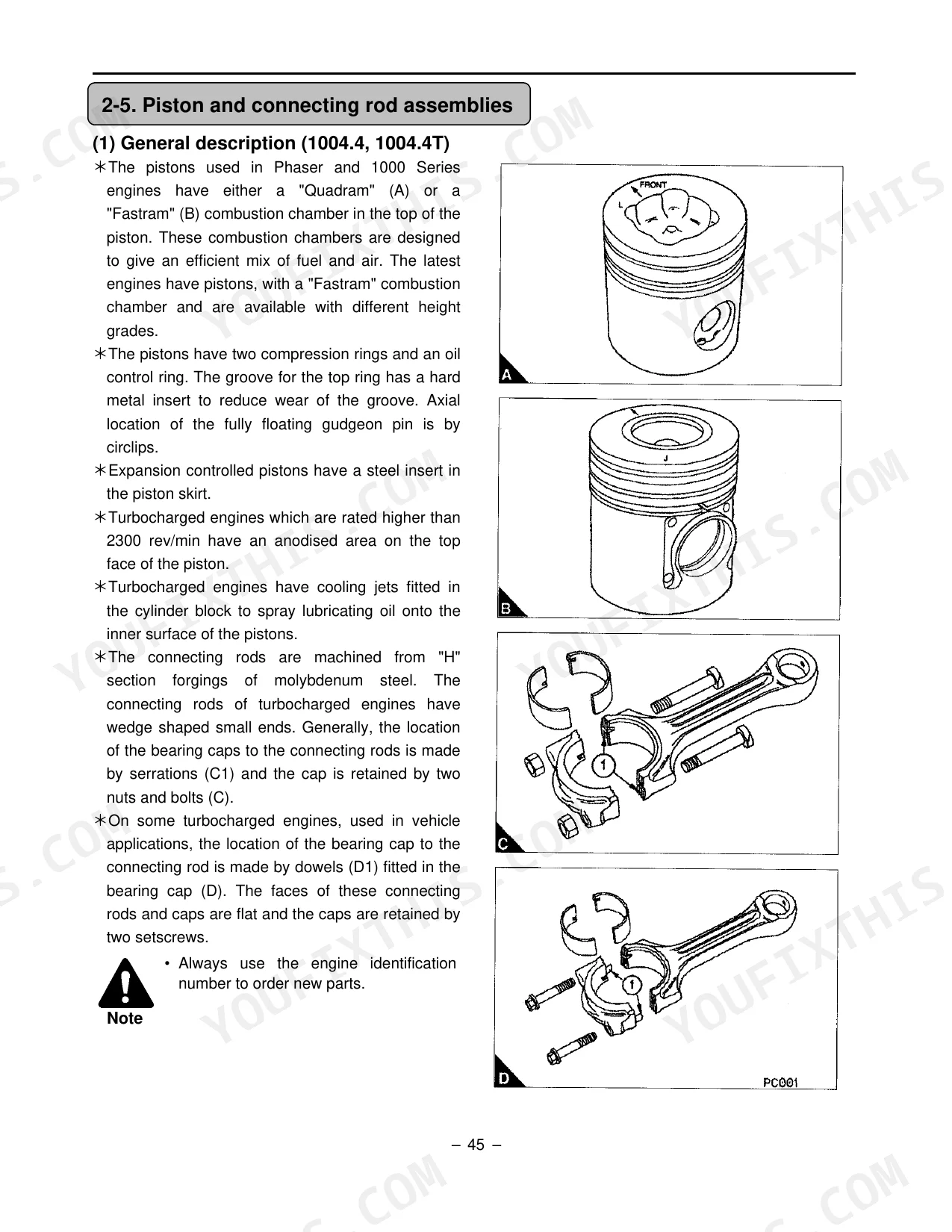

| System | Pages | Key Topics |
|---|---|---|
| Engine System | 11-147 | Basic Engine Data |
| Clutch | 148-157 | Specification, Disassembling and Assembling (Clutch), Pedal (Clutch Pedal Clearance, Gap Between Safety Switch and Link) |
| Transmission | 158-208 | Clutch Housing, Clutch Housing And Transmission Case, 20 Gear Shaft Relation, Reverse Idle Gear Section, 17 Gear Shaft Section, Shuttle Shaft Section, Front Wheel Drive Shaft Section, PTO Drive Shaft Section |
| Front Axle Assembly | 209-227 | Toe-In, Front Wheel Steering Angle, Rolling of the Front Axle and the Clearance of Front and Rear Direction, Lateral Vibration and Longitudinal Vibration of the Front Wheel, Camber |
| Hydraulic System | 228-310 | Hydraulic Lift System (Circuit, Structure and Mechanism of Hydraulic Cylinder, Valves Consisting of Hydraulic Cylinder, Structure and Mechanism of Consisting Valves, Mls Valve, Double Acting Valve, Single, Internal Lever Linkage System, To Remove and to Fit, Check Up and Adjustment, Troubleshooter) |
| Brake System | 311-324 | Rotary Horizontal Control System, Structure And Operation, Operation And Principle Of Master Cylinder, Operation Of Equalizer(Balance) Valve, Brake Case, Brake Seal Adjust, Mechanism Of Parking Brake, Air Bleeding |
| Electric System | 325-350 | Control Panel (Technical Terms, RPM Gauge, Engine Cooling Water Thermo Gauge, Fuel Gauge, Indicator and Warning Lamp, To Replace Control Panel and Light Bulbs) |
| Cabin | 351-356 | Seat Assembly, Suspension Unit, Heater Hose, Air Conditioning Couple Ring, Steering Hose, Clutch Cable |
| Air Conditioner, Heater | - | Heater (Specifications, To Remove and to Fit, Control Panel) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| DK80 | ||
| Cylinder head setscrews torque (initial) | 110 Nm (80 lbf ft) 11.1 kgf m | p. 26 |
| Cylinder head setscrews torque (angle tightening) - Short setscrews (S) | 150° (2.5 flats) | p. 26 |
| All Models | ||
| Fuel filter element replacement | Renewed at the same time (for twin elements) | p. 127 |
| Fuel filter type | Twin parallel flow or single element | p. 137 |
| Hydraulic filter replacement interval | Every 200 hours of use | p. 304 |
| Battery Voltage | 12V | p. 334 |
| Battery Capacity (20hr) | 65AH | p. 334 |

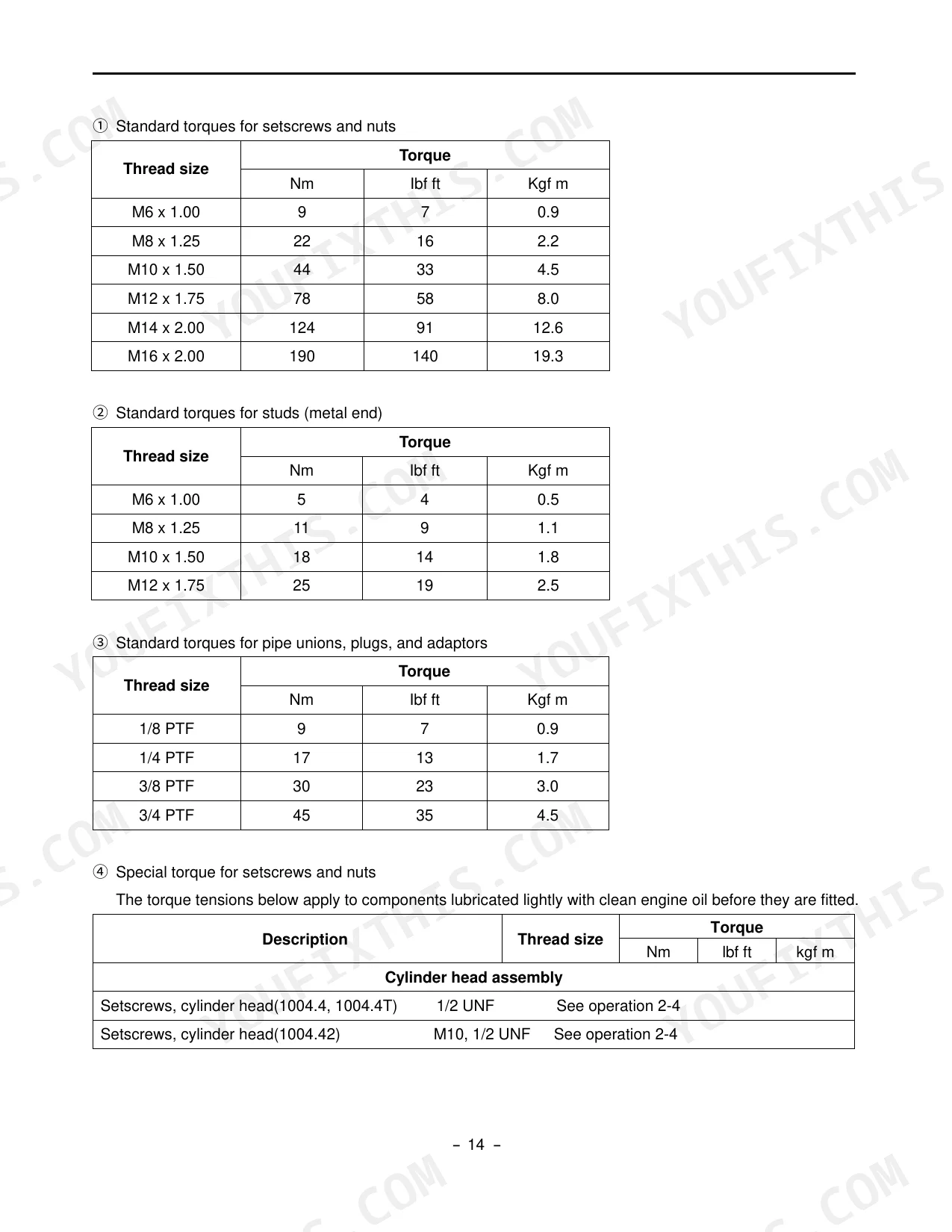

| Starter motor setscrews torque | 30 Nm (23 lbf ft) 3.0 kgf m | p. 16 |
| DK60, DK65 | ||
| Starter motor authorized power | 12V 2.5KW | p. 330 |
| Alternator authorized power | 12V 50A | p. 332 |
| Clutch external diameter | φ275mm, φ10.8in | p. 151 |
| DK75, DK80, DK90 | ||
| Alternator authorized power | 12V 55A | p. 333 |
Kioti DK 75, DK 80, DK 90 Tractors Common Problems This Manual Covers

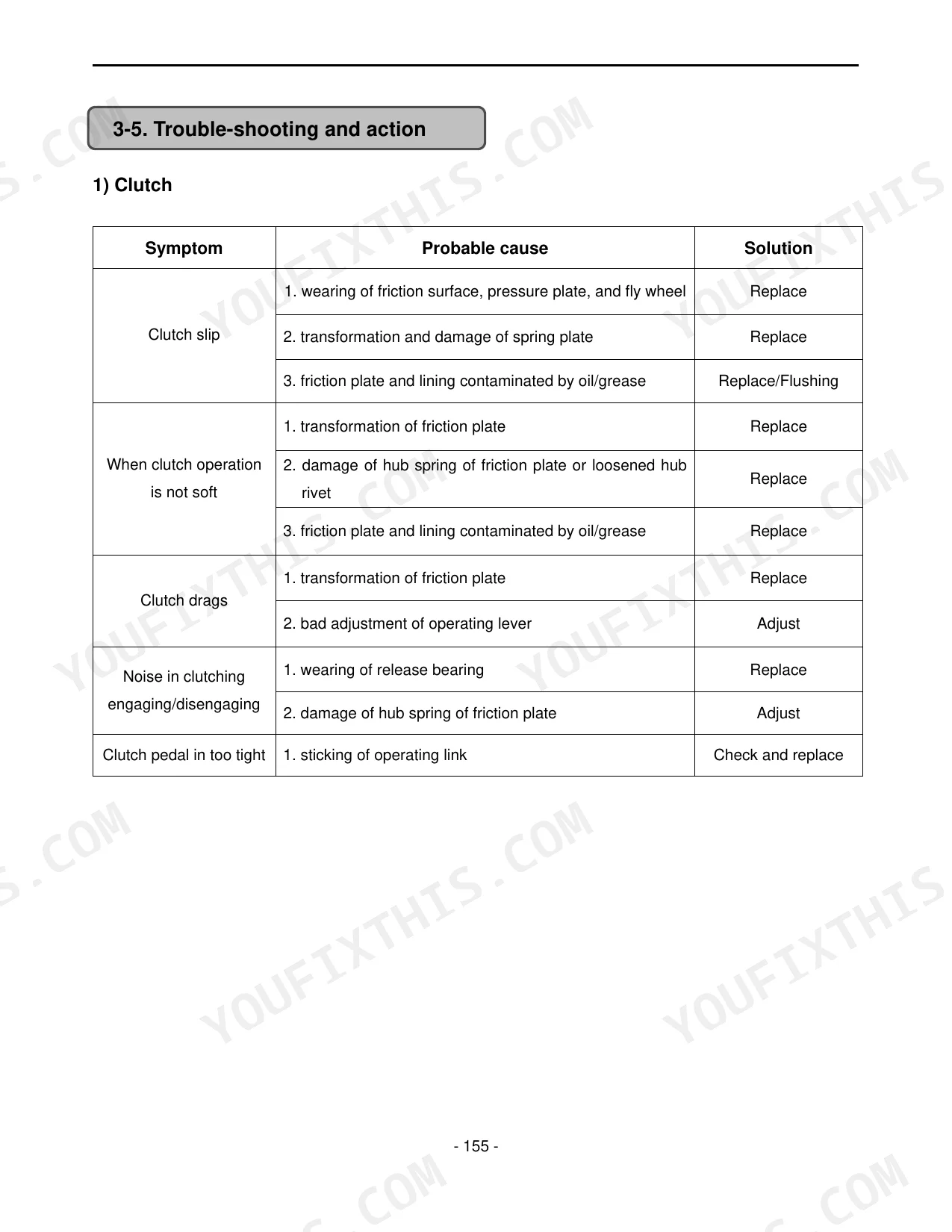

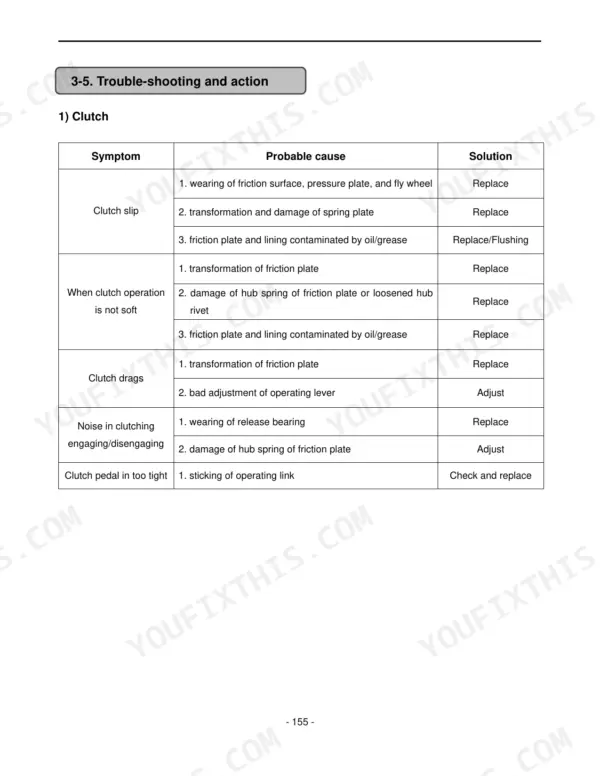

Kioti DK 75 clutch slips under heavy load or pedal feels excessively stiff p. 152
Inspect the linkage mechanism and measure the clutch pedal clearance. Adjust the linkage on page 152 until clearance is exactly 20-30 mm. If slipping persists, remove the assembly and verify the pressure plate to measuring rule gap is below 0.5mm.
Manual Section: 03- ClutchLeft or right brake grabs intermittently or pedal goes completely to the floorboard p. 315
Test the system pressure and inspect the piston stroke. Check the internal components on page 315 and confirm the brake piston stroke is exactly 4mm. Drain the housing and refill the system with exactly 560 cc of clean brake oil.
Manual Section: Brake System TestEngine cranks slowly and fails to fire after sitting in cold weather overnight p. 336
Measure the battery solution specific gravity on page 335; it should read at least 1.280 at 25C. Check the cells and verify the fluid level sits exactly 17mm higher than the plates on page 336. Charge or replace the batteries if the readings fail.
Manual Section: 08- Electric systemThree-point hitch lift arms raise slowly or fail to hold heavy attachments under load p. 304
Drain the reservoir and inspect the fluid condition. Replace the main filter element on page 304, strictly observing the mandatory 200 hours service interval. Clean the suction screen and bleed all air from the lines before testing cylinder lift speed.
Manual Section: Hydraulic System TroubleshooterFrequently Asked Questions
What does error code mean on a Kioti DK75/DK90 dashboard?
Several indicator and warning lamps sit on the dashboard. The PTO indicator lights red while the PTO is working, the fuel warning lamp lights yellow when fuel runs short, and the engine oil pressure warning lamp turns red when oil pressure drops. The hydraulic filter clogging light turns yellow below -530mmHg and switches off above -470mmHg.
What is the torque spec for the cylinder head on a DK75 / DK90?
On DK75 and DK90 models (1004.4, 1004.4T, 1004.42 engines), tighten the cylinder head setscrews gradually and evenly to 110 Nm (80 lbf ft) 11.1 kgf m first. Then, in the correct sequence, turn short setscrews (S) a further 150° (2.5 flats), medium length setscrews (M) a further 180° (3 flats), and long setscrews (L) a further 210° (3.5 flats).
dk80 tractor torque specs head bolts
The DK80 tractor (1004.42 engine) follows the same approach: tighten the cylinder head setscrews gradually and evenly to 110 Nm (80 lbf ft) 11.1 kgf m, then add a turn in the specified sequence. Short setscrews (S) go a further 150° (2.5 flats), medium length setscrews (M) 180° (3 flats), and long setscrews (L) 210° (3.5 flats).
What are the replacement specifications for fuel filters?
Use only genuine Perkins fuel filter elements when replacing them. Where the system has twin elements, renew both at the same time. The manual also stresses keeping dirt out of the fuel system and capping all open connections during the job.
What format is this Kioti DK 75, DK 80, DK 90 Tractors manual in?
Delivery is a 368-page searchable PDF, downloadable the moment you check out. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Is this Kioti DK 75, DK 80, DK 90 Tractors Workshop Manual printable?
Yes. The PDF carries no DRM restrictions, so print any page or section you need for the shop. It works with any standard printer.

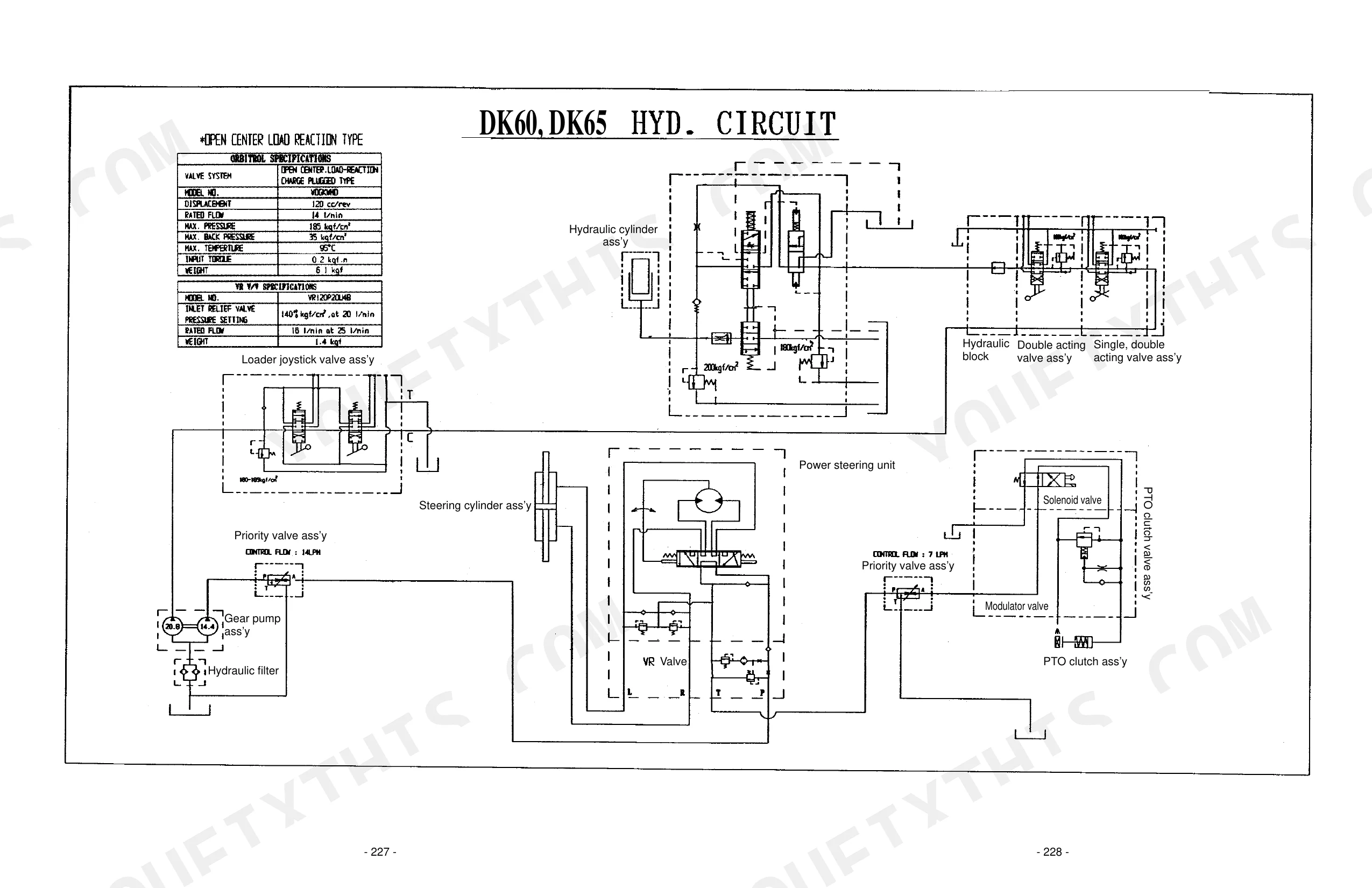

Can I find hydraulic circuit diagrams in this Kioti DK 75, DK 80, DK 90?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kioti DK 75, DK 80, DK 90 Tractors.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and easy to read throughout the manual. Diagrams and illustrations are mostly raster images, which remain clear at moderate zoom levels, and their labels are readable. Pages are clean with no significant scan artifacts, stains, or skewed content. You will find several blank pages, primarily at the start of each chapter, which act as filler.
