Need the factory operating reference for your Case 4210 tractor? This 285-page Operator Manual (OEM #Don 9-24844) spans the full 3210, 3220, 3230, 4210, 4220, 4230, and 4240 Series, from pre-start procedures and dashboard indicators through lubrication intervals and storage prep. It runs 35 pages of operating instructions, a maintenance chart marking the 10-hour, 100-hour, 200-hour, and 800-hour service points, another 35 pages on lubrication and fluids, and 32 pages of specs for every model variant. Fluid capacities are listed in full, with 33 pages on PTO, drawbar, and three-point hitch setups. The 2WD transmission/hydraulic system holds 34 litres; the filter assembly torques to 16-21 Nm, first change at 20 hours, then every 200. Service intervals stop being a guessing game. Each section is bookmarked, so on a tablet in the cab you jump straight to the page you need.
What's Inside This Case 3210–4240 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 7-9 | Manufacturer, Dealer Stamp, Operators Manual Storage, Official Justifying Documents (Declaration of Conformity) |
| Identification Numbers | 10-12 | Product Identification and Serial Numbers |
| Safety/Decals | 13-25 | Safety, Intended Use, Transporting Passengers, Operation, Leaving the Tractor, Implements, PTO Operation, Service |

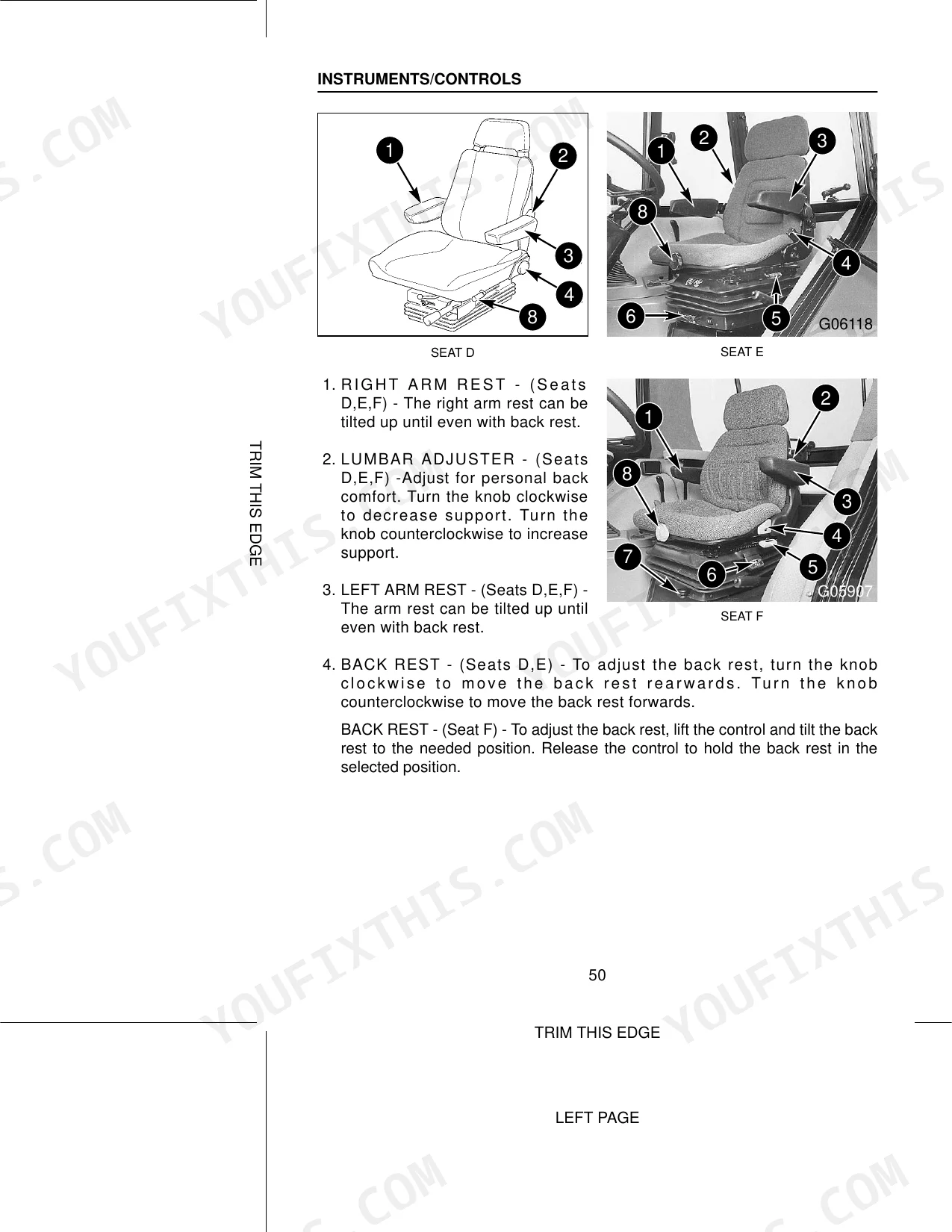

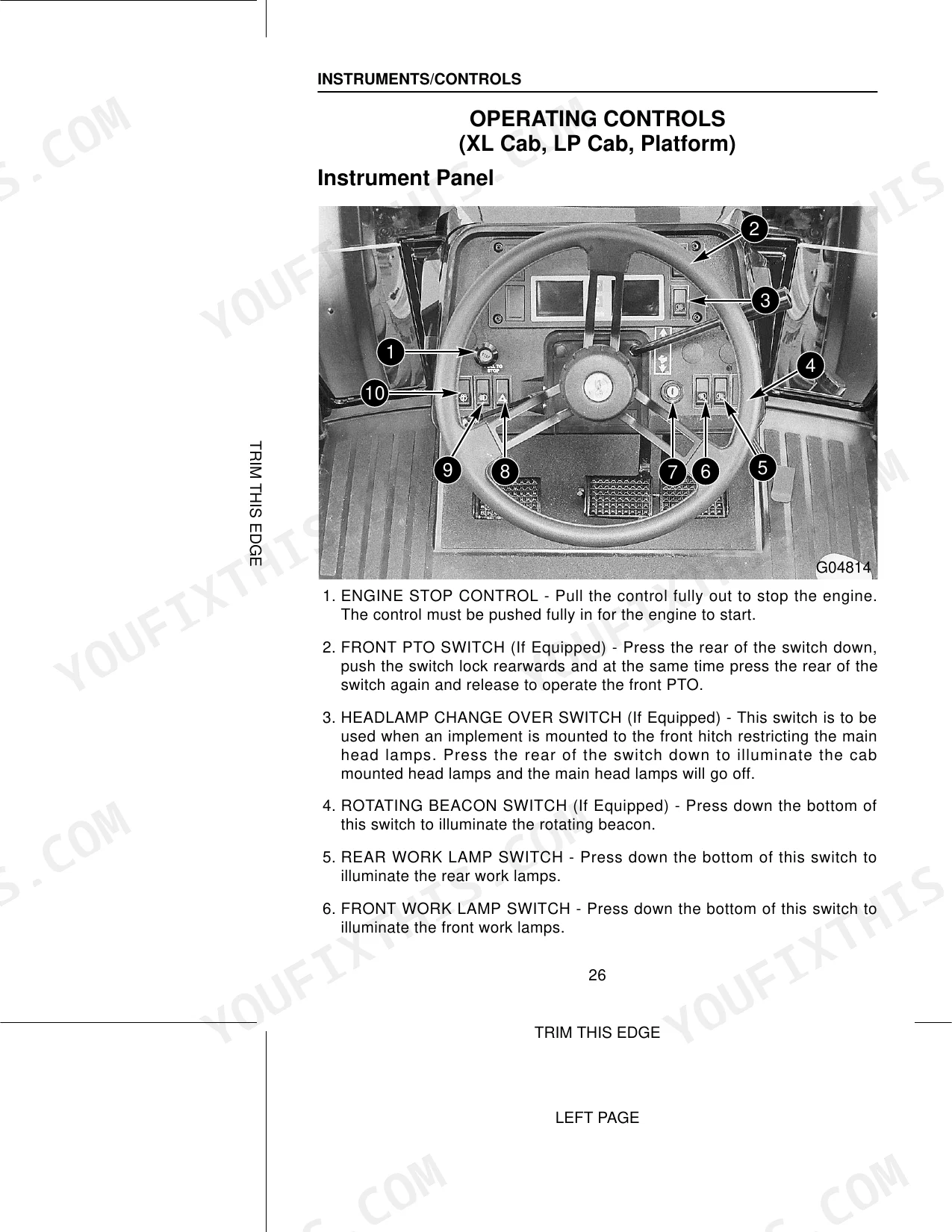

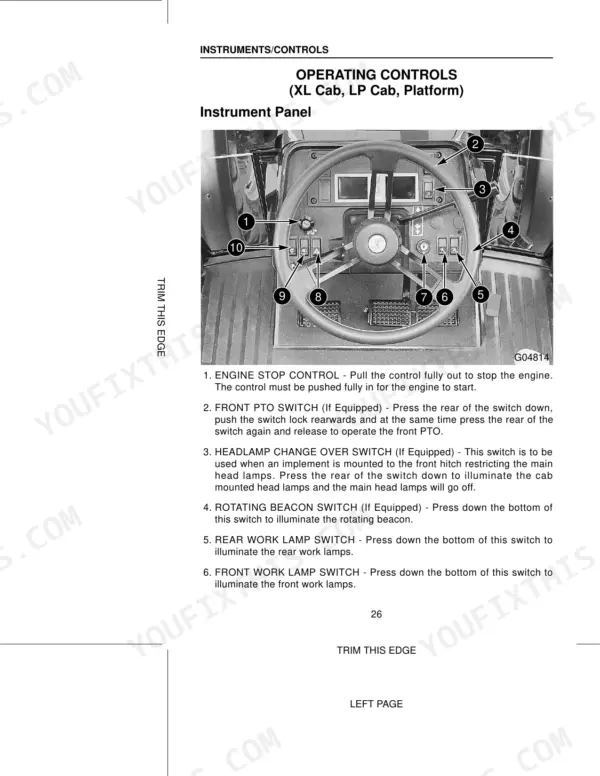

| Instruments/Controls | 26-57 | Standard Instrument Cluster (Indicator Lamps, Tachometer, Fuel Gauge, Engine Coolant Temperature Gauge, Hourmeter) |
| Operating Instructions | 58-102 | Before Starting the Engine, Service Indicator Lamps and Gauges, Run in Procedure (Load, No Load), Parking the Tractor, Collapsible Wheel Wedge |
| Field Operation | 103-142 | Drawbar Preparation, Drawbar Position for 540, 750 and 1000 RPM PTO Operation (Single Shaft PTO or Dual Shaft PTO, Shiftable PTO), Internal Automatic Hitch Release Control |

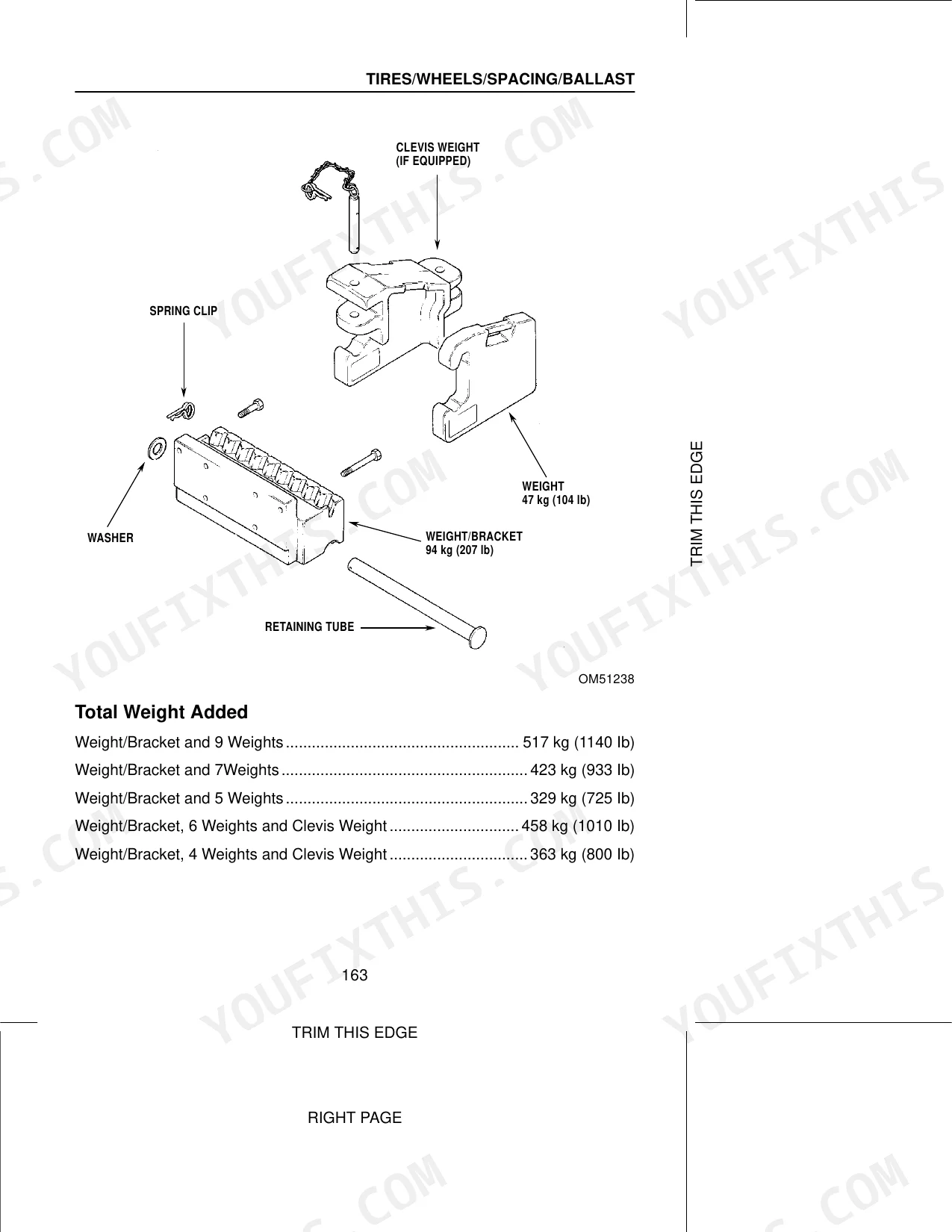

| Tires/Wheels/Spacing/Ballast | 143-173 | Tire and Wheel Equipment, Tire Inflation Specifications, Hourmeter, Retrieving Old Hours, Implement Monitor, ROPS Frame, Tire Load Capacity, Check Air Pressure |
| Lubrication/Filters/Fluids | 174-205 | Hourmeter, Lubrication/Maintenance Chart, Grease Points, 10 Hours, 100 Hours, 200 Hours, 800 Hours |
| Mechanical Front Drive (MFD) Axle | 206-207 | Differential Lubrication, Service Specifications, Differential Oil Level, Differential Oil Change, Planetary Lubrication, Planetary Oil Level, Planetary Oil Change |
| 2WD Front Wheel Bearings | 208 | Service Specifications |
| Front PTO Lubrication | 209 | Service Specifications, Oil Level Check Interval, Oil Change Interval, Oil Capacity, Oil Type, Power Takeoff Oil Level, Power Takeoff Oil Change |
| Operators Cab | 210-214 | Air Intake Filter, Refrigerant Check, Hoses and Wiring, Condenser, Seat Belt Inspection and Maintenance |
| Maintenance/Adjustments | 215-234 | Cooling System, Grille Screens and Radiator Area, Fan/Alternator Belt and Compressor Belt, Service Interval, Drive Belt Tension, Fan/Alternator Belt Adjustment |

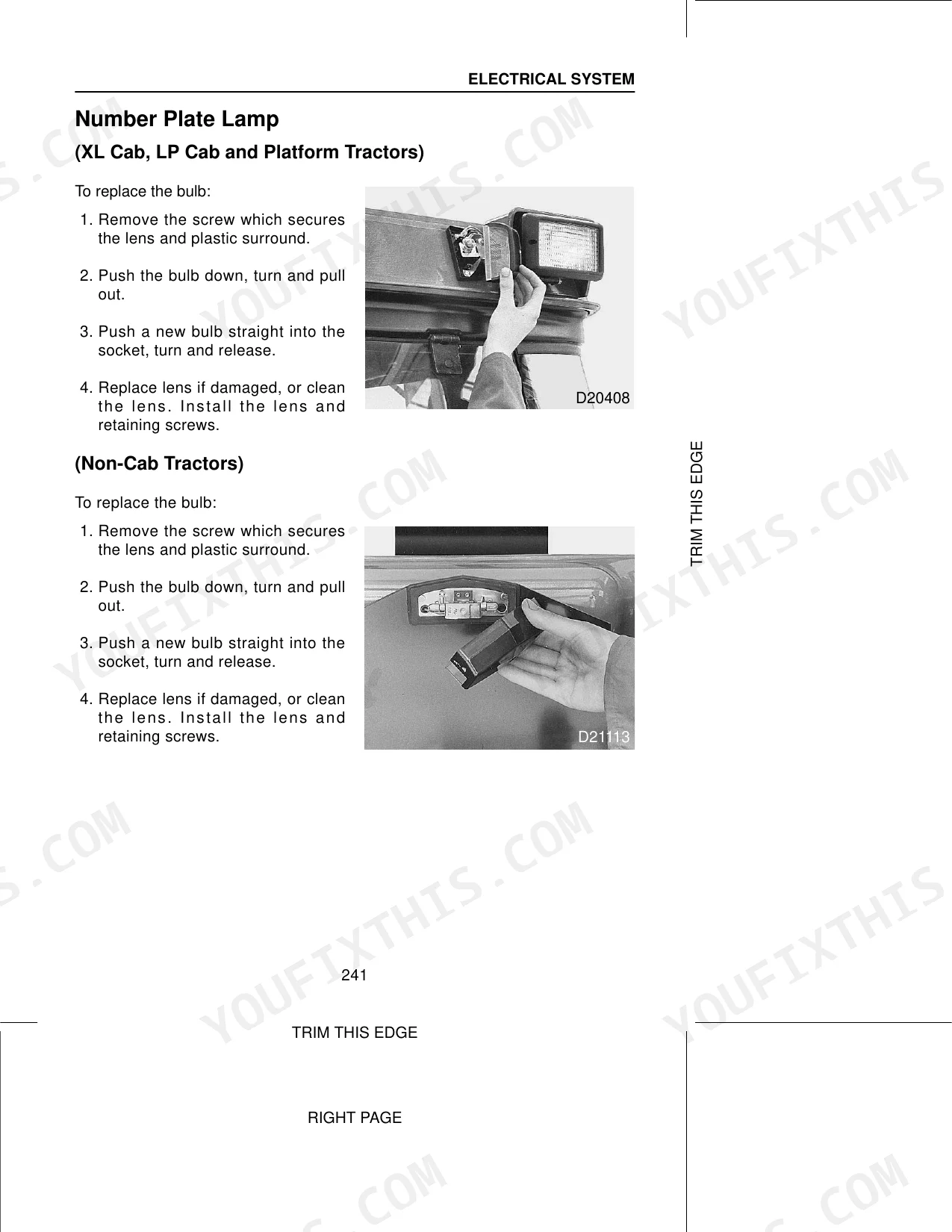

| Electrical System | 235-250 | System (Type of System, Battery, Alternator, Voltage Regulator, Starter Motor) |
| Machine Storage | 251-252 | Storage Preparation (Wash or Clean and Completely Lubricate the Tractor, Clean the Inside of the Operators Cab and Instrument Console, Rodents CAN Damage a Tractor in Storage, Run the Engine Long Enough to Warm the Oil Completely in the Crankcase, Open the Drain on the Fuel Filter and Drain the Water and Sediment Before Closing, Clean the Engine Air Filter and Body, Drain, Flush and Fill the Cooling System with the Correct Antifreeze Mixture, Battery Does Not Need to Be Removed From the Tractor, Store the Tractor Where There Is Protection From Sunlight, Coat All Exposed Cylinder Rods with Light Grease to Prevent Rust) |
| Specifications | 253-278 | Brakes, Differential Lock, Drawbar, Mechanical Front Drive Axle Differential and Planetaries, Transfer Gearbox, Shift Control, Hydrostatic Power Steering, Transmission |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Transmission/Hydraulic Oil Filter Change Interval | After first 20 hours of operation then every 200 hours | p. 199 |
| Transmission/Hydraulic Oil Filter Assembly Tightening Torque | 16 to 21 Nm (12 to 16 Ib ft) | p. 199 |
| Transmission/Hydraulic System Oil Type | CASE HY-TRAN PLUS ® | p. 203 |
| Transmission/Hydraulic System Oil Capacity (2WD) | 34 litres (7.5 UK gal) | p. 182 |
| Radiator Coolant Level Check Interval | Every 10 hours of operation | p. 194 |
| Coolant Change Interval | Every 2000 hours of operation (or once every 2 years) | p. 194 |
| Electrical System Type | 12 Volt, Negative Ground | p. 235 |
| Battery Rating | One 12 volt Battery Group Size 27 Rated at 1.255 to 1.265 Specific Gravity Discharge Rate 605 Amperes at 0˚C (32˚F) | p. 235 |
| XL Cab, LP Cab, Platform Tractors | ||
| Alternator (XL Cab, LP Cab, Platform Tractors) | 65 Ampere | p. 235 |
| Clutch Pedal Adjustment 'A' (XL Cab, LP Cab, Platform Tractors) | 199 to 205 mm (7.83 to 8.07 inch) | p. 228 |
| Clutch Pedal Adjustment 'B' (XL Cab, LP Cab, Platform Tractors) | 110 mm (4.33 inch) | p. 228 |
| Non-Cab Tractors | ||
| Alternator (Non-Cab Tractors) | 45 Ampere | p. 235 |
Case 3210–4240 Common Problems This Manual Covers
Case 3210 tractor loses drive under load, or transmission engagement feels extremely weak p. 199
Check the transmission oil level on the dipstick. Drain the fluid and replace the filter, which needs service after the first 20 hours and then every 200 hours as shown on page 199. Refill 2WD models with 34 litres (7.5 UK gal) of CASE HY-TRAN PLUS fluid.
Manual Section: Lubrication/Filters/FluidsCoolant temperature gauge on a Case 4240 climbs into the red area and the warning lamp flashes during field operation p. 216
Inspect the fan drive belt tension right away. Apply an 11 kg (25 lb) load and confirm deflection sits at 19 mm (0.75 in) using the adjustment steps on page 216. Then check that the radiator cap holds 0.62 to 0.82 bar (9 to 12 psi) of pressure.
Manual Section: Maintenance/AdjustmentsEngine turns over slowly or clicks rapidly when attempting to start in cold weather p. 240
Examine the Group 27 battery terminals for corrosion. Check the water level inside the cells during your every 200 hours of operation service interval on page 240. Maintain the electrolyte level at 3.2 to 6.4mm (0.125 to 0.25in) below the vent well using distilled water.
Manual Section: Electrical SystemClutch pedal feels spongy and gears grind when shifting into forward or reverse p. 229
Measure clutch pedal free play (dimension A) on the 12 inch (305 mm) clutch. Adjust the linkage on page 229 until free play reads exactly 11.4 mm (0.45 inch). Confirm the disengaged dimension B sits at 103.3 mm (4.1 inch) for full release.
Manual Section: Maintenance/AdjustmentsFrequently Asked Questions
What do the dashboard error codes mean on Case IH 3210 / 3220 / 3230 / 4210 / 4220 / 4230 / 4240?
On the Case 4210 and its sibling models, the dash uses indicator lamps rather than codes. The red Engine Oil Pressure Lamp signals low oil pressure. The amber Master Warning Lamp flashes for high coolant temperature, an unlatched auto hitch, an engaged park brake, or low engine oil pressure. The green Differential Lock Indicator lights when the differential lock is engaged.
How to reset the service light on a Case IH 4230?
The service light is tied to the Service Hours Timer. Enter the Digital Instrument Cluster Programming mode, select Code Number 3 for the Service Hours Timer, then program a zero as the interval. That sets the timer to zero and disables it, resetting the light.
What are the torque specs for Case IH 4220 wheel bolts?
On Mechanical Front Drive (MFD) tractors, torque the disc to rim bolts to 250 Nm (184 lb ft) and the disc to front axle hub nuts to 300 to 350 Nm (221 to 258 lb ft). At the rear, mounting bolts take 278 to 298 Nm (205 to 220 lb ft), while rim bolts and nuts take 210 to 270 Nm (155 to 199 lb ft).
What are the replacement specifications for transmission and hydraulic filters?
Change the transmission/hydraulic oil filter after the first 20 hours of operation, then every 200 hours after that. Use only genuine CASE filters for replacement.
How will I receive this Case 3210 & variants Operator Manual?
Immediate download of the complete 285-page searchable Operator Manual. Open it on any device: a laptop at your desk or a phone in the field.
Are there any print restrictions on this manual?
Yes. The PDF carries no DRM restrictions, so print any page or section you need for the shop. It works with any standard printer.
Document Quality
This document is a scanned PDF, featuring an OCR layer that allows you to search and copy the full text. The text is consistently crisp and easy to read throughout the manual. Diagrams and illustrations are primarily raster images or photographs, with their labels generally remaining clear. Pages are clean with no significant scan artifacts or skewed content, and one page is intentionally left blank.
