This 134-page JCB 506-36 operator manual pdf breaks down the complete cab controls, daily maintenance schedules, and load chart procedures for the 506-36, 508-40, 510-40, and 506B Loadall series. Inside, you get a thorough overview of the dashboard indicators, exact service intervals for routine checks, and step-by-step instructions for interpreting boom indicators and load charts. Packed with boom safety strut procedures, cab switch layouts, and detailed greasing locations, it gives operators exactly what they need to run the equipment safely. Verify the engine oil is topped off at exactly 10 liters, and confirm the hydraulic tank is full according to the specific capacity for your model (e.g., 190 liters for 506-36, 121 liters for 506B, or 292 liters for 508-40/510-40) before firing up the engine for your shift. A warning light on the dash shouldn't stall your workday. Download this bookmarked file directly to your tablet, keep it in the cab, and always know your machine's limits.
What's Inside This JCB 506-36, 508-40, 510-40, 506B Operator Manual
| System | Pages | Key Topics |
|---|---|---|

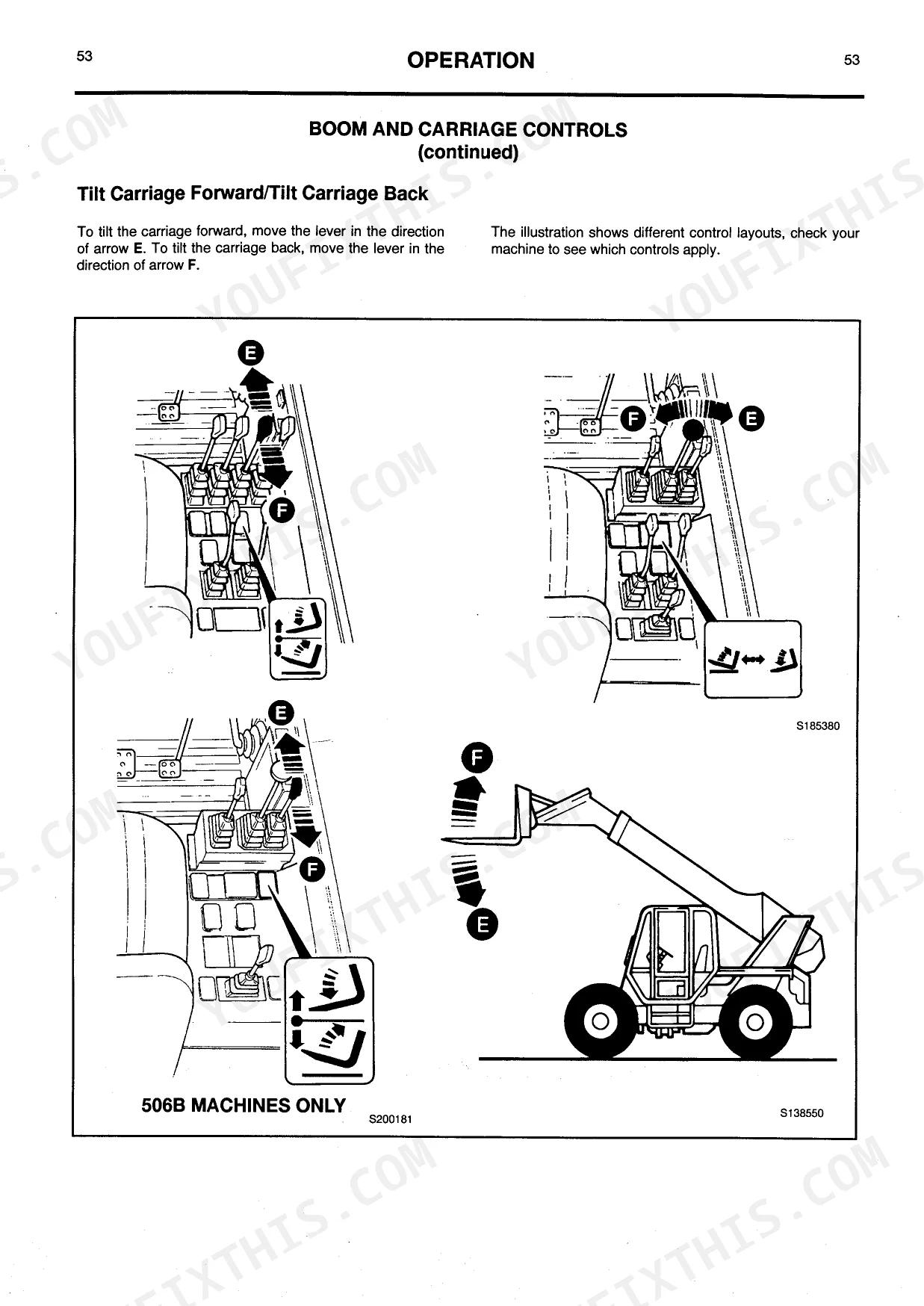

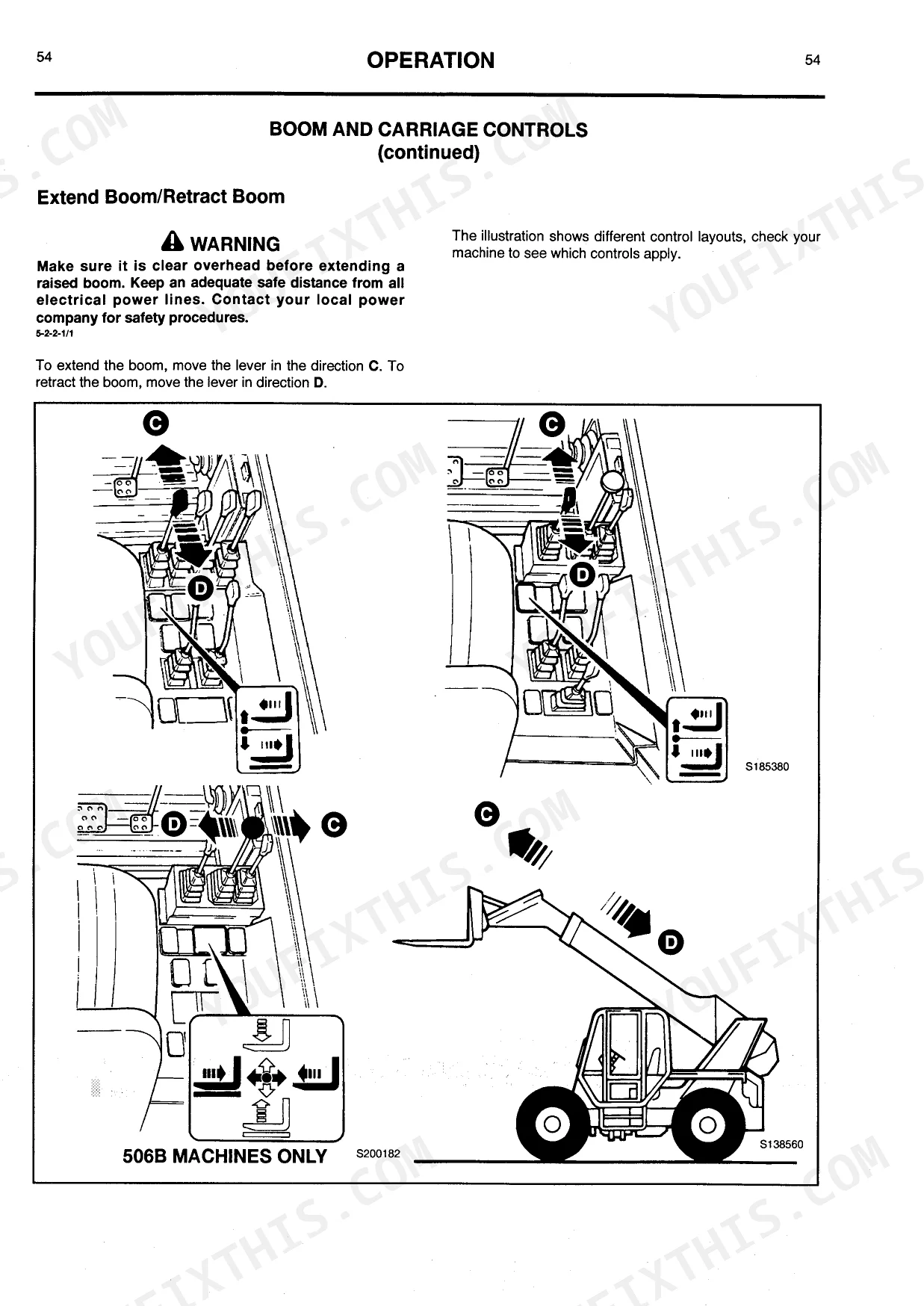

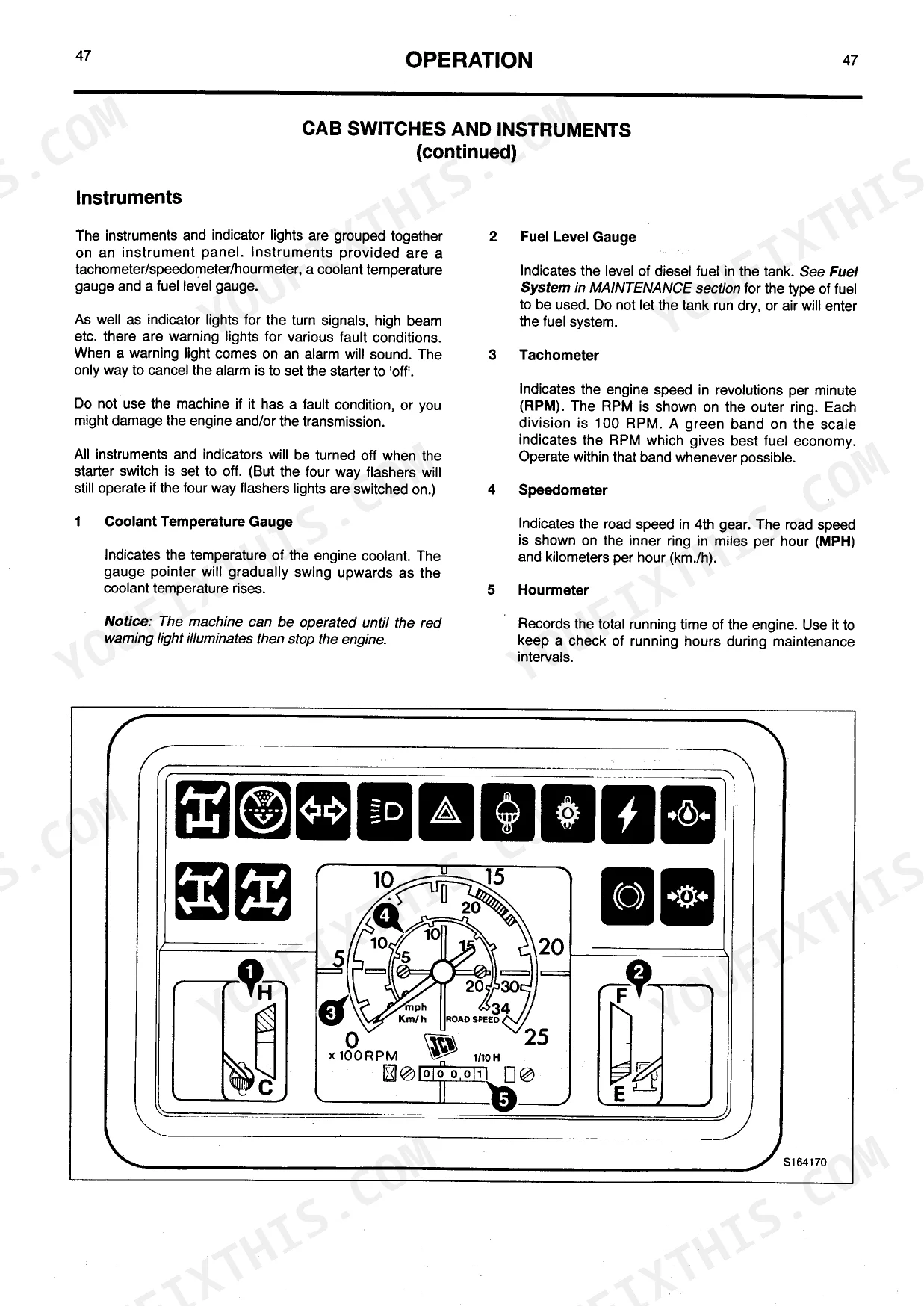

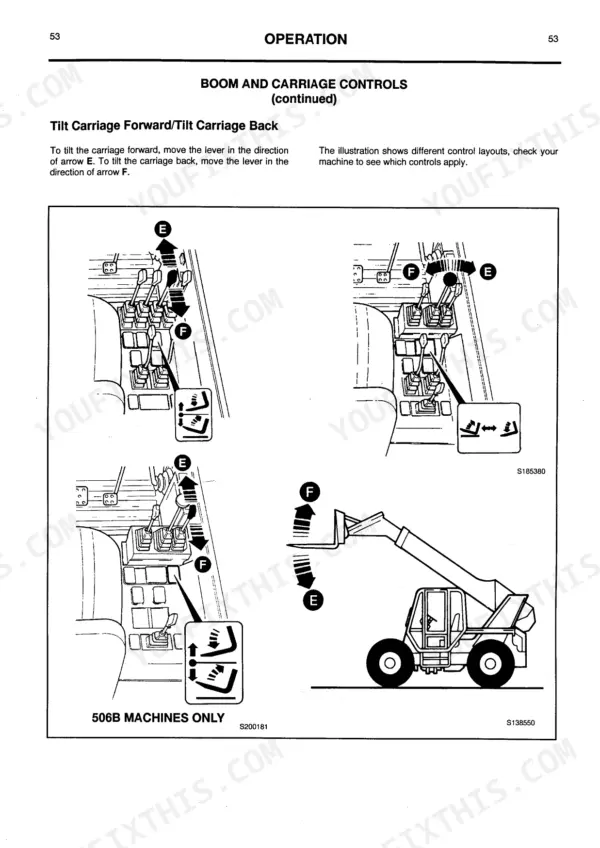

| Operation | 27-70 | Introduction, Entering & Leaving the Cab, Doors and Windows, Seat Controls, Seat Belt, Engine and Drive Controls, Cab Switches and Instruments, Heater (Cab Versions Only) |
| Maintenance | 71-122 | Lubricants - Health and Safety, Service Requirements, Service Schedules, Boom Safety Strut, Engine Hood and Cover, Radiator Grille, ROPS/FOPS Structure, Checking for Damage |
| Optional Attachments | 123-132 | Introduction, Quick Release Couplings, Installing and Removing Q-Fit Attachments, Extension Jib, Fork Mounted Hook |
| Specifications | 133-134 | 506-36, 506B, 508-40, 510-40 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Tank Capacity | 90 Liters (23.7 Gal) | p. 131 |
| Engine Oil Capacity | 10 Liters (2.6 Gal) | p. 131 |
| Engine Oil & Filter Change Interval | 250 Hours | p. 85 |
| Transmission Oil & Filter Change Interval | 250 Hours | p. 85 |

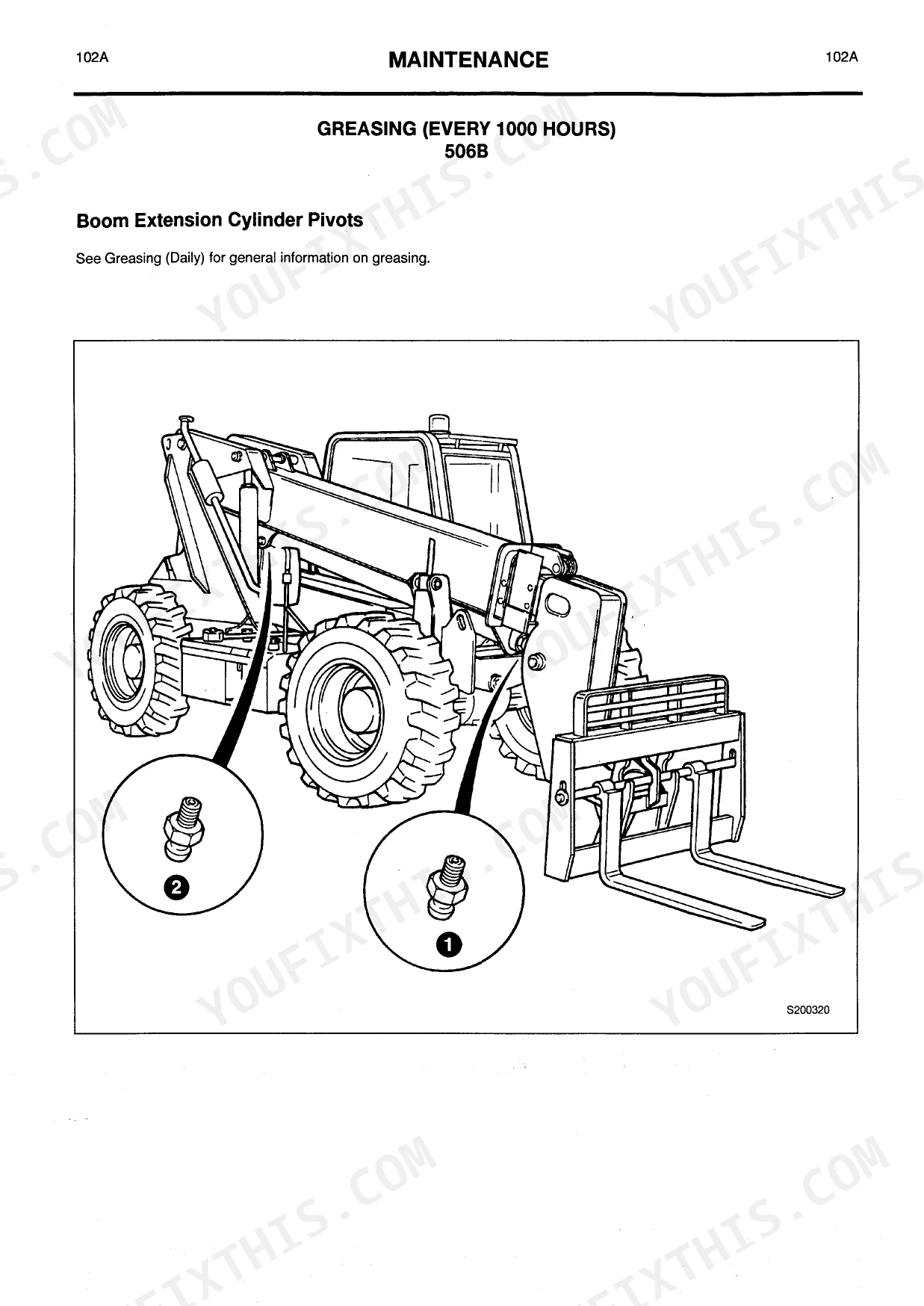

| Grease Points Interval | 10 Hours | p. 85 |
| 506-36, early 508-40 | ||
| Engine Coolant Capacity | 18 Liters (4.7 Gal) | p. 131 |
| Hydraulic Tank Capacity | 190 Liters (50.2 Gal) | p. 131 |
| 506B, 508-40, 510-40 | ||
| Engine Coolant Capacity | 23.5 Liters (6.2 Gal) | p. 132 |
| 506B | ||
| Hydraulic Tank Capacity | 121 Liters (32.0 Gal) | p. 132 |
| 508-40, 510-40 | ||
| Hydraulic Tank Capacity | 292 Liters (77.0 Gal) | p. 133 |
JCB 506-36, 508-40, 510-40, 506B Common Problems This Manual Covers
JCB 506-36 boom cylinder operates sluggishly and jerks when lifting heavy loads p. 85
Inspect the hydraulic fluid level and verify grease points are serviced at the required 10 Hours interval shown on page 85. Check the hydraulic filter for restrictions if daily fluid checks were missed. Lubricate the boom safety strut and sliding pads to restore smooth operation.
Manual Section: MaintenanceEngine starts normally but loses power and struggles to accelerate under load p. 131

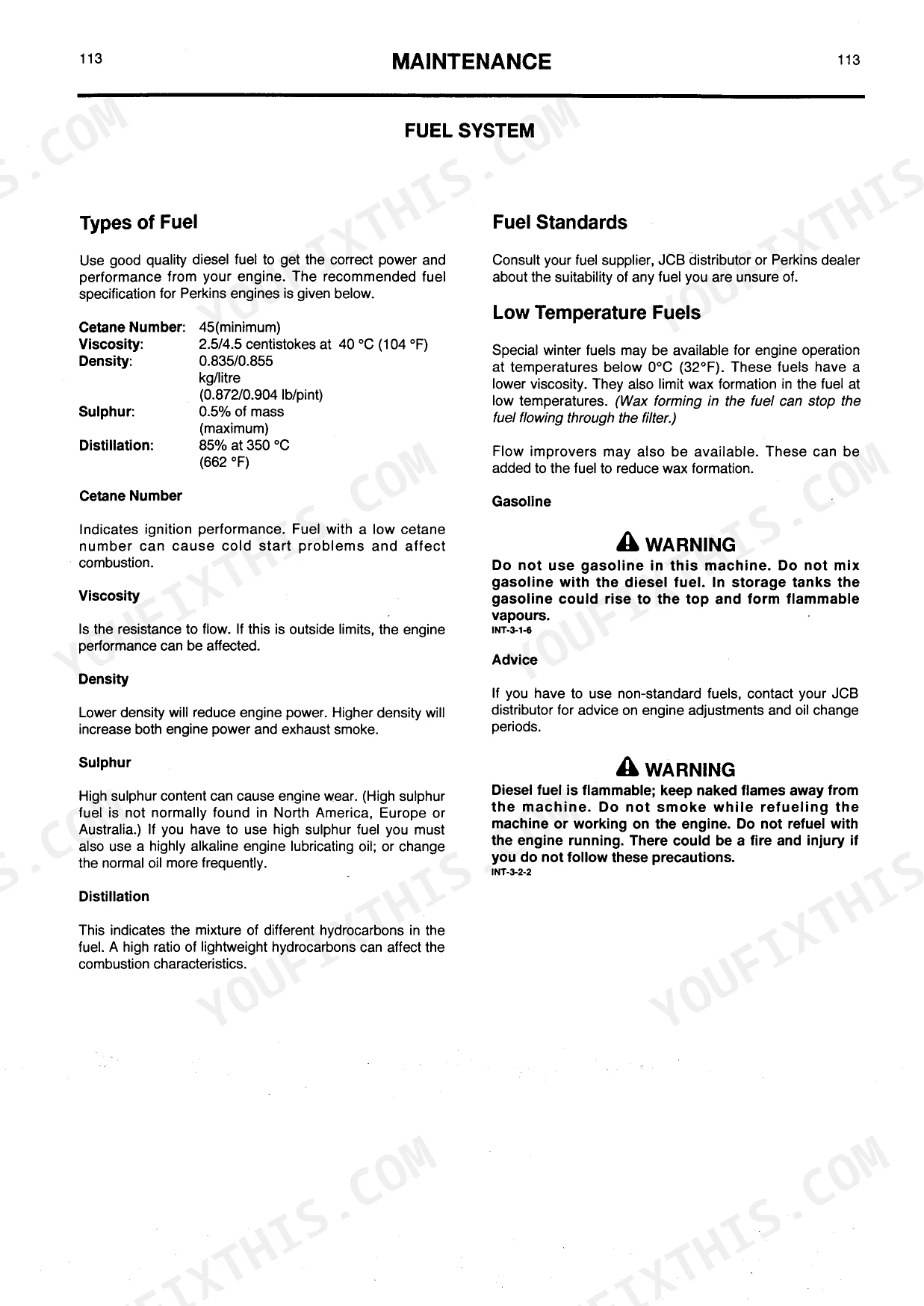

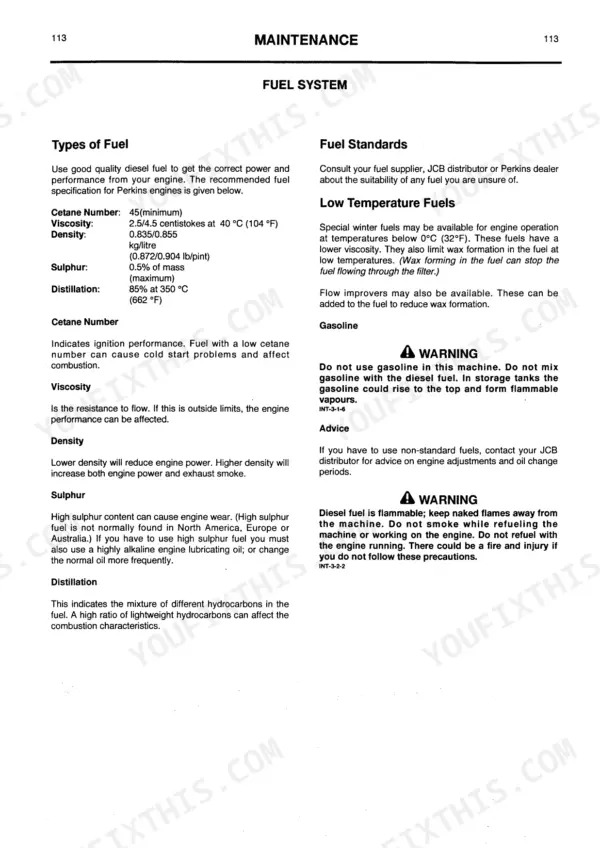

Drain the fuel sediment bowl and inspect the filter elements for water or debris. Verify the fuel tank is filled to its 90 Liters (23.7 Gal) capacity listed on page 131. Replace dirty filters and bleed the fuel system to eliminate air pockets.
Manual Section: MaintenanceTemperature gauge peaks into the red zone and warning light illuminates during continuous operation p. 132
Check the radiator grille for debris and clean the cooling fins immediately. Verify the coolant level is correct for the 23.5 Liters (6.2 Gal) capacity system referenced on page 132. Top off the radiator with the approved antifreeze mixture before returning the machine to service.
Manual Section: MaintenanceMachine struggles to move forward or backward and transmission feels sluggish when shifting p. 85
Check the transmission oil level using the dipstick before starting the engine. Replace the transmission oil and filter if the machine has exceeded the 250 Hours maintenance interval specified on page 85. Ensure proper fluid is used to prevent internal drive wear.
Manual Section: MaintenanceFrequently Asked Questions
What are the torque specs for JCB 508-40 wheel bolts?
The torque specifications for the wheel nuts on a JCB 508-40 are 500 lbf ft (680 Nm) for both the front and rear wheels. It is recommended to check the wheel nuts daily before starting work to ensure they are tight.
What are the replacement specifications for Hydraulic filters?
The hydraulic oil filter should be changed monthly or every 250 hours, whichever comes first, according to the service schedules. The procedure for changing the filter element is detailed in the "Hydraulic System" section on page 122 for 506-36 and early 508-40 machines, and on page 123 for 506B, 510-40 and later 508-40 machines.
How do you fix JCB 506-36 boom cylinder operates sluggishly and jerks when lifting heavy loads?
Inspect the hydraulic fluid level and verify grease points are serviced at the required 10 Hours interval shown on page 85. Check the hydraulic filter for restrictions if daily fluid checks were missed. Lubricate the boom safety strut and sliding pads to restore smooth operation.
How do you fix engine starts normally but loses power and struggles to accelerate under load?
Drain the fuel sediment bowl and inspect the filter elements for water or debris. Verify the fuel tank is filled to its 90 Liters (23.7 Gal) capacity listed on page 131. Replace dirty filters and bleed the fuel system to eliminate air pockets.
How will I receive this JCB 506-36, 508-40, 510-40, 506B Operator Manual?
Immediate download of the complete 134-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This PDF is a scanned document with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text is consistently crisp and easy to read across all pages. Diagrams and illustrations are clear raster images with readable labels, but they will show pixelation if you zoom in significantly. The page condition is good, with clean pages and only minor scan artifacts or slight skewing. Be aware that there are several blank pages interspersed throughout, primarily serving as section separators.
