Searching for a reliable JCB 3185 service manual pdf? This 1027-page factory reference (OEM #9803/8020) covers the complete teardown and rebuild of the Fastrac 2000 and 3000 Series, including the 2115, 2125, 2135, 2140, 2150, 3155, and 3185 variants. Open it up to find the complete electronic management system fault finding, exploded views, maintenance intervals, and error code tables to diagnose persistent transmission or engine heater issues. Torque the hydraulic filter element nuts to exactly 7 Nm and verify the engine oil filter drain plug is at 80 Nm (Fastrac 2140 and 3185) before refilling fluids. Quit wasting hours tracking down phantom codes. Grab this bookmarked digital download, load it onto your shop tablet, and get your tractor running right.

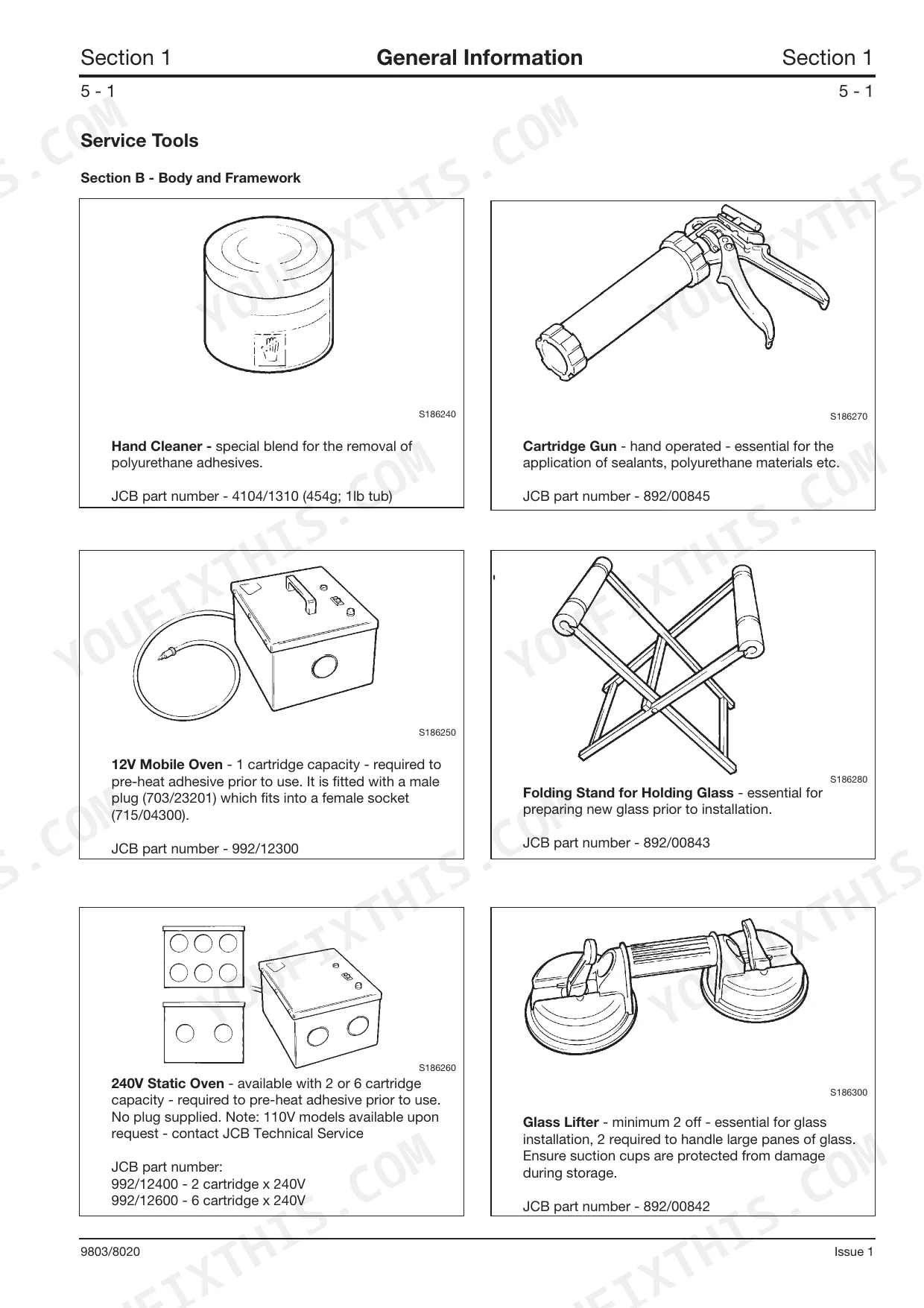

What's Inside This JCB Fastrac 2115–3185 Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Heater | 157-305 | Specifications, Removal and Replacement |
| Fault Finding (2140 Electronic Management System) | 306-1017 | Sectional Diagrams, Alphabetical Index |
| Technical Data (2000 Series Machines Excluding 2140) | 1018-1020 | General, Fuel System |
| Technical Data (3000 Series and 2140 Machines) | 1021-1022 | General, Fuel System, Fastrac 3155 |
| Engine Unit (Typical) | 1023-1025 | Removal and Replacement, Assembly |
| Flywheel Damper - Wet Clutch Transmission | 1026-1027 | Removal and Replacement, Torque Settings |
Quick Reference Specifications

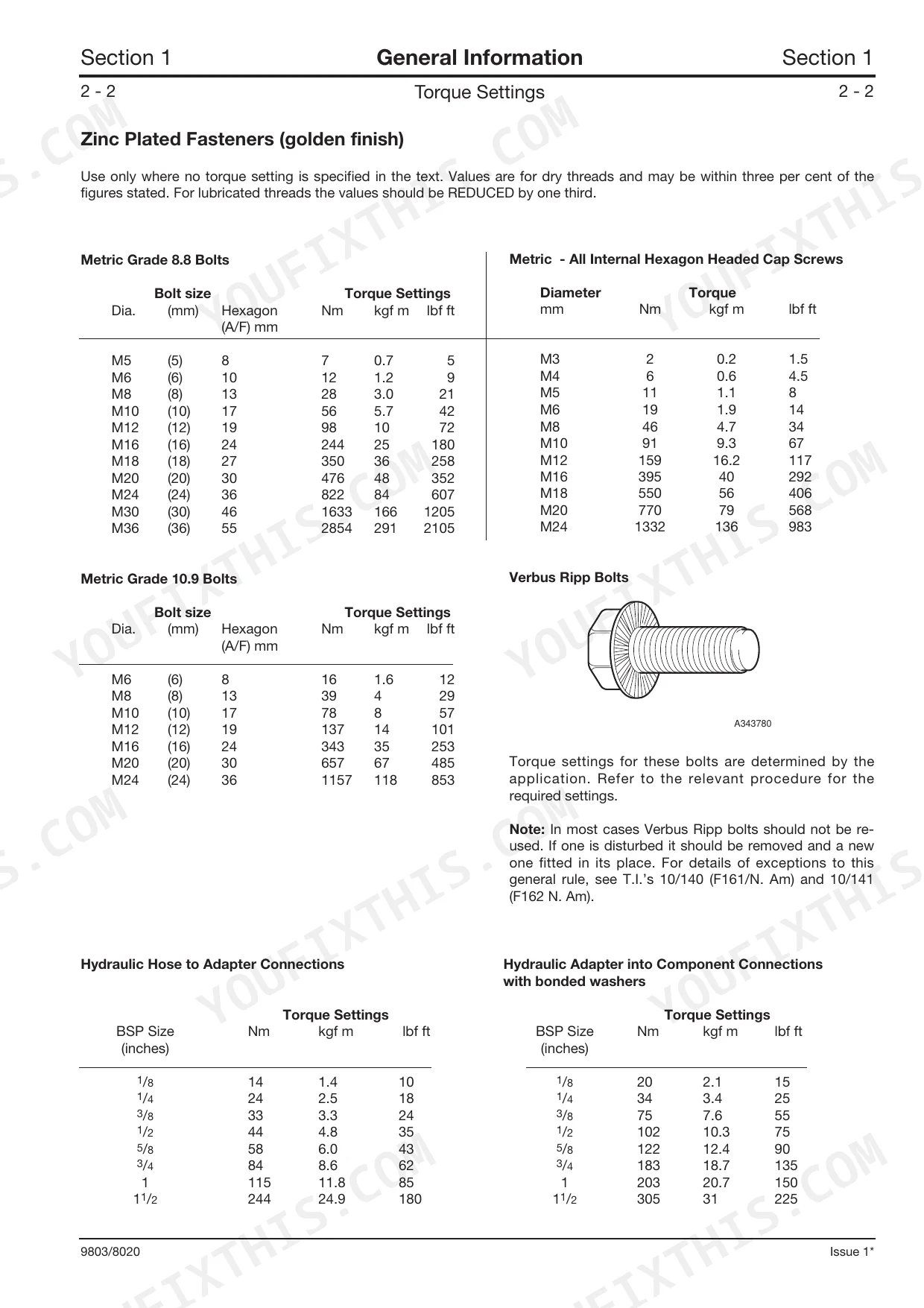

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Dacromet Fasteners (mottled silver finish) Metric Grade 8.8 Bolts M10 x 1.5 torque | 47.5 Nm (4.8 kgf m, 35 lbf ft) | p. 9 |
| Electronic Draft Control System Activation Procedure | Move main control lever A to lift position (1) and then to lower position (3) | p. 656 |
| Hydraulic filter element nuts torque | 7 Nm (5 lbf ft) | p. 82 |
| Fuel filter element torque | hand-tight only | p. 122 |
| Foot (Service) Brake Minimum Lining Thickness (at renewal) | 3 mm (0.125 in) | p. 870 |
| Master Clutch (Wet Clutch Transmission) Clutch Pack End Float | 3.0 - 3.5 mm | p. 678 |
| Fastrac 2140 and 3185 | ||
| Engine oil filter drain plug torque | 80 Nm (59 lbf ft, 8 kgf m) | p. 119 |
| 2000 Series Machines | ||
| Air filter end cover knob torque | Tighten knob A | p. 140 |
| Pump Type 1 - Suspension and Front Axle Steering (2000 Series to S/N 739999, 3000 Series to S/N 641999) | ||
| Hydraulic pump mounting bolts torque (Item 10) | 54-61 Nm (5.5-6.2 kgf m, 40-45 lbf ft) | p. 594 |
| Fastrac 2000 Series | ||
| Hydraulic steering unit mounting screws torque (Item B) | 45 Nm (4.6 kgf m, 33 lbf ft) | p. 953 |
| Fastrac 2115, 2125, 2135, 2150 | ||

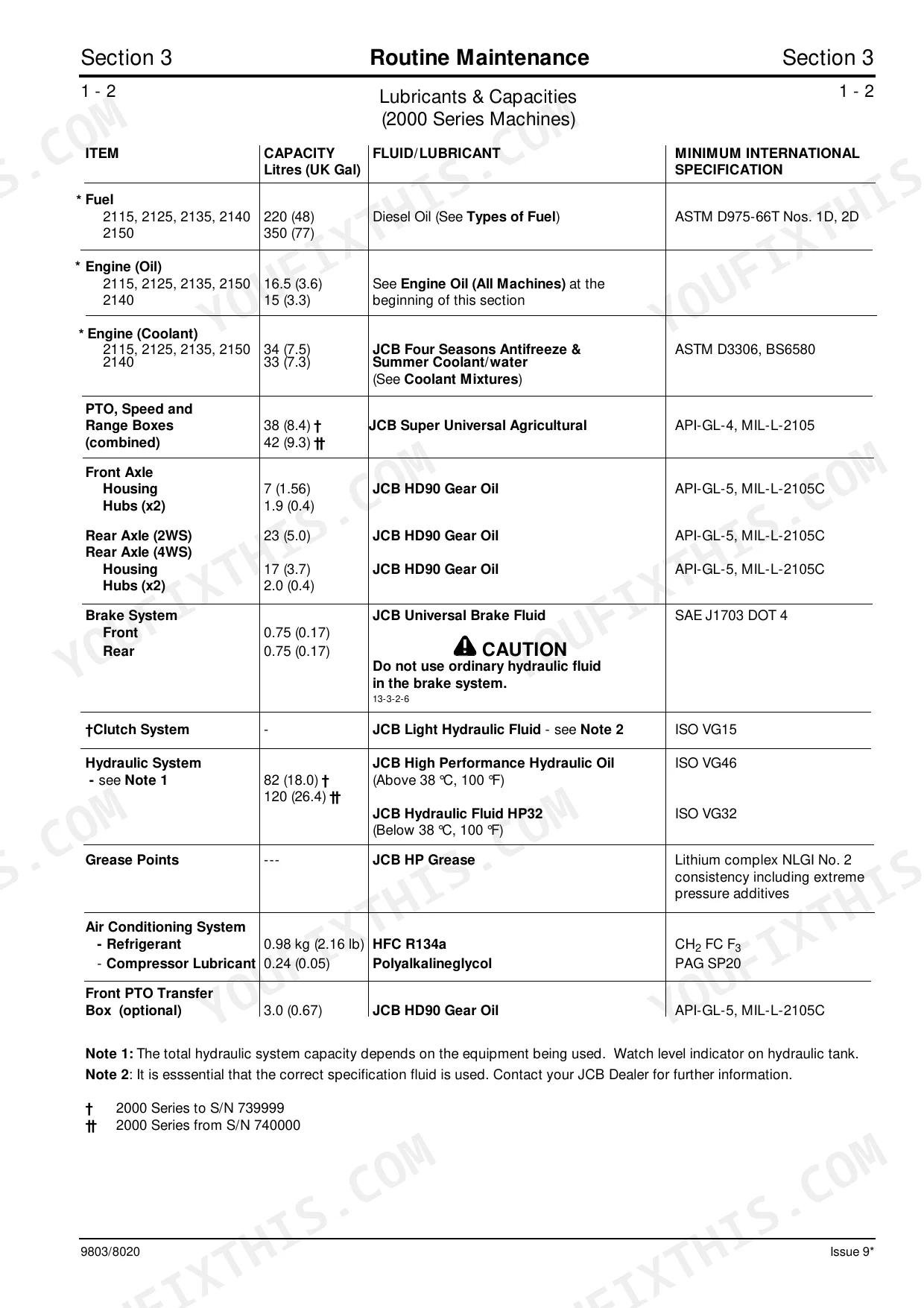

| Engine Oil Capacity | 16.5 L (3.6 UK Gal) | p. 49 |
| Fastrac 2140 | ||
| Engine Oil Capacity | 15 L (3.3 UK Gal) | p. 49 |
JCB Fastrac 2115–3185 Common Problems This Manual Covers

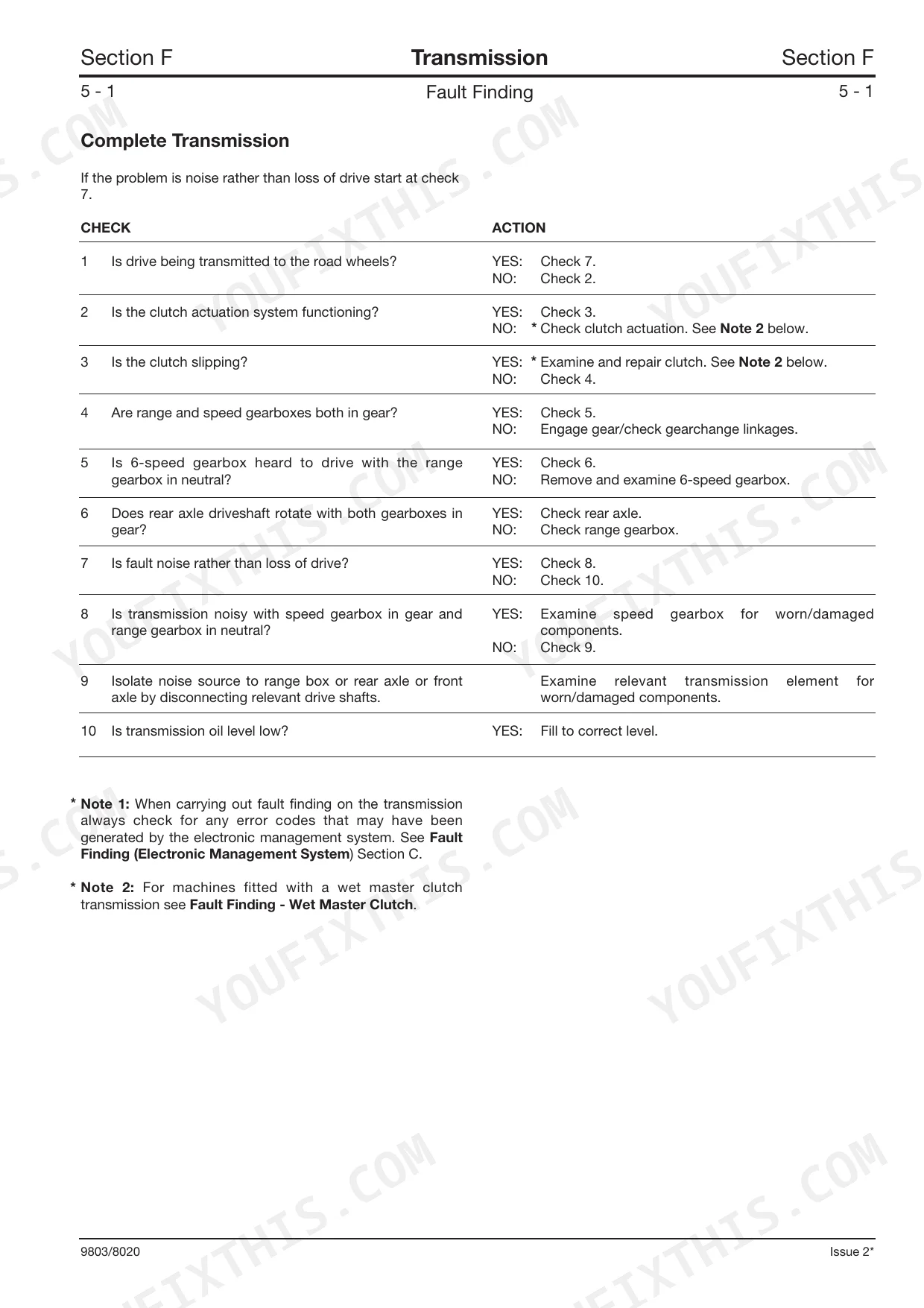

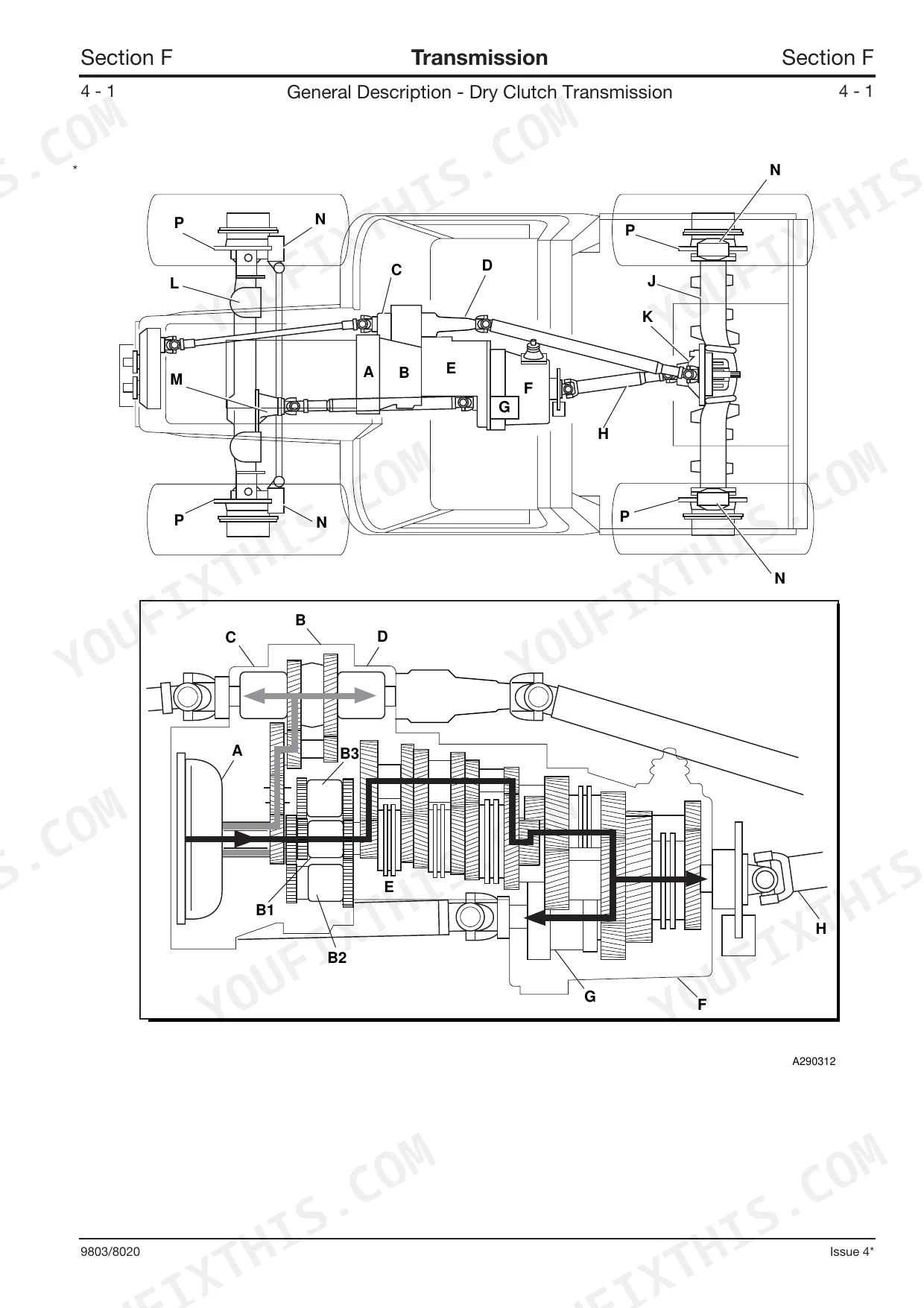

JCB Fastrac 2140 wet master clutch slipping under load or failing to engage during operation. p. 678
Inspect the master clutch pack for worn friction plates. Measure the clutch pack end float, ensuring it falls within the 3.0 to 3.5 mm tolerance found on page 678. Replace worn plates and verify transmission oil level before testing gear engagement.
Manual Section: Transmission - Wet Master Clutch Fault FindingService brakes feel weak or warning lights stay on at the dash panel. p. 870
Check the brake system operating pressure with a gauge, as detailed on page 870. Inspect the foot brake pads and renew them if the lining thickness has reached the 3 mm (0.125 in) minimum limit.
Manual Section: Brake System - General Fault FindingSteering becomes heavy or completely unresponsive when operating at low engine speeds. p. 930
Test the steering unit relief valve pressure and suspension pump flow as shown on page 930. Replace the pump if flow is insufficient to restore normal steering response.
Manual Section: Steering System - Front Axle Fault FindingHydraulic lift and auxiliary circuits operate slowly or lose lifting power completely. p. 82
Drain the system and check total hydraulic fluid capacity per the specifications on page 82. Replace clogged hydraulic filter elements and torque the housing nuts exactly to 7 Nm (5 lbf ft) per page 82.
Manual Section: Fault Finding (2140 Electronic Management System)Frequently Asked Questions
How do I reset the service light on a JCB Fastrac 2150?
To reset the service light, initiate the flashing 'SERVICE' message on the centre display 30 by pressing SET UP/SELECT button D. Then, use buttons A or B to adjust the displayed total running hours for the next service, which can be incremented in 50-hour steps. This procedure applies to Fastrac models with EMS Software Version 7.00 onwards.

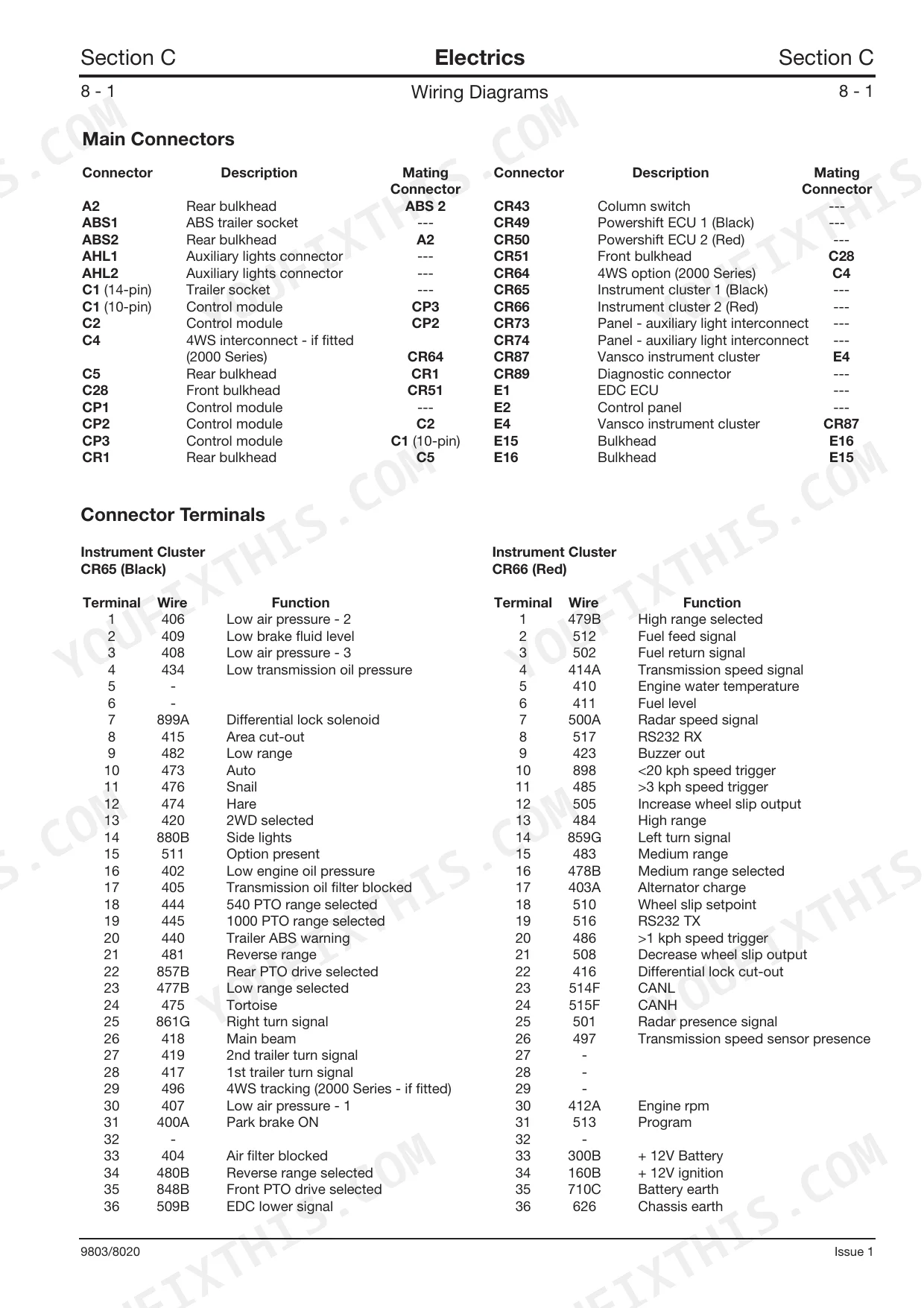

What do error codes mean on a JCB Fastrac 2135?

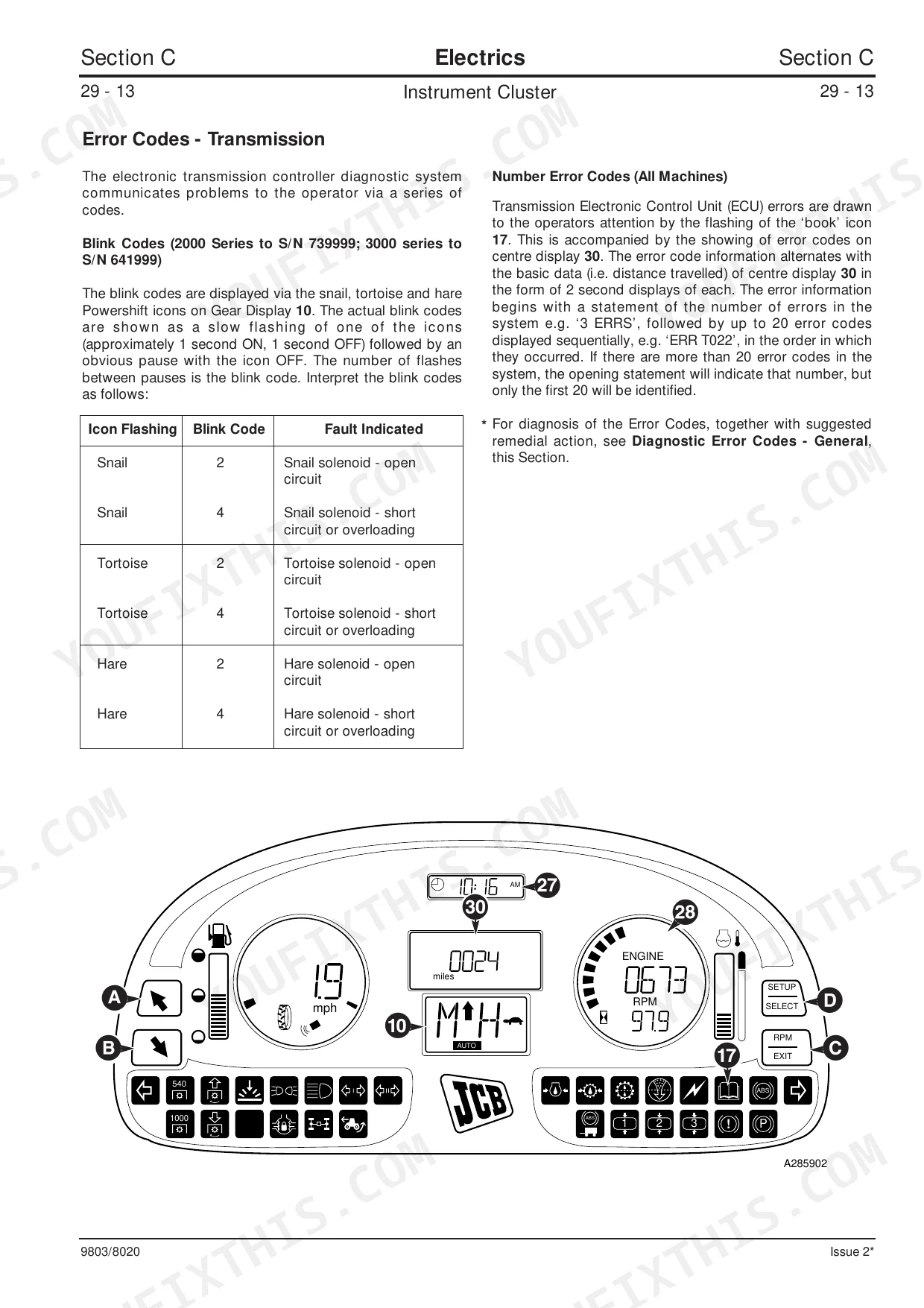

Error codes on a JCB Fastrac 2135 are communicated via blink codes displayed on the Instrument Cluster's Gear Display 10, using Snail, Tortoise, and Hare icons. These codes, along with their descriptions, possible causes, and recommended actions, are detailed in tables within the 'Diagnostic Error Code Tables' section of this manual. For example, D001 indicates an EMS ROM memory error, suggesting reprogramming the EMS software.
What are the torque settings for wheel nuts on a JCB Fastrac 2125?
For a JCB Fastrac 2125, the torque settings for wheel nuts vary by axle. Rear axles with 12 nuts per wheel require a torque of 600 Nm (60.0 kgf m, 440 lbf ft), while all other axles require 500 Nm (51.0 kgf m, 370 lbf ft). It is important to check these torques every ten hours on new machines or after removal and refitting, and no oil should be applied to the threads.
how to reset JCB Fastrac 3155 fault codes
To reset JCB Fastrac 3155 fault codes, access the Psion Workabout's 'Download Data Log Menu Options' and select 'Erase Datalog Memory'. The Psion will display the percentage of memory used; if high (e.g., 50% or more), press Enter to start the erase process, or On/Esc to return to the Main Menu. Once erased, data logs cannot be restored.
What are the replacement specifications for hydraulic filters?
When replacing hydraulic filter elements, for wet clutch machines, fit a new paper insert into the metal outer element J. For all machines, assemble the new or refurbished element onto the spindle using a new seal L and ensure the top lip of the seal locates in the groove inside the filter head M. The element assembly F should be fitted with a new 'O' ring G, and nuts C tightened to 7 Nm (5 lbf ft).
How will I receive this Service Manual?
You get a 1027-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this JCB Fastrac 2115 & variants Service Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an accurate OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read throughout. Diagrams and illustrations are clear raster images, with all labels perfectly readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. There are no blank or filler pages present in this document.
