Need the factory operating guidelines for your Case tractor? This 62-page Case Cougar II operator manual PDF (OEM #37-036) breaks down the complete daily maintenance, dashboard controls, and startup procedures for the Cougar II Tractor. Inside, you get a full troubleshooting section for engine misfires, complete lubrication guides, and detailed break-in periods. Open up to clear instructions on adjusting the dry and wet clutches, priming the fuel system, and servicing the axle vent screws. Confirm your transmission pressure sits between 5-20 PSI with hot oil, and verify the main hydraulic system is pushing a full 2000 PSI at the implement. Don't risk downtime over missed daily checks. Download this bookmarked file directly to your phone, jump straight to the maintenance charts, and get back in the cab.
What's Inside This Case IH Cougar II Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 15-16 | Control Levers, Radiator Pressure Cap, Safety Starting Switch, Brake Adjustment, First Aid Kit, Transmission Neutral |

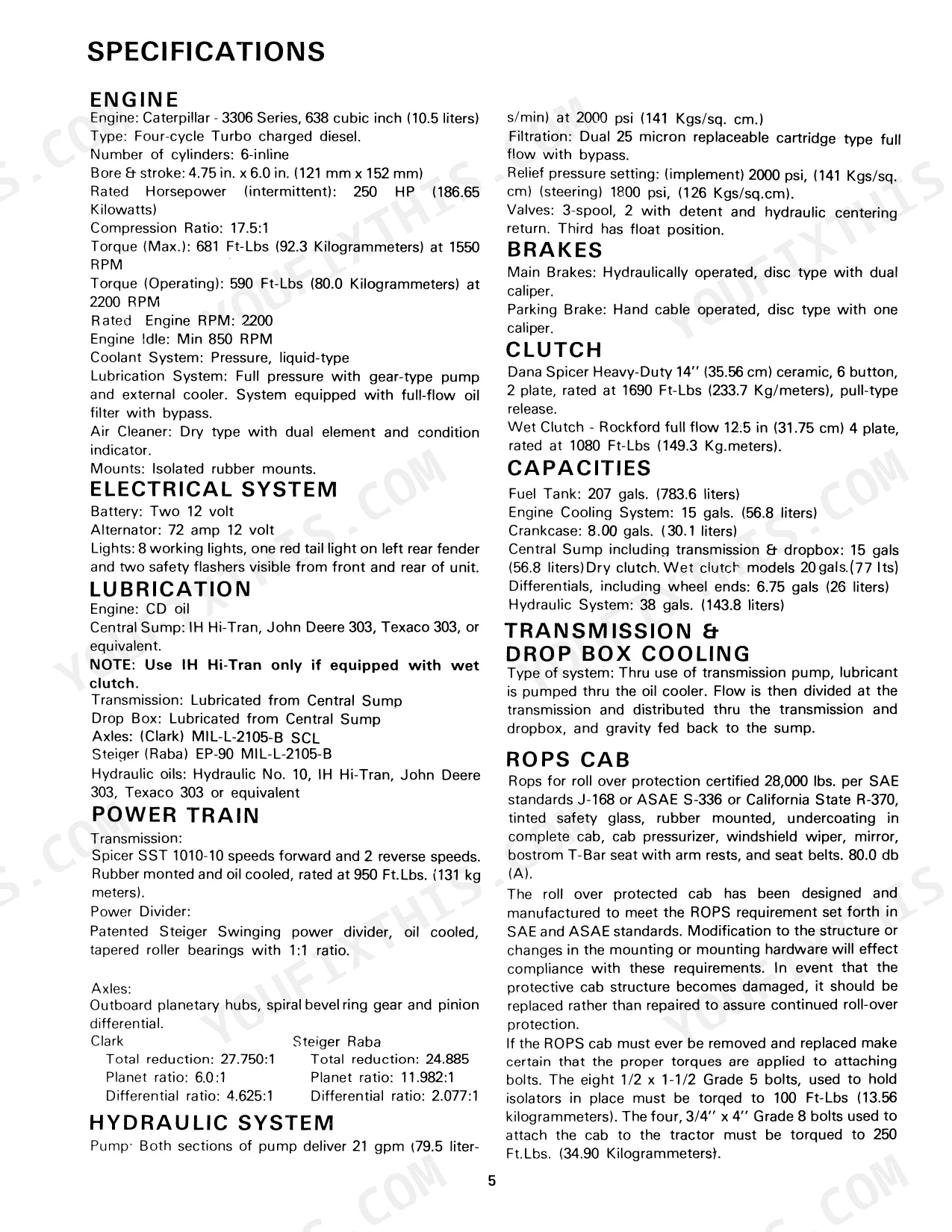

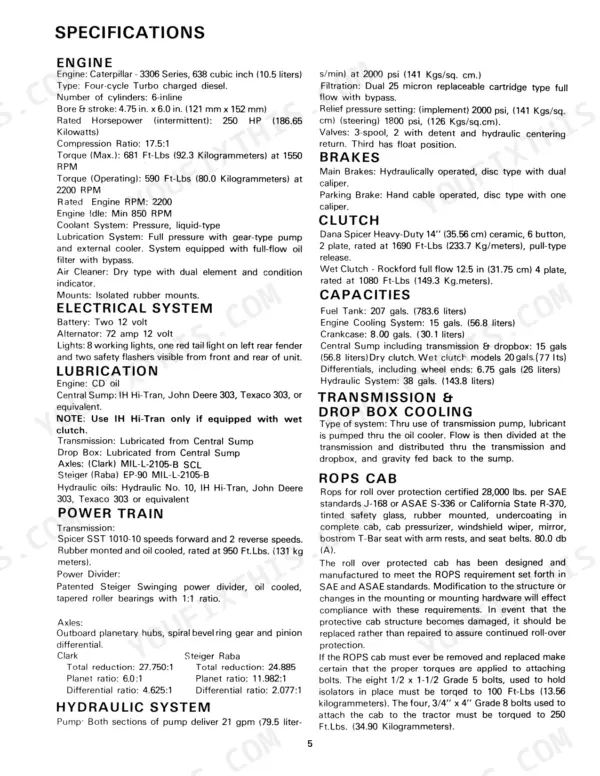

| Specifications | 17-18 | Engine, Electrical, Power Train, Hydraulics, Brakes, Capacities, Transmission & Drop Box Cooling, Tire Inflation |
| Measurements and Weights | 19 | Lengths, Width, Height, Clearance, Turning Radius, Weight |
| Electrical Schematic | 20 | Battery, Alternator, Fuse Block, Solenoids, Switches, Gauges |

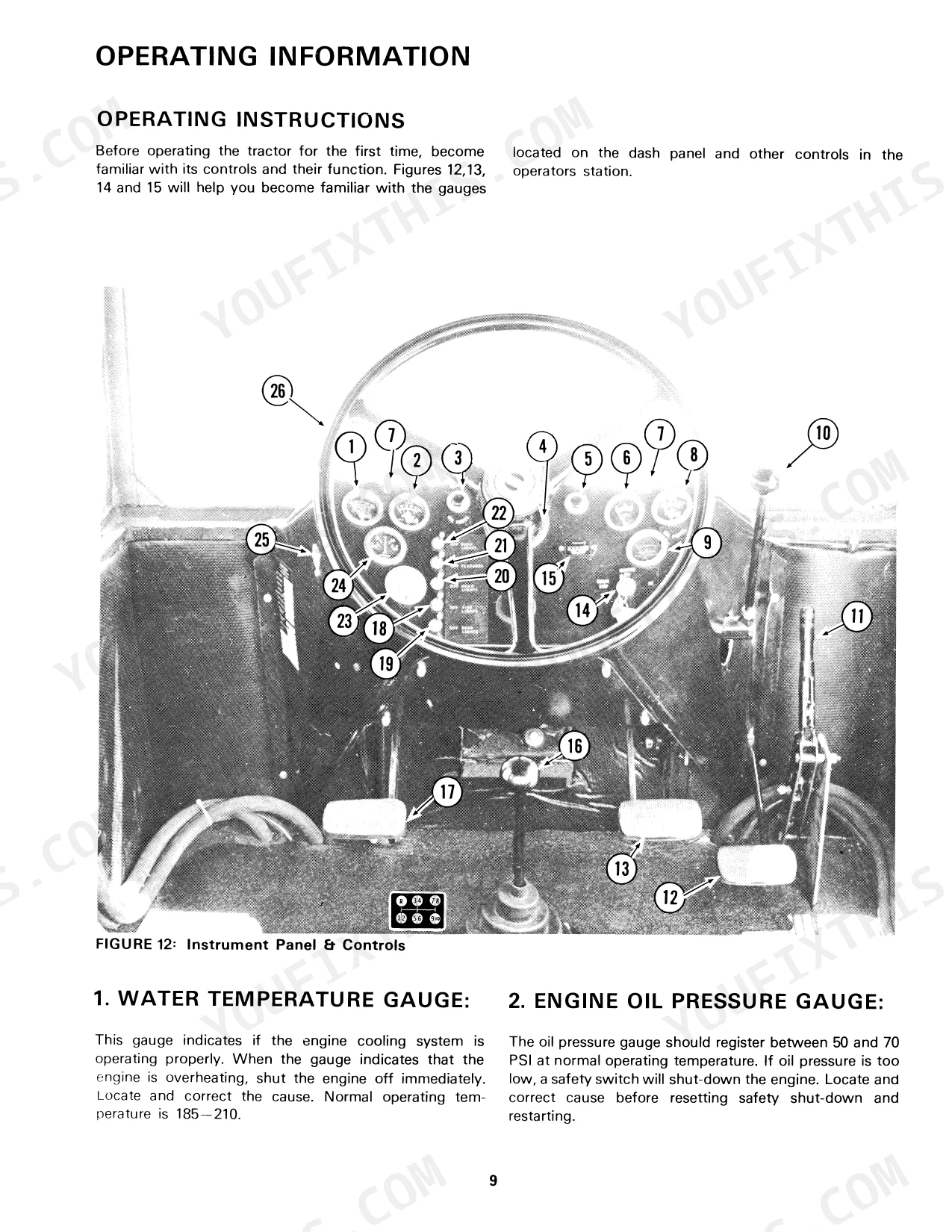

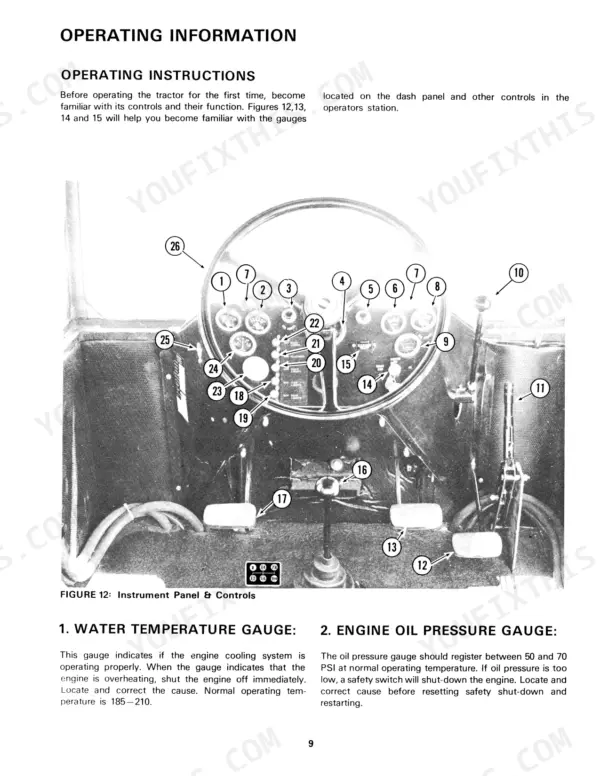

| Operating Information | 21-26 | Instrument Panel and Controls, Cab Console and Controls, Seat Adjustment, Pre-Start Inspection, Starting Procedure, Break-In Period, Shut-Down Procedure, Automatic Shut-Down |
| Air Cleaner Maintenance | 27-28 | Engine Air Cleaner, Cab Air Cleaner |
| Battery Service | 29 | Battery Care, Booster Battery Connection, Jumper Cable Removal, Water Level, Terminal Cleaning, Vent Plugs |
| Air Conditioner Maintenance | 30-31 | Air Conditioner Operation, Evaporator Freeze Up, Receiver-Drier, Cab Fresh Air Filters, Finned Coils, Condensor |
| Lubrication Guide | 32 | U-Joint, Slip Yoke, Clutch Release-Shaft, Main Hinge, 3 Point Hitch, Grease Specifications |

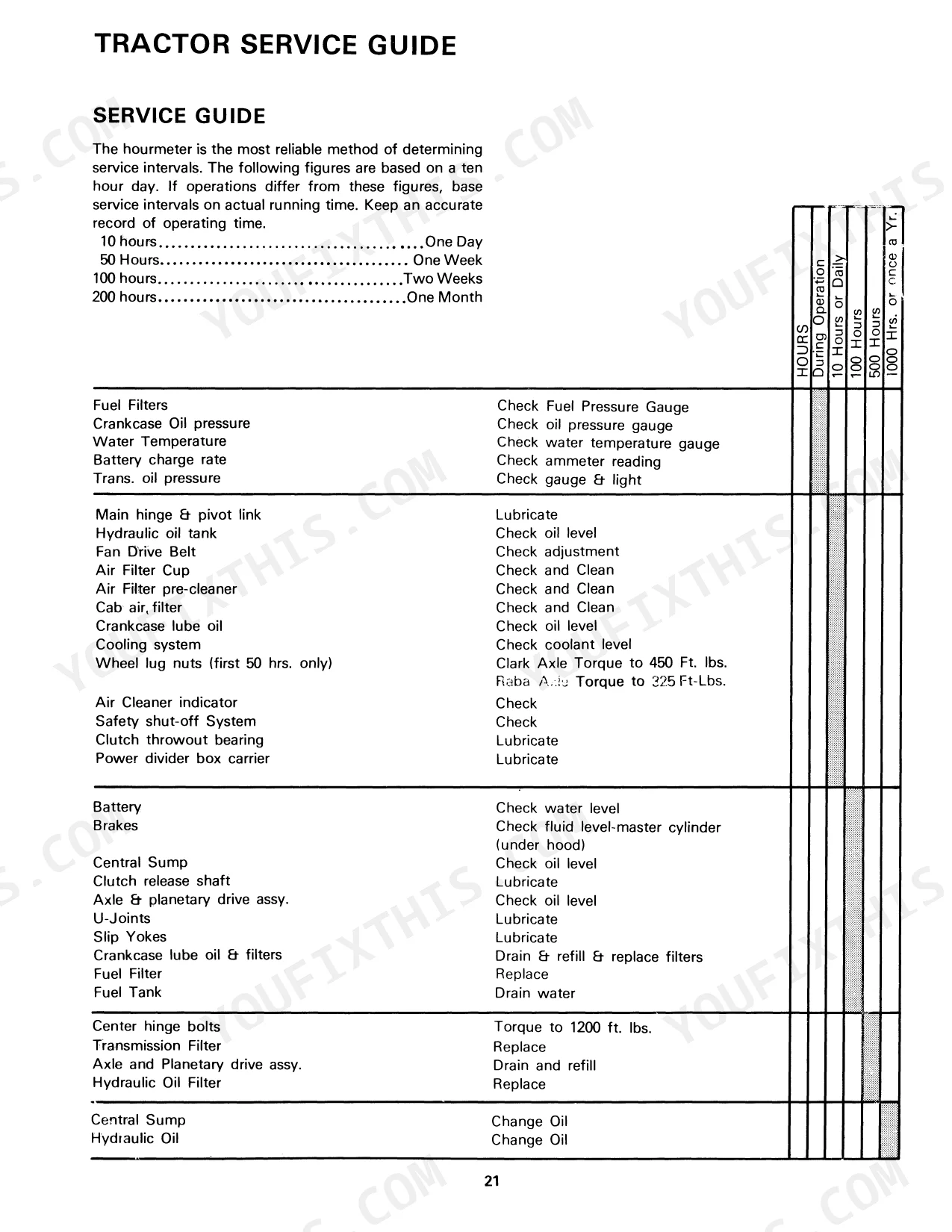

| Tractor Service Guide | 33 | Fuel Filters, Crankcase Oil, Hydraulic Oil, Air Filter, Cooling System, Brakes |
| Engine Maintenance | 34-38 | Tilt Up Hood, Engine, Fuel Filter Service, Priming Fuel System, Crankcase Lubrication, Crankcase Oil Specifications, Crankcase Breather Service |
| Axle Maintenance | 39 | Steiger Raba Axle, Clark Axle, Wheel Bolts, Oil Level, Oil Change, Vent Screw |
| Transmission and Drop Box Maintenance | 40 | Checking Central Sump Oil Level, Drop Box Lubrication, Changing Spicer Transmission Oil Filters |
| Cooling System | 41-42 | Transmission and Drop Box Cooling, Engine Cooling, Fan Belt Tension |
| Brake System | 43-44 | Park Brake Adjustment, Hydraulic Operating Brake |
| Adjustments | 45-48 | Dry Clutch, Clutch Brake, Wet Clutch |
| Hydraulic Schematic | 49 | Steering Cylinders, Control Valve, Orbitrol, Relief Valve, Hydraulic Filters, Pump |
| Hydraulic System | 50-52 | Filter Service, Control Valve, Valve Detent Setting, Steering Pressure, Remote Ram Controls, Standard Drawbar |
| Three-Point Hitch | 53 | Remote Ram Outlets, Center Link, Pt. Hitch Lube Fittings, Turn Buckles, Adjusting Screw, Adjusting Arm Nut |
| Tractor Storage | 54 | Engine Crankcase Oil, Air Cleaner, Cooling System, Fuel Tanks, Batteries, Hydraulic Cylinders |

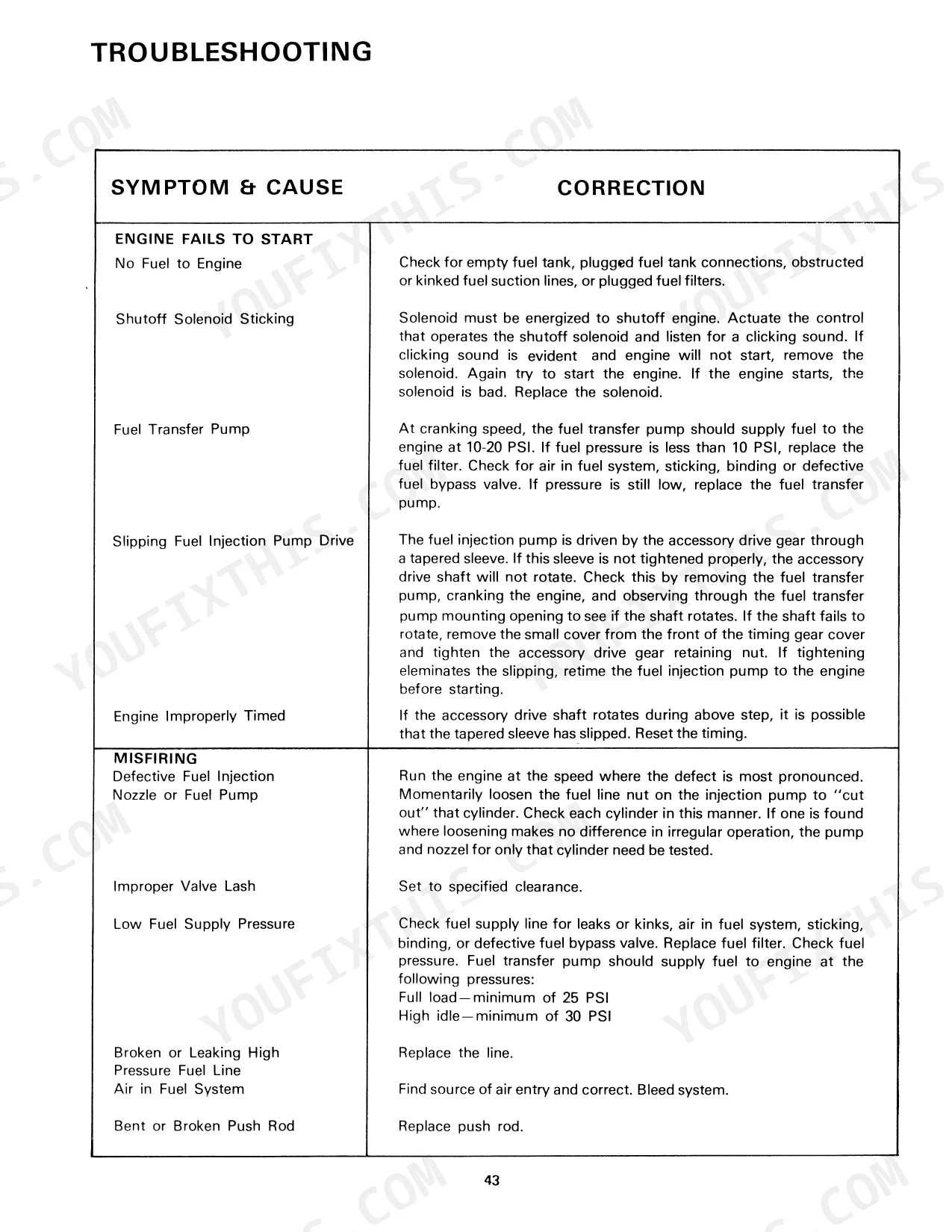

| Troubleshooting | 55-59 | Engine Fails to Start, Misfiring, Low Power, Excessive Vibration, Oil in Coolant, Low Engine Oil Pressure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hinge Pins Torque | 1200 ft. lbs. | p. 5 |
| Transmission Pressure (hot oil) | 5-20 PSI | p. 5 |
| Hydraulic System Pressure (main) | 2000 PSI | p. 50 |
| Hydraulic System Relief Pressure Setting (implement) | 2000 psi (141 Kgs/sq. cm) | p. 17 |
| Engine Rated Horsepower (intermittent) | 250 HP | p. 17 |
| Fuel Tank Capacity | 207 gals. | p. 17 |
| Engine Cooling System Capacity | 15 gals. | p. 17 |
| Engine Crankcase Capacity | 8.00 gals. | p. 17 |
| Hydraulic System Capacity | 38 gals. | p. 17 |
| Hydraulic System Relief Pressure (implement) | 2000 psi | p. 17 |
| Steering Pressure Setting | 1800 PSI | p. 51 |
| Wheel Lug Nuts Torque (Clark Axle) | 450 Ft. lbs. | p. 33 |
Case IH Cougar II Common Problems This Manual Covers
Transmission pops out of gear or won't stay engaged during operation p. 22
Stop and check transmission oil pressure; normal hot-oil operating pressure is 5 to 20 PSI, and readings outside that range point to wear needing service attention rather than a quick fix. Also check the central sump oil level per the transmission maintenance schedule on page 40 before continuing to operate, since low oil accelerates the wear behind popping out of gear.
Manual Section: Transmission and Drop Box MaintenanceDashboard warning light comes on and stays lit after startup p. 21
Check the indicator meaning against the instrument panel layout on page 21 before shutting down. Confirm crankcase oil is filled to the correct level on the dipstick and that hydraulic oil in the reservoir is adequate; crankcase capacity is 8.00 gallons and hydraulic system capacity is 38 gallons. If levels are correct, inspect the sending unit wiring for corrosion before continuing to operate.
Manual Section: Operating InformationEngine runs rough or misfires under load p. 55
Run the engine at the speed where the defect is most pronounced, then momentarily loosen the fuel line nut on the injection pump to 'cut out' each cylinder in turn -- if loosening one cylinder's line makes no difference to the irregular running, that cylinder's pump and nozzle need testing. Also check for low fuel supply pressure: the fuel transfer pump should deliver at least 25 PSI at full load and 30 PSI at high idle, so a defective bypass valve or clogged filter dropping pressure below that will cause misfiring.
Manual Section: TroubleshootingFrequently Asked Questions
What are the recommended service intervals for the tractor?
The service intervals are based on the hourmeter, with 10 hours considered daily, 50 hours weekly, 100 hours every two weeks, and 200 hours monthly. For example, wheel lug nuts should be torqued at 50 hours, and the transmission filter should be replaced every 500 hours.
What fluids and capacities does this machine require?
The tractor requires various fluids with specific capacities: the Fuel Tank holds 207 gals. (783.6 liters), the Engine Cooling System holds 15 gals. (56.8 liters), and the Crankcase holds 8.00 gals. (30.1 liters). The Central Sump, including transmission & dropbox, holds 15 gals (56.8 liters) for dry clutch models and 20 gals. (77 liters) for wet clutch models. Differentials, including wheel ends, require 6.75 gals (26 liters), and the Hydraulic System holds 38 gals. (143.8 liters) of No. 10 weight oil.
How can I troubleshoot an engine that won't start?
If the engine fails to start, first check for an empty fuel tank, plugged connections, or obstructed fuel lines. The fuel transfer pump should supply fuel at 10-20 PSI at cranking speed; if pressure is less than 10 PSI, replace the fuel filter. Also, check the shutoff solenoid by actuating its control and listening for a clicking sound.
What are the valve clearance specifications for the engine?
The manual consistently states that valve lash should be set to 'specified clearance' for various components like severely worn cam lobes, valve tip wear, and rocker arm anvil wear. However, the specific numerical value for this clearance is not provided within the manual.
What are the torque specifications for various components on the tractor?
Several components have specific torque requirements: the eight 1/2 x 1-1/2 Grade 5 bolts holding ROPS cab isolators must be torqued to 100 Ft-Lbs (13.56 kilogrammeters), and the four 3/4" x 4" Grade 8 bolts attaching the cab to the tractor must be torqued to 250 Ft. Lbs. (34.90 Kilogrammeters). Wheel lug nuts for Clark Axle require 450 Ft. lbs. and for Raba Axle 325 Ft-Lbs. The center hinge bolts should be torqued to 1200 ft. lbs., and the filter retainer capscrew to 20-25 ft. lbs.
Is this Steiger Cougar II Tractor Operator Manual a digital download?
You get a 62-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Steiger Cougar II Tractor manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
