Mastering your equipment starts here, as this 268-page Case CS85 Pro, CS95 Pro, CS105 Pro operator manual PDF (OEM #84410118) breaks down every control element, maintenance interval, and dashboard warning light. Inside, you get step-by-step operating procedures covering the transmission, rear PTO, and electronic front hitch control. Open the lubrication charts to find full maintenance schedules, exact fluid capacities, and safe ballasting guidelines to keep your tractor pulling hard. Verify your hydraulic system working pressure hits 175 bar under load, and make sure to top off the engine crankcase with exactly 12 liters of oil before starting your shift. Don't guess what that flashing dash code means while you are out in the field. Grab this bookmarked download, pull it up on your tablet, and keep your operation moving.
What's Inside This Case CS85 Pro, CS95 Pro, CS105 Pro Operator Manual

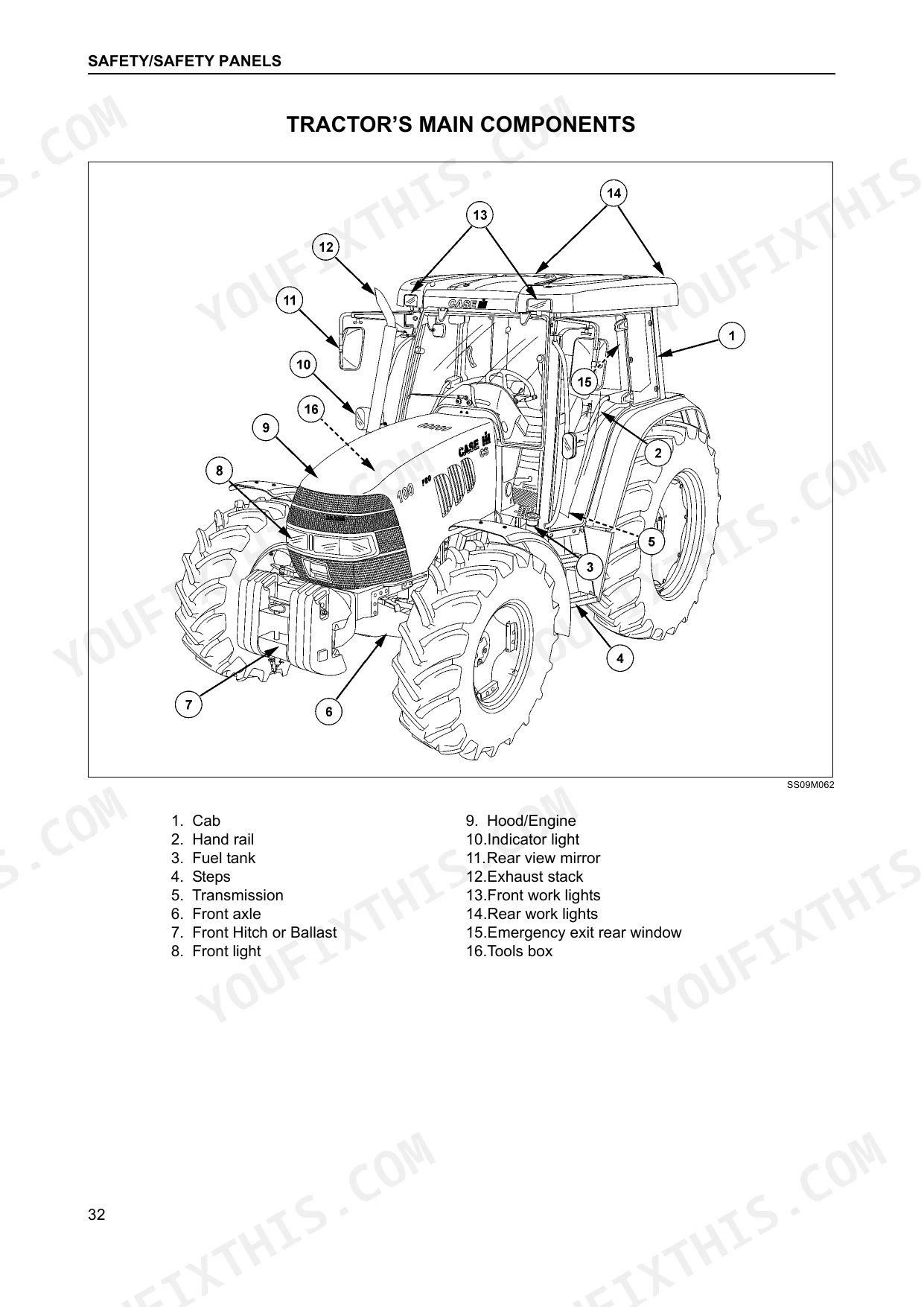

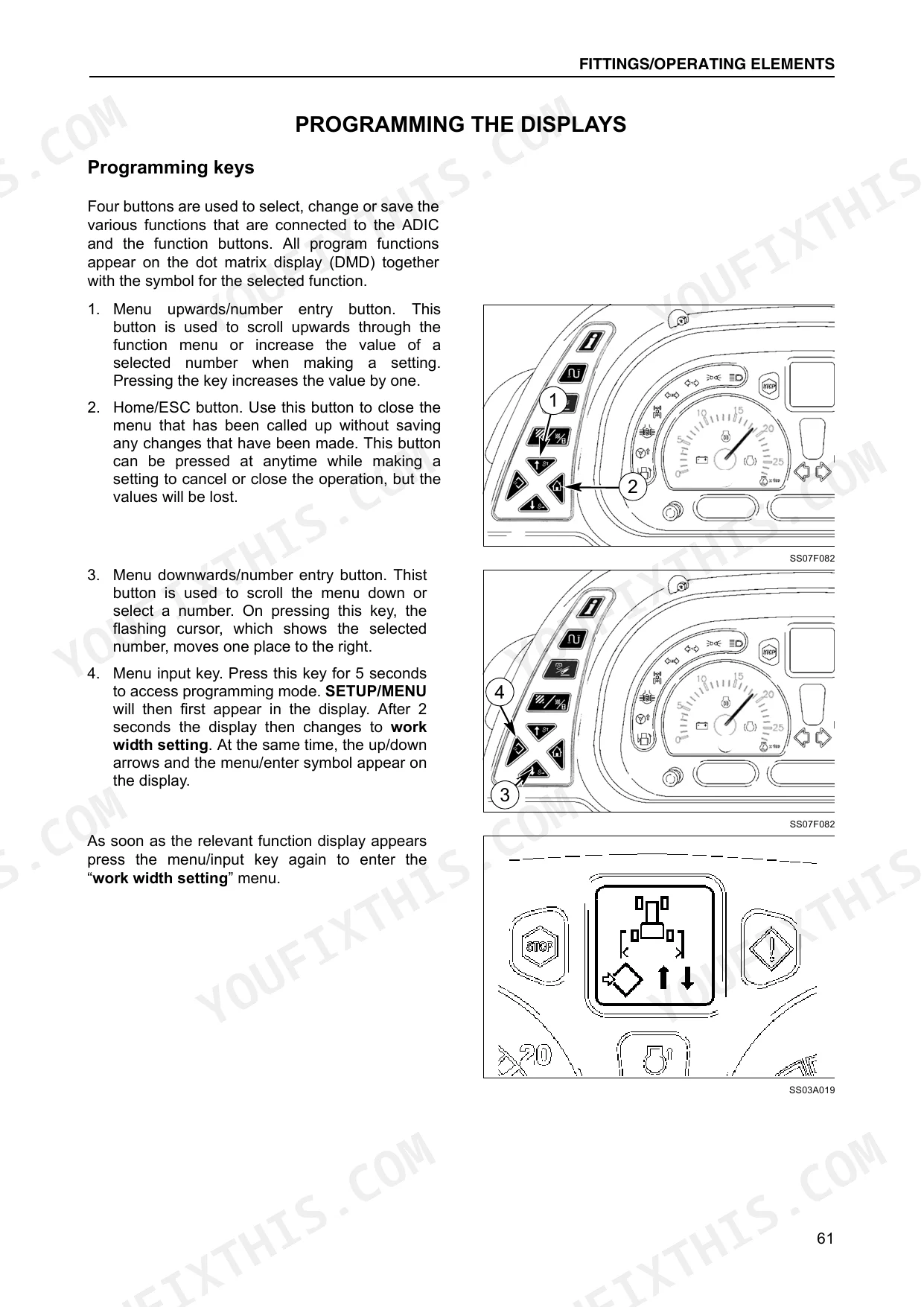

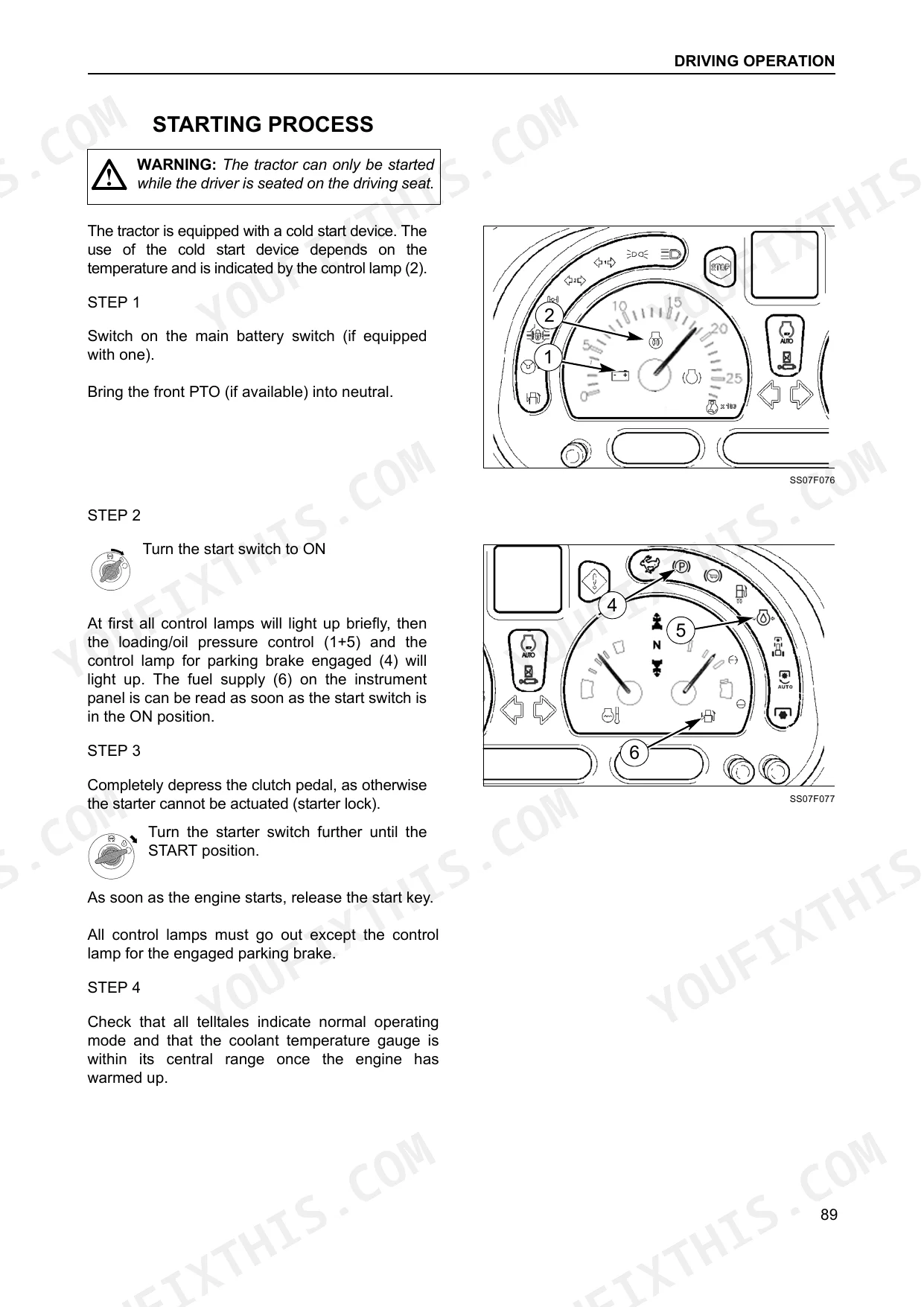

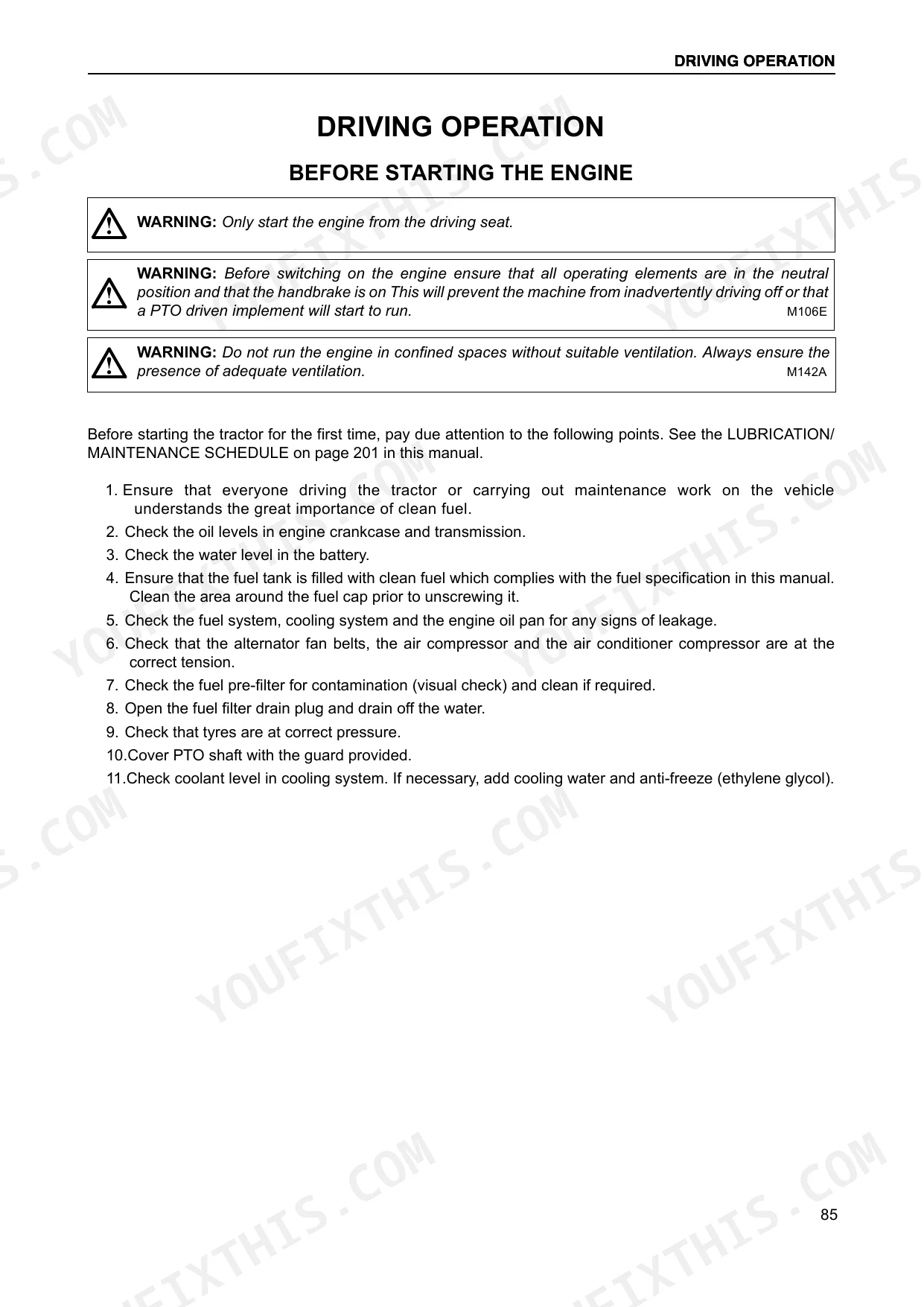

| System | Pages | Key Topics |
|---|---|---|
| Ce Declaration of Conformity Document | 5-6 | Ec Declaration of Conformity, Directive 2006/42/EC, Agricultural Tractor, Trade Name, Model, Serial Number |
| Health and Safety Related Standards Applied to Your Tractor | 7 | FOPS Level, HVAC (Heating, Ventilation Air Conditioning) Cab, En 15695-1, Noise Emission Levels, Vibration Levels, ROPS Protection |
| Metric and Imperial Units Abbreviations | 8-10 | Area, Electricity, Force, Length, Mass, Power |
| To the User | 11-14 | How to Use This Manual, Software Status |
| Assemblies/Serial Numbers | 15-16 | Assemblies and Serial Numbers |
| Safety/Safety Panels | 17-40 | Safety Messages and Safety Panels, Airborne Sound Emission, Tractor Vibration Level Information Sheet, Machine Stability, Fire or Explosion Prevention, Intended Use of Your Tractor |
| Fittings/Operating Elements | 41-88 | Driver's Seat, Analogue/Digital - Instrument Control, Function Buttons, Warning and Indicator Lights, Programming the Displays, Control Elements |
| Driving Operation | 89-128 | Before Starting the Engine, Main Battery Switch, Hydraulic Master, Operation of Actuator Lever, Actuating the Clutch Pedal, Starting Process, Tractor Operation at Low Temperatures |
| Operational Use | 129-186 | Rear PTO, Operating the Case Front PTO, Hydraulics, Preparing the Rear 3-Point Linkage, Operating the Power Lift, Case-Front PTO, Front-End Loader Connection Points |
| Tyres/Wheels/Wheelbase/Ballast | 187-198 | Setting the Front Axle and the Front Axle Wheelbase, Rear Axle Tread Setting, 4WD Wheel Combinations, Front Wheel Fender - 4WD Tractor, Tractor Ballast |
| Lubrication/Maintenance | 199-236 | Environmental Issues, Plastics and Glass Fibre Reinforced Parts, Tool Box, Proof Meter, Engine Hood, Lubricants and Fill Quantities, Lubrication/Maintenance Chart, Daily Checks |
| Electrical System | 237-254 | Battery, Changing Light Bulbs and Lamps, Fuses |
| Technical Data | 255-264 | Engine, General Machine Data, Road Speeds, Vehicle Weights and Dimensions |
Quick Reference Specifications

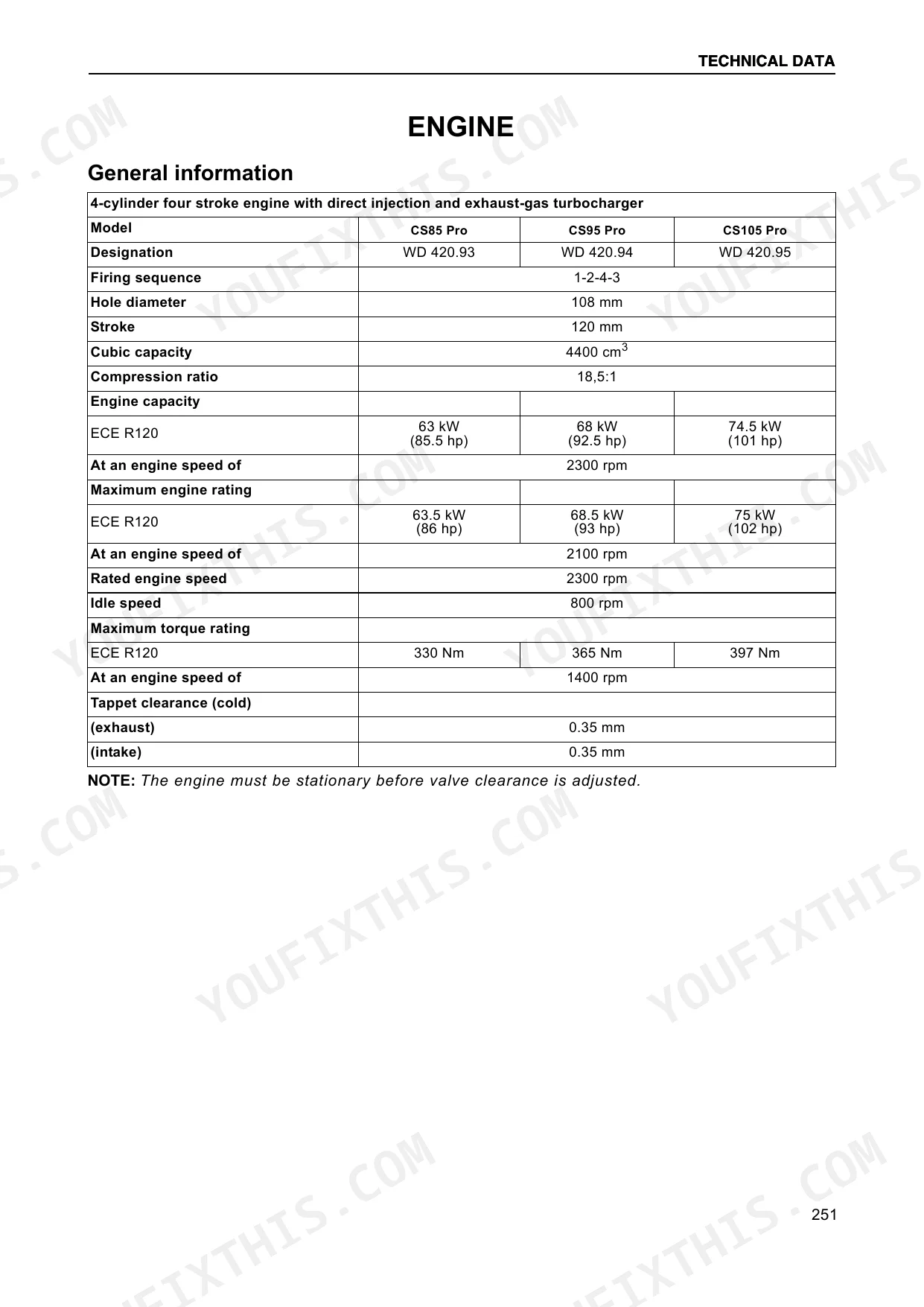

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic system working pressure | 175 bar | p. 259 |
| Thermostat function operating temperature | begins to open at approx. 80°C completely open at 95°C | p. 256 |
| Engine Oil Capacity | 12 litres | p. 202 |
| Transmission Unit Oil Capacity | Approx. 38 litres | p. 202 |
| Hydraulics System/Steering Fluid Capacity | Approx. 34 Liter | p. 202 |
| Brake Fluid Capacity | 0.4 litres | p. 202 |
| Cooling System Capacity | 12 litres | p. 202 |
| Engine Tappet Clearance (exhaust) | 0.35 mm | p. 255 |
| Rated Engine Speed | 2300 rpm | p. 255 |
| Idle Speed | 800 rpm | p. 255 |
| CS85 Pro | ||
| Maximum Torque Rating | 330 Nm | p. 255 |
| CS95 Pro | ||
| Maximum Torque Rating | 365 Nm | p. 255 |
Case CS85 Pro, CS95 Pro, CS105 Pro Common Problems This Manual Covers
Case CS85 Pro engine fails to start or turns over slowly after a cold overnight soak. p. 257
Check the main battery switch and verify the system delivers 12 volts, 95 ampere-hours as specified on page 257. Drain condensation from the fuel filter housing. Replace the fuel filter cartridge if clogged and bleed the lines before attempting another cold start.
Manual Section: Electrical SystemHydraulic system loses pressure and sags during heavy front-end loader operation. p. 202
Inspect the hydraulic fluid sight glass and ensure the reservoir contains the required 34 Liter capacity shown on page 202. Check the remote valves for leaks and verify the hydraulic system working pressure reaches 175 bar on page 259 during maximum loader lift.
Manual Section: Operational UseDashboard warning light flashes and engine overheats under heavy load during summer field work. p. 202
Clean debris from the radiator cooling fins and verify the cooling system holds its full 12 litres capacity on page 202. Watch for the coolant temperature too high red warning lamp, and test the thermostat operation to ensure it begins to open at approx. 80°C completely open at 95°C as detailed on page 256.
Manual Section: Lubrication/MaintenanceEngine idles rough and struggles to maintain steady speed when engaging the rear power takeoff. p. 255
Start the engine and verify the idle speed rests at exactly 800 rpm as shown on page 255. Inspect the dry air filter soiling indicator for blockages. Warm up the tractor and confirm it reaches the rated engine speed of 2300 rpm before engaging the rear implement under load.
Manual Section: Technical DataFrequently Asked Questions
How do you fix case CS85 Pro engine fails to start or turns over slowly after a cold overnight soak?
Check the main battery switch and verify the system delivers 12 volts, 95 ampere-hours as specified on page 257. Drain condensation from the fuel filter housing. Replace the fuel filter cartridge if clogged and bleed the lines before attempting another cold start.
How do you fix hydraulic system loses pressure and sags during heavy front-end loader operation?
Inspect the hydraulic fluid sight glass and ensure the reservoir contains the required 34 Liter capacity shown on page 202. Check the remote valves for leaks and verify the hydraulic system working pressure reaches 175 bar on page 259 during maximum loader lift.
How do you fix dashboard warning light flashes and engine overheats under heavy load during summer field work?
Clean debris from the radiator cooling fins and verify the cooling system holds its full 12 litres capacity on page 202. Watch for the coolant temperature too high red warning lamp, and test the thermostat operation to ensure it begins to open at approx. 80°C completely open at 95°C as detailed on page 256.
How do you fix engine idles rough and struggles to maintain steady speed when engaging the rear power takeoff?
Start the engine and verify the idle speed rests at exactly 800 rpm as shown on page 255. Inspect the dry air filter soiling indicator for blockages. Warm up the tractor and confirm it reaches the rated engine speed of 2300 rpm before engaging the rear implement under load.
Is this Case CS85-105 Pro?
You get a 268-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Case CS85-105 Pro?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
