All 99 pages of this Case 1031, 1032 Operator Manual PDF focus on one goal: keeping your General Purpose or Special tractor running right, from first start to end-of-season maintenance. Inside: a complete lubrication chart with fluid recommendations and capacities, step-by-step operating instructions for the Draft-O-Matic system and PTO, cold weather starting procedures, and a pre-starting checklist that walks you through every system before you turn the key. Preventive maintenance covers differential brake adjustment, traction clutch adjustment, fuel filter servicing, cooling system care, and battery maintenance, with service intervals spelled out so nothing slips by. Change your engine oil filter at the 20-hour mark initially; hand-tighten the spin-on fuel filter only 1/2 to 3/4 turn for a proper seal. No more hunting through forums for the right interval. Bookmarked and searchable, this PDF opens on any device so you can pull it up right in the field.
What's Inside This Case 1031, 1032, 1031 General Purpose, 1032 Special Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Numbers | 4 | Model Number, Serial Number, Engine Number |
| Diesel Engine Specifications | 5-6 | General, Piston and Connecting Rods, Main Bearings, Engine Lubricating System, Fuel System |
| General Specifications | 7-14 | Cooling System, Electrical System, Brakes, Traction Clutch, Transmission, Belt Pulley, Power Take-Off, Drawbar |
| Fuel Specifications | 15-16 | Fuel Conditioner |
| Lubrication | 17-31 | Recommendations and Capacities, Lubrication Chart, Engine Lubrication and Oil Change, Engine Oil Filter, Air Cleaner, Transmission - Hydraulic Filter, Power Steering Filter |
| Operating Instructions | 32-68 | Run-In-Procedure, Pre-Starting Check List, Operating Controls and Instruments, Starting Procedure, Cold Weather Operation, Cold Weather Starting Procedure, Power Take-Off |
| Preventive Maintenance | 69-99 | Cooling System, Radiator Shutters, Thermostat Replacement, Cleaning the Cooling System, Fan Belts, Power Steering Drive Belt, Diesel Fuel System, Bleeding Diesel Fuel System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Type, Voltage, Ampere Hours | (2) 12 Volt-Type 14H-90, 90 Ampere Hours at 20 Hour Rate, Connected in Parallel | p. 7 |
| Normal water consumption | approximately 1 oz. every 60 hours of operation | p. 93 |
| Excessive free pedal for straight type pedals | over 4-1/2 inches | p. 83 |
| Spin-on filter tightening | 1/2 to 3/4 of turn | p. 82 |
| Engine oil filter replacement interval (initial) | 20 hours | p. 21 |
| Engine oil filter replacement interval (regular) | 240 hours | p. 21 |
| Increase furrow wheel tire pressure when plowing | 4 PSI | p. 10 |

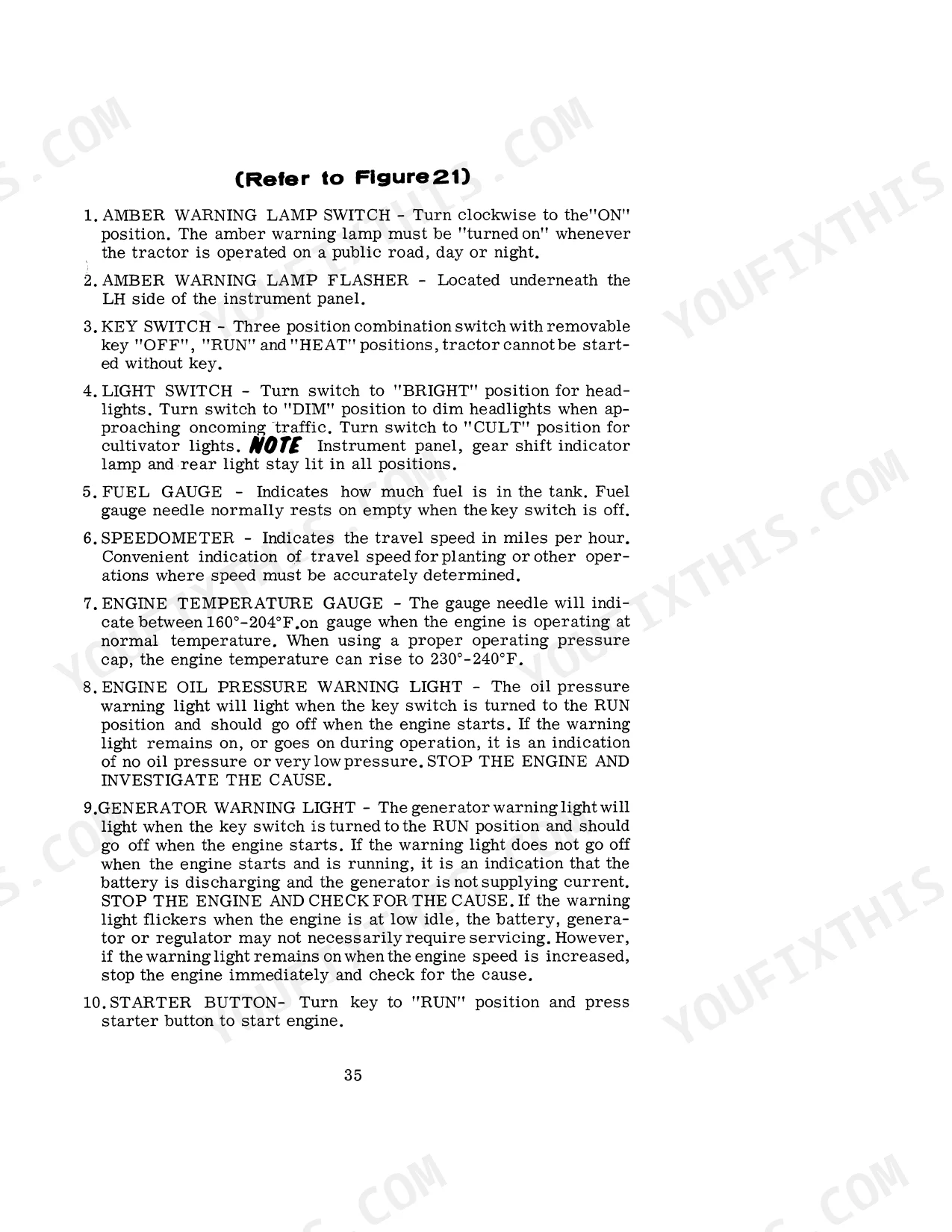

| Normal operating temperature range (on gauge) | 160°-204°F | p. 35 |
| Maximum safe operating temperature with proper pressure cap | 230°-240°F | p. 35 |
| Engine Piston Displacement | 451 Cubic Inches | p. 5 |
| Rated Engine Speed | 2000 RPM | p. 5 |
| Oil Pressure (Warm and Operating at Rated Engine Speed) | 40 to 50 Pounds | p. 5 |
Case 1031, 1032, 1031 General Purpose, 1032 Special Common Problems This Manual Covers
Case 1031 engine temperature gauge climbing above normal range during field work p. 35
Check coolant level in the system; total capacity is 10 U.S. gallons (page 7). Review the temperature gauge readings on page 35: normal operating range is 160°-204°F, and up to 230°-240°F is acceptable with the 14 PSI pressure cap properly installed. Clean debris from the radiator face and squeeze all hoses to check for soft spots or cracks.
Manual Section: Operating InstructionsEngine cranks slowly or refuses to start after sitting for several days p. 95
Check both batteries for water level; normal consumption is approximately 1 oz. every 60 hours of operation (page 93). Test the electrolyte with a hydrometer and charge if the reading falls below 1.250 (page 95). Inspect terminals for corrosion, tighten all cable connections, and confirm no accessories were left drawing power during storage.
Manual Section: Preventive MaintenanceHydraulic system slow to respond and implement lift feels sluggish under load p. 26
Replace the transmission-hydraulic return and inlet filters per the procedure on page 26 if service is overdue. Verify engine speed is at 2000 RPM; the pump delivers 16 GPM at that speed (page 8). Check the fluid level in the transmission-hydraulic reservoir and inspect hose connections and fittings for any visible seepage.
Manual Section: Transmission - Hydraulic Filter ChangeBrake pedal requires more travel than usual before the tractor slows p. 83
Inspect free pedal travel before operating. On straight-type pedals, anything over 4-1/2 inches of free travel is excessive and requires adjustment (page 83). Check both left and right pedals to confirm equal travel for even braking side-to-side. Inspect the brake linkage for loose or worn clevis pins before making any pedal adjustment.
Manual Section: Adjusting Differential BrakesOil pressure gauge reads low at normal operating speed during a work shift p. 21
Check the oil level on the dipstick before restarting. At rated engine speed of 2000 RPM, oil pressure should read 40-50 PSI (page 5). Verify the oil filter is within its service interval: replace after the first 20 hours of operation and every 240 hours thereafter (page 21). If pressure stays low with correct oil level, shut down and arrange service before continuing work.
Manual Section: Engine Lubrication and Oil ChangeFrequently Asked Questions
What are the replacement specifications for Battery?
The Case 1031 tractor uses two 12 Volt-Type 14H-90 batteries, each with 90 Ampere Hours at a 20 Hour Rate, connected in parallel. If a battery cannot hold a charge, it should be replaced with a new one that meets these specifications.
How do you fix case 1031 engine temperature gauge climbing above normal range during field work?
Check coolant level in the system; total capacity is 10 U.S. gallons (page 7). Review the temperature gauge readings on page 35: normal operating range is 160°-204°F, and up to 230°-240°F is acceptable with the 14 PSI pressure cap properly installed. Clean debris from the radiator face and squeeze all hoses to check for soft spots or cracks.
How do you fix engine cranks slowly or refuses to start after sitting for several days?
Check both batteries for water level; normal consumption is approximately 1 oz. every 60 hours of operation (page 93). Test the electrolyte with a hydrometer and charge if the reading falls below 1.250 (page 95). Inspect terminals for corrosion, tighten all cable connections, and confirm no accessories were left drawing power during storage.
How do you fix hydraulic system slow to respond and implement lift feels sluggish under load?
Replace the transmission-hydraulic return and inlet filters per the procedure on page 26 if service is overdue. Verify engine speed is at 2000 RPM; the pump delivers 16 GPM at that speed (page 8). Check the fluid level in the transmission-hydraulic reservoir and inspect hose connections and fittings for any visible seepage.
Is this Case 1031, 1032, 1031 General Purpose, 1032 Special manual a digital?
A 99-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
