Need the factory operating guide for your Case 150 or 190 garden tractor? This 44-page Case 150, 190 Operator Manual PDF (OEM #9-1851) walks you through every pre-start check, control function, and maintenance interval Case specified at the factory. Inside: a full safety section covering grade operation, neutral starting position, and hydraulic brake use, plus operating controls and instruments laid out from the run-in procedure through starting sequence. Preventive maintenance covers belt adjustment, air cleaner service, carburetor adjustments, spark plug replacement, ignition timing, and breaker point adjustment. Run SAE 5W20 below 32°F and switch to SAE 20W40 in summer; the engine holds 3 pts. Grease the steering gear box every 100 hours, pull the transmission filter screen at 1,000 hours or yearly. No more guessing at intervals. Bookmarked for instant navigation; open it on your tablet, walk to the tractor, and wrench.
What's Inside This Case 150, 190 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Number | 11 | Tractor Model Number, Tractor Serial Number, Engine Model Number, Engine Serial Number, Engine Specification Number |

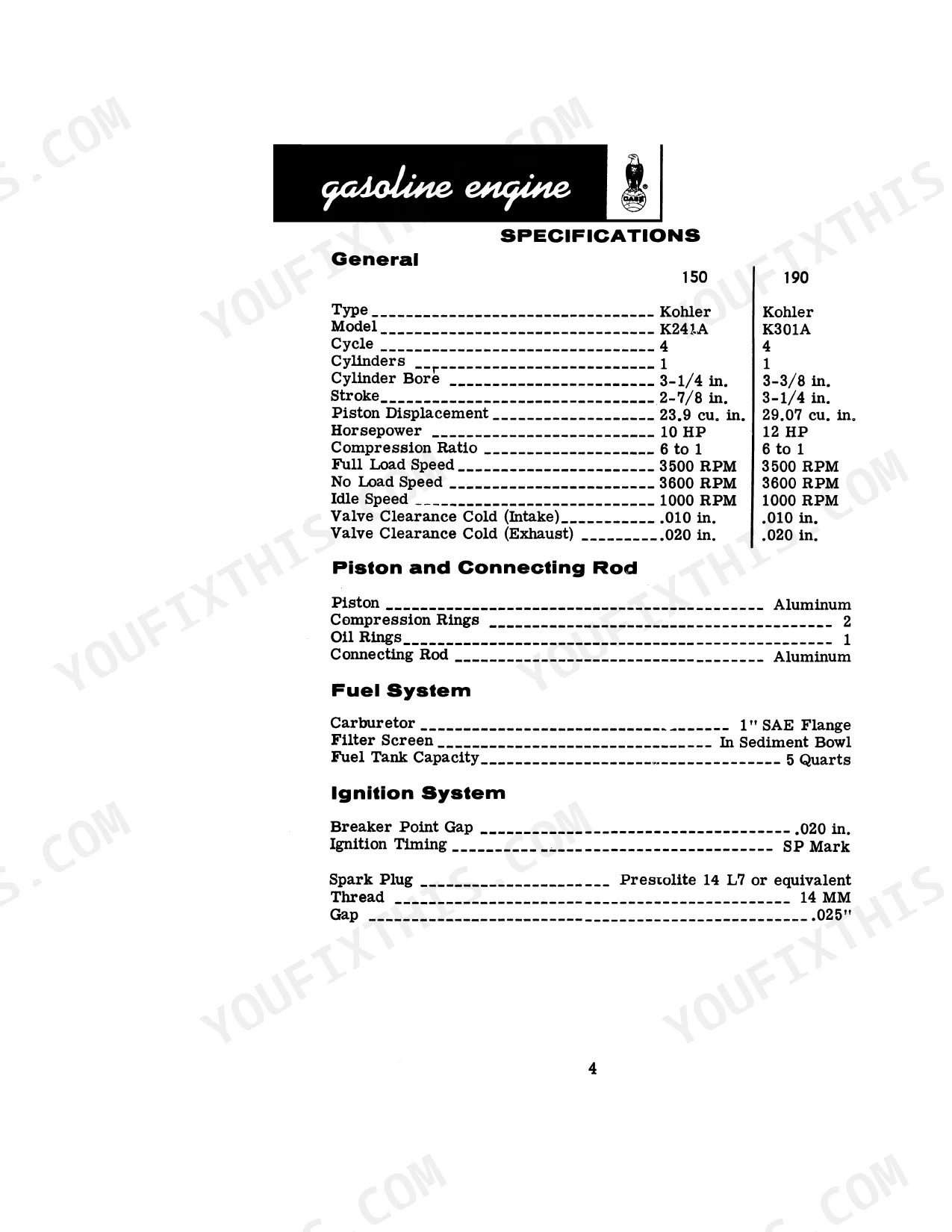

| Engine Specifications | 12-14 | General Specifications |
| Fuel Specifications | 15-16 | Fuel Conditioner |
| Safety Precautions | 17 | Operating Controls, Neutral Position, Level Surface, Driving on Grades, Speed Control, Hydraulic Brake, Low Range Operation, Engine Running |

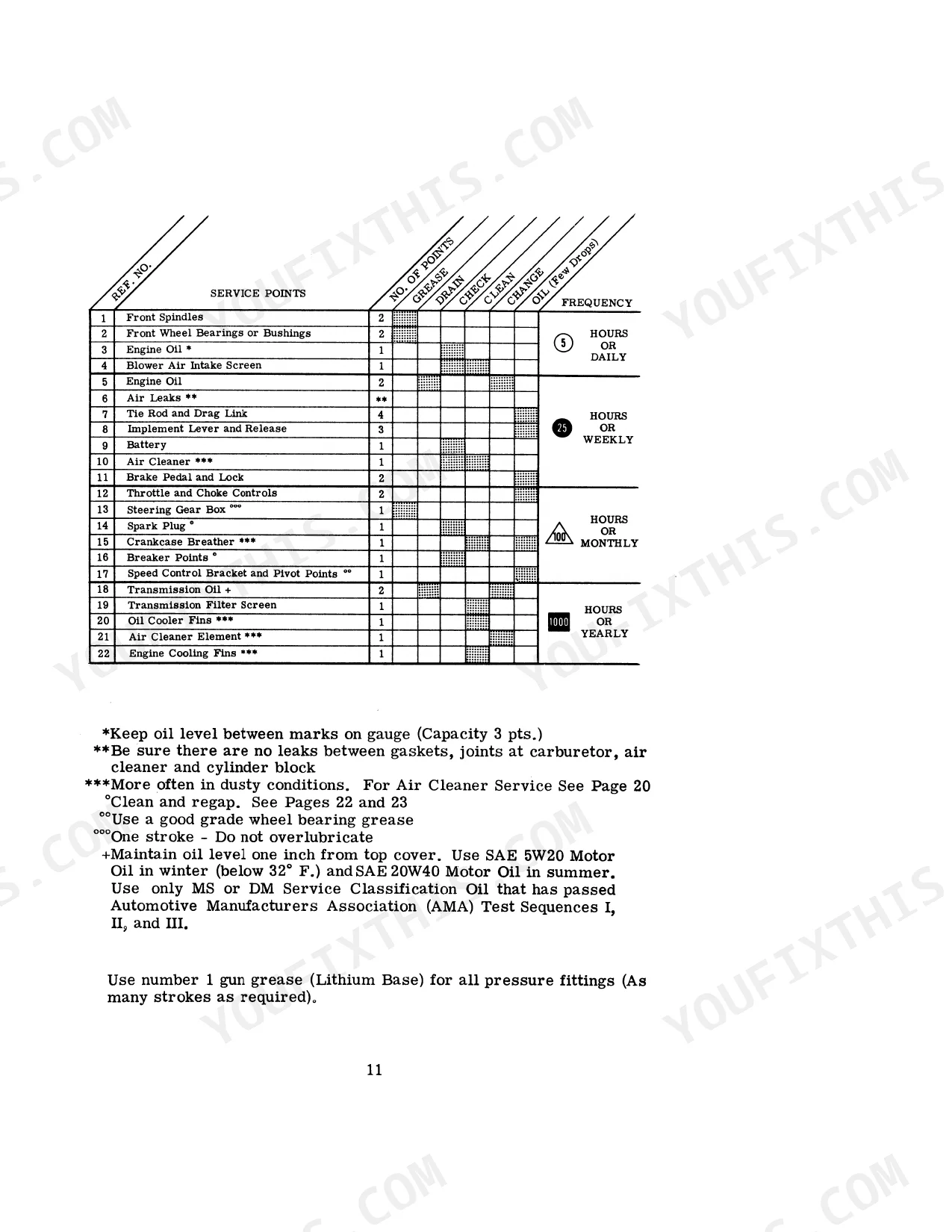

| Lubrication | 18-20 | Lubrication Chart, Engine Lubrication |

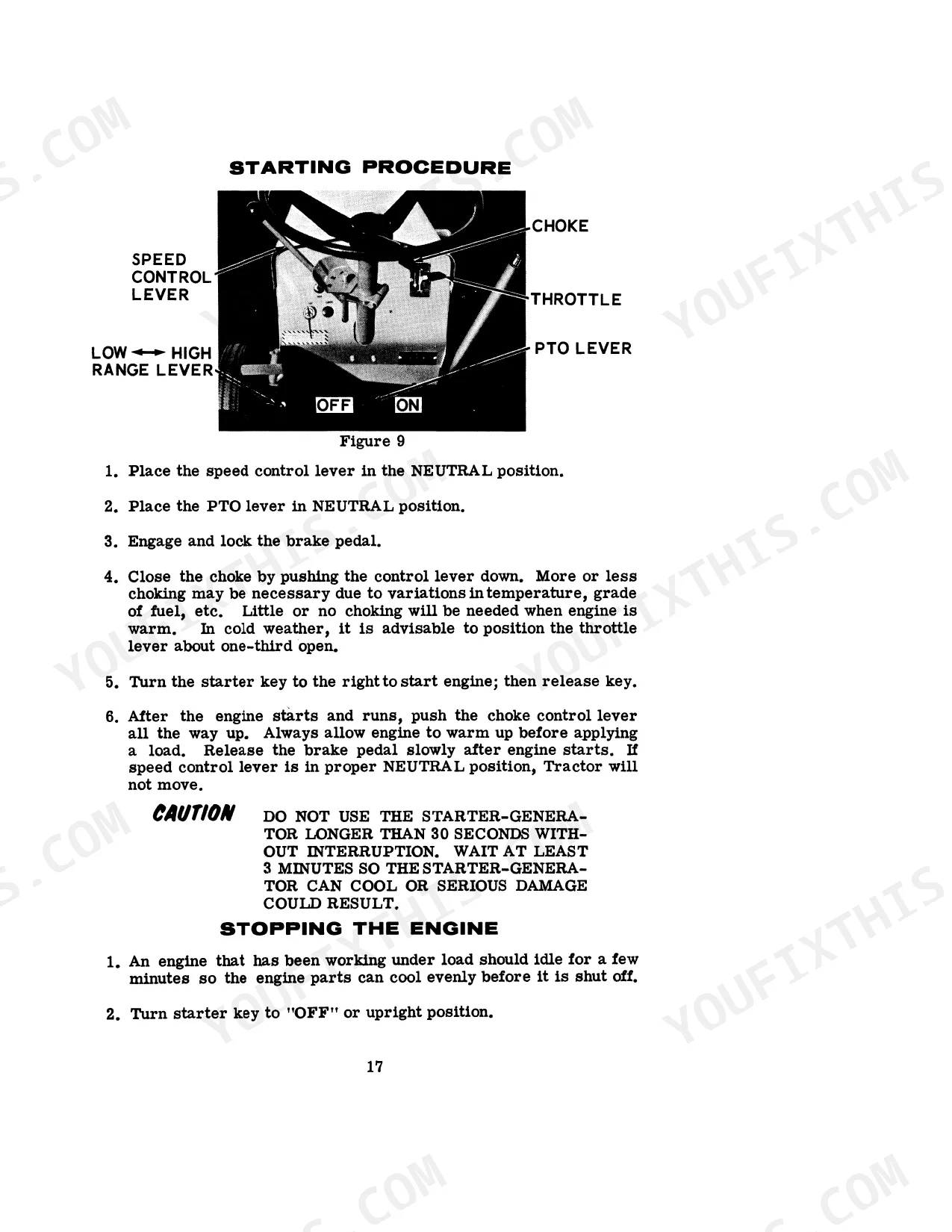

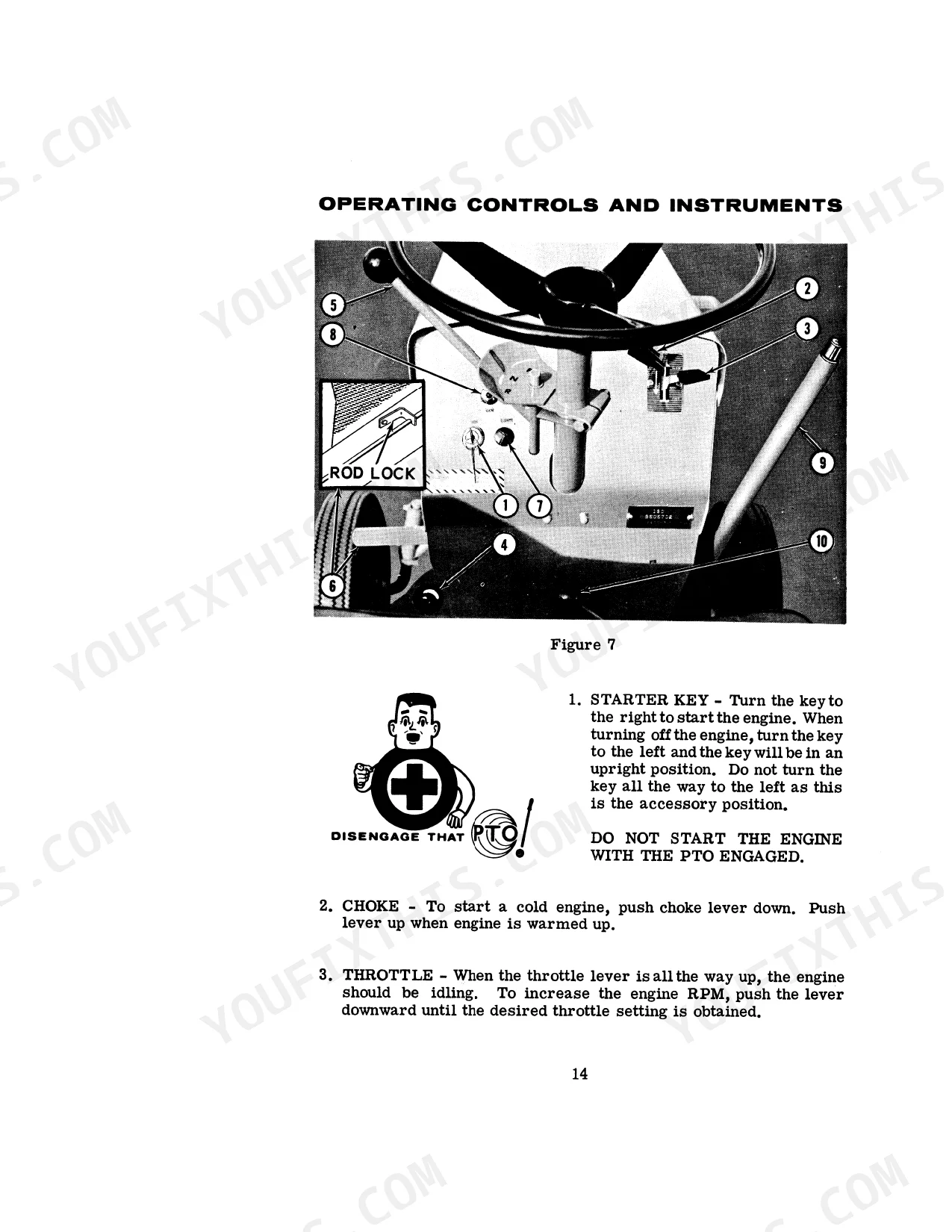

| Operating Instructions | 21-25 | Run-In Procedure, Pre-Starting Check List, Operating Controls and Instruments, Starting Procedure |
| Preventive Maintenance | 26-35 | Starter-Generator Belt Adjustment, Starter-Generator Belt Replacement, Air Cleaner, Carburetor Adjustments, Spark Plug, Ignition Timing, Adjusting Breaker Points, Electrical System, Storage Battery, Wiring Diagram |
| Lubrication & Maintenance Records | 36-44 | Table of Contents, Lubrication and Preventive Maintenance Records |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Viscosity (Winter, below 32° F) | SAE 5W20 Motor Oil | p. 19 |
| Engine Oil Viscosity (Summer) | SAE 20W40 Motor Oil | p. 19 |
| Transmission Filter Screen Check Interval | 1000 HOURS OR YEARLY | p. 19 |
| Steering Gear Box Lubrication Interval | 100 HOURS OR MONTHLY | p. 19 |
| Engine Oil Capacity | 3 pts. | p. 19 |
| Engine Oil Change Interval | 25 hours | p. 19 |
| Breaker Point Gap | .020 in. | p. 12 |
| Full Load Engine Speed | 3500 RPM | p. 12 |
| Idle Engine Speed | 1000 RPM | p. 12 |
| Starter-Generator Belt Deflection | 1/4 inch | p. 27 |
| Spark Plug Torque | 27 foot-pounds | p. 30 |
| Piston Displacement | 23.9 cu. in. | p. 12 |
Case 150, 190 Common Problems This Manual Covers
Case 150 hydraulic drive sluggish, tractor hesitates or fails to propel forward p. 19
Check the transmission oil level and condition before anything else. Dark or contaminated fluid needs changing. Verify the transmission filter screen service is current; the maintenance schedule on page 19 lists this interval as every 1,000 hours or yearly. Neglected filter service is a leading cause of sluggish or failed hydraulic drive on these tractors.
Manual Section: LubricationEngine turns over slowly or refuses to start in cold winter temperatures p. 20
Verify the crankcase has the correct cold-weather oil before cranking. Switch to SAE 5W20 below 32°F, or SAE 5-W/5W-20 at 0°F and below, per page 20. Check that oil level sits one inch from the top cover; capacity is 3 pints. Wrong-viscosity oil drags the starter in cold weather.
Manual Section: LubricationEngine knocks, loses power, or runs rough when mowing through thick grass p. 19
Check engine oil level immediately; it should sit one inch from the top cover, with a 3-pint capacity. Drain and refill if you are past the 25-hour change interval on page 19. Use MS or DM service classification oil: SAE 20W40 in summer, SAE 5W20 in winter. Running on low or dirty oil accelerates wear.
Manual Section: LubricationAmmeter warning light stays on or flickers after engine reaches operating speed
Inspect the starter-generator belt first. A loose belt will not spin the generator fast enough to charge the battery at speed. Check belt deflection with your thumb midway between the pulleys; correct tension allows exactly 1/4 inch of deflection, per page 27. Also check battery terminals for corrosion and clean any white buildup with a wire brush.
Manual Section: Ammeter Warning Light DiagnosisEngine misfires, idles rough at low speed, or stalls when throttle is reduced p. 30
Remove and inspect the spark plug; look for heavy carbon deposits, cracks, or a worn electrode. Clean or replace as needed, then torque the plug to 27 foot-pounds per page 30. Target idle speed is 1,000 RPM. If rough running persists after servicing the plug, check for a clogged air cleaner element.
Manual Section: Spark Plug ServiceFrequently Asked Questions
What are the replacement specifications for Hydraulic drive filter?
The manual refers to a 'Transmission Filter Screen' which should be checked every 1000 hours or yearly, whichever occurs first. While specific replacement part numbers are not provided, this interval is a key maintenance specification.
How do you fix case 150 hydraulic drive sluggish, tractor hesitates or fails to propel forward?
Check the transmission oil level and condition before anything else. Dark or contaminated fluid needs changing. Verify the transmission filter screen service is current; the maintenance schedule on page 19 lists this interval as every 1,000 hours or yearly. Neglected filter service is a leading cause of sluggish or failed hydraulic drive on these tractors.
How do you fix engine turns over slowly or refuses to start in cold winter temperatures?
Verify the crankcase has the correct cold-weather oil before cranking. Switch to SAE 5W20 below 32°F, or SAE 5-W/5W-20 at 0°F and below, per page 20. Check that oil level sits one inch from the top cover; capacity is 3 pints. Wrong-viscosity oil drags the starter in cold weather.
How do you fix engine knocks, loses power, or runs rough when mowing through thick grass?
Check engine oil level immediately; it should sit one inch from the top cover, with a 3-pint capacity. Drain and refill if you are past the 25-hour change interval on page 19. Use MS or DM service classification oil: SAE 20W40 in summer, SAE 5W20 in winter. Running on low or dirty oil accelerates wear.
Is this Case 150, 190 Operator Manual a digital download?
This is a 44-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
