Part of the Case Operator Manuals.
All 196 pages of this Case 800B, 800, 801, and 803 Operator Manual (OEM #9-423) are written for one purpose: running and maintaining your diesel tractor the way the factory intended. You get the complete operating sequence from initial run-in through Case-O-Matic Drive procedures, a full lubrication section listing recommended lubricants with approximate capacities for every system, and wiring diagrams covering the complete electrical circuit. The troubleshooting section walks through engine starting problems, misfiring, power loss, stalling, and overheating, each broken down to probable causes and service suggestions. Fuel specs call out No. 2 Diesel for standard operation and detail cold-weather grade changes so your engine fires when the temperature drops. No more digging through a paper manual in a dirty cab. Bookmarked and keyword-searchable, jump straight to the Case-O-Matic section or pull up the wiring diagrams before you touch the machine.
What's Inside This Case 800B, 800, 801, 803 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Number | 6-8 | Number Plate, Instrument Panel, Engine Block, Model, Serial No. |
| General Specifications | 9-22 | Engine, Fuel Injection System, Cooling System, Electrical System, Case-O-Matic Drive, Hydraulic Control System |
| Diesel Engine Fuel | 23-34 | Fuel Specifications for a Suitable Number 2 Diesel Fuel, Fuel Recommendations for Cold Weather Operation, Fuel Handling and Storage |
| Lubrication | 35-58 | Recommended Lubricants and Approximate Capacities |
| Operating Instructions | 59-128 | Run-In Procedure, Operating Controls, Diesel Engine Starting, Stopping Engine, Cold Weather Operation, Case-O-Matic Drive |
| Important Checks During Operation | 129-132 | Fuel System Checks, Lubrication Points, Fluid Levels, Gauges and Indicators, Breathers, Brake Pedal Travel |

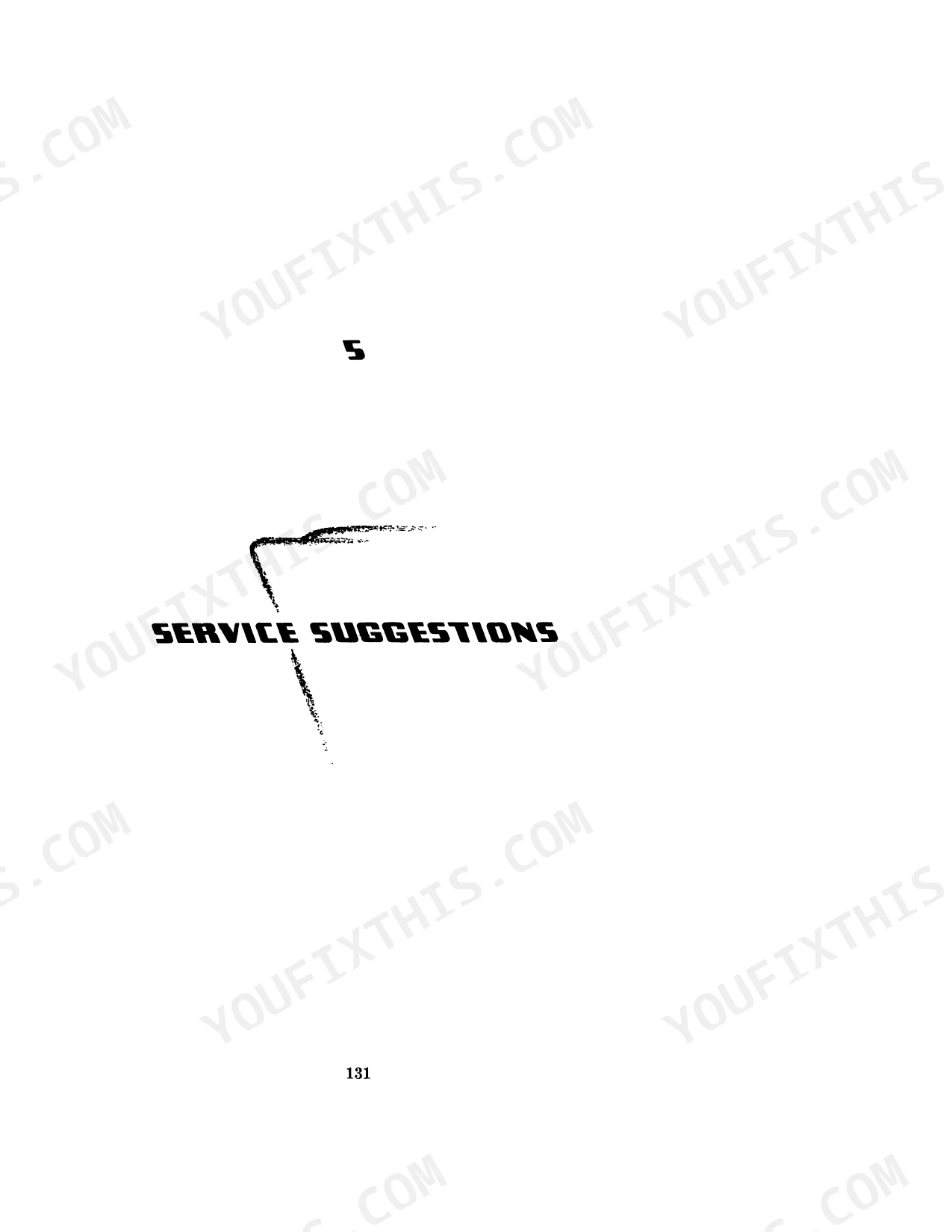

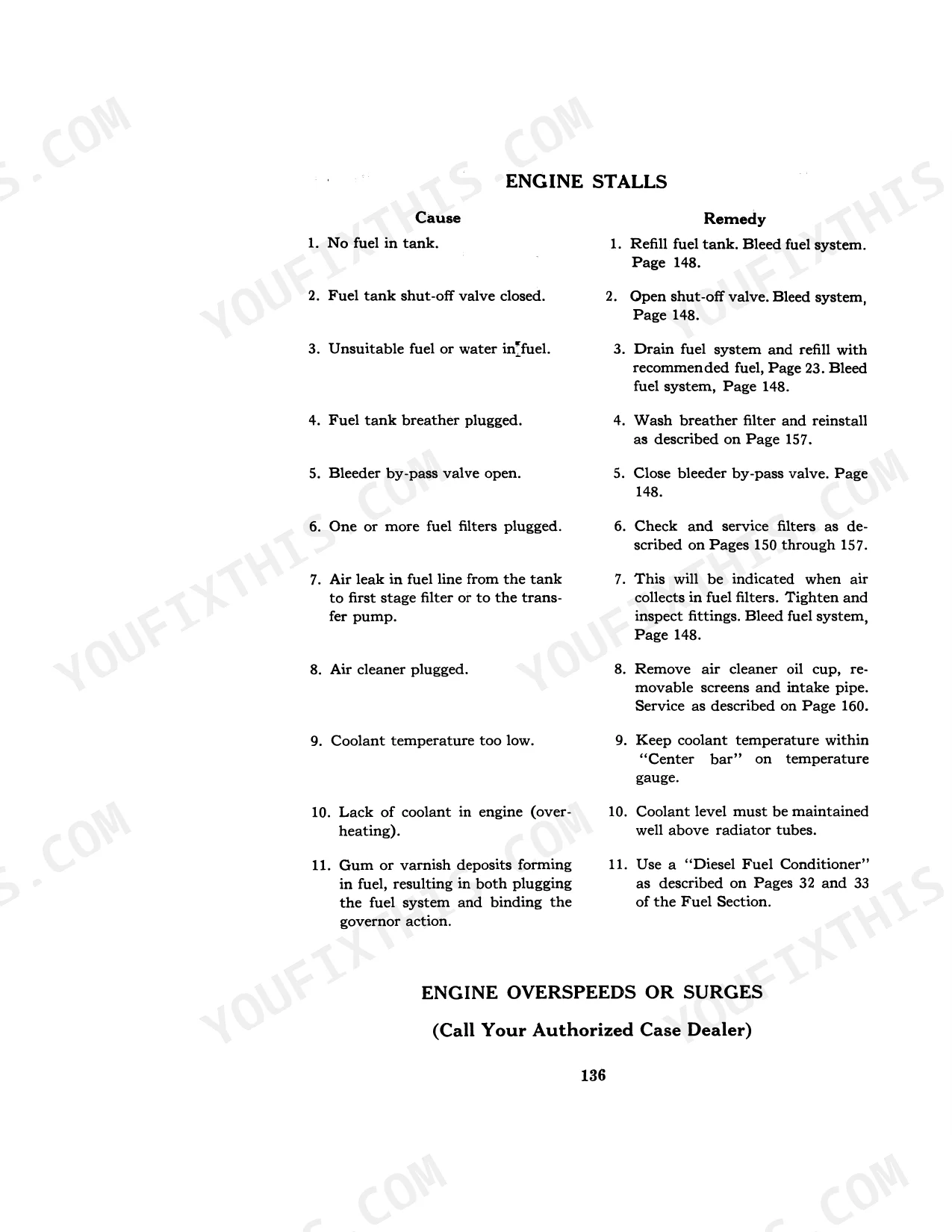

| Service Suggestions | 133-144 | Engine Starting Issues, Engine Misfiring, Engine Power Loss, Engine Stalling, Engine Overheating, Low Oil Pressure |
| Preventive Maintenance | 145-190 | Fuel System, Air Cleaner, Cooling System, Lubrication, Electrical System, Brake Adjustment |
Case 800B, 800, 801, 803 Common Problems This Manual Covers
Case 800B diesel tractor hard to start or cranks slowly in cold weather p. 23
Check battery voltage first: a fully charged battery should read 12.6V or higher at rest. Clean any corrosion from terminals and tighten cable connections. Switch to the cold-weather fuel blend recommended on page 23 before temperatures drop below freezing. Follow the cold-start glow plug procedure in Operating Instructions starting at page 59, and allow full preheat cycle before cranking.
Manual Section: Diesel Engine FuelThree-point hitch won't lift or lower with implement attached p. 144
Before assuming a hydraulic fault, check the transport lock knob position at the control console: if it was accidentally rotated to the locked position, the hitch will not respond to the control lever. Return it to the operating position. Then verify hydraulic fluid level per the capacities table on page 16. If the hitch still doesn't respond, consult Hydraulic Control Troubleshooting on page 144.
Manual Section: Hydraulic Control TroubleshootingEngine temperature gauge climbing toward red zone during field operation p. 133
Stop the tractor immediately and let it idle for two minutes before shutdown. Check coolant level in the radiator only after the engine has cooled. Inspect radiator fins for packed debris, chaff, or mud and clean with compressed air. Verify the fan belt is not slipping or cracked. Refer to Service Suggestions overheating procedures starting at page 133 for a full diagnostic checklist.
Manual Section: Service SuggestionsHydraulic loader or remote function stops working on one side p. 144
Inspect each hydraulic coupler connection: a partially seated coupler can restrict flow without appearing loose. Disconnect, clean the coupler faces, and reconnect with firm pressure until you feel the detent click. Check for kinked or pinched hoses along the loader arms. Verify hydraulic fluid level against the capacities listed on page 16. If flow is still uneven, see the Hydraulic Control Troubleshooting section at page 144.
Manual Section: Hydraulic Control TroubleshootingEngine misfires, runs rough, or lacks power under load p. 133
Start with the fuel system: inspect the primary fuel filter for water or sediment and drain the sediment bowl if equipped. Check that the air cleaner is not clogged (a restricted filter is the most common cause of power loss on these diesels). Follow the engine misfiring and power loss diagnostic steps on page 133. Verify you are running the correct Number 2 diesel fuel grade per page 23.
Manual Section: Service SuggestionsBattery warning light stays on or generator not charging after engine starts p. 141
Inspect the generator drive belt for wear, glazing, or slippage: a loose belt is the first thing to check. Verify battery terminal connections are tight and free of corrosion. Check that the battery master switch is fully engaged. Review the Electrical System Troubleshooting chart starting at page 141 for automatic voltage regulator and generator fault conditions before assuming the generator has failed.
Manual Section: Electrical System TroubleshootingFrequently Asked Questions
How do I reset the hydraulic system on a Case 800B diesel tractor?
The operator manual covers the Case-O-Matic Drive and hydraulic system procedures, including fluid checks, filter servicing, and system bleeding. For hydraulic issues, the manual recommends following the lubrication section and verifying fluid levels before consulting an authorized Case dealer.
What is the injector pump service procedure for the Case 800 diesel?
The manual provides injector and fuel system maintenance guidance for the Case 800 diesel engine, including fuel filter replacement intervals, injection timing checks, and fuel system bleeding procedures.
What fuel filter specifications does the Case 800B/803 operator manual cover?
The manual lists replacement specifications for fuel filters used on the Case 800B, 800, 801, and 803 diesel tractors, including service intervals and correct filter part references for maintaining clean fuel delivery.
What lubrication schedule is recommended in the Case 800B operator manual?
The manual includes a full lubrication section listing recommended lubricants, grease intervals, and oil change schedules for the engine, transmission, Case-O-Matic Drive, and front axle of the 800B/800/801/803 series tractors.
