All 132 pages of this Case IH D Operator Manual (OEM #9-271) cover one job: keeping your D Series tractor running, whether you're on the DC-3, DC-4, DO, DS, or DV. Inside, you get complete operating instructions: pre-start checks, Eagle Hitch hookup, Live PTO engagement, hydraulic control, wheel spacing, and drawbar setup. Maintenance coverage runs from valve clearance and magneto service to traction clutch adjustment, differential brake adjustment, and proper tractor storage. A dedicated LP-gas section handles carburetor adjustment and fuel system procedures for LP-equipped machines. Set idle at 500 RPM, confirm oil pressure at 30 to 35 pounds, and change engine oil every 120 hours. No more thumbing through a grease-stained paper copy looking for the spec you need. Grab the PDF, jump to any section with bookmarks, and get the right answer fast.
What's Inside This Case IH D/DC3/DC4/DO/DS Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Serial Number | 8 | - |
| General Specifications | 9-16 | Engine, Cooling System, Electrical System, Live Power Take-Off, Tractor Belt Pulley, Approximate Capacities |
| Lubrication | 17-30 | Recommended Engine, Transmission and Hydraulic Lubricants, Lubrication Points, Engine Lubrication, Transmission Lubrication, Model Ds Tractor Rear Axle Drive Housing |

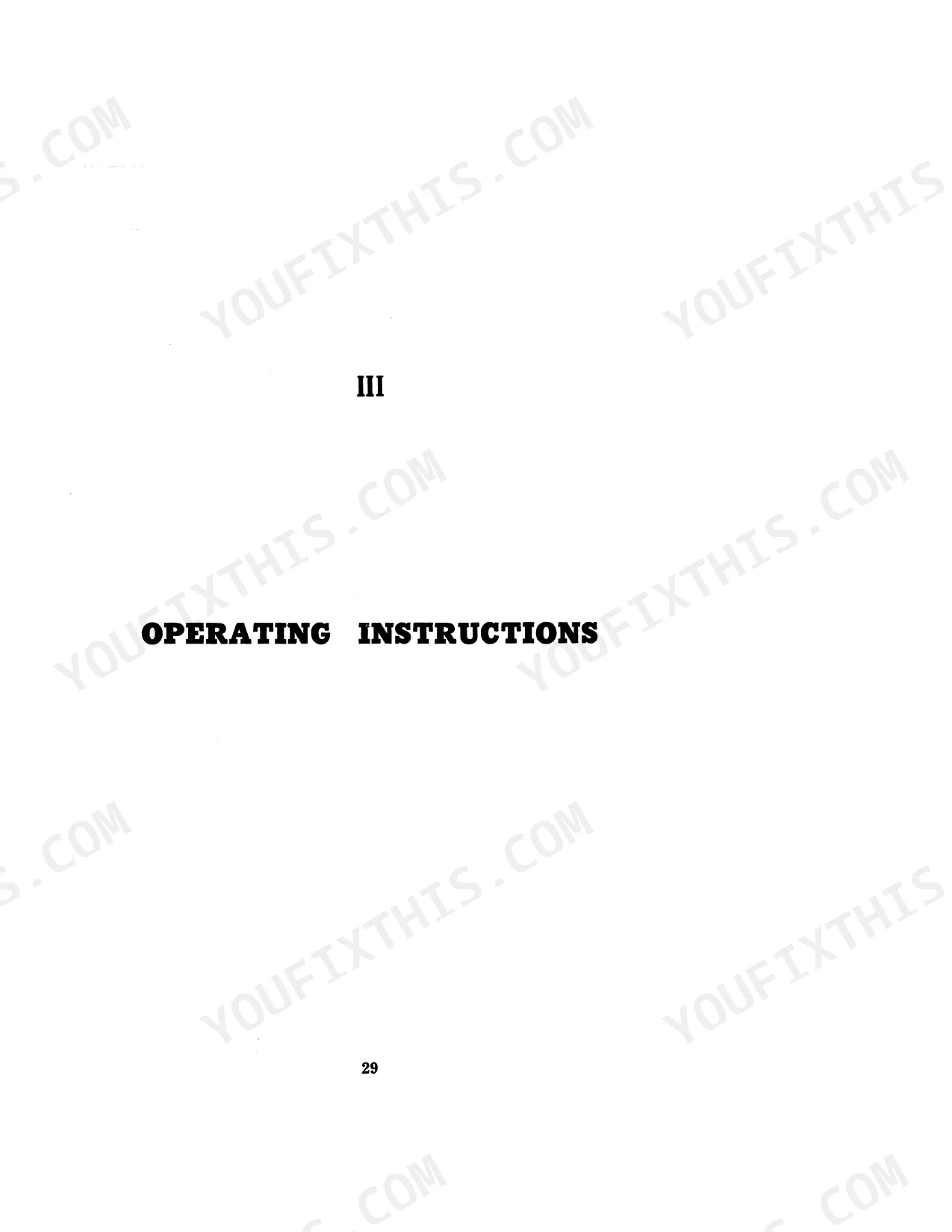

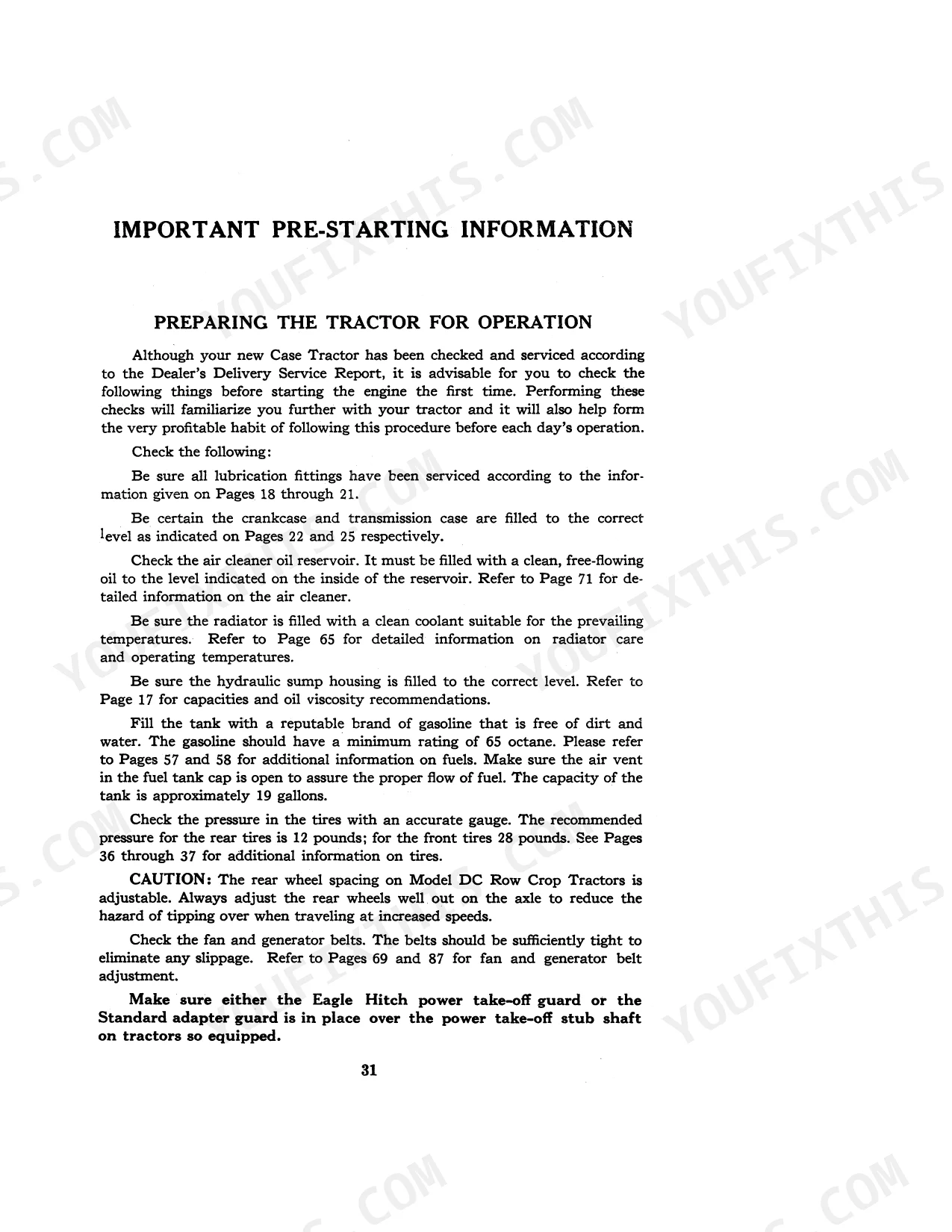

| Operating Instructions | 31-64 | Important Pre-Starting Information, Starting Instructions, Rear Wheel Traction, Drawbar, Steering the Tractor, Hydraulic Control Unit, Eagle Hitch, Live Power Take-Off |
| Maintenance | 65-98 | Cooling System, Air Cleaner, Fuel Strainer, Carburetor, Governor and Engine Speed, Valve Clearance, Oil Pump, Crankcase Breather |
| Instructions for Operating and Adjusting Lp Gas Equipped Tractor | 99-112 | LP-Gas Carburetor, Operating and Adjusting, Filling the Fuel Tank, Fuel Filter |

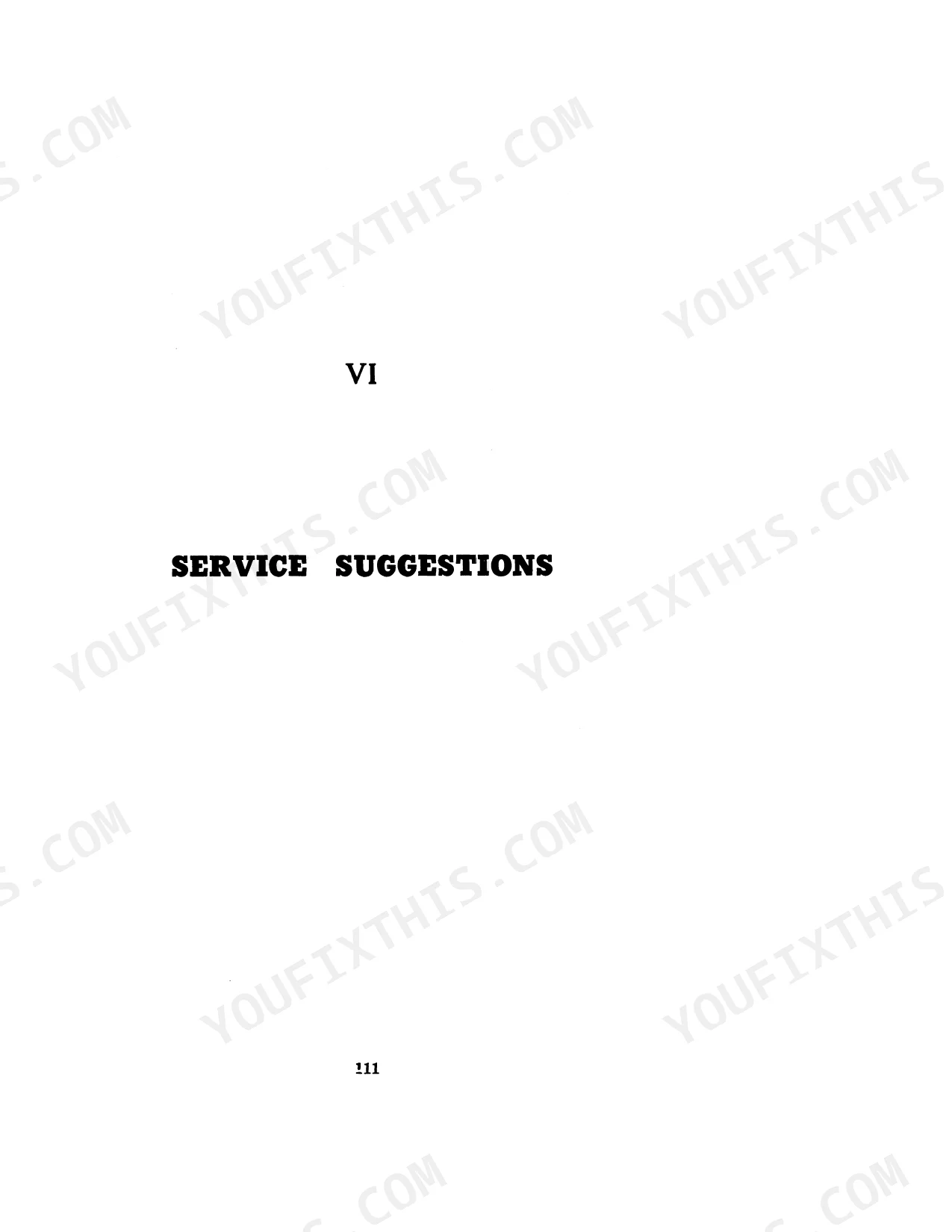

| Service Suggestions | 113-120 | Engine Fails to Start, Engine Misfiring, Engine Overheating, Lack of Power, Engine Knocks, Engine Uses Too Much Fuel |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Speed at No Load | 1390 RPM | p. 9 |
| Engine Idling Speed | 500 RPM | p. 9 |
| Operating Oil Pressure | 30 to 35 pounds | p. 35 |
| Oil Change Interval (Gasoline/LP Gas) | 120 hours | p. 23 |
Case IH D/DC3/DC4/DO/DS Common Problems This Manual Covers
Case IH Model D tractor crankcase oil level below upper plug mark before first startup p. 23
Check the crankcase oil level before every startup. Remove the upper oil plug and verify oil touches the bottom of the plug hole. Top up to the upper plug if low. With gasoline or LP gas fuel, change the oil every 120 hours of operation (page 23). Never start the engine without confirming oil is at the correct level.

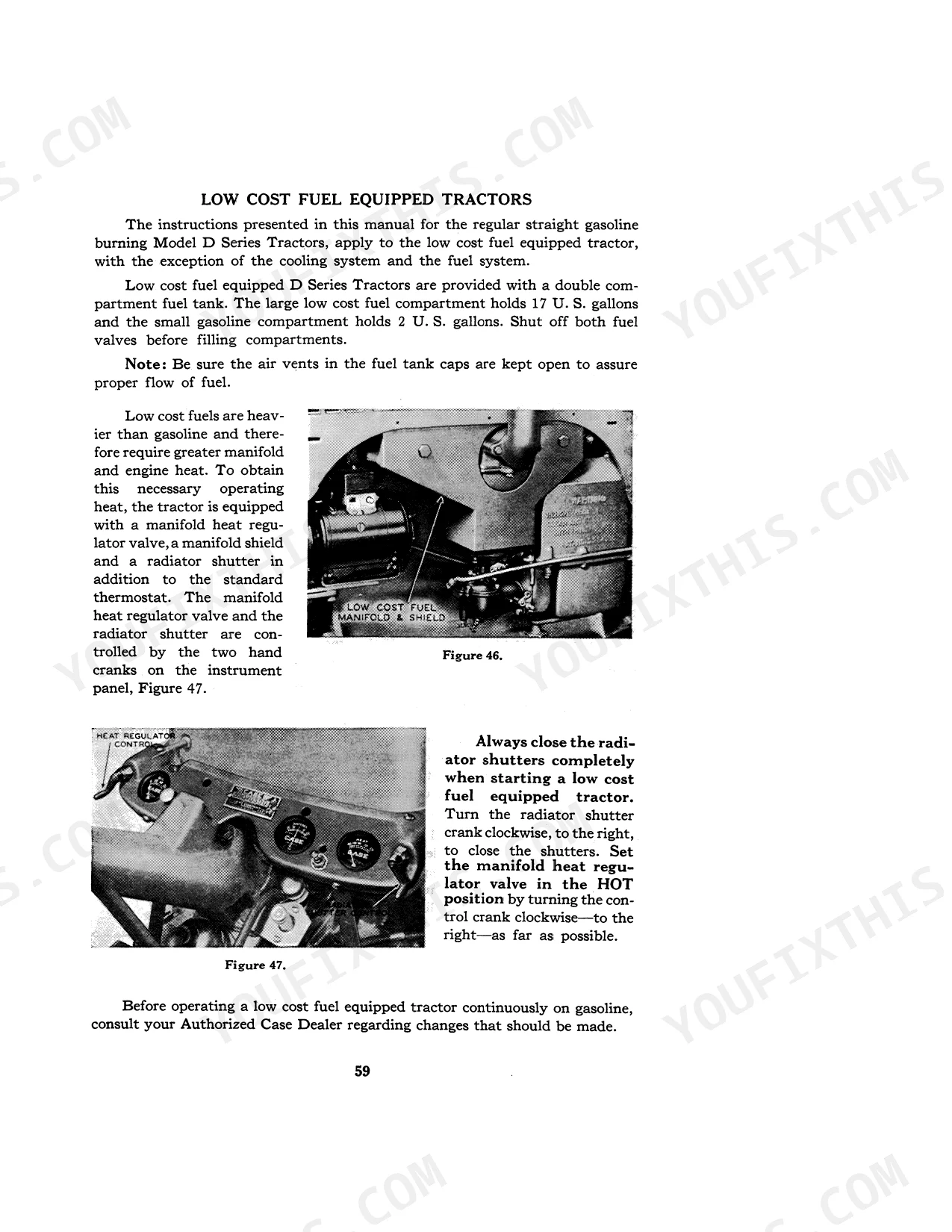

Manual Section: LubricationOil drain interval missed when running tractor on low-cost fuel, crankcase level reads high p. 17
Drain the crankcase to the lower plug level every 10 hours of operation when burning low-cost fuel. Locate both plugs on the engine block, remove the lower drain plug, and let oil drain until flow stops, then reinstall. Check oil change intervals in the Lubrication section starting on page 17 for full service requirements.
Manual Section: LubricationGear shift lever stiff or won't engage 4th position, grinding felt during shifting attempt p. 31
Stop the tractor completely before any gear change. Disengage the clutch fully and wait for the belt pulley to stop rotating. Never shift while the tractor is moving or the pulley is spinning. Let the engine drop to idle at 500 RPM (page 9) before selecting 4th gear. Review the shift procedure in Operating Instructions, page 31.
Manual Section: Operating InstructionsEngine oil pressure gauge reads low or drops to zero within minutes of startup p. 35
Check the oil pressure gauge immediately after the engine starts. At full governed RPM with the engine warm, pressure should read between 30 and 35 pounds (page 35). If pressure is below this range, shut down immediately and inspect the oil level. Refer to the Lubrication section starting at page 17 for correct oil type and capacity.
Manual Section: Operating InstructionsEngine won't start or cranks slowly, no fire after multiple attempts in normal weather p. 113
Check fuel level in the tank and confirm the shutoff valve is open. Verify spark by testing ignition with the engine at idle speed (500 RPM per page 9 specs). Inspect spark plugs for fouling and the fuel strainer for blockage. Consult the troubleshooting procedures on page 113 for a complete no-start diagnostic checklist covering spark, fuel, and carburetor issues.
Manual Section: Engine Fails to StartFrequently Asked Questions
How do you fix Case tractor crankcase oil level below upper plug mark before first startup?
Check the crankcase oil level before every startup. Remove the upper oil plug and verify oil touches the bottom of the plug hole. Top up to the upper plug if low. With gasoline or LP gas fuel, change the oil every 120 hours of operation (page 23). Never start the engine without confirming oil is at the correct level.
How do you fix oil drain interval missed when running tractor on low-cost fuel, crankcase level reads high?
Drain the crankcase to the lower plug level every 10 hours of operation when burning low-cost fuel. Locate both plugs on the engine block, remove the lower drain plug, and let oil drain until flow stops, then reinstall. Check oil change intervals in the Lubrication section starting on page 17 for full service requirements.
How do you fix gear shift lever stiff or won't engage 4th position, grinding felt during shifting attempt?
Stop the tractor completely before any gear change. Disengage the clutch fully and wait for the belt pulley to stop rotating. Never shift while the tractor is moving or the pulley is spinning. Let the engine drop to idle at 500 RPM (page 9) before selecting 4th gear. Review the shift procedure in Operating Instructions, page 31.
How do you fix engine oil pressure gauge reads low or drops to zero within minutes of startup?
Check the oil pressure gauge immediately after the engine starts. At full governed RPM with the engine warm, pressure should read between 30 and 35 pounds (page 35). If pressure is below this range, shut down immediately and inspect the oil level. Refer to the Lubrication section starting at page 17 for correct oil type and capacity.
