All 230 pages of this Case CX130, CX160 Operator Manual (OEM #BD00M211) put factory operating knowledge directly in your hands for both mid-size excavators. Inside: a full safety chapter covering utility hazards, burn prevention, and fire risk before you ever touch a lever, plus a controls section that maps every cab switch, display panel, and optional joystick pattern. Open to the operations section for cold-weather start sequences, slope work procedures, water operation limits, and load-handling guidance; the specs pages deliver fluid capacities and lifting charts by model. Top the 10.2-litre engine oil sump at every filter change, fill the cooling system to 17.7 litres, and inspect the primary air filter every 250 hours or when the restriction indicator turns red. Your machine is down and the answer is in here. Bookmarks get you to any section in one tap; pull it up on your tablet and start wrenching.
What's Inside This Case CX130, CX160 Operator Manual

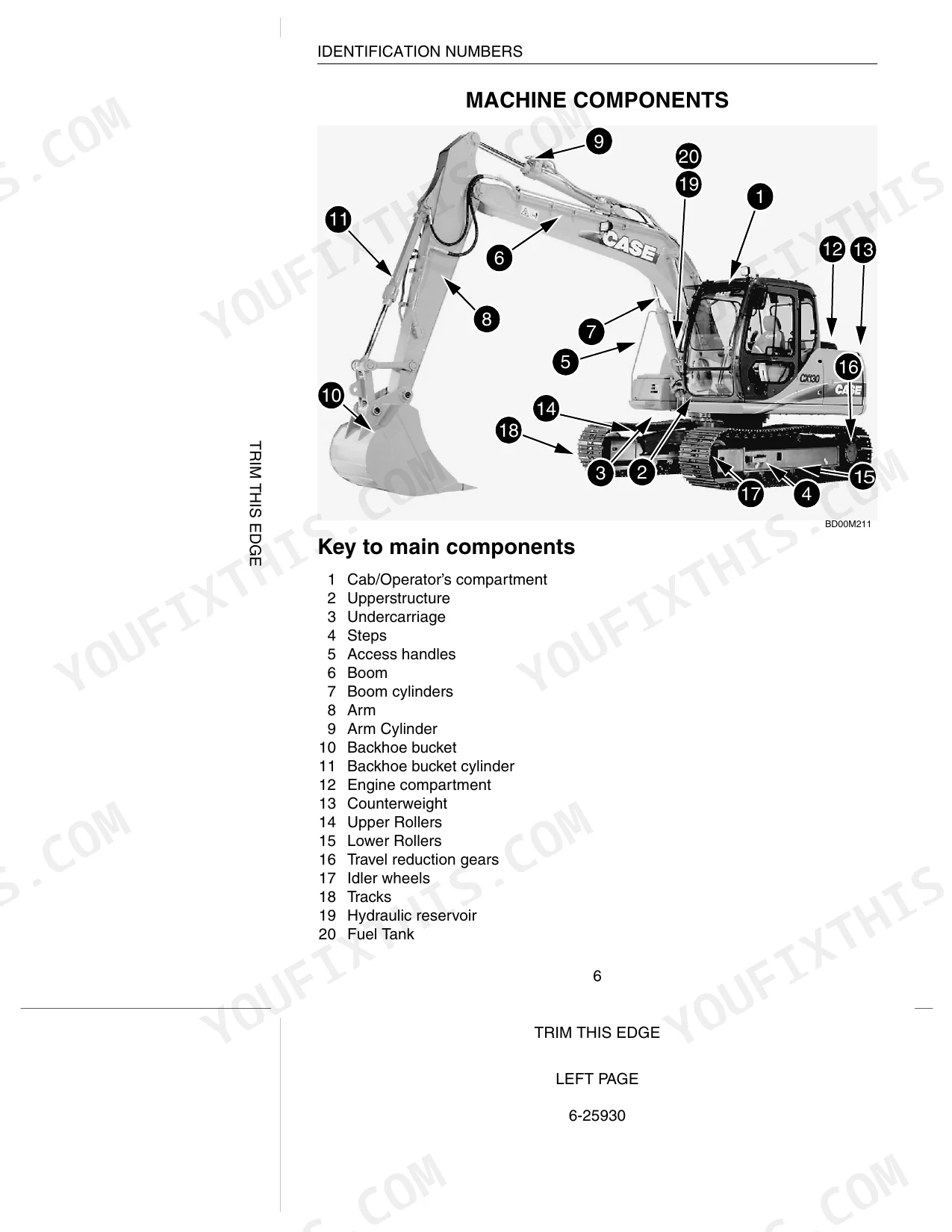

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 5-7 | CX130 - CX160 Excavator, Right, Left, Front and Rear of Machine |
| Identification Numbers | 9-10 | Type, Serial Number and Year of Manufacture |
| Safety Rules | 11-28 | Utility Safety, Personal Safety, Before Operation, Machine Operation, Burn Prevention, Fire Extinguisher, Fire or Explosion Prevention, Maintenance |

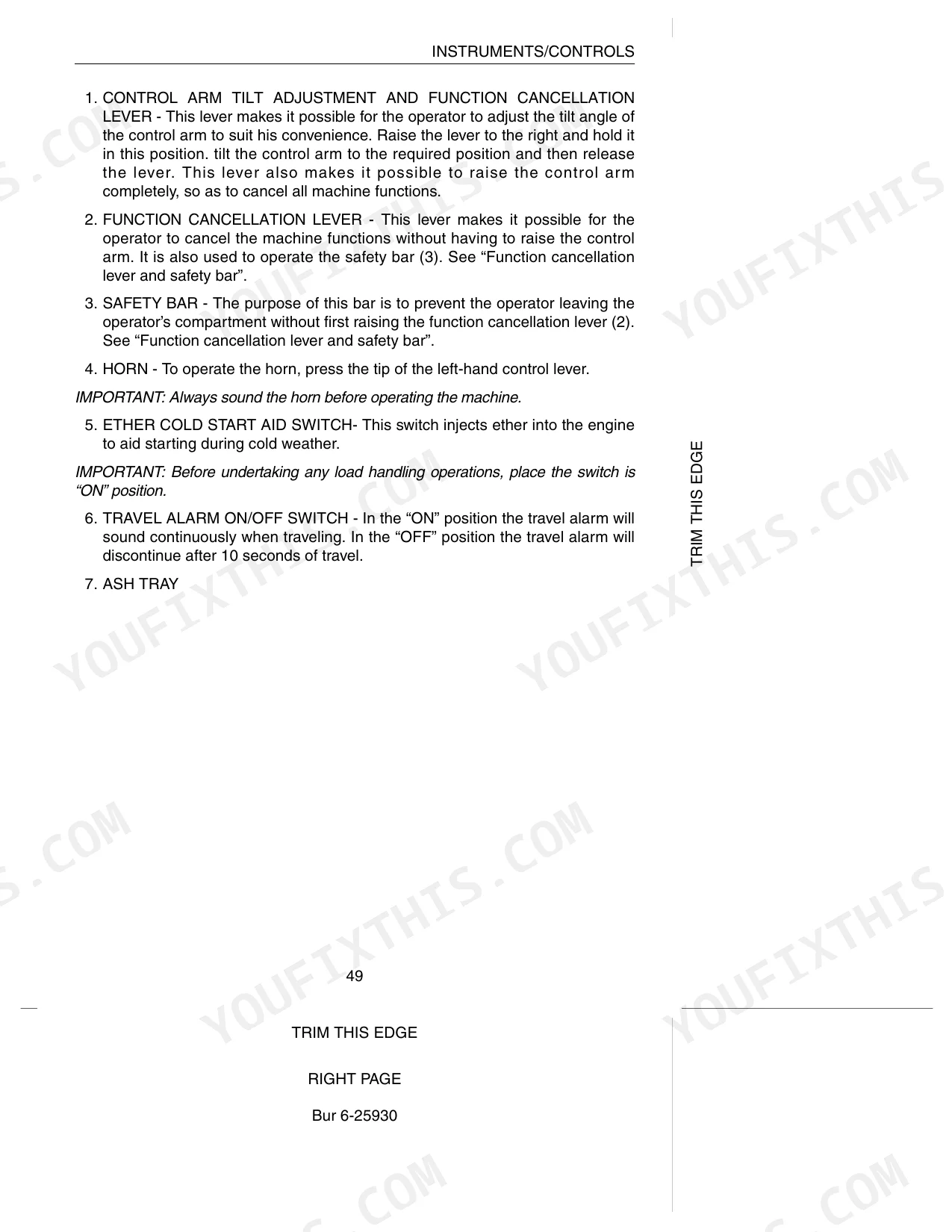

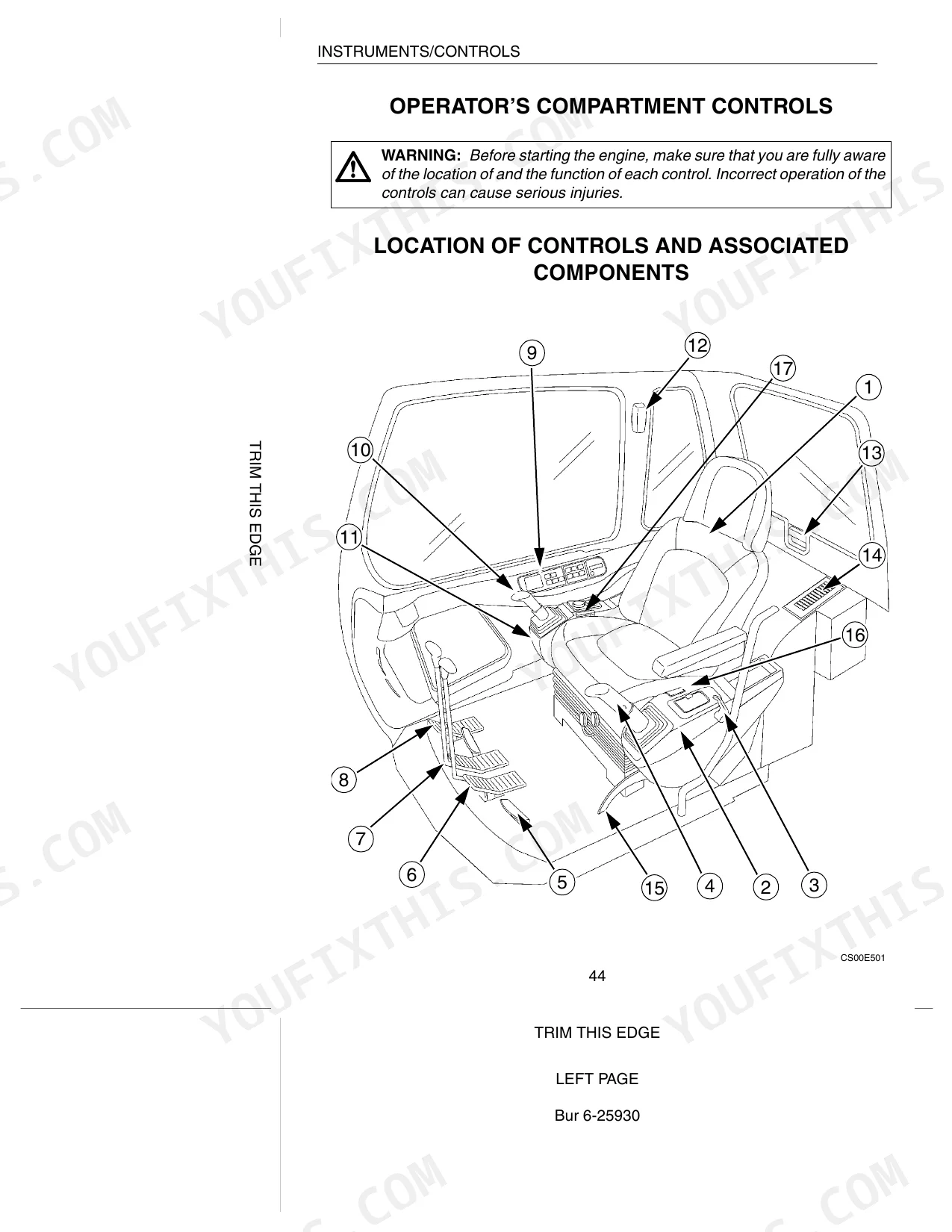

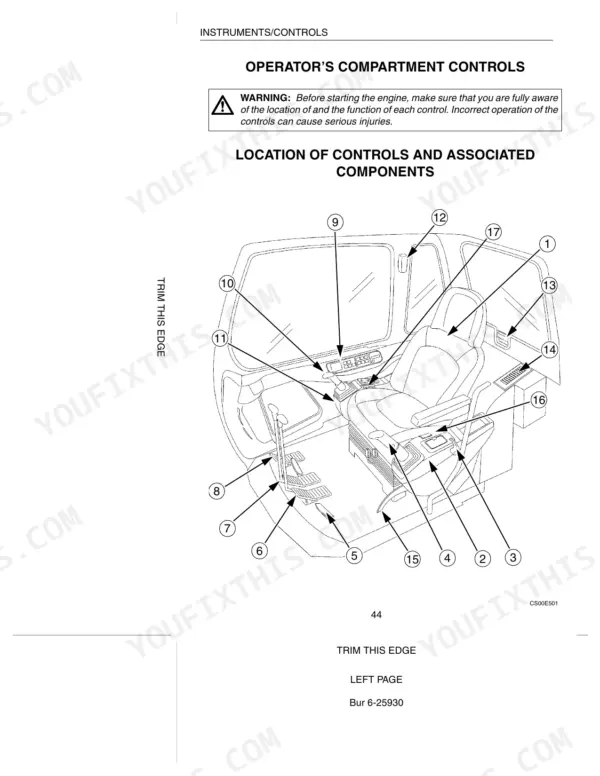

| Instruments/Controls | 1 | Cab Door, Steps and Access Handles, Operator's Compartment Controls, Location of Controls and Associated Components, Right-Hand Control Arm, Left-Hand Control Arm |

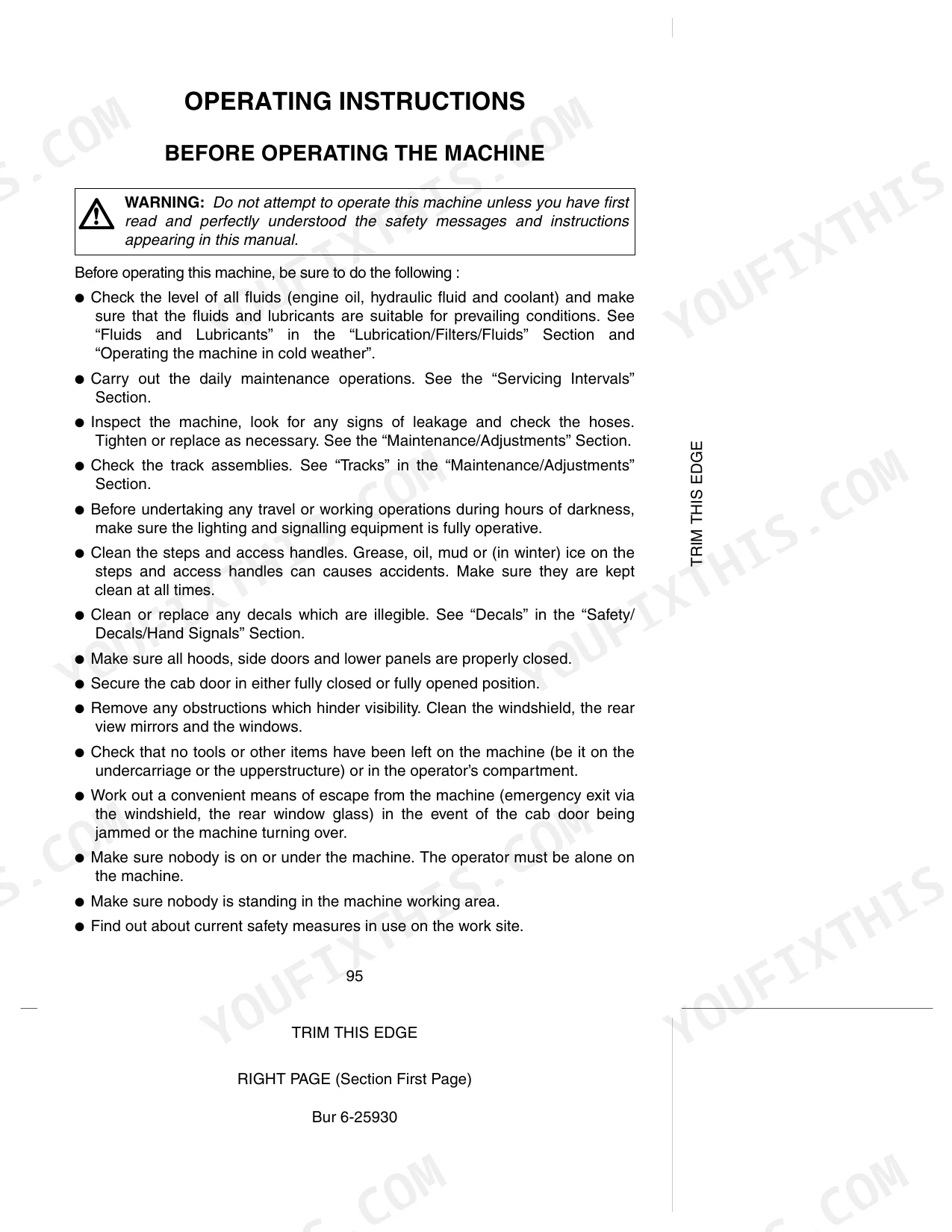

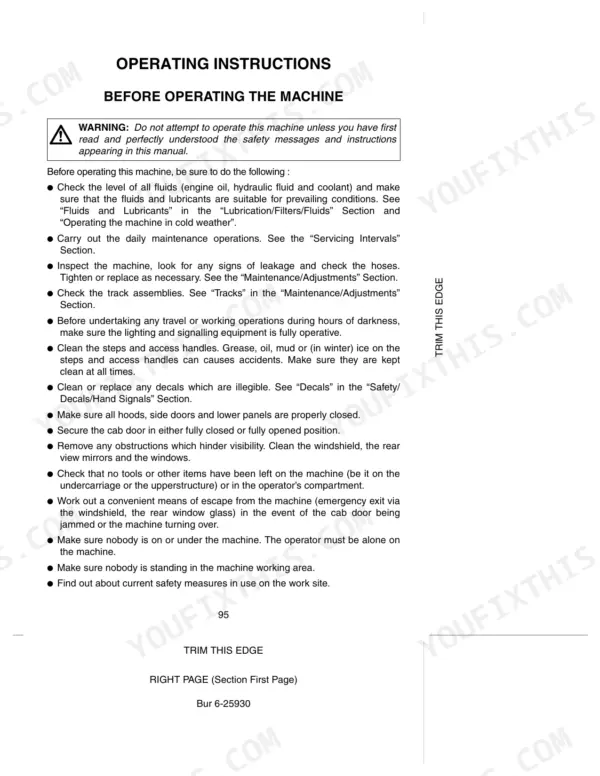

| Operating Instructions | 1 | Before Operating the Machine, Machine Operation, Break-In Period, Anti-Vandal Guard, Starting the Engine, Bringing the Machine Up to Operating Temperature, Engine Operation |
| Lubrication | 2 | Fluids and Lubricants |
| Adjustment/Maintenance | 3 | Tracks, Track Shoe Bolt Torque, Track Rollers and Idler Wheels, Radiator and Oil Cooler, Drive Belt, Air Conditioning |
| Electrical | 3 | Fuses, Batteries, Connecting Booster Batteries, Replacing a Bulb |
| Machine Storage | 3 | Preparation for Storage, Periodical Checks, Starting Up After Storage |

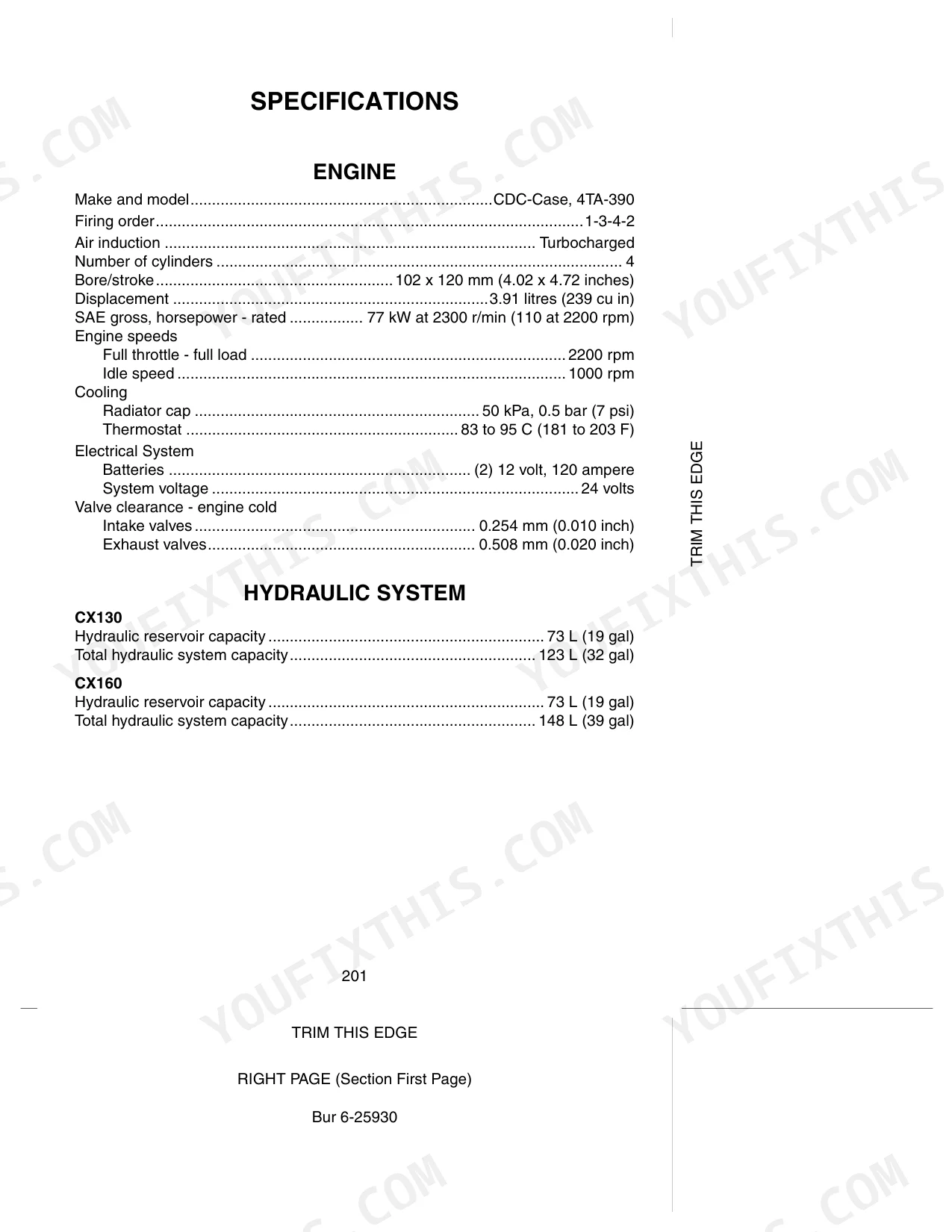

| Specifications | 3-4 | Engine, Hydraulic System, Dimensions, Lifting Capacities, Buckets, Operating Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Primary air filter element inspect and clean interval | Every 250 hours or when central zone of the restriction indicator is red | p. 140 |
| Primary air filter element replacement interval | Every 1000 hours or after cleaning six times | p. 140 |
| Engine Oil Capacity (with filter change) | 10.2 litres | p. 143 |
| Cooling System Capacity | 17.7 litres | p. 143 |
| Engine Idle Speed | 1000 rpm | p. 205 |
| Radiator Cap Pressure | 50 kPa | p. 205 |
| Intake Valves Clearance (engine cold) | 0.254 mm | p. 205 |
| Exhaust Valves Clearance (engine cold) | 0.508 mm | p. 205 |
| Pilot Filter Replacement Interval | 1000 hours | p. 140 |
| Fuel Tank Capacity | 250 litres | p. 143 |
| CX130 | ||
| CX130 Total Hydraulic System Capacity | 123 litres | p. 143 |
| CX160 | ||
| CX160 Total Hydraulic System Capacity | 148 liters | p. 143 |
Case CX130, CX160 Common Problems This Manual Covers
Case CX130 check engine light illuminates with error code M00D0 and total loss of throttle response
Check the throttle motor connections for dirt, corrosion, or loose pins. Start the engine and verify the idle speed rests steadily at 1000 rpm. Review the operating instructions for safe emergency shutdown procedures if the engine speed fluctuates unexpectedly during operation.
Manual Section: Operating InstructionsDashboard displays N00E0 general warning and engine runs hot during heavy operation p. 205
Inspect the coolant level sensor connector for visible wire damage. Fill the cooling system to the maximum 17.7 litres capacity if the reservoir is empty. Test the radiator cap to ensure it holds 50 kPa pressure as listed on page 205 before resuming heavy trenching work.
Manual Section: SpecificationsSlower than normal cylinder operation and excessive heat from hydraulic lines during continuous trenching p. 140
Check the hydraulic fluid sight glass while parked on level ground. Replace the pilot filter every 1000 hours as specified on page 140. If operating the larger model, safely drain the tank and refill the CX160 total hydraulic system capacity with exactly 148 liters.
Manual Section: LubricationDashboard displays service due message and central zone of the restriction indicator is red p. 143
Inspect and clean the primary air filter element every 250 hours. Replace the primary air filter element every 1000 hours or after cleaning six times. Drain the crankcase and refill with the full 10.2 litres engine oil capacity as instructed on page 143.
Manual Section: SpecificationsFrequently Asked Questions
What are the torque specifications for engine bolts on CASE CX130 and CX160?
The torque specifications for engine bolts are 265-313 Nm (195-230 Ft.Lbs) for M16 screws. For engine mounts, the torque is 64-73 Nm (47-53 Ft.Lbs) for M10 screws. It is recommended to use Loctite 262, or an equivalent, on screws marked with an asterisk.
How do you fix case CX130 check engine light illuminates with error code M00D0 and total loss of throttle response?
Check the throttle motor connections for dirt, corrosion, or loose pins. Start the engine and verify the idle speed rests steadily at 1000 rpm. Review the operating instructions for safe emergency shutdown procedures if the engine speed fluctuates unexpectedly during operation.
How do you fix dashboard displays N00E0 general warning and engine runs hot during heavy operation?
Inspect the coolant level sensor connector for visible wire damage. Fill the cooling system to the maximum 17.7 litres capacity if the reservoir is empty. Test the radiator cap to ensure it holds 50 kPa pressure as listed on page 205 before resuming heavy trenching work.
How do you fix slower than normal cylinder operation and excessive heat from hydraulic lines during continuous trenching?
Check the hydraulic fluid sight glass while parked on level ground. Replace the pilot filter every 1000 hours as specified on page 140. If operating the larger model, safely drain the tank and refill the CX160 total hydraulic system capacity with exactly 148 liters.
Is this Case CX130, CX160 Operator Manual a digital download?
Instant PDF download. You get the full 230-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
