Looking for the Case 9050B operator manual PDF? All 165 pages of the official 1995 Excavator Operator Manual (OEM Bur 9-25850) are here, covering everything from pre-start safety checks to full machine specifications. Inside: hydraulic schematics with complete system routing, a thorough Instruments and Controls section mapping every gauge on the Systems Display Panel, and lubrication and maintenance charts with fluid capacities for every circuit. You also get safety rules covering burn prevention, fire hazards, and ground crew hand signals, plus track maintenance procedures and a machine storage section. Hydraulic pump mounting torques to 50 to 55 pound-feet (65 to 75 Nm). That is a real factory spec, not a number someone posted on a forum. No more digging through a paper binder on a job site. Open it on your tablet, jump to any section with bookmarks, and search any spec by keyword.
What's Inside This Case 9050B, 9050B Excavator Operator Manual

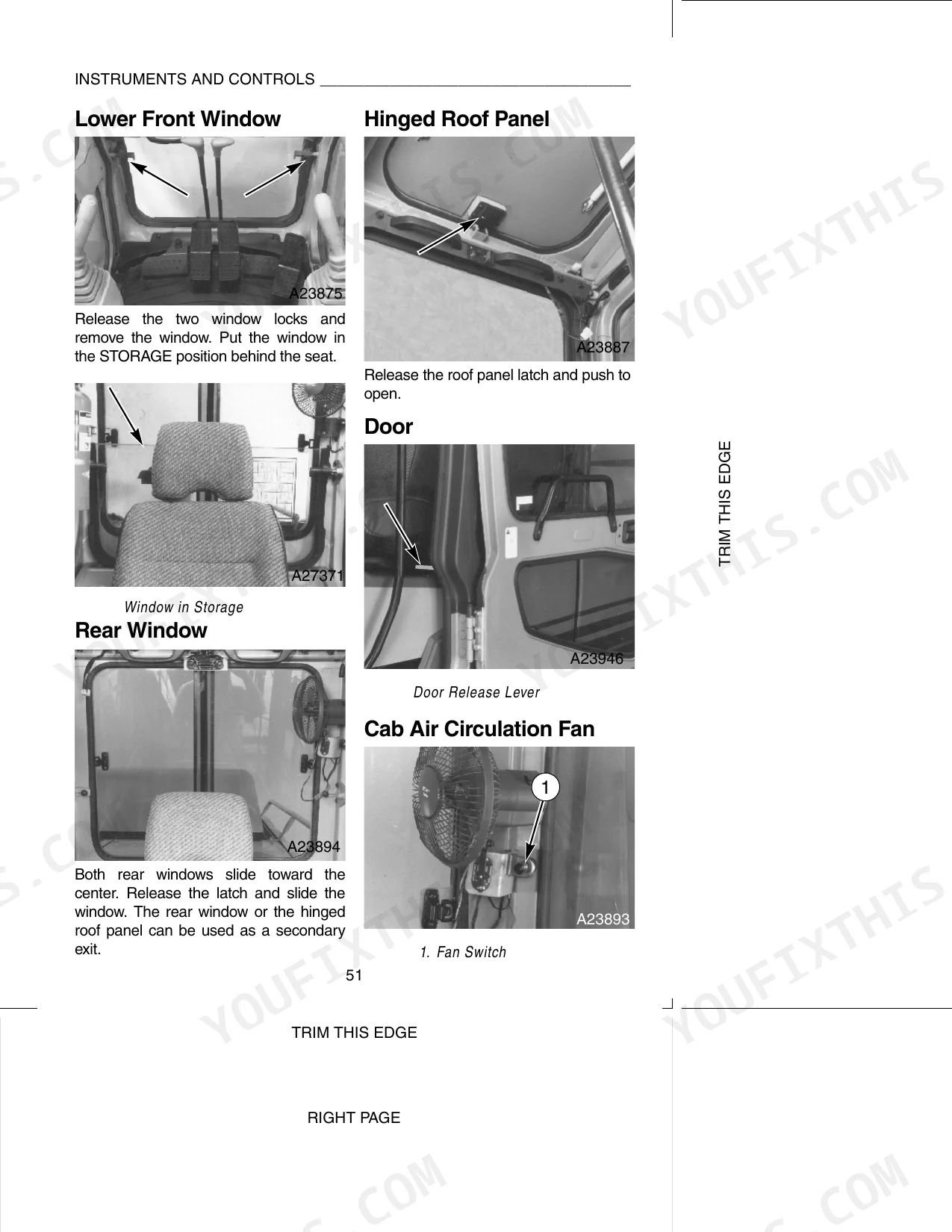

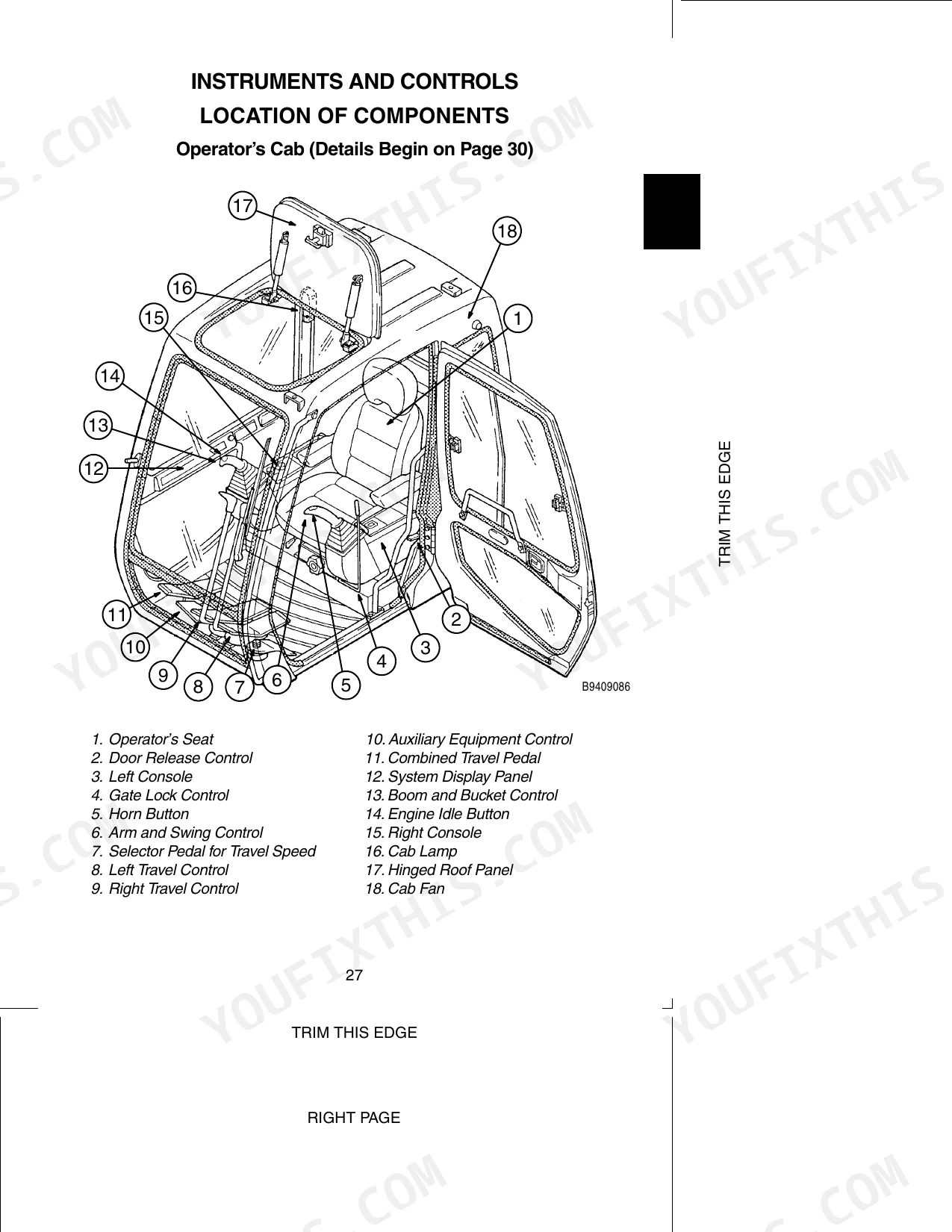

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 4-5 | Safe Operation, Adjustment, Service, Maintenance, Intended Use, Load Holding Control Device |
| Identification Numbers | 6 | Machine Model Number, Product Identification Number, Engine Serial Number, P.I.N. |
| Machine Components | 7-8 | Upper Structure, Bucket, Arm, Boom, Operator's Cab, Engine Compartment |
| Safety / Decals / Hand Signals | 9-28 | Safety Rules, Machine Operation Hazards, Parking Procedures, Burn Prevention, Fire or Explosion Prevention, Hand Signals |
| Instruments and Controls | 29-54 | operator’s Cab, Control Panel, Systems Display Panel, Hand and Foot Controls, operator’s Seat, Cab Windows and Door Controls |
| Operating Instructions | 55-82 | Engine |
| Tracks | 83-86 | Track Tension, Track Chain, Track Shoe Bolts, Track Frame, Track Shoe, Track Adjustment Cylinder, Check Valve |
| Lubrication / Maintenance Charts | 87-94 | Engine Crankcase, Fuel Tank, Engine Cooling System, Hydraulic Reservoir, Swing Reduction Gear Box, Final Drive Gear Box, Swing Ring Gear, Boom |
| Lubrication/Filters/Fluids | 95-124 | Access Doors, Grease Fittings, Swing Ring Gear, Engine Lubrication System, Air Filter System, Engine Cooling System, Hydraulic System, Diesel Fuel System |
| Maintenance and Adjustments | 125-130 | Drive Belts, Alternator Drive Belt, Water Pump Drive Belt, Air Pressure Reservoir, Windshield Washer Reservoir, Bucket Installation, Fire Extinguisher, Seat Belt |
| Electrical System | 131-134 | Batteries, Battery Fluid Level, Engine Pre-Heat Fuse, Fuses |
| Machine Storage | 135-138 | Air Cleaner, Engine, Alternator, Starter, Relays, Fan, Water Pump Belts, Batteries |
| Specifications | 139-156 | Engine Data, Dimensions, Operating Data, Lifting Capacities, Buckets, Weights, Bolt Torques |
| After Delivery Check | 157-160 | Cooling System, Tracks, Electrical System, Hydraulic System, Engine, Fuel System, Lubrication, Safety |
Quick Reference Specifications

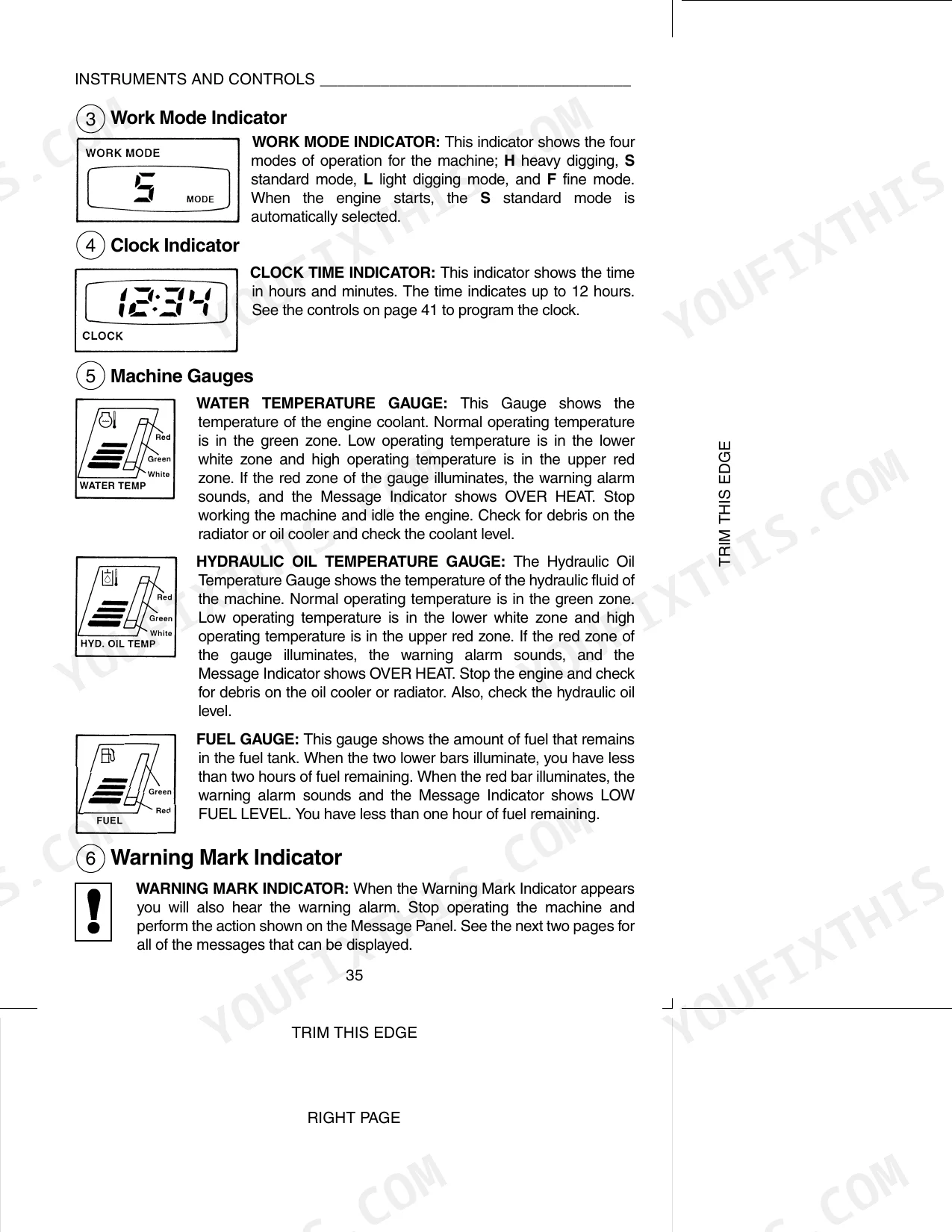

| Specification | Value | Page |
|---|---|---|
| Engine Mounts torque | 215 to 245 pound-feet (290 to 335 Nm) | p. 154 |
| Engine Bracket torque (M12) | 75 to 90 pound-feet (105 to 125 Nm) | p. 154 |
| Hydraulic Pump torque | 50 to 55 pound-feet (65 to 75 Nm) | p. 154 |
| Coolant hose clamps maintenance | As required (check and tighten) | p. 104 |
| Air filter Intake Cap Cleaning Interval | As required | p. 98 |
| Dust Valve and Dust Cup Check Interval | 10 hours of operation | p. 99 |
| Turntable Bearing (Lower Frame) torque | 665 to 775 pound-feet (900 to 1 050 Nm) | p. 154 |
| Turntable Bearing (Swing Frame) torque | 665 to 775 pound-feet (900 to 1 050 Nm) | p. 154 |
| Engine oil filter replacement interval | Every 500 hours of operation (or after first 50 hours if new/overhauled engine) | p. 97 |
| Engine oil filter center bolt torque | 45 to 50 pound-feet (60 to 70 Nm) | p. 98 |
| Load Holding Control Device recommendation for boom cylinders | Recommended to prevent sudden lowering of load in event of hydraulic hose, line, or fitting failure | p. 4 |
| Engine coolant overheating indicator | Red zone of water temperature gauge illuminates, warning alarm sounds, Message Indicator shows OVER HEAT | p. 37 |
Case 9050B, 9050B Excavator Common Problems This Manual Covers
Case 9050B Excavator engine coolant gauge in red zone with warning alarm and OVER HEAT message. p. 37
Stop operation immediately and let the engine idle. Check the warning lights on page 37. Inspect coolant hose clamps for leaks and tighten as required. Verify the air filter intake cap is clean and blow out the primary element using 30 psi (207 kPa) maximum air pressure.
Manual Section: Systems Display Panel MessagesSystems display panel shows air cleaner service required warning indicator after working in dusty conditions. p. 99
Inspect the dust valve and dust cup every 10 hours of operation as outlined on page 99. Replace both air filter elements if the machine has reached the 1000 hours of operation or one year interval. Clean the primary element carefully using compressed air.
Manual Section: Lubrication/Filters/FluidsEngine requires routine service after reaching the scheduled maintenance interval for lubrication and filter changes. p. 91
Drain the engine oil and replace the filters every 500 hours of operation. Refer to page 91 and refill the engine crankcase with exactly 31 U.S. quarts (29.3 litres) of approved oil. Check the dipstick to ensure the fluid sits between the minimum and maximum marks.

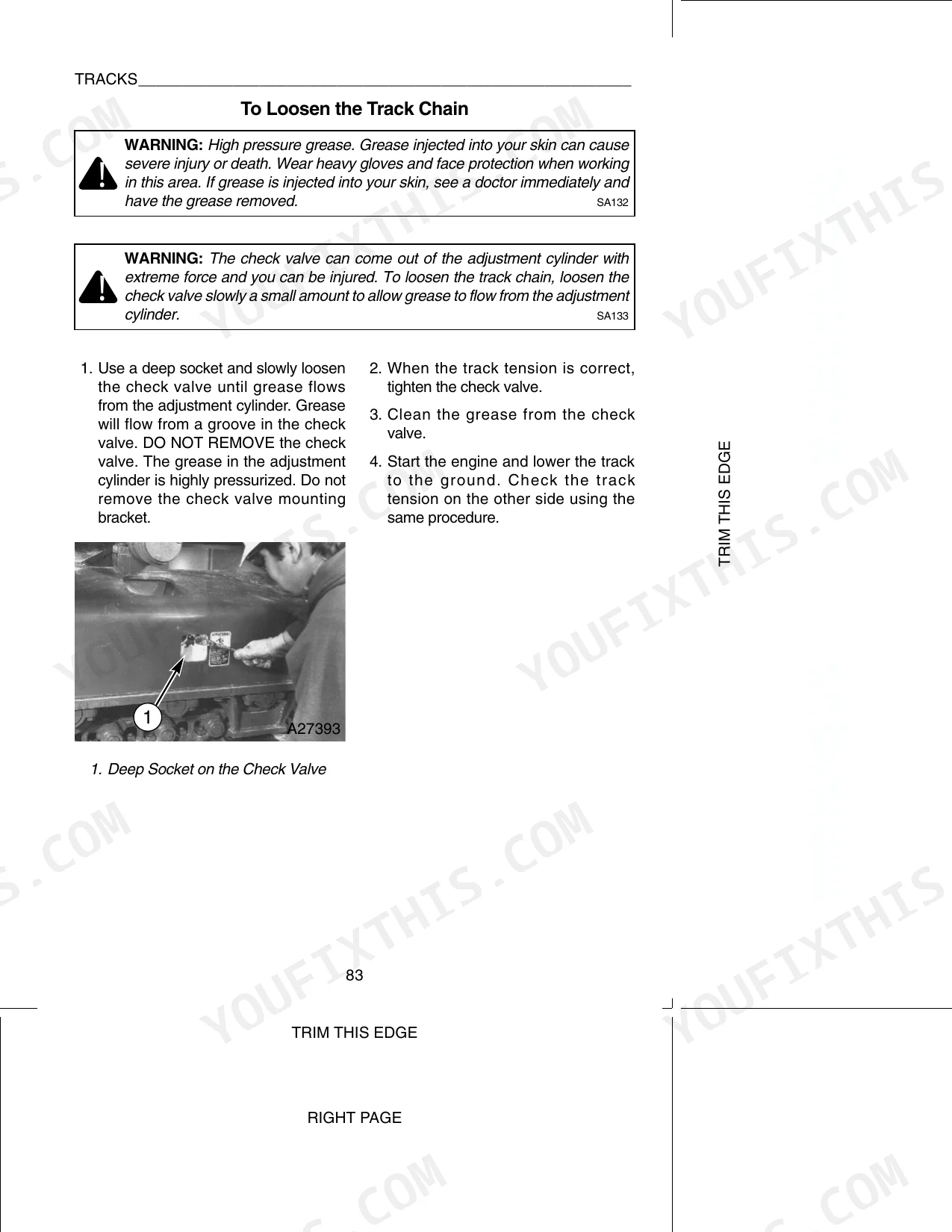

Manual Section: Lubrication / Maintenance ChartsTracks derailing or making excessive noise during travel operations across uneven or muddy terrain. p. 83
Measure the track tension clearance by elevating one side of the machine. Adjust the tension grease cylinder on page 83 until you reach the correct specification. Inspect the track shoe bolts and tighten them to exactly 555 to 685 pound-feet (755 to 930 Nm) of torque.
Manual Section: TracksFrequently Asked Questions
How to reset Case 9050B error codes?
To stop a warning alarm, which indicates an error or problem, push and release the Check Stop/Alarm button. After stopping the alarm, ensure you perform the required service or action to resolve the underlying problem indicated by the message on the display panel.
Torque specs for Case 9050B engine bolts
For Case 9050B engine components, the torque specifications are as follows: Engine Mounts (M20, 30 mm) require 215 to 245 pound-feet (290 to 335 Nm), and Engine Brackets (M12, 19 mm) require 75 to 90 pound-feet (105 to 125 Nm) or (M14, 22 mm) 130 to 145 pound-feet (175 to 200 Nm). These bolts should be checked after the first 50 hours and every 250 hours thereafter, with Loctite #262 used on their threads.
How do you fix case 9050B Excavator engine coolant gauge in red zone with warning alarm and OVER HEAT message?
Stop operation immediately and let the engine idle. Check the warning lights on page 37. Inspect coolant hose clamps for leaks and tighten as required. Verify the air filter intake cap is clean and blow out the primary element using 30 psi (207 kPa) maximum air pressure.
How do you fix systems display panel shows air cleaner service required warning indicator after working in dusty conditions?
Inspect the dust valve and dust cup every 10 hours of operation as outlined on page 99. Replace both air filter elements if the machine has reached the 1000 hours of operation or one year interval. Clean the primary element carefully using compressed air.
What do I get after purchasing this Case 9050B, 9050B Excavator manual?
You get a 165-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

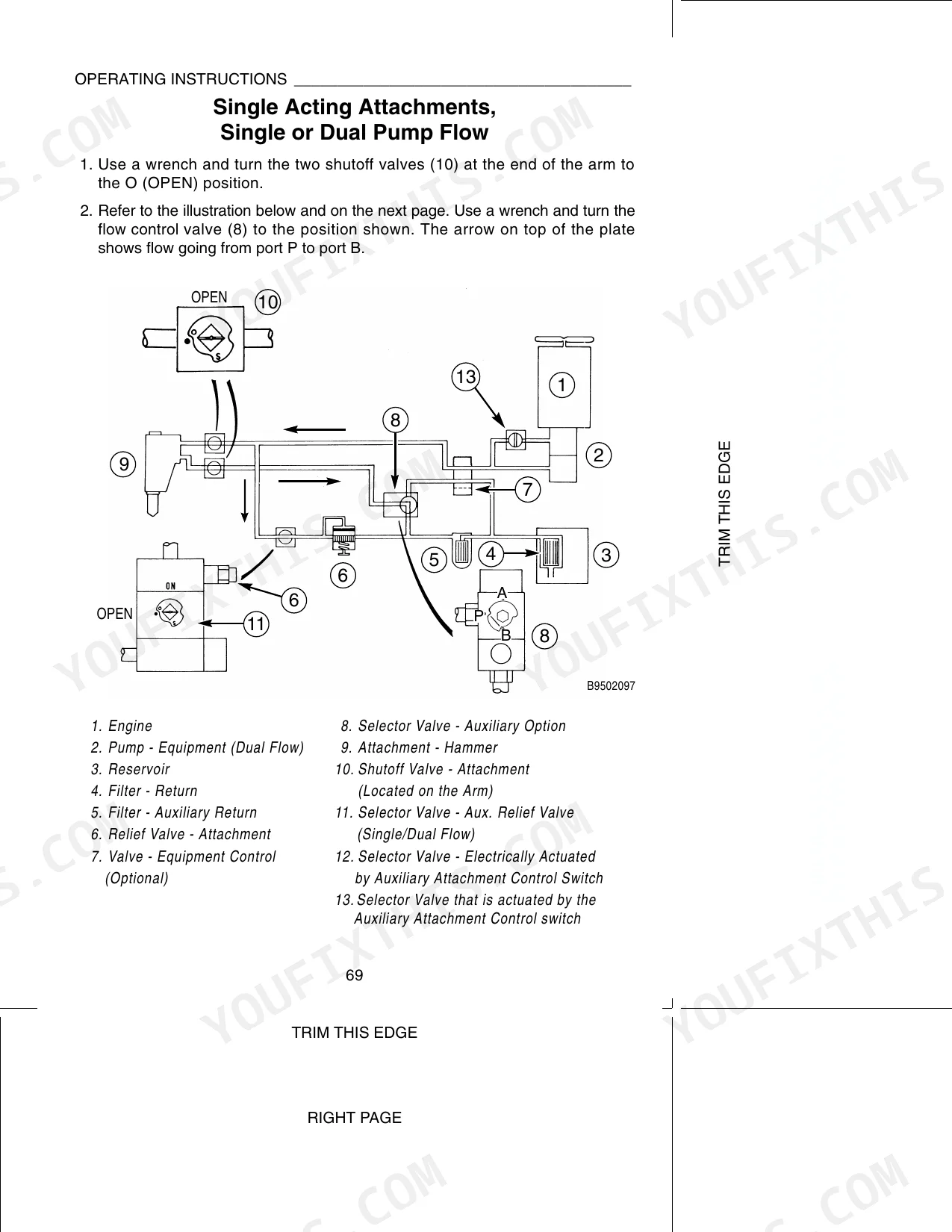

Are hydraulic system diagrams in this Case 9050B, 9050B Excavator manual?
Yes. The manual includes a hydraulic system diagram covering the main circuits.
