Your 9030B just dropped to low idle with the electrical problem alarm lit, and the trench is half dug. Guessing at a 24 volt system with a test light burns a day the crew still gets paid for. This 1092 page factory book gives you the electrical specifications, troubleshooting procedures, and controller coverage to chase that fault wire by wire.
It covers the whole machine: the JI Case 6T-590 engine, injection pump and injectors, main hydraulic pump and control valve with pressure check procedures, drive and swing motors, final drive transmissions, plus tracks, rollers, and idlers.
The full electrical and hydraulic Schematic Set sits at the back, torque and Loctite charts up front. Fix it, load out, and get the meter turning again.
What's Inside This Case 9030B Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Contents | 1-2 | Master Group Index |
| General | 3-36 | Loctite Product Chart, Safety, Torque Specifications |
| Engine | 37-276 | Engine Removal and Installation, Radiator and Oil Cooler, 6T-590 Diesel Engine Specifications, Turbocharger Failure Analysis |

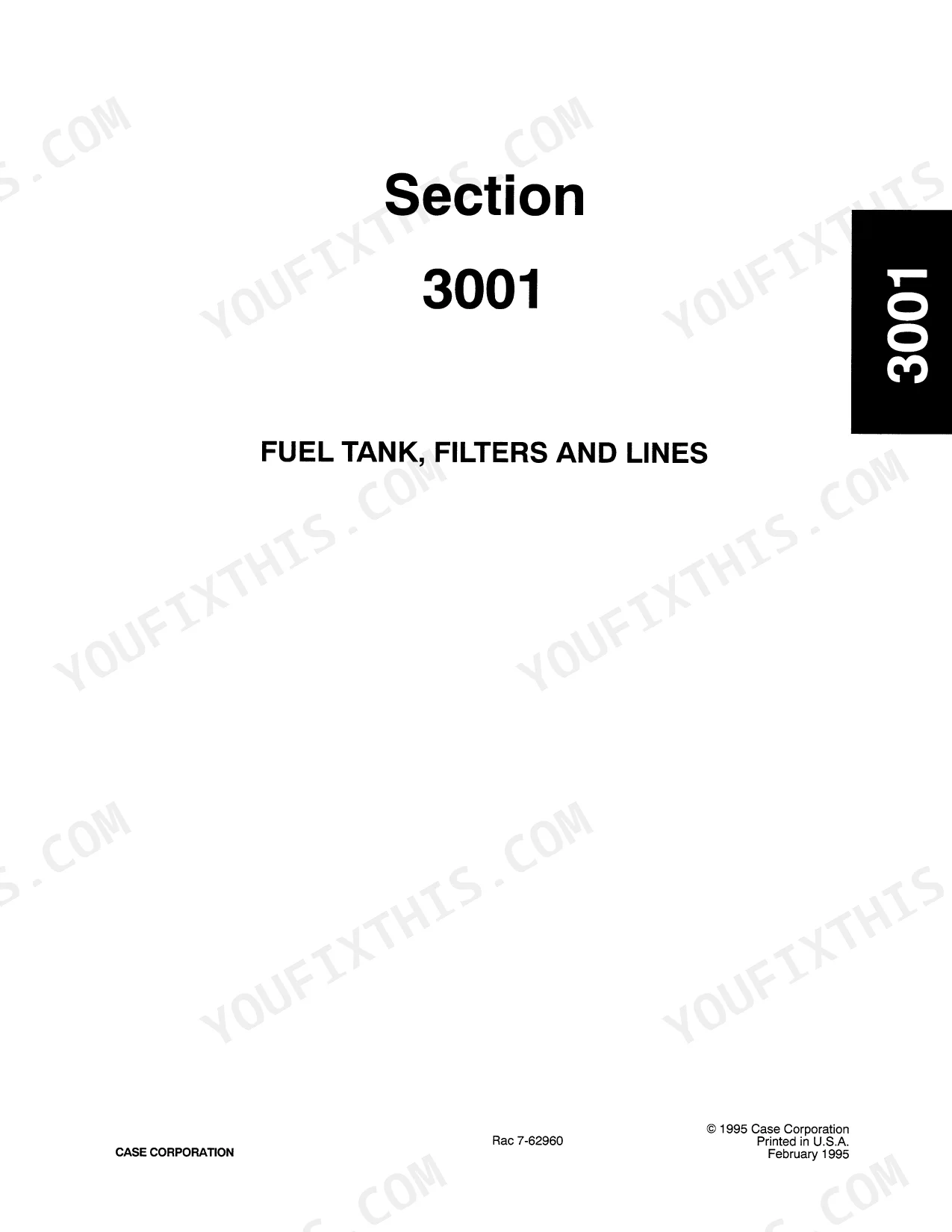

| Fuel System | 277-338 | Fuel Tank, Filters and Lines, Injection Pump, Fuel Injectors |

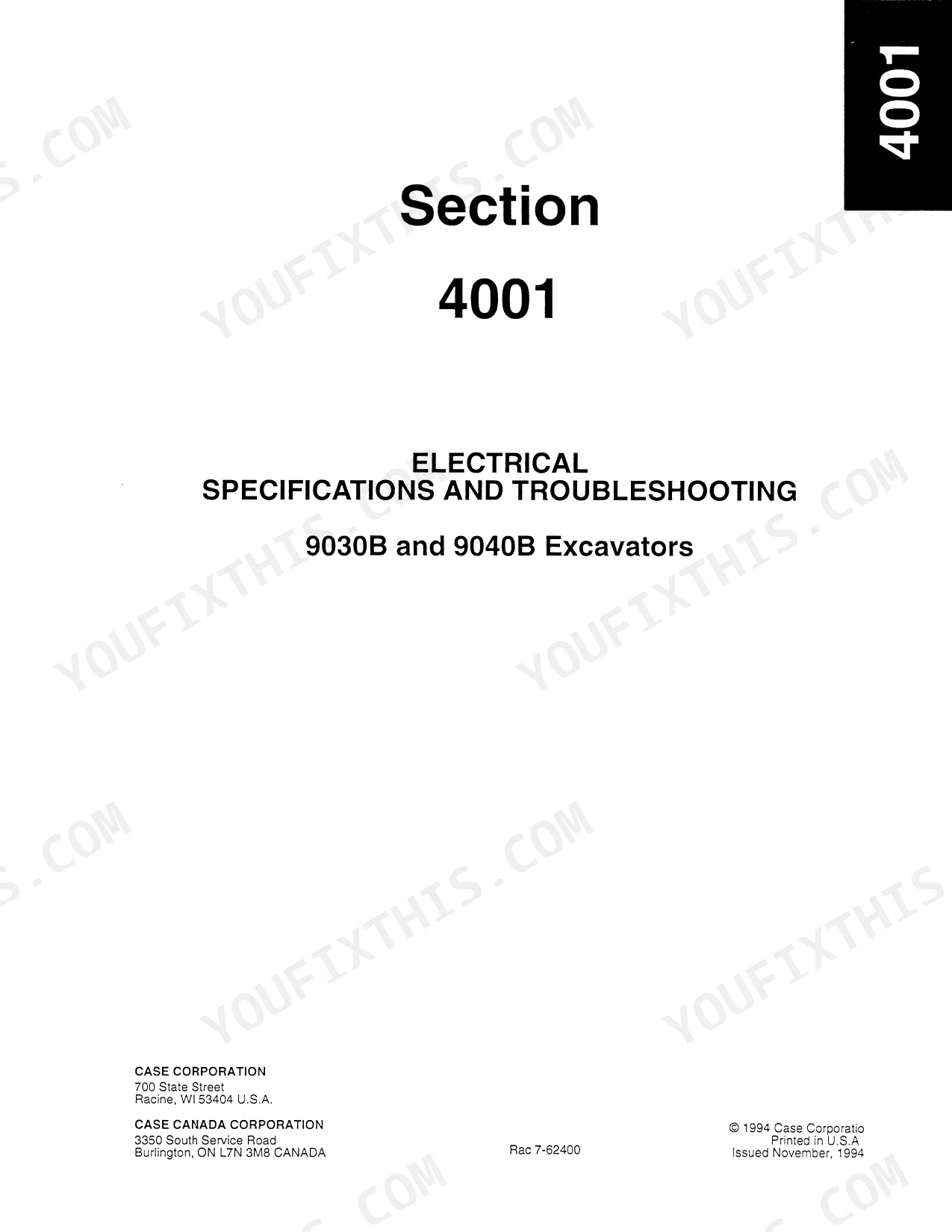

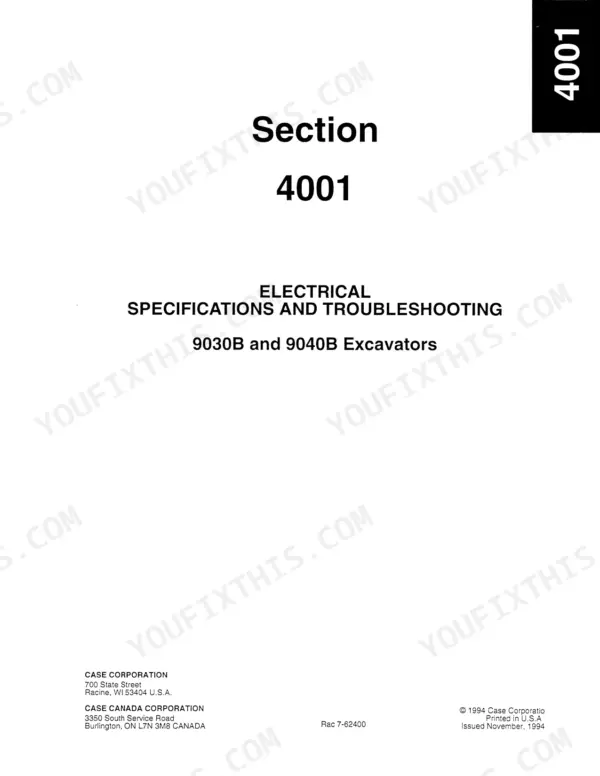

| Electrical | 339-414 | Electrical Specifications and Troubleshooting, Battery Testing, Controller |
| Tracks | 415-464 | Rollers, Idlers |

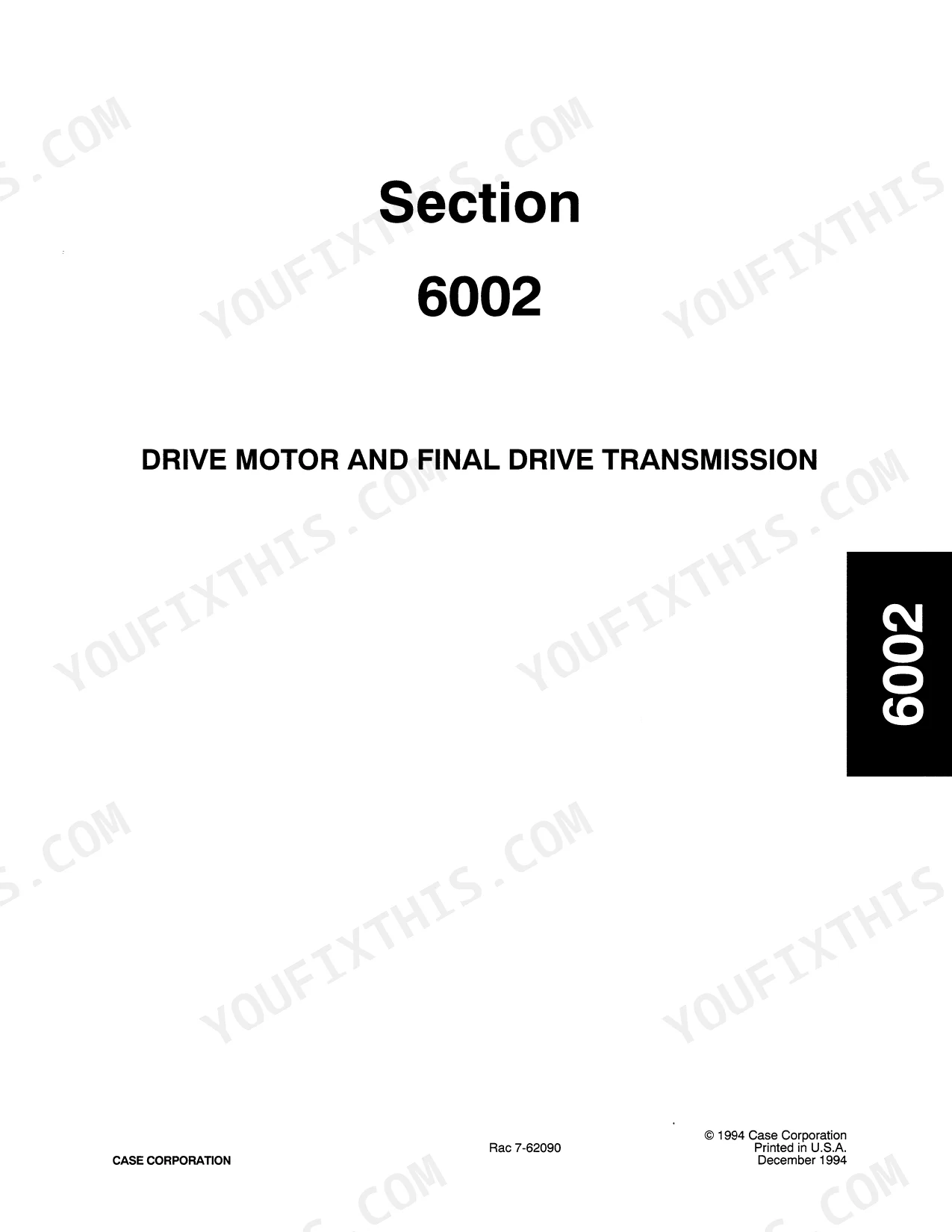

| Power Train | 465-544 | Drive Motor, Final Drive Transmission, Swing Motor, Swing Reduction Gear |

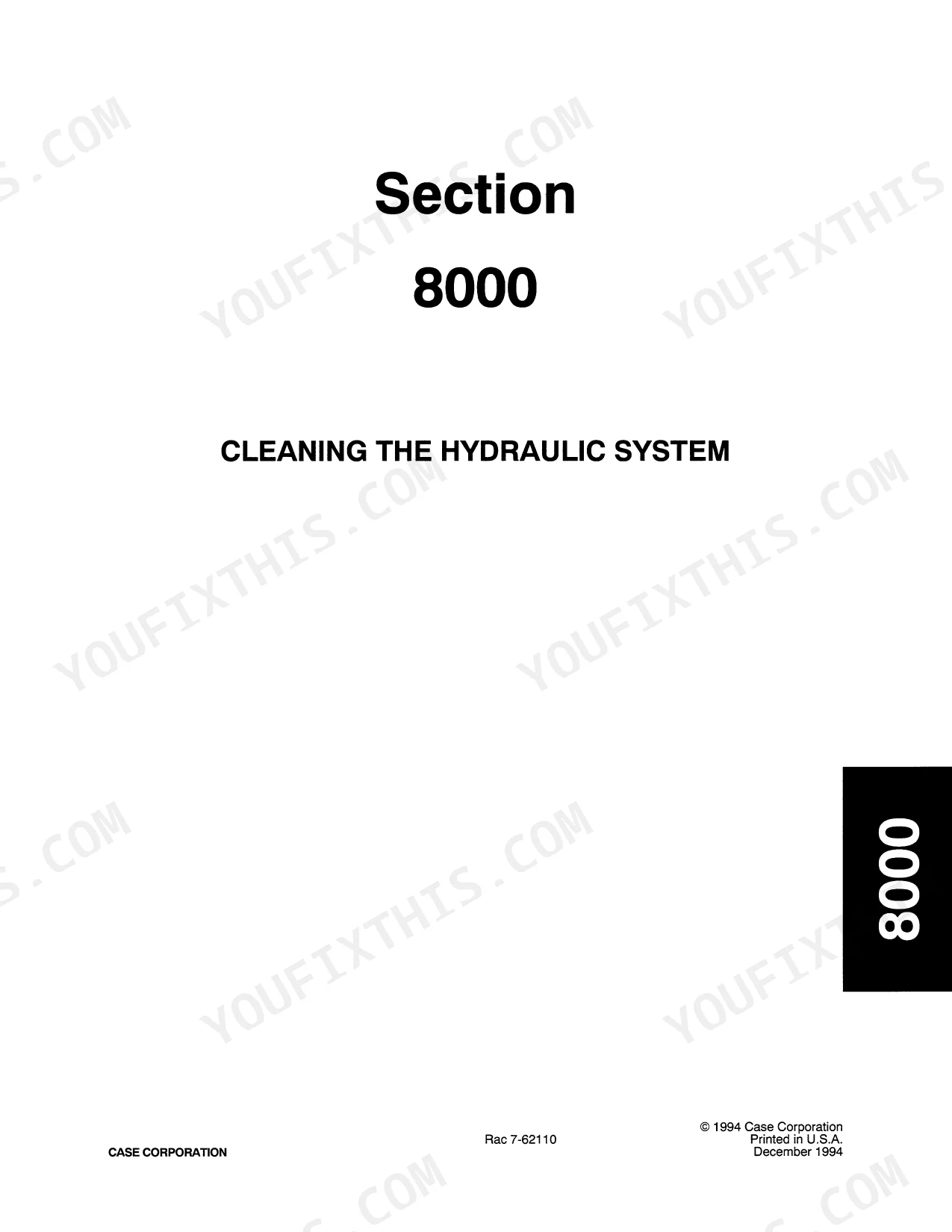

| Hydraulics | 545-930 | Cleaning the Hydraulic System, Hydraulic Specifications and Pressure Checks, Main Hydraulic Pump, Main Hydraulic Control Valve, Cylinders |

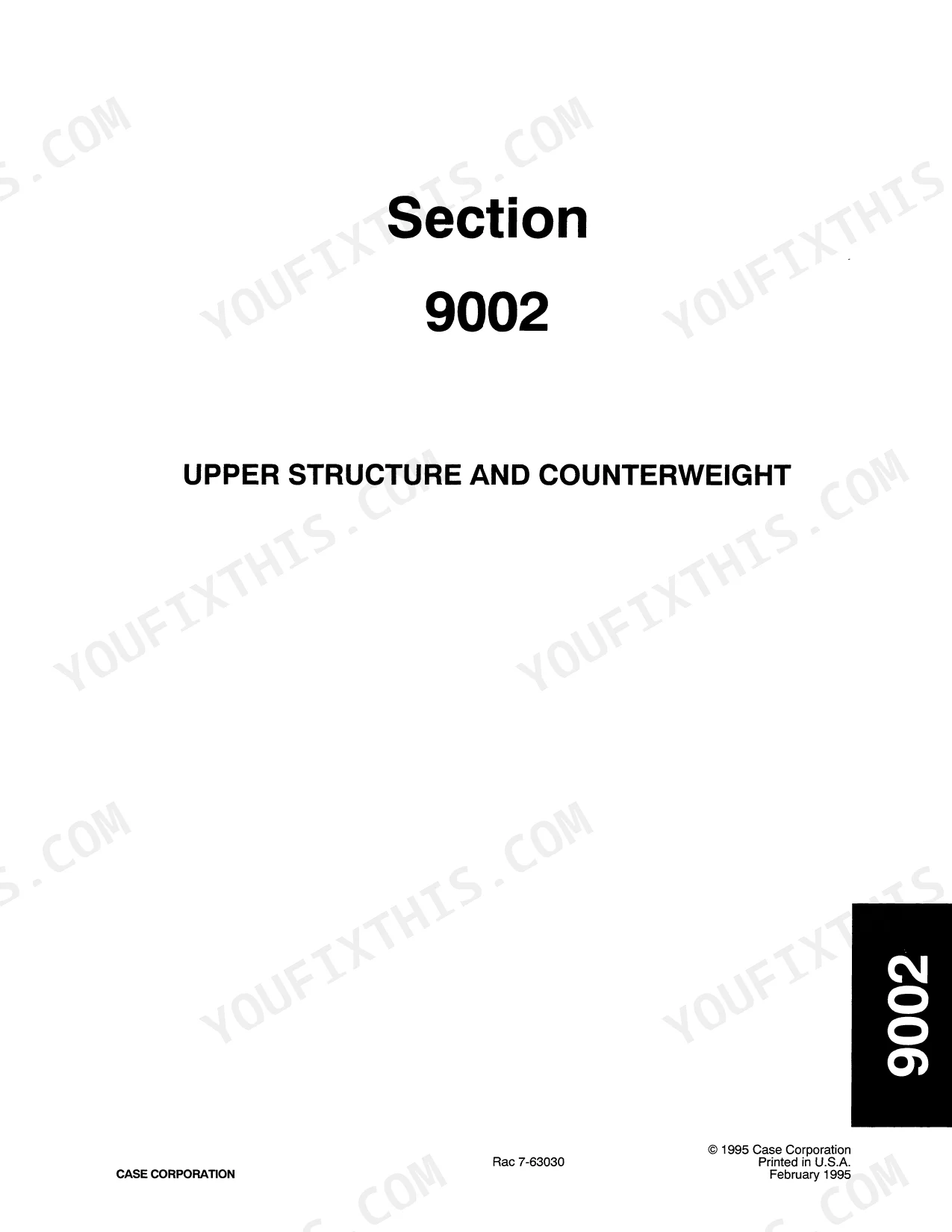

| Mounted Equipment | 931-1090 | Upper Structure and Counterweight, Boom, Arm and Bucket, Cab and Cab Equipment, Air Conditioner Service |
| Schematic Set | 1091-1092 | Excavator Electrical Schematic, Excavator Hydraulic Schematic |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Weight | 933 pounds (423 kg) | p. 38 |
| Engine Mount Bolt Torque | 198 to 231 lb-ft (268 to 313 Nm) | p. 38 |
| Engine Crank Case Capacity | 14.2 liters (3.8 US gallons) | p. 16 |
| Fuel Tank Capacity | 310 liters (81.9 US gallons) | p. 16 |
| Hydraulic Oil Tank Capacity | 120 liters (31.7 US gallons) | p. 16 |
| Engine Horsepower | 128 hp at 2000 rpm | p. 29 |
| Engine Idle Speed | 900 rpm | p. 29 |
Case 9030B Common Problems This Manual Covers
Engine dies under load, then restarts after a filter change, only to quit again
Start with the Fuel System section. It walks the fuel tank, filters and lines, then the injection pump and injectors. Old diesel and tank debris cause most of these shutdowns, so clean the tank and pickup first. The section maps every line and fitting so you can chase the restriction end to end.
Manual Section: Fuel System p. 277Hydraulics feel strong cold, then go sluggish once the oil heats up
The Hydraulics section gives specifications and pressure check procedures, so you test relief pressures with the oil hot instead of guessing. It also covers cleaning the hydraulic system and servicing the main hydraulic pump and control valve. Verify pressures first, then decide whether the pump or a relief valve is bleeding off power.
Manual Section: Hydraulics p. 545Electrical problem alarm holds the machine at idle and kills response
Work through the Electrical section: specifications, troubleshooting procedures, battery testing, and controller coverage. Then open the Schematic Set at the back and trace the throttle and idle circuit wire by wire with a meter. On a 24 volt machine with hard to find parts, testing before replacing matters.
Manual Section: Electrical p. 339One track pulls weak, or travel power fades on one side over time
The Power Train section covers the drive motor, final drive transmission, swing motor, and swing reduction gear with full service procedures. Check the Tracks section too, because worn sprockets, pins, and bushings imitate a weak drive. Measure the undercarriage before condemning a final drive, since the drive is the expensive answer.
Manual Section: Power Train p. 465Frequently Asked Questions
The electrical problem alarm is on and my 9030B won't come off low idle. Where do I start?
That alarm usually traces to the throttle or idle control circuit, wiring, or a sensor input. The Electrical section gives specifications, troubleshooting steps, and controller coverage. Use the Schematic Set to test the circuit with a meter instead of swapping parts on a 24 volt machine where parts are scarce. p. 339
Does this manual explain Case 9030B error codes and how to reset them?
It covers the controller, electrical specifications, and troubleshooting for this era of machine. There is no quick reset trick to chase. Most reset questions are really an unrepaired fault, and the alarm stays until you fix it. The troubleshooting procedures and schematics show you how to find that fault. p. 339
Are torque specs included, like engine mount and cap screw torques?
Yes. The General section carries metric torque charts covering cap screws from M6 through M20, standard and socket head. Engine mount bolts are specified at 198 to 231 lb-ft (268 to 313 Nm). Fasteners for drive and swing motor work are handled in the Power Train procedures. p. 37
My machine dies under load, or gets weak once it warms up. Will this book help?
Those are the two classic 9030B complaints. For shutdowns under load, the Fuel System section covers the tank, filters and lines, injection pump, and injectors. For power loss when hot, the Hydraulics section gives pressure check procedures so you can test relief pressures at temperature instead of guessing. p. 545
Does it cover final drives, travel motors, and the swing drive?
Yes. The Power Train section covers the drive motor, final drive transmission, swing motor, and swing reduction gear. Tracks, rollers, and idlers get their own section. One final drive teardown you avoid by diagnosing correctly pays for the book many times over. p. 415
Which documents come with this Case 9030B download?
Two books. The 1092-page Service Manual (Case part number 7-62192) carries the teardown and repair work, and the Operator's Manual (part number 9-25831NA) rides along in the same download. The What's Inside table on this page maps the Service Manual. p. 1
