An hour from now you could have the loader off and the three point hitch set for the drill, with the Case IH Maxxum 5220-5250 operator manual PDF open beside you: factory publication 9-23751, 274 pages, covering all four tractors in the line, 5220 through 5250. Lubrication and maintenance charts take up a solid stretch of the book, mapping every service point against the engine hour meter. Cold weather starting, PTO engagement, remote hydraulic setup, instrument cluster programming, and rear wheel tread adjustment each get a clear walkthrough, with tire and ballast tables for matching front weight to the implement. Refill the transmission and hydraulic system with 15.3 US gallons, and torque wheel hub bolts to 485 to 550 Nm. A half remembered hub torque loses a wheel mid harvest. This bookmarked PDF jumps straight to any section; grab it and the fix happens before the weather turns.
What's Inside This Case Maxxum 5220-5250 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety/Decals | 10-18 | Safety Rules, Roll Over Protection Structure |

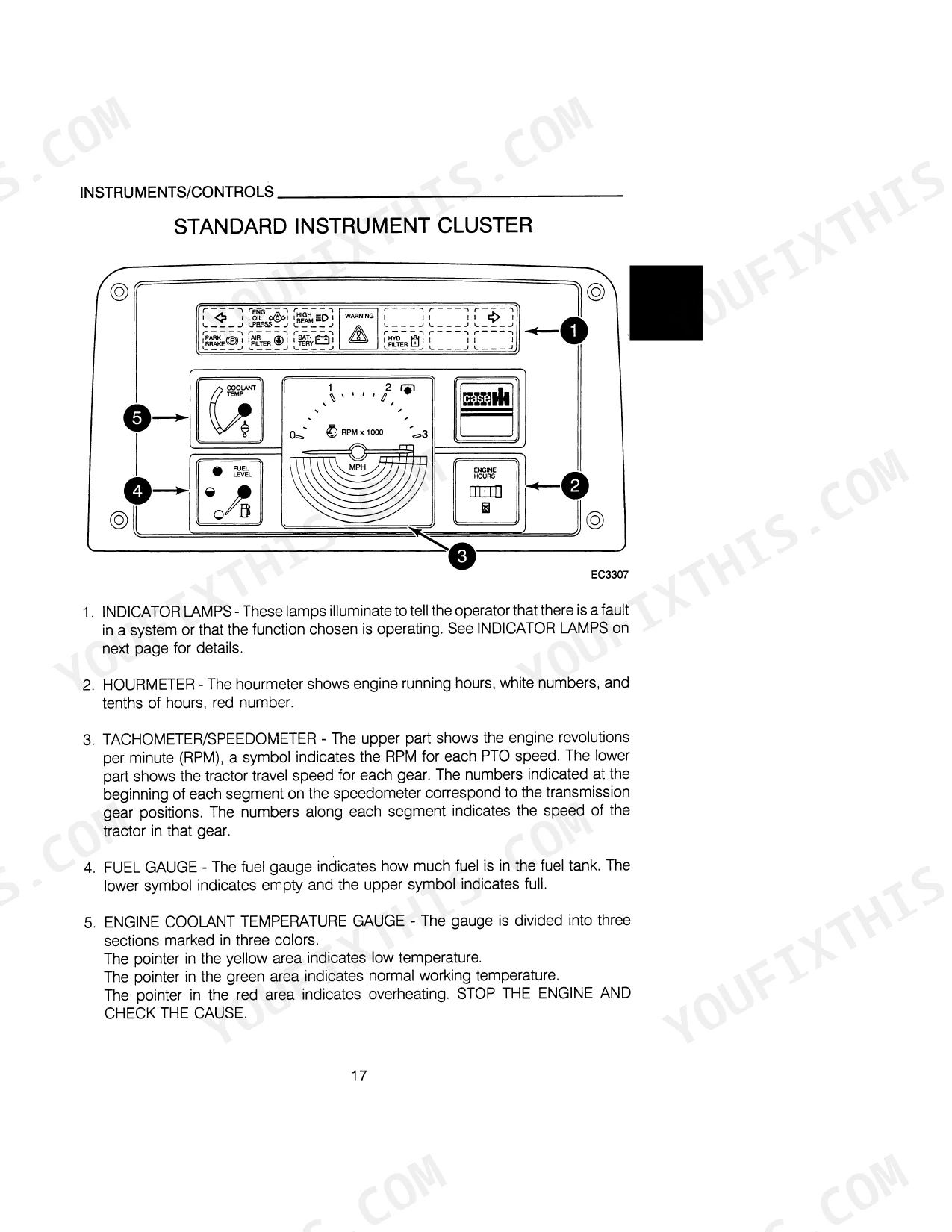

| Instruments/Controls | 19-46 | Standard Instrument Cluster, Indicator Lamps, Digital Instrument Cluster, Operating Controls, Cab Headliner Controls |

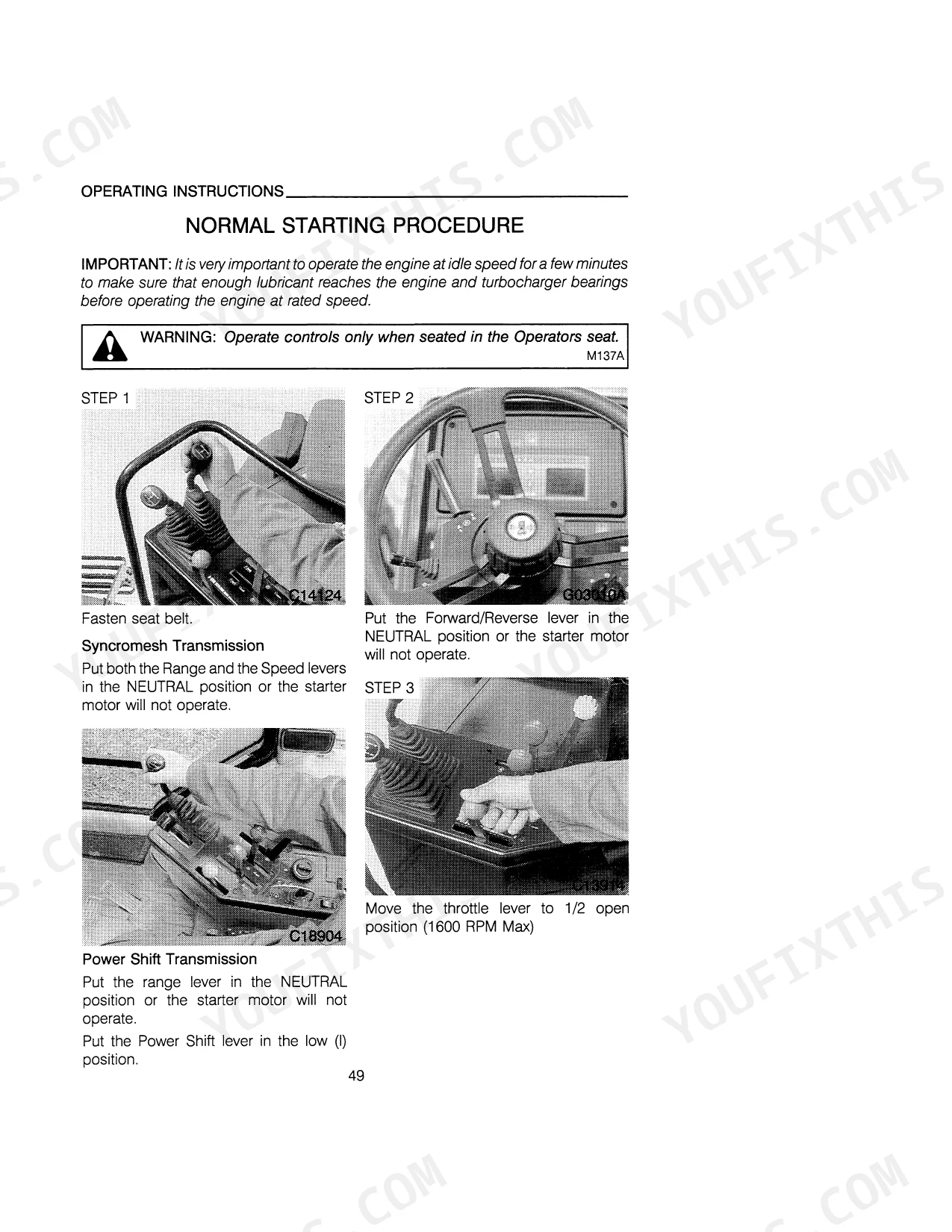

| Operating Instructions | 47-87 | Cold Temperature Operation, Starting the Engine, Operating the Transmission, Power Takeoff |
| Field Operation | 88-134 | Drawbar Preparation, Three Point Hitch System, Rear Hitch Operation, Remote Hydraulics Operation, Programming Instrument Cluster |
| Tires/Wheels/Spacing/Ballast | 135-175 | Tire and Rim Equipment, Front Wheel Tread Positions, Rear Wheel Adjustment |
| Lubrication/Maintenance Charts | 176-179 | Engine Hour Meter, Lubrication Maintenance Charts, System Lubrication Analysis Program, Service Points |
| Lubrication/Filters/Fluids | 180-216 | Air Induction System, Transmission Lubrication |
| Maintenance/Adjustments | 217-231 | Operators Cab |
| Electrical System | 232-246 | Batteries |
| Storage | 247-249 | Storage Preparation, Removing From Storage, Fuel System, Cooling System, Battery Maintenance |
| Specifications | 250-265 | Diesel Engine, Air Intake System, Cooling System, Fuel System, Transmission, Hydraulic System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Seven Terminal Electrical Outlet fuse protection | 30 amp | p. 123 |
| Wheel to hub bolt torque | 485 to 550 Nm | p. 156 |
| Transmission/Hydraulic System Refill Capacity | 15.3 US Gallons | p. 186 |
| Engine Rated Speed | 2200 RPM | p. 254 |
| Radiator Cap Pressure | 15 PSI | p. 197 |
| 5220 | ||
| Engine Oil Capacity (5220) | 11 US Quarts | p. 188 |
| Cooling System Capacity (5220 with cab) | 4.5 US Gallons | p. 186 |
| 5230/5240/5250 | ||
| Engine Oil Capacity (5230/5240/5250) | 15.8 US Quarts | p. 188 |
Case Maxxum 5220-5250 Common Problems This Manual Covers
Case 5240 quits moving in a range or only creeps until shut off and restarted
Check the fuse panel and the relays behind the right side of the dash cover; layouts are in the Electrical System section starting on page 232. Pull each relay, clean the terminals, and reseat it firmly. Verify the transmission oil level while you are in there; a refill takes about 15.3 US Gallons (58 litres).
Manual Section: Electrical System p. 232Remote hydraulics and loader slow or jerky on frosty mornings, three point hitch lifts slowly
Check the cold temperature operation procedure starting on page 47, then let the oil warm at part throttle before working the hydraulics hard. Judge flow at the rated engine speed of 2200 RPM, not at idle. If the system still acts starved once warm, change the transmission and hydraulic filter before the next field day.
Manual Section: Operating Instructions p. 47Temperature gauge climbs into the red and coolant pushes out the overflow during tillage
Clean chaff and dust out of the radiator and screens first; a plugged core overheats a tractor faster than a bad thermostat. Test the radiator cap; it must hold 15 PSI (103 kPa), listed on page 197. Check coolant level cold and follow the cooling system cleaning and filling procedures in the same section.
Manual Section: Cooling System Maintenance p. 197No power at the seven terminal outlet, sprayer monitor and planter controller stay dead
Check the 30 amp fuse first; pins 4 and 7 of the outlet run through the key switch and share that fuse, covered on page 123. Turn the key on before testing for power at those pins. Inspect the harness terminals for corrosion and clean the ground connections before replacing any monitor.
Manual Section: Field Operation p. 123Rear wheel loose or clicking after setting tread width for row crop work
Torque the wheel to hub bolts to 485 to 550 Nm (357 to 400 lb ft), the spec shown on page 156, any time you move the rims for tread width. Recheck the bolts after the first loaded pass; a rim that shifts on the hub will wallow out the bolt holes.
Manual Section: Tires/Wheels/Spacing/Ballast p. 156Frequently Asked Questions
What are the diagnostic codes for the powershift transmission?
The transmission control module monitors the system and displays codes via the 'CHECK TRANS' light. By holding the clutch pedal to the floor, you can count the flashes to identify the fault. For example, one flash indicates the module is receiving none or multiple shift lever signals, while three flashes indicate the temperature sensor circuit has failed open or shorted to ground. p. 68
What are the replacement specifications for the relays in the left side fuse panel of a Case Maxxum 5220-5250?
The left side fuse panel contains four circuit relays for the cab model: A (standard rear work lamp), B (optional front work lamps), C (spare), and D (optional rear work lamps). For the ROPS model, the relays are A (fender work lamps), B (spare), C (canopy work lamps), and D (spare). Always ensure the new fuse has the same ampere rating as the one being replaced. p. 236
What is the recommended valve tappet clearance for the Case Maxxum 5220-5250 engine?
The engine valve tappet clearance must be checked and adjusted when the engine is cold. The intake valves should be set to 0.010 inch (0.25 mm) and the exhaust valves should be set to 0.020 inch (0.50 mm). p. 228
What is the engine oil capacity for the Case Maxxum 5230, 5240 and 5250?
For the 5230, 5240, and 5250 models, the engine oil capacity without a filter change is 15 US Quarts (14.3 Litres). With a filter change, the capacity is 15.8 US Quarts (15 Litres). p. 188
What is the correct torque for the rear wheel bar axle clamp bolts on a Case Maxxum 5220-5250?
When adjusting the rear wheels on a bar axle, first tighten the four clamping bolts to 135 Nm (100 lb ft). After 30 minutes of operation, tighten the bolts again in order 1 to 4 to a final torque of 460 Nm (340 lb ft). p. 159
What do I get after purchasing this Case Maxxum 5220-5250 manual?
A 274-page Operator Manual in scanned PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I free to print this Case Maxxum 5220-5250 Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
