All 84 pages of this Case 234 Operator Manual (OEM #1258522C3) focus on one thing: running and maintaining your 234 and 234-Hydro tractors the way Case intended. You get a full instrument panel walkthrough covering every tellite, the tachometer and hourmeter, gear shift and PTO levers, plus separate operating procedures for both gear drive and hydrostatic drive versions. Inside: a complete lubrication guide structured by 10-, 50-, and 100-hour intervals, cooling system drain and fill steps, air filter service, and a preventive maintenance schedule you can actually follow in the field. Set front wheel toe-in to 1/4-inch (6.4mm) ±1/16-in., torque the M14 wheel bolts to 87-97 ft-lbs, and confirm clutch pedal free movement at 1.0 inch before every season. Your machine is down. Get the factory answer on the first try. Bookmarked by section so you jump straight to what you need; open it on any device and bring it right to the tractor.
What's Inside This Case 234, 234-Hydro Operator Manual

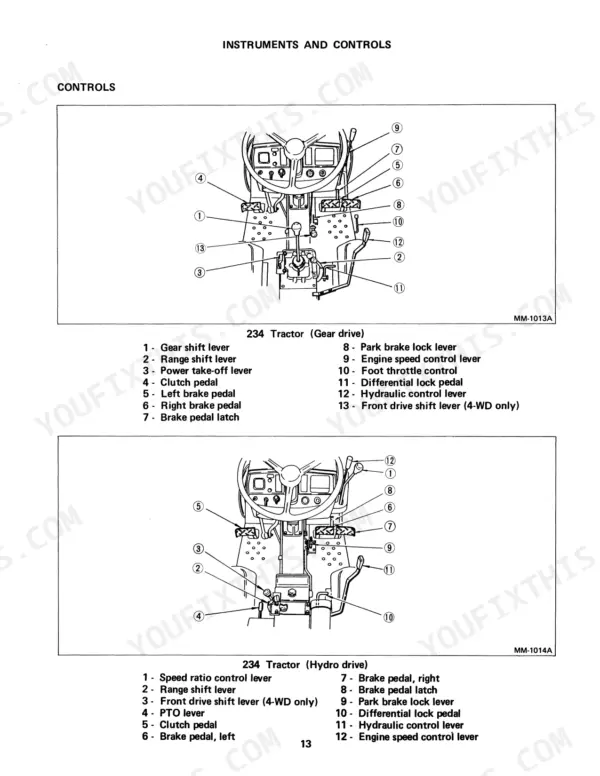

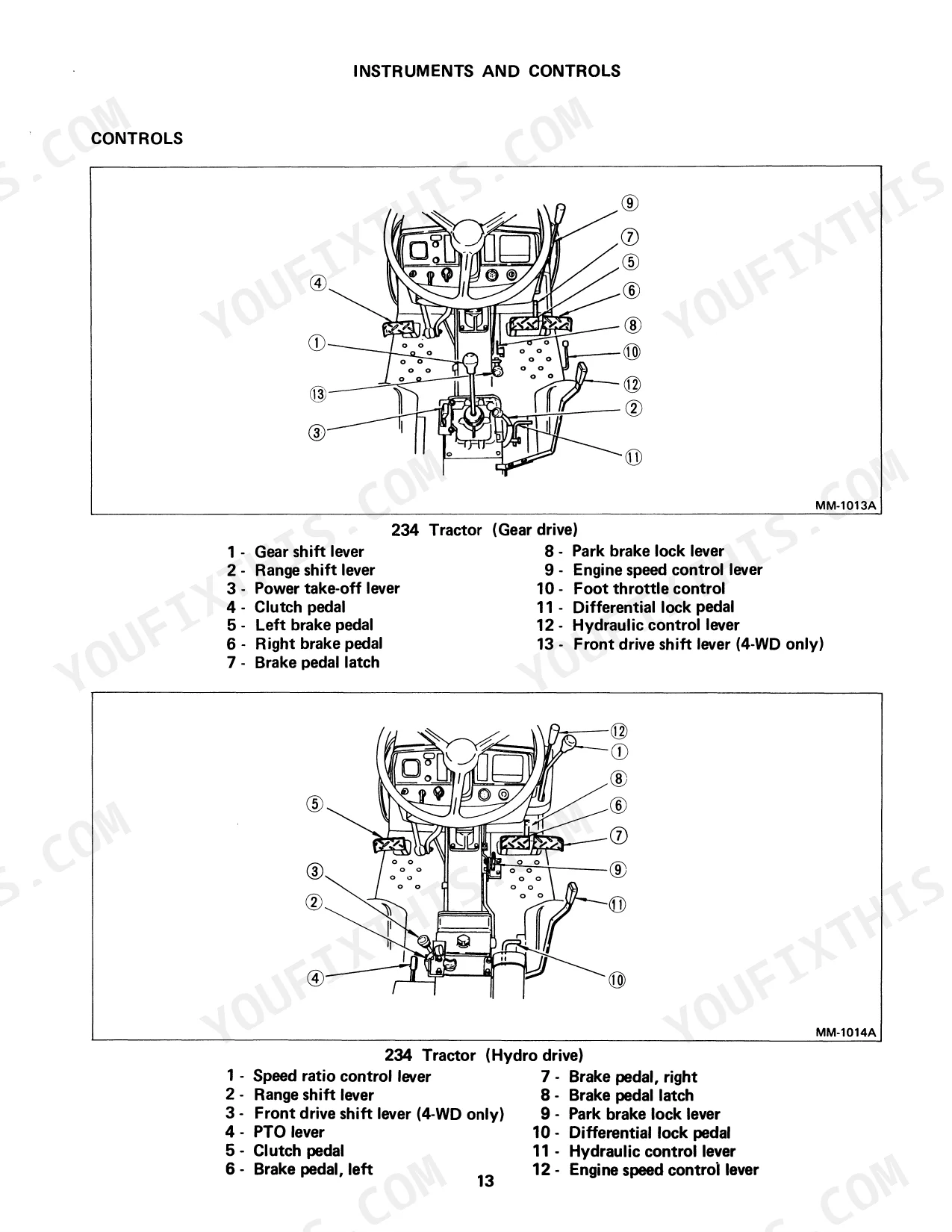

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3-4 | - |
| Serial Numbers | 8 | Engine, Tractor, Gear Drive Tractor, Hydro Tractor |
| Terms of Location | 9 | Front, Right, Rear, Left |
| WOrk Safely - Follow These Rules | 10-13 | Servicing and Before Starting, Starting, During Operation, Transporting, Tractors Without ROPS, Product Graphics |
| Energy Conservation - Follow These Recommendations | 14-15 | - |
| Instruments and Controls | 16-24 | Instrument Panel and Controls, Brake Pedals, Clutch Pedal, Differential Lock Pedal, Engine Speed Control Lever, Tachometer and Hourmeter |
| Optional Instruments and Controls | 25 | Speed Ratio Control, Rear Work Lamp, All-Wheel Drive |

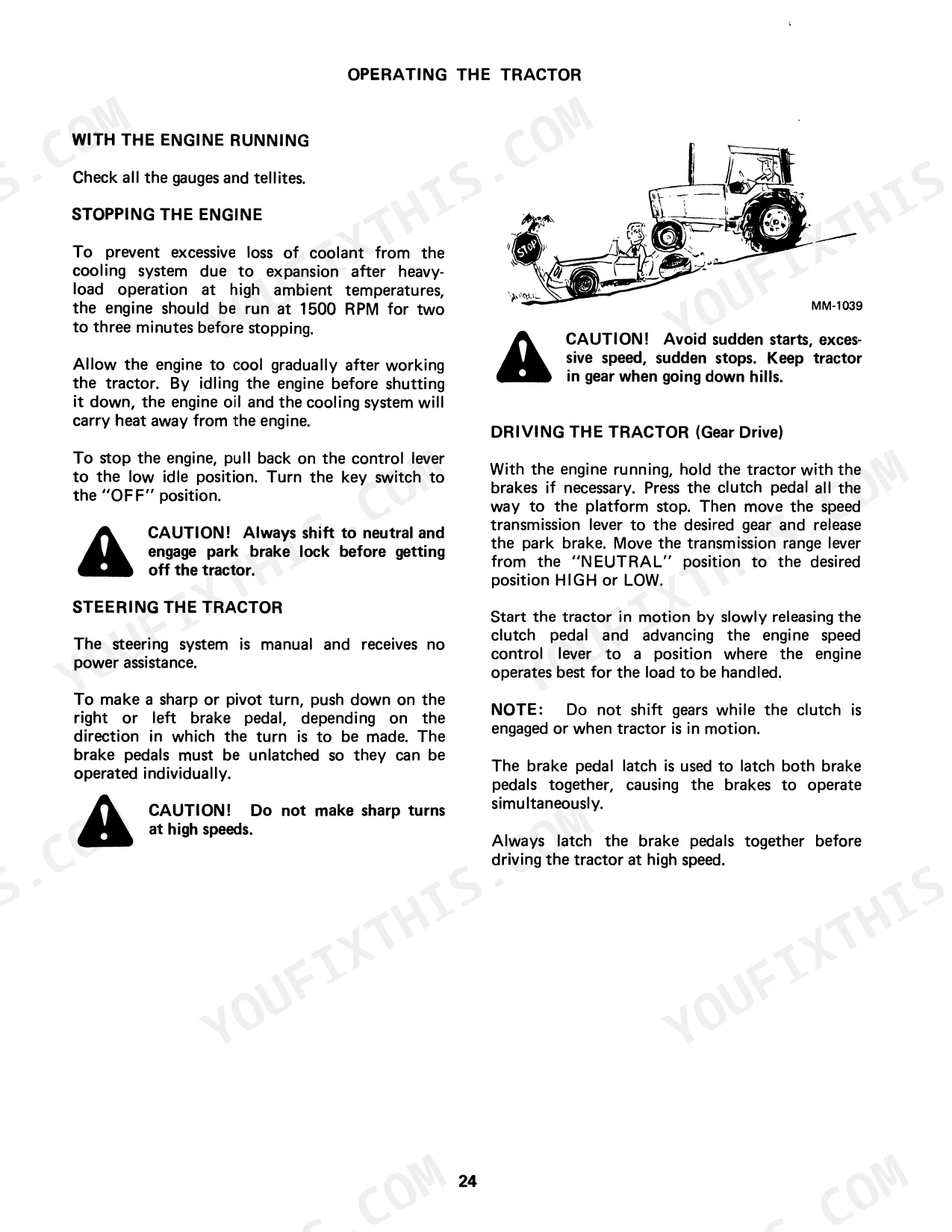

| Before Operating Your Tractor and Operating the Tractor | 26-30 | Neutral Starting Switch, Starting the Engine, Tractor Break-In Procedure, With the Engine Running, Stopping the Engine, Steering the Tractor, Driving the Tractor |

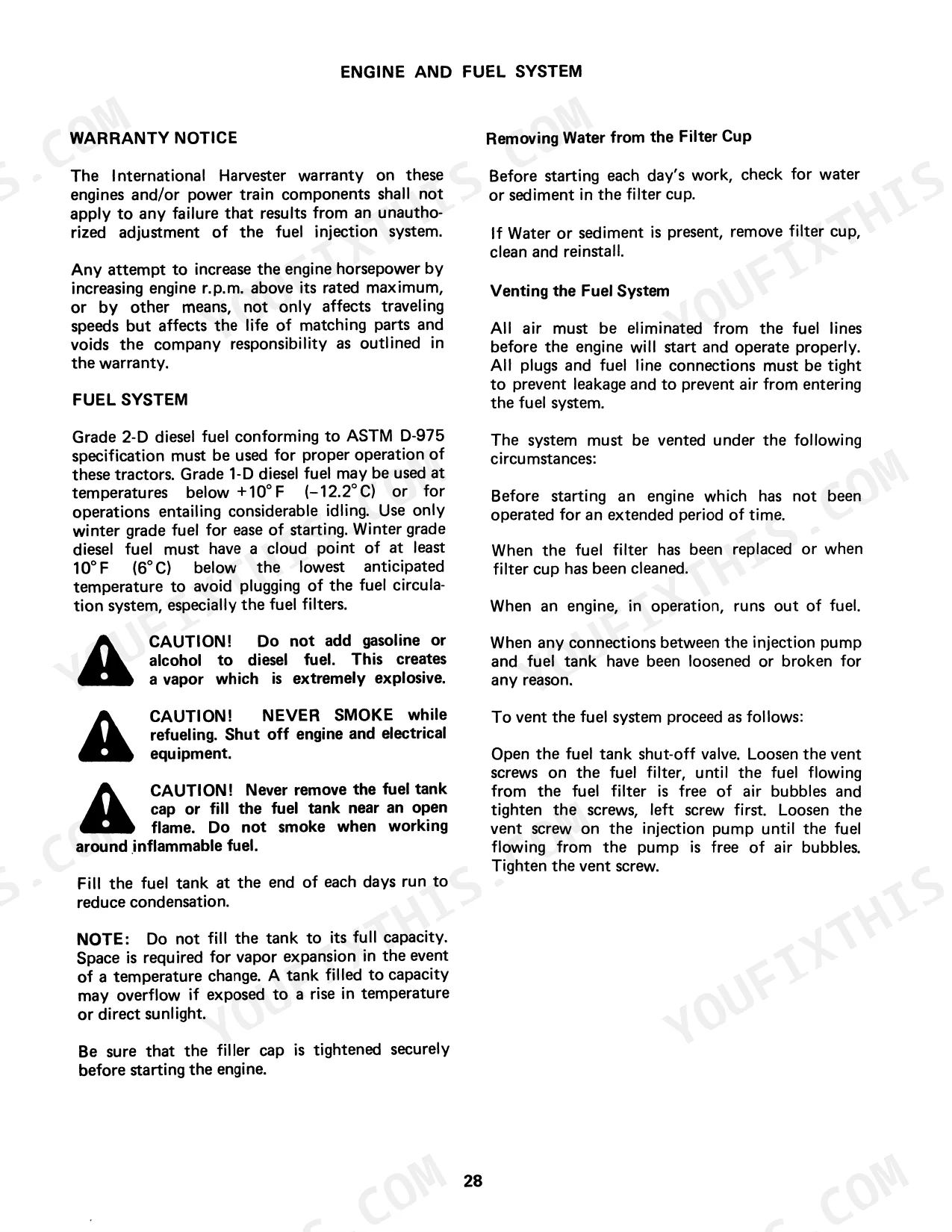

| Engine and Fuel System | 31-33 | Warranty Notice, Fuel System, Fuel Injection Pump and Nozzles |
| Cooling System | 34-35 | Coolants and Cooling System Conditioner, Checking the Coolant Level, Draining the Cooling System, Filling the Cooling System |
| Air Cleaning System | 36 | Removing the Dust Pan and Air Filter Element, Cleaning the Element, Inspection |
| Electrical System | 37-41 | Charging System for Alternator-Generator, Cranking System, Lighting System, Tellites, Fuses, Electrical Connector |
| Hydraulic Controls for Three-Point Hitch | 42 | Hydraulic Control Lever, Hitch Drop Rate Adjustment, Lock Position, Hydraulic Flow Control Knob |
| Three-Point Hitch | 43-45 | Lift Links and Turnbuckles, Hitch Upper Link, Stabilizer Chain, Coupling the Equipment, Uncoupling the Equipment |
| Hitching Trailing Equipment to the Tractor | 46-47 | Safety Chain, Drawbar, Rigid Clevis Hitch Pin, Power Take-Off Shaft |
| Remote Cylinders and Hydraulic Outlets | 48 | Auxiliary Outlet Plug, Cylinders, Hoses, Adding Fluid |
| Power Take-Off | 49 | Rear Power Take-Off, Front Power Take-Off Drive, Power Take-Off Shield |
| All-Wheel Drive and Differential Lock | 50 | All-Wheel Drive Front Axle Assembly, All-Wheel Drive Lever, Differential Lock, Operating Pedal |
| Front Wheels | 51 | Adjusting the Toe-In, Tie Rod Tube, Tie Rod End Lock Nut, Wheel Bolts |
| Rear Wheels | 52 | Reversing the Rear Wheels, Tightening Torque, Wheel Bolts |
| Tires | 53-54 | Inflation, Tire Valve Caps, Front Tires, Rear Tires, Tire Code Marking, Tire Industry Type |
| Weights | 55-57 | Rear Wheel Weights, Front End Weights, All-Wheel Drive Tractors, Weight Table, Liquid Weighting of Rear Tractor Tires, Calcium Chloride |
| Cold Weather Precautions and Storing the Tractor | 58-59 | Fuel System, Electrical, Lubrication, Cooling System, Storage, Clutch Assemblies |
| Lubrication | 60-63 | Engine Oil, Transmission Lubricant, Lubrication Fitting Grease, Engine Oil Filter, Hydraulic Fluid Filter, Front Axle Lubrication |
| Lubrication Table | 64 | Point of Lubrication, Lowest Anticipated Air Temperature for Oil Changes, Capacity, Lubricant, K3B Diesel Engine Crankcase, Ih Hy Tran Fluid |
| Lubrication Guide | 65-69 | Daily or After Every 10 Tachometer Hours of Operation, After First 50 Tachometer Hours of Operation, After Every 100 Tachometer Hours of Operation |

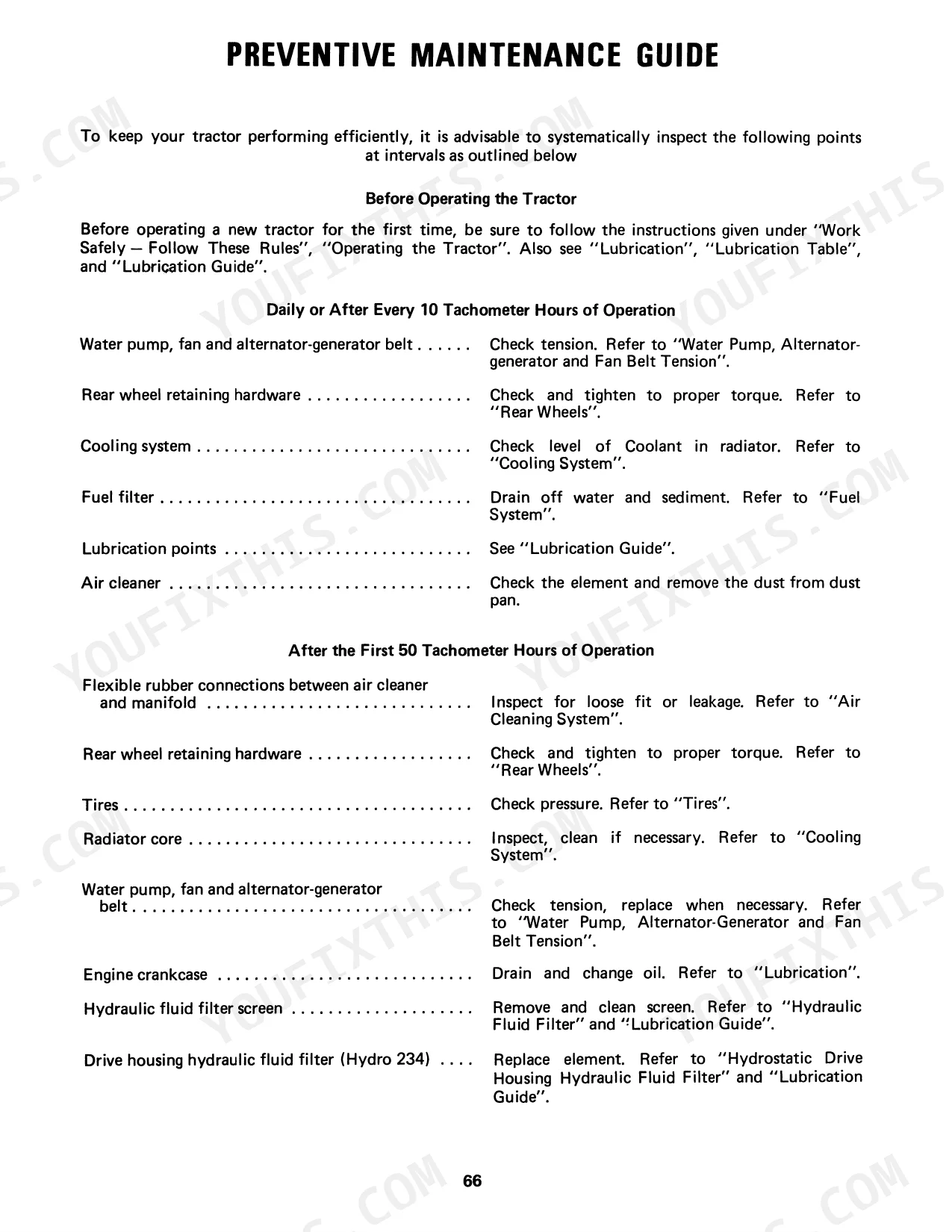

| Preventive Maintenance Guide | 70-71 | Before Operating the Tractor, Daily or After Every 10 Tachometer Hours of Operation, After the First 50 Tachometer Hours of Operation, After Every 100 Tachometer Hours of Operation |

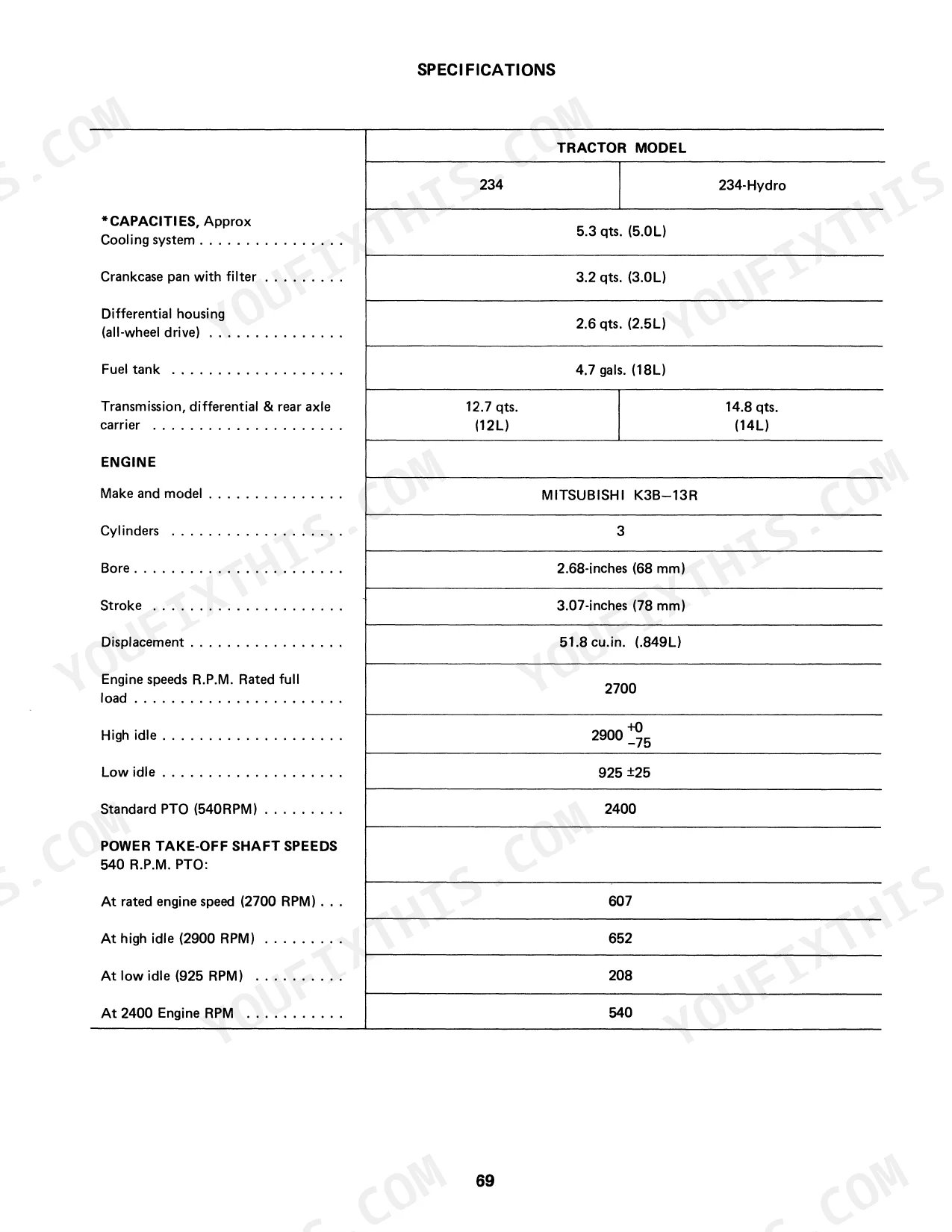

| Specifications | 72-76 | Ground Speeds, Engine Specifications, Clutch, Foot Brakes, Tire Sizes Standard, Electrical System |
| Optional Equipment | 77 | Alternate Tires, Horizontal Exhaust, Smv Emblem, 7-Pin Electrical Connector, Front Bumper Weights, ROPS |
| Metric Measurement Units | 78-84 | Area, Force, Length, Mass, Power, Volume |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch pedal free movement (main clutch) | 1.0 in. (25mm) | p. 74 |
| Front wheels toe-in | 1/4-inch (6.4mm) ±1/16-in. (1.5mm) | p. 51 |
| Wheel bolts (M14) torque | 87 to 97 ft-lbs (118-131 N-m) | p. 51 |
| Fan belt deflection | 1/2-inch (13mm) with 22 pound (98N) load | p. 35 |
| Front wheel tightening torque (M14) | 87 to 97 ft-lbs (118-131 N-m) | p. 51 |
| Front wheel toe-in | 1/4-inch (6.4mm) ±1/16-in. (1.5mm) | p. 51 |
| Maximum tire inflation for bead seating | 35 pounds per square inch (241 kPa) | p. 53 |
| Engine crankcase capacity (With Filter Change) | 3.7 qts (3.5L) | p. 64 |
Case 234, 234-Hydro Common Problems This Manual Covers
Case 234 tractor front wheels wander and steering linkage feels excessively loose during field operation p. 51
Inspect the steering linkage components. Adjust the tie rod tube on page 51 to achieve a front wheel toe-in of 1/4-inch (6.4mm) ±1/16-in. (1.5mm). Tighten the tie rod end lock nuts to 61 to 68 ft-lbs (82-92 N·m). Verify the steering gear case contains approximately 7 ozs. (200 grams) of grease.
Manual Section: Front WheelsEngine coolant temperature tellite stays illuminated on the dashboard and radiator boils over p. 35
Check the coolant level and inspect the radiator core for debris. Measure fan belt deflection as shown on page 35. Adjust the tension until you measure exactly 1/2-inch (13mm) of deflection with a 22 pound (98N) load applied. Replace the fan belt if cracked or glazed.
Manual Section: Cooling SystemRear power take-off shaft rotates but grinds heavily when placed under load p. 74
Verify main clutch pedal free movement matches the specifications on page 74. Adjust the linkage until you measure exactly 1.0 in. (25mm) of free play. If the PTO still grinds after setting the correct pedal clearance, the internal clutch plates are likely worn and require dealer service.
Manual Section: SpecificationsFront or rear tractor tire bead refuses to seat correctly on the rim after flat repair p. 53
Clean the rim flanges and apply a rubber lubricant to the tire beads. Inflate the tire carefully as detailed on page 53. Do not exceed a maximum pressure of 35 pounds per square inch (241 kPa) to seat the beads. Deflate and repeat if the bead remains unseated.
Manual Section: TiresFrequently Asked Questions
How do you fix case 234 tractor front wheels wander and steering linkage feels excessively loose during field operation?
Inspect the steering linkage components. Adjust the tie rod tube on page 51 to achieve a front wheel toe-in of 1/4-inch (6.4mm) ±1/16-in. (1.5mm). Tighten the tie rod end lock nuts to 61 to 68 ft-lbs (82-92 N·m). Verify the steering gear case contains approximately 7 ozs. (200 grams) of grease.
How do you fix engine coolant temperature tellite stays illuminated on the dashboard and radiator boils over?
Check the coolant level and inspect the radiator core for debris. Measure fan belt deflection as shown on page 35. Adjust the tension until you measure exactly 1/2-inch (13mm) of deflection with a 22 pound (98N) load applied. Replace the fan belt if cracked or glazed.
How do you fix rear power take-off shaft rotates but grinds heavily when placed under load?
Verify main clutch pedal free movement matches the specifications on page 74. Adjust the linkage until you measure exactly 1.0 in. (25mm) of free play. If the PTO still grinds after setting the correct pedal clearance, the internal clutch plates are likely worn and require dealer service.
How do you fix front or rear tractor tire bead refuses to seat correctly on the rim after flat repair?
Clean the rim flanges and apply a rubber lubricant to the tire beads. Inflate the tire carefully as detailed on page 53. Do not exceed a maximum pressure of 35 pounds per square inch (241 kPa) to seat the beads. Deflate and repeat if the bead remains unseated.
What do I get after purchasing this Case 234, 234-Hydro manual?
This is a 84-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Case 234, 234-Hydro Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
