Part of the Case Operator Manuals.
Whether your Case 1394 runs a mechanical shift or power shift transmission, 2WD or MFD front axle, cab or open station, this 215 page Case 1394 operator manual PDF covers your configuration. Maintenance runs deep in this book: lubrication charts, grease fitting locations, and full service schedules at 50, 100, 200, 400, and 800 hours, starting with the first oil change at 20 hours. Hitch work gets equal attention, from draft sensing and position control through remote hydraulic couplers, drawbar setup, and PTO engagement, plus ballast tables for front weights and tire liquid fill. Fill the crankcase with 7.4 litres of oil, the cooling system with 14, and check wheel slip against the printed method before heavy tillage. Every hour this tractor sits, the weather window shrinks. Buy it once, and the bookmarked, text searchable file stays yours for as long as you own the 1394.
What's Inside This Case 1394 Operator Manual

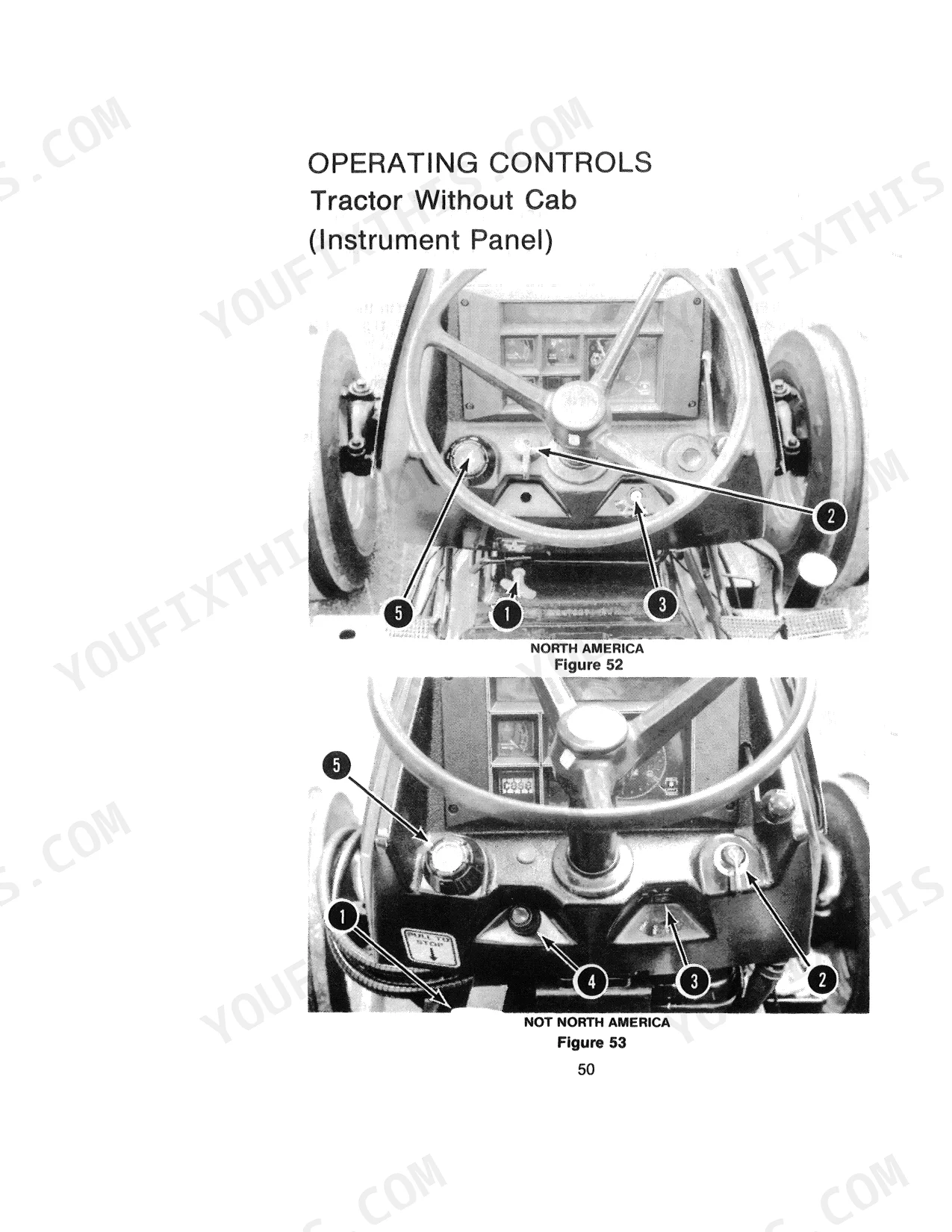

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3-4 | Case Company Parts, Repair Methods, Maintenance |
| Safety | 5-26 | Safety Rules, Before Starting, Operation, Service, Start the Engine, Stop the Engine, Move Toward Me, This Far to Go, Move Out, Raise Equipment, Lower Equipment, Decrease Speed, PTO Entanglement Warning, Rotating Machine Parts Warning, Battery Explosion Warning, ROPS Warning, Implement Clearance Warning |
| Serial Numbers | 27 | Model and Product Identification Number, Engine Serial Number, MFD Axle Serial Number |
| Diesel Engine Specifications | 28-29 | Firing Order, Bore, Stroke, Piston Displacement, Compression Ratio, Maximum Torque, Rocker Arm Valve Clearance |
| General Specifications | 30-34 | Electrical System, Battery, Alternator, Starter Motor, Brakes, Brake Fluid |
| Approximate Tractor Speeds | 35-38 | Synchromesh Transmission, Power Shift Transmission, Rolling Radius, Tire Size, Final Drive Ratio |
| Fuel Specifications | 39 | Kinematic Viscosity |
| Approximate Measurements | 40-43 | 2WD Tractor Without Cab, MFD Tractor Without Cab, 2WD Tractor with Cab, MFD Tractor with Cab |
| Tire and Wheel Equipment | 44-52 | Tire Arrangements - MFD, Front Wheel Tread Positions - 2WD, Front Wheel Tread Positions - MFD, Rear Wheel Tread Positions, Power Adjust Rear Wheel Tread Positions |
| Lubrication | 53-66 | Engine Hourmeter, Diesel Engine Oil, Lubrication Chart, Lubrication MFD Axle, Grease Fittings, Engine Oil Change, Engine Oil Filter Change, Transmission Oil Level Check & Change |
| Operating Instructions | 67-141 | Run-In Procedure, Operating Controls, Stopping Procedure |
| Hitch Operation | 142-154 | Telescoping Stabilizer Bars, Sensing Units, Selector Dial, Draft Control, Remote Hydraulic Control, Three-Way Valve, Float Position, Single Acting Equipment, Hydraulic Motors, Hoses and Couplings, Implement in Ground, Implement Out of Ground, Outer Weight, Inner Weight Fastening Bolt, Engine Cover Frame |
| Front Axle Adjustment | 155-164 | Tread Width Adjustment, Toe-In Adjustment, Steering Lock Adjustment, Rear Tread Adjustment, Power Adjusted Rear Wheels, Fan Belts |
| Tractor Ballast | 165-169 | Front Frame Weights, Rear Wheel Weights, Tire Liquid Weight, Measuring Wheel Slip, Frame, Locking Bar, Weights, Fastening Bolt, Inner Weight, Water, Calcium Chloride, Solution, Reference Mark, Wheel Revolutions |
| Rollover Protective Structure (ROPS) | 170-173 | Seat Belts, Foldable ROPS Frame, ROPS Bolt Torques, Safety Rules |
| Preventive Maintenance | 174-209 | First Oil Change at 20 Hours, Raising Engine Cover, Removing Front Panel, Removing Side Panels, Regular Maintenance Chart, Daily Inspection/10 Hour, 50 Hour Service, Engine Oil, Transmission Oils, Transmission Filter, Disc Nuts, Studs, Washers, Setscrews, Engine Cover Guide, Clips, Socket Screws, Lubrication, Injectors, Valve Clearances, Air Cleaner, Fuel Filters, Wheel Nuts, Transmission Clutch |
| Optional Equipment | 210-212 | Trailer Brakes Kit, Hitch Assist Cylinder |
| Case Technical Manuals | 213-215 | Operators Manual, Parts Catalog, Service Manual |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clutch Type | Double Dry Plate, 305 mm (12 inch) Diameter | p. 33 |
| Engine Oil Capacity | 7.4 litres | p. 29 |
| Cooling System Capacity | 14 litre | p. 29 |
| Fuel Tank Capacity (Without Cab) | 72 litre | p. 29 |
| Fuel Tank Capacity (With Cab) | 100 litre | p. 29 |
| Transmission Oil Capacity (Synchromesh) | 27 Litre | p. 33 |
| Transmission Oil Capacity (Power-Shift) | 32 Litre | p. 33 |
| Front Wheel Bolt Torque (2WD) | 102 to 122 Nm | p. 67 |
| Rear Wheel Nut Torque | 270 to 325 Nm | p. 67 |
| Rim to Center Nut Torque (Rear) | 175 to 215 Nm | p. 67 |
Case 1394 Common Problems This Manual Covers
Case 1394 diesel starts and runs, then stalls when warm and refuses to restart
Drain the fuel water trap and replace both fuel filters before blaming the lift pump. Verify your fuel meets the specifications on page 39; stale farm-tank diesel plugs filters fast. Bleed all air from the system, fill the 72 litre tank above half to rule out pickup problems, then retest once the engine is fully warm.
Manual Section: Fuel Specifications p. 39Three-point hitch will not raise even though the arms move freely by hand
Check transmission oil level first; the hitch shares the 27 litre synchromesh reservoir listed on page 33, and a low sump starves the pump. Clean the suction filter at the interval shown on the regular maintenance chart on page 155. Lower the arms fully, let the oil warm, and cycle the control lever slowly before condemning the valve.
Manual Section: Lubrication p. 53Hydraulic power fades and drive feels weak once the tractor warms up
Check transmission oil level hot, on level ground; low oil aerates as it thins and hydraulic pressure falls off. Drain and refill if it looks milky: 32 litres for power shift models per page 33. Change the transmission filter at the interval in the regular maintenance chart on page 155, then recheck after a full warmup.
Manual Section: Regular Maintenance Chart p. 155Clutch pedal feels hard, gears grind, and the PTO lever binds when shifting
Check clutch pedal free play during the daily 10 hour inspection covered on page 156. The 305 mm double dry plate clutch loses free travel as the discs wear; that grinds gears and binds the PTO lever. Adjust the linkage to restore free play and keep your foot off the pedal between shifts.
Manual Section: Daily Inspection/10 Hour p. 156Engine oil pressure light flickers at idle after long hours in the field
Shut down and check the oil level on level ground before restarting. The sump holds 7.4 litres per the specifications on page 29; top up with the diesel engine oil grade from the lubrication chart on page 53. On a fresh or rebuilt engine, do the first oil change at 20 hours as shown on page 151.
Manual Section: Diesel Engine Specifications p. 29Frequently Asked Questions
What are the torque specifications for the front wheel bolts on a 2WD Case 1394 tractor?
When the tractor is new or the front wheels have been removed and replaced, the front wheel bolts must be tightened every day for the first 50 hours of operation to a torque of 102 to 122 Nm (75 to 90 lb ft). p. 67
What are the replacement specifications for the engine oil filter on a Case 1394 tractor?
The engine oil filter should be changed after the first 20 hours of operation and then every 200 hours thereafter. When installing, turn the filter clockwise until the gasket contacts the base, then tighten by hand an additional 1/2 to 3/4 of a turn. p. 59
What is the correct valve clearance for the Case 1394 engine?
The rocker arm to valve clearance for the engine is 0.25 mm (0.010 inch). It is important that these adjustments are made only when the engine is cold. p. 28
What is the engine oil capacity of the Case 1394 tractor's lubrication system?
The engine lubrication system has an oil capacity of 7.4 litres (13 U.K. pints) or 7.8 U.S. quarts. p. 29
What is the correct torque for the ROPS pivot bolt and locking bolt on a Case 1394 tractor?
The torque specification for the foldable ROPS pivot bolt and locking bolt is 271 Nm (27.1 kgm) or 200 lb ft. p. 85
What do I get after purchasing this Case 1394 manual?
This is a 215-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Does this Case 1394 manual allow printing?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
