A 2555 that drops a drum drive in the middle of picking season does not care what the dealer's schedule looks like. The Case 2555 service manual PDF, factory publication 7-88071, answers with 716 pages of shop procedure written for the Cotton Picker by the people who built it. Separate wiring schematics cover machines before and after P.I.N. JJC0157150, so the harness you trace matches your serial number. Hydrostatic drive pump and motor service, transmission work, picker drum removal, and a full hydraulic troubleshooting section with its schematic share the book with air conditioning gauge testing. Torque the wheel mounting bolts to 140 to 160 pound feet and set the idler spring gauge clearance at 0.060 to 0.100 inch, straight from the tables. Harvest windows close whether the picker runs or not. Bookmarked and text searchable, this download puts the right spec in front of you the first time.
What's Inside This Case 2555 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-12 | Standard Torque Specifications, Fluid and Lubricants (Loctite Product Chart) |

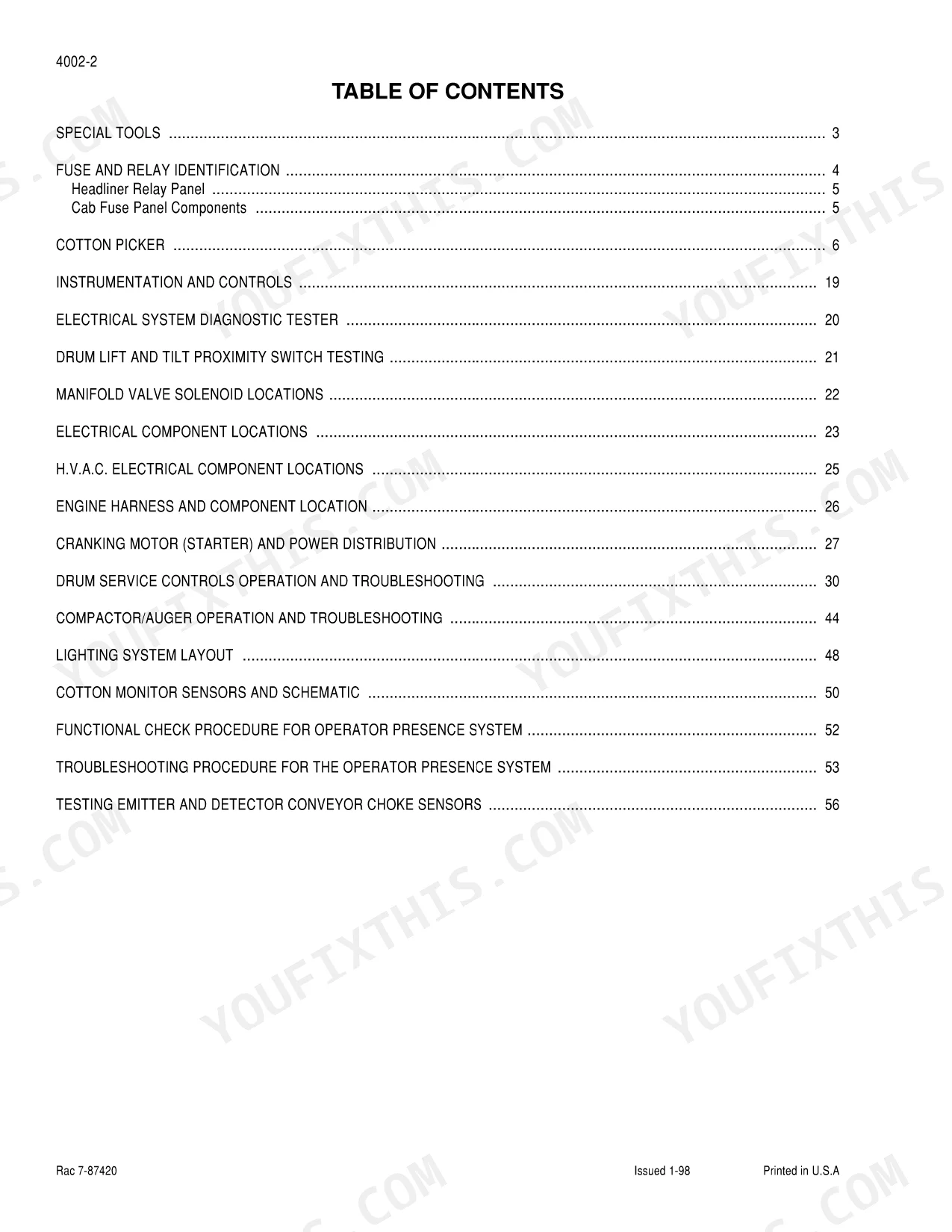

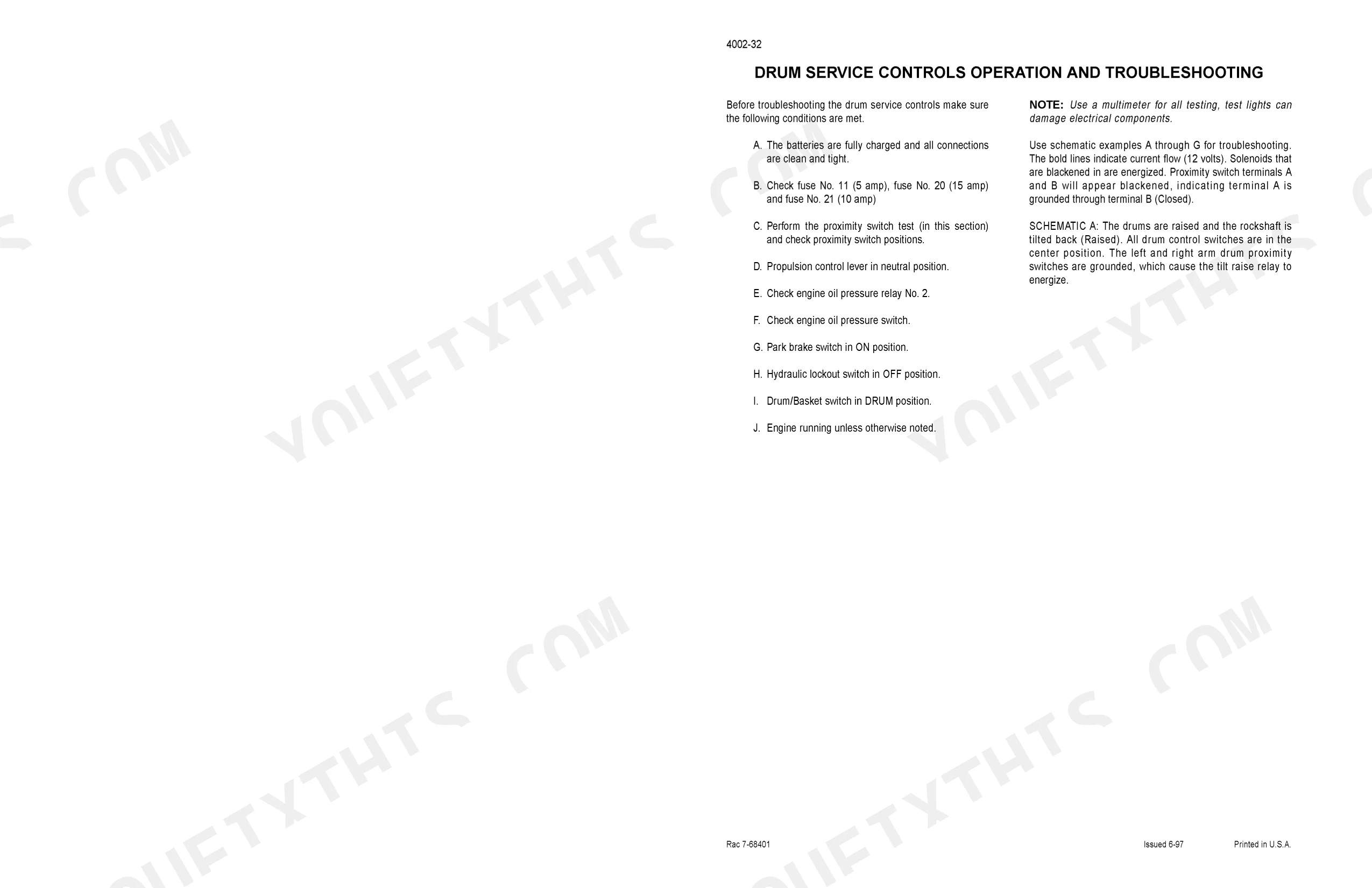

| Electrical | 13-128 | How It Works, Wiring Schematics and Troubleshooting 2555 Cotton Picker Prior to JJC0157150, Wiring Schematics and Troubleshooting 2555 Cotton Picker P.I.N. JJC0157150 and After |
| Steering | 129-198 | Steering Axle and Line, Steering Hand Pump, Steering Cylinder, Rear Drive Axle Service |

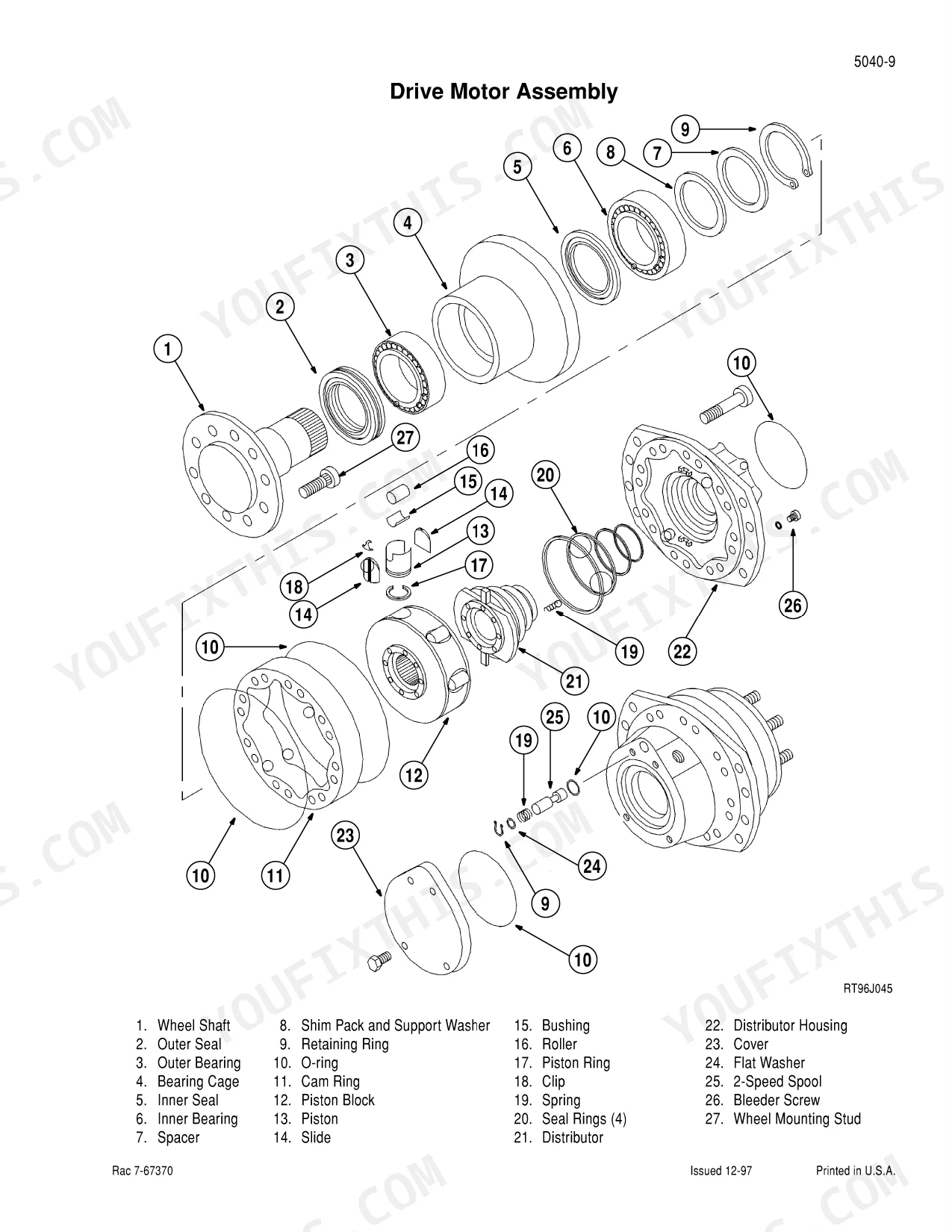

| Power Train | 199-310 | Foot-N-Inch Valve, Hydrostatic Drive Pump Service, Hydrostatic Drive Motor Service, Transmission Service, Drum Drive, Final Drives, Cable Adjustment |

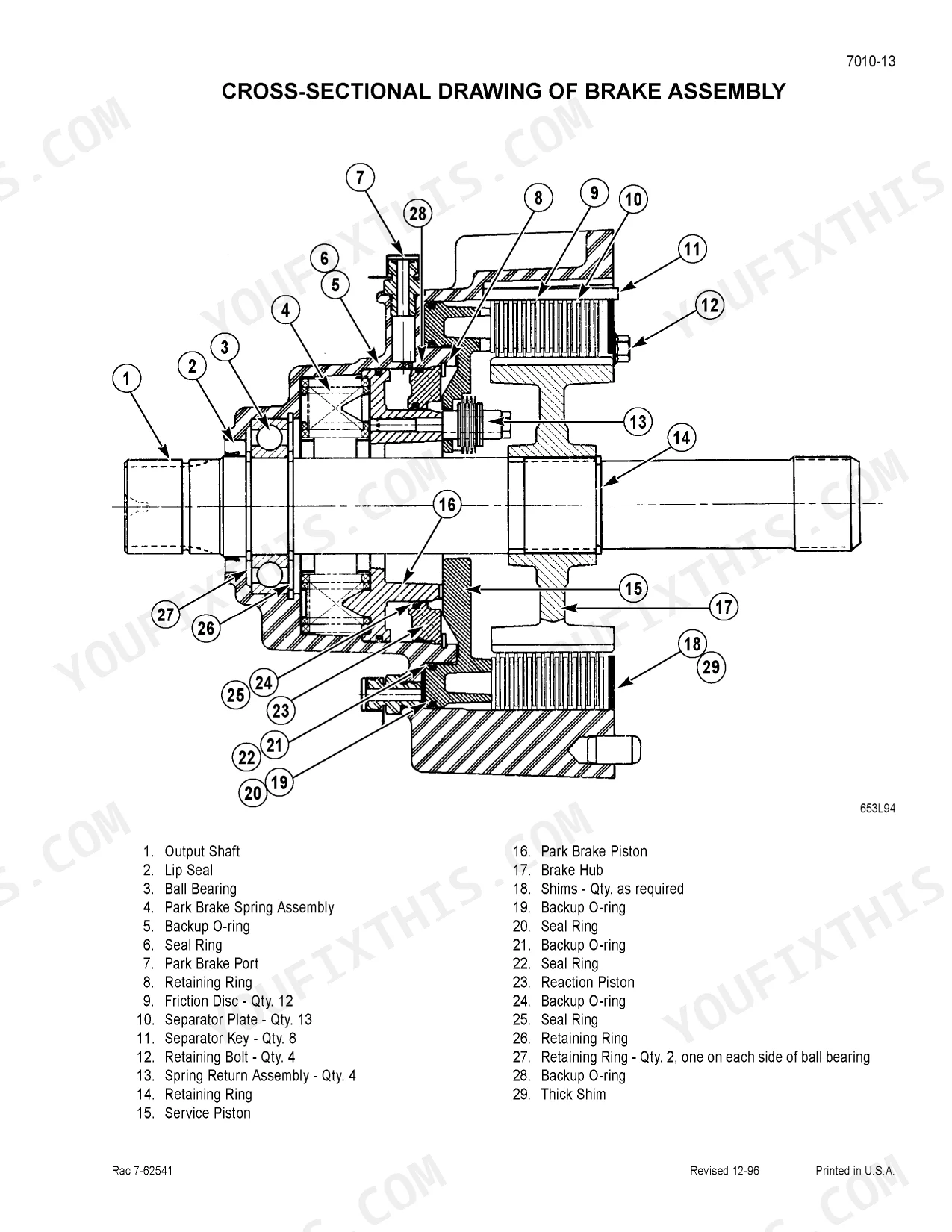

| Brakes | 311-338 | Brake Assemblies, Master Brake Valve |

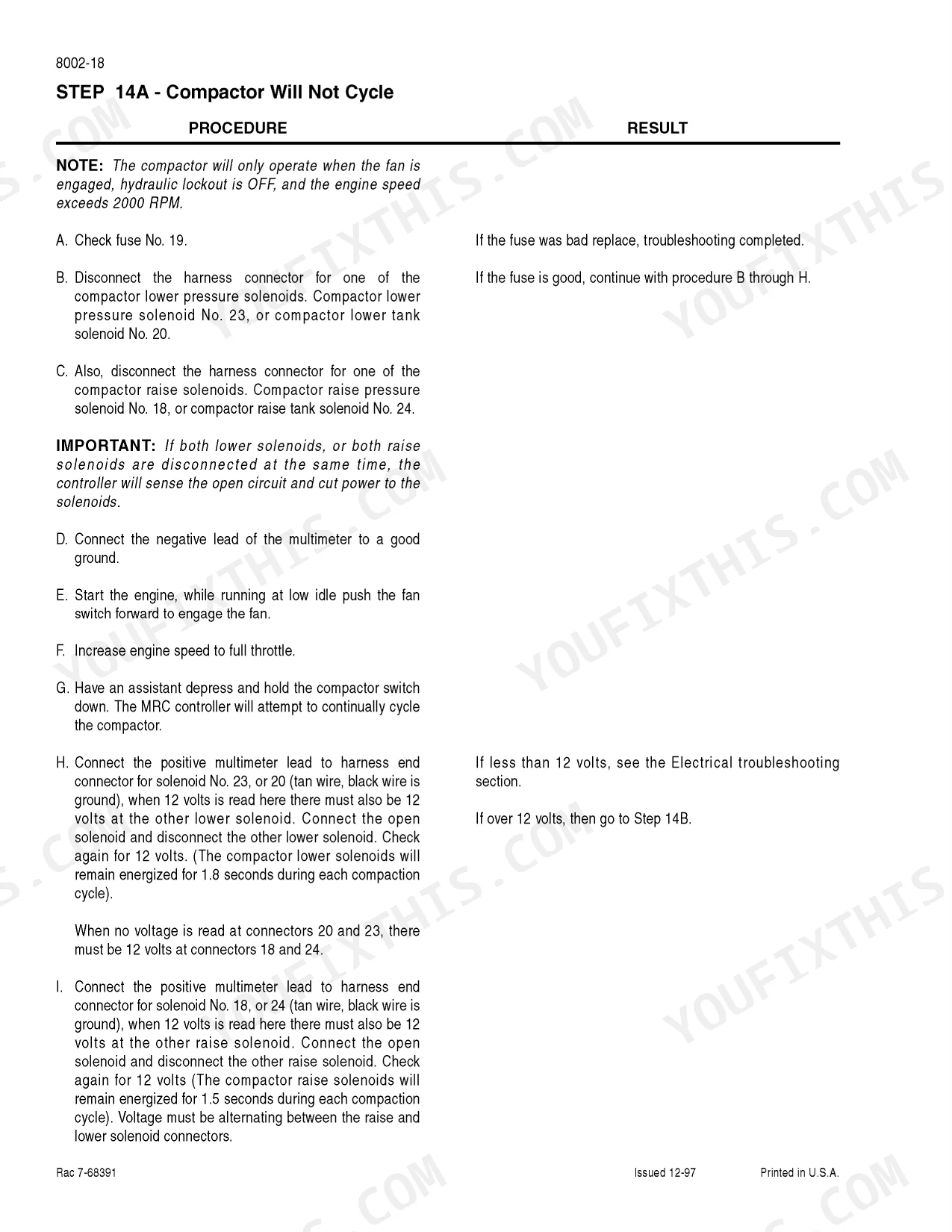

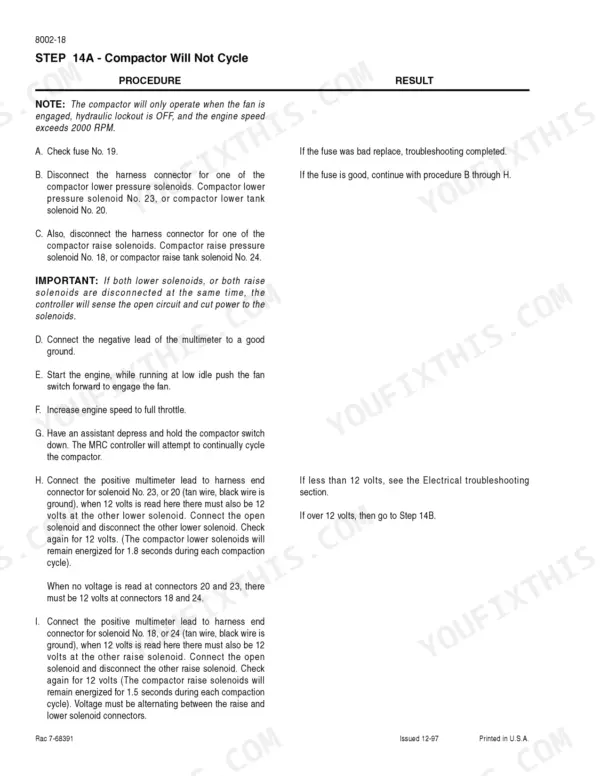

| Hydraulic | 339-480 | How It Works, Hydraulic Schematic and Troubleshooting, Hydraulic Oil Filter, Hydraulic Pump and Compensator, Hydraulic Gear Pump, Hydraulic Valves, Cylinders and Motor |
| Chassis | 481-716 | Air Conditioning Troubleshooting - Visual and Operating, Air Conditioning System - Gauges and Testing, Air Conditioner System Service, Air Conditioning Components Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Grade 5 Bolts, Nuts, and Studs (1/4 inch) | 108 to 132 Pound-Inches | p. 5 |
| Grade 5 Bolts, Nuts, and Studs (5/16 inch) | 204 to 252 Pound-Inches | p. 5 |
| Spring Guage to Idler Spring Support | 0.060 to 0.100 inch (1.5 to 2.5 mm) | p. 578 |
| Spring Tension Nut Dimension | 2-1/16 inch (53 mm) | p. 578 |
| Wheel Mounting Bolt Torque | 140 to 160 lb ft | p. 131 |
| Air Conditioning Refrigerant Capacity | 4.41 lbs | p. 12 |
| Final Drive Cover Bolt Torque | 164 to 185 lb ft | p. 292 |
Case 2555 Common Problems This Manual Covers
Gear oil leaking from the final drive cover, drips down the inside of the tire
Clean the housing so you can trace the leak path; a crushed gasket or warped cover is the usual suspect after axle work. Drain the final drive, replace the gasket, and torque the cover bolts evenly in a cross pattern to 164 to 185 lb ft per page 292. Refill, run it briefly, and recheck for seepage.
Manual Section: Power Train p. 292Front wheel feels loose after transport, lug bolts backing off and rim holes wallowing out
Check every wheel mounting bolt and retorque to 140 to 160 lb ft per page 131. Inspect the bolt holes in the rim; if they are wallowed out egg shaped, replace the rim because torque alone will not hold it. Recheck torque after the first hour of operation and again after a full day.
Manual Section: Steering p. 131Frequently Asked Questions
What is the torque spec for 1/2 inch Grade 5 bolts, nuts, and studs on the Case 2555 Cotton Picker?
For Grade 5 bolts, nuts, and studs with a 1/2 inch size, the torque specification is 80 to 96 pound-feet (109 to 130 Newton-metres). p. 5
How do you fix case 2555 front fan chokes and loses suction, cotton stalls in the air ducts before the basket?
Open the front and rear service doors and clean packed lint out of the fan housing and lower outer duct. Spin the fan by hand and measure blade to side sheet baffle clearance against the 0.020 inch (0.5 mm) minimum on page 592. Replace bent blades or a worn front fan shaft before the fan seizes. p. 592
How do you fix front fan vibrates hard at operating speed, shaking felt through the whole frame?
Remove the fan access covers and scrape all lint off the blades; buildup throws the balance off fast. Torque the pulley retaining nut to 167 to 187 lb ft (226 to 253 Nm) as specified on page 592. Inspect the front fan shaft, shaft spacer, and bearings for play and replace worn parts as a set. p. 592
How do you fix cab air conditioner blows warm air in the field, compressor clutch cycles on and off rapidly?
Check the compressor clutch for engagement and blow lint out of the condenser coil from the inside out. Hook up a gauge set and run the visual and operating checks that start on page 481. If the charge is low, recover it, repair the leak, evacuate, and recharge with 4.41 lbs of refrigerant listed on page 12. p. 481
Will this Case 2555 Service Manual download right away?
You get a 716-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is printing allowed for this Case 2555 Service Manual?
Yes. Printing works from any reader and any printer, for your own shop use.
Does this Case 2555 manual show the hydraulic circuits?
The Case 2555, 2555 Cotton Picker Service Manual includes full hydraulic circuit diagrams, valve body layouts, and component specs. Page 47 carries one of them.
