Part of the Case Repair Manuals.

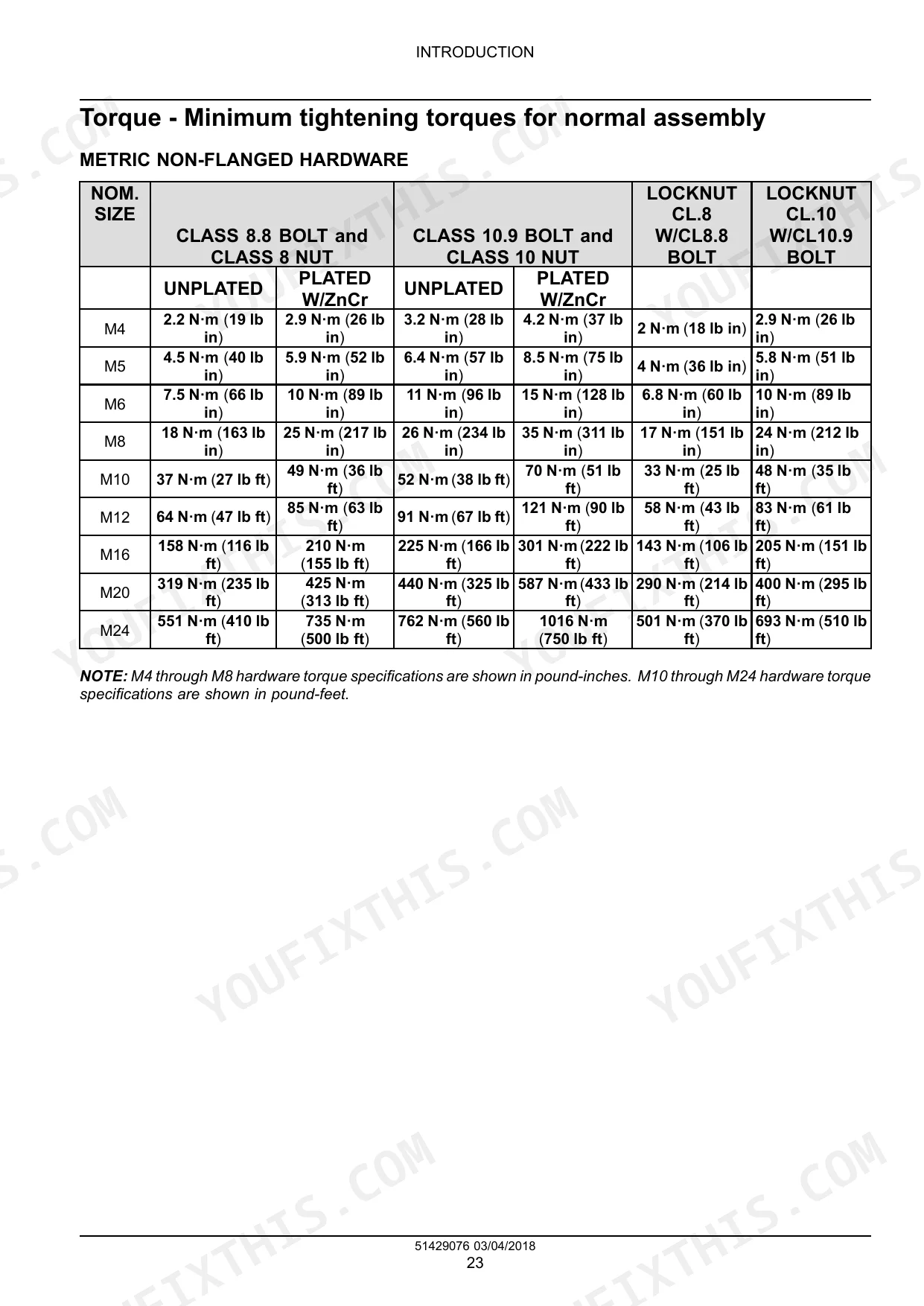

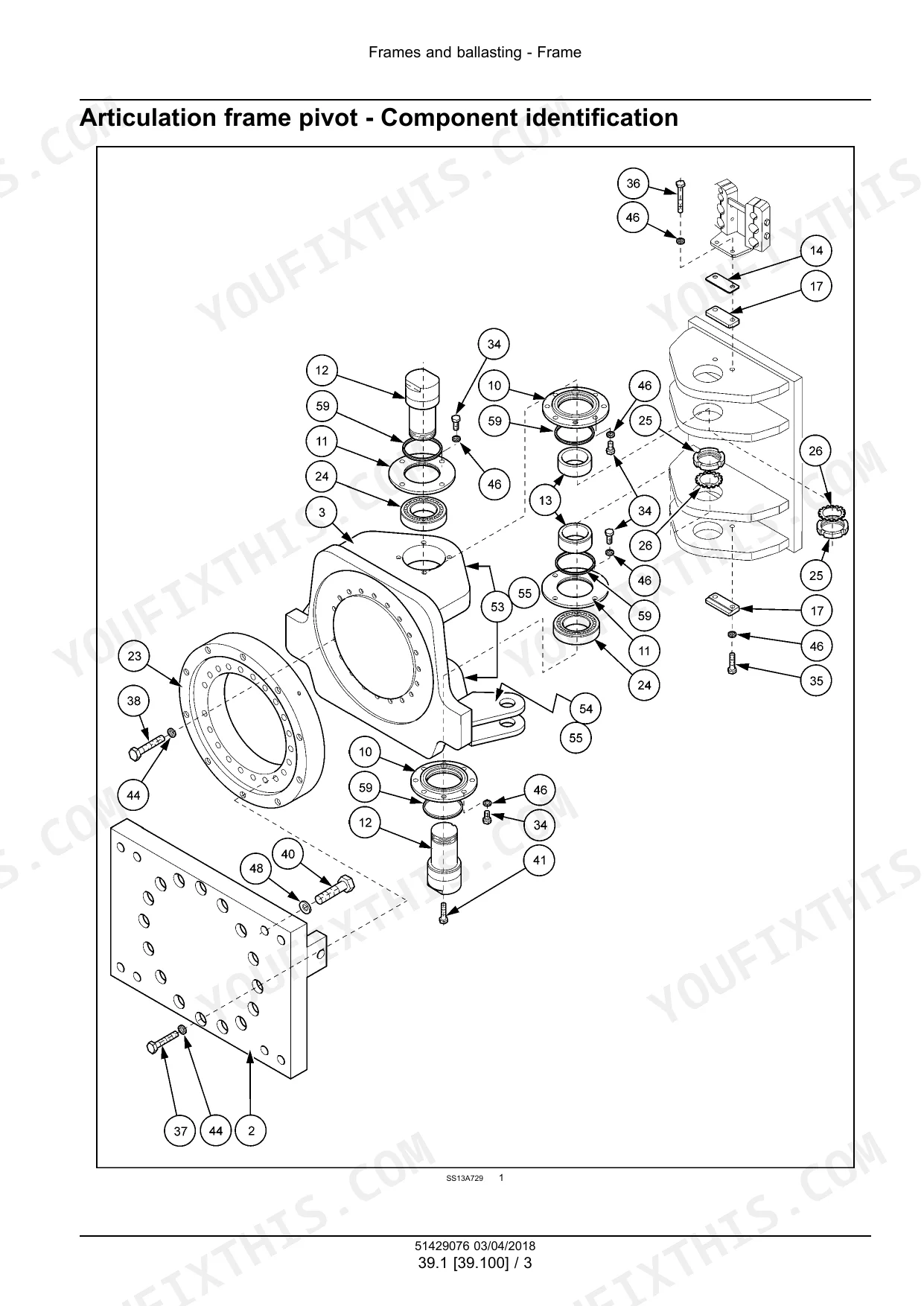

Need the factory reference for your Case SV212D or SV216D? This 573-page Vibratory Roller Service Manual PDF (OEM #51429076) covers the complete machine: hydrostatic transmission teardown, compaction drum rebuild, parking brake, steering circuits, and cab climate control. Inside: electrical schematics tracing every harness, connector, and fuse, hydraulic schematics for the travel pump, vibration pump, and steering circuit, a full troubleshooting section, and error code tables. You also get exploded views across drum and frame assemblies, fluid capacity charts for every service fill point, and factory torque data in two dedicated tables covering standard assembly and hydraulic connections separately. Every hour that roller sits idle costs money. Get the factory answer on the first try. Bookmarked and searchable; open on any device, walk to the machine, and start wrenching.
What's Inside This Case SV212D, SV216D Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-82 | Foreword - Important Notice Regarding Equipment Servicing, Safety Rules, Personal Safety, Safety Rules - Ecology and the Environment, Safety Rules - Recovery and Towing |
| Engine - 10 | 83-124 | Engine and Crankcase, Engine Cooling System |
| Hydrostatic Drive - 29 | 125-162 | Pump and Motor Components, Hydrostatic Transmission |
| Brakes and Controls - 33 | 163-170 | Parking Brake or Parking Lock |
| Hydraulic Systems - 35 | 171-218 | Hydraulic Systems, Reservoir, Cooler, And Filters, Main Lift System, Dozer Blade Cylinders, Compaction/vibration Hydraulic System |
| Frames and Ballasting - 39 | 219-250 | Frame, Vibratory Roller, Basic Instructions - Towing a Disabled Machine |
| Steering - 41 | 251-282 | Steering Control, Hydraulic Control Components, Pump, Cylinders |
| Wheels - 44 | 283-322 | Rear Wheels, Compaction Drums, Basic Instructions - Starting with Cables From an External Power Source, Hydraulic Contamination |
| Cab Climate Control - 50 | 323-340 | Heating, Air Conditioning |
| Electrical Systems - 55 | 341-526 | Electrical System, Harnesses and Connectors, Engine Starting System, Alternator, Battery, Fuel Tank System, Cab Controls, Hydraulic System Control |
| Platform, Cab, Bodywork, and Decals - 90 | 527-567 | Cab, Operator Protections, Engine Hood and Panels, Machine Shields and Guards |

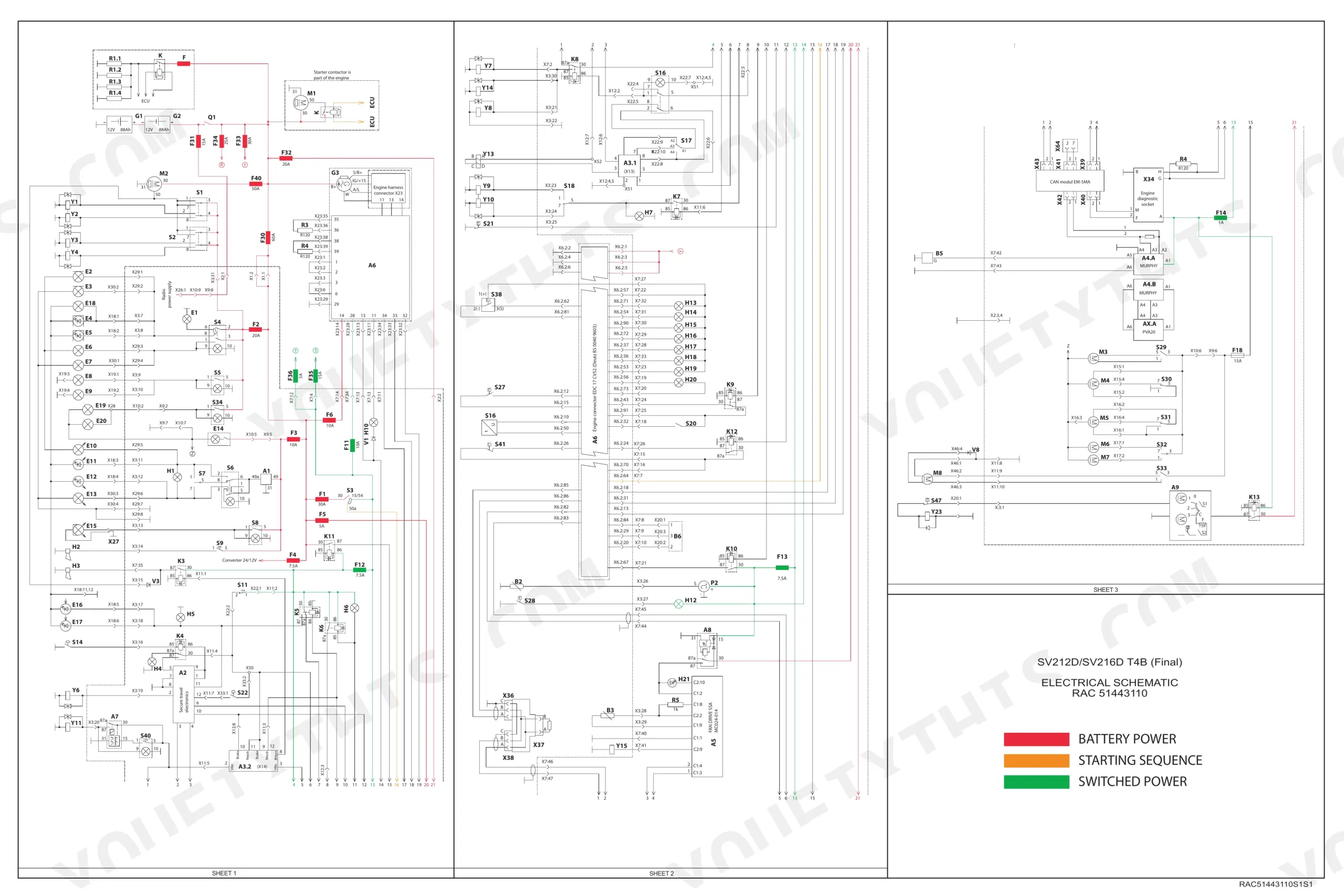

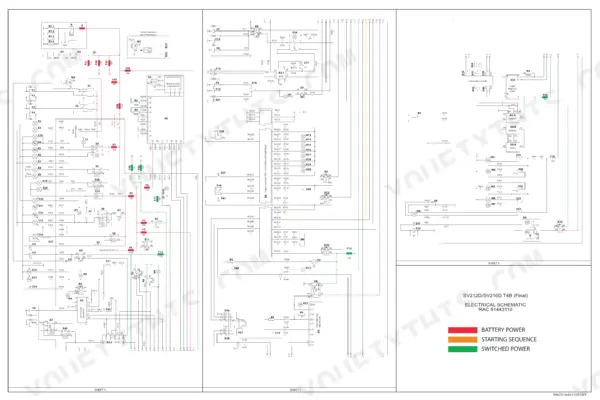

| Electrical Schematic - 51443110 | 570-571 | Fuse, Terminal, Connector, Wire, Cable, Clamp |

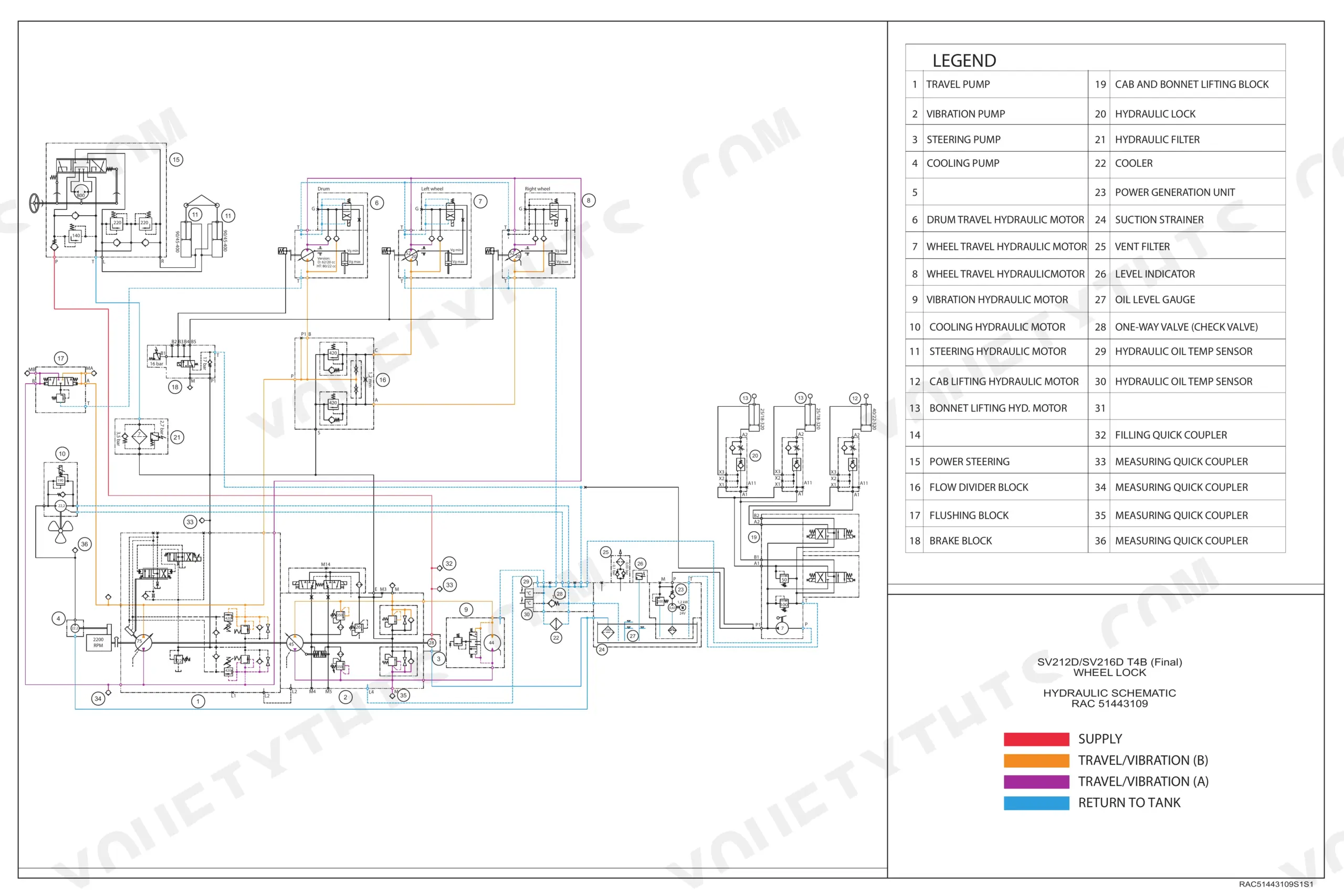

| Hydraulic Schematic - 51443109 | 572-573 | Travel Pump, Vibration Pump, Steering Pump, Hydraulic Motor, Hydraulic Filter, Cooler |
Case SV212D, SV216D Common Problems This Manual Covers
Case SV212D engine shuts down unexpectedly during operation with electrovalve activation and fuse F3 fault codes
Inspect the electrical circuit between fuse F3, relay K3, and electrovalve Y5 using the troubleshooting procedures. Test the switch continuity and verify the circuit maintains a steady 12V DC. Replace relays K3 or K4 if voltage drops or continuity fails during operation.
Manual Section: Electrical Systems - 55Starter motor turns over normally but the engine fails to fire due to suspected air in the fuel lines p. 89
Inspect the fuel liner and connections for leaks that introduce air into the circuit. Review the engine service procedures on page 89 to verify correct injection pump timing. Verify the starter motor receives a full 12 Volts DC during cranking to maintain sufficient fuel lift pressure.
Manual Section: Engine - 10Hydraulic reservoir level drops critically low with visible fluid leaks around the steering cylinder and control pump p. 171
Drain the reservoir and verify the hydraulic circuit reads 0 PSI (0 kPa) before opening any lines. Refer to the hydraulic systems section on page 171 to locate defective gauges. Measure the fluid volume and refill to the exact specification listed to prevent pump cavitation.
Manual Section: Hydraulic Systems - 35Starter motor completely fails to engage and the instrument cluster displays electrical system fault codes
Test the batteries and clean all terminal connections to remove corrosion. Check the error code reference to diagnose specific starter control relay faults. Measure the battery output to confirm it holds a steady 12 Volts DC before attempting to start the machine again.
Manual Section: Electrical Systems - 55Frequently Asked Questions
How to reset error codes on vibratory rollers?
The manual states that all fault codes should be diagnosed by an authorized engine dealer. It advises against attempting to diagnose these codes without proper training and tools, and does not provide step-by-step user-reset procedures for engine fault codes on the SV212D/SV216D.
What fault codes are listed in the Case SV212D/SV216D service manual?
The manual provides a list of common fault codes for the Tier 4 Final engine, grouped by severity (Red/Yellow alert levels), including diagnostic codes with descriptions and recommended service actions for each code.
What are the battery replacement specifications in the SV212D/SV216D service manual?
The manual provides battery replacement specifications including terminal connections, capacity ratings, and flat/dead battery procedures for the Case SV212D and SV216D vibratory rollers.
What hydraulic system service procedures are covered in the Case SV212D/SV216D manual?
The service manual covers hydraulic system maintenance for the SV212D and SV216D vibratory rollers, including drum vibration circuit, travel system hydraulics, pressure specifications, filter replacement intervals, and troubleshooting hydraulic faults.
