Get your EU-spec compact tractor back to factory condition with this 289-page Kioti DK35-EU, DK40-EU, and DK450L-EU Service Manual PDF. The document provides hydraulic circuit diagrams for the main system and 3-point hitch layout, alongside full wiring diagrams tracing every relay and sensor from the alternator to the combination switches. You will find step-by-step service procedures covering the engine, transmission, axles, brakes, and steering. Troubleshooting grids walk you through probable causes on every major system, backed by torque tables and exploded assembly views. Torque the cylinder head screws to 103.0~107.9 N·m, and run rear wheel bolts to 260.8~303.8 N·m. Stop waiting on the dealer. Pull up the factory answer yourself. The file is bookmarked by chapter, searchable by keyword, and opens on any device in your shop.

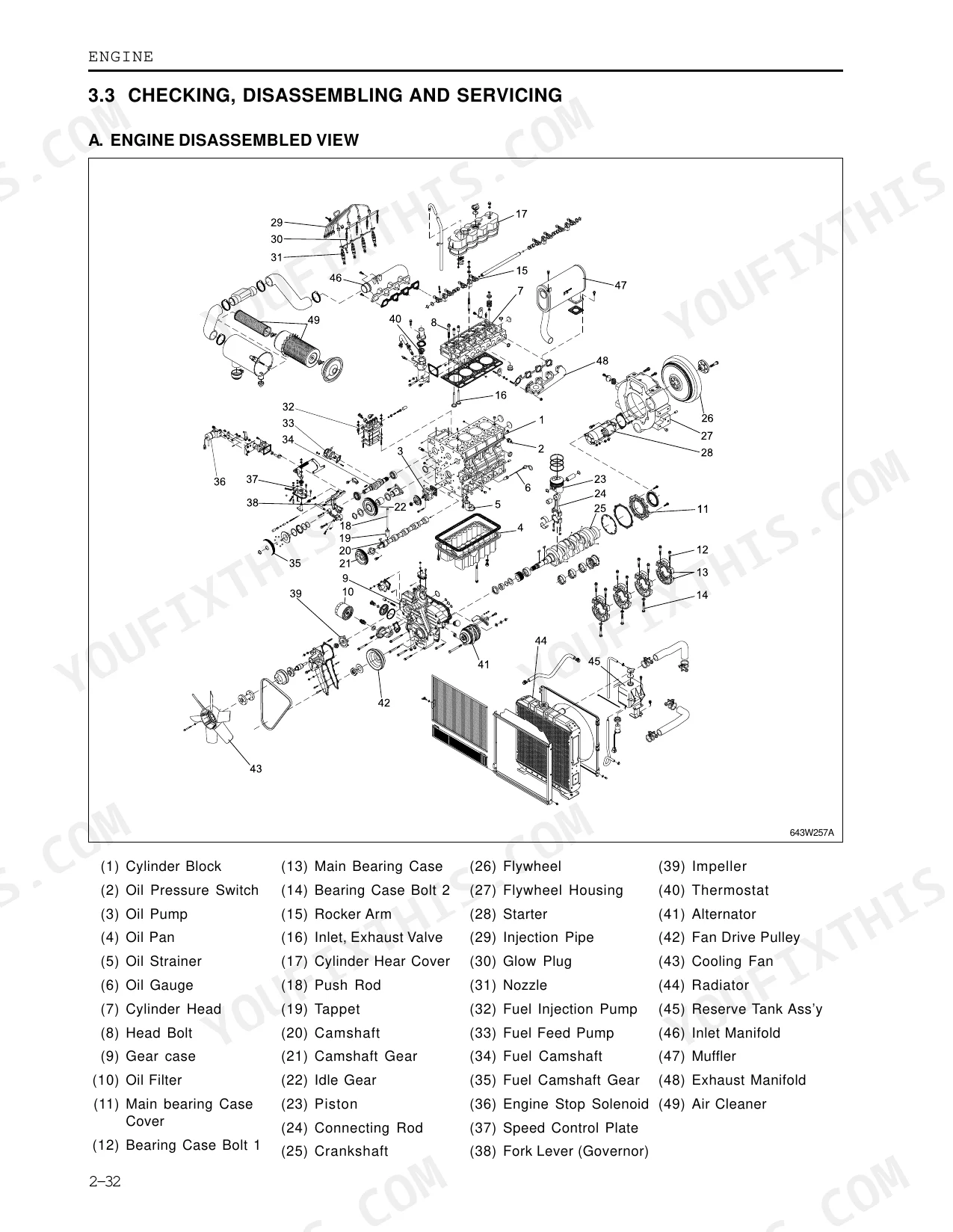

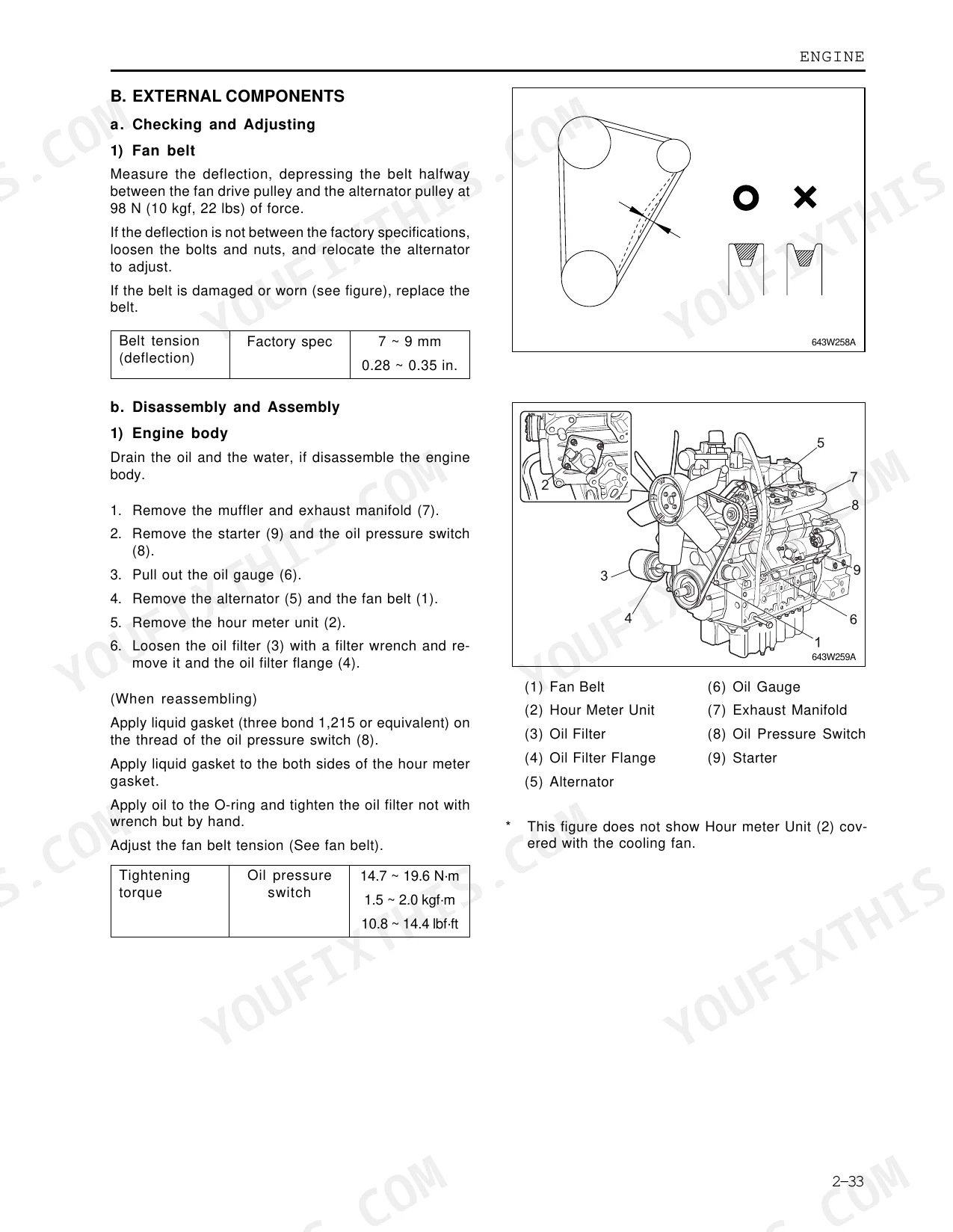

What's Inside This Kioti DK35-EU, DK40-EU, DK450L-EU Manual
| System | Pages | Key Topics |
|---|---|---|

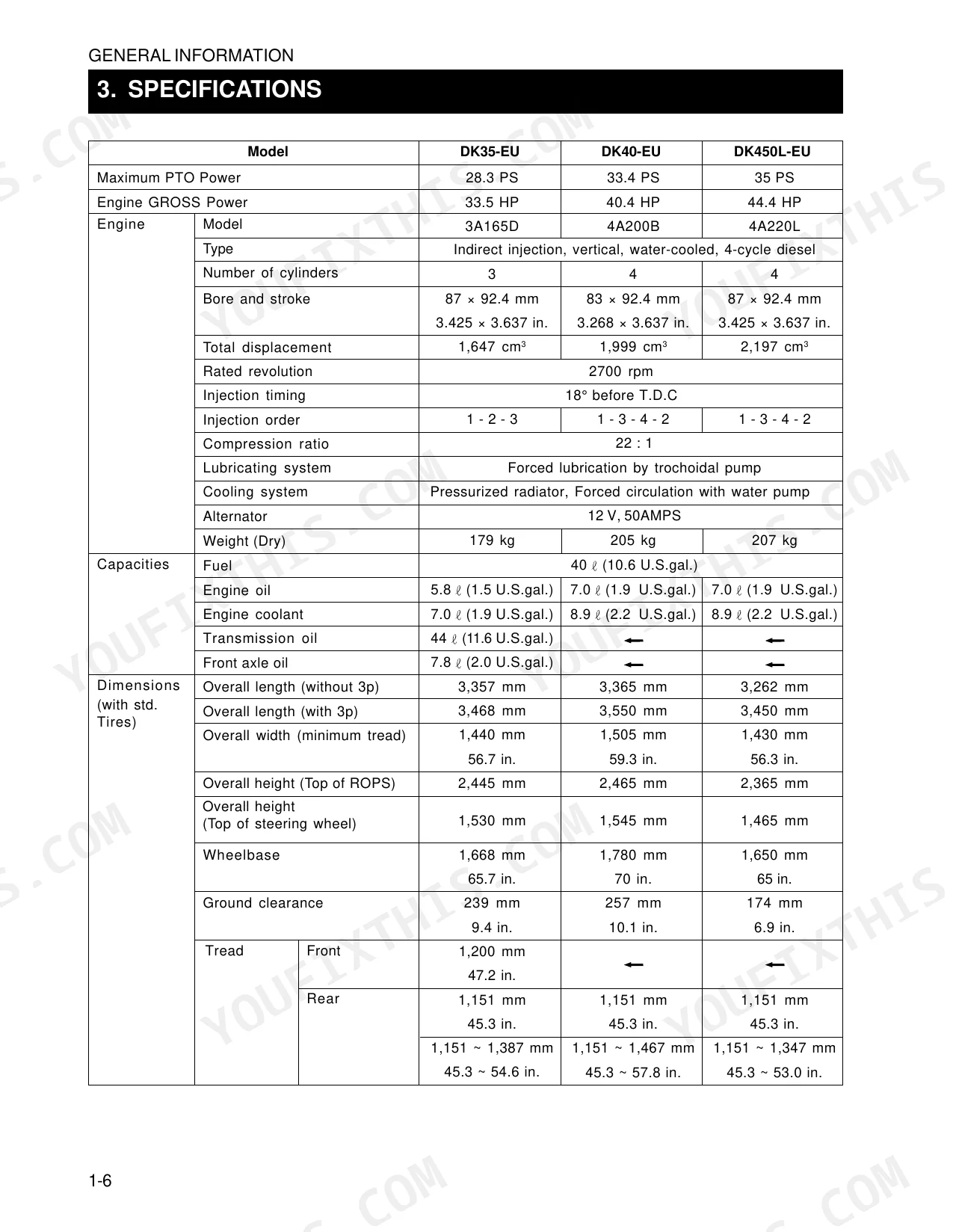

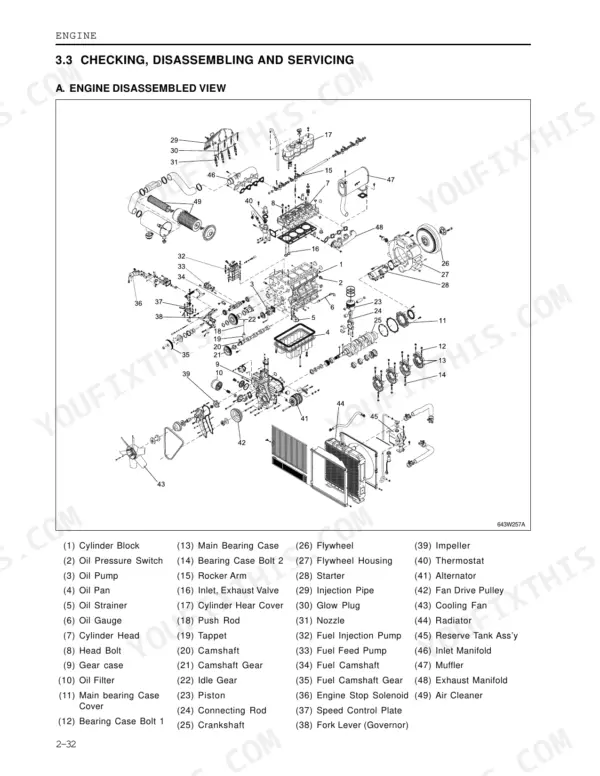

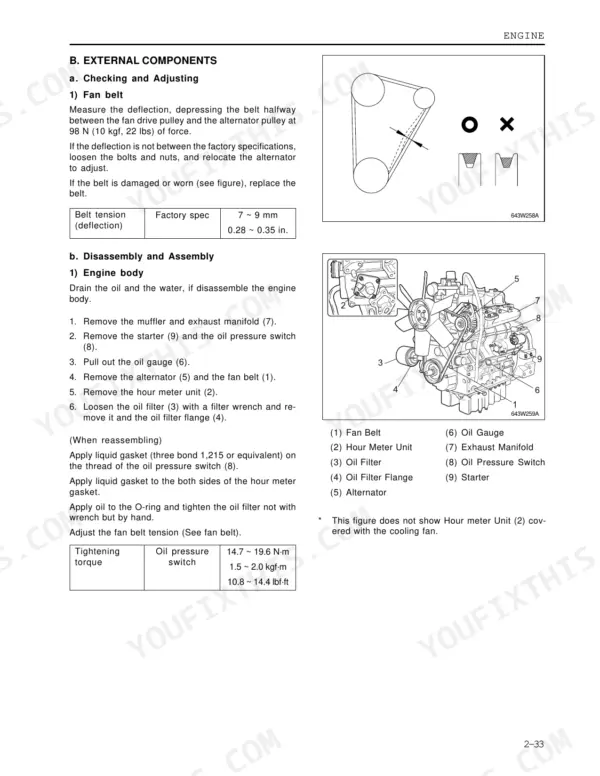

| General Information | 5-17 | Tractor View, Tightening Torque for Standard Bolts and Nuts, Specifications, Identification (Engine Number, Chassis Number of the Tractor) |
| Engine 1 | 18-38 | General (Appearance, Specifications, Model, Type, Number of Cylinder, Bore and Stroke, Total Displacement, Combustion Chamber, Gross Power, Maximum Idling Speed, Minimum Idling Speed, Order of Firing, Direction of Rotation, Injection Pump, Injection Pressure, Injection Timing, Compression Ratio, Fuel, Lubricant, Dimensions, Dry Weight) |
| Engine 2 | 39-58 | Flow of Intake Air and Exhaust Gas, Air Cleaner, Muffler |
| Engine 3 | 59-81 | Camshaft, Fuel Camshaft, Connecting Rod and Piston (Oil Pan and Oil Filter, Piston Ring and Piston Pin), Crankshaft (Flywheel, Bearing Case Cover, Main Bearing Case) |
| Main Body | 82-96 | Exterior (Disassembly of Panel Frame, First Stage, Second Stage, Third Stage, Disassembly of Fender and Stepladder Assembly) |
| Transmission | 97-167 | Structure, Power Transmission, Transmission Shift Link Structure, PTO Clutch, Differential Gear, Troubleshooting, Maintenance Specification, Tightening Torque |
| Rear Axle | 168-177 | Service Specification, Assembly |
| Brake | 178-190 | Structure, Operation, Troubleshooting, Maintenance Specification, Tightening Torque, Brake Pedal, Brake Case |
| Front Axle | 191-210 | Wheel Alignment, Disconnection Of Front Axle Group, Disassembly Of Front Axle |
| Steering System | 211-233 | Characteristics, Hydraulic Circuit of Power Steering, Gear Pump, Power Steering Unit, Steering Cylinder, Oil Flow, Troubleshooting, Disassembly |
| Hydraulic System | 234-267 | Structure, Hydraulic Circuit Diagram, Hydraulic Circuit Diagram of 3-Point Hydraulic System, Hydraulic Pump, Oil Filter, Control Valve, Relief Valve, Hydraulic Cylinder |

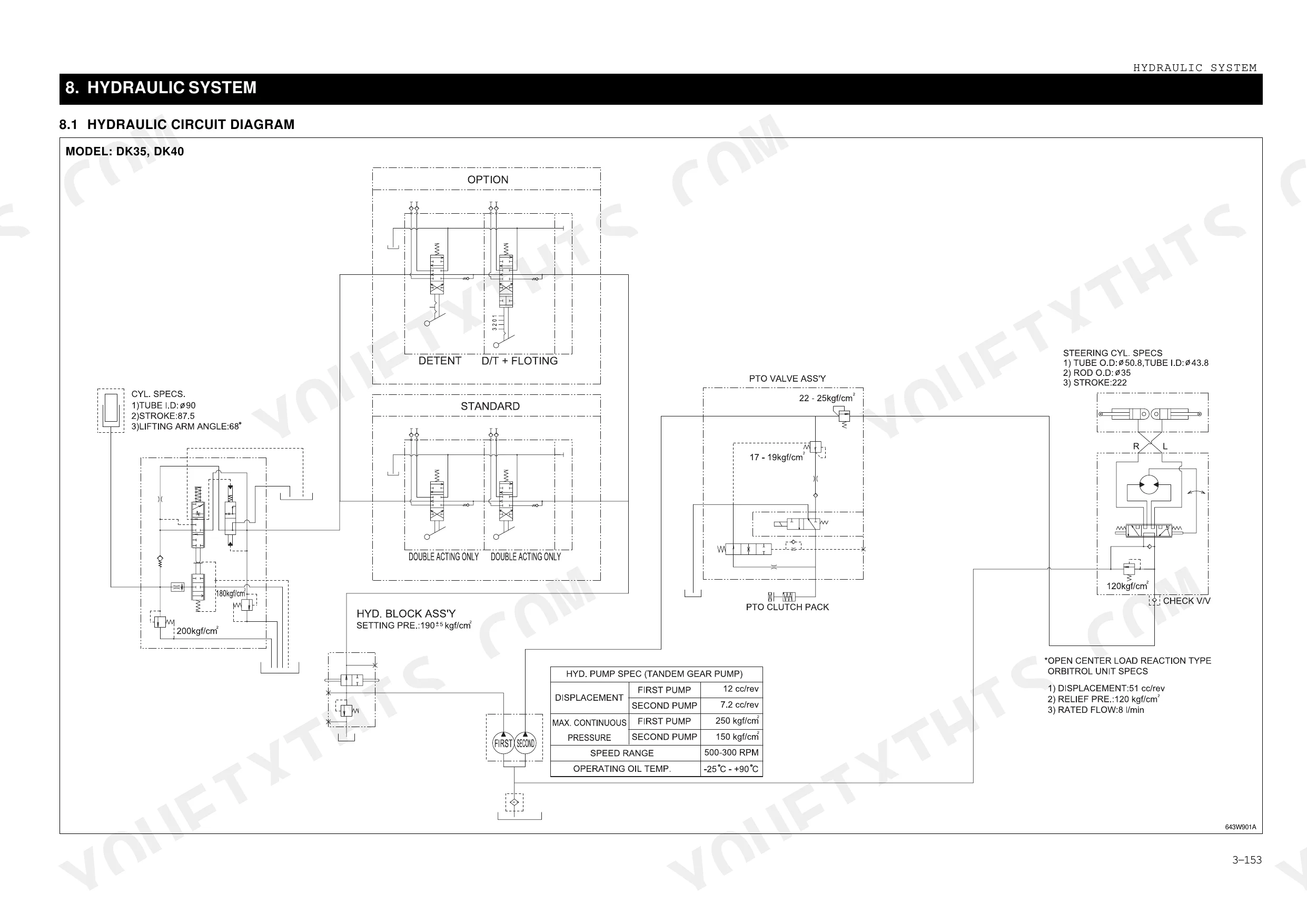

| Hydraulic System Diagram | 268-269 | Hydraulic Circuit Diagram (Model:: DK35, DK40, DK450L) |
| Electric System | 270-288 | Electronic Instrumentation (Indicators and Warning Lights, Instrument Panel Bulbs) |

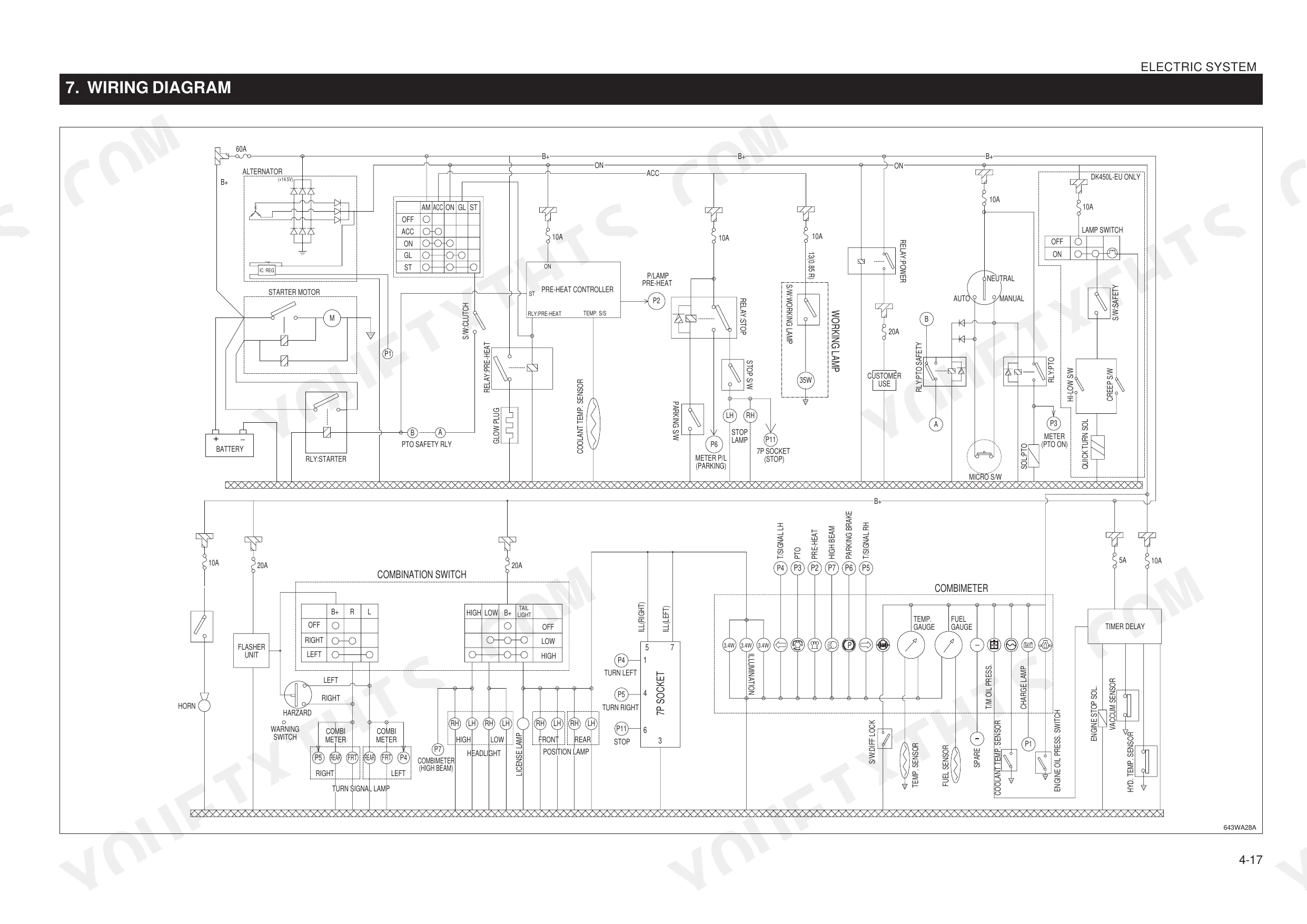

| Wiring Diagram | 289 | Alternator, Starter Motor, Battery, Combination Switch, Relays, Sensors |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

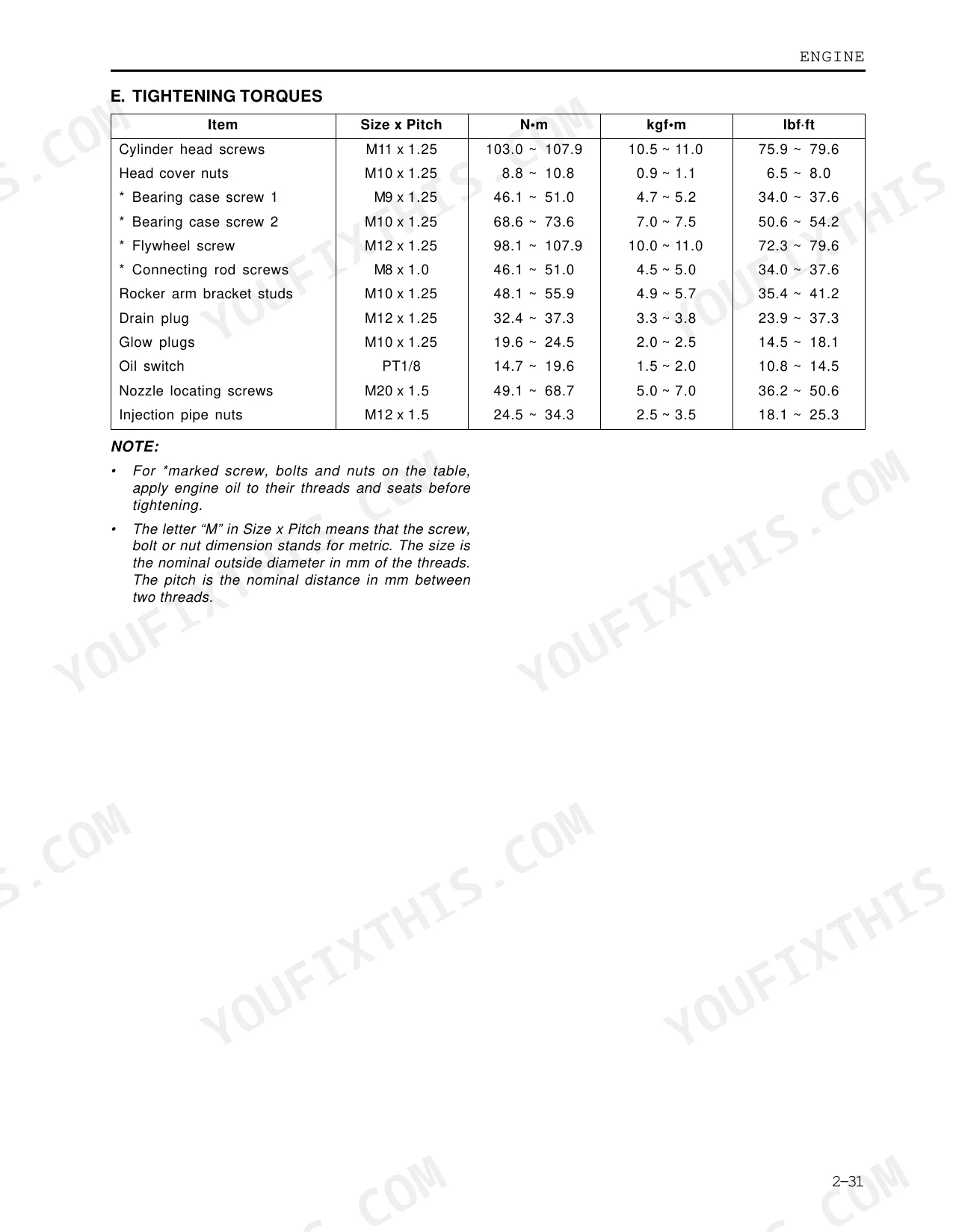

| Cylinder head screws tightening torque | 103.0 ~ 107.9 N·m (10.5 ~ 11.0 kgf·m, 75.9 ~ 79.6 lbf·ft) | p. 48 |
| Rear wheel tightening bolt tightening torque | 260.8 ~ 303.8 N·m (26.6 ~ 31.0 kgf·m, 192 ~ 224 lbf·ft) | p. 170 |
| Head cover nuts tightening torque | 8.8 ~ 10.8 N·m (0.9 ~ 1.1 kgf·m, 6.5 ~ 8.0 lbf·ft) | p. 48 |
| Hydraulic filter warning lamp troubleshooting | Stop the engine and check the hydraulic line. Replace oil filter if warning light illuminated or whenever 200 hours used. | p. 158 |
| Fuel filter element change interval | Periodically | p. 16 |
| Air cleaner element change interval | Periodically | p. 16 |
| Hydraulic oil filter change interval | Periodically (or if warning light illuminated or whenever 200 hours used) | p. 16 |
| Battery capacity | 80 AH | p. 285 |
| Clearance of safety switch and clutch pedal | 3 ~ 4 mm (0.12 ~ 0.16 in.) | p. 93 |
| Clutch pedal play | 30 ~ 40 mm (1.18 ~ 1.57 in.) | p. 92 |
| Play of clutch disc O.D. (Allowable Limit) | 2.0 mm (0.079 in.) | p. 92 |
| Standard Bolt Torque (M8, No grade 4T) | 17.7 N·m | p. 8 |
Kioti DK35-EU, DK40-EU, DK450L-EU Common Problems This Manual Covers

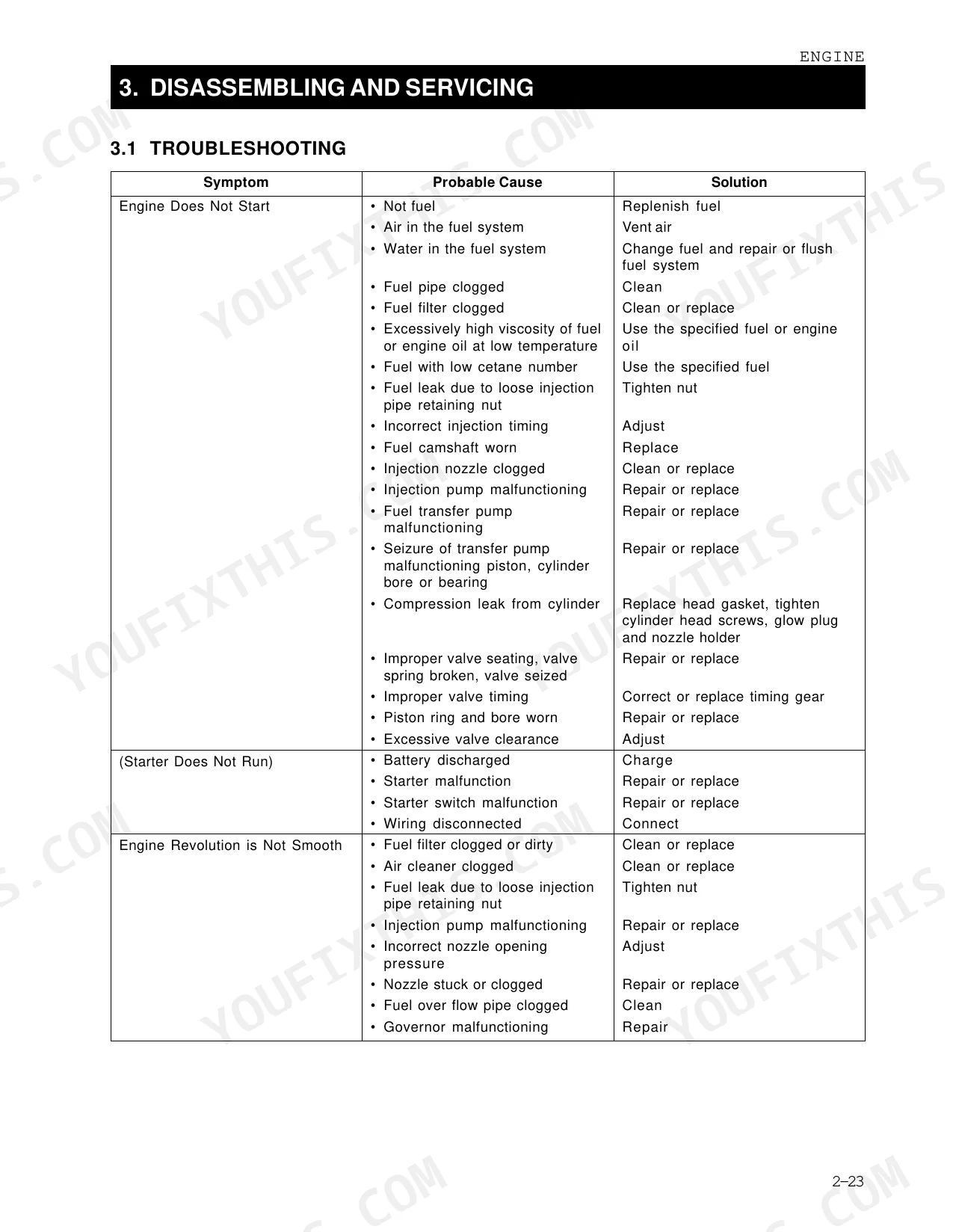

Engine cranks but will not start or fires only after extended cranking p. 40
Verify the fuel level first (the tank holds 40 L). Loosen the injection pump bleed screw and crank until air-free fuel exits the vent. If the issue persists, test injection pressure at the nozzle to confirm the 13.73 MPa spec (page 47). Follow the diagnostic tree on page 40 before pulling the pump for bench testing.
Manual Section: Engine Troubleshooting3-point hitch won't lift to full height or cylinder rises unevenly under load p. 251
Confirm transmission oil is at the full mark, noting the total capacity is 44 L. Inspect the hydraulic filter and replace it if contaminated or at the 200-hour interval detailed on page 158. Check the relief valve for sticking. Use the cylinder-rise fault chart on page 251 to isolate the pump, control valve, or cylinder.
Manual Section: Hydraulic System TroubleshootingClutch slips under load or pedal travel feels short and disengagement is incomplete p. 91
Start by measuring clutch pedal free play against the 30-40 mm spec (page 92). If play is correct but slip continues, remove the clutch cover and check disc runout. Discard the disc if O.D. runout exceeds 2.0 mm. Inspect the pressure plate for warping, keeping in mind the flatness limit is 0.2 mm. Review the diagnostic steps on page 91 before splitting the tractor.
Manual Section: Clutch TroubleshootingStarter clicks or motor won't crank, safety interlock or battery circuit suspected p. 287
Check battery charge; rated capacity is 80 AH (page 285). Clean terminals and test voltage under load. Verify the clutch safety switch clearance: 3-4 mm between switch and pedal (page 93). If the battery and switch check out, test the starter relay. Work through the starter-motor fault tree on page 287 to trace the no-crank condition.
Manual Section: Electric System TroubleshootingFrequently Asked Questions
What does the hydraulic warning light mean on a KIOTI DK40-EU?
The hydraulic warning light, specifically the Hydraulic Filter Warning Lamp (10), illuminates if the hydraulic filter is restricted or if the vacuum pressure of the filter increases beyond a specified level. When this lamp turns on, you should stop the engine and inspect the hydraulic line. The manual states that the vacuum sensor is set to OFF at less than 500 30 Hg and the temperature sensor at less than 53.
Is this Kioti DK35-EU, DK40-EU, DK450L-EU Service Manual a digital download?
This is a 289-page searchable PDF ready for immediate download. Works on any device — pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Kioti DK35-EU, DK40-EU, DK450L-EU?
None at all — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this Kioti DK35-EU, DK40-EU, DK450L-EU manual?
Yes — complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text is generally crisp and easy to read, with no noticeable blurriness or fading. Diagrams and illustrations are raster images, but their labels remain readable even when zoomed in. Pages are clean with no significant scan artifacts, stains, or skewed content, though there are a few blank filler pages present.
