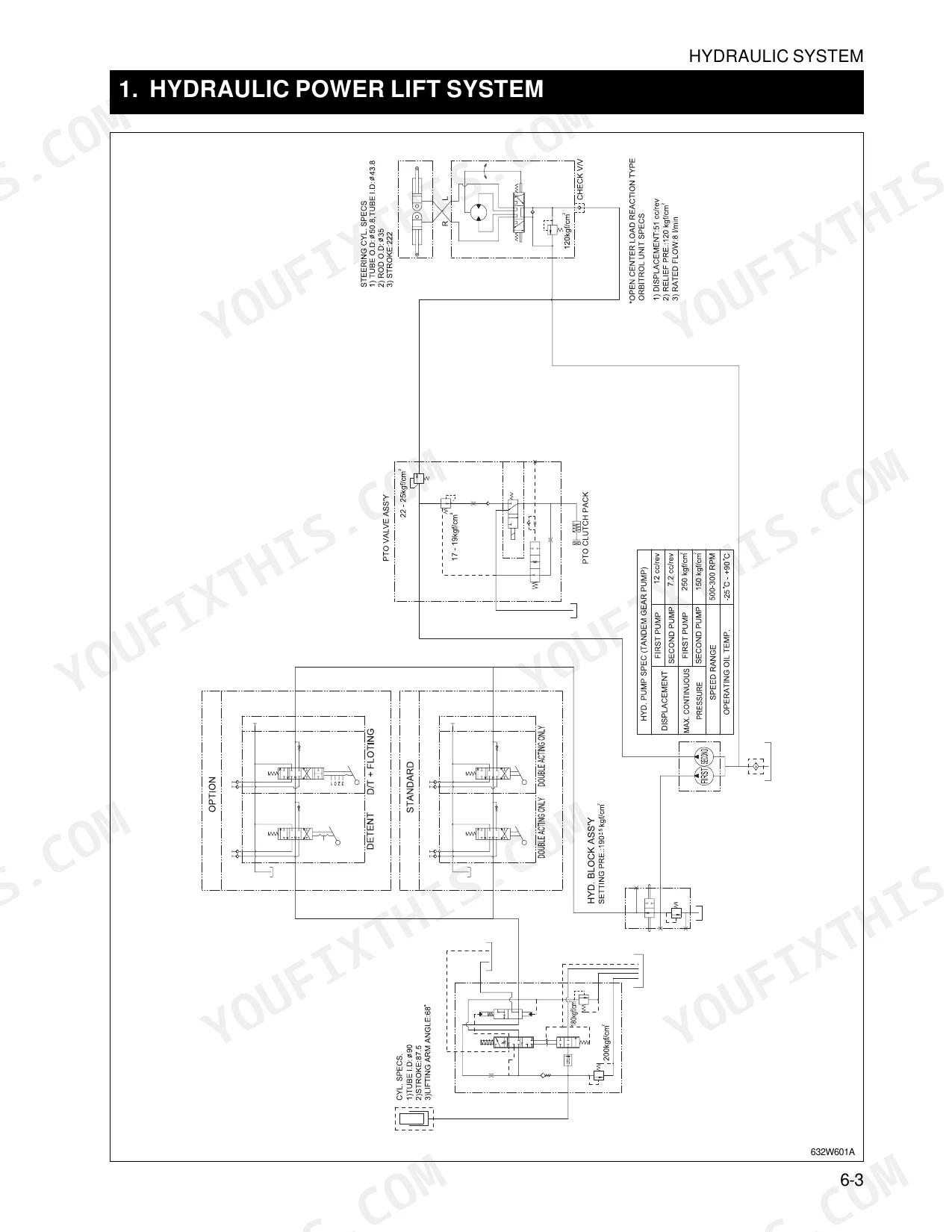

This Kioti DK45, DK50 Repair Manual runs 324 pages on a single machine: your compact tractor, from engine block to cabin system. Hydraulic schematics trace fluid routing through the lift system, PTO clutch valve, power steering, and pump circuits. Wiring diagrams map every indicator, switch, relay, and fuse box. Nine troubleshooting chapters follow the order you actually diagnose in: shuttle shift errors, transmission faults, front axle alignment, brake adjustment, A/C failures. Every chapter is bookmarked, so you jump straight to the brakes or the front axle instead of scrolling. Torque the cylinder head screws to 103.0–107.9 N·m, swap the hydraulic oil filter at 200 hours, and stop guessing whether a forum spec even fits your serial number. Download it, search any term by keyword, and keep it open on the shop floor.
What's Inside This Kioti DK45, DK50 Repair Manual

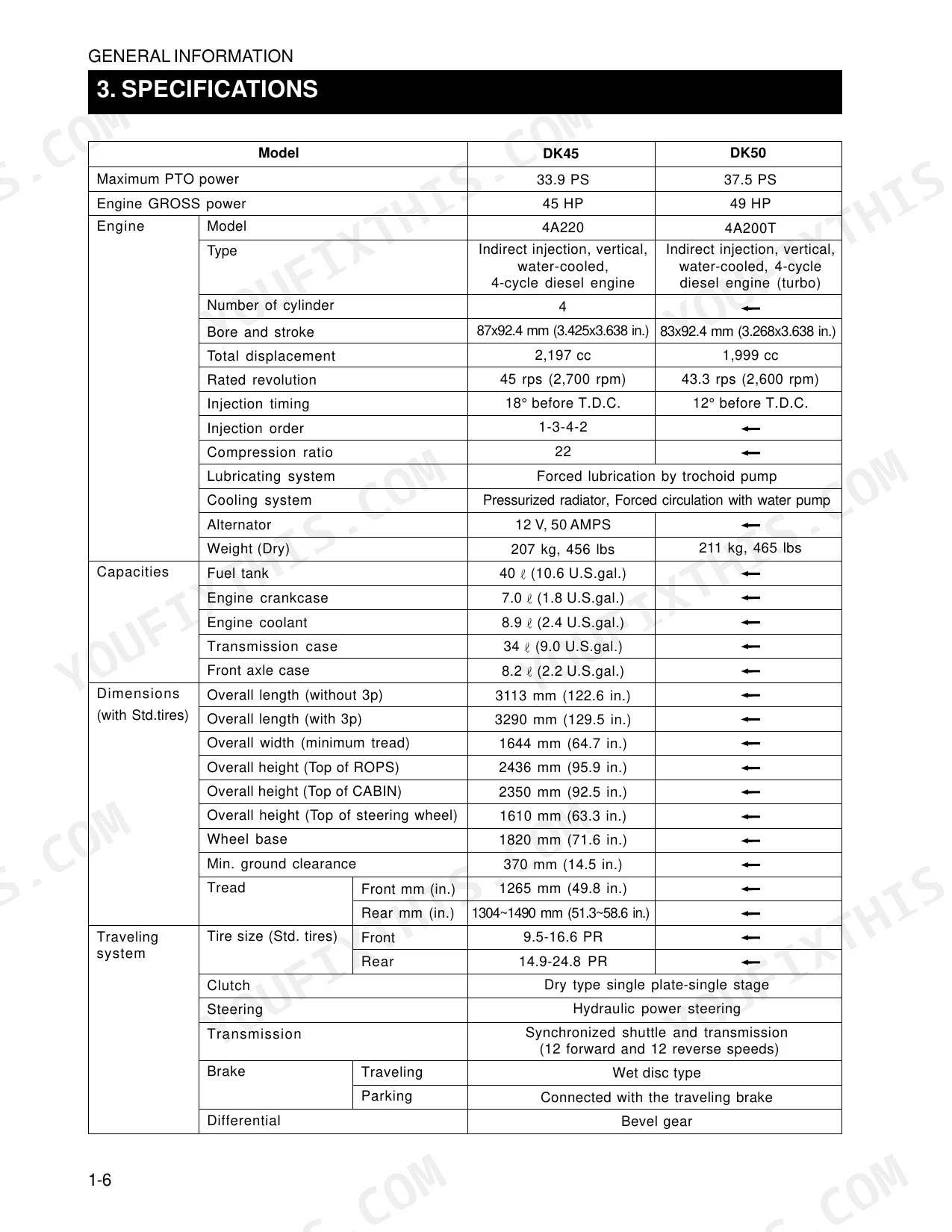

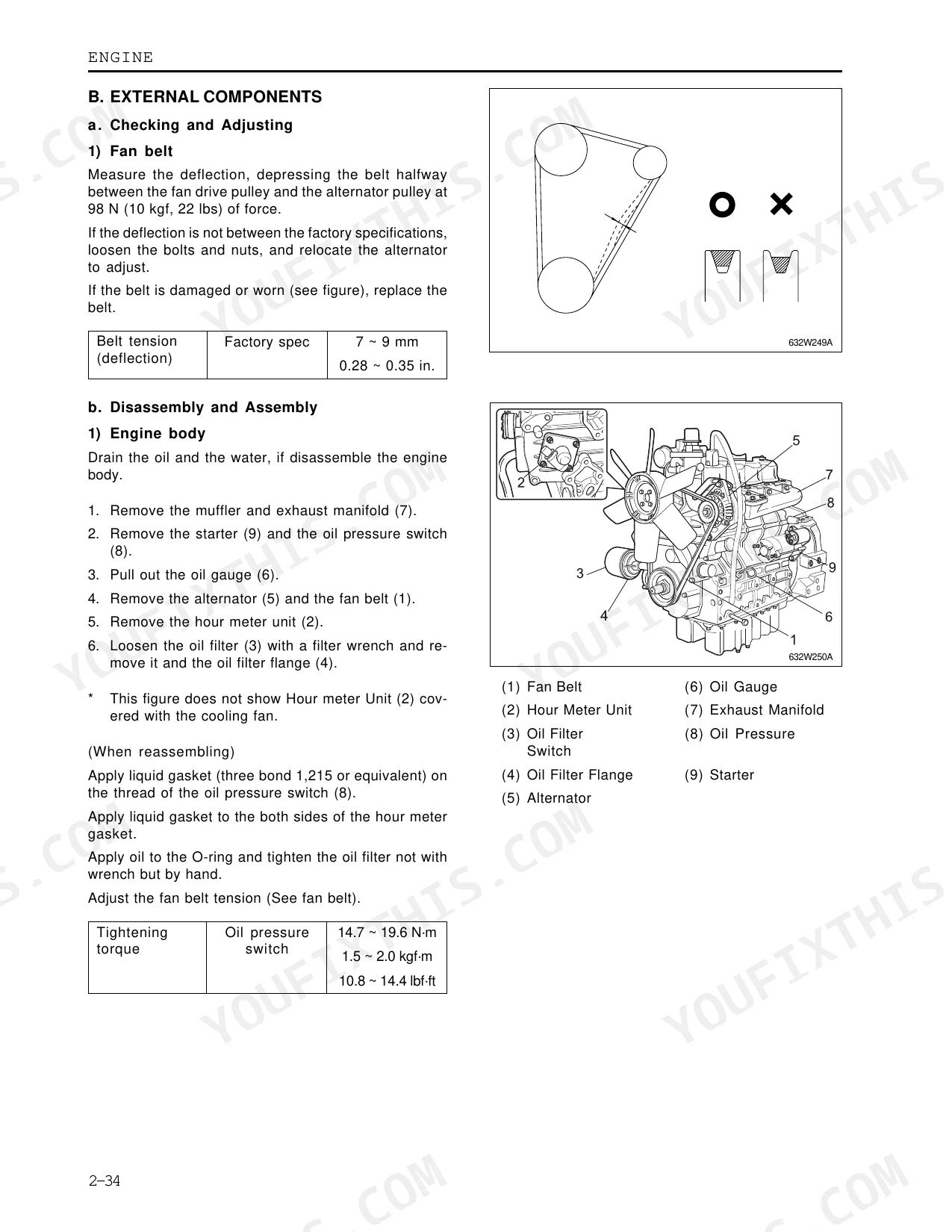

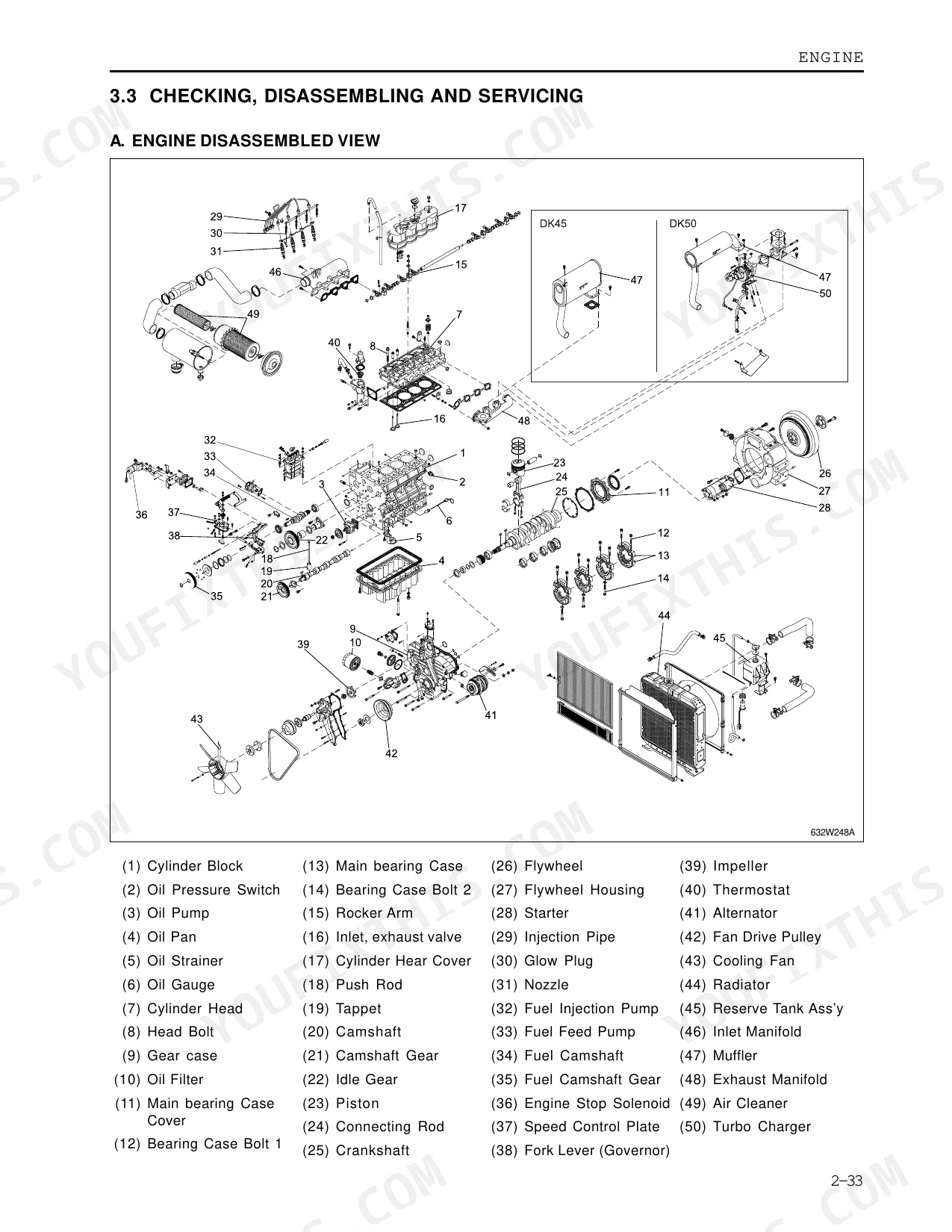

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-18 | Tractor View, Tightening Torque for Standard Bolts and Nuts, Specifications, Identifications (Engine Number, Serial Number of the Tractor) |
| Engine-1 | 19-39 | General (Appearance, Specifications, Performance Curve, Dimensions), Structure and Function (Body) |
| Engine-2 | 40-60 | Disassembling and Servicing (Troublieshooting, Servicing Specifications, Checking, Disassembling and Servicing) |
| Engine-3 | 61-83 | Cylinder Head, Cylinder Block, Crankshaft, Piston and Piston Rings, Connecting Rod, Camshaft, Lubrication System, Cooling System |
| Clutch | 84-96 | TrobleShooting, Specifications, Tightening Troques and Special Tools (Tightening Torques), Structure and Operation (Features) |
| Transmission System | 97-165 | Troubleshooting (Shuttle Shift in Operation Error, Main Shifts in Operation Error, Auxiliary and Creep Shifts in Operation Error, Rear Differential Gear in Operation Error, Rear Differential in Operation Error, Front Wheel Drive in Operation Error, PTO Clutch in Operation Error, PTO in Operation Error, Parking Brake in Operation Error) |
| Front Axle | 166-184 | Operation, Front Wheel Alignment, Toe-In Adjustment, Direction Control Angle For The Front Wheel, Rocking Force Of The Front Axle, Deflection In Front & Rear Directions, Separating Front Axle, To Dismantle And To Assemble |
| Hydraulic System-1 | 185-220 | Hydraulic Lift System (TrobleShooting, Specifications, Structure and Operation, Preparation Stage for Disassembling and Assembling, Dismantle and Assembling) |
| Hydraulic System-2 | 221-268 | PTO Clutch Valve System (Specifications and Diagram, Structure and Operation, Assembling and Disassembling, To Check and to Repair) |
| Brake | 269-286 | Structure And Operation, Operation, Draining The Transmission Fluid, Separating Panel Frame Assembly, Separating Rear Fenders And Platform Assembly, Disassembling Rear Axle Case, Disassembling Brake Case, Adjustment Of The Brake |
| Electric System | 287-303 | Electronic Instrumentation (Indicators and Warning Lights, Instrument Panel Bulbs) |
| Cabin System | 304-322 | Disassembly and Assembly, Heater (Structure, Operation Device), Air Conditioner (Trouble Shooting) |

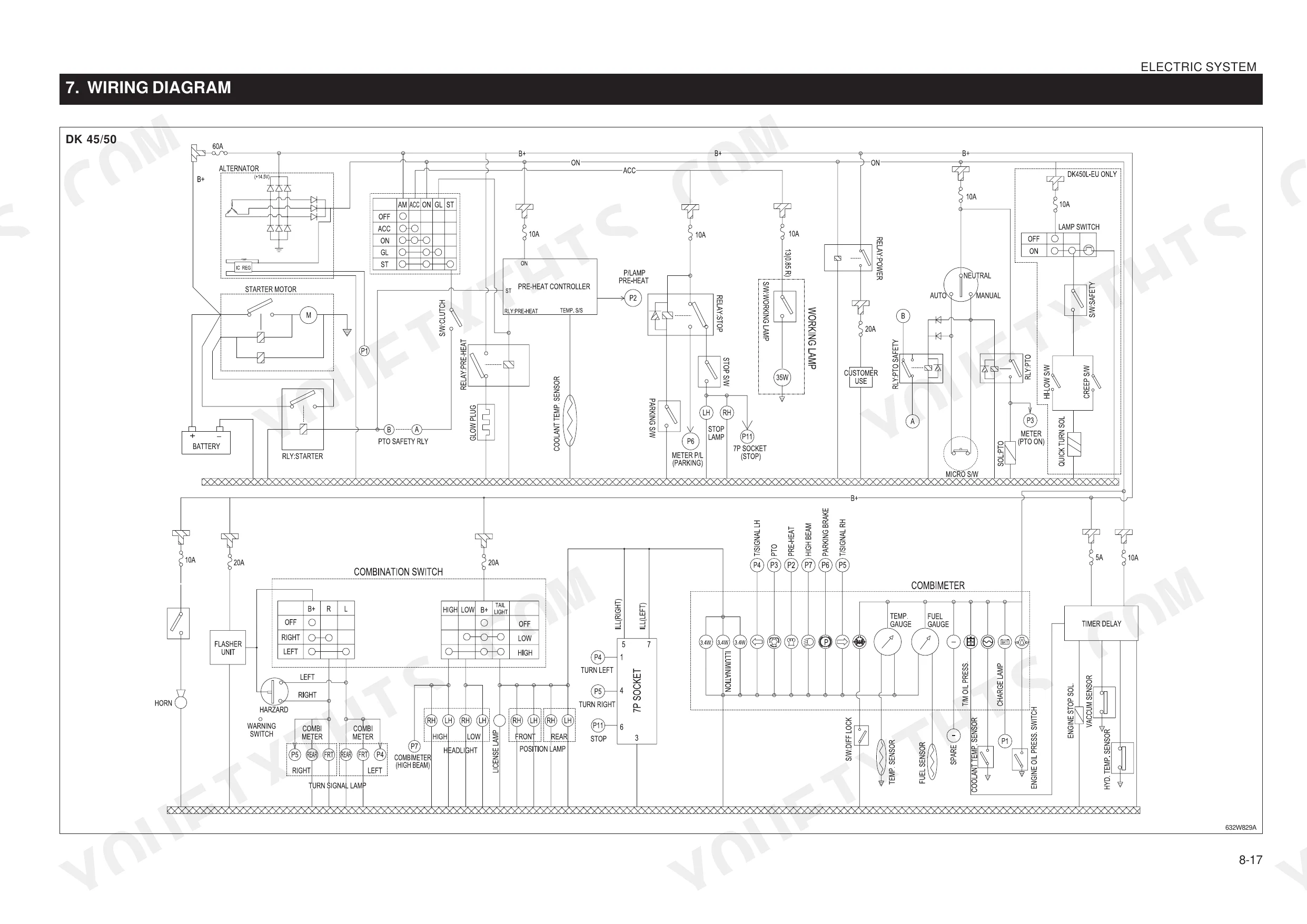

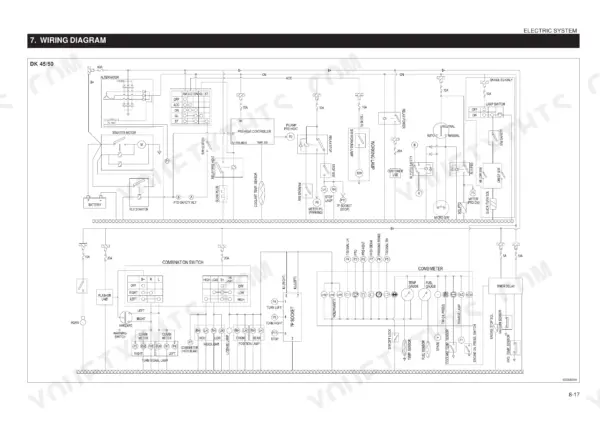

| Wiring Diagram and Electric System | 323-324 | Electronic Instrumentation, Indicators and Warning Lights, Instrument Panel Bulbs, Switches, Lamps, Fuse Box and Relay, Relays & Units, Control Unit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

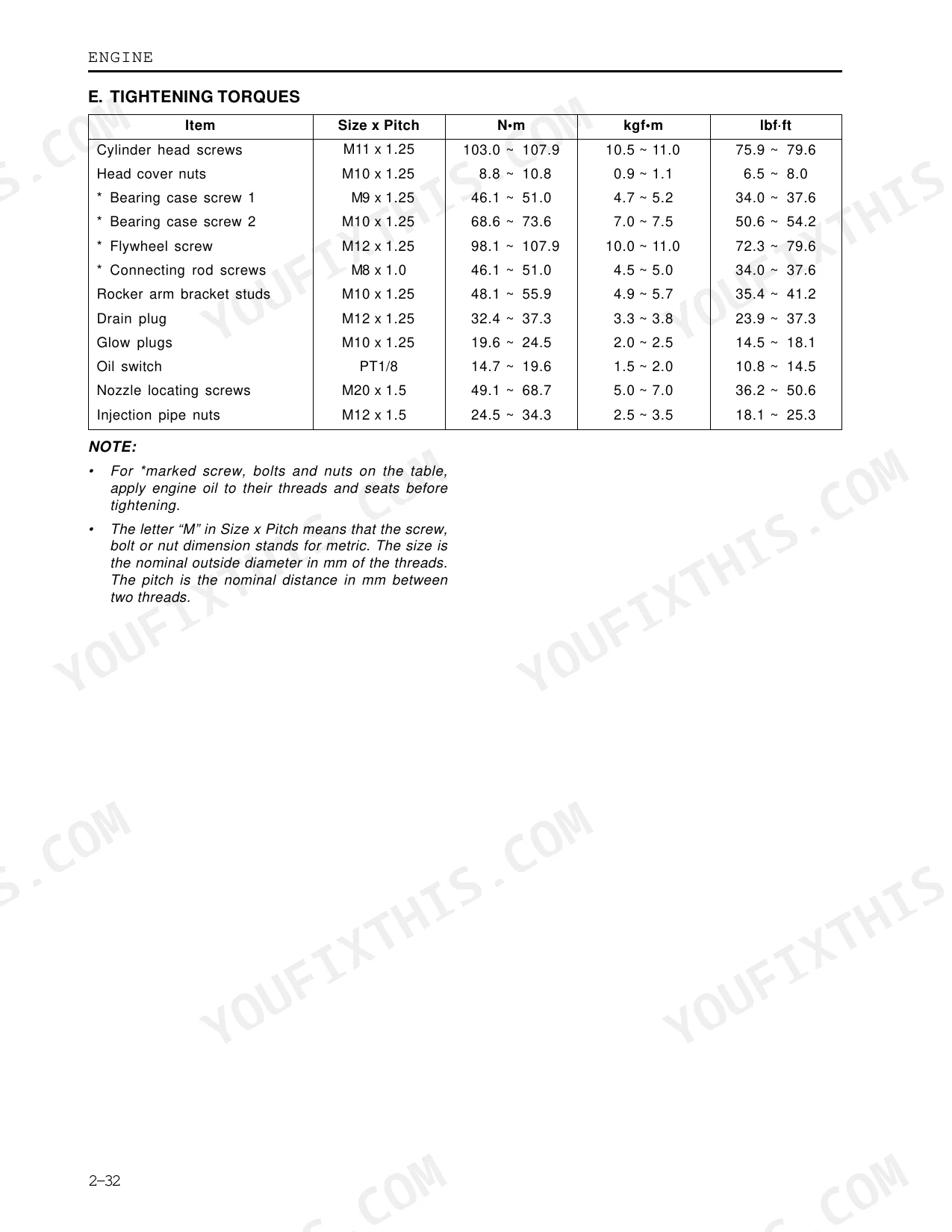

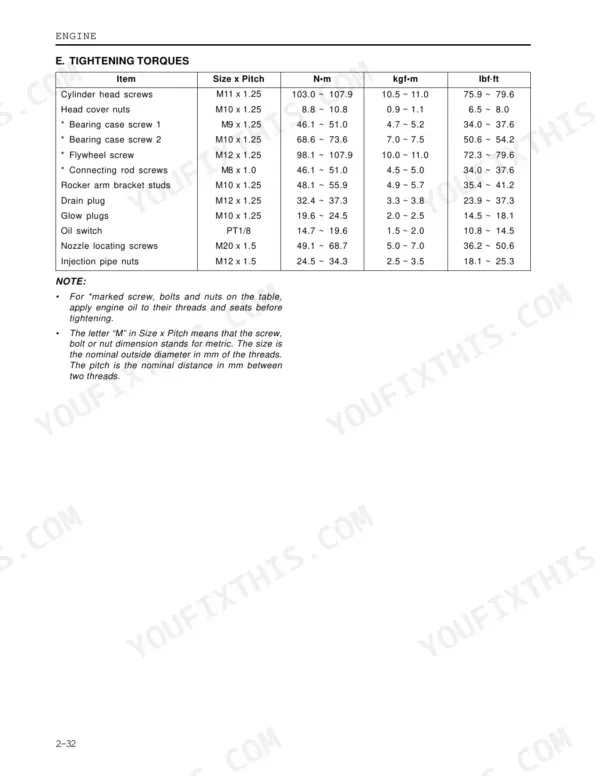

| Cylinder head screws tightening torque | 103.0 ~ 107.9 N·m (10.5 ~ 11.0 kgf·m, 75.9 ~ 79.6 lbf·ft) | p. 50 |
| Inlet nuts of rear wheel tightening torque | 260.0 ~ 304.1 N·m (26.5 ~ 31.0 kgf·m, 191.7 ~ 224.2 lbf·ft) | p. 101 |
| Front wheel mounting nuts tightening torque | 166.7 ~ 186.4 N·m (17.0 ~ 19.0 kgf·m, 122.9 ~ 137.4 lbf·ft) | p. 175 |
| Hydraulic oil filter change interval | 200hr | p. 17 |
| Hydraulic filter required degree of filtering | 30µ | p. 189 |
| Transmission oil change interval | 200hr | p. 17 |
| Transmission oil capacity | 38.0 ℓ (40.1 U.S.gal) | p. 117 |
| Front axle oil change interval | 200hr | p. 17 |
| Front axle case oil capacity | 8.2 ℓ (2.2 U.S.gal.) | p. 18 |
| Fuel filter element change interval | 200hr | p. 17 |
| Battery electrolyte check interval | 50hr | p. 17 |
| Battery capacity | 80 AH | p. 301 |
Kioti DK45, DK50 Common Problems This Manual Covers
Kioti DK45 engine runs rough, loses power under load, compression test below spec p. 42
Check compression on all cylinders; factory spec is 3.24 ~ 3.73 MPa, and the allowable limit is 2.55 MPa (page 45). Any cylinder below limit means internal work. Measure crankshaft bearing clearance per page 48: allowable is 0.20 mm. Replace worn bearings, seals, or the crankshaft if clearances exceed spec before reassembly.
Manual Section: Chapter 2 Engine-23-point hitch lifts but won't descend, rear linkage stuck in raised position p. 185
Inspect hydraulic oil level first, then replace the filter if past 200 hours per page 255. Test safety valve calibration: spec is 180 + 5 bar (page 189). If pressure checks out, inspect the control valve and rockshaft cylinder for internal bypass. Verify correct hydraulic fluid grade and volume per the specs on page 18.
Manual Section: Chapter 6 Hydraulic System-1Forward and reverse shuttle shifts erratically, gears slip or grind under load p. 97
Verify transmission oil level and condition; refill with SAE 80/90 gear oil if fluid is dark or past 200 hours. Check clutch pedal free play: spec is 20 ~ 30 mm (page 86). Then work the shuttle shift error chart in Chapter 4 (page 97) to isolate whether the fault is in the clutch pack, forward/reverse pack, or a bearing.
Manual Section: Chapter 4 Transmission SystemEngine dies suddenly at full throttle, cranks freely after with no mechanical drag p. 42
Confirm the fuel level first; tank capacity is 40 L, and running dry mimics a seized engine. With fuel present, swap in a fresh fuel filter (change interval is 200 hours per page 17) and bleed the system. Inspect injectors and nozzles for clogging. Work the engine stall and no-restart diagnosis on page 42 if it recurs.
Manual Section: Chapter 2 Engine-2Hydraulic implement pressure too high or too low, functions sluggish or jerky p. 185
Test hydraulic system pressure against the safety valve calibration spec of 180 + 5 bar (page 189). If the hydraulic block relief valve is suspect, the setting pressure should be 16.2 ~ 17.2 MPa per page 206. Adjust the relief valve in small increments and retest. Verify the hydraulic filter is clean; replacement interval is 200 hours per page 255.
Manual Section: Chapter 6 Hydraulic System-1Frequently Asked Questions
What do DK45/DK50 error codes mean?

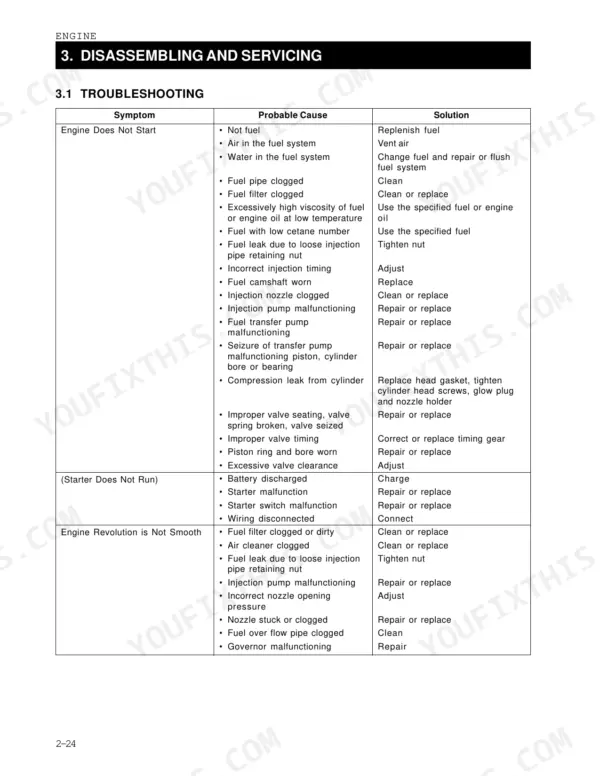

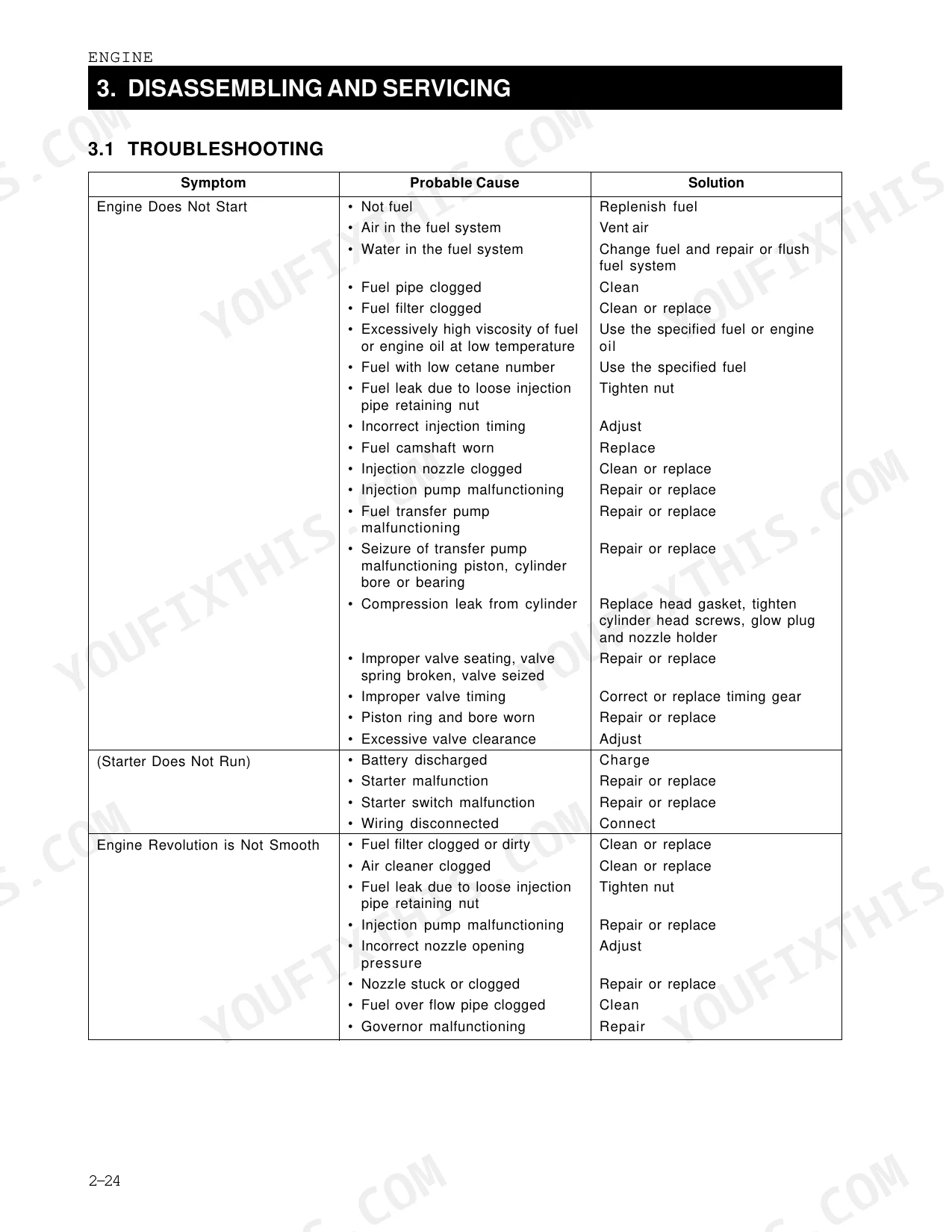

There are no numeric error codes. Instead, the manual gives troubleshooting tables: if the engine won't start, one likely cause is air in the fuel system, fixed by venting it. For low oil pressure, the listed cause is insufficient engine oil, with the fix to replenish it.
What are the torque specs for DK45 head bolts, wheel nuts, and loader mounts?
Cylinder head screws torque to 103.0 ~ 107.9 N·m (10.5 ~ 11.0 kgf·m, 75.9 ~ 79.6 lbf·ft). Front wheel mounting nuts take 166.7 ~ 186.4 N·m (17.0 ~ 19.0 kgf·m, 122.9 ~ 137.4 lbf·ft), and rear wheel nuts 260.0 ~ 304.1 N·m (26.5 ~ 31.0 kgf·m, 191.7 ~ 224.2 lbf·ft). Loader mount torque isn't covered in the manual.
What are the replacement specifications for hydraulic oil filter?
Replace the hydraulic oil filter whenever its alarm lamp on the instrument panel lights up, and otherwise on every 200-hour service interval.
What are the replacement specifications for transmission oil?
Change the transmission oil first at 50 hours, then every 200 hours after that. The manual recommends universal tractor/transmission hydraulic oil, with a capacity of 34 ℓ (9.0 U.S.gal).
What format is this Kioti DK45, DK50 manual in?
This is a 324-page searchable PDF, ready to download right away. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kioti DK45, DK50 Repair Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find hydraulic circuit diagrams in this Kioti DK45, DK50 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kioti DK45, DK50.
