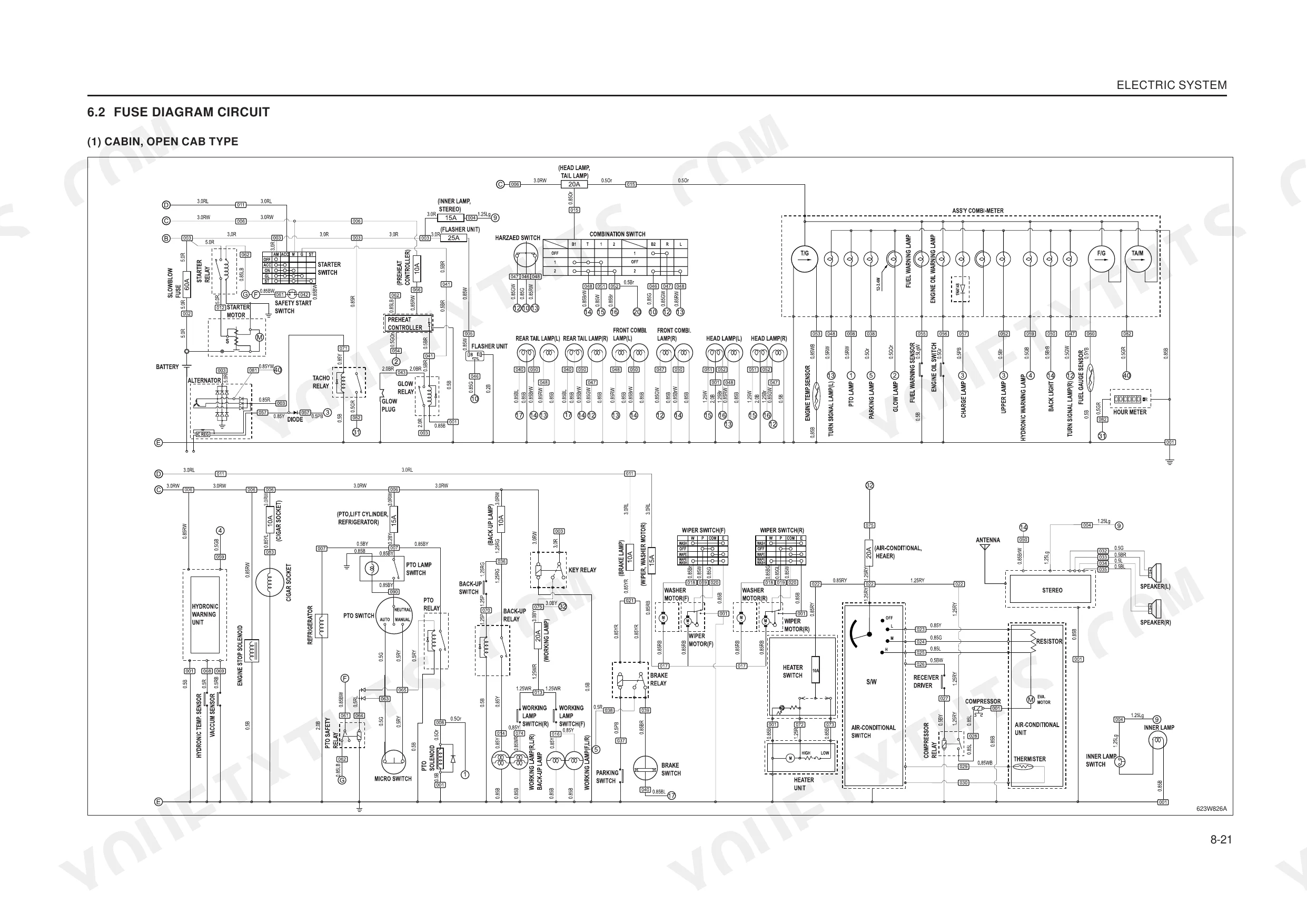

Need the factory rebuild data for your Kioti DK65 tractor? This workshop manual lays out every system across its 337 pages: engine, transmission, hydraulics, brakes, electrical, and cabin HVAC. Hydraulic circuit schematics trace full fluid routing through the PTO clutch and power steering; wiring diagrams cover the starting, charging, preheating, and fuse circuits; and detailed procedures walk through teardown and assembly, from crankshaft endplay to planetary gear disassembly. Set your cylinder head setscrews to 70 N·m, then rotate two successive 60-degree increments; torque the front axle adjusting nut to 166.7–196.1 N·m (page 227). Your machine is down, so work from real numbers instead of forum guesses. Bookmarked for quick section jumps and keyword-searchable, it loads on a tablet you can carry to the DK65 and start wrenching.
What's Inside This Kioti DK65 Manual
| System | Pages | Key Topics |
|---|---|---|

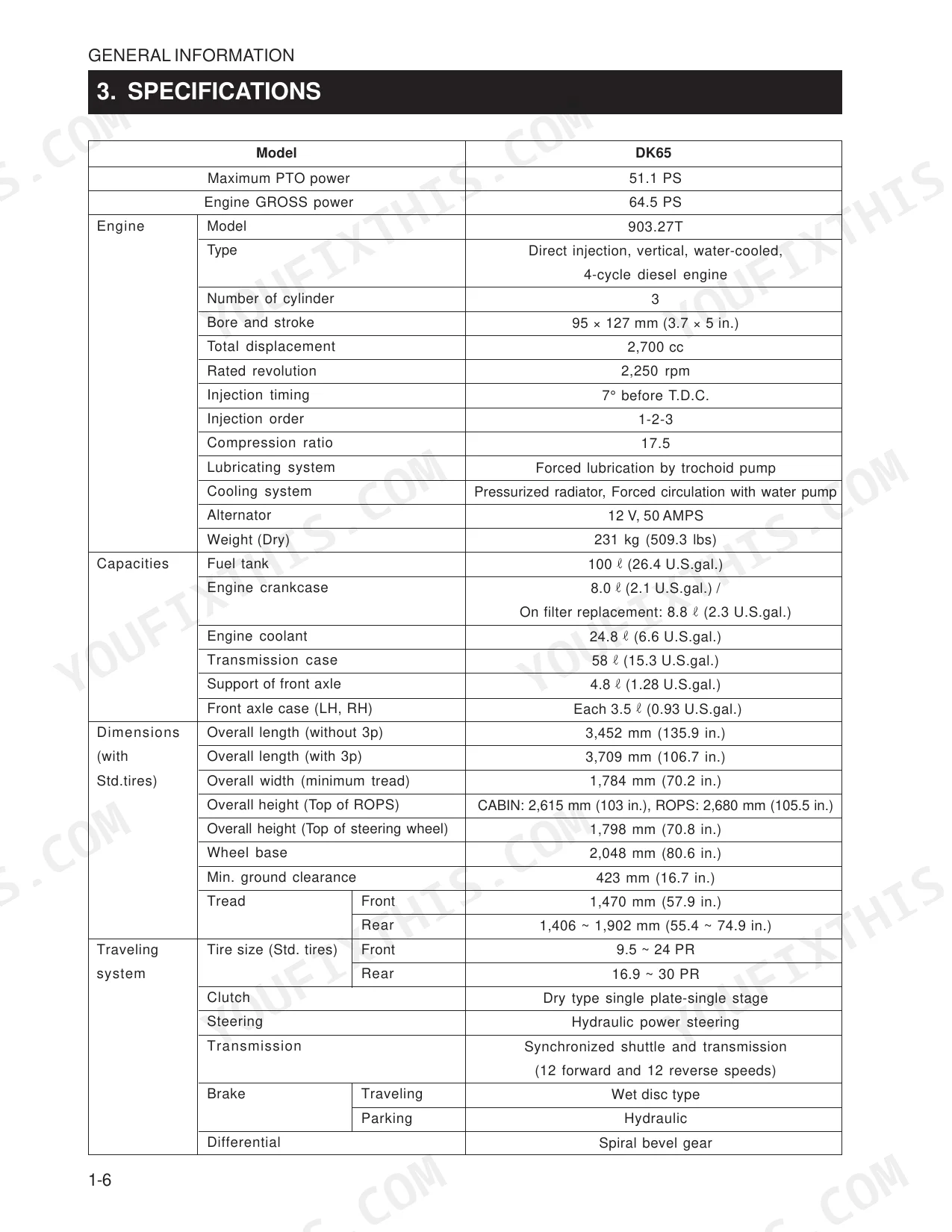

| General | 9-21 | Outside Diagram, Tightening Torque, Specifications, Identification, Parts to Be Replaced, Oil & Water Supply List |

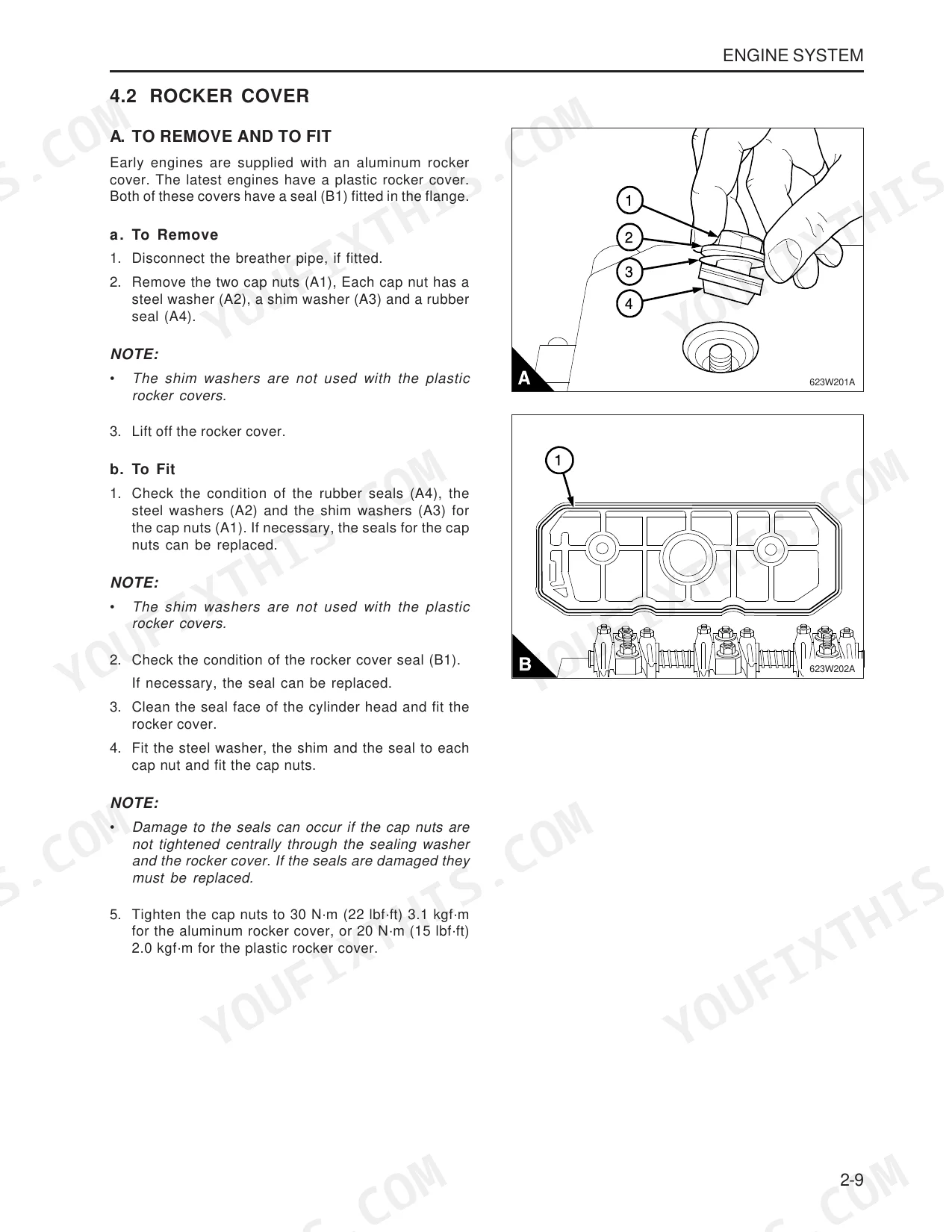

| Cylinder Head Assembly | 24-53 | Standard Torque Tensions, Basic Engine Data, Compression Test Data, How to Do a Compression Test, General Description, Rocker Cover, Rocker Assembly |
| Piston and Connecting Rod Assembly | 54-67 | General Description, Big End Bearing, Piston Rings, Connecting Rod, Small End Bush, Data and Dimensions |
| Crankshaft Assembly | 68-81 | General Description, Crankshaft Pulley, Rear Oil Seal Assembly, Thrust Washers, Main Bearings, Crankshaft, Data and Dimensions |
| Timing Case and Drive Assembly | 82-95 | General Description, Timing Case Cover, Front Oil Seal, Idle Gear and Hub, Fuel Pump Gear, Camshaft Gear, Crankshaft Gear |
| Lubrication System | 96-129 | Cylinder Block Assembly, General Description, Cylinder Block, Cylinder Liner, Data and Dimensions, Engine Timing, General Descript, Aspiration System |
| Fuel System | 130-147 | General Description, Fuel Filter Element, Atomizers, Fuel Lift Pump, Fuel Injection Pumps, Data and Dimensions |
| Cooling System | 148-155 | General Description, Thermostat, Coolant Pump, Fan, Data and Dimensions |
| Electrical Equipment | 156-164 | Flywheel and Flywheel Housing, General Description, Flywheel, Ring Gear, Flywheel Housing, Drive Belts, Starting Aid |
| Clutch | 165-172 | Specification, Disassembling and Assembling (Clutch), Pedal (Clutch Pedal Clearance, Gap Between Safety Switch and Link) |

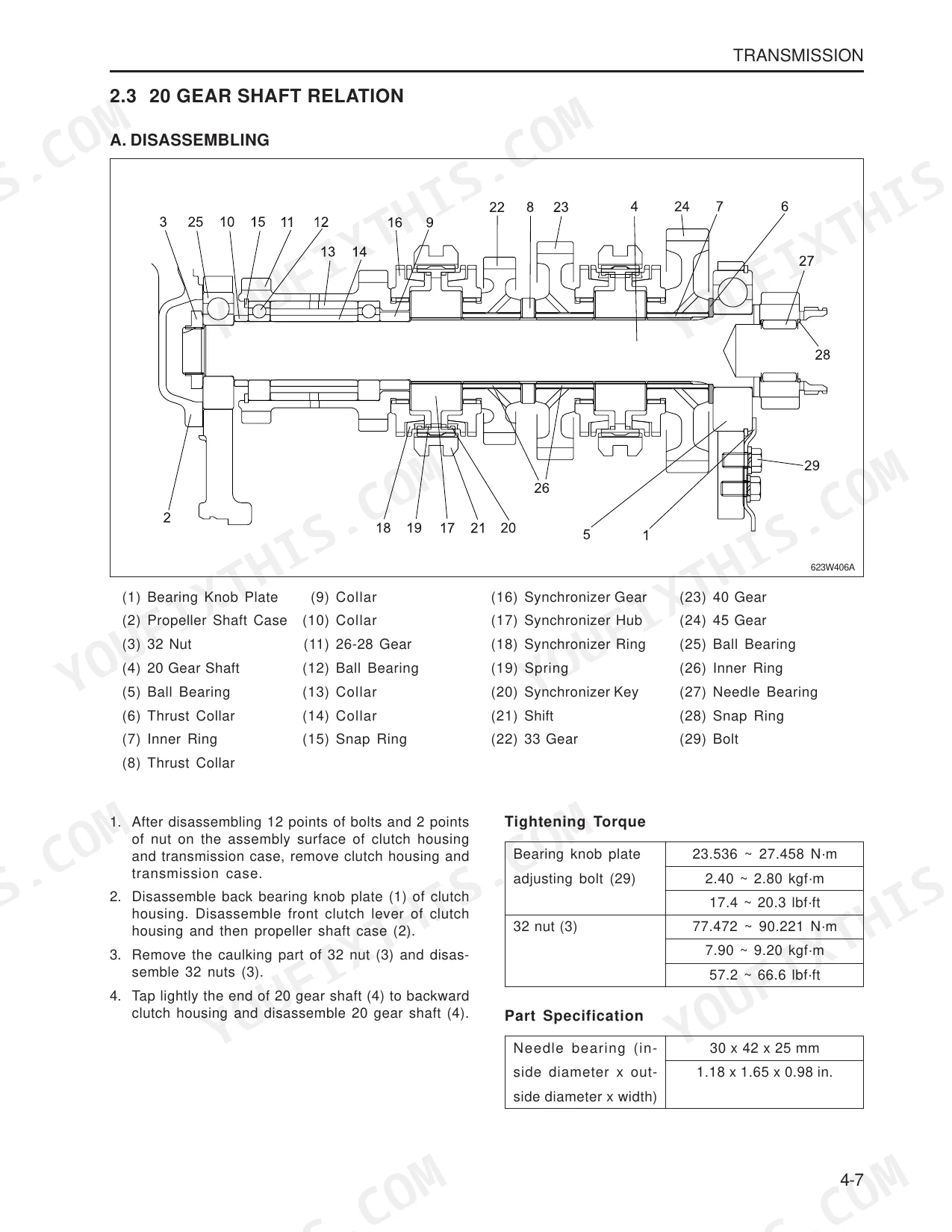

| Transmission | 173-224 | Clutch Housing, Clutch Housing and Transmission Case, 20 Gear Shaft Relation, Reverse Idle Gear Section, 17 Gear Shaft Section, Shuttle Shaft Section, Front Wheel Drive Shaft Section, PTO Drive Shaft Section |
| Front Axle Assembly | 225-245 | Toe-In, Front Wheel Steering Angle, Rolling of the Front Axle and the Clearance of Front and Rear Direction, Lateral Vibration and Longitudinal Vibration of the Front Wheel, Camber |
| Hydraulic System | 246-279 | Circuit, Structure and Mechanism of Hydraulic Cylinder, Disassembly and Assembly, Check Up and Adjustment, Troubleshooter |
| Brake System | 280-290 | Specifications, Structure and Operation, Disassembly and Assembly (Master Cylinder and Equalize Valve) |
| Electricial System | 291-309 | Control Panel, Engine Starting System, Charging System, Preheating System, Switch System, Fuse System |
| Cabin | 310-315 | - |
| Air Conditioner, Heater | 316-336 | Heater (Specifications), Air-Conditioner (Structure), Trouble Shooting (by Audio/Visual) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

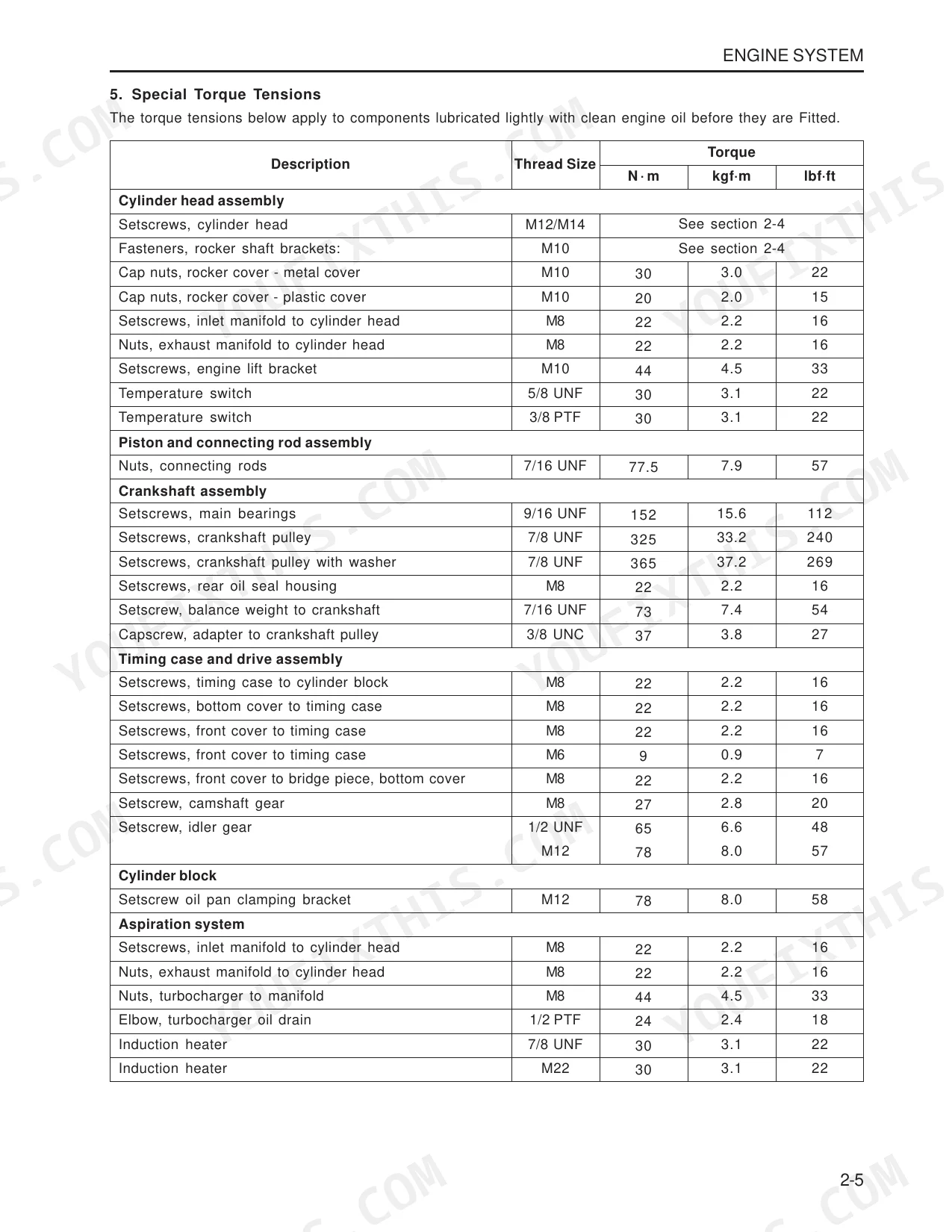

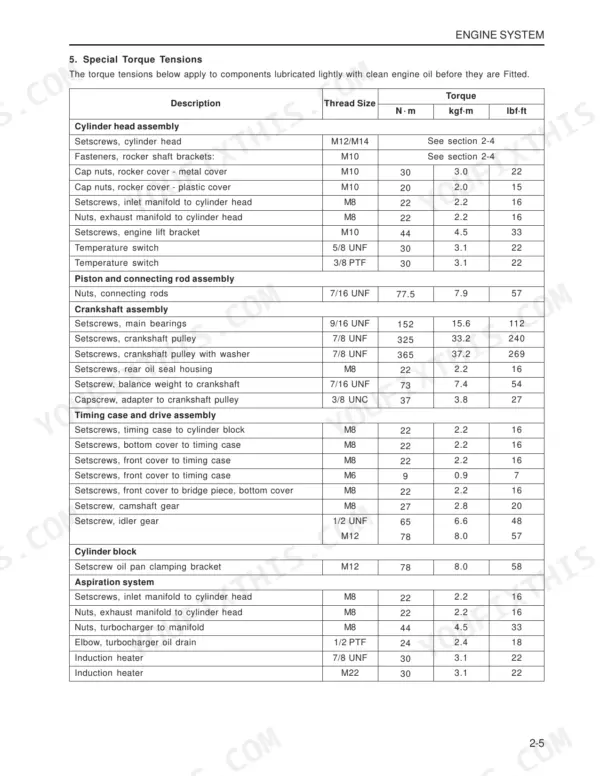

| Cylinder head setscrews tightening torque (initial) | 70 N·m (52 lbf·ft) 7.1 kgf·m | p. 41 |
| Cylinder head setscrews tightening (subsequent increments) | further 60° (1 flat), then a further 60° (1 flat) | p. 41 |
| Front wheel assembly adjusting bolt torque | 166.7 ~ 186.3 N·m | p. 244 |
| Banjo bolt fuel filter tightening torque | 23 N·m (2.3 kgf·m, 17 lbf·ft) | p. 27 |
| Fuel filter element replacement | periodically | p. 20 |
| Hydraulic oil filter replacement | periodically | p. 20 |
| Air cleaner element replacement | periodically | p. 20 |
| Battery voltage | 12 V | p. 300 |
| Starting motor authorized power | 12 V 2.5 KW | p. 296 |
| Starting motor rated time | 30 sec | p. 296 |
| Alternator voltage and current | 12 V, 50 AMPS | p. 14 |
| Drive belt deflection | 10 mm (3/8 in.) | p. 158 |
Kioti DK65 Common Problems This Manual Covers
Engine cranks but won't start after sitting, or intermittent cold-start failure p. 296
Check battery voltage and the starter connection first; the motor is rated 12 V / 2.5 kW with a 30-second cranking limit (page 296). If the engine turns freely but won't fire, bleed the fuel system at the injection pump and retorque the fuel filter banjo bolt to 23 N·m (page 27). Then work each fuel line connection looking for air entry points.
Manual Section: 8- Electricial SystemHydraulic 3-point lift rises slowly or won't hold implement weight at full height p. 268
Inspect the hydraulic fluid level and condition first; the transmission and hydraulic system share a 58 L common sump (page 21). Pull the troubleshooter on page 268 and match your exact symptom (low elevation ability, cylinder ascends irregularly, or periodic vibration). Swap the hydraulic filter per the service schedule on page 20 before you pressure-test the pump.

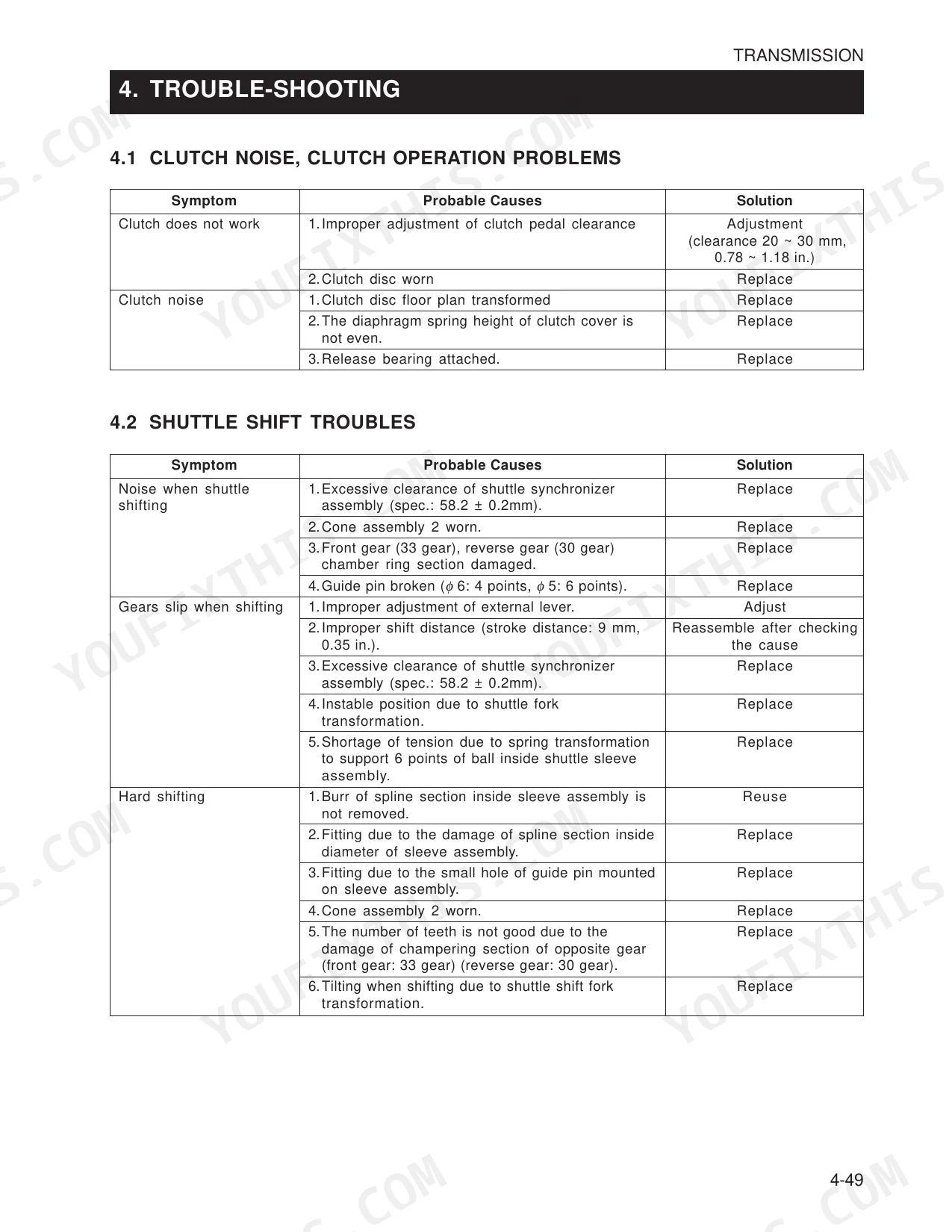

Manual Section: Hydraulic System TroubleshooterClutch slips under load, pedal feels spongy, or gear engagement grinds on every shift p. 172
Measure clutch pedal free play before pulling anything apart; spec is 20 to 30 mm at the pedal (page 168). A worn disc, damaged pressure plate, or dragging release bearing are the main culprits in the troubleshooter at page 172. Confirm spline clearance and disc thickness once pedal adjustment proves out of spec.
Manual Section: Clutch TroubleshootingEngine temperature gauge climbs into red during field work, coolant reservoir boils over p. 155
Verify coolant level, then test the thermostat; it opens at 80 to 84°C (176 to 183°F) and reaches full travel at 96°C (page 155). Check drive belt deflection at 10 mm (page 158) and inspect the water pump impeller for wear while the belt is off. Flush the radiator if the coolant is discolored or milky.
Manual Section: 2- Engine SystemBattery drains overnight, gauges go dead mid-field, or warning light stays on at speed p. 309
Test alternator output at the battery terminals; rated spec is 12 V / 50 amps (page 14). Check drive belt deflection (10 mm per page 158) and look for glazing or cracking before condemning the alternator. Trace the charging circuit on the wiring diagram at page 309, then clean every ground strap before pulling parts.
Manual Section: 8- Electricial SystemFrequently Asked Questions
How do I reset the hydraulic filter warning on a DK65?
There's no dedicated reset procedure for the hydraulic filter warning light. The light goes off on its own once hydraulic pressure rises above -470 mmHg, which happens when you fix the underlying cause, such as replacing the filter canister per operation (2-11.2A) on page 116.
What are the torque specs for DK65 wheel bolts, head bolts, and injector hold-downs?
Cylinder head setscrews 1-8 go to 70 N·m (52 lbf·ft) 7.1 kgf·m, then two further 60° turns. Fasteners 9-12 take 50 N·m (37 lbf·ft) 5.1 kgf·m, then two more 60° turns, all on page 41. Atomizer gland nuts torque to 30 N·m (22 lbf·ft) 3.1 kgf·m (page 26). The manual lists no specific torque for wheel bolts.
DK65 torque specs for head bolts
Torque setscrews 1-8 to 70 N·m (52 lbf·ft) 7.1 kgf·m, then add two 60° turns. Fasteners 9-12 take 50 N·m (37 lbf·ft) 5.1 kgf·m, again with two 60° turns afterward, per page 41.
What are the replacement specifications for fuel filters?
It's a single element fuel filter. Use only a genuine Perkins element when you replace it; the wrong element can damage the fuel injection pump (page 132).
What format is this Kioti DK65 manual in?
A 337-page searchable PDF, ready to download right away. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Kioti DK65 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

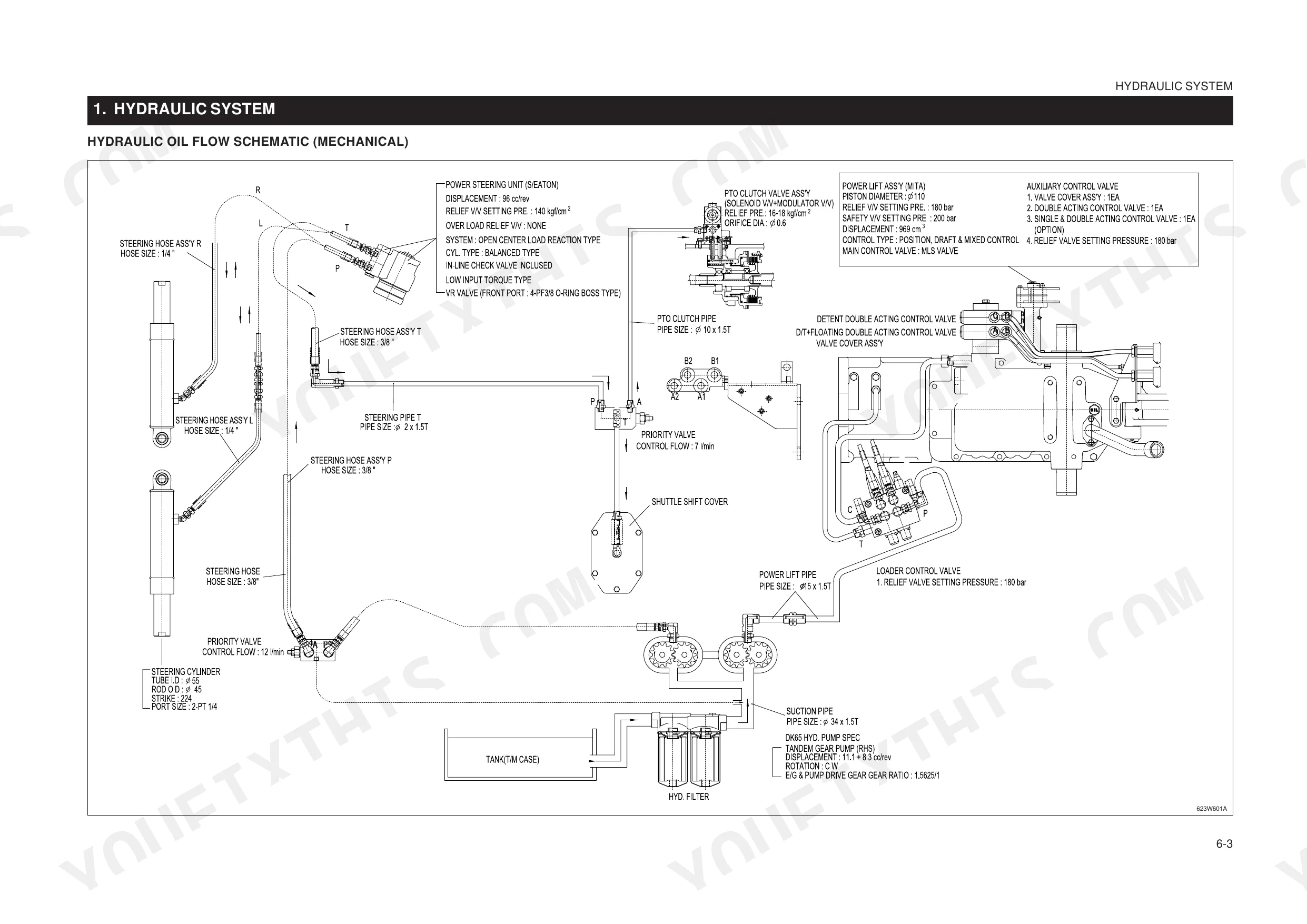

Can I find hydraulic circuit diagrams in this Kioti DK65 manual?
Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
