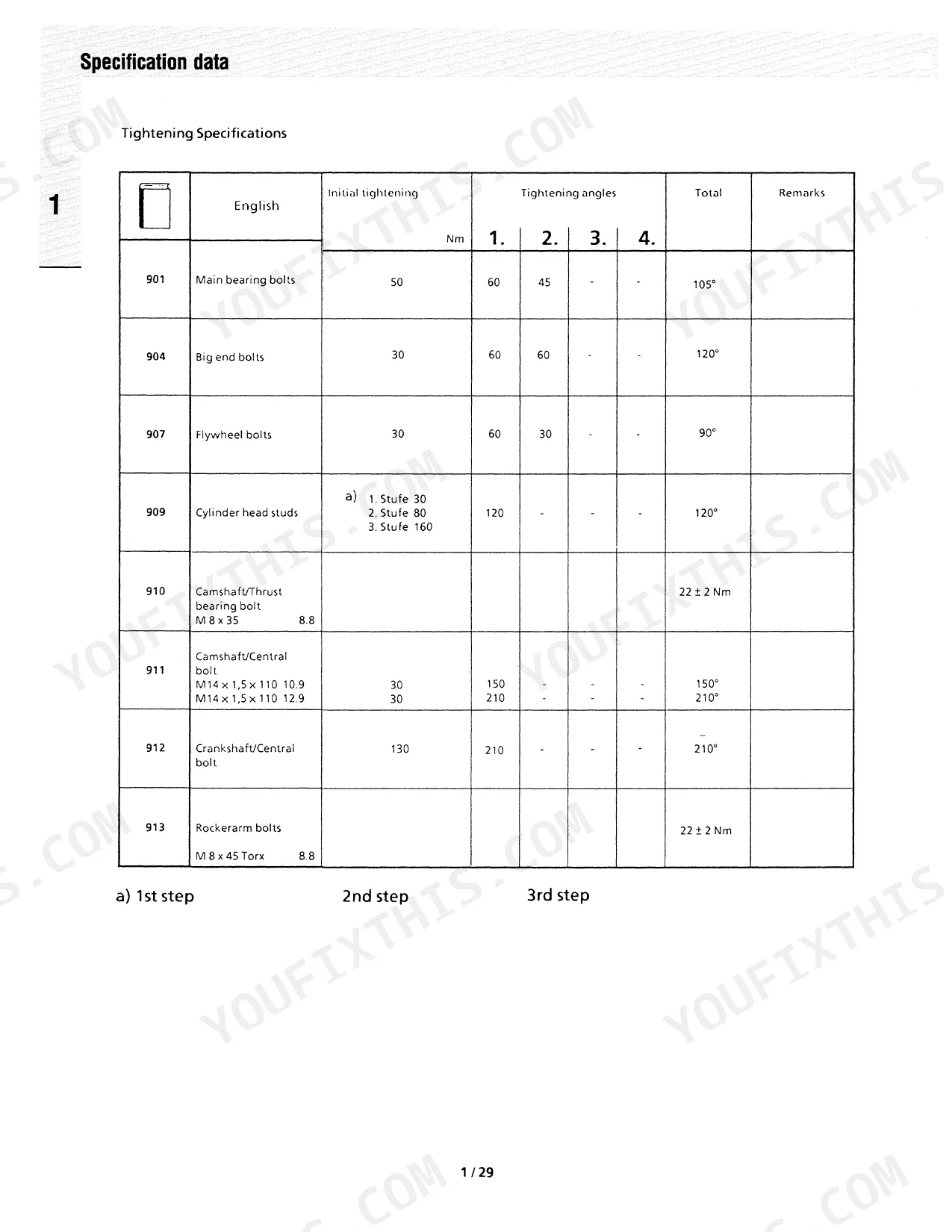

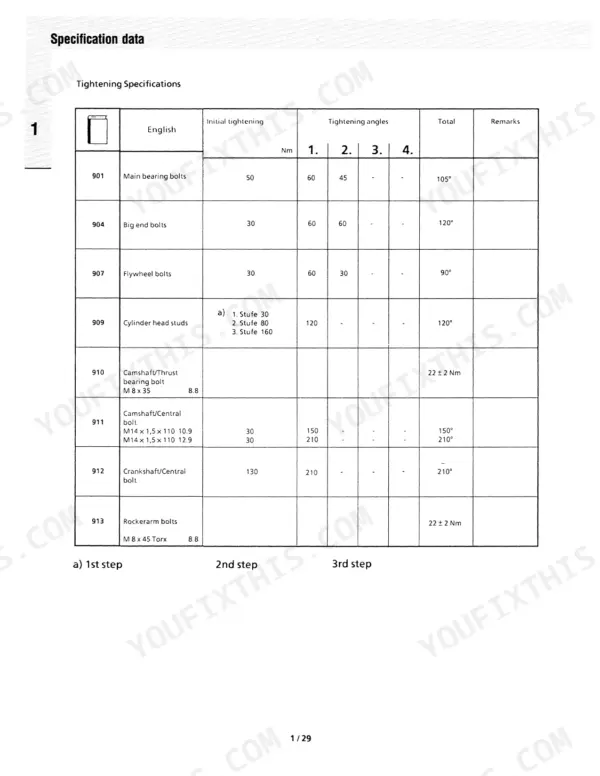

Looking for a Deutz F2L 1011 workshop manual PDF? This 232-page factory workshop manual (OEM #291-1942) covers the full 1011 engine family: F2L, F3L, F4L, and the turbocharged BF4L 1011 T. You get a deep specification section with wear limits for every valve, bearing, and piston ring, plus factory torque tables running from main bearing bolts to injector cap nuts. Inside: complete engine teardown and reassembly, component-by-component repair procedures, exploded views, and full KKK turbocharger rebuild instructions with permissible wear data. Set exhaust valve clearance at 0.5 mm; a healthy cylinder should show 25 to 30 bar compression. Your engine is down, so stop chasing wear limits through forum threads. Bookmarked with a real text layer: search any spec, jump to any section, and get wrenching.
What's Inside This Deutz F2L/F3L/F4L/BF4L 1011 Manual
| System | Pages | Key Topics |
|---|---|---|
| Specification Data | 8-45 | Fuel Injection System (Fuel Injection Pump, Make, Model, Min Pres That Must Be Attained with Abt 5 Rot of Crankshaft, Pressure for Testing Tightness of Relief Valve, Governor, Injection Nozzle, Opening Pres, Opening Pressure, Commencement of Fuel Delivery, Static W/O Advance/Retard Unit, Installation Dimension of Injection Sump) |
| Inspections, Tests, Checking, Adjusting | 46-60 | Valve Clearance, Compression Pressure, Injector |

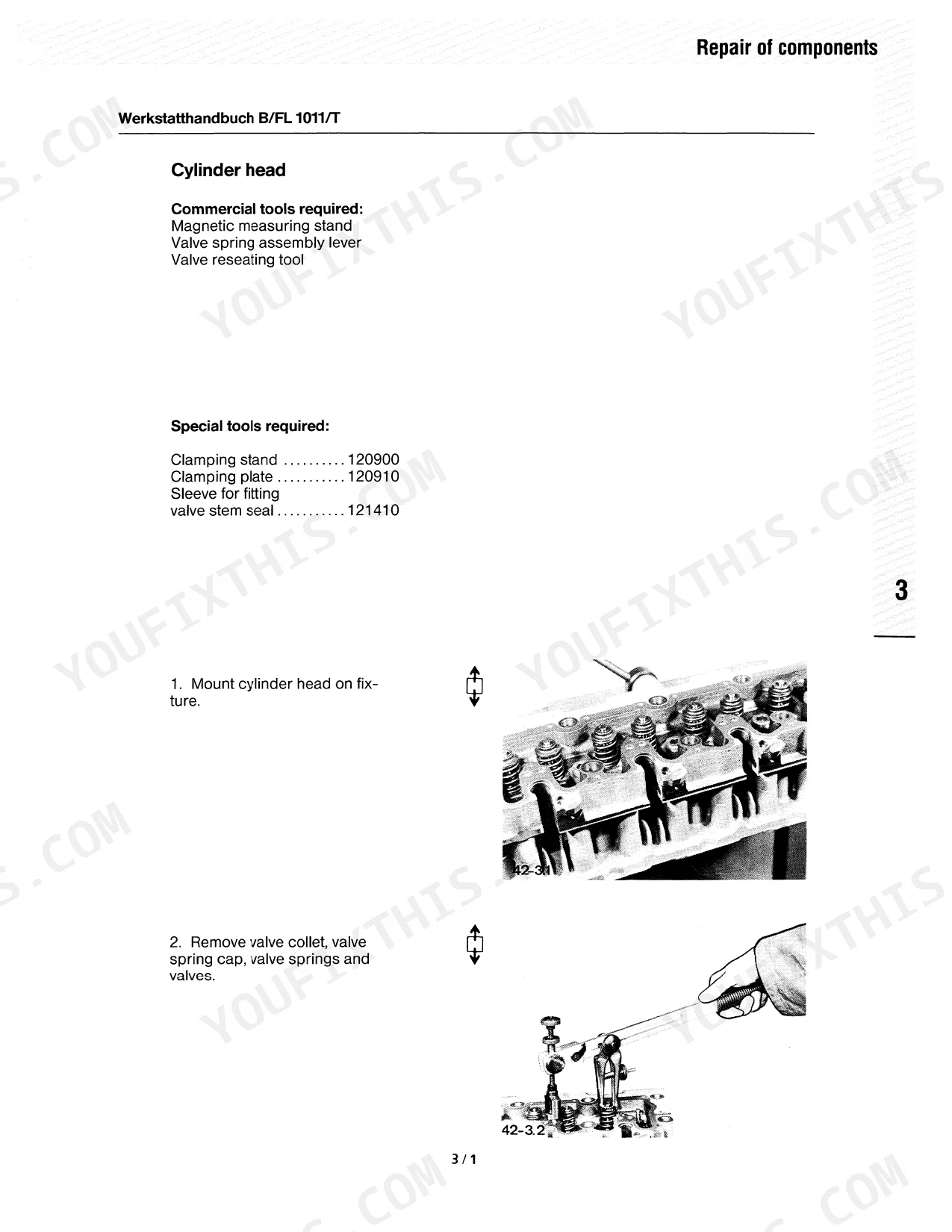

| Repair of Components | 61-125 | Cylinder Head, Blower, Front Cover, Rocker Arm Bracket, Lube Oil Pump, Thermostat Housing, Piston and Connecting Rod, Connecting Rod |
| Disassembly and Reassembly of Complete Engine | 126-203 | Dismantling Engine |
| Turbocharger | 204-221 | Repair Instructions Kkk (Dismantling, Cleaning and Inspecting of the Parts, Assembly, Repair Tools, Permissible Wear, Determining Play at the Bearings, Data Sheet, Sectional Illustrations) |

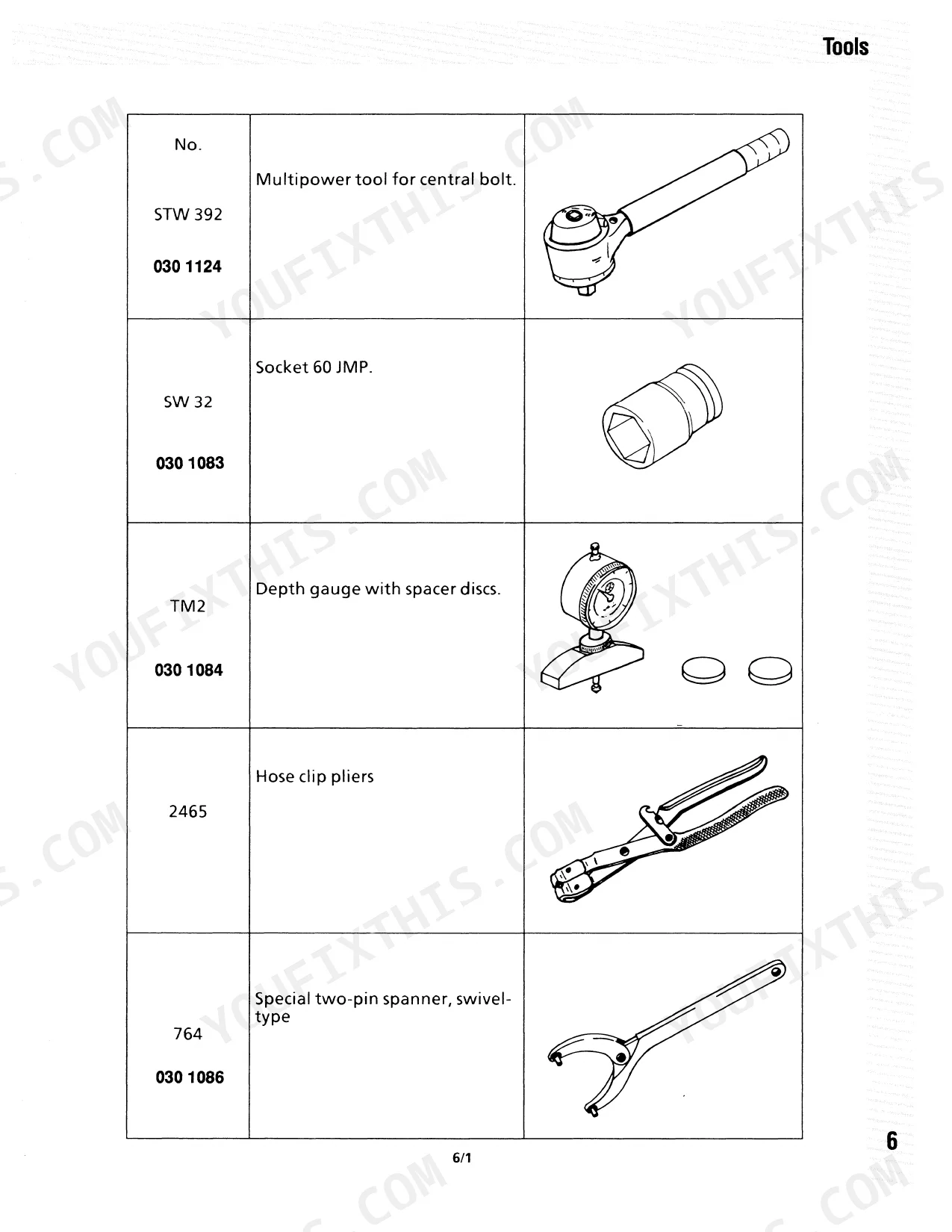

| Tools | 222-232 | Multipower Tool for Central Bolt, Socket 60 Jmp, Depth Gauge with Spacer Discs, Hose Clip Pliers, Special Two-Pin Spanner, Swivel Type, Crowfoot Spanner Sw 13 A/Flats 13 |

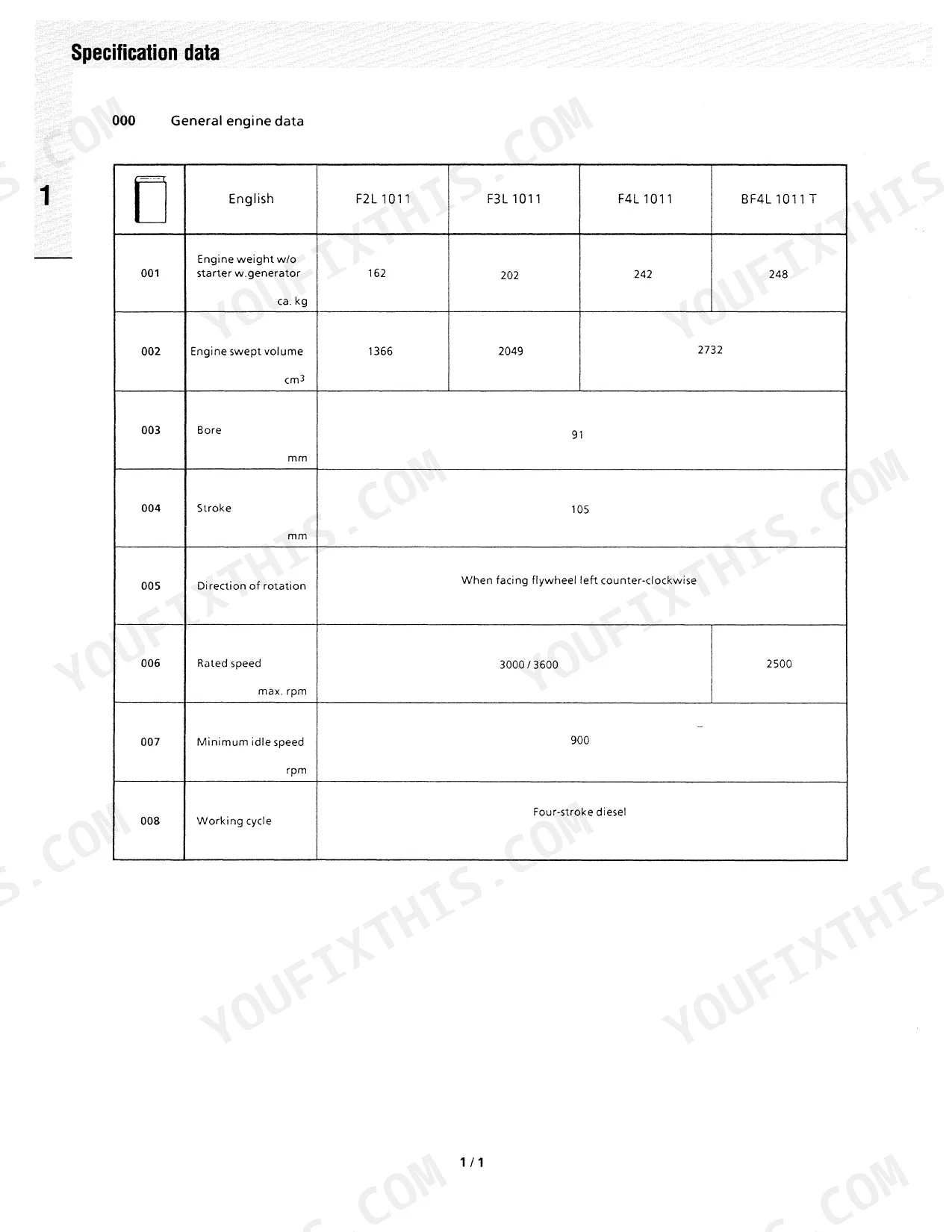

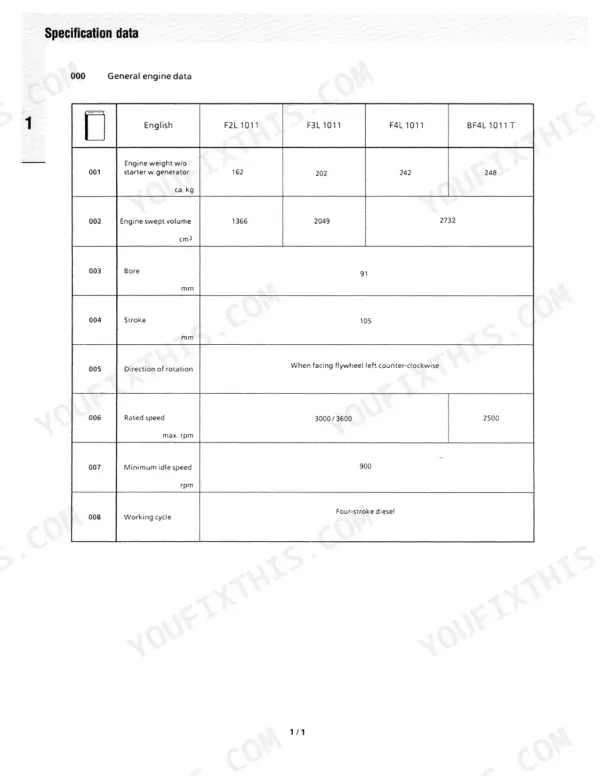

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Check - Adjust | e. g. torque, dimensions, pressures, etc. | p. 6 |
| Exhaust | 0,5 mm | p. 19 |
| Pressurestat | 6 bar | p. 37 |
| Idler pulley/V-belt pulley bolt | 45 ± 4 Nm | p. 39 |
| Idler pulley for toothed belt bolt | 45 ± 4 Nm | p. 39 |
| Permissible tolerance "A" relative to "B" | 0.08 mm | p. 100 |
| Toothed belt | Take off | p. 136 |
| Stroke | 105 mm | p. 10 |
| Min. pressure for fuel injection pump (5 rot. of crankshaft) | 300 bar | p. 12 |
| F2L 1011, F3L 1011, F4L 1011 | ||
| Compression pressure | 25-30 bar | p. 11 |
| Compression ratio | 18.5:1 | p. 11 |
| BF4L 1011 T | ||
| Compression ratio | 17:1 | p. 11 |
Deutz F2L/F3L/F4L/BF4L 1011 Common Problems This Manual Covers
Deutz F2L 1011 idler pulley wobble past 4500 hours, toothed belt squealing and walking off the pulleys
Replace the toothed belt and idler pulley as a set; never reuse a worn pulley with a new belt. Torque the new idler pulley bolt to 45 Nm as shown on page 157, set new belt tension to a 6.5-9.5 scale reading per page 158, and confirm the belt runs 8-9 mm from the front cover.
Manual Section: Disassembly and Reassembly of Complete Engine p. 157Engine cranks normally but will not fire, hard starting and white smoke when cold
Check fuel supply and bleed the system first, then run a compression test following the procedure starting on page 55. On F2L, F3L, and F4L engines healthy cylinders read 25-30 bar; low readings spread across all cylinders point to worn rings or valve seats, so pull the head before condemning the injection pump.
Manual Section: Inspections, Tests, Checking, Adjusting p. 55Loud ticking from the rocker cover at idle, power fades under load

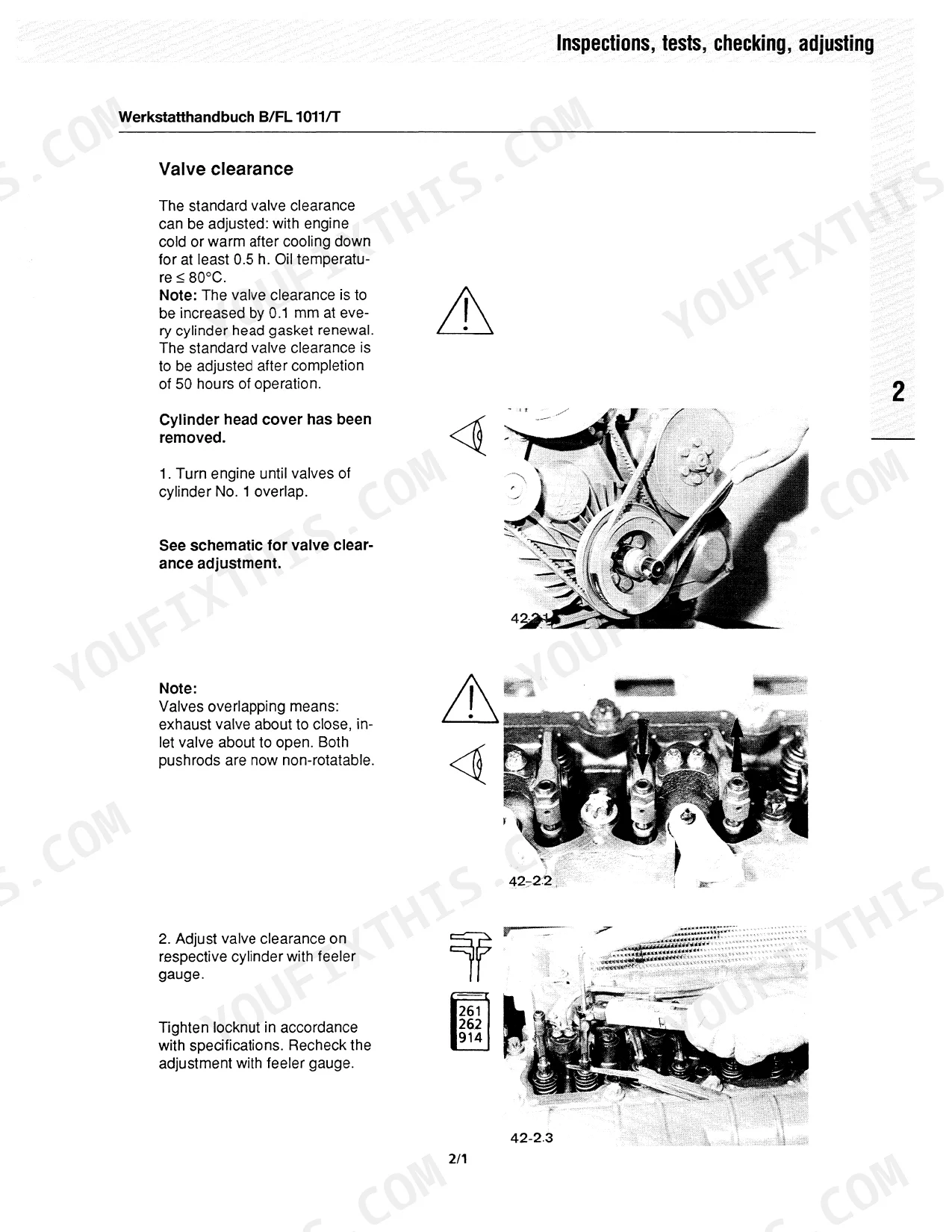

Adjust valve clearance with the engine cold, following the schematic on page 51. Set exhaust valves to 0.5 mm per the spec table on page 19, rotating the crankshaft to bring each cylinder to overlap in firing order. Clearance that keeps closing up means receding valve seats, so measure seat recession before it burns a valve.
Manual Section: Inspections, Tests, Checking, Adjusting p. 51Black exhaust smoke under full load with rough running and intermittent cylinder knock
Test the injection pump before blaming injectors. Crank the engine about five rotations; the pump must build at least 300 bar, per the spec on page 12. If pressure comes up short, check for leaks at the delivery valve following the test procedures in the inspections section starting on page 46.
Manual Section: Inspections, Tests, Checking, Adjusting p. 46Low oil pressure warning light flickers at hot idle after extended running
Verify oil pressure with a mechanical gauge before pulling the pan. At low idle with oil around 120°C on SAE 20W/20, you need at least 1.1 bar per page 37. Anything lower, drop the filter, inspect the lube oil pump for wear, and check the pressurestat, which is set at 6 bar.
Manual Section: Specification Data p. 37Frequently Asked Questions
What are the torque specs for the exhaust valve clearance on Deutz 1011 engines?
The standard exhaust valve clearance for Deutz 1011 engines is 0.5 mm. The locknut for the rocker arm setscrew should be tightened to 20 ± 2 Nm. For the complete adjustment procedure, refer to page 51. p. 51
What is the oil pressure range for Deutz F2L 1011, F3L 1011, and F4L 1011?
For Deutz F2L 1011, F3L 1011, and F4L 1011 engines, the pressurestat is set to 6 bar. The lube oil pressure at low idling, with oil temperature approximately 120°C (SAE20W/20), should be a minimum of 1.1 bar. p. 37
How to adjust exhaust valve clearance on Deutz 1011 (0.5 mm)?
To adjust the exhaust valve clearance on Deutz 1011 engines to 0.5 mm, first turn the engine until the valves of cylinder No. 1 overlap. Then, adjust the valve clearance on the respective cylinder using a feeler gauge. Tighten the locknut to 20 ± 2 Nm and recheck the adjustment. p. 51
What are the replacement specifications for Idler pulley?
For the V-belt idler pulley, the manual states to inspect individual component parts and replace the ball bearing as necessary. No specific replacement specifications (e.g., dimensions or part numbers) are provided for the idler pulley itself, beyond the instruction to replace the ball bearing. p. 102
What are the replacement specifications for Toothed belt (timing belt)?
When replacing the toothed belt, it should be positioned to ensure a uniform distance from the front cover of 8 - 9 mm. After preloading, the toothed belt tension should be measured with a device, aiming for a nominal scale reading of 6.5 - 9.5. If a toothed belt that has been running for 200 hours or more is re-used, the tension should be adjusted to a scale reading of 3-5. p. 158
How quickly can I access this Deutz F2L 1011 & variants manual after buying?
Immediate download of the complete 232-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this Deutz F2L 1011 & variants Workshop Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
