Starting drill, power take-off engagement, three-point lift work with ploughs and harrows, servicing intervals, wiring, storage: this factory operator manual walks a Fiat 55-66 or 60-66 through every system the person in the seat actually touches. Publication 603.64.049.00 runs 95 pages in English and covers the 8035 series diesel engines fitted to both tractors.
Guessing a relief valve setting or a service interval from a forum thread is how lift pumps and front axles get ruined. Here the Specification and Servicing Schedule sections carry the figures Fiat actually published, and dedicated chapters handle the DT four wheel drive models, the 20-speed and reverser transmissions, the No-Spin differential, and the heated cab version.
As a PDF it rides on your phone or as a printout in the toolbox, so the answer is out in the field with you while the weather window is still open.
What's Inside This Fiat 55-66, 60-66 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 10-12 | Authorized Shops, Repair Work, Overhaul Work, Skilled Servicemen |
| Tractor Identification Data | 13 | Frame Type, Frame Number, Tractor Data Plate, Engine Type, Engine Number |
| Safety Precautions | 14-20 | General Safety, Tractor Starting, Operation Safety |

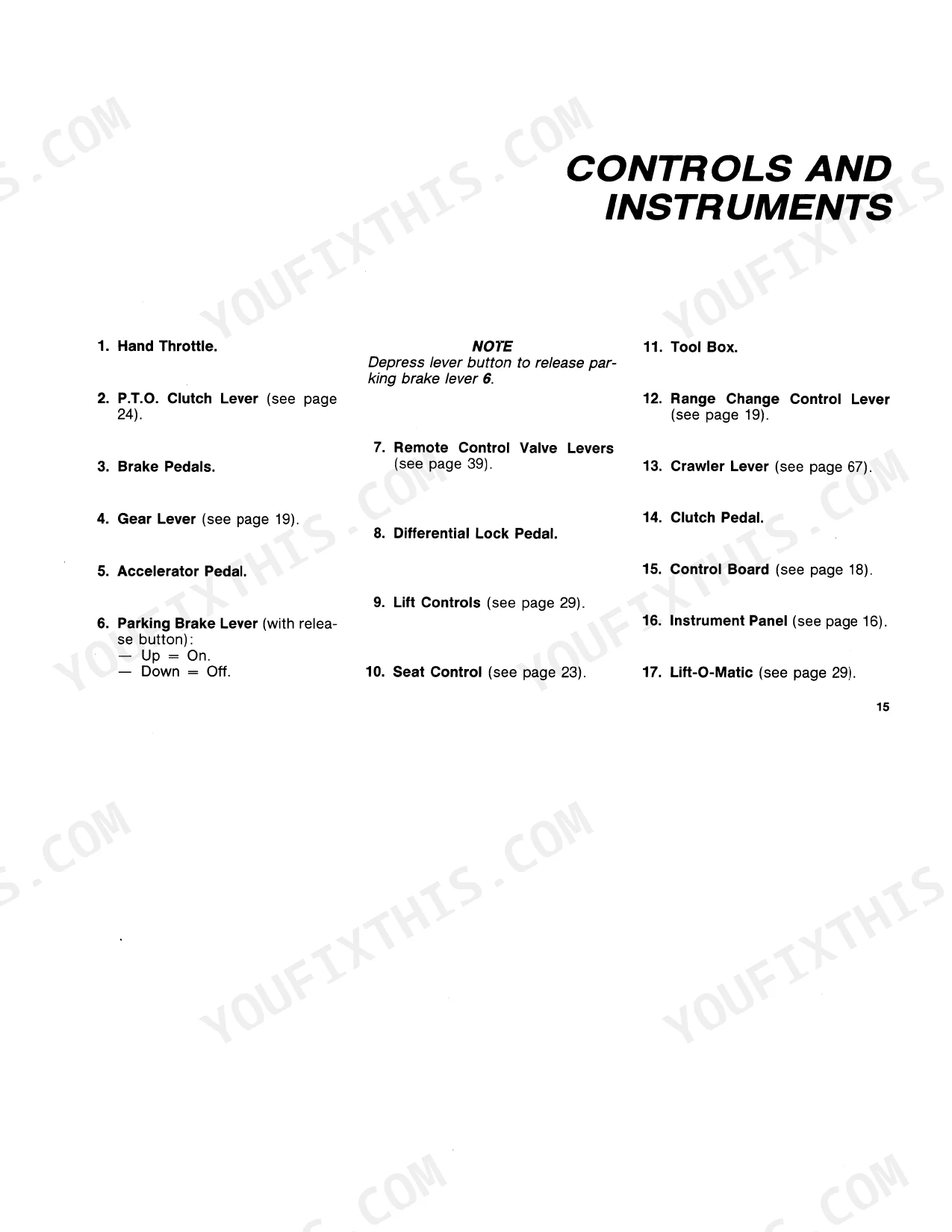

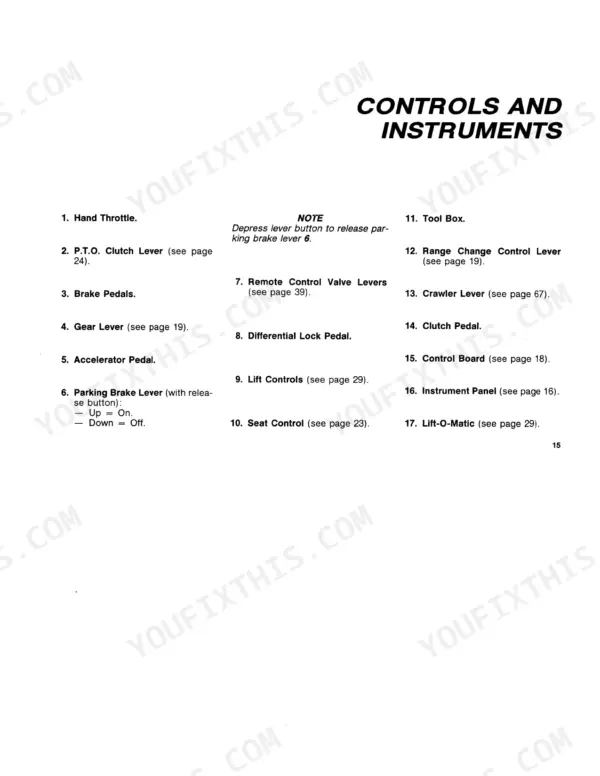

| Controls and Instruments | 21-25 | Instrument Panel, Control Board |

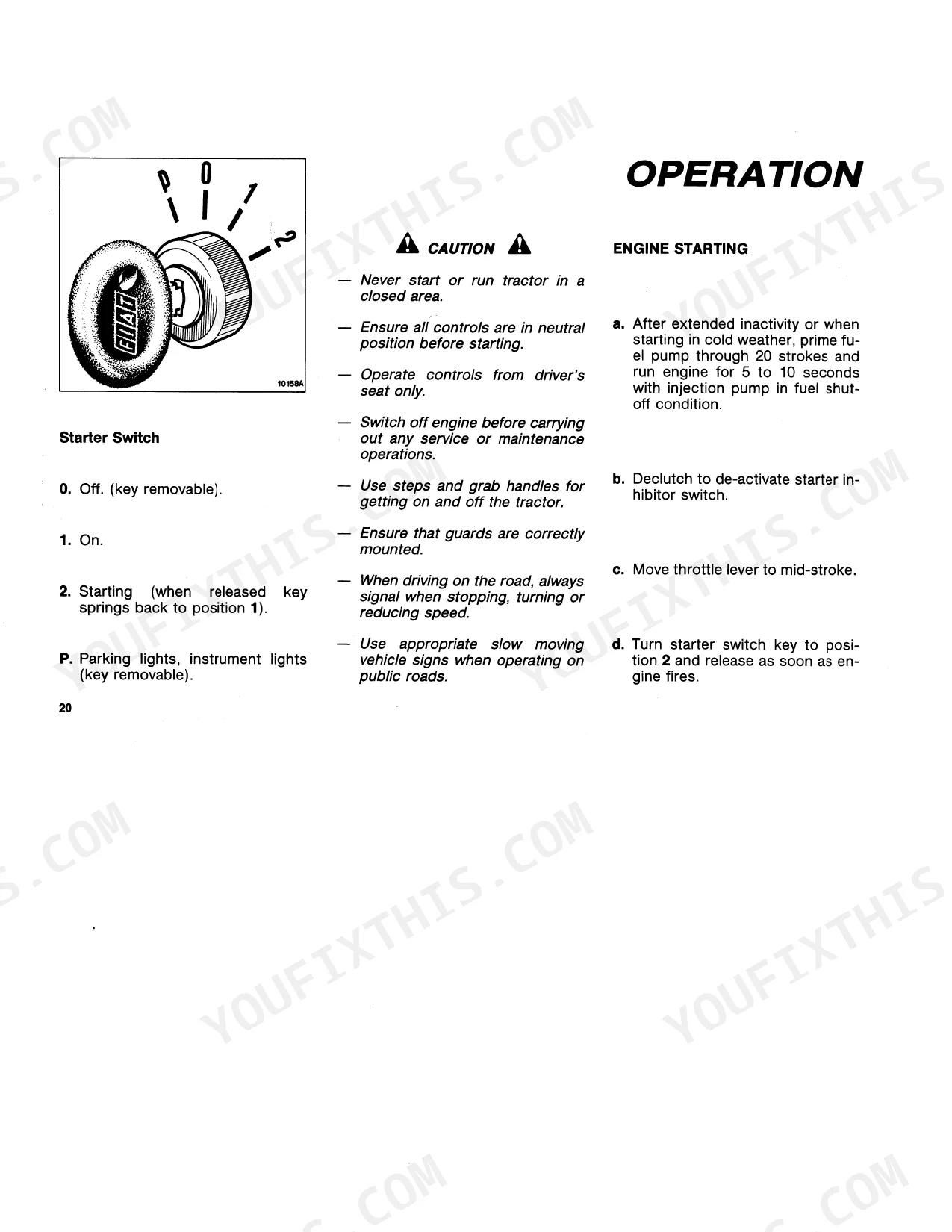

| Operation | 26-36 | Engine Starting, Starting and Stopping, Power Take-Off |
| Guide to Lift Operation | 37-52 | Moldboard Ploughs, Disc Ploughs, Harrows, Sub-Soiler, Ditchers, Cultivators |

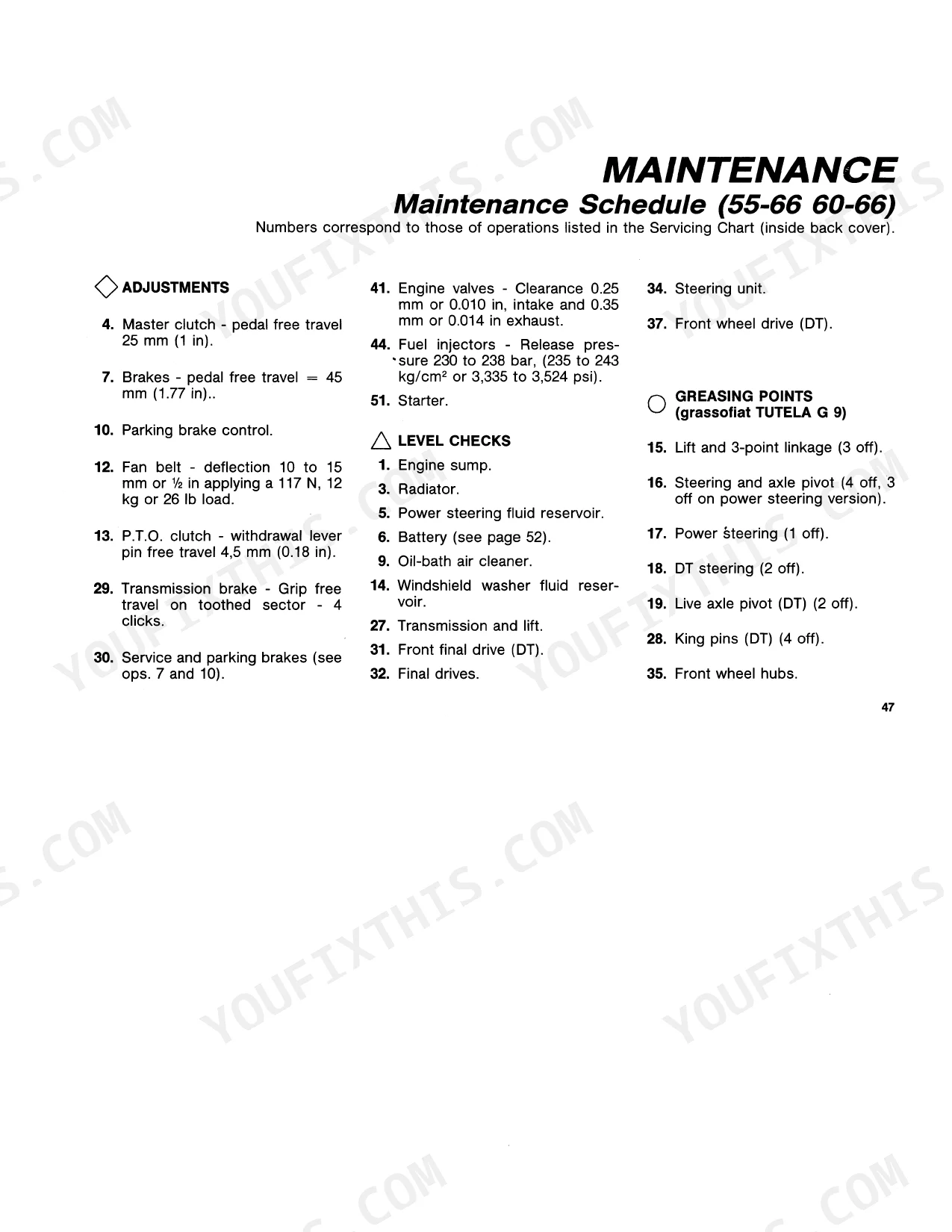

| Servicing Schedule | 53-57 | Maintenance Schedule |
| Electrical System | 58-60 | Battery Maintenance |
| Wiring Diagram | 61-63 | Headlamps, Alternator, Oil Pressure Indicator, Air Cleaner Indicator, Fuel Level Indicator, Starter |
| Specification | 64-69 | Engine Model, Bore and Stroke, Displacement, Compression Ratio, Fuel System, Lift Capacity |
| Dt and 60-66 Dt Tractors | 70-74 | Front Wheel Drive, Front Axle, Steering, Front Track Adjustment, Tire Matching |
| Speed Version | 75-76 | Pinion Drive, Creeper Gear, Transmission, Forward Gears, Reverse Ratios |
| Reverser Version | 77-78 | Reverser-Splitter Unit, Forward Speeds, Reverse Speeds, Travel Direction |
| No-Spin Version | 79-81 | Splined Sleeves, Dog Clutch Rings, Differential Unit, Front Axle Ring Gear Housing |
| Heated and Ventilated Cab Version | 82-88 | Cab Features |
| Tractor Storage | 89-90 | Fuel Injection Pump, Engine Oil, Cleaner Oil, Engine Cooling System, Battery, Front Axle, Rear Transmission |
| Servicing Chart | 92-95 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nuts torque | 294 Nm | p. 46 |
| Engine oil change interval | 200 hours | p. 54 |
| Fan belt deflection | 10 to 15 mm | p. 53 |
| Engine Valve Clearance (Intake) | 0.25 mm | p. 53 |
| Engine Valve Clearance (Exhaust) | 0.35 mm | p. 53 |
| Fuel Injector Release Pressure | 230 to 238 bar | p. 53 |
| Hydraulic Pump Output | 32.8 liter/min | p. 67 |
| Hydraulic Relief Valve Setting | 186 bar | p. 67 |
| 55-66 | ||
| Operating Weight (55-66) | 2400 kg | p. 64 |
| 60-66 | ||
| Operating Weight (60-66) | 2440 kg | p. 64 |
| DT models | ||
| Front Wheel Drive Relief Valve Setting (2-wheel drive) | 100 bar | p. 72 |
| Front Wheel Drive Relief Valve Setting (4-wheel drive) | 125 bar | p. 72 |
Fiat 55-66, 60-66 Common Problems This Manual Covers
Lift will not raise or hold implements
A hitch that drops a plough mid-pass or refuses to pick up a harrow is usually a control setup problem before it is a pump problem. The lift guide walks through draft and position control for moldboard ploughs, disc ploughs, harrows, sub-soilers, ditchers, and cultivators, so you can rule out operator settings before opening anything up.
Manual Section: Guide to Lift Operation p. 37Hard starting on cold mornings
The 8035 diesels in these tractors are fussy about the starting sequence when it is cold, and cranking them wrong just flattens the battery. The Operation section covers engine starting and stopping step by step, along with power take-off engagement.
Manual Section: Operation p. 26Flat battery or charging trouble
A tractor that sits between seasons often will not crank when you finally need it. The Electrical System section covers battery maintenance so the charge is there when planting starts.
Manual Section: Electrical System p. 58Dead gauges, lamps, or warning lights
Forty-year-old wiring means corroded grounds and dead indicators are routine on these tractors. The wiring diagram traces the headlamps, alternator, starter, and the oil pressure, air cleaner, and fuel level indicators, so you can follow a circuit instead of pulling wires at random.
Manual Section: Wiring Diagram p. 61Front tire wear on DT models
Mismatched front and rear tires on a 55-66 DT or 60-66 DT scrub the front axle and wear rubber fast. The DT chapter covers front wheel drive, steering, front track adjustment, and tire matching so the axle pulls instead of fighting itself.
Manual Section: Dt and 60-66 Dt Tractors p. 70Poor traction from one spinning wheel
On wet ground a standard differential sends the power to whichever wheel has the least grip. The No-Spin section explains the dog clutch rings and splined sleeves in that differential unit, so you know how it locks and what wear to look for.
Manual Section: No-Spin Version p. 79Gummed fuel system after winter layup
Parking the tractor in November without preparing it is how you inherit a stuck injection pump in March. The storage section covers the fuel injection pump, engine oil, cooling system, battery, front axle, and rear transmission before a long layup.
Manual Section: Tractor Storage p. 89Frequently Asked Questions
Which tractors does this manual cover?
The Fiat 55-66 and 60-66, including the 55-66 DT and 60-66 DT four wheel drive models, plus the 20-speed, reverser, No-Spin, and heated cab versions, each in its own chapter. Engine models 8035.06.206, 8035.06.306, 8035.05.206, and 8035.05.306 are listed.
Does it include a wiring diagram?
Yes. The Wiring Diagram section covers the headlamps, alternator, starter, and the oil pressure, air cleaner, and fuel level indicator circuits, and the separate Electrical System section covers battery maintenance. p. 61
Are maintenance intervals included?
Yes. The Servicing Schedule section lays out the maintenance schedule by interval, and a Servicing Chart at the back summarizes it. Working from the printed schedule beats guessing an interval and finding out the hard way. p. 53
Do I get instant access to this Fiat 55-66 Operator Manual?
All 95 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Am I free to print this Fiat 55-66 Operator Manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
