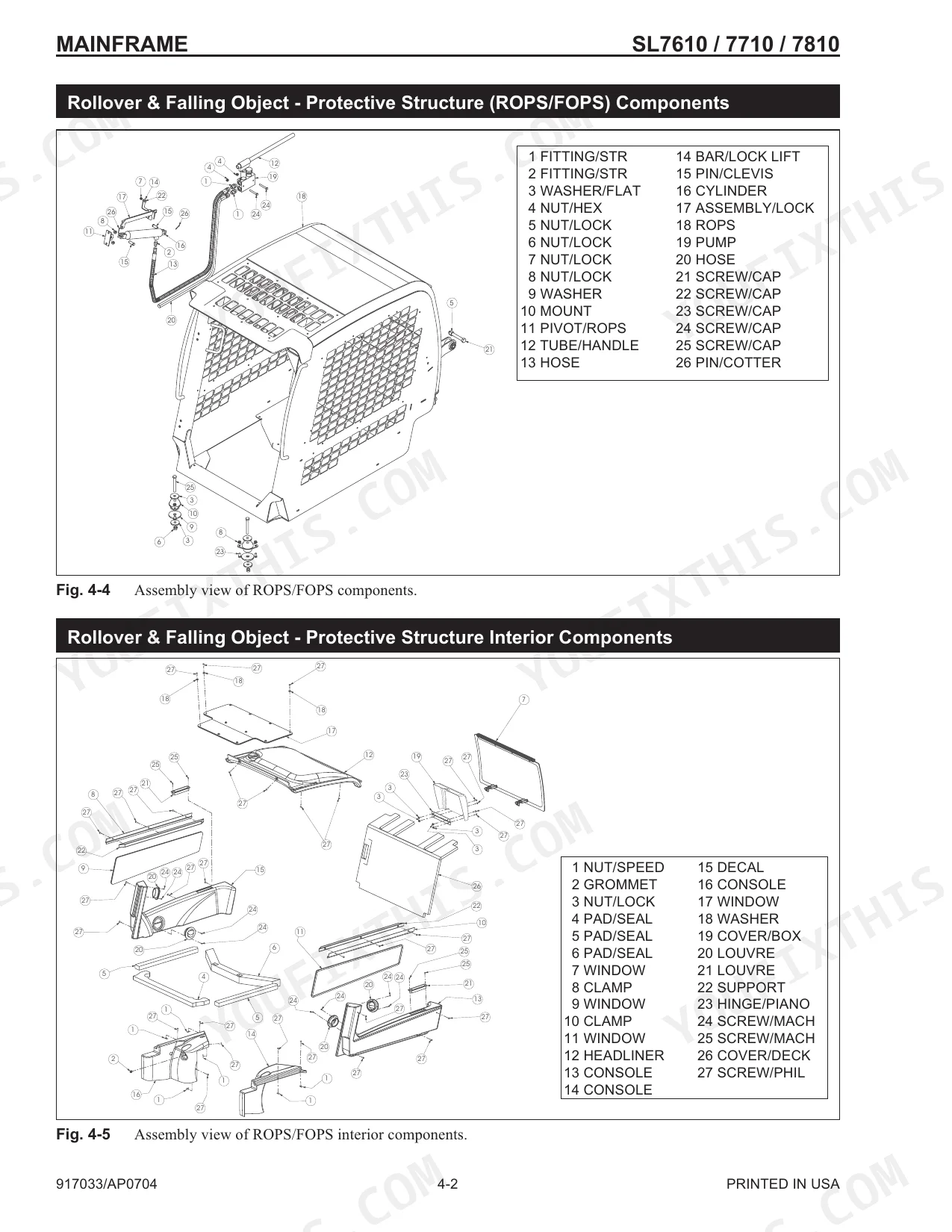

Need factory-level service data for your Gehl SL7610, SL7710 (EU), or SL7810? This 230-page Gehl Skid-Steer Loader Service Manual (OEM #917033) covers every system on all three models. Inside: hydraulic and hydrostatic schematics with complete fluid routing for the 7010 Series, wiring diagrams for naturally-aspirated and turbocharged models, and pinout charts for the Interlock Control Module. You also get troubleshooting guides for every major system, 15 calibration procedures, detailed exploded-view diagrams, and 100 pages of step-by-step procedures spanning mainframe, wheel drives, controls, and engine. Torque the liftarm screws to 240 ft-lb; set the upper tilt cylinder pin to liftarm at 80 ft-lbs (108 N•m). Your machine is down. Bookmarked and keyword-searchable, open it on any device and find your spec in seconds.
What's Inside This Gehl SL7610, SL7710 (EU), SL7810 Manual
| System | Pages | Key Topics |
|---|---|---|

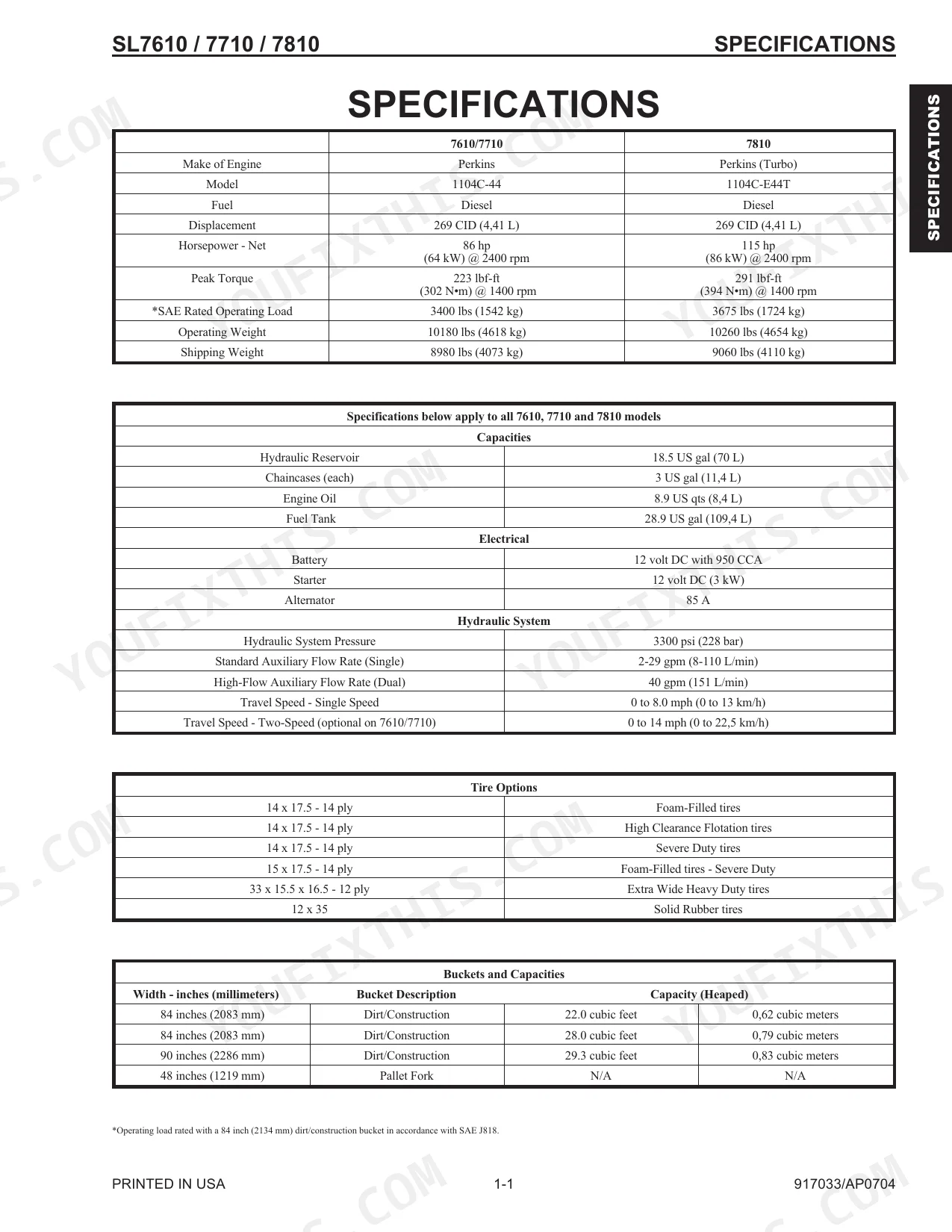

| Specifications | 7-8 | Dimensional Specifications |

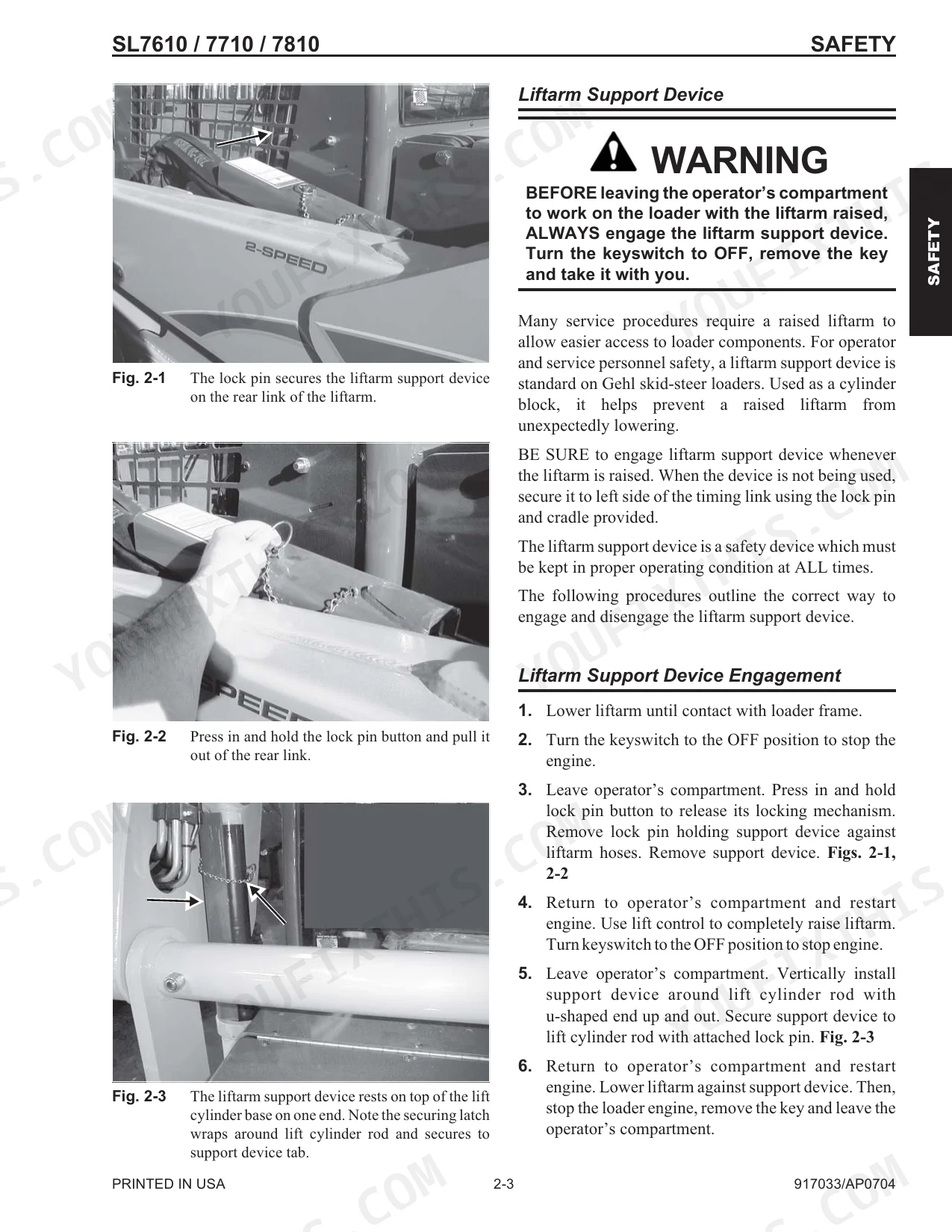

| Safety | 9-16 | Signal Words, Additional Safety Reminders, Mandatory Safety Shutdown Procedure, Liftarm Support Device, Liftarm Support Device Engagement, Liftarm Support Device Disengagement |
| Lubrication | 17-20 | Hydraulic Oil Reservoir, Crankcase Oil, Chaincases, Grease Fitting Locations, Cooling System Drain Procedures |
| Mainframe | 21-50 | Introduction, Engine Access Covers - Removal and Installation, Rollover Protective Structure Removal and Installation, Seat Removal and Installation, Seat Slide Replacement |

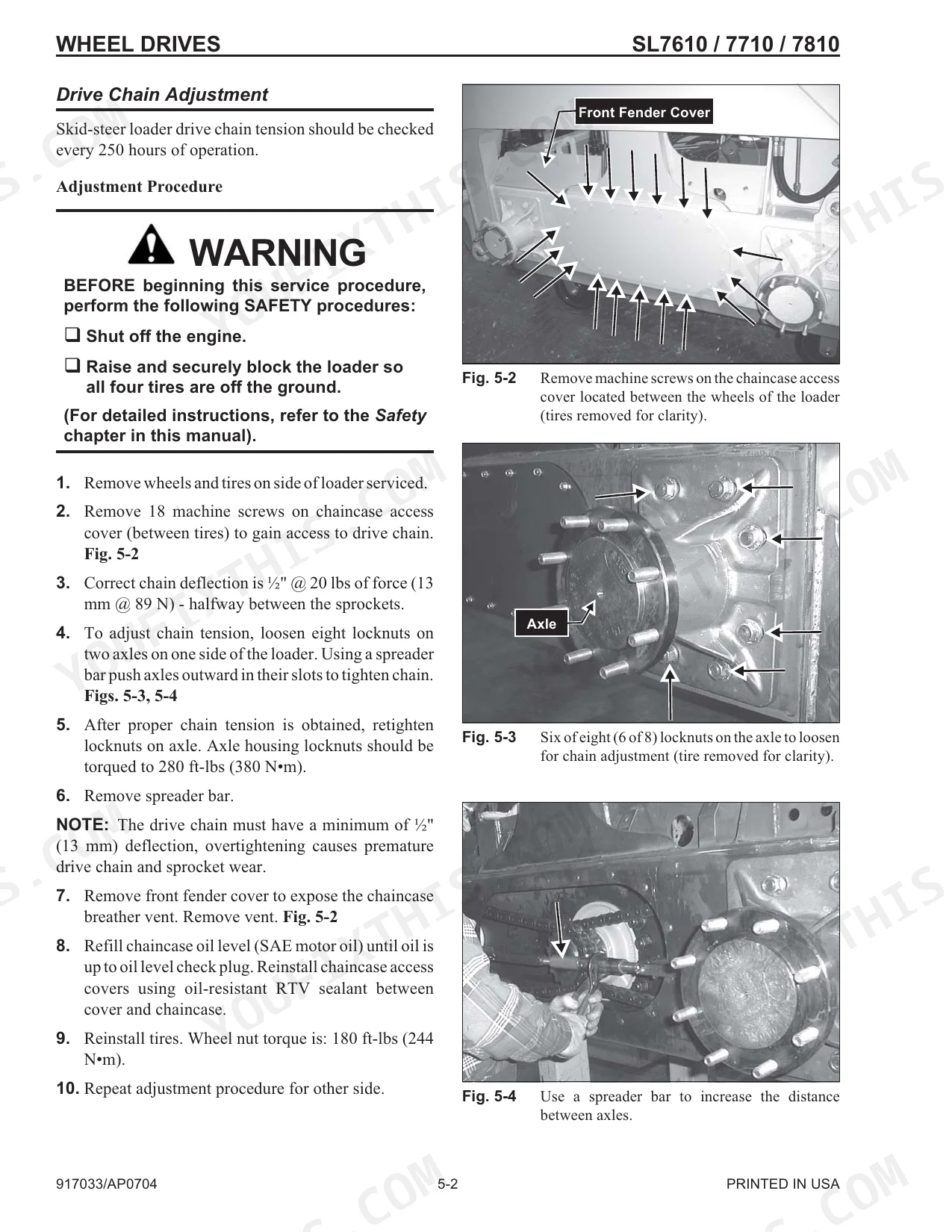

| Wheel Drives | 51-58 | Introduction, Drive Chain Adjustment, Axle Housing Assembly Removal and Installation, Drive Chain Removal and Installation, Axle and Wheel Bearing Disassembly and Assembly |
| Controls | 59-98 | Introduction, Control Handle Removal and Installation, Control Handle Position Adjustment, Control Handle Tracking Adjustment, Traction Controls, T-Bar Control Handle Assembly |
| Hydrostatic System | 99-112 | Introduction, Troubleshooting Guide, Charge Pressure Test and Adjustment, Hydrostatic Pump Relief Valves, Hydrostatic Pump Removal and Installation |
| Hydraulic System | 113-160 | Introduction, Troubleshooting Guide, Pressure Tests, System and Load-Sense Standby, Tilt Cylinder Test, Self-Leveling Valve Test, Lift Cylinder Test |

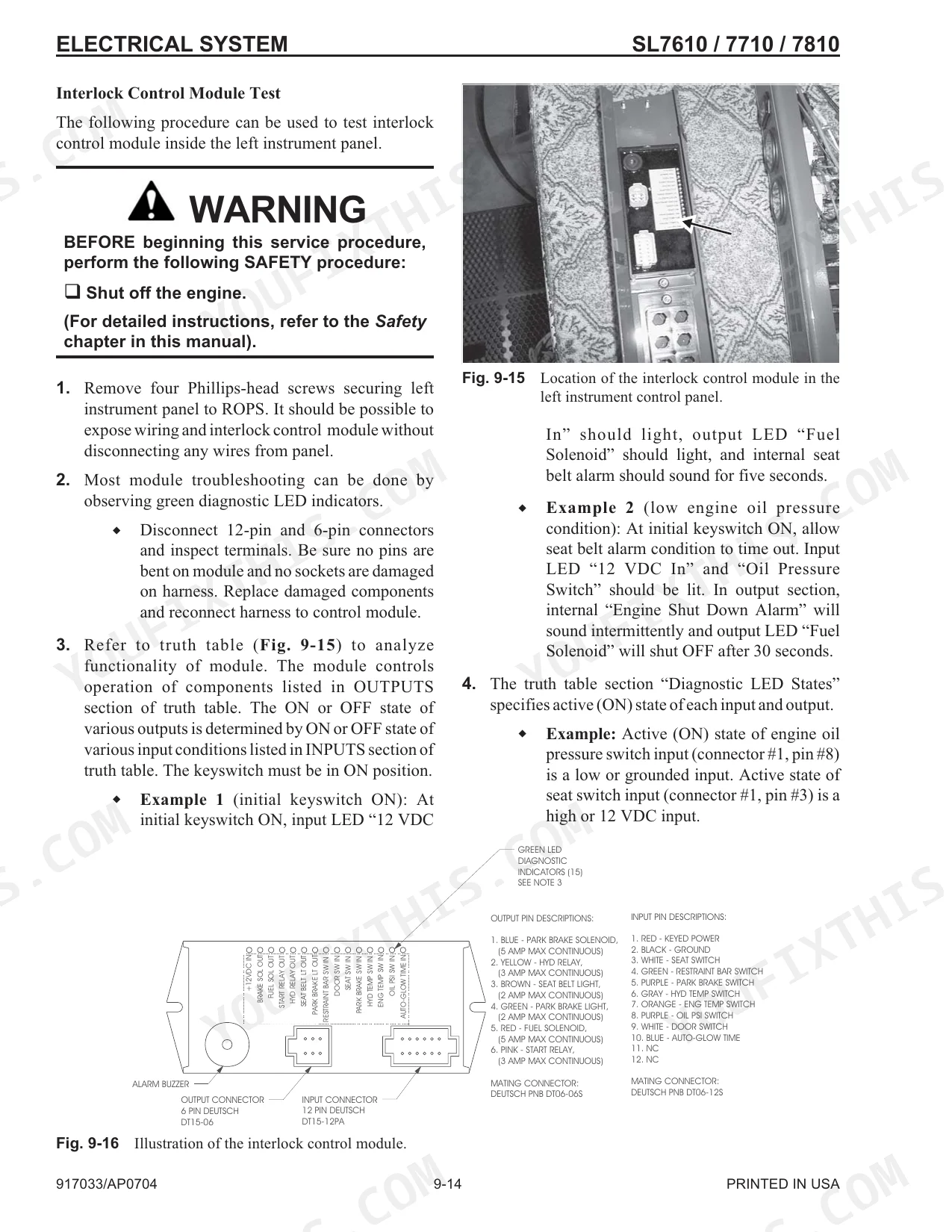

| Electrical System | 161-194 | Introduction, Operation - Right and Left Instrument Panels, Troubleshooting Guide, Module and Relay Test and Operation, Interlock Control Module Truth Table |
| Engine | 195-218 | Introduction, Troubleshooting Guide, Oil Filter Element Removal and Installation, Air Cleaner Assembly Removal and Installation, Air Filter Element Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Liftarm screws/caps torque | 240 FT-LB | p. 34 |
| Upper tilt cylinder pin to liftarm torque | 80 ft-lbs (108 N•m) | p. 133 |
| Hydraulic System Troubleshooting Guide | Page 113 | p. 113 |
| Hydraulic fittings torque | DO NOT OVERTIGHTEN | p. 39 |
| Air filter element replacement | Replace both air filter elements | p. 205 |
| Battery replacement | Recharge or replace battery as needed | p. 164 |
| Hydrostatic pump to flywheel housing torque | 55 ft-lbs (73 N•m) | p. 109 |
| Axle nut torque | 280 ft-lbs (380 N•m) | p. 53 |
| Hydrostatic System Troubleshooting Guide | Page 103 | p. 103 |
| Electrical System Troubleshooting Guide | Page 163 | p. 163 |
| Hydrostatic System Troubleshooting Guide (overheating) | Page 104 | p. 104 |
| Engine Troubleshooting Guide (overheating) | Page 196 | p. 196 |
Gehl SL7610, SL7710 (EU), SL7810 Common Problems This Manual Covers
Gehl SL7610 cranks but won't start, or no-crank condition in cold weather p. 195
Check the troubleshooting chart on page 195. Verify battery voltage is adequate — this series requires a 950 CCA battery, so test under load before condemning the starter. Inspect the interlock circuit: seat belt, safety lock lever, and seat switch must all be satisfied before the starter relay energizes. Test the starter relay and glow relay per the procedures on page 171.
Manual Section: Engine Troubleshooting GuideLoader won't lift or tilt, hydraulic response sluggish or completely absent p. 113
Check hydraulic fluid level first — reservoir capacity is 18.5 US gal (70 L). If fluid is good, run the pressure tests on page 123: system pressure should reach 3300 psi (228 bar) and load-sense standby must read between 200 and 225 PSI (14-15 bar). Low standby pressure points to a pump or load-sense circuit fault. Work through the hydraulic troubleshooting guide starting on page 113.
Manual Section: Hydraulic System Troubleshooting GuideMachine loses drive power on one or both sides, hydrostatic system feels weak or noisy p. 103
Inspect the hydrostatic charge pressure first using the test procedure on page 107 — spec is 350-400 PSI (24-28 bar). Low charge pressure is the leading cause of sluggish or one-sided drive loss. Also check drive chain tension per page 52; a stretched chain can mimic pump symptoms. Work the full hydrostatic troubleshooting guide on page 103 before pulling the pump.
Manual Section: Hydrostatic System Troubleshooting GuideHydraulic system overheating, fluid discolors or smells burned within hours of work p. 104
Verify fluid type on page 18 — only ISO VG46 equivalent such as Mobil DTE 15M or Petro-Canada Premium HVI60 is approved; wrong viscosity causes rapid heat buildup. Check the engine fan belt tension per page 210 and inspect the cooler core for debris. Drain and refill the 18.5 US gal (70 L) reservoir if fluid is contaminated; the service interval is every 1000 hours or annually. Follow the overheating branch of the hydrostatic troubleshooting guide on page 104.
Manual Section: Hydrostatic System Troubleshooting GuideAuxiliary hydraulics, safety lock, or two-speed function intermittently fails or stops responding p. 175
Test the solenoid valves per page 130 — check for 12V at the coil connector and verify coil resistance is in spec. If a coil was recently serviced, confirm the retaining nut is torqued to exactly 45 in-lbs (5.1 N•m); over- or under-torquing causes intermittent contact. Then run the interlock module truth table in the electrical section on page 175 to rule out a safety-interlock fault before condemning the solenoid itself.
Manual Section: Electrical System Troubleshooting GuideBucket drifts or tilt cylinder creeps down when loader arms are raised and machine is parked p. 113
Raise the loader arms, engage the liftarm support device per the safety procedure on page 9, then test tilt cylinder drift: acceptable maximum is 0.4 inches (10 mm) over 15 minutes per the spec on page 126. Drift beyond that spec points to the tilt cylinder seals or the self-leveling valve. Adjust the self-leveling valve on page 144 before pulling the cylinder, and inspect hydraulic fittings for weeping — do not overtighten per the guidance on page 39.
Manual Section: Hydraulic System Troubleshooting GuideFrequently Asked Questions
What are the torque specifications for wheel nuts, hydraulic fittings, and lift arm components on a Gehl SL7610 / SL7710 (EU) / SL7810?
For wheel nuts, the torque specification is 180 ft-lbs (244 N•m). Axle housing locknuts should be torqued to 280 ft-lbs (380 N•m). When securing the head gland and piston on the cylinder rod, the locknut should be torqued to 350 ft-lbs (474 N•m). Additionally, the coil retaining nut for safety lock valves should not exceed 45 in-lbs (5.1 N•m).
How do I troubleshoot lift, tilt, or drive issues on a Gehl SL7610 / SL7710 (EU) / SL7810?

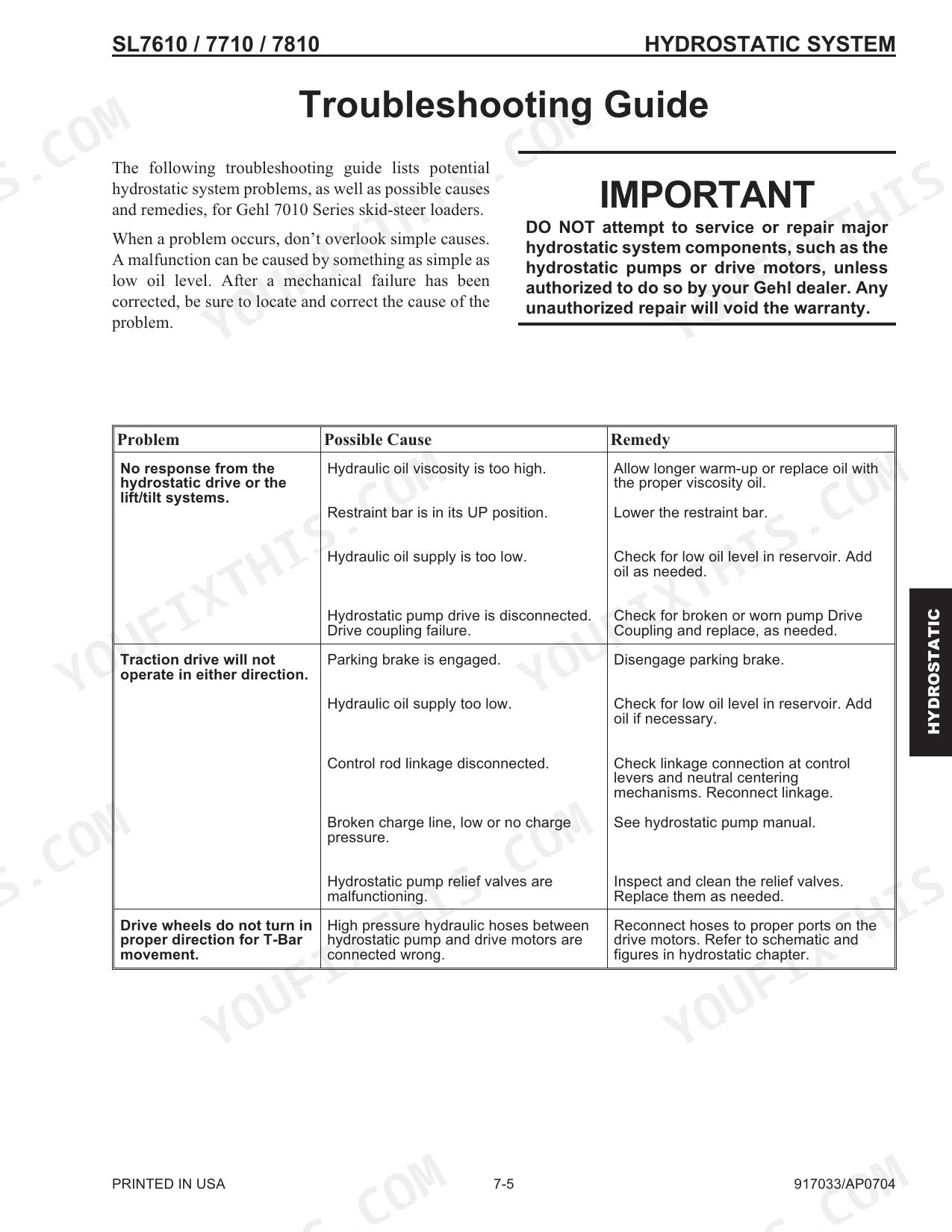

To troubleshoot lift, tilt, or drive issues, refer to the Hydrostatic System Troubleshooting Guide (pages 103-106) for drive-related problems such as no response from the hydrostatic drive, sluggish acceleration, or overheating. For lift and tilt issues, consult the Hydraulic System Troubleshooting Guide (pages 113-116), which covers problems like controls failing to respond, slow cylinder action, or the liftarm not maintaining its raised position.
What format is this Gehl SL7610, SL7710 (EU), SL7810 manual in?
This is a 230-page searchable PDF ready for immediate download. Works on any device — pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Gehl SL7610, SL7710 (EU), SL7810?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Gehl SL7610, SL7710 (EU), SL7810?

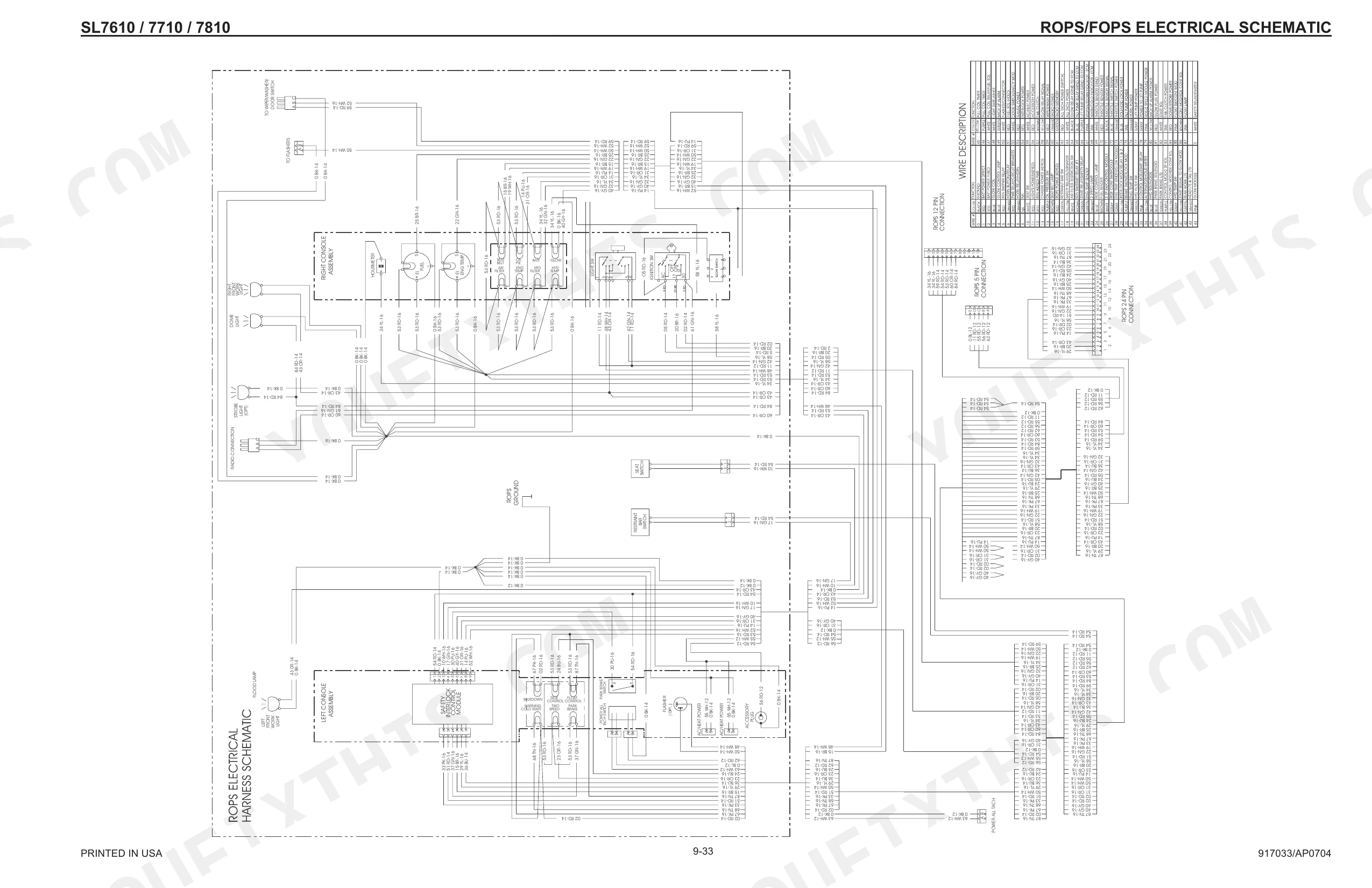

Yes, this Gehl SL7610, SL7710 (EU), SL7810 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
